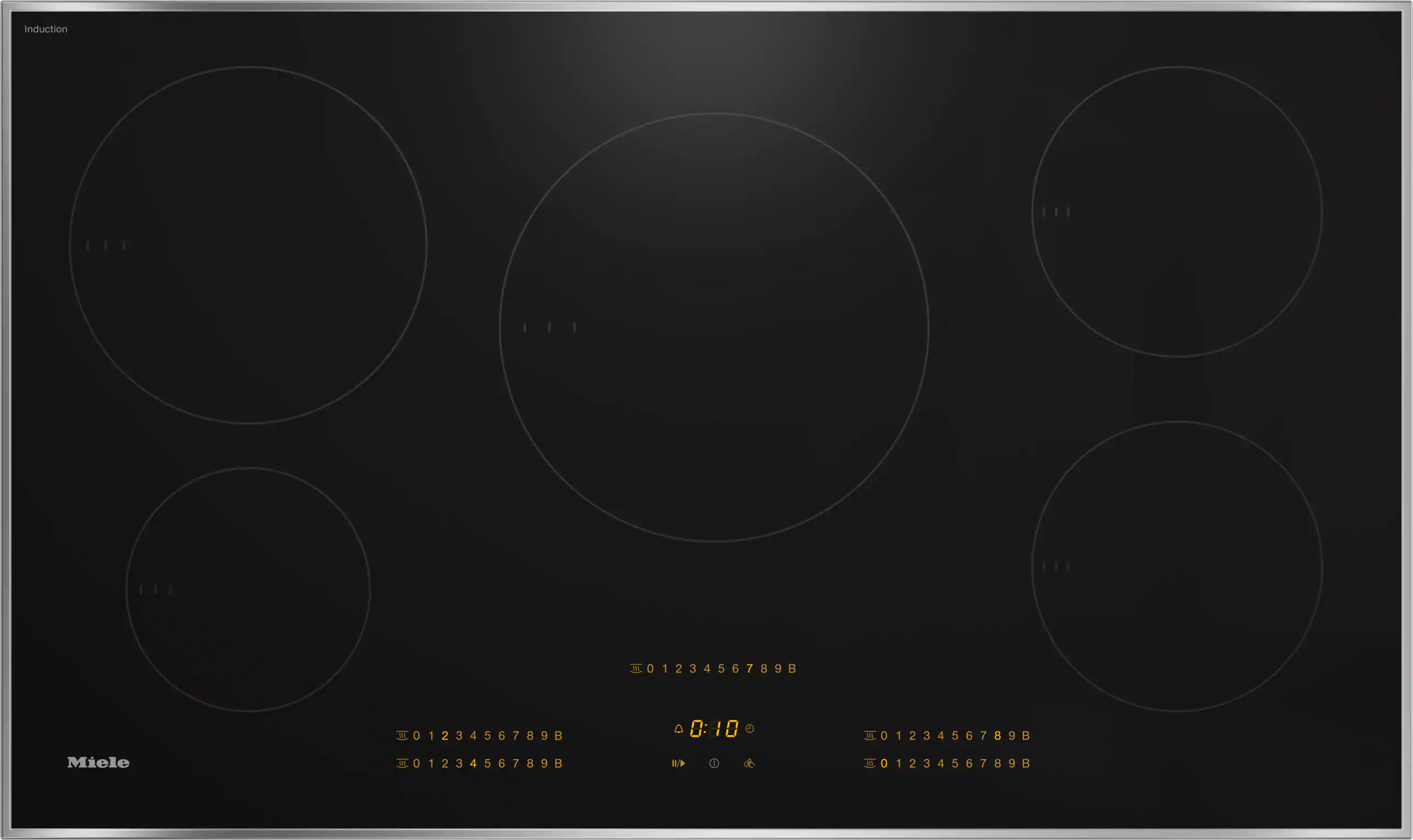

Miele KM7740FR 36-inch induction cooktop, operated with its own controls Clean Touch Steel
Sale price
$3,199.00
Regular price
$4,481.97
Save
$1,282.97
/ 28% OFF
Out of stock
Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
Contact us for Pricing
Sale price
$3,199.00
Regular price
$4,481.97
Save
$1,282.97
/ 28% OFF
Product Details for MIELE KM7740FR
Technical Details
Heating type
| Fuel type | Induction |
Design
| Ceramic surface color | Black |
| Independent of oven | TRUE |
| Elegant glass ceramic surface | TRUE |
| All-round stainless-steel frame | TRUE |
| Proud installation | TRUE |
Cooking zone details
| No. of rings | 5 |
| Number of cooking areas | 0 |
| Maximum number of pans | 5 |
1st cooking zone/cooking area
| Position | front left |
| Type | Variable cooking zone |
| Size in mm | Ø 100-160 |
| Max. rating in W | 1400 |
| Max. booster rating in W | 1700 |
| Max. TwinBooster rating in W | 2200 |
2nd cooking zone/cooking area
| Position | rear left |
| Type | Variable cooking zone |
| Size in mm | Ø 160-230 |
| Max. rating in W | 2300 |
| Max. booster rating in W | 3000 |
| Max. TwinBooster rating in W | 3700 |
3rd cooking zone/cooking area
| Position | Centered |
| Type | Variable cooking zone |
| Size in mm | Ø 180-280 |
| Max. rating in W | 2600 |
| Max. booster rating in W | 3000 |
| Max. TwinBooster rating in W | 3700 |
4th cooking zone/cooking area
| Position | rear right |
| Type | Variable cooking zone |
| Size in mm | Ø 140-190 |
| Max. rating in W | 1850 |
| Max. booster rating in W | 2500 |
| Max. TwinBooster rating in W | 3000 |
5th cooking zone/cooking area
| Position | front right |
| Type | Variable cooking zone |
| Size in mm | Ø 140-190 |
| Max. rating in W | 1850 |
| Max. booster rating in W | 2500 |
| Max. TwinBooster rating in W | 3000 |
User convenience
| Display color | Yellow |
| Automatic function | Con@ctivity 3.0 |
| Networking with Miele@home | TRUE |
| Operation via touchpad sensors | SmartSelect |
| Pan/Pan-size sensors | TRUE |
| Permanent pan recognition | TRUE |
| Stop & Go function | TRUE |
| Wipe protection | TRUE |
| Recall function | TRUE |
| Minute minder | TRUE |
| AutoBoost | TRUE |
| Keep-warm function | TRUE |
| Individual setting options (e.g. acoustic signal tones) | TRUE |
Technical data
| Width in in. (mm) | 36 1/8 (915) |
| Height in in. (mm) | 3 1/8 (78) |
| Built-in height with mains connection box in in. (mm) | 2 7/8 (71) |
| Depth in in. (mm) | 21 1/2 (544) |
| Weight in lbs. (kg) | 46 (21) |
| Power cord length in ft. (m) | 3 (1.2) |
| Dimensions (H x W x D) in mm | 3 1/8 (78) x 36 1/8 (915) x 21 1/2 (544) |
| Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) | 34 1/2 in (876 mm) x 20 1/2 in (518 mm) |
| Cutout dimensions width in in. (mm) with proud-mounted installation | 34 1/2 in (876 mm) |
| Cutout dimensions depth in in. (mm) with proud-mounted installation | 20 1/2 in (518 mm) |
| Total connected load in kW | 9.900-11.500 |
| Voltage in V | 208-240 |
| Frequency in Hz | 50-60 |
Other
| Total connected load in kW | 9.90-11.50 |
| Voltage in V | 0 |
| Frequency in Hz | 60 |
Dimensions & weight
| Width | 1.42 in. |
| Height | 0.12 in. |
| Length | 0.85 in. |
| Weight | 101.2 lbs. |
| Width | 36.02 in. |
| Height | 3.07 in. |
| Length | 21.42 in. |
| Weight | 104.3 lbs. |
| Gross Weight | 54.63 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 6.42 in. |
| Shipping Height | 5.12 in. |
| Shipping Length | 5.85 in. |
| Shipping Weight | 141.2 lbs. |
| Total of Shipping Weight | 141.2 lbs. |
| Source | Calculation |
| Shipping Width | 46.77 in. |
| Shipping Height | 5.83 in. |
| Shipping Length | 30.24 in. |
| Shipping Weight | 144.3 lbs. |
| Source | Manufacturer |
| Total of Shipping Weight | 144.30 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 0 ft³ |
| Dimensional Weight | 0 lbs. |
| Total of Cubes | 0 ft³ |
| Total of Dimensional Weight | 0 lbs. |
| Cubic Feet Measurement | 4.77 ft³ |
| Cubic Feet Measurement | 1.37 ft³ |
| Dimensional Weight | 17.04 lbs. |
| Total of Cubes | 1.37 ft³ |
| Total of Dimensional Weight | 17.04 lbs. |
General information
| Model number | KM 7740 FR |
| Manufacturer material number | 12074220 |
| EAN number | 4002516611509 |
| Marketing class | Silver |
Cleaning convenience
| Easy to clean ceramic glass | TRUE |
Safety
| Safety cut-out | TRUE |
| Lock function | TRUE |
| System lock | TRUE |
| Integrated cooling blower | TRUE |
| Overheating protection | TRUE |
| Residual heat indicator | TRUE |
Standard accessories
| Connection wire | TRUE |
Description
36-inch induction cooktop, operated with its own controls
Key Features

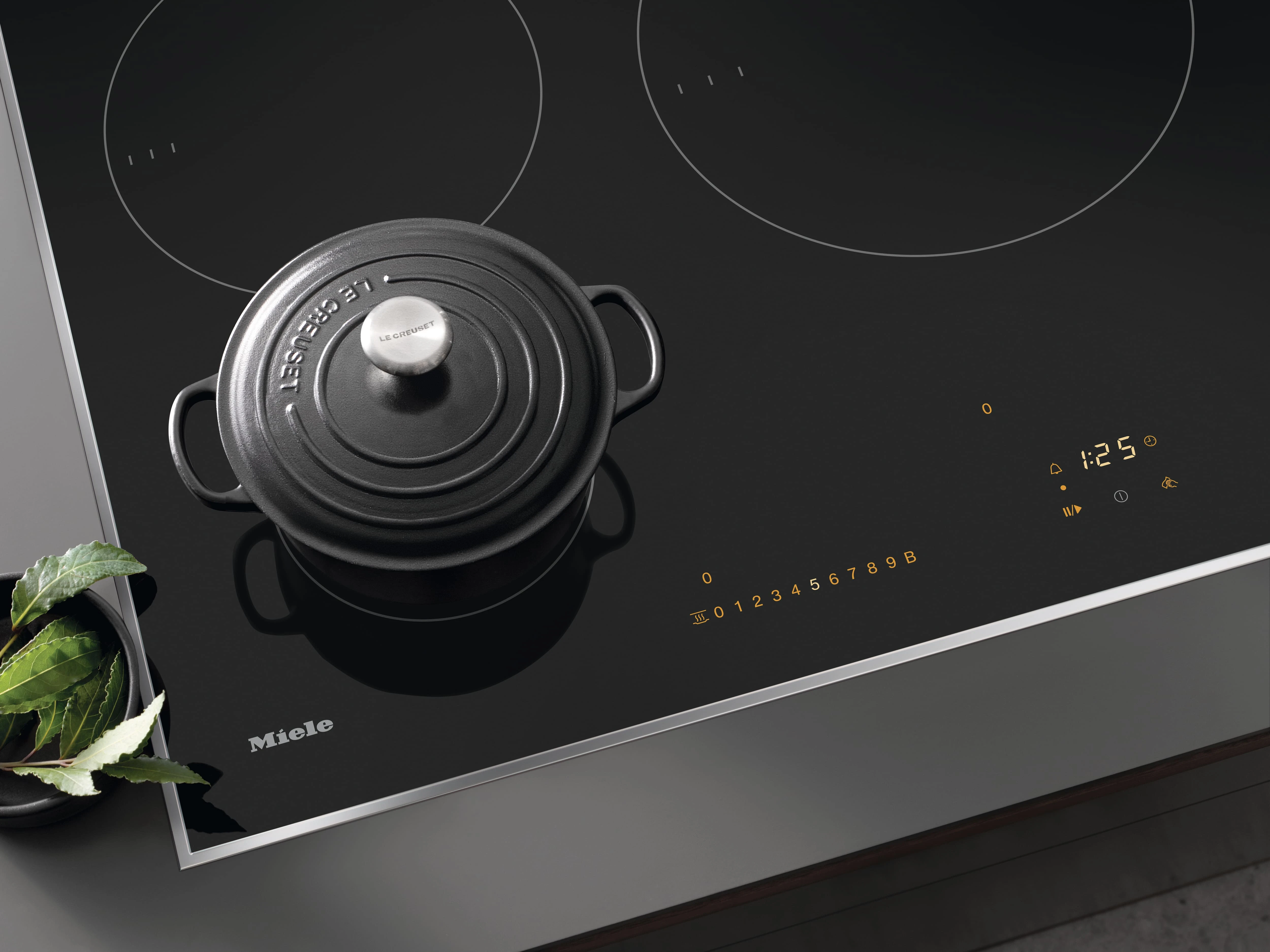

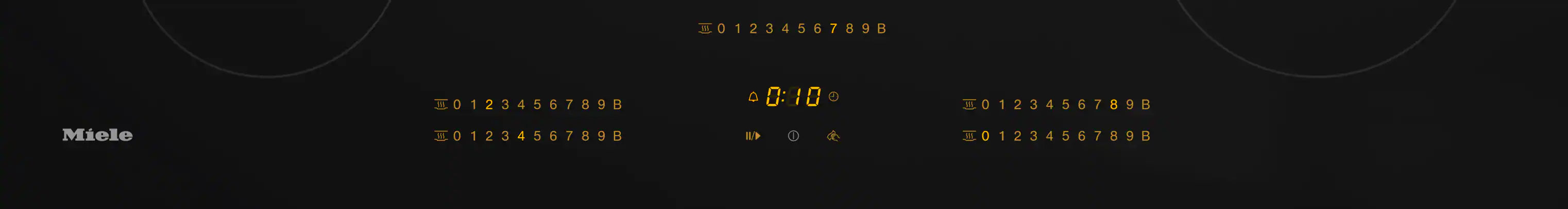

SmartSelect
Select power levels and cooking durations for each zone flexibly with SmartSelect. Each zone has its own easy-to-read numerical display with yellow backlighting. SmartSelect also makes it easier to set the timer. On the far left, you can set a separate short-term kitchen timer independently of cooking. In addition, you can set a switch-off timer for each zone, which automatically switches off the cooking zone when the time has elapsed.

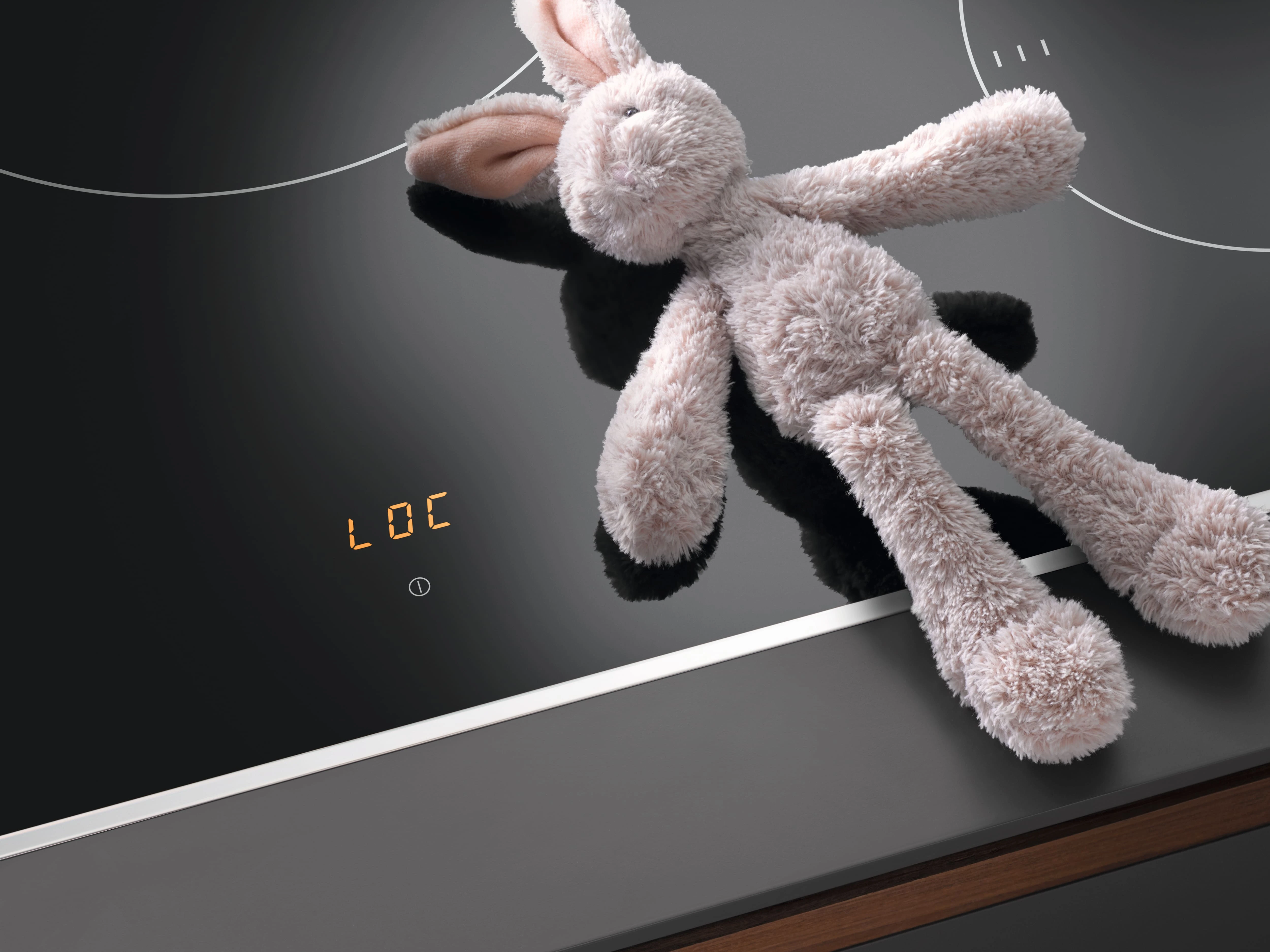

Safety functions
Optimum protection in every situation: The system lock reliably protects you from unauthorized or accidental switching on. If a cooking zone is operated for an unusually long time at the same power level or if there is no pot on a cooktop that is switched on, it switches off automatically. Another helpful tool worth noting is the residual heat indicator: It reminds you not to touch the cooking zones when they are still hot.

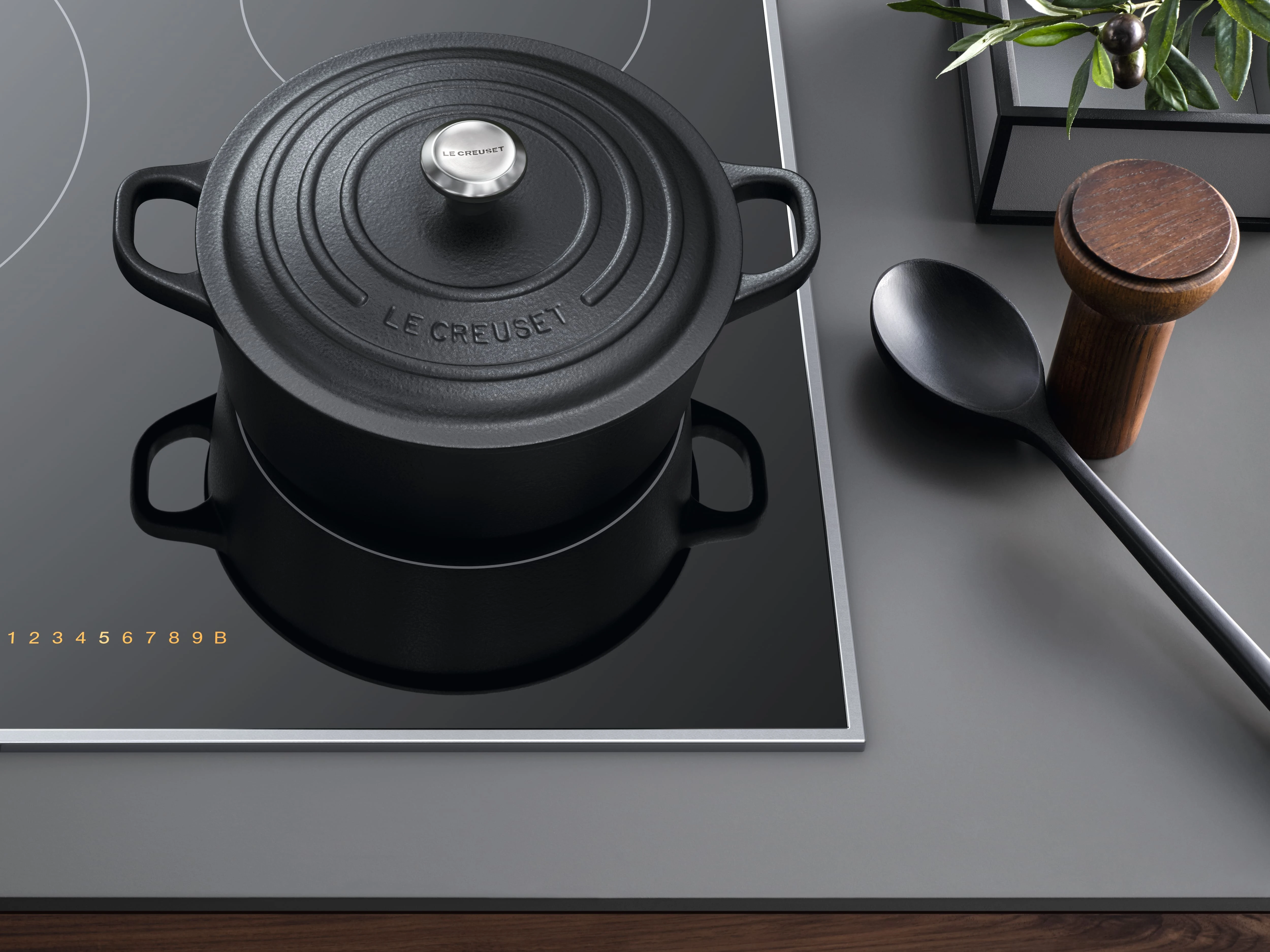

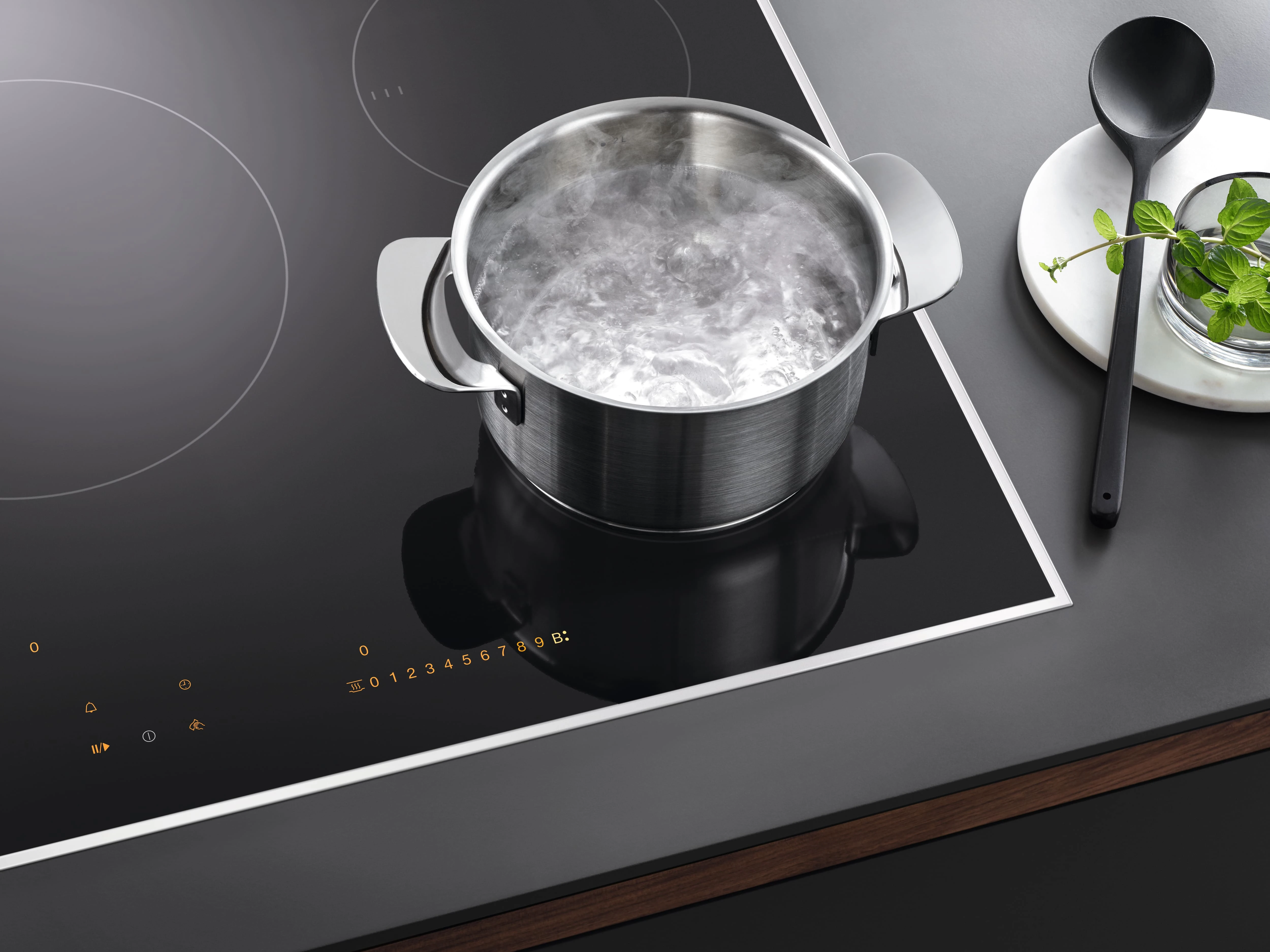

TwinBooster
When you need to get things done quickly, the exclusive TwinBooster function is an excellent aid. Harness the power of two cooking zones in one and heat up your favorite dishes in record time. Alternatively, distribute the induction power as required. This means you can now decide how quickly your food is ready, with complete flexibility.

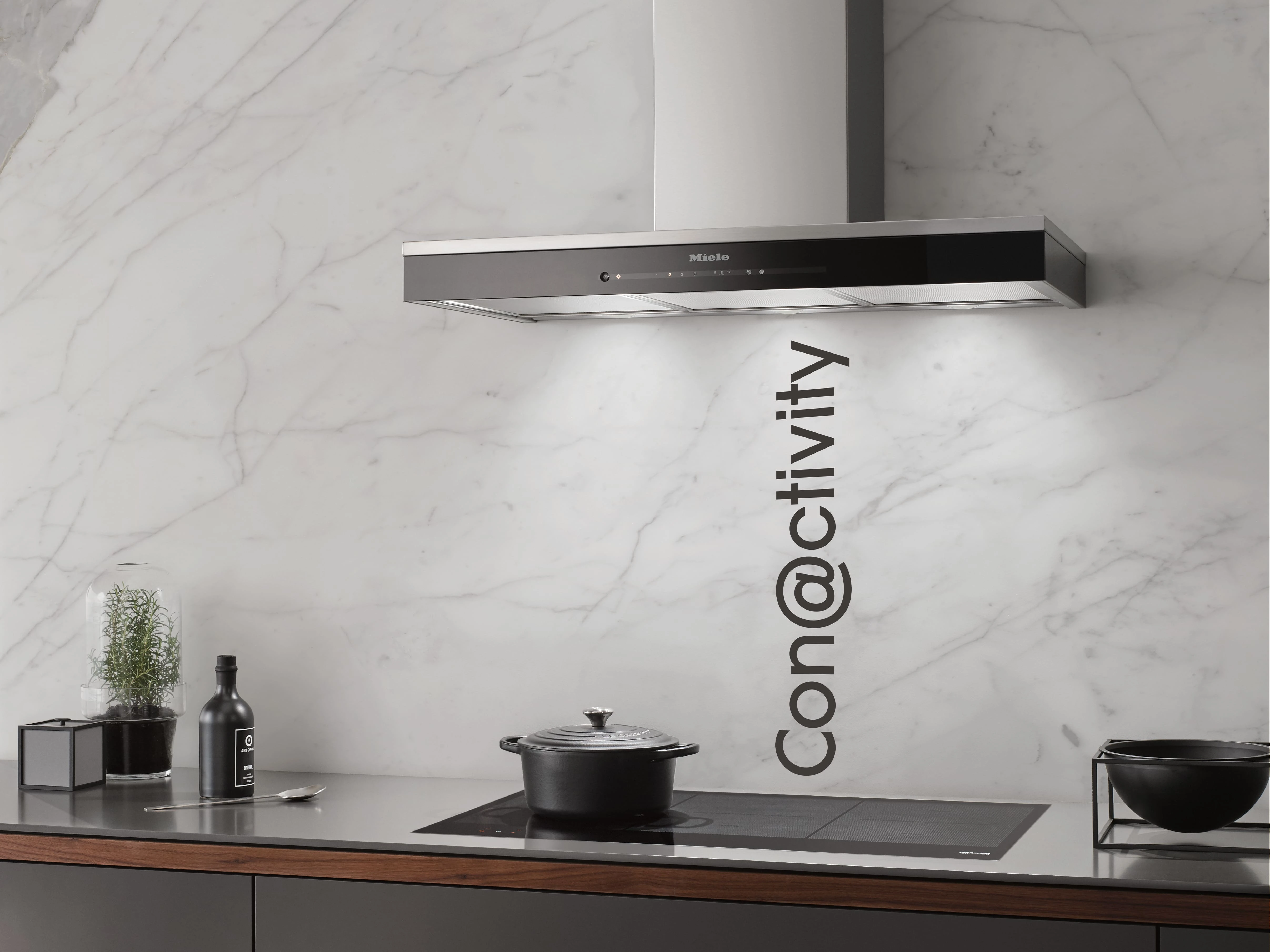

Con@ctivity 3.0
Concentrate fully on cooking: With Con@ctivity 3.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the extraction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 3.0 allows you to integrate the ventilation hood and cooktop into Miele@home
Convenient additional functions
More convenient cooking: With the Stop & Go function, you can reduce all cooking zones to power level 1 at the touch of a single button, so you can leave the cooktop unattended for a short time. Thanks to the automatic keeping warm function, your food stays at serving temperature. And another plus: If you set the timer, the cooking zone switches off automatically once this time has elapsed. The recall function saves your settings for 10 seconds.

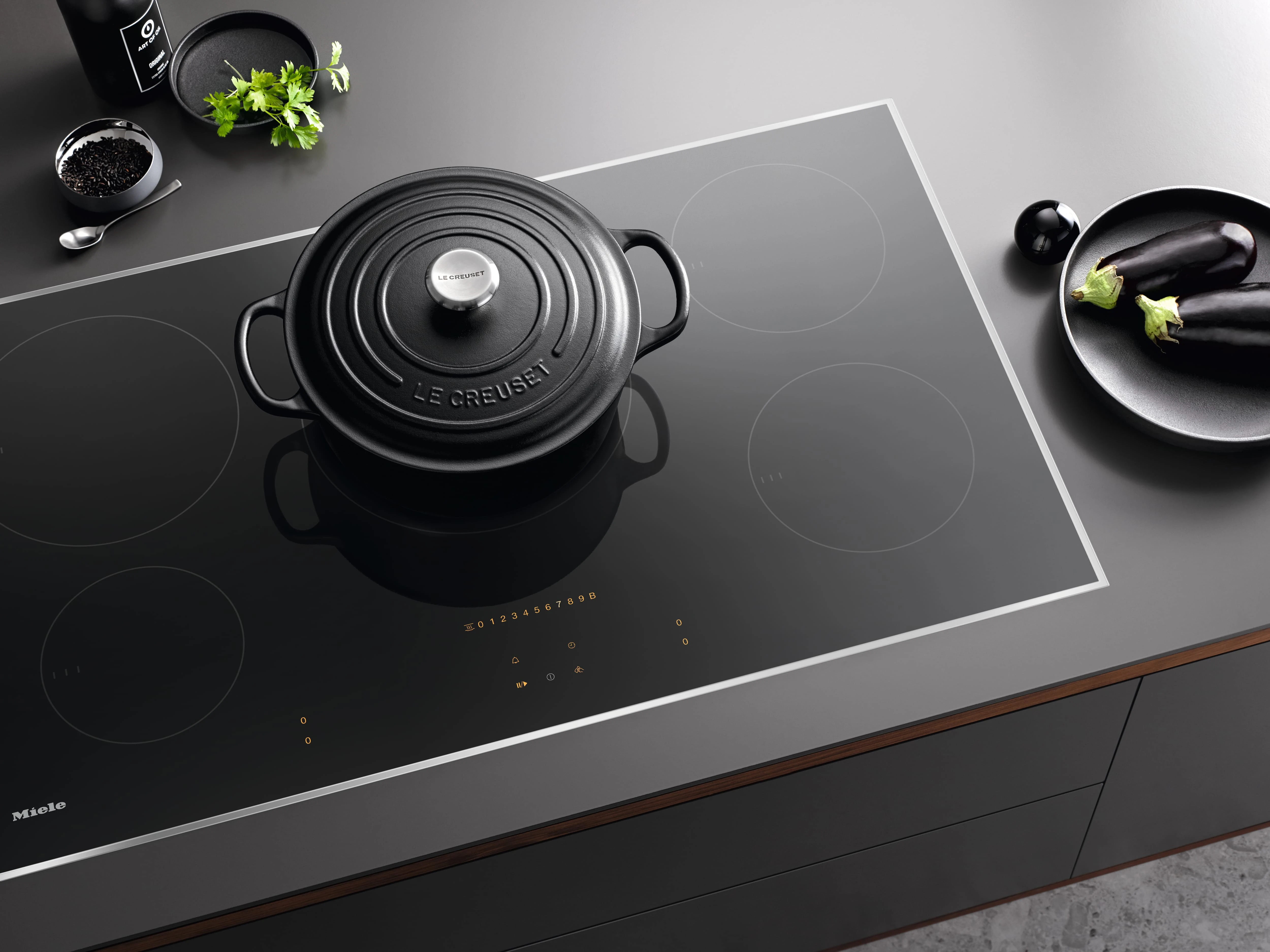

Permanent pan recognition
You just have to switch on the cooktop – if a pan has already been placed on one of the cooking zones, the corresponding control element is activated automatically. So you no longer have to turn on the individual cooking zones manually. What's more, the size of the pot or pan is recognized automatically – for extremely energy-efficient operation.
Domestic appliance networking with Miele@home
With our innovative Miele@home system, you can exploit the full potential of your Miele appliances and make your everyday life even smarter. All intelligent Miele domestic appliances can be networked conveniently and securely. Operation is simple – whether you use the Miele app, voice control, or integration into existing Smart Home solutions. The appliances are networked via a home Wi-Fi router and the Miele Cloud.
