SKU: DAS8930SS | UPC: 8051202190626

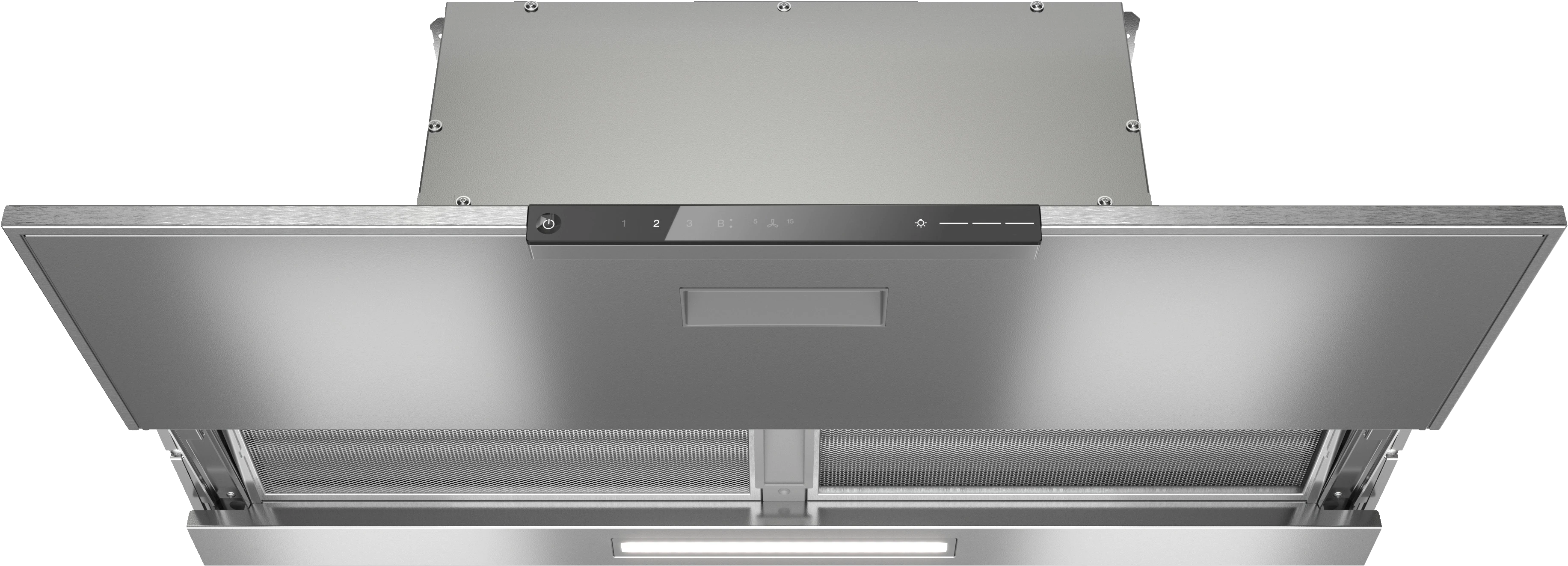

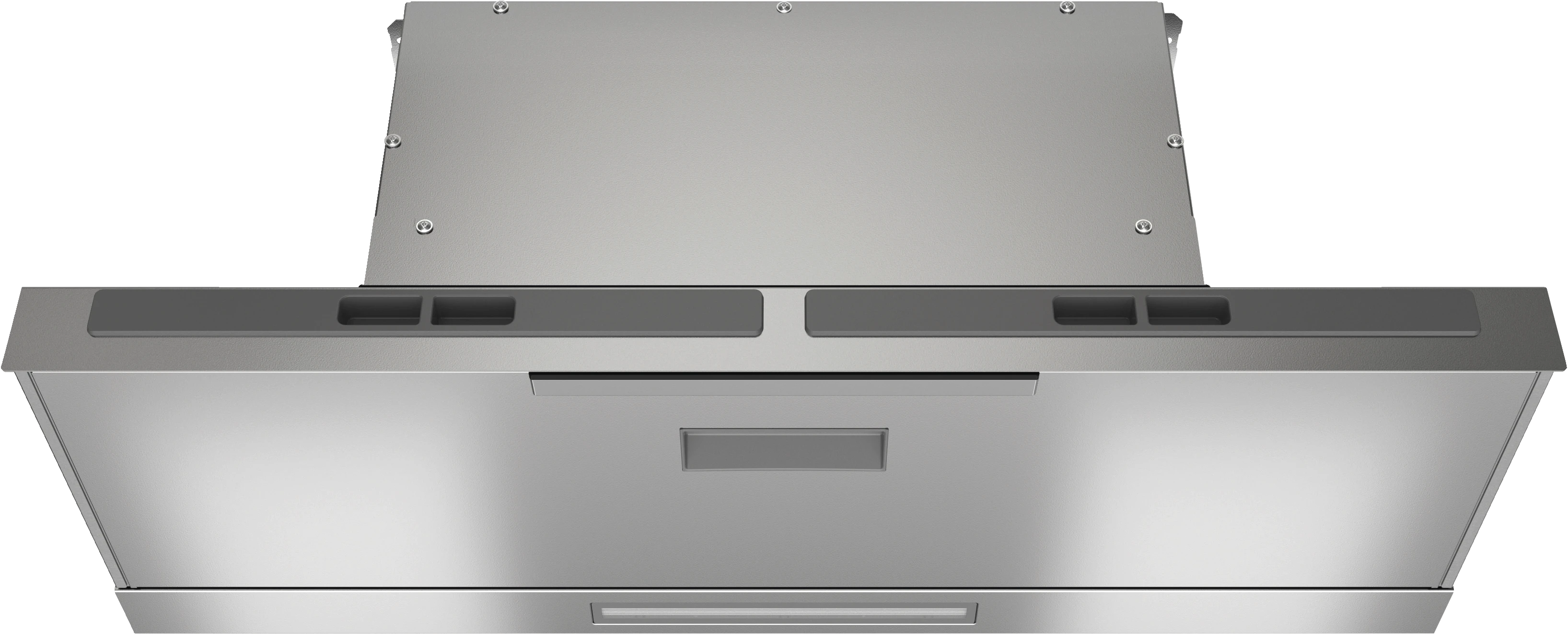

Miele DAS8930SS 36" Slimline Built-in Ventilation w/ WiFi LED Touch Panel (Stainless Steel) Clean Touch Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
33.9"
Depth:
12.09"
Height:
13.19"
Type:
Hood Inserts

About this product

Con@ctivity
Delayed shutdown
filter saturation indicator
SmartControl

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Miele DAS8930SS

Technical Details

General information

Model number	DAS 8930
Manufacturer material number	11878590
EAN number	4002516495628
Marketing class	Platinum

Design

Built-in ventilation hood	TRUE
Color	Stainless steel

Operating modes

Recirculated mode	Can be retrofitted
Recirculation conversion kit (order separately)	DUU 151
OdorFree charcoal filter (order separately)	DKF 31-P
OdorFree charcoal filter (order separately)	DKF 31-R

User convenience

Miele@home	TRUE
Automatic function	Con@ctivity 3.0
Con@ctivity	TRUE
Electronic controls	TRUE
SmartControl	TRUE
Operation	SmartControl
Booster levels	2
Delayed shutdown for 5 or 15 minutes	TRUE
Grease filter saturation indicator	TRUE
Active charcoal filter saturation indicator	TRUE
CleanCover	TRUE

Cleaning convenience

Easy-to-clean canopy interior – CleanCover

TRUE

Filter system

Number of dishwasher-safe stainless steel grease filters (10-ply)

Lighting

Number x W	1 x 3 W
Light intensity in Lx	270 lx
Color temperature in K	3500 Kelvin
Light dimmer function	TRUE

Blower

Dual-action blower

TRUE

Exhaust air

Air throughput in CFM in Booster	495
Air throughput with Booster level 1 (m³/h) according to EN 61591	494.41 (840)

Safety

Safety shut-off

TRUE

Technical data

Canopy width in in. (mm)	34 (861)
Canopy height in in. (mm)	2 3/8 (60)
Depth of hood canopy in in. (mm)	12 1/8 (307)
Minimum height above electric cooktops in mm	24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm	26 (660)
Net weight in lbs. (kg)	42 (19.0)
Length of electrical wire in ft. (m)	2 (0.8)
Standard plug fitted	TRUE
Plug type	NEMA plug: 5–15
Total connected load in kW	0.353
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	TRUE
Vent connection at top and rear	TRUE
Installation template	TRUE

Standard accessories

Non-return flap

TRUE

Dimensions & weight

Width	33.9 in.
Height	13.19 in.
Length	12.09 in.
Weight	92.35 lbs.
Gross Weight	46.3 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	38.39 in.
Shipping Height	15.75 in.
Shipping Length	20.47 in.
Shipping Weight	132.35 lbs.
Source	Manufacturer
Total of Shipping Weight	132.35 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	7.17 ft³
Cubic Feet Measurement	3.13 ft³
Dimensional Weight	38.89 lbs.
Total of Cubes	3.13 ft³
Total of Dimensional Weight	38.89 lbs.

Description

What's included

Non-return flap

Manuals & Guides

Key Features

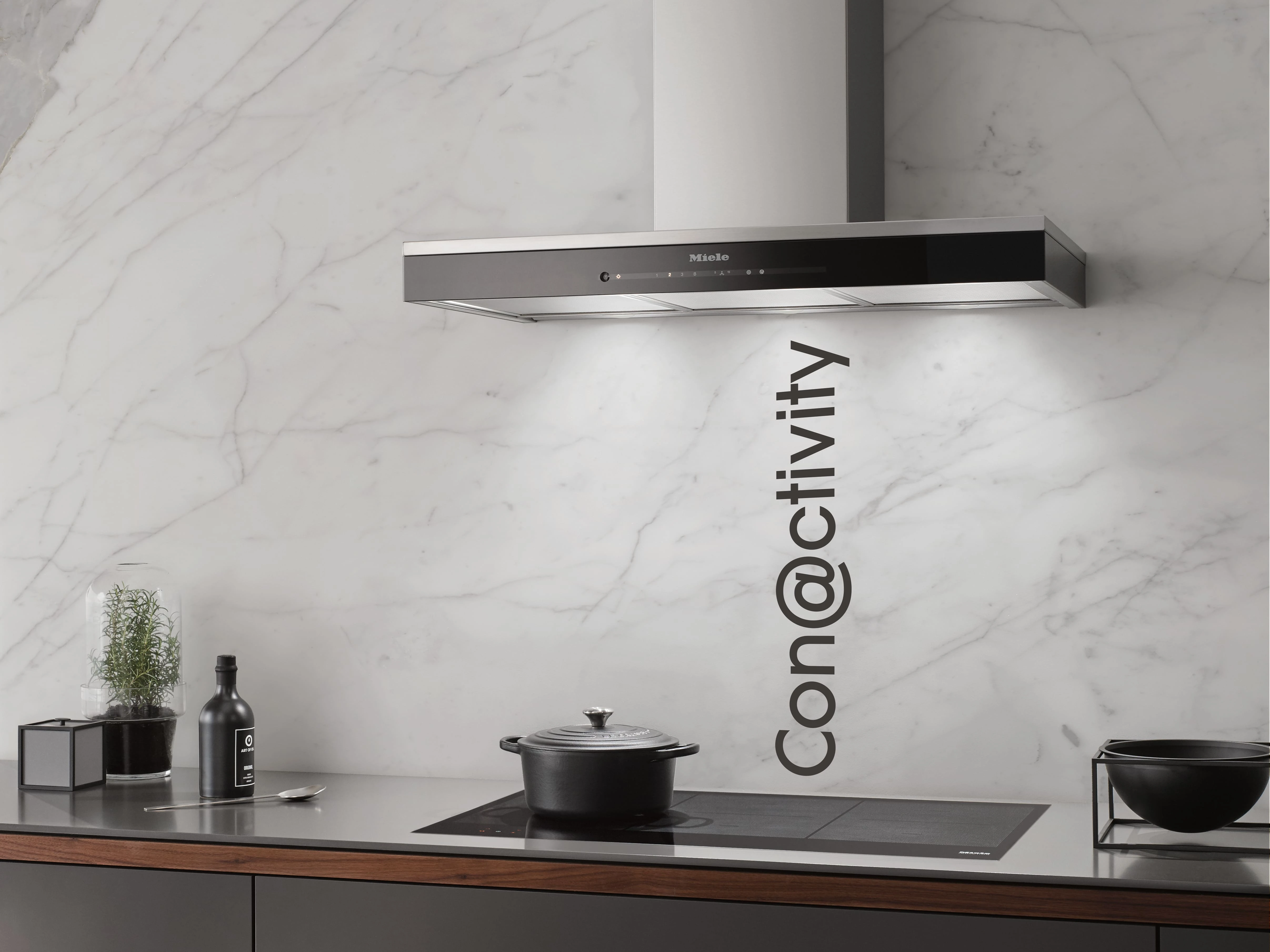

Con@ctivity

Thanks to the automatic Con@ctivity function, the ventilation hood can communicate with the cooktop below: The settings selected on the cooktop are transmitted to the controls on the hood. Your Miele Ventilation Hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the ventilation hood and cooktop via WiFi.

Delayed shutdown

The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.

filter saturation indicator

If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

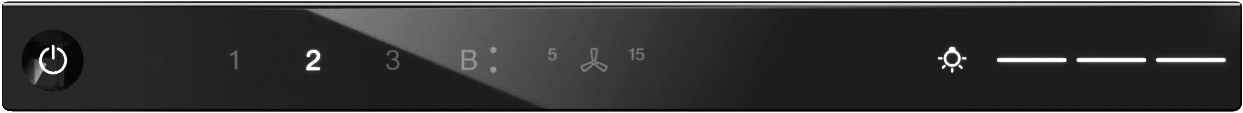

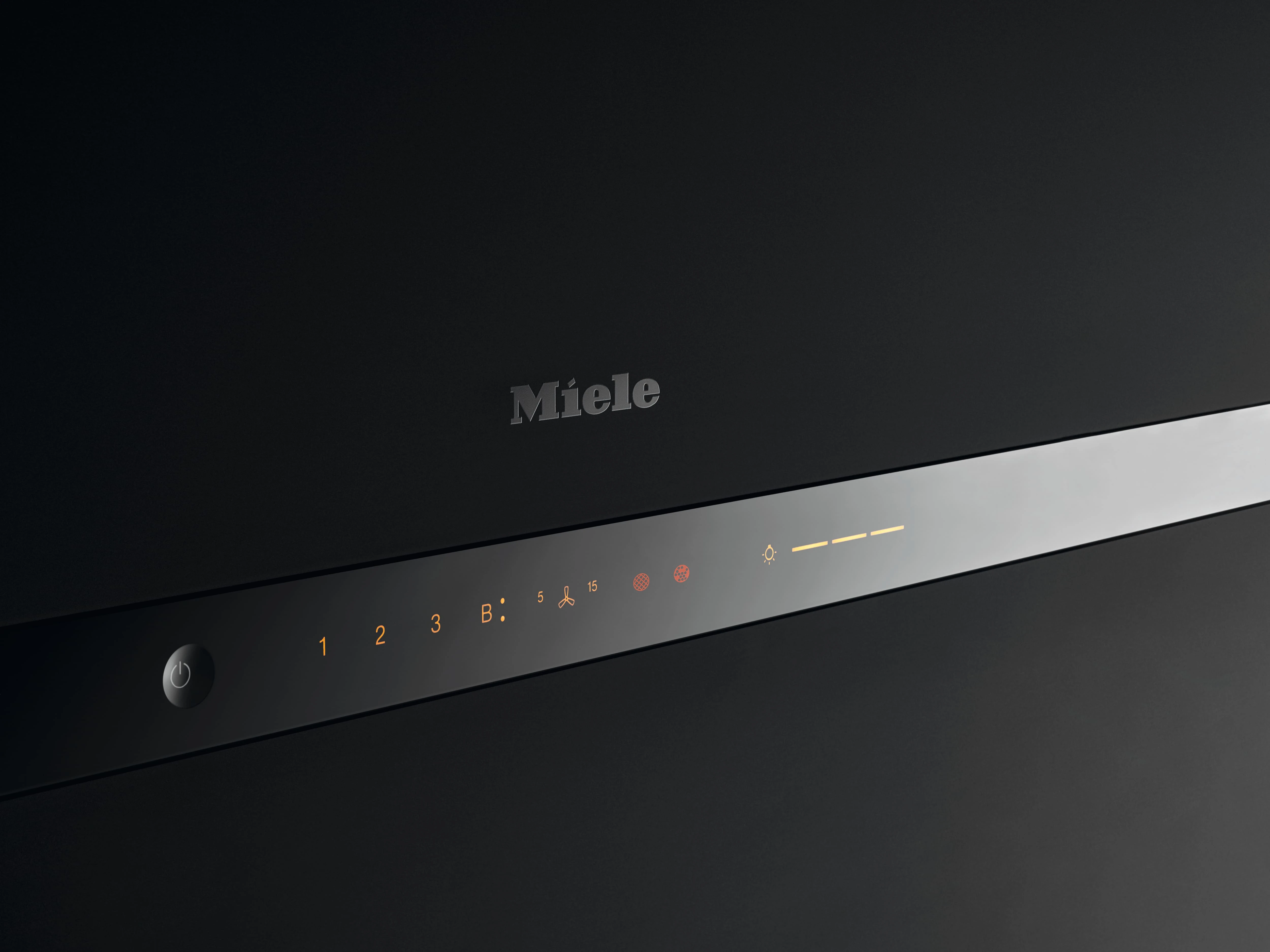

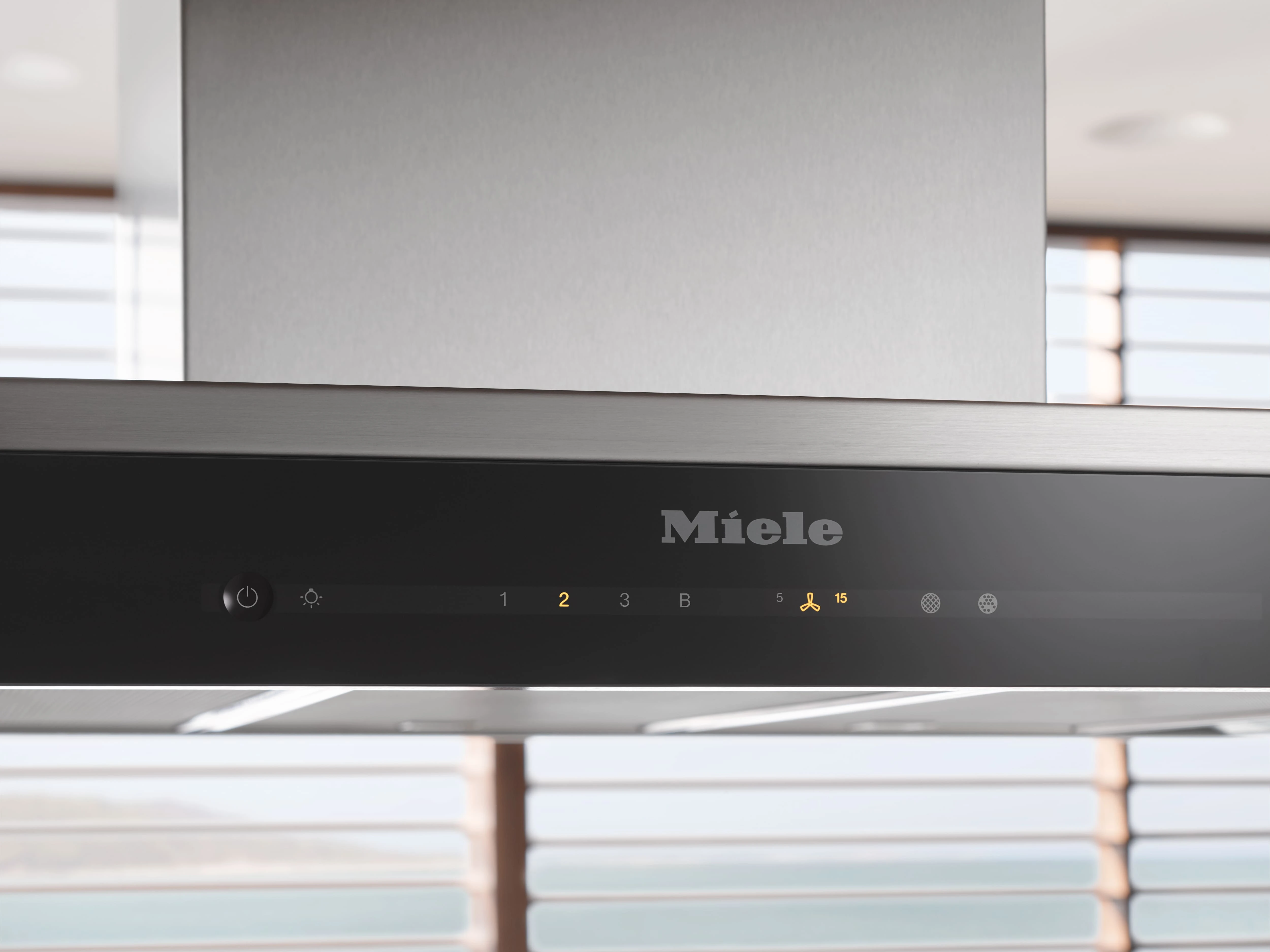

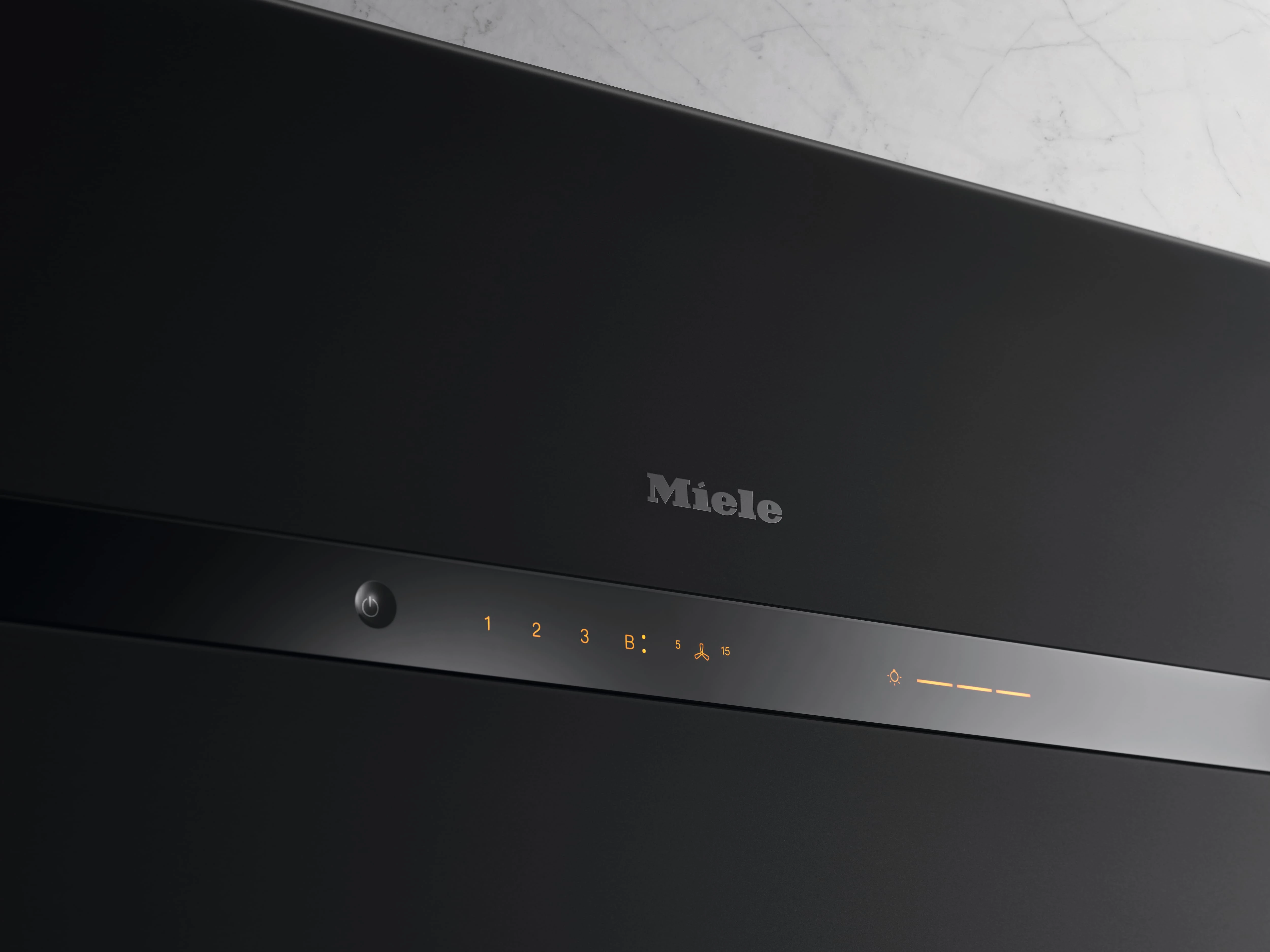

SmartControl

With its color and operating principle, the new, elegant Miele touch control perfectly matches Miele Cooktops. When switched off, only the On/Off icon is visible. Moreover, only the active settings are brightly illuminated; all others are dimmed. Basic functions, such as the run-on time, can be conveniently set at the touch of a finger. Perfect for use with Con@ctivity and the Miele app.

Safety turn off

The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

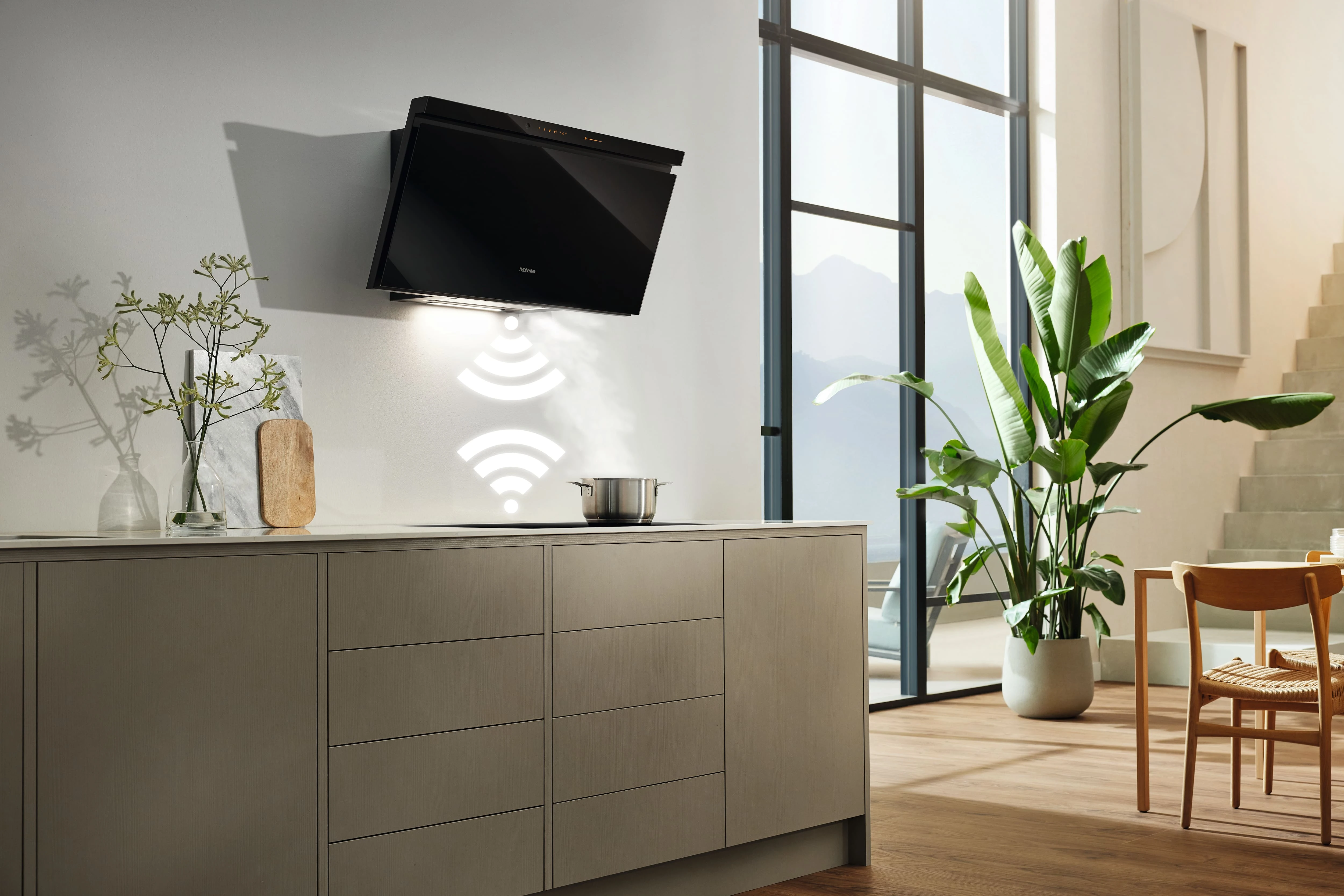

Con@ctivity 3.0

Concentrate fully on cooking: With Con@ctivity 3.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the extraction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 3.0 allows you to integrate the ventilation hood and cooktop into Miele@home

Stainless-steel grease filters (10-layer)

Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.

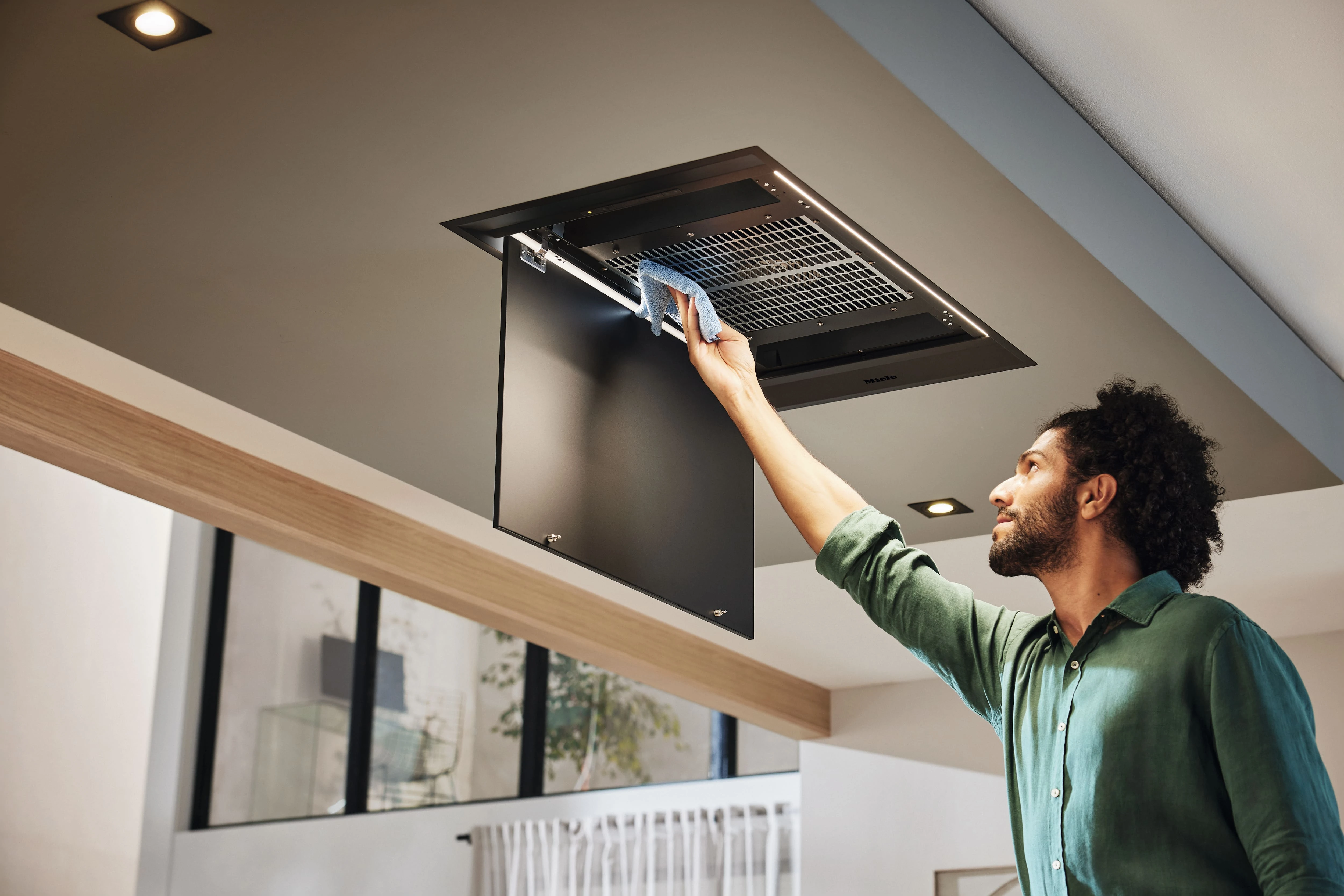

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
