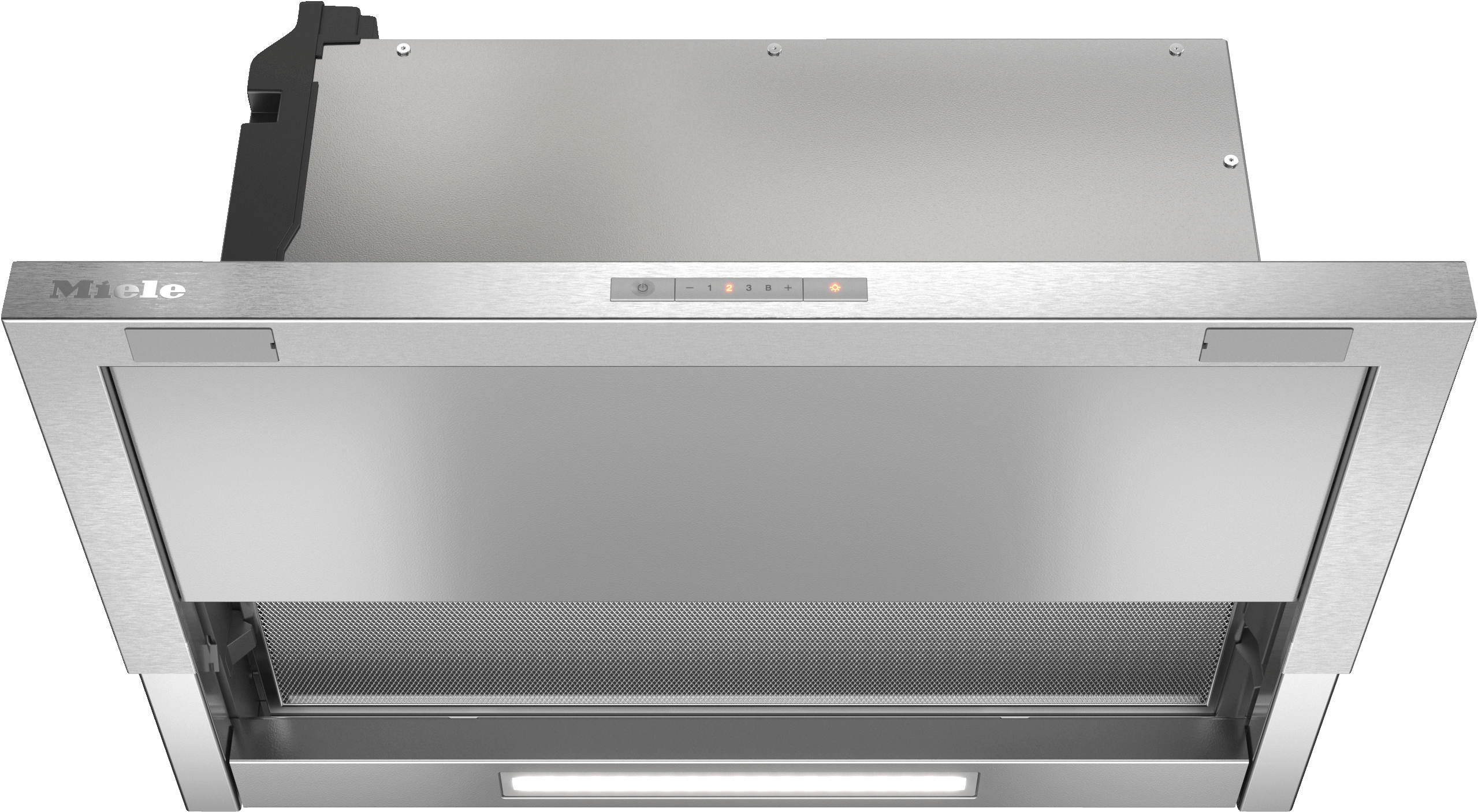

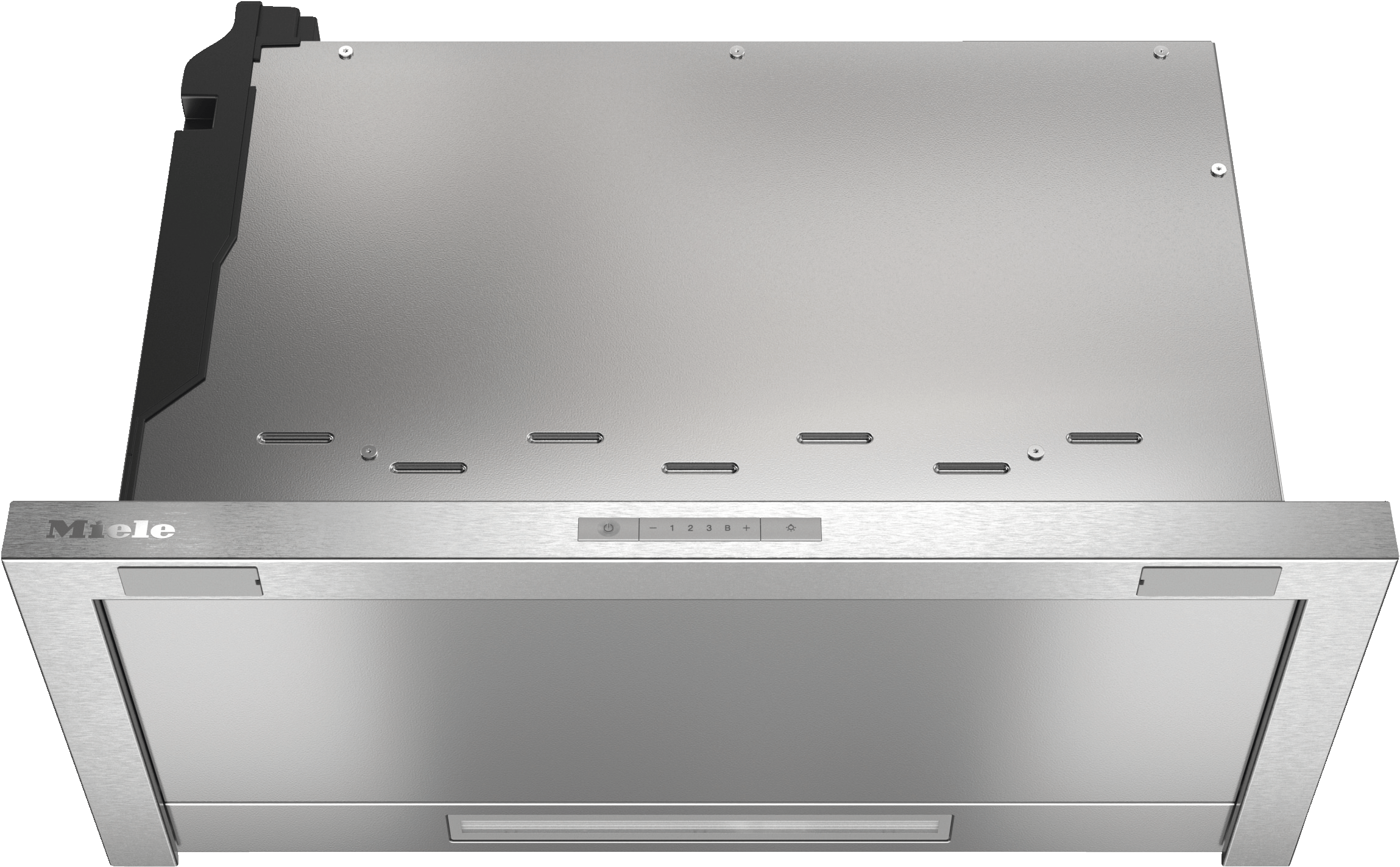

Miele DAS2620 Built-in Ventilation Hood Stainless steel
Sale price
$1,399.00
Out of stock
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Rebate Available
Rebate Available
Sale price
$449.00
Sale price
$1,399.00
Product Details for Miele DAS2620
Technical Details
Design
| Built-in ventilation hood | Yes |
| Color | Stainless steel |
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151,DUU 150 |
| OdorFree charcoal filter (order separately) | DKFS 31-R |
| OdorFree charcoal filter (order separately) | DKFS 31-900 P |
User convenience

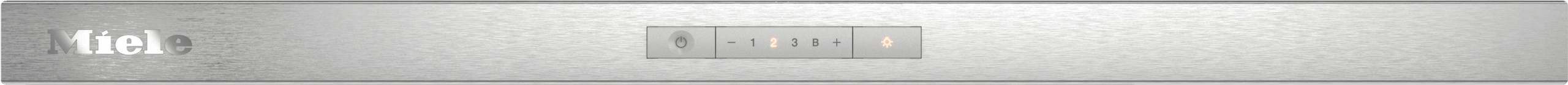

| Electronic controls | Yes |
| Operation | Light-touch switches with LEDs |
| Booster levels | 1 |
| CleanCover | Yes |
Lighting
| Number x W | 1 x 3,0 W |
| Light intensity in Lx | 330 lx |
| Color temperature in K | 3500 Kelvin |
Blower
| Dual-action blower | Yes |
Safety
| Safety shut-off | Yes |
Technical data
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | Yes |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Total connected load in kW | 0.353 |
| Minimum height above electric cooktops in mm | 24 (610) |
| Plug type | NEMA plug: 5–15 |
Installation note
| Vent connection at top | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
Standard accessories
| Non-return flap | Yes |
Other
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.35 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 28.5 in. |
| Shipping Height | 6.38 in. |
| Shipping Length | 15.75 in. |
| Shipping Weight | 71 lbs. |
| Total of Shipping Weight | 71 lbs. |
| Source | Calculation |
Filter system
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 1 |
Exhaust air
| Air throughput with Booster level 1 (m³/h) according to EN 61591 | 497.35 (845) |
| Air throughput in CFM in Booster | 498 |
Dimensions & weight
| Width | 23.5 in. |
| Height | 1.38 in. |
| Weight | 31 lbs. |
| Depth | 10.75 in. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 0.2 ft³ |
| Dimensional Weight | 2.09 lbs. |
| Total of Cubes | 0.2 ft³ |
| Total of Dimensional Weight | 2.09 lbs. |
General information
| Model number | DAS 2620 |
| Manufacturer material number | 11878490 |
| EAN number | 4002516495505 |
| Marketing class | Silver |
Description
What's included
Non-return flap
Non-return flap
Manuals & Guides
Key Features
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
