Sale price
$1,349.00
Regular price
$2,012.97
Save
$663.97
/ 32% OFF

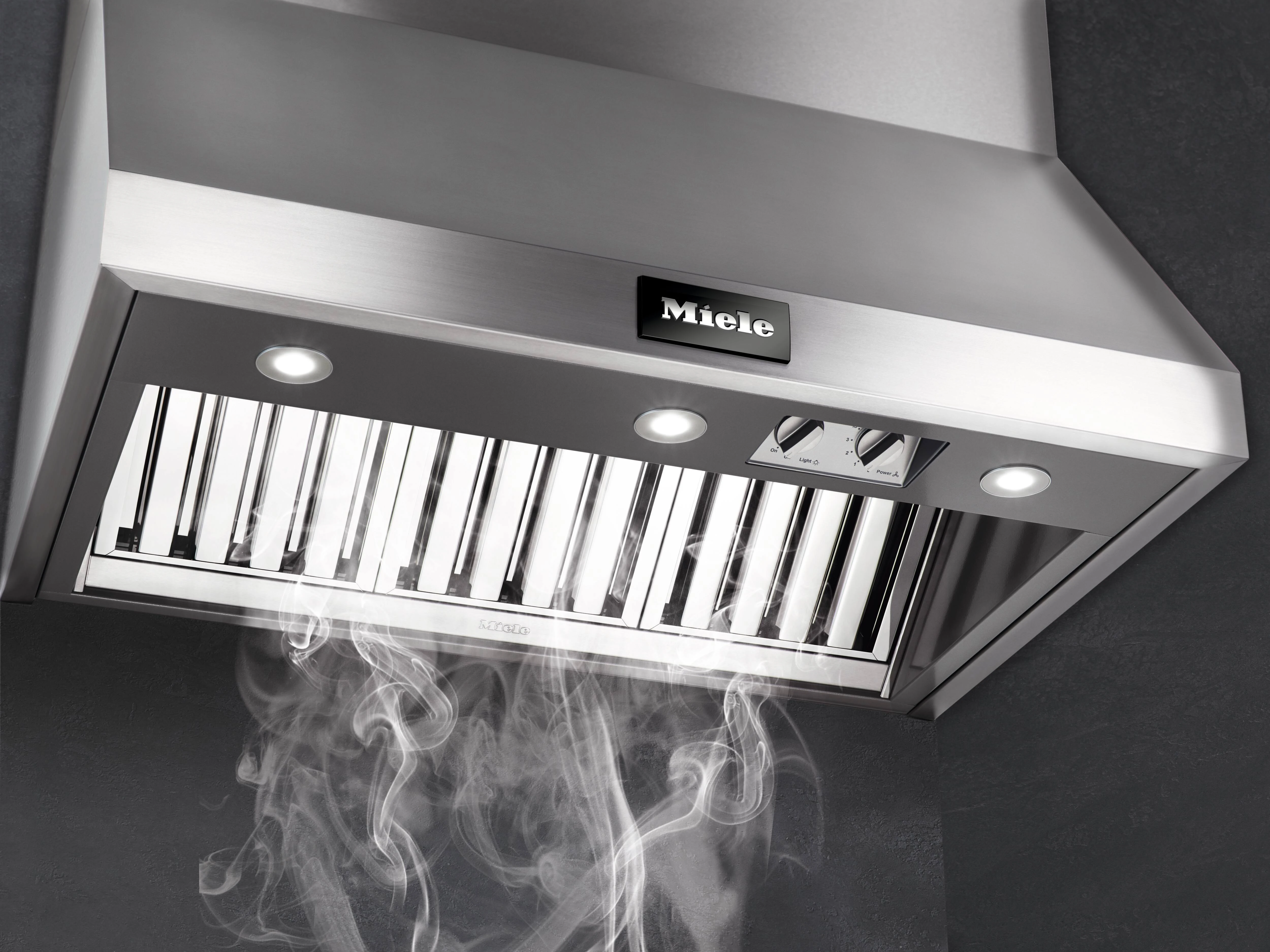

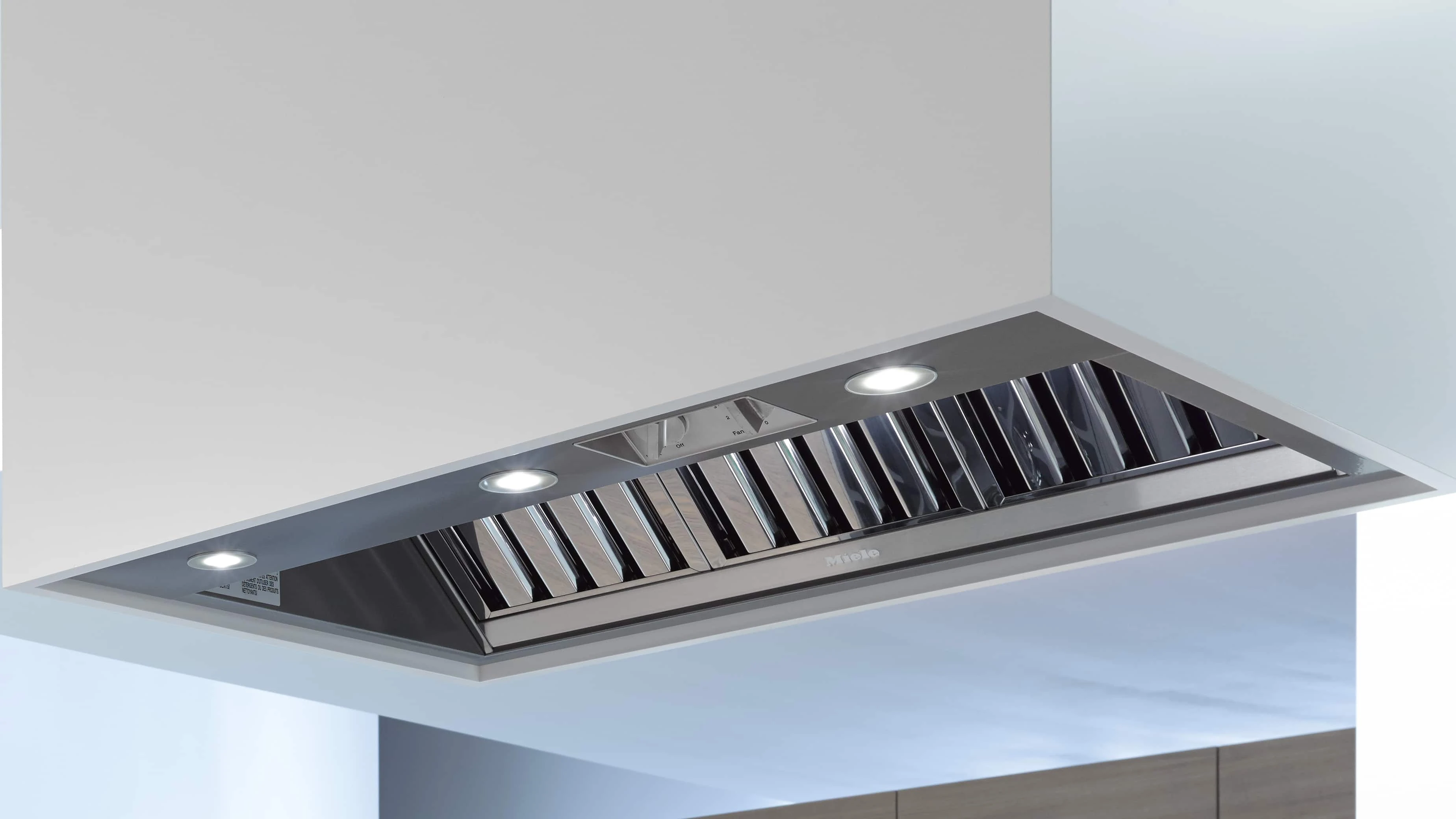

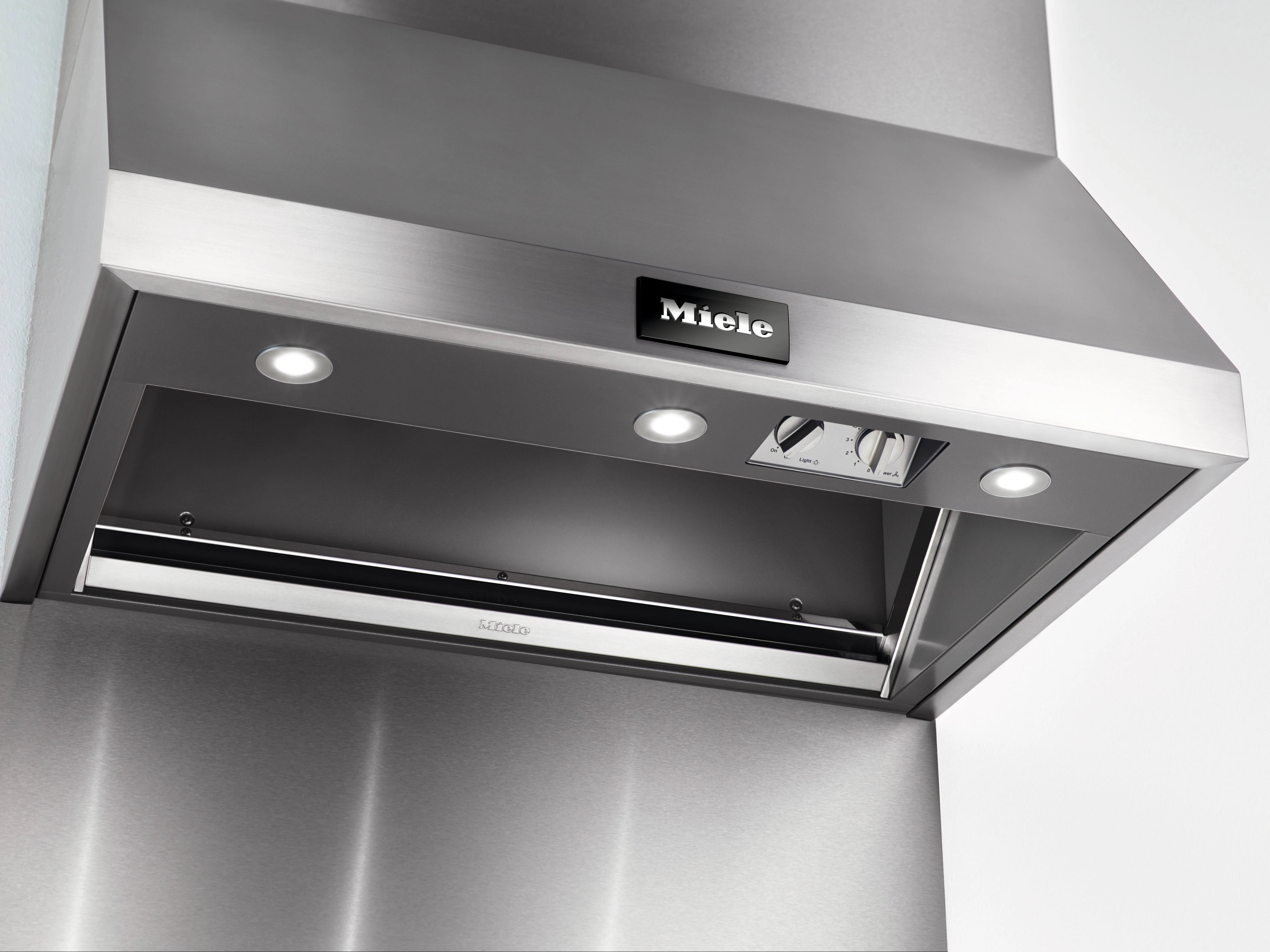

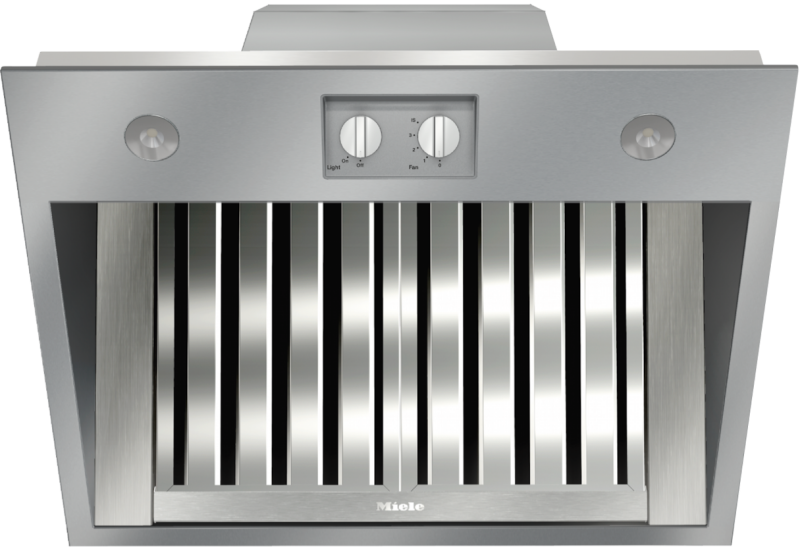

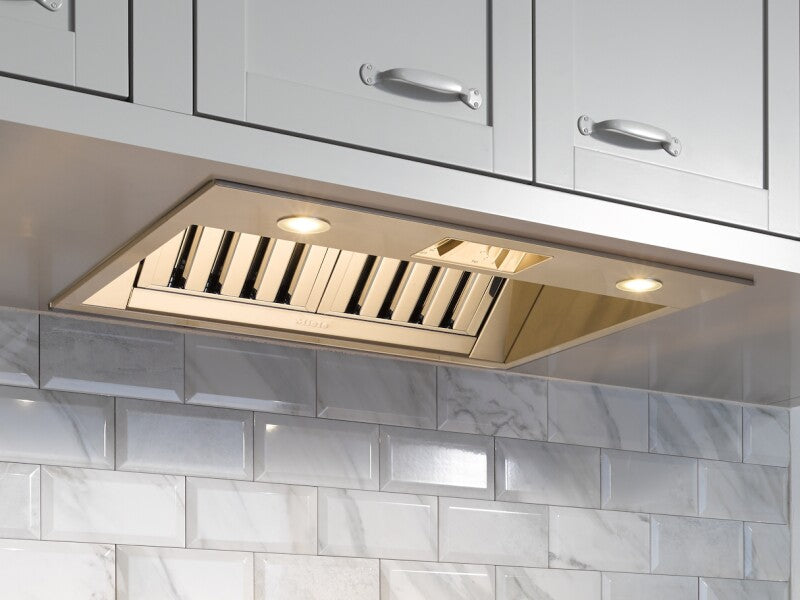

Miele DAR1120 Insert ventilation hood for perfect combination with Ranges and Rangetops. Stainless steel
Sale price
Contact us for Pricing
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Accessories
Sale price
Contact us for Pricing
Product Details for Miele DAR1120
Technical Details
Design
| Insert ventilation hood | Yes |
Required accessories
| Blower | Yes |
Operating modes
| Recirculated mode | Exhaust air |
| External operation possible | Yes |
User convenience

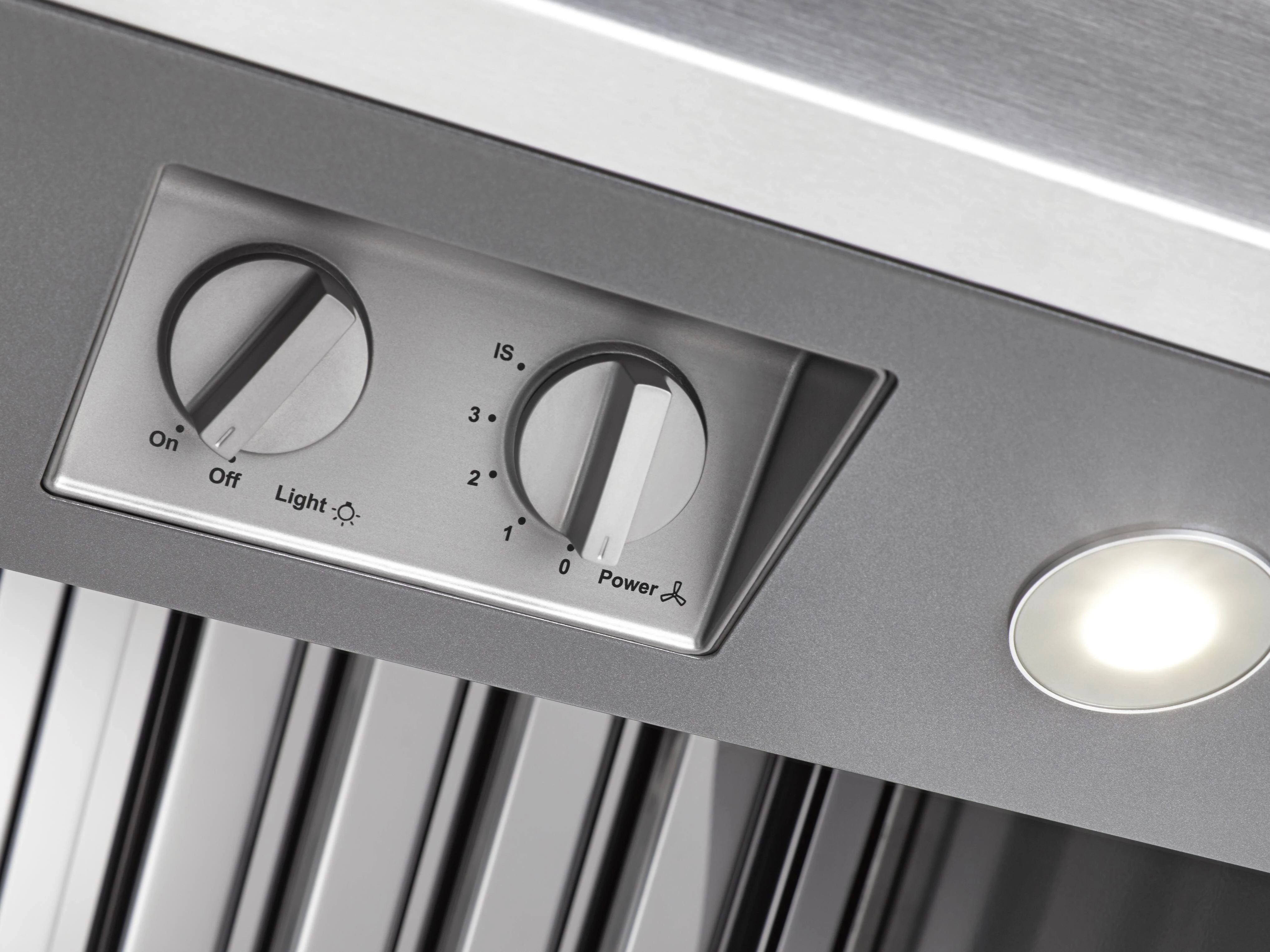

| Rotary knob | Yes |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | Yes |
Cleaning convenience
| Easy to clean canopy interior CleanCover | Yes |
| Dishwasher-safe grease collection channel | Yes |
Filter system
| Number of dishwasher-safe stainless steel baffle filters | 2 |
Lighting
| LED | Yes |
| Number x W | 2 x 3 W |
Fan option (buy separately)
| DRIB XL internal blower in CFM (m³(h) | 1189 |
| DREB XL external blower in CFM (m³/h) | 1189 |
Installation note
| Vent connection at top | Yes |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
Standard accessories
| Non-return flap | Yes |
Other
| Standard plug fitted | Yes |
| Total connected load in kW | 0.81 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
Dimensions & weight
| Weight | 79.2 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Weight | 119.2 lbs. |
| Total of Shipping Weight | 119.2 lbs. |
| Source | Manufacturer |
Description
Insert ventilation hood for perfect combination with Ranges and Rangetops.
Manuals & Guides
Key Features
Discreetly integrated
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Permanent safety
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Powerful lighting with minimal energy consumption
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
