SKU: DAP1727 | UPC: 4002516878872

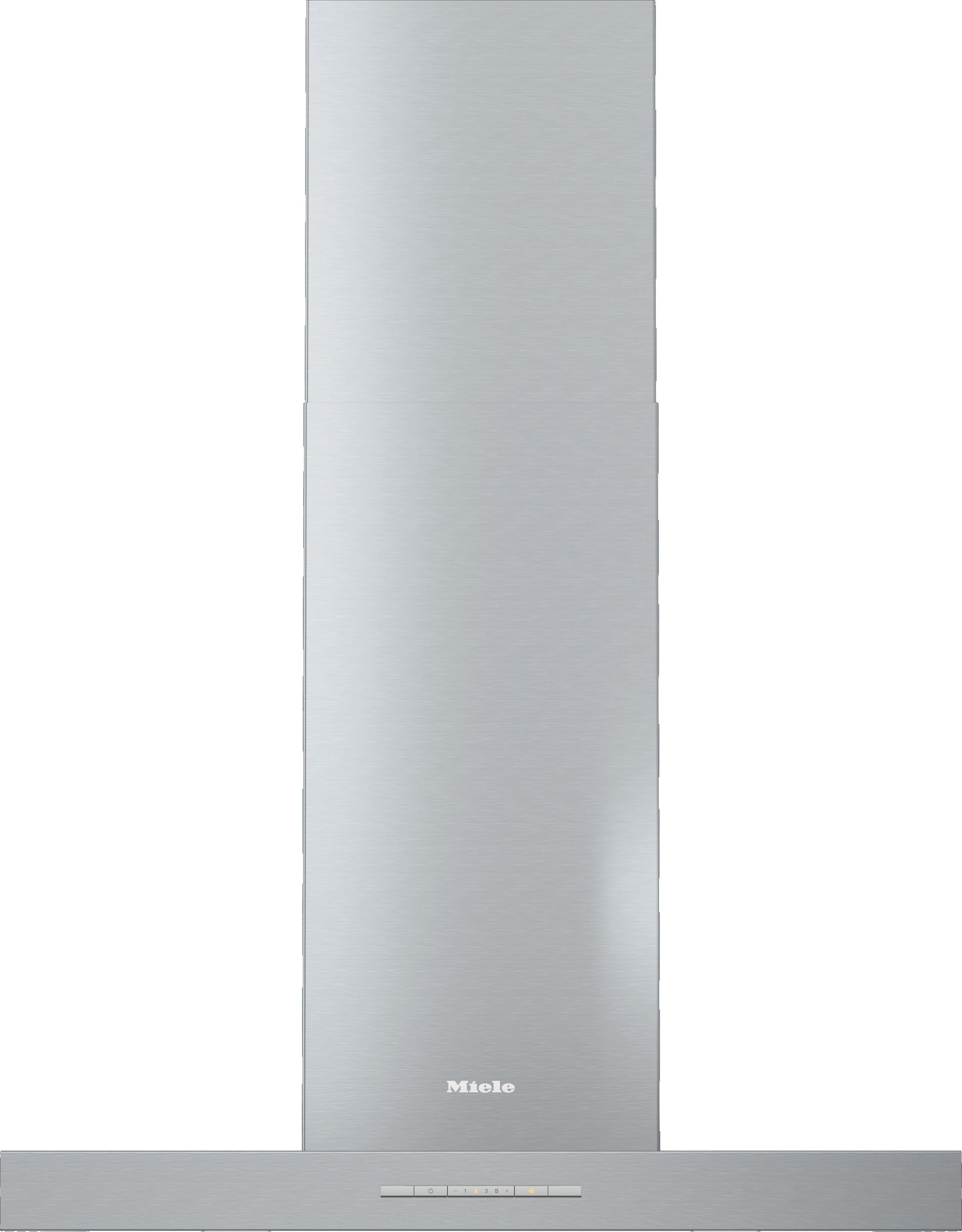

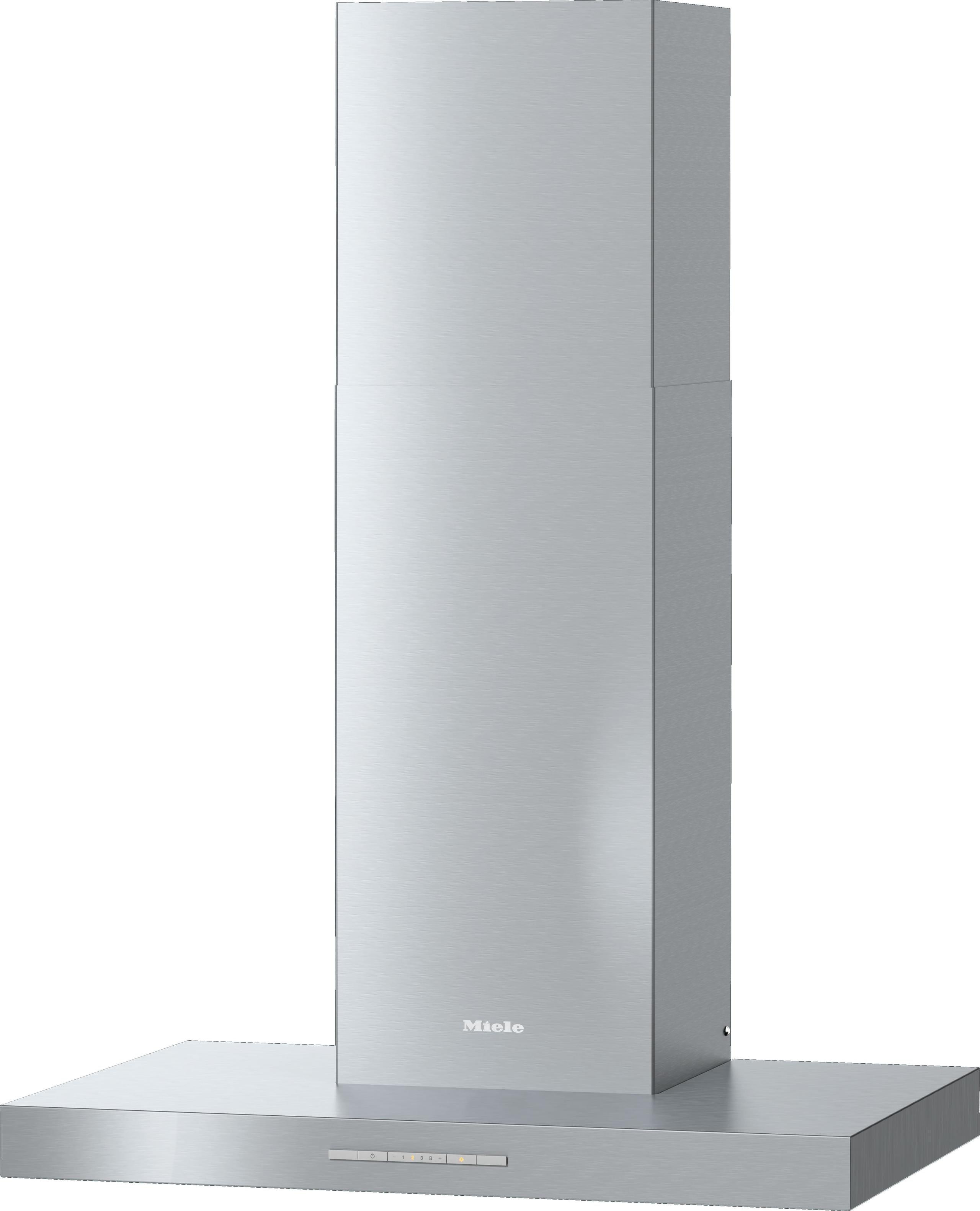

MIELE DAP1727 DAP 1727 Stainless steel - 30-inch wall-mounted ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

Quick Specification More details

Type:
Ducted Mount Hoods

About this product

Timeless design - stainless steel canopy 29 1/2 (748) in (mm) wide
Safety turn off
Powerful - in Booster level
Stainless-steel grease filters (10-layer)

SKU: DAP1727 | UPC: 4002516878872

MIELE DAP1727 DAP 1727 Stainless steel - 30-inch wall-mounted ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

$1,199.00 ~~$1,839.97~~ Save $640.97 / 34% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Type:
Ducted Mount Hoods

About this product

Timeless design - stainless steel canopy 29 1/2 (748) in (mm) wide
Safety turn off
Powerful - in Booster level
Stainless-steel grease filters (10-layer)

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Rebates
Reviews

$1,199.00 ~~$1,839.97~~ Save $640.97 / 34% OFF

Product Details for MIELE DAP1727

Technical Details

Design

Wall ventilation hood	Yes
Color	Stainless steel

General information

Model number	DAP 1727
Manufacturer material number	12784040
EAN number	4002516878872

Operating modes

Recirculated mode	Can be retrofitted
Recirculation conversion kit (order separately)	DUW 20
OdorFree charcoal filter (order separately)	DKF12-900P

User convenience

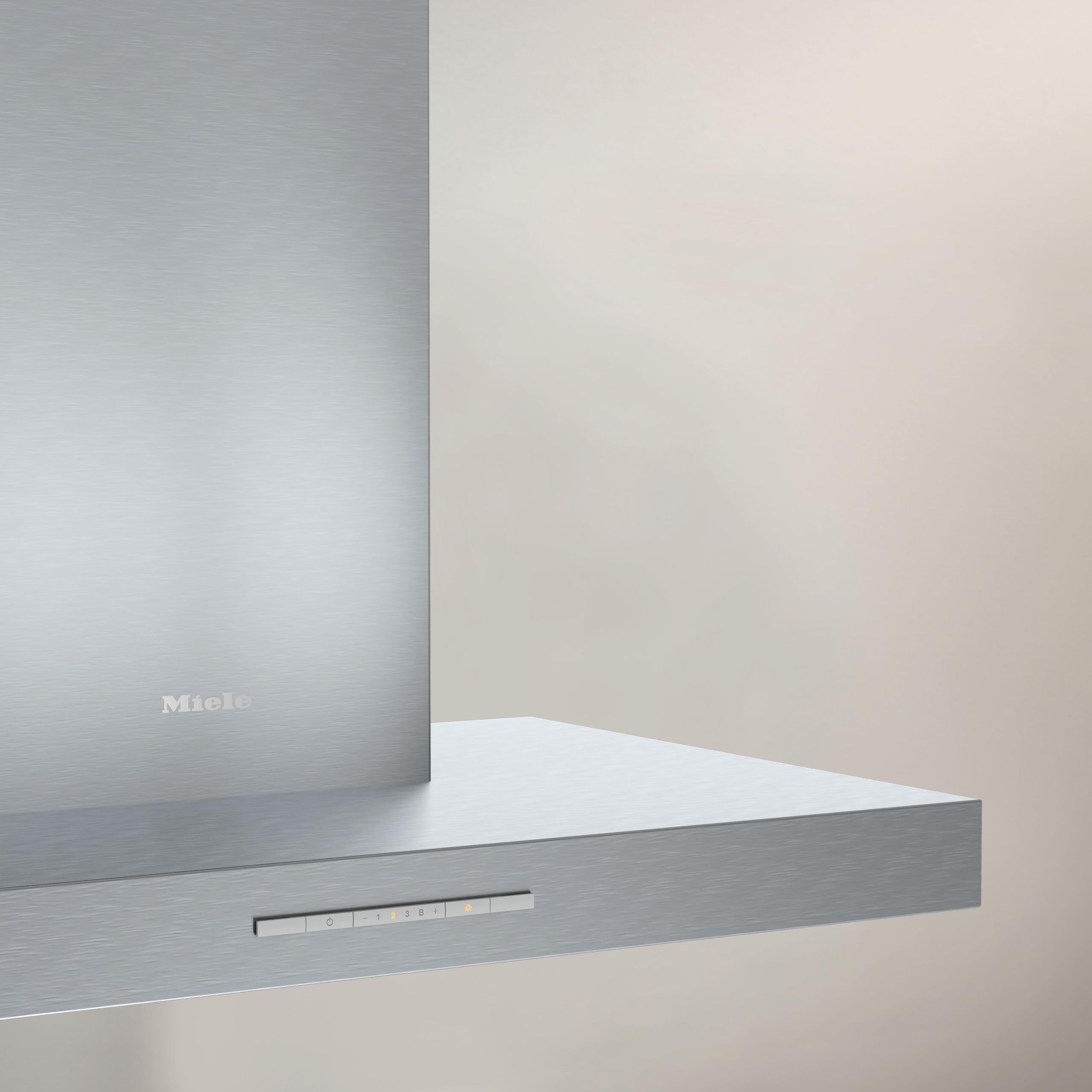

Electronic controls	Yes
EasySwitch	Yes
Operation	EasySwitch
Power levels (number excl. Intensive)	3
Booster levels	1
Programmable Intensive switch-off	Yes
CleanCover	Yes

Lighting

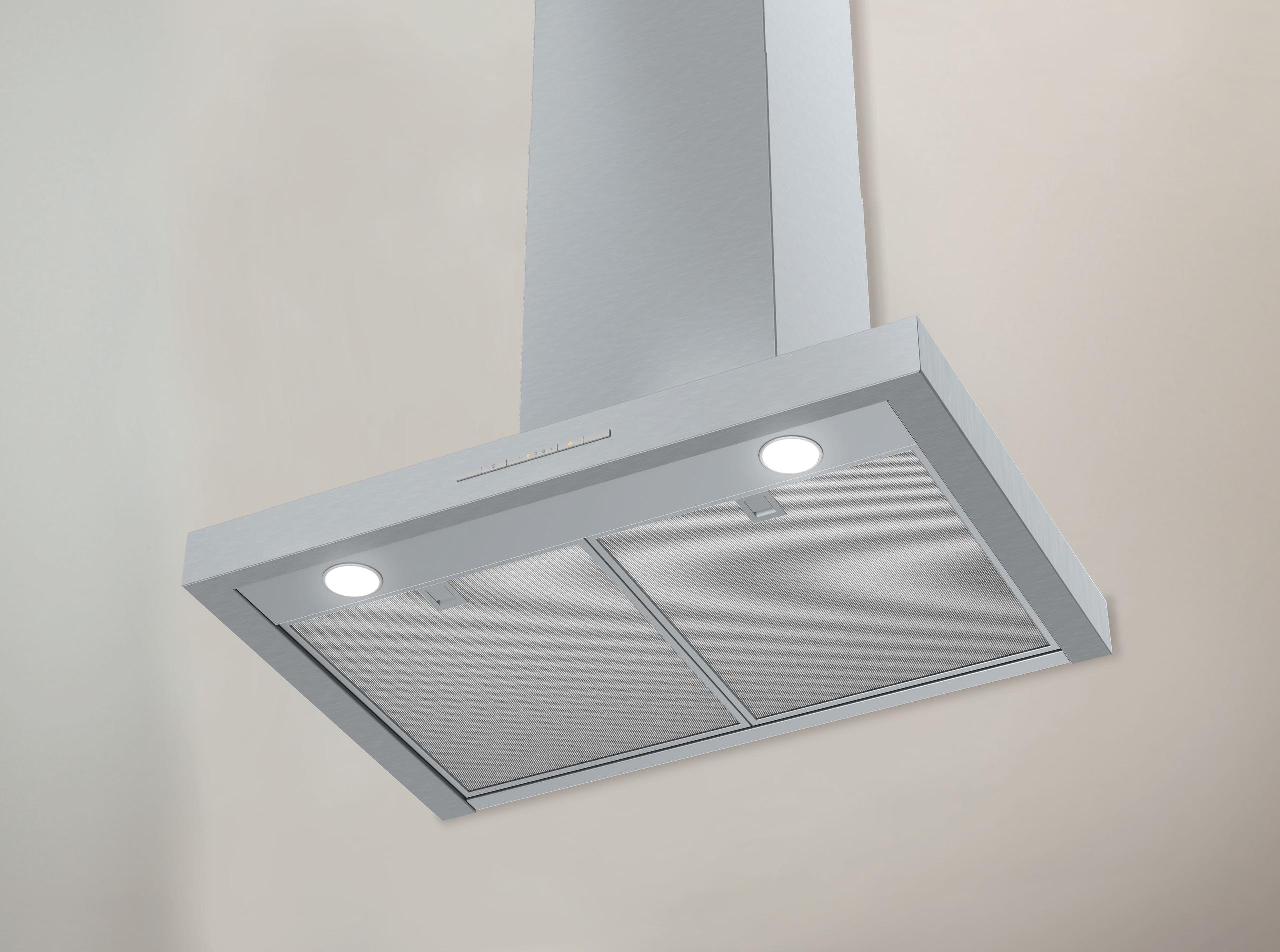

LED ClearView lighting	Yes
Number x W	2
Light intensity in Lx	330
Color temperature in K	3000

Blower

Dual-action blower	Yes
AC motor	Yes

Exhaust air

Air throughput	Values upon request
Air throughput in CFM in Booster	510
Air throughput with Booster level 1 (m /h) according to EN 61591	512.06

Technical data

Overall min. height for vented and external in in. (mm)	27
Overall max. height for vented and external in in. (mm)	39 5/8 (1005)
Overall min. height for recirculation in in. (mm)	32 1/8 (815)
Overall max. height for recirculation in in. (mm)	44 3/4 (1135)
Canopy width in in. (mm)	29 1/2 (748)
Canopy height in in. (mm)	2 1/2 (62)
Depth of hood canopy in in. (mm)	19 3/4 (500)
Minimum height above electric cooktops in mm	24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm	26
Net weight in lbs. (kg)	51
Length of electrical wire in ft. (m)	4
Standard plug fitted	Yes
Plug type	NEMA plug: 5-15
Total connected load in kW	0.356
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	Yes
Diameter of vent connection in in. (mm)	6
Telescopic chimney	Yes

Features

Timeless design - stainless steel canopy 29 1/2 (748) in (mm) wide
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Powerful - in Booster level
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Powerful - 512.06 (870) ft /min (m3/h) in Booster level
Efficient filtration- 10-ply stainless steel grease filters
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Safe and easy to clean - Miele CleanCover
Suitable for every home - vented or recirculating
Manufactured with great care by Miele & Cie. KG
View manufacturer details: Miele & Cie. KG
Safety information
