SKU: DA6881 | UPC: 4002515823965

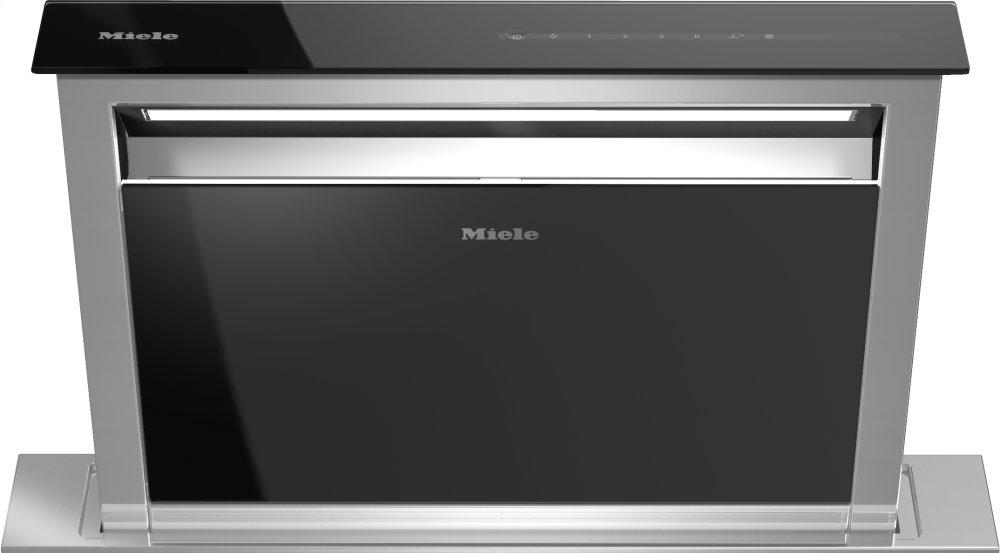

Miele DA6881 30-inch Countertop Extractor Stainless steel

Quick Specification More details

Width:
30"
Depth:
4.75"
Height:
25.38"
Type:
Downdraft Hoods

About this product

Safety turn off
Edge vented
Motorized canopy

SKU: DA6881 | UPC: 4002515823965

Miele DA6881 30-inch Countertop Extractor Stainless steel

$2,896.00

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Product Details for Miele DA6881

Technical Details

Operating modes

Recirculated mode	Can be retrofitted
Recirculation conversion kit (order separately)	DUU 2900-900
OdorFree charcoal filter (order separately)	DKF18-900

Design

Color	Stainless steel
Edge extraction	Yes
Downdraft	Yes

User convenience

Electronic controls	Yes
Power levels (number excl. Intensive)	3
Run-on time 15 min.	Yes
Hood in Motion	Yes
Operation	Light-touch switches with LEDs
Booster levels	1

Lighting

Number x W	1x6W
Light intensity in Lx	280 lx
Color temperature in K	4000 Kelvin

Safety

Safety shut-off	Yes
Single-ply safety glass (ESG)	Yes

Technical data

Length of electrical wire in ft. (m)	4 (1.5)
Standard plug fitted	Yes
Voltage in V	120
Fuse rating in A	10
Frequency in Hz	60
Number of phases	1
Total connected load in kW	0.346
Overall hood height for vented mode and external in inches (mm)	41 3/8 (1052)
Overall height for recirculation mode ventilation hoods in mm	41 3/8 (1052)
Overall height for vented and external min. in (mm)	41 3/8 (1052)
Overall height for vented mode and external mode ventilation hoods max. in mm	41 3/8 (1052)
Overall height for recirculation min. in (mm)	41 3/8 (1052)
Overall height for recirculation mode ventilation hoods max. in mm	41 3/8 (1052)
Plug type	US grounded plug

Installation note

Vent connection top,rear,side,bottom	Yes
Diameter of vent connection in in. (mm)	6 (150)

Standard accessories

Reducer from 150 to 125 mm Ø

Yes

Other

Standard plug fitted	Yes
Total connected load in kW	0.35
Voltage in V	120
Fuse rating in A	10
Frequency in Hz	60
Number of phases	1

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Source	Calculation
Shipping Width	35 in.
Shipping Height	30.38 in.
Shipping Length	9.75 in.
Shipping Weight	92 lbs.
Total of Shipping Weight	92 lbs.

Exhaust air

Air throughput in CFM in Booster	240
Air throughput with Booster level 1 (m³/h) according to EN 61591	423.78 (720)

Dimensions & weight

Width	30 in.
Height	25.38 in.
Weight	52 lbs.
Depth	4.75 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	2.09 ft³
Dimensional Weight	26.01 lbs.
Total of Cubes	2.09 ft³
Total of Dimensional Weight	26.01 lbs.

General information

Model number	DA 6881
Manufacturer material number	10595900
EAN number	4002515823965
Marketing class	Gold

Filter system

Number of dishwasher-safe stainless steel grease filters

Description

The brand Miele DA6881 is an elegant 30-inch downdraft ventilation hood finished in high-grade Stainless Steel. It offers reversible recirculation or external venting options, four fan speed settings, and integrated LED lighting to illuminate the cooktop. With dishwasher-safe stainless filters and smooth retractable design, it delivers discreet extraction and modern aesthetics for cook-island installations.
