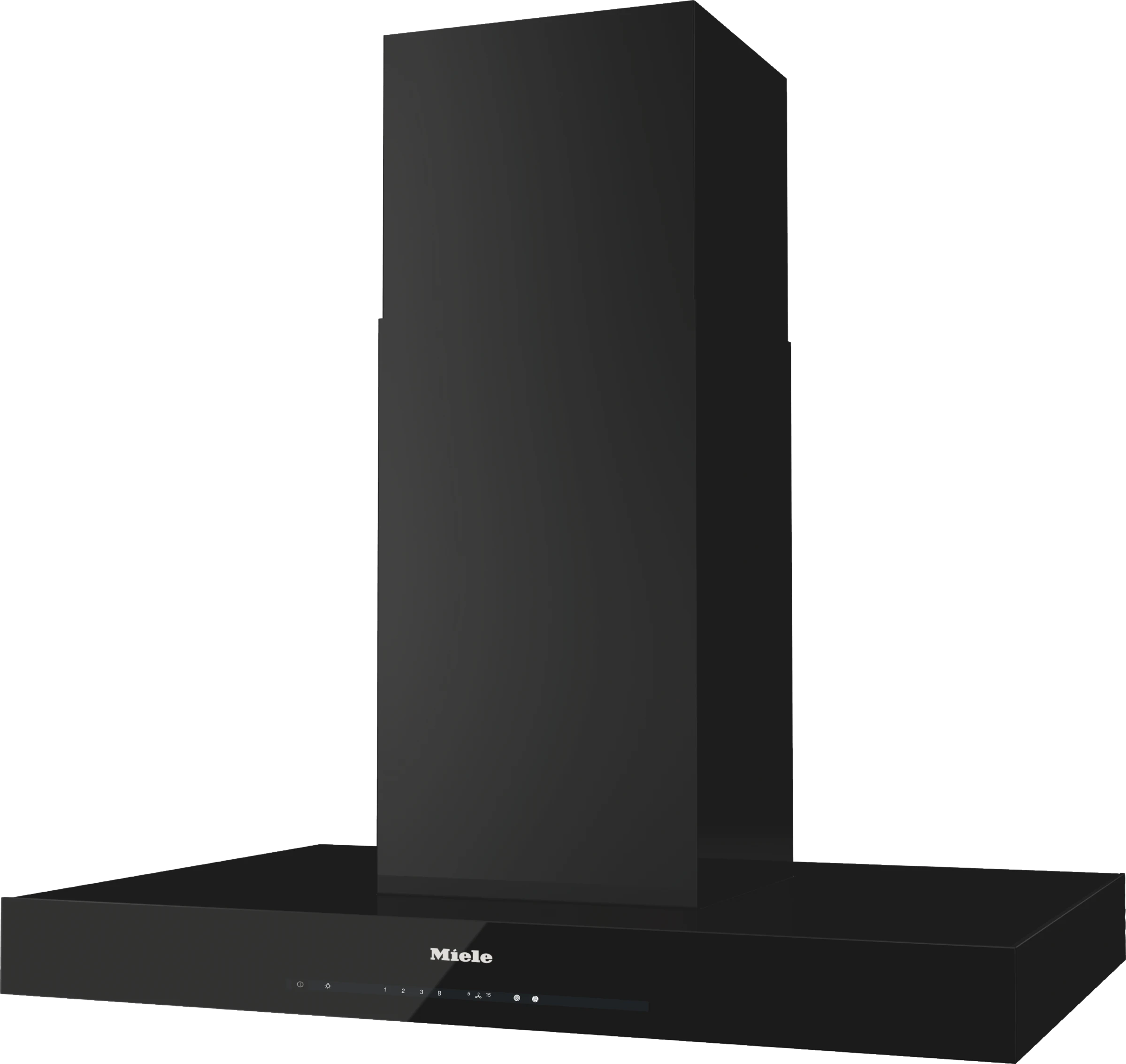

Miele DA6698DOB DA 6698 D Puristic Version 6000 Obsidian black Clean Touch Steel
Sale price
Contact us for Pricing
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for Miele DA6698DOB
Technical Details
General information
| Model number | DA 6698 D Puristic Version 6000 |
| Manufacturer material number | 10877240 |
| EAN number | 4002516024675 |
| Marketing class | Diamond |
Design
| Island ventilation hood | TRUE |
| Color | Obsidian black |
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUI 32 |
| OdorFree charcoal filter (order separately) | DKF 12-P |
User convenience
| Miele@home | TRUE |
| Electronic controls | TRUE |
| Light-touch controls | TRUE |

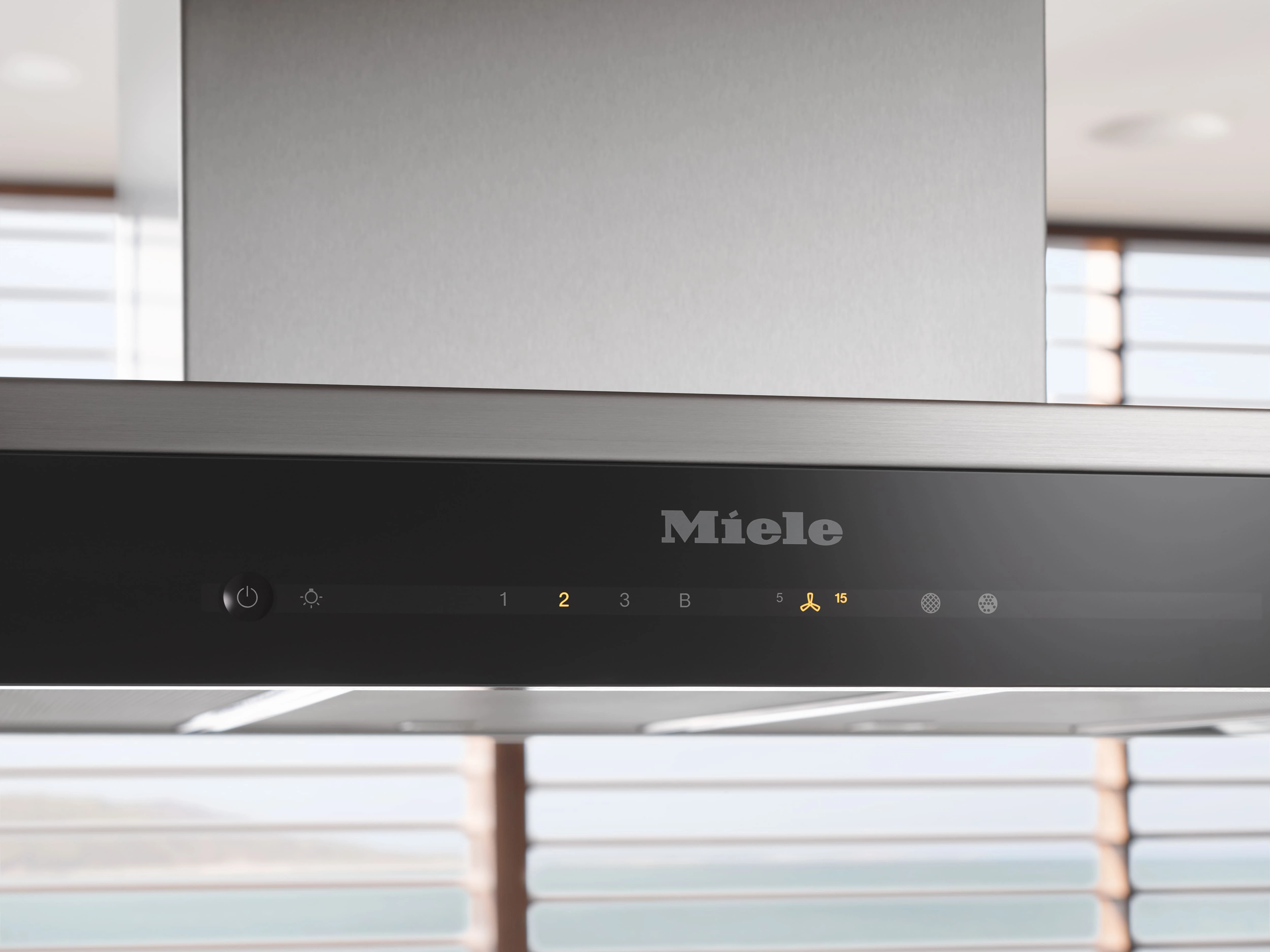

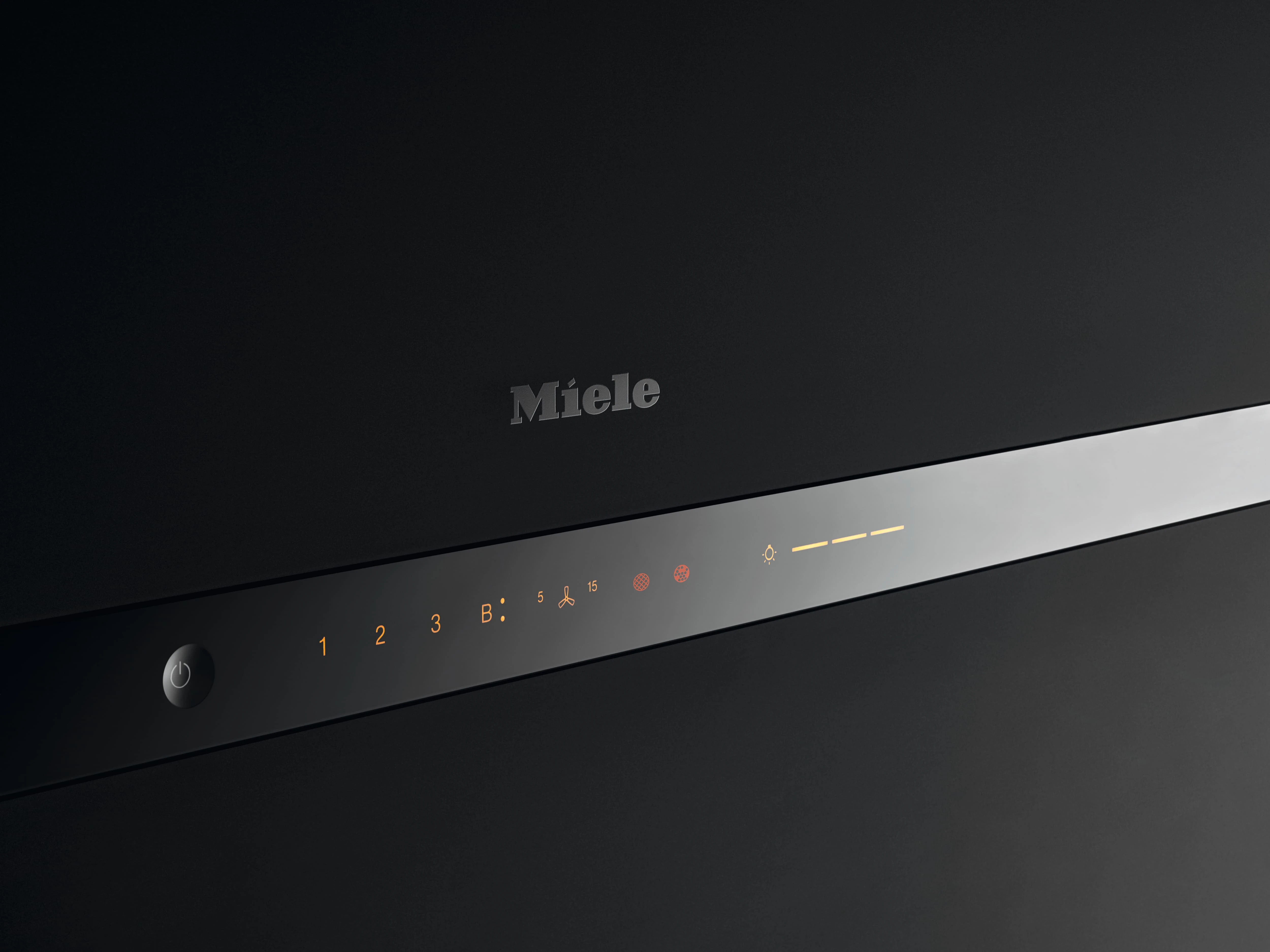

| Operation | Touch-on-glass controls |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | TRUE |
| Grease filter saturation indicator | TRUE |
| Active charcoal filter saturation indicator | TRUE |
| Acoustic package | TRUE |
| CleanCover | TRUE |
Cleaning convenience
| Easy-to-clean canopy interior – CleanCover | TRUE |
Filter system
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 3 |
Lighting
| Number x W | 4 x 3 W |
| Light intensity in Lx | 820 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | TRUE |
Blower
| Dual-action blower | TRUE |
Exhaust air
| Air throughput in CFM in Booster | 507 |
| Air throughput with Booster level 1 (m³/h) according to EN 61591 | 506.18 (860) |
Safety
| Safety shut-off | TRUE |
| Single-ply safety glass (ESG) | TRUE |
Technical data
| Overall hood height for vented mode and external in inches (mm) | 27 7/8 (705)–39 5/8 (1005) |
| Overall height for recirculation mode ventilation hoods in mm | 30 1/8 (765)–42 3/8 (1075) |
| Overall min. height for vented and external in in. (mm) | 27 7/8 (705) |
| Overall max. height for vented and external in in. (mm) | 39 5/8 (1005) |
| Overall min. height for recirculation in in. (mm) | 30 1/8 (765) |
| Overall max. height for recirculation in in. (mm) | 42 3/8 (1075) |
| Canopy width in in. (mm) | 35 3/8 (898) |
| Canopy height in in. (mm) | 3 3/8 (85) |
| Depth of hood canopy in in. (mm) | 23 5/8 (598) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 78 (35.0) |
| Plug type | Without plug |
| Hard-wired | TRUE |
| Total connected load in kW | 0.362 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection at top | TRUE |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Telescopic chimney | TRUE |
Standard accessories
| Non-return flap | TRUE |
Dimensions & weight
| Width | 35.35 in. |
| Length | 23.54 in. |
| Weight | 170.11 lbs. |
| Gross Weight | 127.87 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 53.74 in. |
| Shipping Height | 32.48 in. |
| Shipping Length | 34.06 in. |
| Shipping Weight | 210.11 lbs. |
| Source | Manufacturer |
| Total of Shipping Weight | 210.11 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 34.4 ft³ |
Description
What's included
Non-return flap
Communication module for Con@ctivity XKM 2000 DA
Non-return flap
Communication module for Con@ctivity XKM 2000 DA
Manuals & Guides
Key Features
Delayed shutdown
The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
filter saturation indicator
If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Safety turn off
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Stainless-steel grease filters (10-layer)
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.
Silence
Efficient and very quiet: The motor, chimney and ventilation hood canopy are equipped with special insulators for effective sound-proofing. This allows normal conversations even with high air throughput.
Miele CleanCover

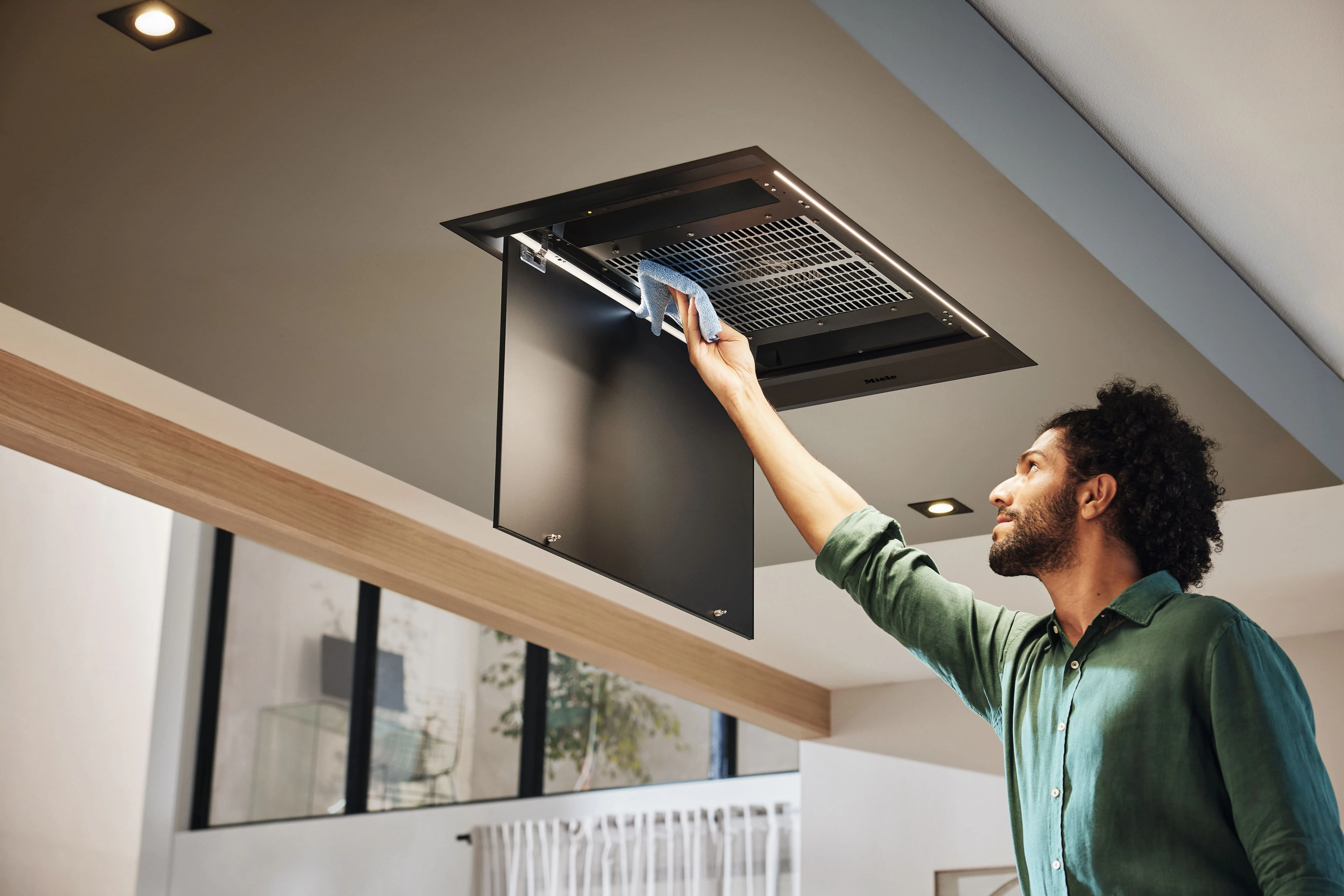

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
