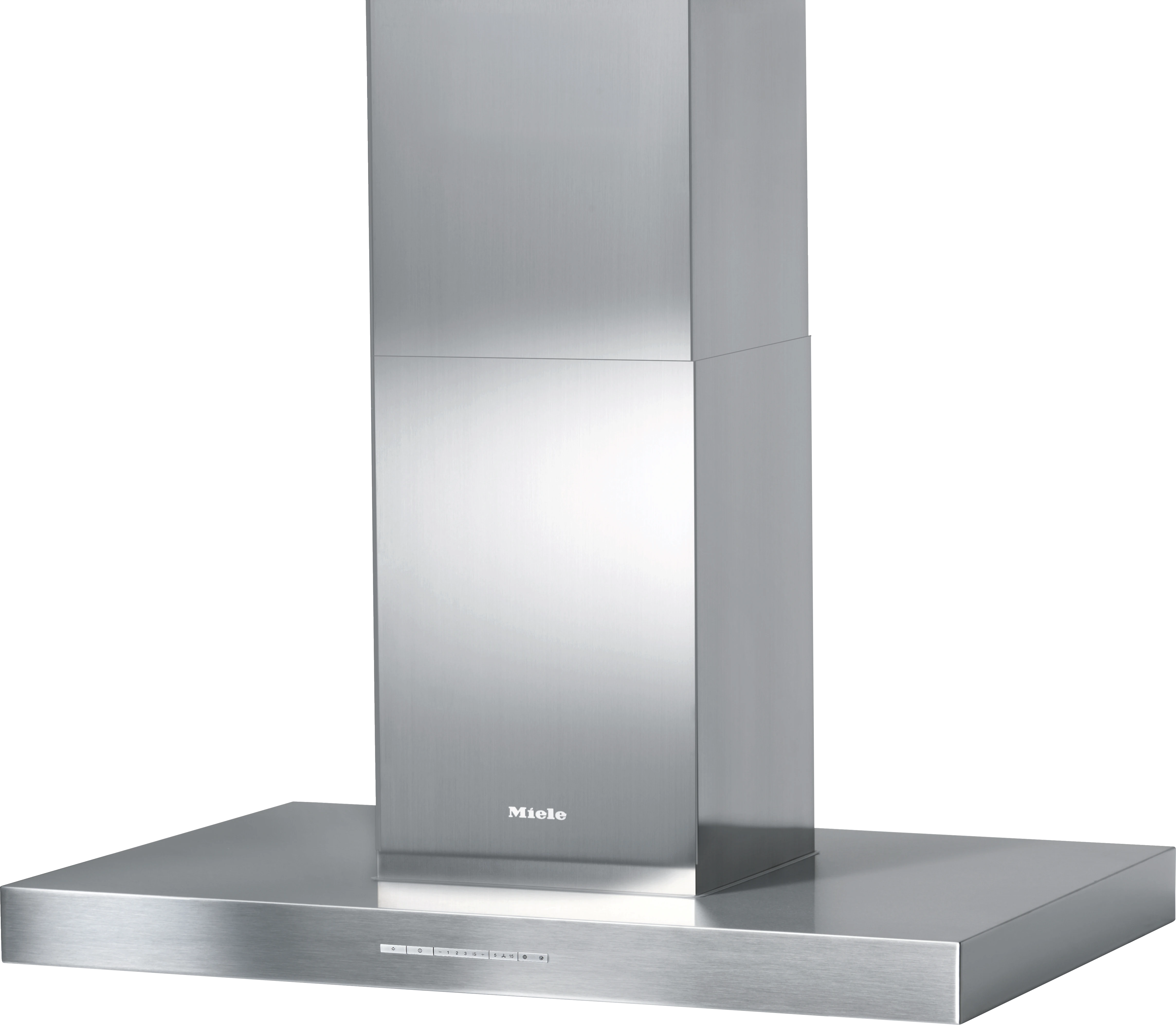

Miele DA6596DSS DA 6596 D Puristic Canto Stainless steel Clean Touch Steel

Quick Specification More details

Type:
Wall & Chimney Hoods

About this product

Delayed shutdown
filter saturation indicator
Safety turn off
Con@ctivity 2.0

SKU: DA6596DSS | UPC: 8017709321499

Miele DA6596DSS DA 6596 D Puristic Canto Stainless steel Clean Touch Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Type:
Wall & Chimney Hoods

About this product

Delayed shutdown
filter saturation indicator
Safety turn off
Con@ctivity 2.0

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Miele DA6596DSS

Technical Details

General information

Model number	DA 6596 D Puristic Canto
Manufacturer material number	09762240
EAN number	4002515524817
Marketing class	Gold

Design

Island ventilation hood	TRUE
Color	Stainless steel
Multi-zone edge extraction	TRUE

Operating modes

Recirculated mode	Can be retrofitted
Recirculation conversion kit (order separately)	DUI 32
OdorFree charcoal filter (order separately)	DKF12-900
Decor elements in glass (order separately)	DRP 6590D

User convenience

Automatic function	Con@ctivity 2.0
Electronic controls	TRUE

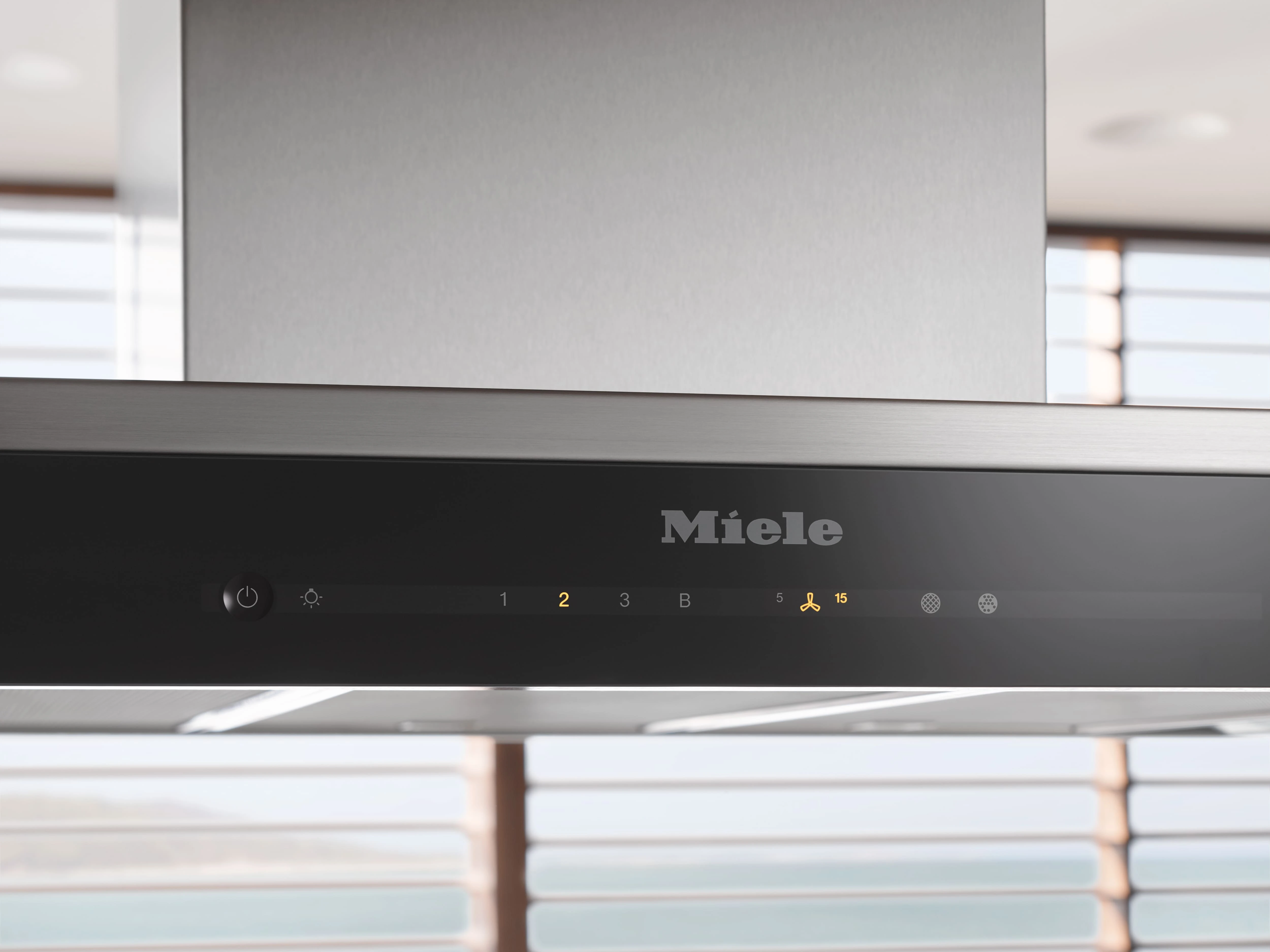

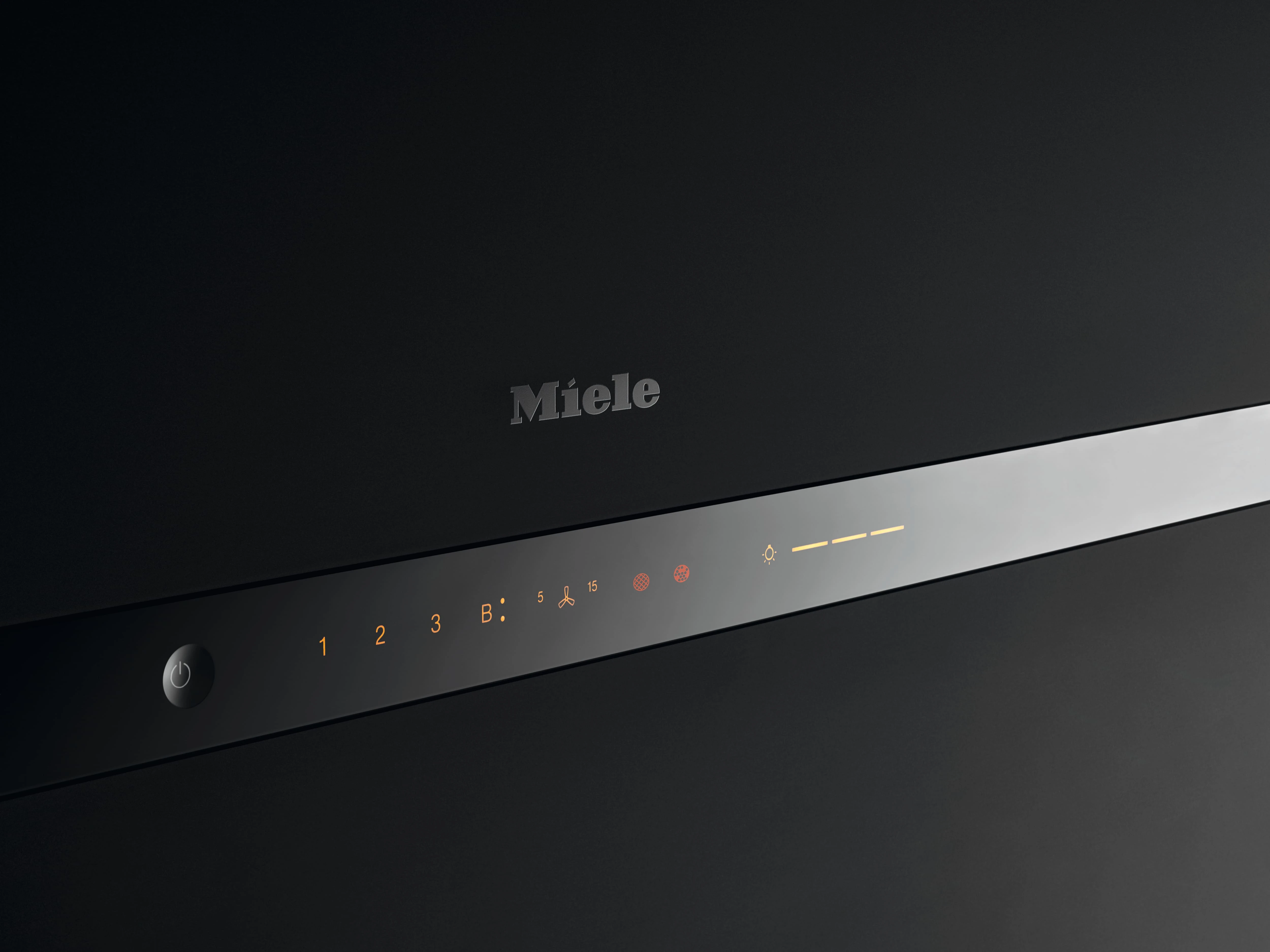

Operation	Light-touch sw.w.LEDs+r.contr.
Power levels (number excl. Intensive)	3
Booster levels	1
Delayed shutdown for 5 or 15 minutes	TRUE
Grease filter saturation indicator	TRUE
Active charcoal filter saturation indicator	TRUE
Acoustic package	TRUE
CleanCover	TRUE

Cleaning convenience

Easy-to-clean canopy interior – CleanCover

TRUE

Filter system

Number of dishwasher-safe stainless steel grease filters (10-ply)

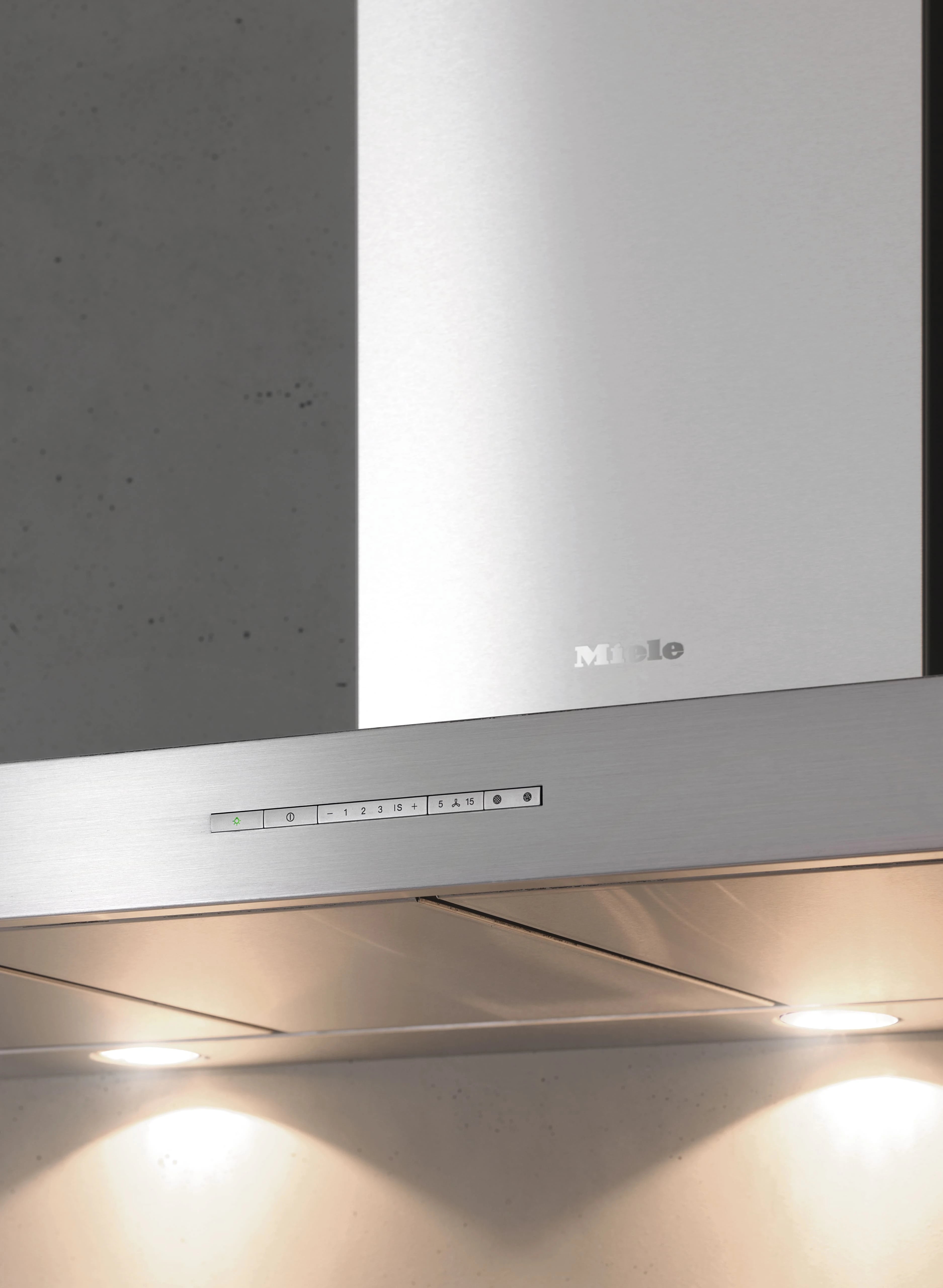

Lighting

Number x W	4 x 3 W
Light intensity in Lx	540 lx
Color temperature in K	3500 Kelvin

Blower

Dual-action blower

TRUE

Safety

Safety shut-off

TRUE

Technical data

Overall hood height for vented mode and external in inches (mm)	27 1/4 (690)–39 (990)
Overall height for recirculation mode ventilation hoods in mm	29 5/8 (750)–41 3/4 (1060)
Overall min. height for vented and external in in. (mm)	27 1/4 (690)
Overall max. height for vented and external in in. (mm)	39 (990)
Overall min. height for recirculation in in. (mm)	29 5/8 (750)
Overall max. height for recirculation in in. (mm)	41 3/4 (1060)
Canopy width in in. (mm)	35 3/8 (898)
Canopy height in in. (mm)	2 7/8 (70)
Depth of hood canopy in in. (mm)	23 5/8 (598)
Minimum height above electric cooktops in mm	24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm	26 (660)
Net weight in lbs. (kg)	75 (34.0)
Plug type	Without plug
Hard-wired	TRUE
Total connected load in kW	0.362
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	TRUE
Diameter of vent connection in in. (mm)	6 (150)
Telescopic chimney	TRUE

Standard accessories

Non-return flap	TRUE
Communication module for Con@ctivity XKM 2000 DA	XKS 3000 Z

Description

What's included

Non-return flap
Communication module for Con@ctivity XKM 2000 DA

Manuals & Guides

Key Features

Delayed shutdown

The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.

filter saturation indicator

If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

Safety turn off

The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

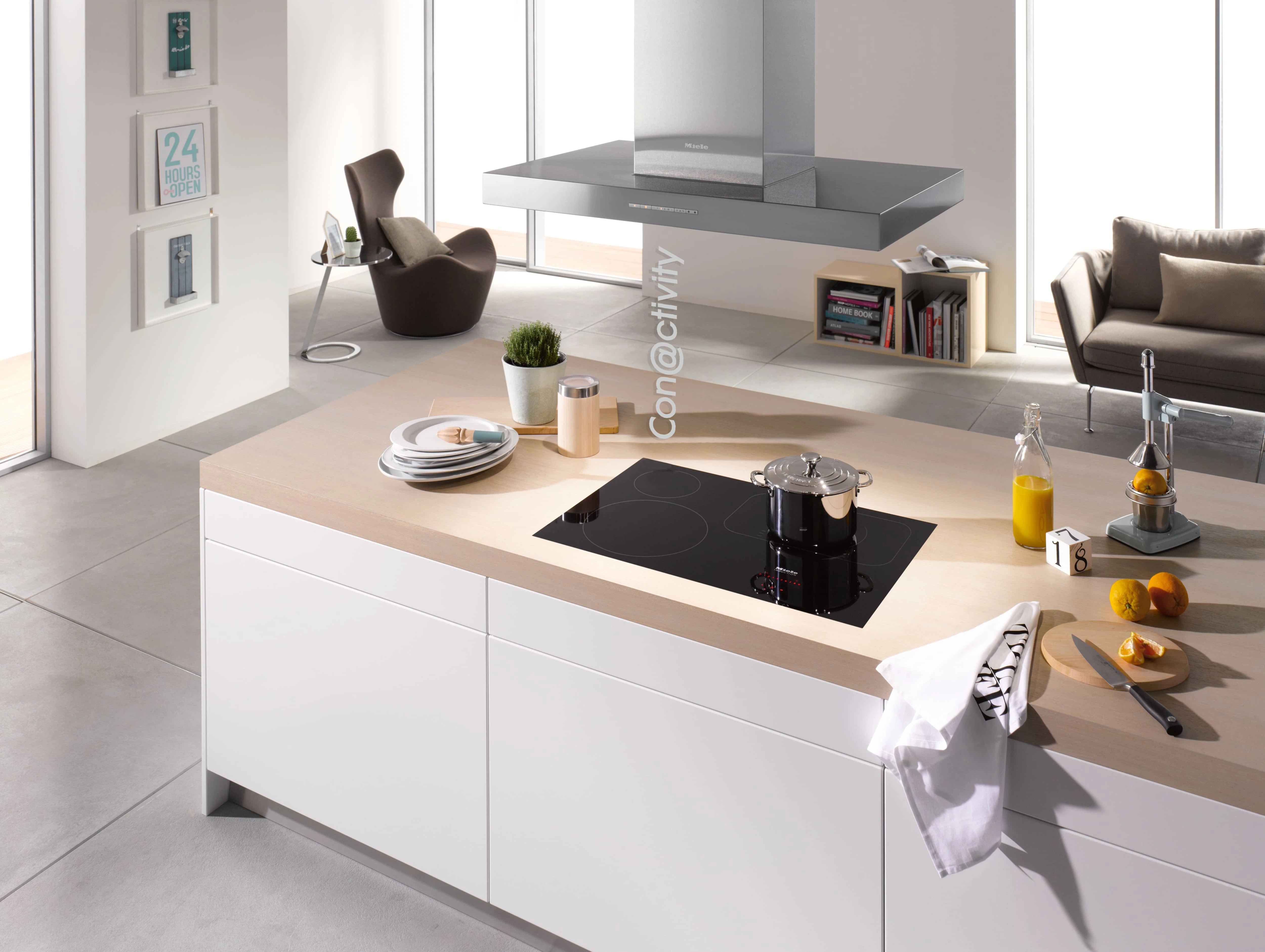

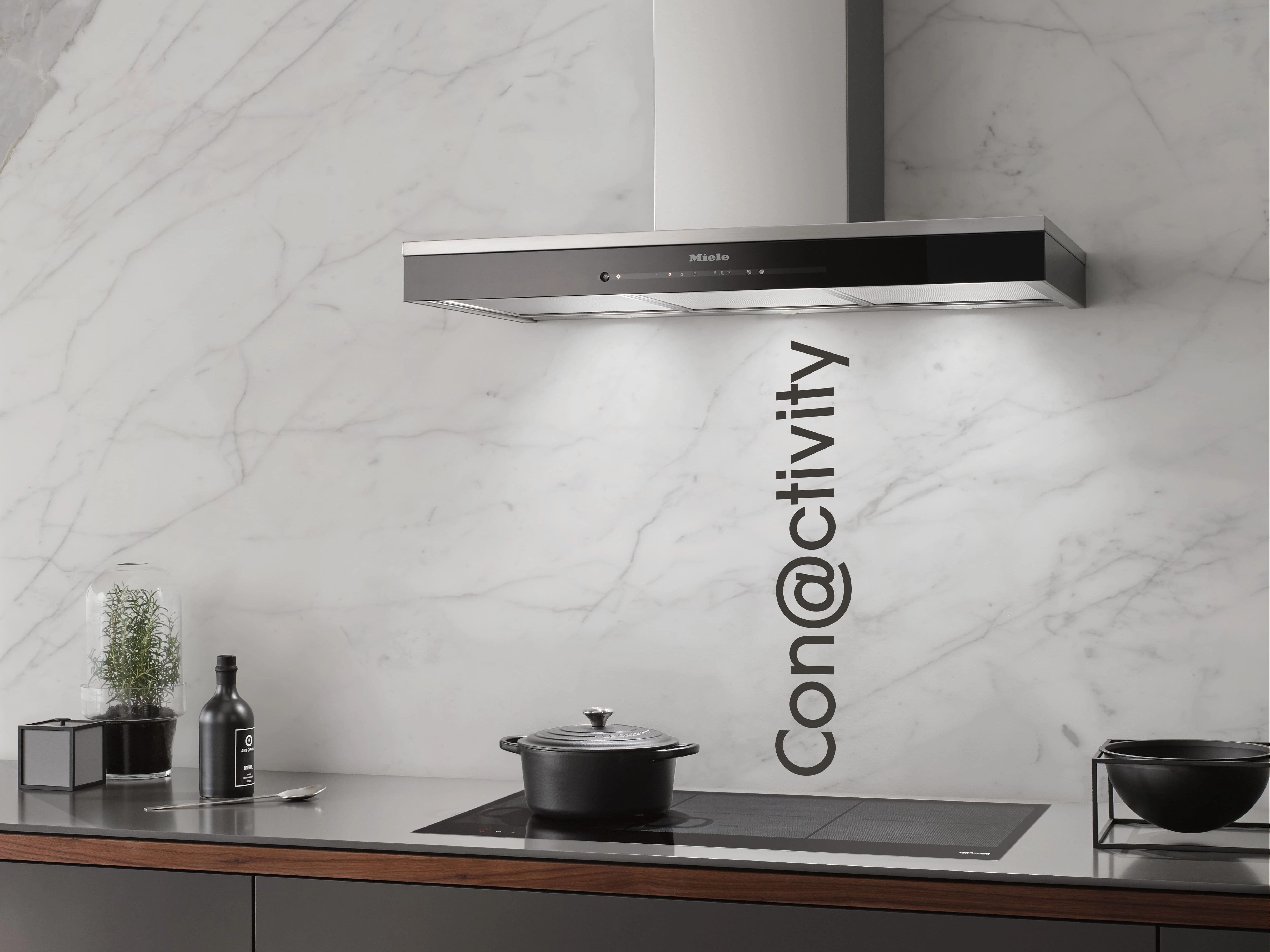

Con@ctivity 2.0

Concentrate fully on cooking: With Con@ctivity 2.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the extraction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 2.0 allows you to integrate the ventilation hood and cooktop into Miele@home.

Stainless-steel grease filters (10-layer)

Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.

Silence

Efficient and very quiet: The motor, chimney and ventilation hood canopy are equipped with special insulators for effective sound-proofing. This allows normal conversations even with high air throughput.

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.

Edge vented

In ventilation hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapors are drawn in at the outer edges.
