SKU: DA4248VDSS | UPC: 8017709334833

Miele DA4248VDSS 48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) Clean Touch Steel

Quick Specification More details

Width:
47.17"
Depth:
27.48"
Type:
Hood Inserts

About this product

Con@ctivity
Delayed shutdown
filter saturation indicator
Motorized canopy

SKU: DA4248VDSS | UPC: 8017709334833

Miele DA4248VDSS 48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) Clean Touch Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
47.17"
Depth:
27.48"
Type:
Hood Inserts

About this product

Con@ctivity
Delayed shutdown
filter saturation indicator
Motorized canopy

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Miele DA4248VDSS

Technical Details

General information

Model number	DA 4248 V D Puristic Varia
Manufacturer material number	10877250
EAN number	4002515990162
Marketing class	Platinum

Design

Island ventilation hood	TRUE
Color	Stainless steel

Operating modes

Recirculated mode

Exhaust air

User convenience

Miele@home	TRUE
Con@ctivity	TRUE
Electronic controls	TRUE

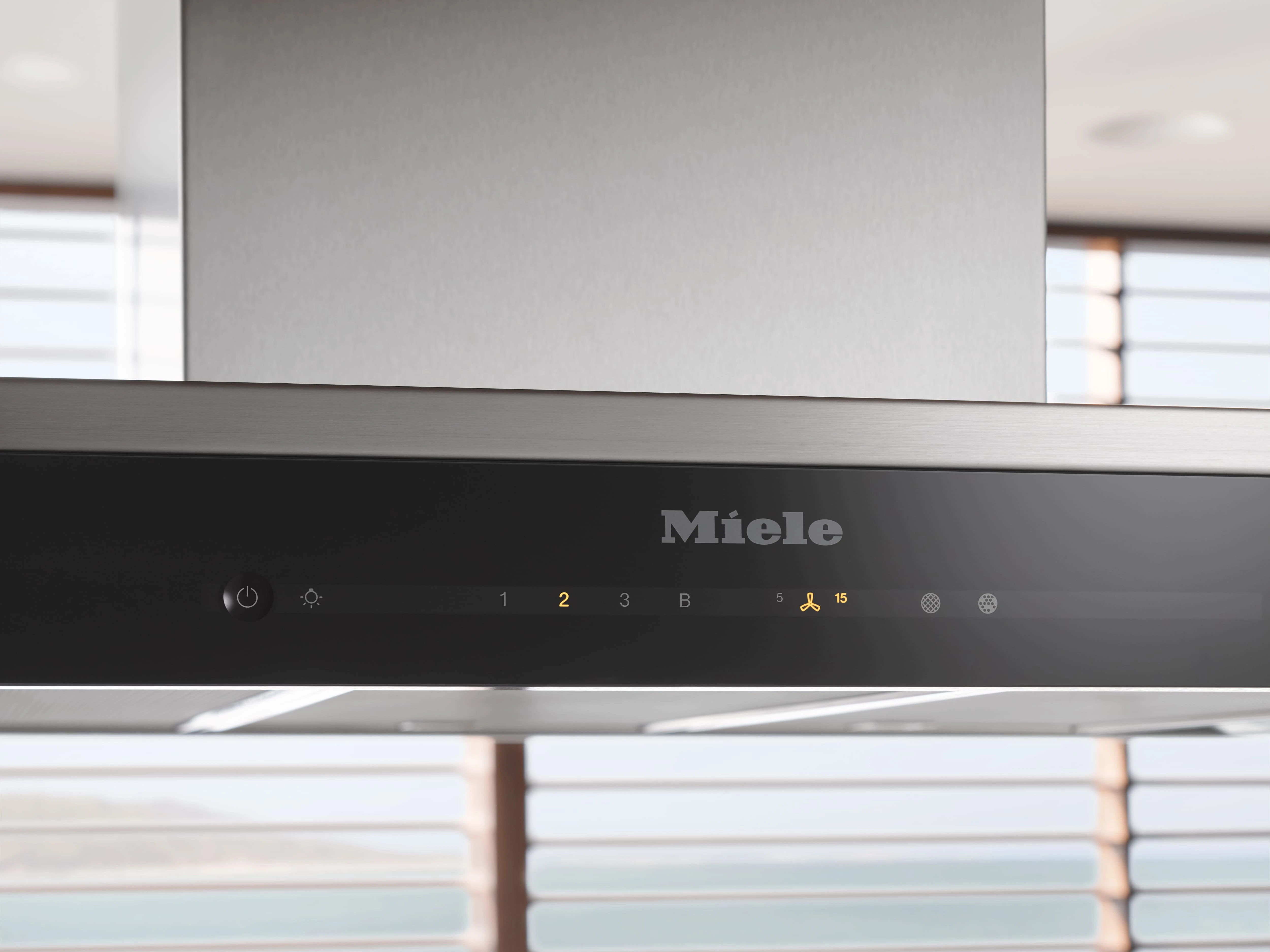

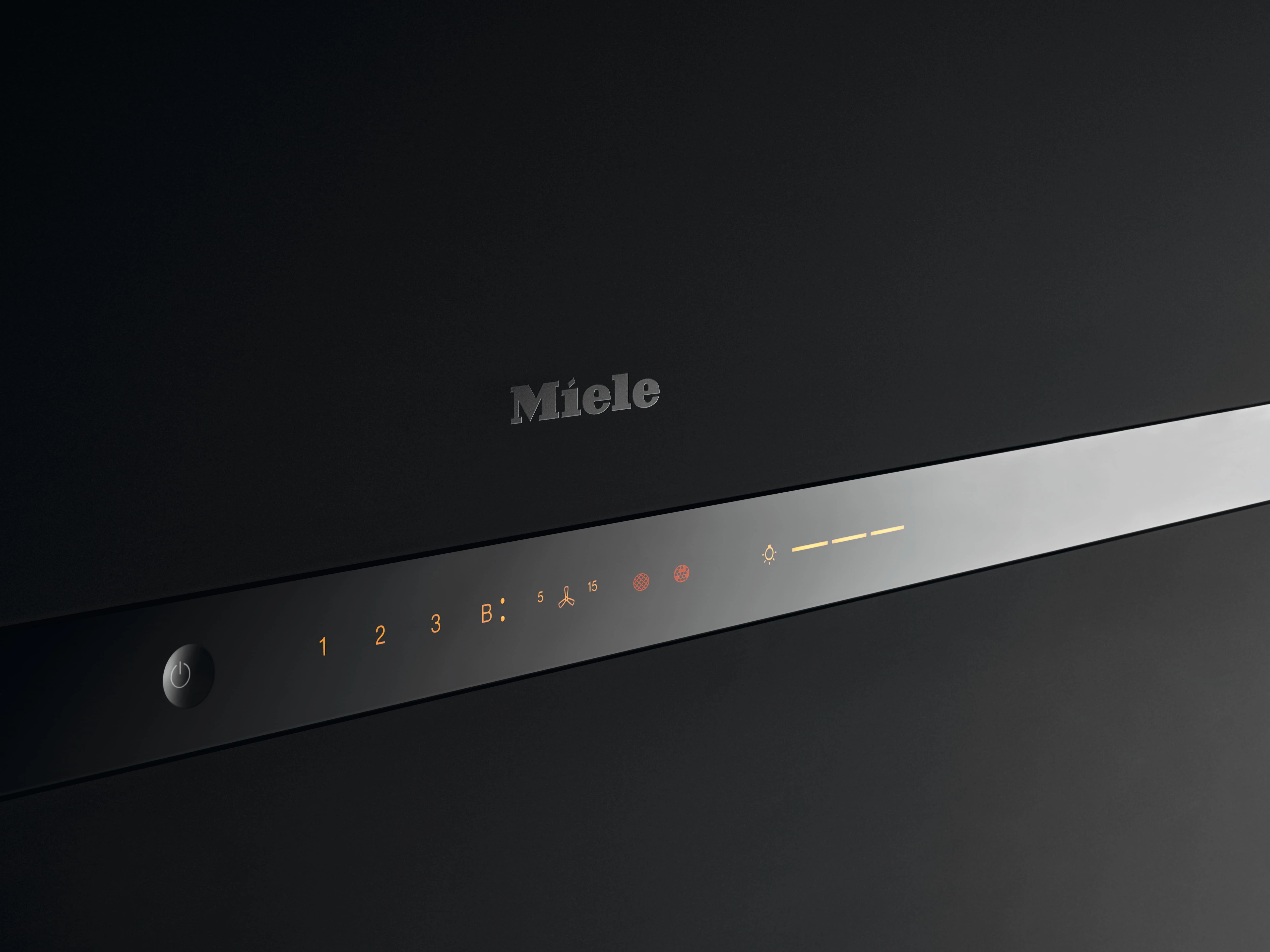

Operation	Light-touch switches with LEDs
Power levels (number excl. Intensive)	3
Booster levels	1
Delayed shutdown for 5 or 15 minutes	TRUE
Grease filter saturation indicator	TRUE
Acoustic package	TRUE
Hood in Motion	TRUE
CleanCover	TRUE

Cleaning convenience

Easy-to-clean canopy interior – CleanCover

TRUE

Filter system

Number of dishwasher-safe stainless steel grease filters (10-ply)

Lighting

Number x W	4 x 3 W
Light intensity in Lx	600 lx
Color temperature in K	3500 Kelvin
Light dimmer function	TRUE

Blower

Dual-action blower

TRUE

Exhaust air

Air throughput in CFM in Booster	507
Air throughput with Booster level 1 (m³/h) according to EN 61591	506.18 (860)

Safety

Safety shut-off

TRUE

Technical data

Overall hood height for vented mode and external in inches (mm)	29 3/4 (755)–41 1/4 (1045)
Overall min. height for vented and external in in. (mm)	29 3/4 (755)
Overall max. height for vented and external in in. (mm)	41 1/4 (1045)
Canopy width in in. (mm)	47 1/4 (1198)
Canopy height in in. (mm)	2 7/8 (70)
Depth of hood canopy in in. (mm)	27 1/2 (698)
Minimum height above electric cooktops in mm	24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm	26 (660)
Net weight in lbs. (kg)	109 (49.0)
Plug type	Without plug
Hard-wired	TRUE
Total connected load in kW	0.512
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	TRUE
Diameter of vent connection in in. (mm)	6 (150)
Telescopic chimney	TRUE

Standard accessories

Non-return flap

TRUE

Dimensions & weight

Width	47.17 in.
Length	27.48 in.
Weight	238.16 lbs.
Gross Weight	152.12 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	53.74 in.
Shipping Height	48.03 in.
Shipping Length	34.06 in.
Shipping Weight	278.15999999999997 lbs.
Source	Manufacturer
Total of Shipping Weight	278.16 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement

50.85 ft³

Description

What's included

Non-return flap
Communication module for Con@ctivity XKM 2000 DA

Manuals & Guides

Key Features

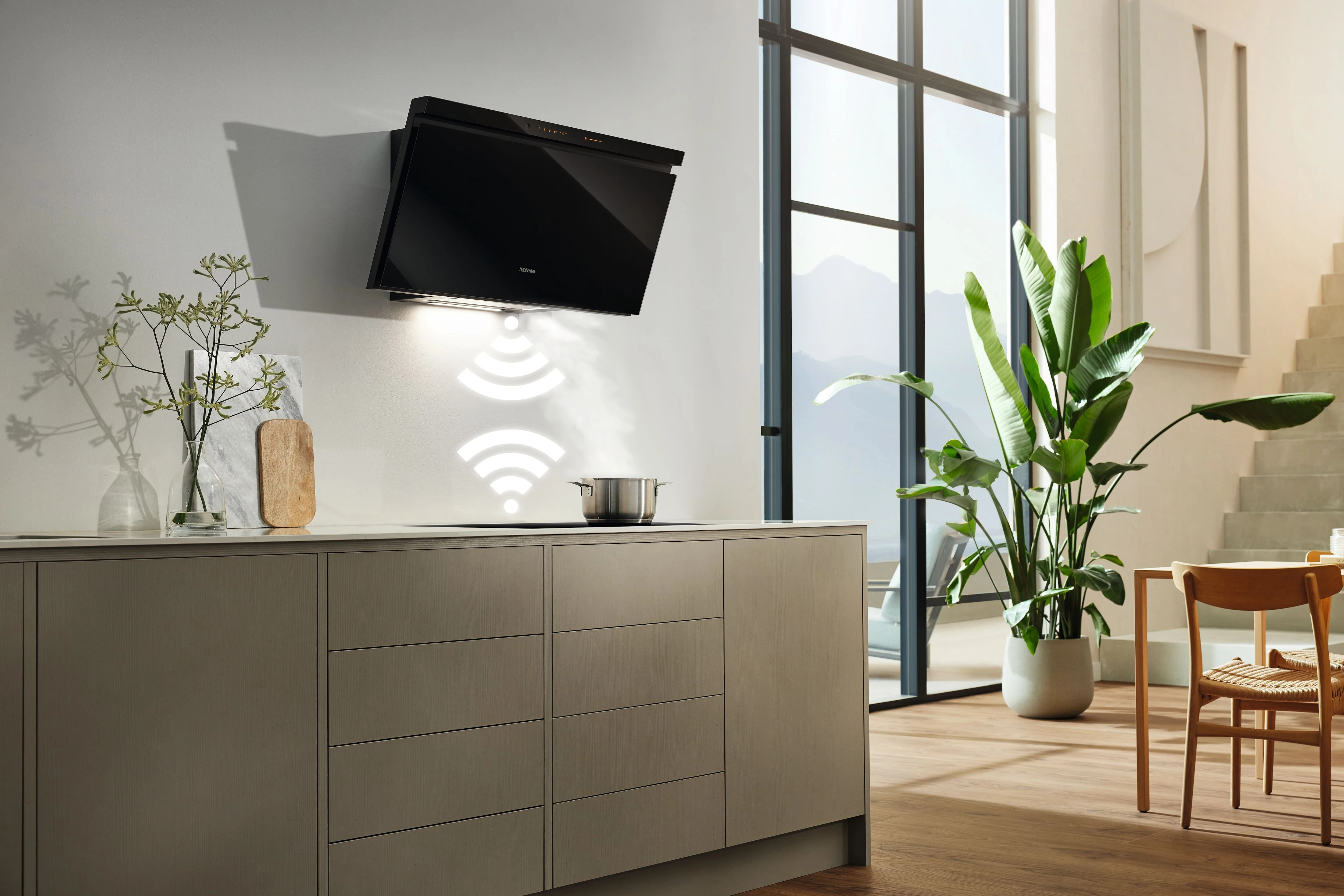

Con@ctivity

Thanks to the automatic Con@ctivity function, the ventilation hood can communicate with the cooktop below: The settings selected on the cooktop are transmitted to the controls on the hood. Your Miele Ventilation Hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the ventilation hood and cooktop via WiFi.

Delayed shutdown

The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.

filter saturation indicator

If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

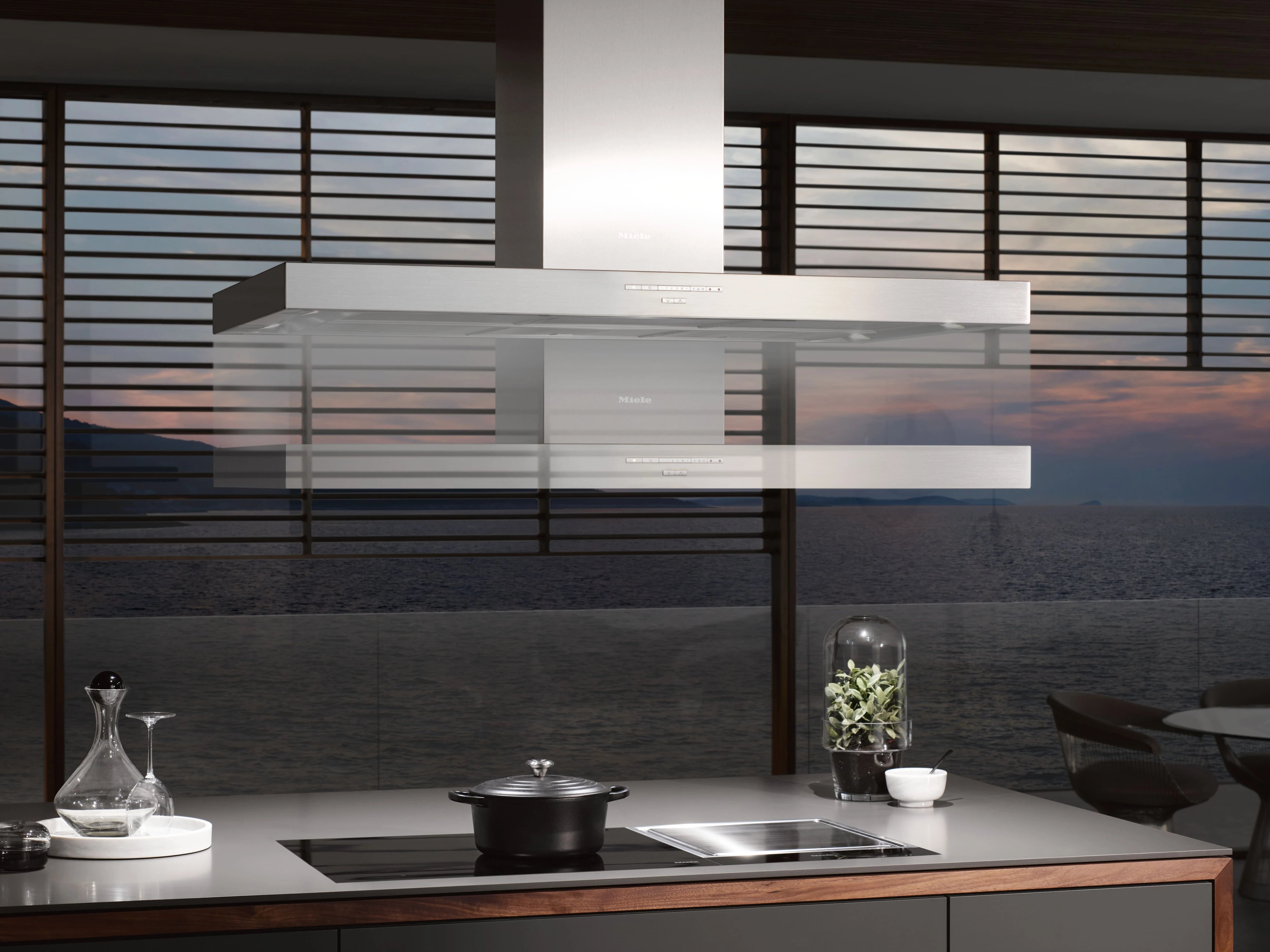

Motorized canopy

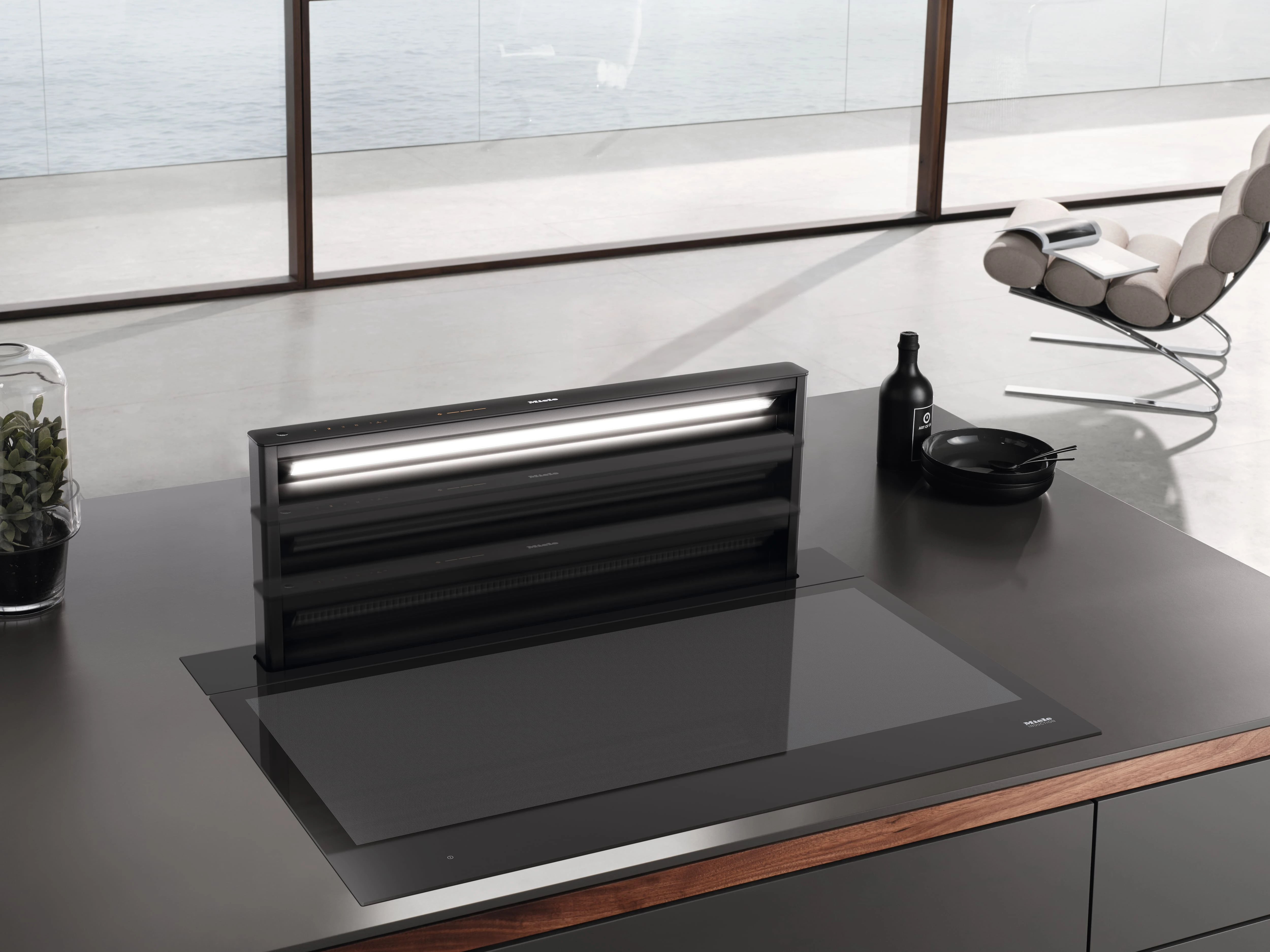

Do you have special requirements? If so, you will be impressed by our motorized ventilation hoods. The canopies of our exclusive downdraft ventilation hoods automatically move into the perfect position for operation and back into the park position when switched off. The height of the motorized island hood can be adjusted. For the best in ergonomics, highly efficient extraction, and perfect integration into the kitchen.

Safety turn off

The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

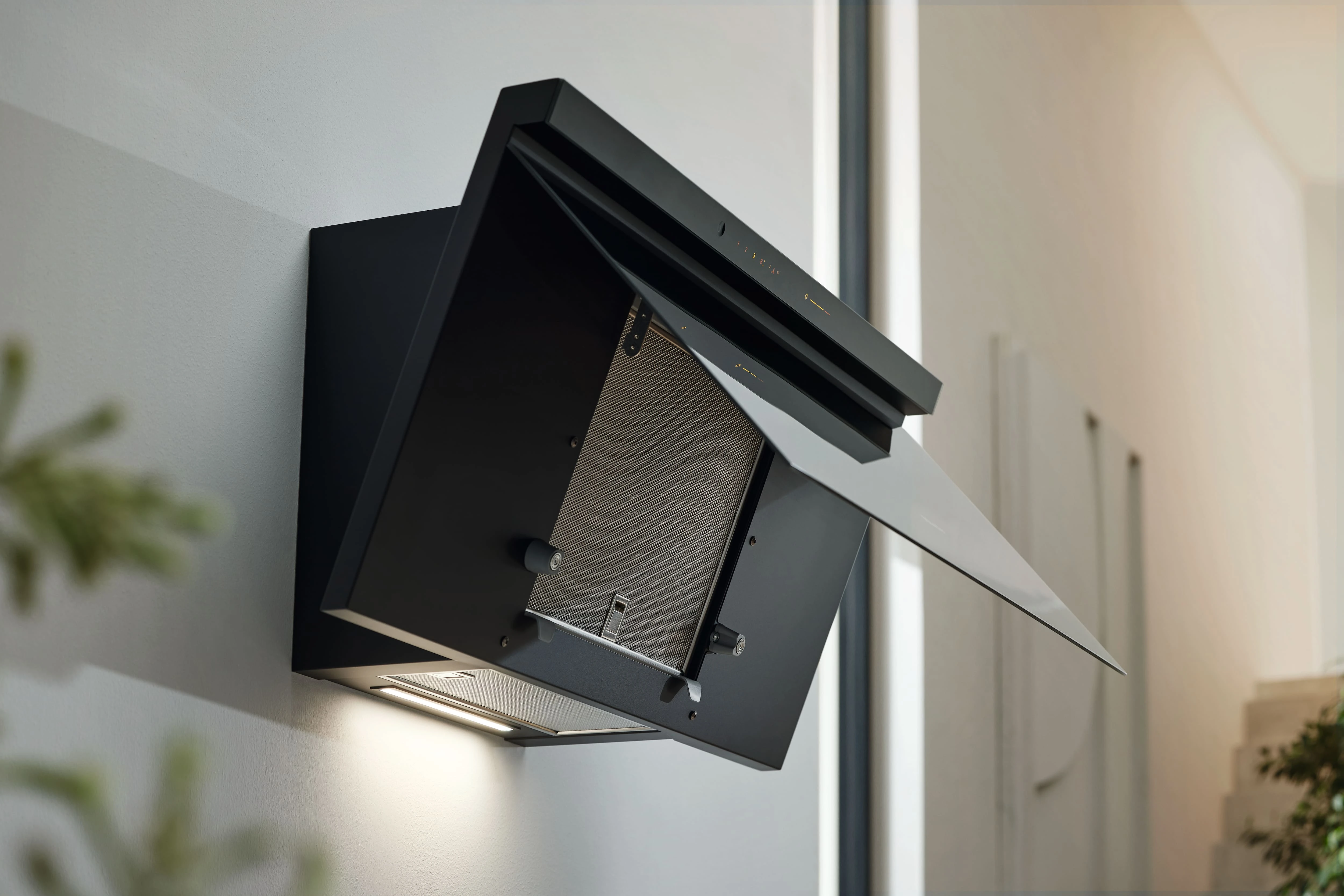

Stainless-steel grease filters (10-layer)

Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.

Silence

Efficient and very quiet: The motor, chimney and ventilation hood canopy are equipped with special insulators for effective sound-proofing. This allows normal conversations even with high air throughput.

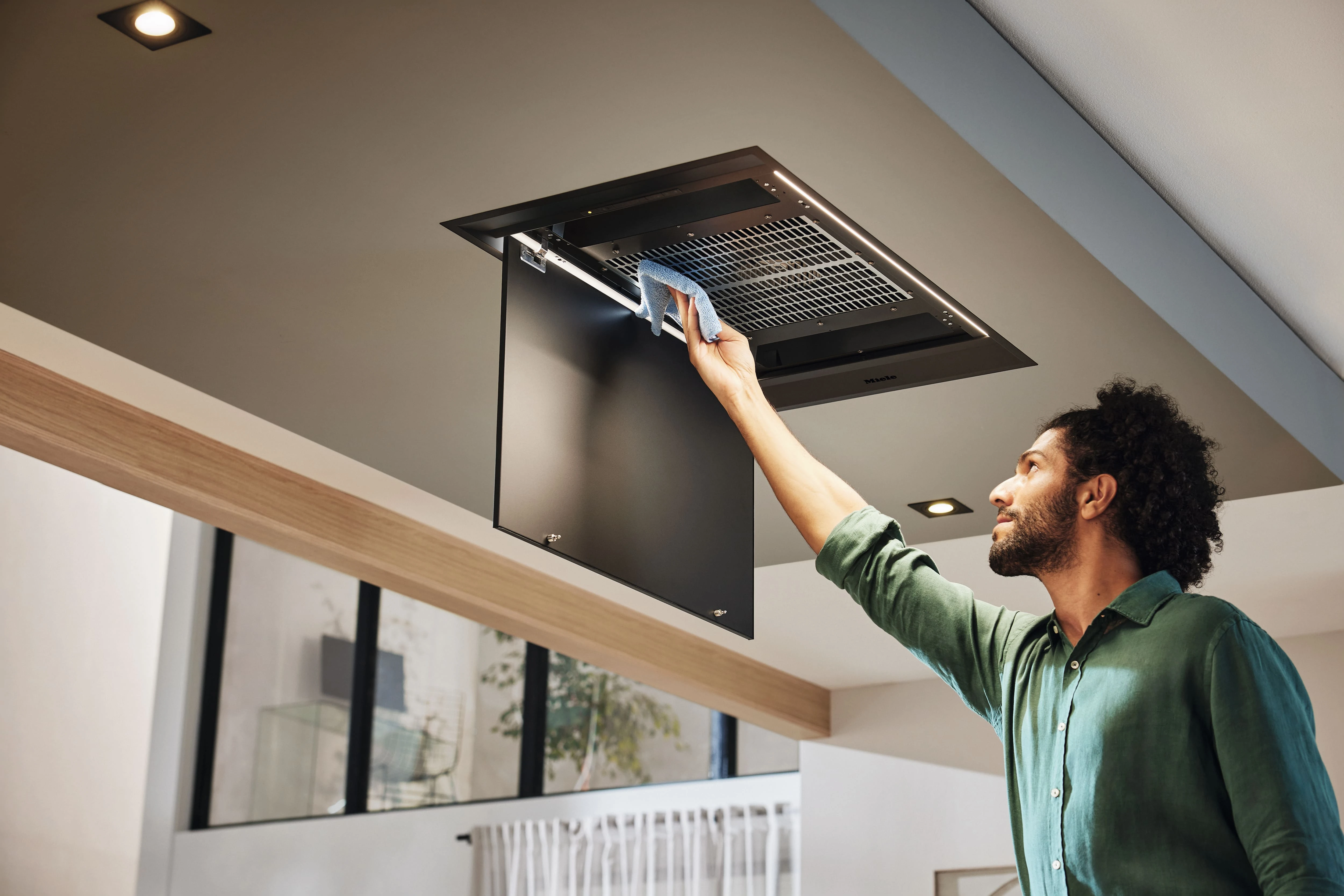

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
