SKU: DA3997 | UPC: 8017709329907

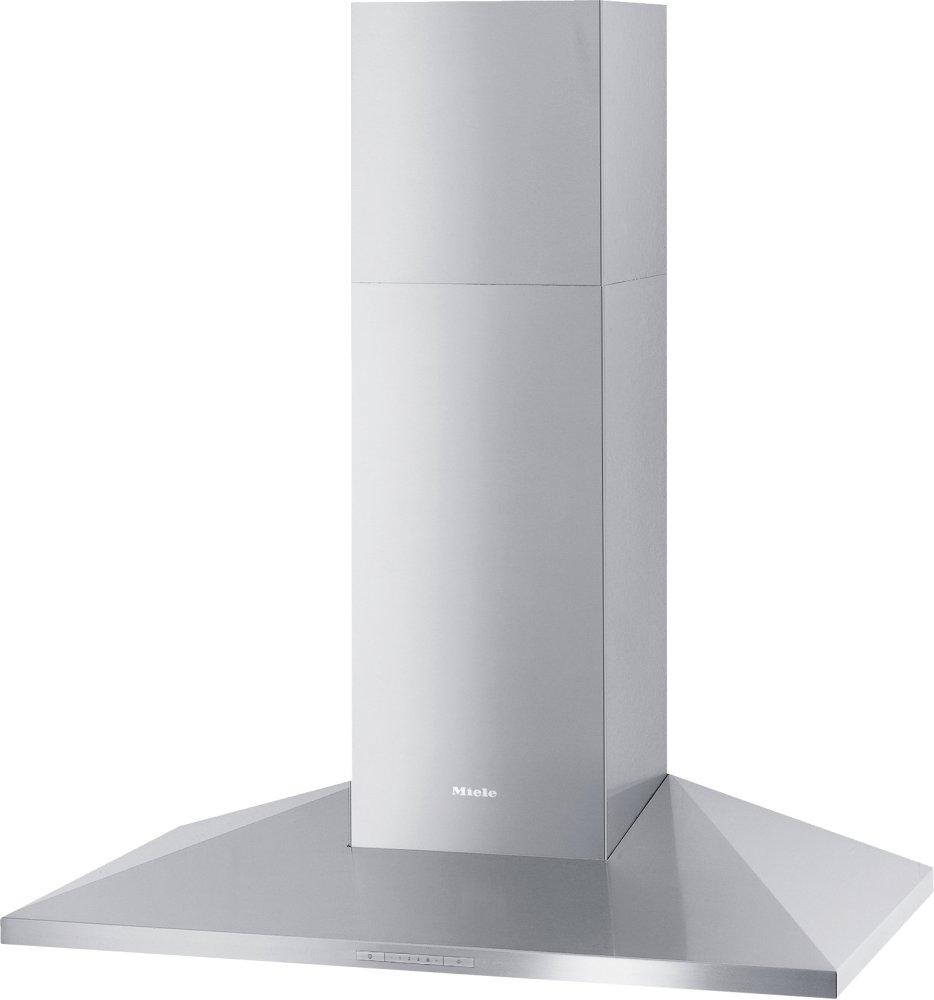

MIELE DA3997 DA 399-7 Classic Stainless steel - Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

Quick Specification More details

Width:
39.0 Inch
Type:
Ducted Mount Hoods

About this product

Design - 35 3/8 (898) in (mm) wide trapezoidal canopy
Safety turn off
Powerful - 488.52 (830) ft /min (m3/h) in Booster level
Stainless-steel grease filters (10-layer)

SKU: DA3997 | UPC: 8017709329907

MIELE DA3997 DA 399-7 Classic Stainless steel - Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

$2,899.00 ~~$3,840.97~~ Save $941.97 / 24% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
39.0 Inch
Type:
Ducted Mount Hoods

About this product

Design - 35 3/8 (898) in (mm) wide trapezoidal canopy
Safety turn off
Powerful - 488.52 (830) ft /min (m3/h) in Booster level
Stainless-steel grease filters (10-layer)

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Rebates
Reviews

$2,899.00 ~~$3,840.97~~ Save $941.97 / 24% OFF

Product Details for MIELE DA3997

Technical Details

General information

Model number	DA 399-7 Classic
Manufacturer material number	10558800
EAN number	4002515802199

Design

Wall ventilation hood	Yes
Color	Stainless steel

Operating modes

Recirculated mode	Can be retrofitted
Recirculation conversion kit (order separately)	DUW 20
OdorFree charcoal filter (order separately)	DKF 12-P

User convenience

Electronic controls	Yes
Operation	Light-touch switches with LEDs
Power levels (number excl. Intensive)	3
Booster levels	1
CleanCover	Yes

Lighting

Number x W	2
Light intensity in Lx	300
Color temperature in K	3000

Exhaust air

Air throughput	Values upon request
Air throughput in CFM in Booster	489
Air throughput with Booster level 1 (m /h) according to EN 61591	488.52

Technical data

Overall min. height for vented and external in in. (mm)	27 3/8 (695)
Overall max. height for vented and external in in. (mm)	40
Overall min. height for recirculation in in. (mm)	32 1/2 (825)
Overall max. height for recirculation in in. (mm)	45 1/8 (1145)
Canopy width in in. (mm)	35 3/8 (898)
Canopy height in in. (mm)	4 3/4 (120)
Depth of hood canopy in in. (mm)	20 1/2 (520)
Minimum height above electric cooktops in mm	24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm	26
Net weight in lbs. (kg)	58
Length of electrical wire in ft. (m)	4
Standard plug fitted	Yes
Plug type	NEMA plug: 5-15
Total connected load in kW	0.356
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	Yes
Diameter of vent connection in in. (mm)	6
Telescopic chimney	Yes

Features

Design - 35 3/8 (898) in (mm) wide trapezoidal canopy
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Powerful - 488.52 (830) ft /min (m3/h) in Booster level
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Efficient filtration- 10-ply stainless steel grease filters
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Safe and easy to clean - Miele CleanCover
For perfect functionality - accessories for proper venting
Manufactured with great care by Miele & Cie. KG
View manufacturer details: Miele & Cie. KG
Safety information
