SKU: DA2698SS | UPC: 8017709334871

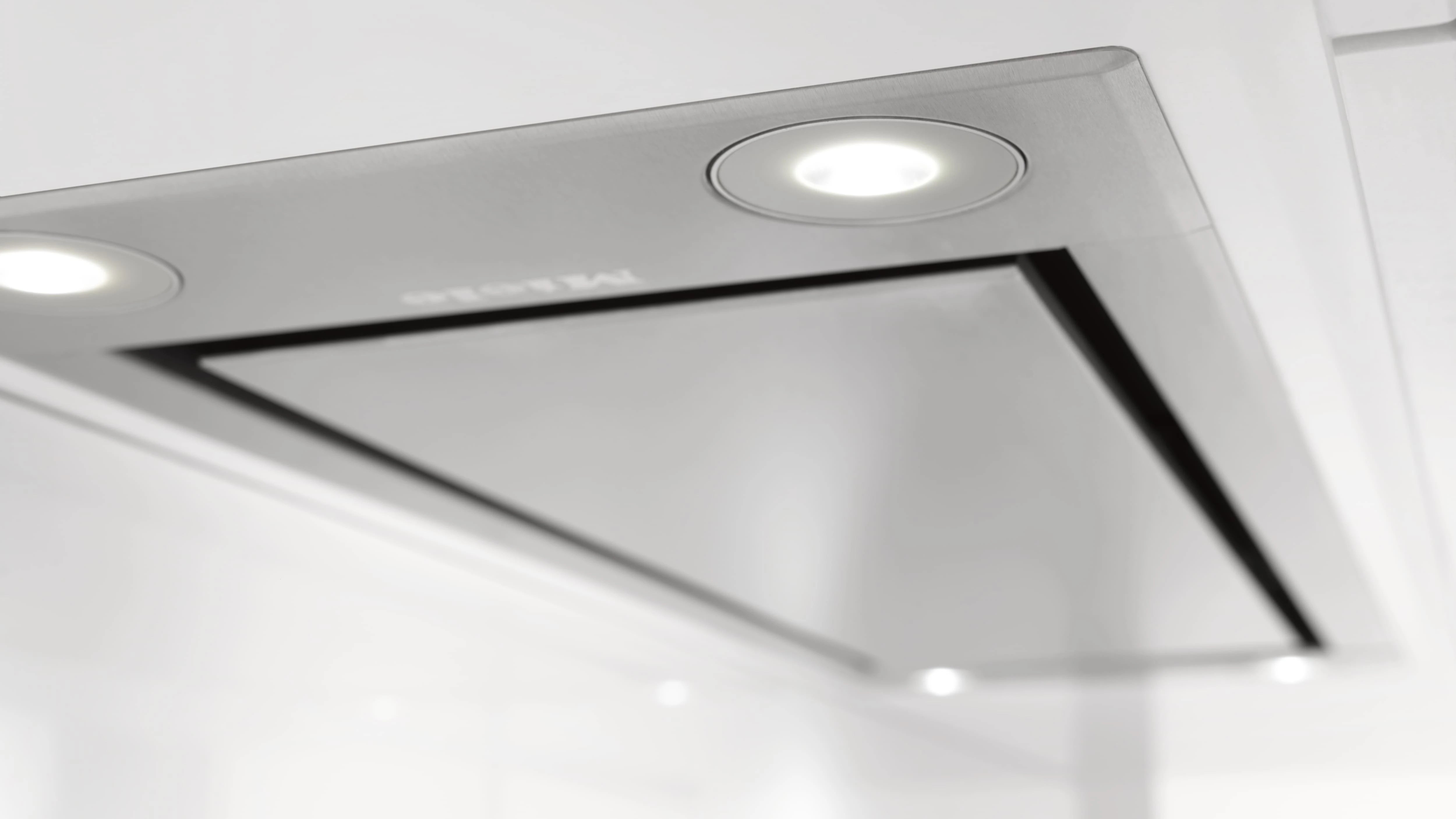

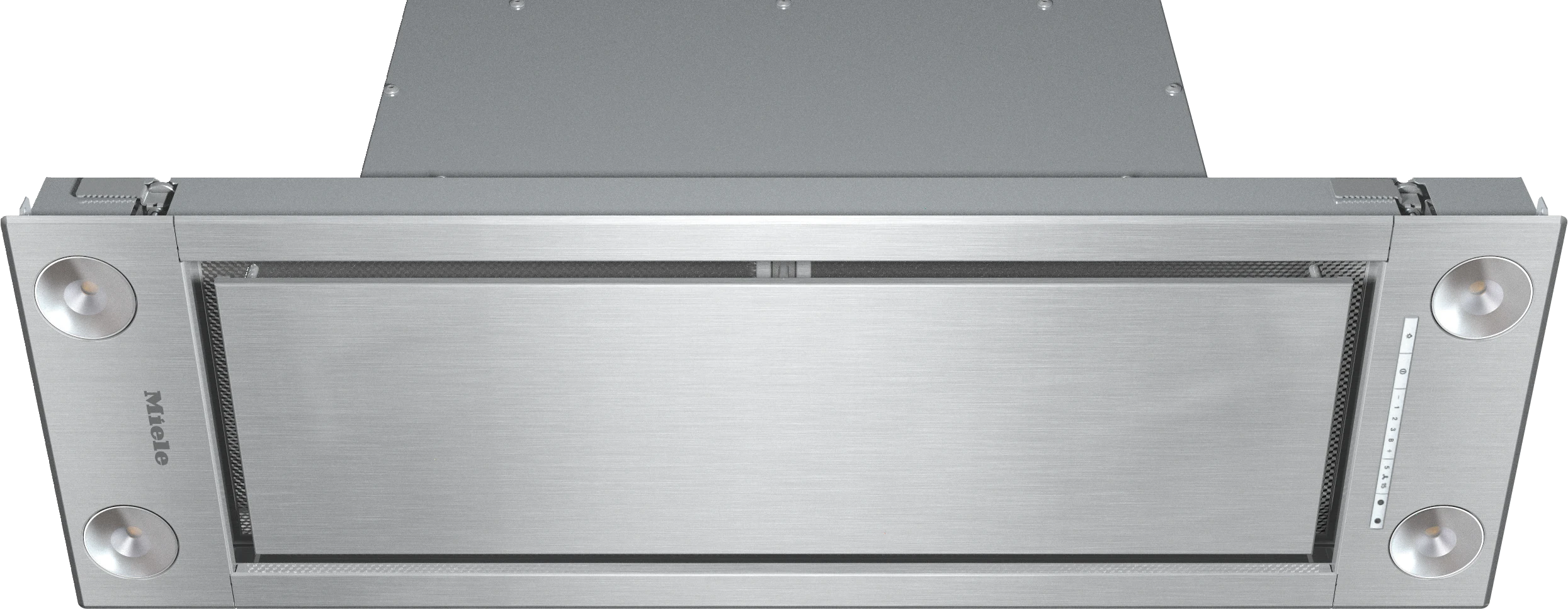

Miele DA2698SS 36" Hood Insert XSlim 625 CFM SS Clean Touch Steel

Quick Specification More details

Width:
34.65"
Depth:
11.54"
Height:
13.46"
Type:
Hood Inserts

About this product

Con@ctivity
Delayed shutdown
filter saturation indicator
Economy-Motor

SKU: DA2698SS | UPC: 8017709334871

Miele DA2698SS 36" Hood Insert XSlim 625 CFM SS Clean Touch Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
34.65"
Depth:
11.54"
Height:
13.46"
Type:
Hood Inserts

About this product

Con@ctivity
Delayed shutdown
filter saturation indicator
Economy-Motor

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Miele DA2698SS

Technical Details

General information

Model number	DA 2698
Manufacturer material number	10876810
EAN number	4002516023906
Marketing class	Platinum

Design

Insert ventilation extractor	TRUE
Color	Stainless steel
Edge extraction	TRUE

Operating modes

Recirculated mode	Can be retrofitted
Recirculation conversion kit (order separately)	DUU 151
OdorFree charcoal filter (order separately)	DKF 19-P

User convenience

Miele@home	TRUE
Con@ctivity	TRUE
Electronic controls	TRUE

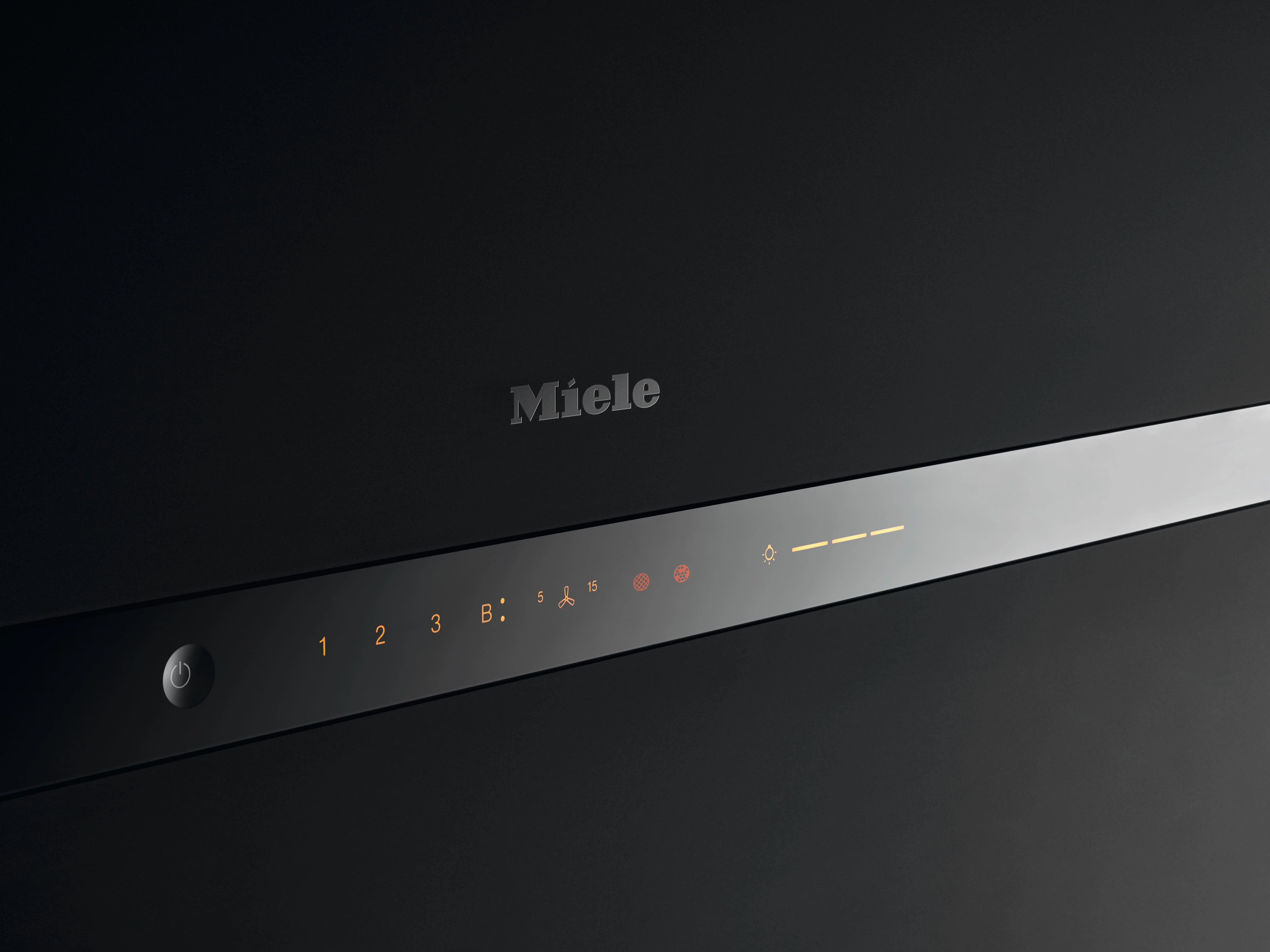

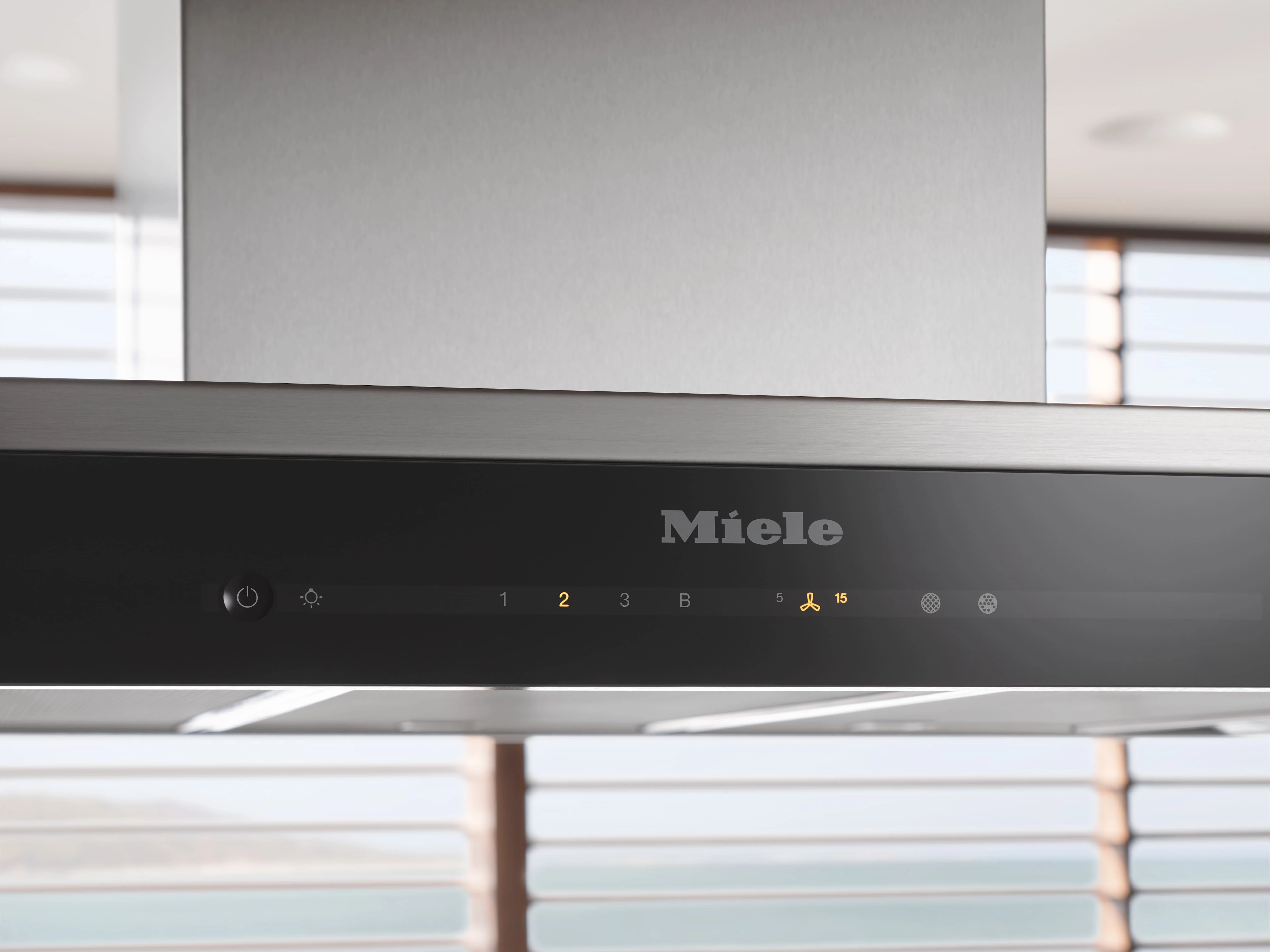

Operation	Light-touch switches with LEDs
Power levels (number excl. Intensive)	3
Booster levels	1
Delayed shutdown for 5 or 15 minutes	TRUE
Grease filter saturation indicator	TRUE
Active charcoal filter saturation indicator	TRUE
CleanCover	TRUE

Efficiency and sustainability

ECO motor (DC motor)	TRUE
PowerManagement system	TRUE

Cleaning convenience

Easy-to-clean canopy interior – CleanCover

TRUE

Filter system

Number of dishwasher-safe stainless steel grease filters (10-ply)

Lighting

Number x W	4 x 3 W
Light intensity in Lx	650 lx
Color temperature in K	3500 Kelvin
Light dimmer function	TRUE

Blower

Dual-action blower	TRUE
DC motor	TRUE

Exhaust air

Air throughput in CFM in Booster	483
Air throughput with Booster level 1 (m³/h) according to EN 61591	482.64 (820)

Safety

Safety shut-off

TRUE

Technical data

Canopy width in in. (mm)	34 3/4 (880)
Canopy height in in. (mm)	2 1/2 (63)
Depth of hood canopy in in. (mm)	11 5/8 (293)
Minimum height above electric cooktops in mm	24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm	26 (660)
Net weight in lbs. (kg)	31 (14.0)
Length of electrical wire in ft. (m)	4 (1.5)
Standard plug fitted	TRUE
Plug type	NEMA plug: 5–15
Total connected load in kW	0.362
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	TRUE
Diameter of vent connection in in. (mm)	6 (150)

Standard accessories

Non-return flap

TRUE

Dimensions & weight

Width	34.65 in.
Height	13.46 in.
Length	11.54 in.
Weight	68.05 lbs.
Gross Weight	35.27 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	37.8 in.
Shipping Height	15.95 in.
Shipping Length	18.11 in.
Shipping Weight	108.05 lbs.
Source	Manufacturer
Total of Shipping Weight	108.05 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.32 ft³
Cubic Feet Measurement	3.11 ft³
Dimensional Weight	38.72 lbs.
Total of Cubes	3.11 ft³
Total of Dimensional Weight	38.72 lbs.

Description

What's included

Non-return flap
Communication module for Con@ctivity XKM 2000 DA

Manuals & Guides

Key Features

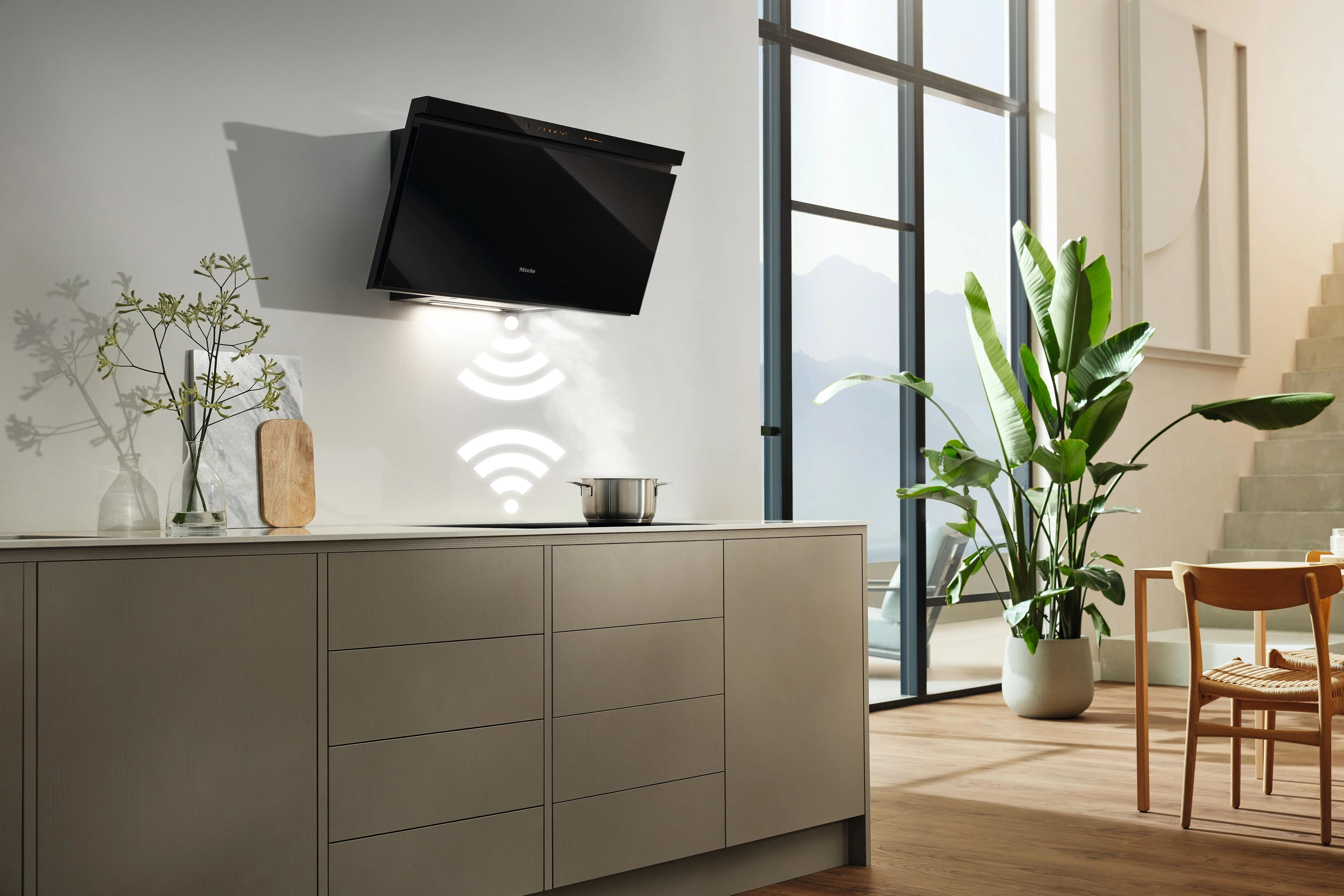

Con@ctivity

Thanks to the automatic Con@ctivity function, the ventilation hood can communicate with the cooktop below: The settings selected on the cooktop are transmitted to the controls on the hood. Your Miele Ventilation Hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the ventilation hood and cooktop via WiFi.

Delayed shutdown

The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.

filter saturation indicator

If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

Economy-Motor

The heart and soul of every ventilation hood is the motor. Some Miele ventilation hoods feature ECO motors which work up to 50% more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele ventilation hoods.

Safety turn off

The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

Stainless-steel grease filters (10-layer)

Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.

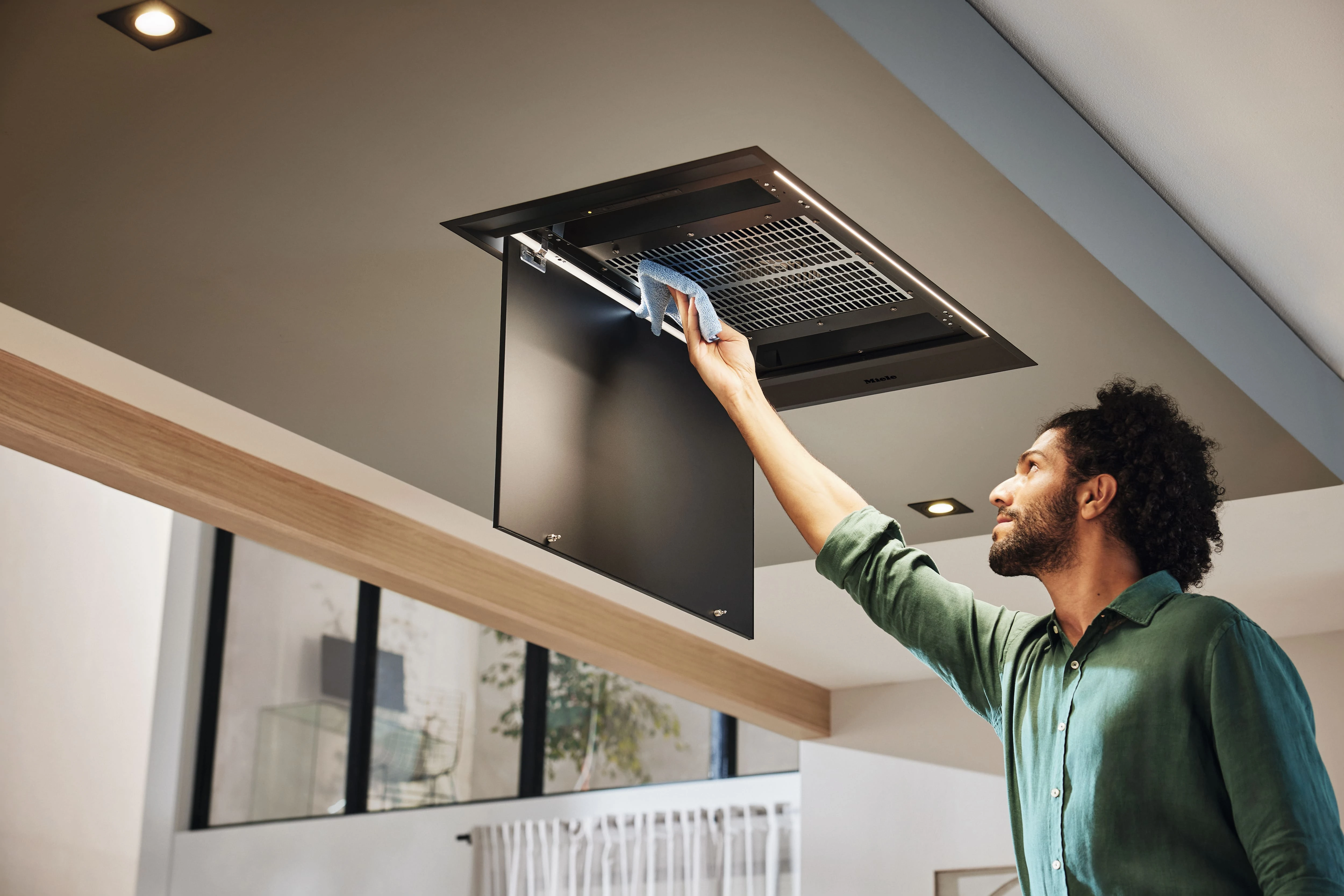

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.

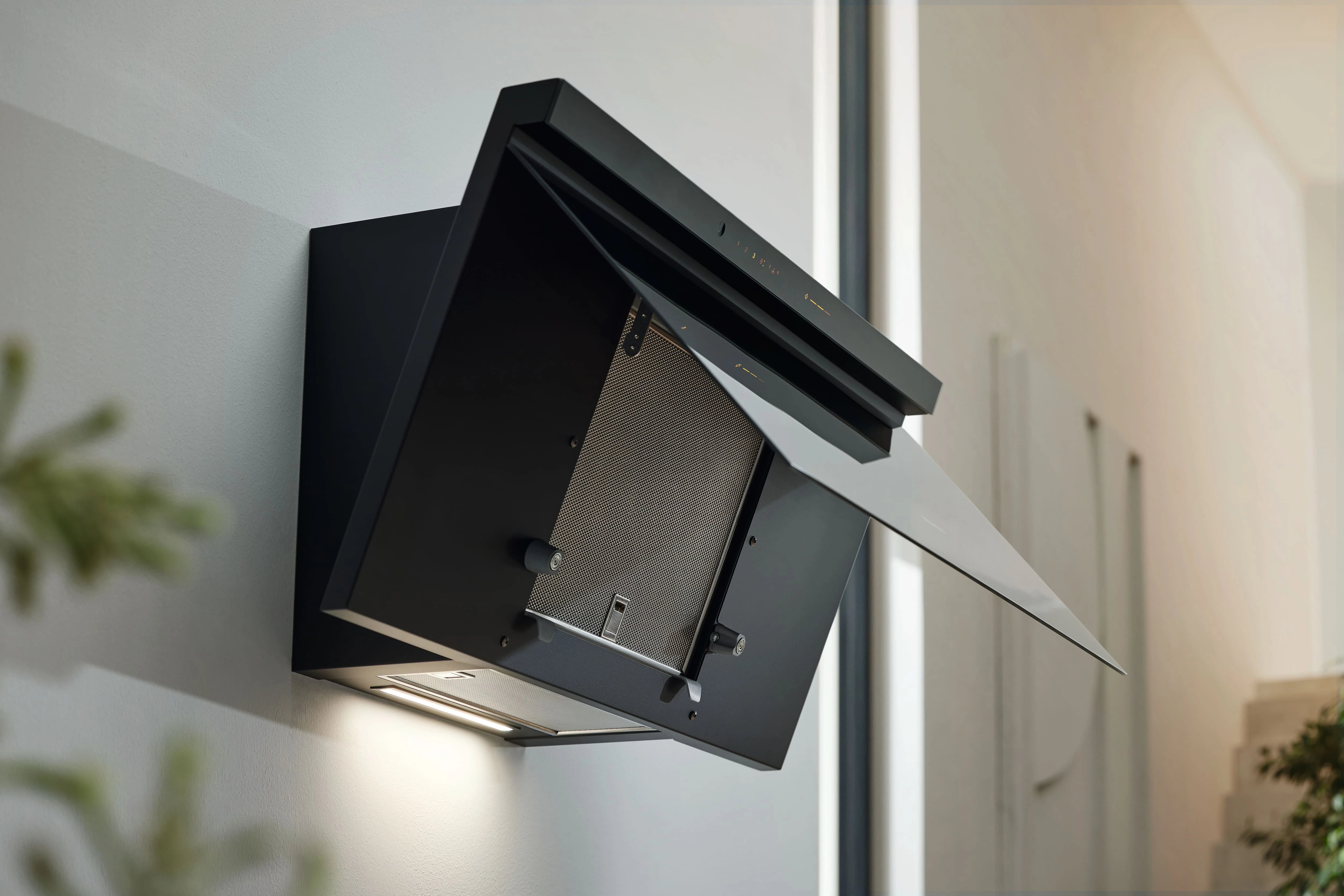

Edge vented

In ventilation hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapors are drawn in at the outer edges.
