SKU: DA1260 | UPC: 4002515882979

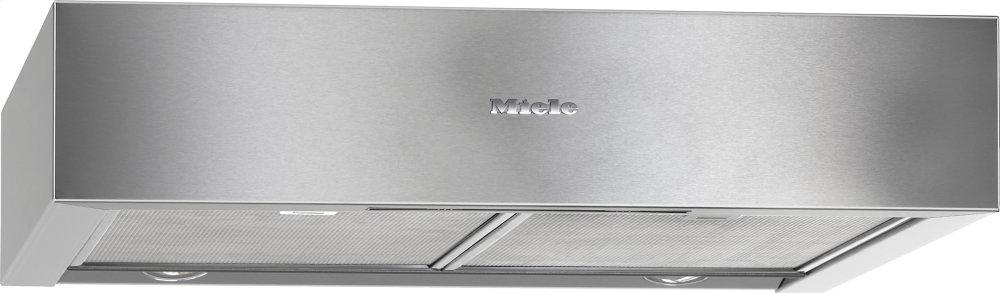

MIELE DA1260 DA 1260 Stainless steel - Built-under hood with energy-efficient LED lighting and sliding switch for simple operation. in Stainless Steel

Quick Specification More details

Width:
60.0 Inch
Type:
Ducted Mount Hoods

About this product

Puristic design - space-saving solution 23 5/8 (598) in (mm) wide
Stainless-steel grease filters (10-layer)
Powerful - 320.19 (544) ft /min (m3/h) in Booster level
Miele CleanCover

SKU: DA1260 | UPC: 4002515882979

MIELE DA1260 DA 1260 Stainless steel - Built-under hood with energy-efficient LED lighting and sliding switch for simple operation. in Stainless Steel

$1,099.00 ~~$1,745.97~~ Save $646.97 / 37% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
60.0 Inch
Type:
Ducted Mount Hoods

About this product

Puristic design - space-saving solution 23 5/8 (598) in (mm) wide
Stainless-steel grease filters (10-layer)
Powerful - 320.19 (544) ft /min (m3/h) in Booster level
Miele CleanCover

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Rebates
Reviews

$1,099.00 ~~$1,745.97~~ Save $646.97 / 37% OFF

Product Details for MIELE DA1260

Technical Details

General information

Model number	DA 1260
Manufacturer material number	10662780
EAN number	4002515882979

Design

Built-under ventilation hood	Yes
Color	Stainless steel

Operating modes

Recirculated mode	Can be retrofitted
OdorFree charcoal filter (order separately)	DKF 18-P

User convenience

Recessed knob controls	Yes
Slide switch	Yes
Operation	Slide switch
Power levels (number excl. Intensive)	3
Booster levels	1
CleanCover	Yes

Lighting

Number x W	2
Light intensity in Lx	275
Color temperature in K	3000

Exhaust air

Air throughput	Values upon request
Air throughput with Booster level 1 (m /h) according to EN 61591	320.19
Air throughput in CFM in Booster	320

Technical data

Canopy width in in. (mm)	23 5/8 (598)
Canopy height in in. (mm)	5
Depth of hood canopy in in. (mm)	19 3/4 (500)
Minimum height above electric cooktops in mm	17 3/4 (450)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm	25 5/8 (650)
Net weight in lbs. (kg)	25
Length of electrical wire in ft. (m)	4
Standard plug fitted	Yes
Plug type	NEMA plug: 5-15
Total connected load in kW	0.286
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	Yes
Diameter of vent connection in in. (mm)	6
Installation template	Yes

Standard accessories

Non-return flap	Yes
Recirculation deflector	Yes
Reducer from 150 to 125 mm	Yes

Features

Puristic design - space-saving solution 23 5/8 (598) in (mm) wide
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Powerful - 320.19 (544) ft /min (m3/h) in Booster level
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Efficient filtration- 10-ply stainless steel grease filters
Safe and easy to clean - Miele CleanCover
Suitable for every home - vented or recirculating
Manufactured with great care by Miele & Cie. KG
View manufacturer details: Miele & Cie. KG
Safety information

Description

The Miele DA1260 wall-mounted range hood is engineered to deliver powerful and quiet performance in a modern design. This unit effectively removes smoke, steam, and cooking odors, helping maintain a fresh kitchen atmosphere. With LED lighting that brightens your cooktop and intuitive slider controls, the DA1260 offers easy operation and energy efficiency. Its dishwasher-safe stainless steel grease filters ensure easy maintenance, while the convertible design allows for either ducted or recirculating installation. A great addition for homeowners who appreciate performance, durability, and clean aesthetics.
