SKU: MGDP585GW | UPC: 883049634968

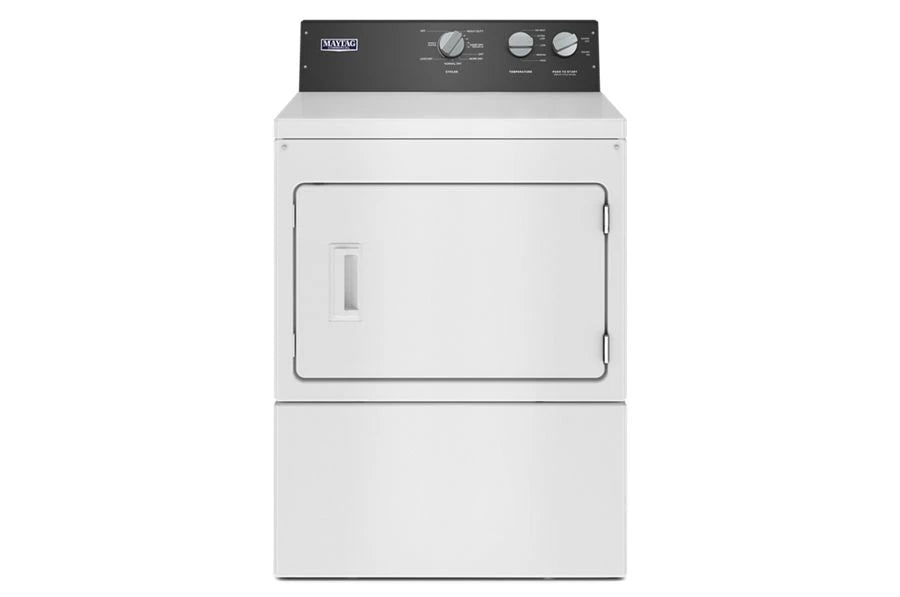

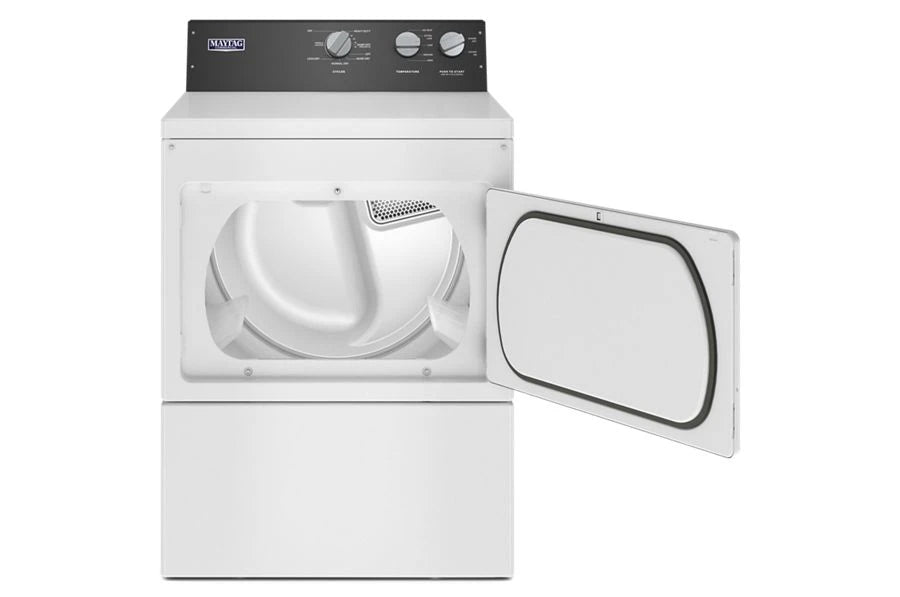

Maytag MGDP585GW Commercial-Grade Residential Dryer - 7.4 cu. ft. White

Quick Specification More details

Width:
27"
Depth:
29.25"
Height:
42.5"
Type:
Top Load Matching Dryers

About this product

IntelliDry Sensor

SKU: MGDP585GW | UPC: 883049634968

Maytag MGDP585GW Commercial-Grade Residential Dryer - 7.4 cu. ft. White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27"
Depth:
29.25"
Height:
42.5"
Type:
Top Load Matching Dryers

About this product

IntelliDry Sensor

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Maytag MGDP585GW

Technical Details

Description

Fuel Type

Gas

Exterior

Door Opening	Right
Reversible Door	Yes
Window	No

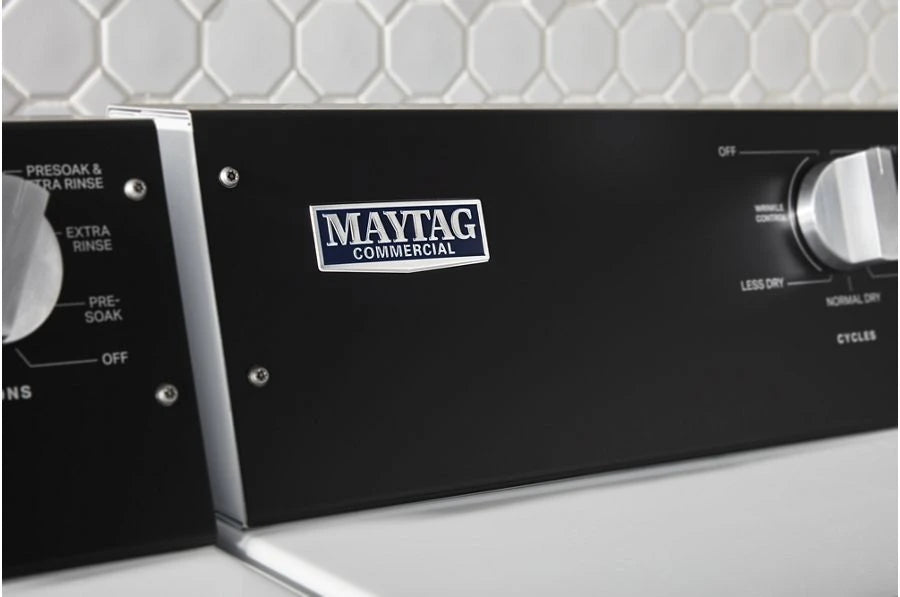

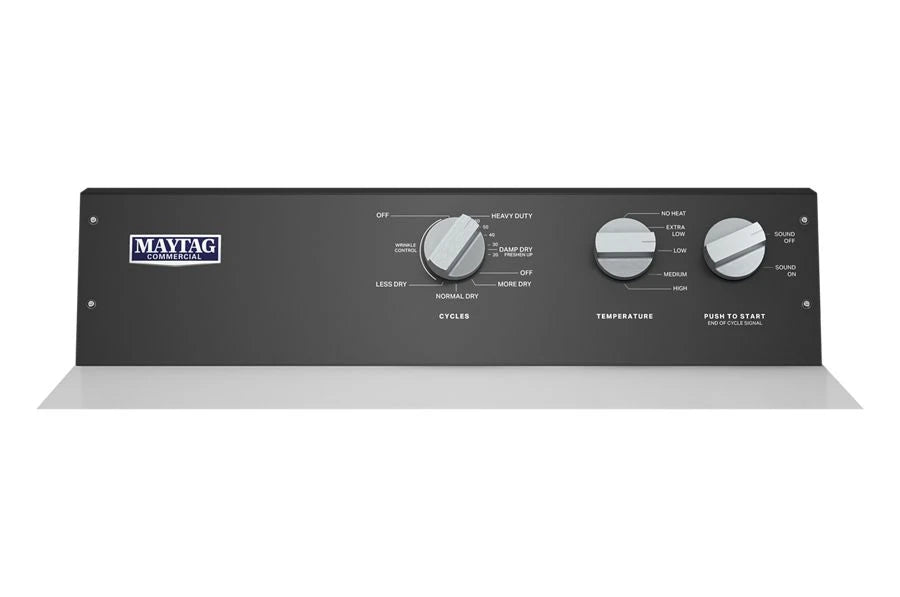

Controls

Automatic Temperature Controls	No
Control Location	Rear Panel
Control Type	Dials
End of Cycle Signal	Yes
Feedback-Status Indicators	N/A
Machine in Use Indicator	No
Neon Indicator	No

Details

4 Way Venting	Yes
Air Flow (cfm)	190
Cylinder Depth (in)	25.00
Cylinder Diameter (in)	25.50
Cylinder Volume (cu ft)	7.40
Door Opening Angle	180 deg

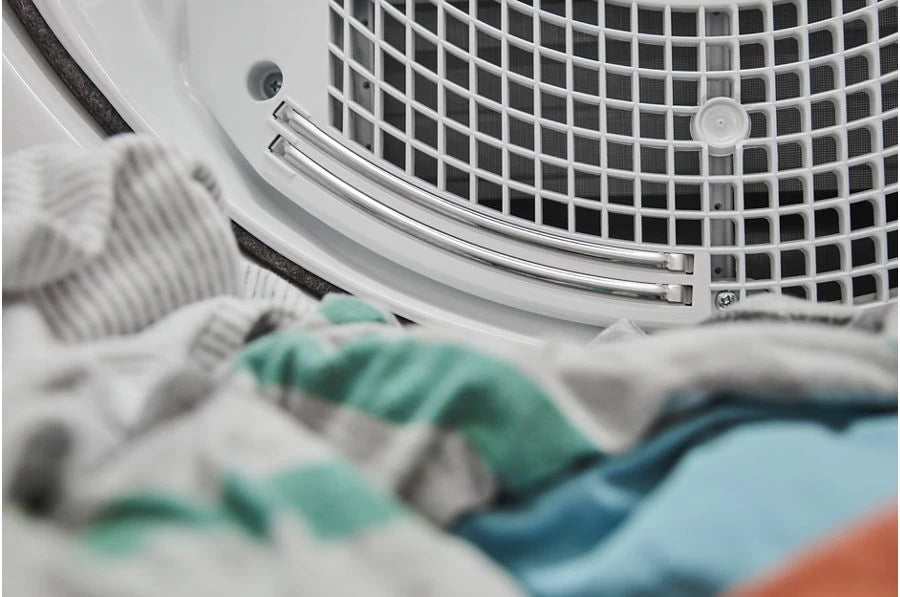

Drum Material	Powder Coat
Drum Speed (RPM)	45
Drying Rack	No
Electronic Burner Ignition	Yes
Exhaust Diameter (in)	4
Exhaust Duct Diameter	4
Gas Inlet Size	3/8 N.P.T
Heating Burner (BTU)	22000
Hoses Included	No
Interior Light	Yes
Lint Screen Location	Front
Maytag Commercial Components	Yes
Motor Horsepower	1/3 HP
Mount Type	Rigid
Quad Baffles	No
Steam Hose Y Connector	No
Weight Load Capacity	18 lbs
Air Flow	190
Automatic Dry Control	Yes
Card Reader Ready	No
Coin Drop Ready	No
Coin Slide Ready	No
Cycle Time Remaining	No
Door Opening Direction	Right
Dryer Heating Burner	22, 000
Dryer Interior Light	Yes
EcoBoost Energy Saver	No
Fuel Type	Gas
Infrared Data Collection	No
LP Convertible	Yes
Lint Filter Indicator	No
Machine in Use Indicator	No
Meter Case Service door	No
Moisture Sensor	Yes
PN to PR Conversion Panel	No - Ship with PN facia
Secondary Lint Filter	No
Service Mode Activation	No
Sound Package	No
Stackable	No

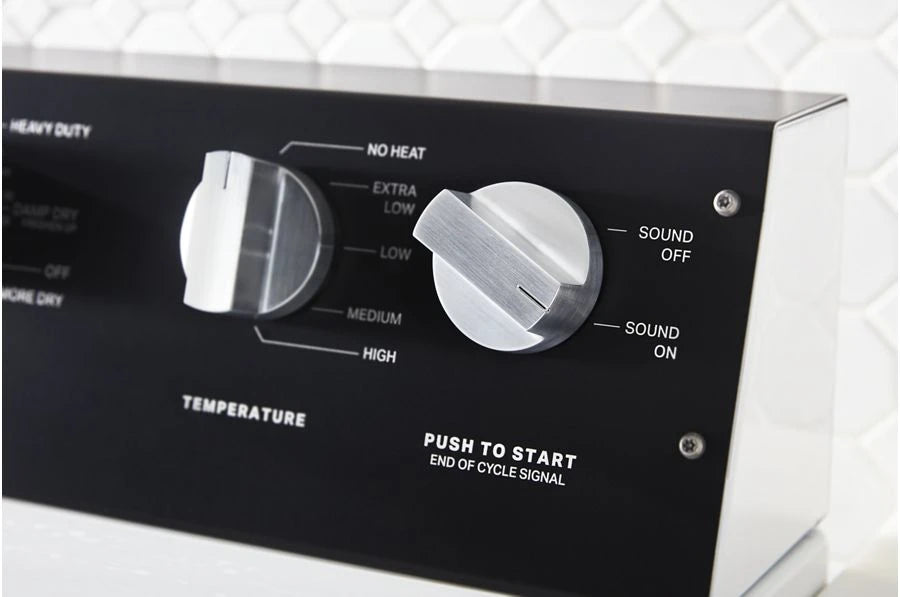

Temperature Selection	Air Only; Extra Low; High; Low; Medium

Features

Automatic Dry Control	Yes
Cycle Time Remaining	No
EcoBoost™/Energy Saver	No
Lint Filter Indicator	No
LP Convertible	Yes
Moisture Sensor	Yes
Pedestal Options	No
Secondary Lint Filter	No
Sound Package	No
Stackable	No

Cycles

Drying Cycles Selections	Damp Dry, Heavy Duty, Less Dry, More Dry, Normal, Timed Dry 20, Timed Dry 30, Timed Dry 40, Timed Dry 50, Timed Dry 60, Wrinkle Control
Number of Dryer Cycles	11
Drying Cycles Selections	Damp Dry; Heavy Duty; Less Dry; More Dry; Normal; Timed Dry 20; Timed Dry 30; Timed Dry 40; Timed Dry 50; Timed Dry 60; Wrinkle Control

Options

Dryer Option Selections	Temperature
Number of Dryer Options	1

Specifications

Number of Temperatures	5
Dryer Temperature Selections	High, Low, Extra Low, Medium, Air Only
Card Reader Ready	No
Coin Drop Ready	No
Coin Slide Ready	No
Full Width Console	Yes
Infrared Data Collection	No
Meter Case	No
Meter Case Service door	No
PN to PR Conversion Panel	No - Ship with PN facia
Service Mode Activation	No
Accessory Relationships	Yes

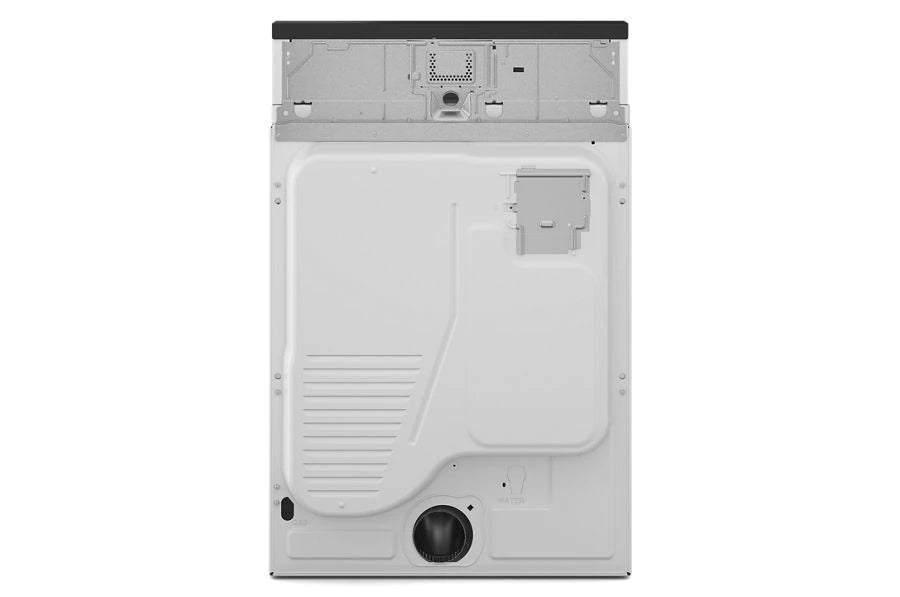

Installation considerations

Flat Back	No
Long Vent	No
Maximum Vent Length (ft.)	64
Venting Direction	Left, Right, Bottom, Rear
Ventless	N/A
Exhaust Diameter	4
Four Way Venting	Yes

Certifications

ADA Compliant	No
CSA	CSA
Energy Star® Certified	No
Prop 65	Standard
UL	Yes
prop65	Standard

Electrical

Amps	15
Hz	60
Power Cord Included	Yes
Power Cord Length (ft.)	6.0
Volts	120
Power Cord Length	6

Compatibility

Connectivity	No
Works With	No

Other

Capacity (Cu Ft)	4.70
Capacity (IEC) (Cu Ft)	4.7
Capacity(FT3,cubic feet)	7.40

Dimensions & weight

Width	27 in.
Height	42.5 in.
Length	29.25 in.
Weight	123 lbs.
Carton Depth	31 1/2
Carton Height	45 5/16
Carton Width	28 3/4
Depth With Door Open 90 Degree	53
Gross Weight	123
Maximum Height	43 1/4
Minimum Height	42
Net Weight	116.5
Depth With Door Open 90 Degree(IN,inches)	53.0000
Depth(IN,inches)	29.2500
Door Opening Height(IN,inches)	12.00
Door Opening Width(IN,inches)	20.25
Maximum Height(IN,inches)	43.2500
Minimum Height(IN,inches)	42.0000
Carton Depth(IN,inches)	0.0000
Carton Height(IN,inches)	0.0000
Carton Width(IN,inches)	0.0000

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	32 in.
Shipping Height	47.5 in.
Shipping Length	34.25 in.
Shipping Weight	163 lbs.
Total of Shipping Weight	163 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	19.42 ft³
Dimensional Weight	241.47 lbs.
Total of Cubes	19.42 ft³
Total of Dimensional Weight	241.47 lbs.

Dimensions

Cylinder Depth	25.00
Cylinder Diameter	25.5
Cylinder Volume	7.4
Depth With Door Open 90 Degree	53
Door Opening Angle	180 deg
Full Width Console	Yes
carton depth	31.5
carton height	45.28
carton width	28.74
gross weight	123.46
net weight	116.46

Exterior details

Reversible Door	Yes
Window	No

Interior details

Drum Speed	45
Dryer Drum Material	Powder Coat
Lint Screen Location	Front

Management system details

Meter Case

Modifiers

Number of Temperatures

Performance details

Motor Horsepower

1/3 HP

Smart compatibility

Connectivity	No
Works With	No

Product details

Energy Star® Qualified

Description

This Maytag(R) Commercial Dryer is ready to deliver the powerful strength needed to tackle large loads with ease with its premium commercial dryer motor and drive system. As a moisture sensing dryer, use the IntelliDry(R) sensor to track moisture and air temps for consistent results while the 7.4 cu. ft. capacity offers plenty of room for large loads.
