Product Details for Maytag MEDP585GW

Technical Details

Description

Fuel Type Gas

Exterior

Door Opening Right
Reversible Door Yes
Window No

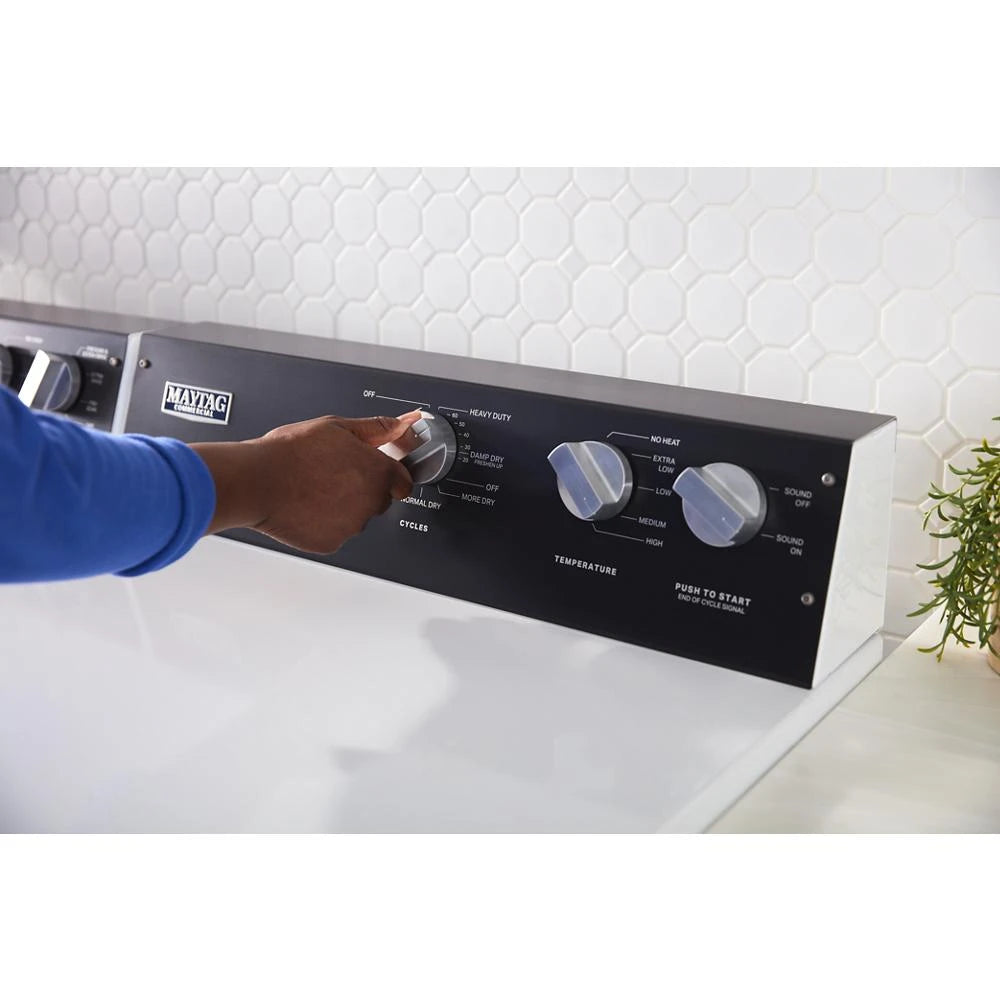

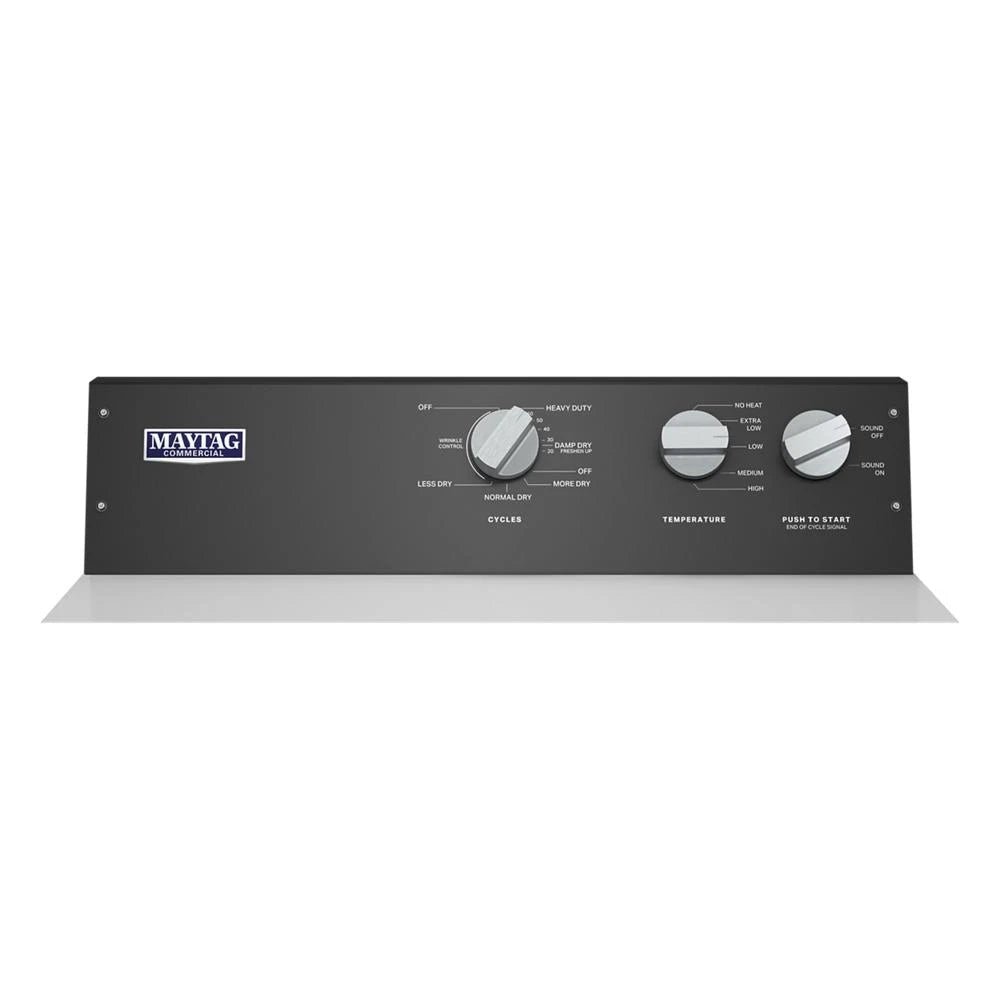

Controls

Automatic Temperature Controls No
Control Location Rear Panel
Control Type Dials
End of Cycle Signal Yes
Feedback-Status Indicators N/A
Machine in Use Indicator No
Neon Indicator No

Details

4 Way Venting Yes
Air Flow (cfm) 190
Cylinder Depth (in) 25.00
Cylinder Diameter (in) 25.50
Cylinder Volume (cu ft) 7.40

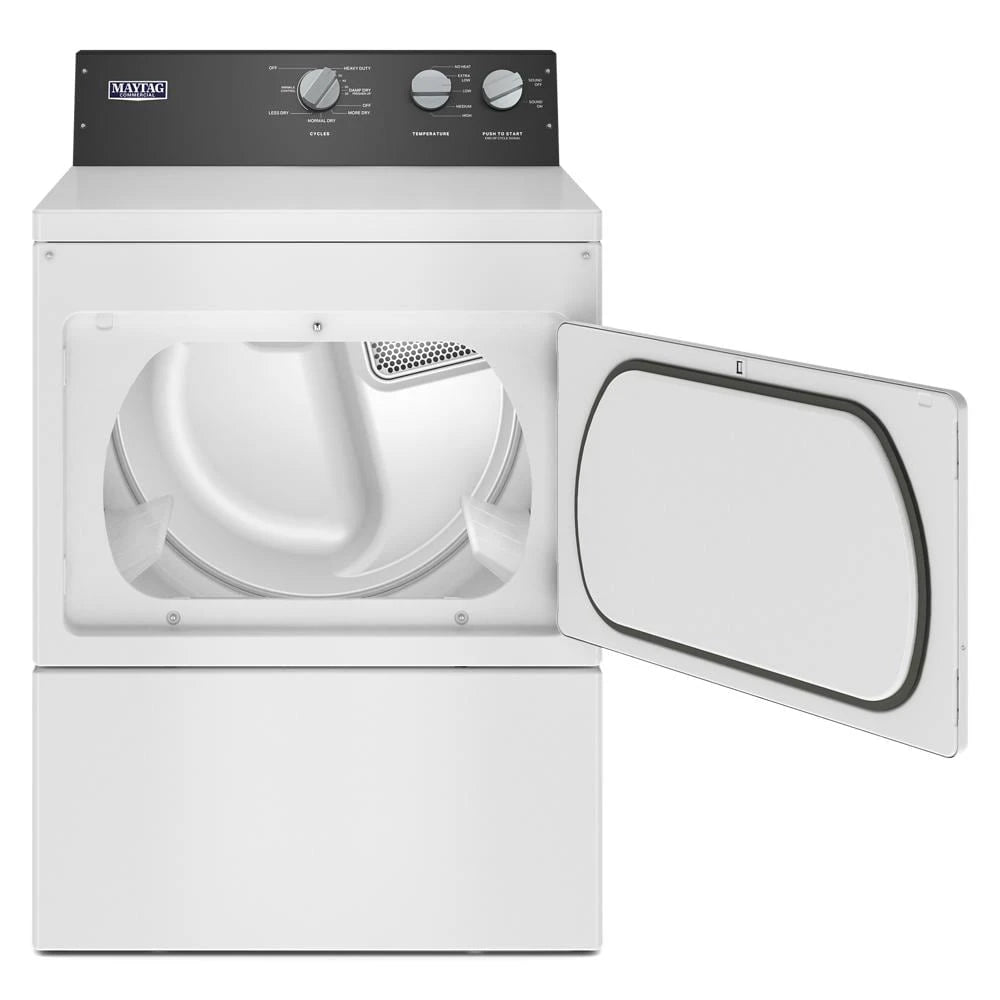

Door Opening Angle 180 deg
Drum Material Powder Coat
Drum Speed (RPM) 45
Drying Rack No
Electronic Burner Ignition No
Exhaust Diameter (in) 4
Exhaust Duct Diameter 4
Gas Inlet Size N/A
Heating Elements (Watts) 5400
Hoses Included No
Interior Light Yes
Lint Screen Location Front
Maytag Commercial Components Yes
Motor Horsepower 1/3 HP
Mount Type Rigid
Quad Baffles No
Steam Hose Y Connector No
Weight Load Capacity 18 lbs

Features

Automatic Dry Control Yes
Cycle Time Remaining No
EcoBoost™/Energy Saver No
Lint Filter Indicator No
LP Convertible No
Moisture Sensor Yes
Pedestal Options No
Secondary Lint Filter No
Sound Package No
Stackable No

Cycles

Drying Cycles Selections Damp Dry, Heavy Duty, Less Dry, More Dry, Normal, Timed Dry 20, Timed Dry 30, Timed Dry 40, Timed Dry 50, Timed Dry 60
Number of Dryer Cycles 11

Options

Dryer Option Selections Temperature
Number of Dryer Options 1

Specifications

Number of Temperatures 5
Dryer Temperature Selections High, Low, Extra Low, Medium, Air Only
Card Reader Ready No
Coin Drop Ready No
Coin Slide Ready No
Full Width Console Yes
Infrared Data Collection No
Meter Case No
Meter Case Service door No
PN to PR Conversion Panel No - Ship with PN facia
Service Mode Activation No
Accessory Relationships Yes

Installation considerations

Flat Back No
Long Vent No
Maximum Vent Length (ft.) 64

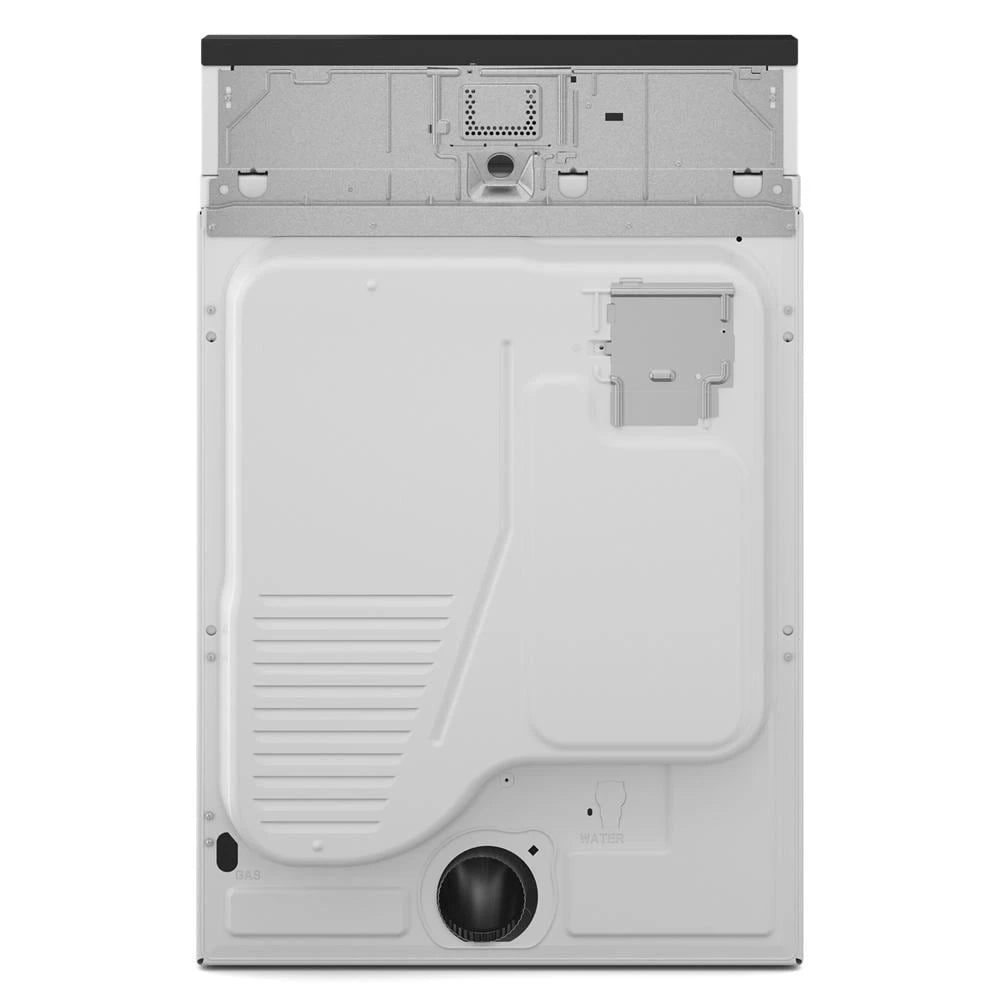

Venting Direction Left, Right, Bottom, Rear
Ventless N/A

Certifications

ADA Compliant No
CSA CSA
Energy Star® Certified No
Prop 65 Standard
UL Yes

Electrical

Amps 30
Hz 60
Power Cord Included No
Power Cord Length (ft.) 6.0
Volts 240
Watts 5400

Compatibility

Connectivity No
Works With No

Other

Capacity (Cu Ft) 7.40
Capacity (IEC) (Cu Ft) 7.4

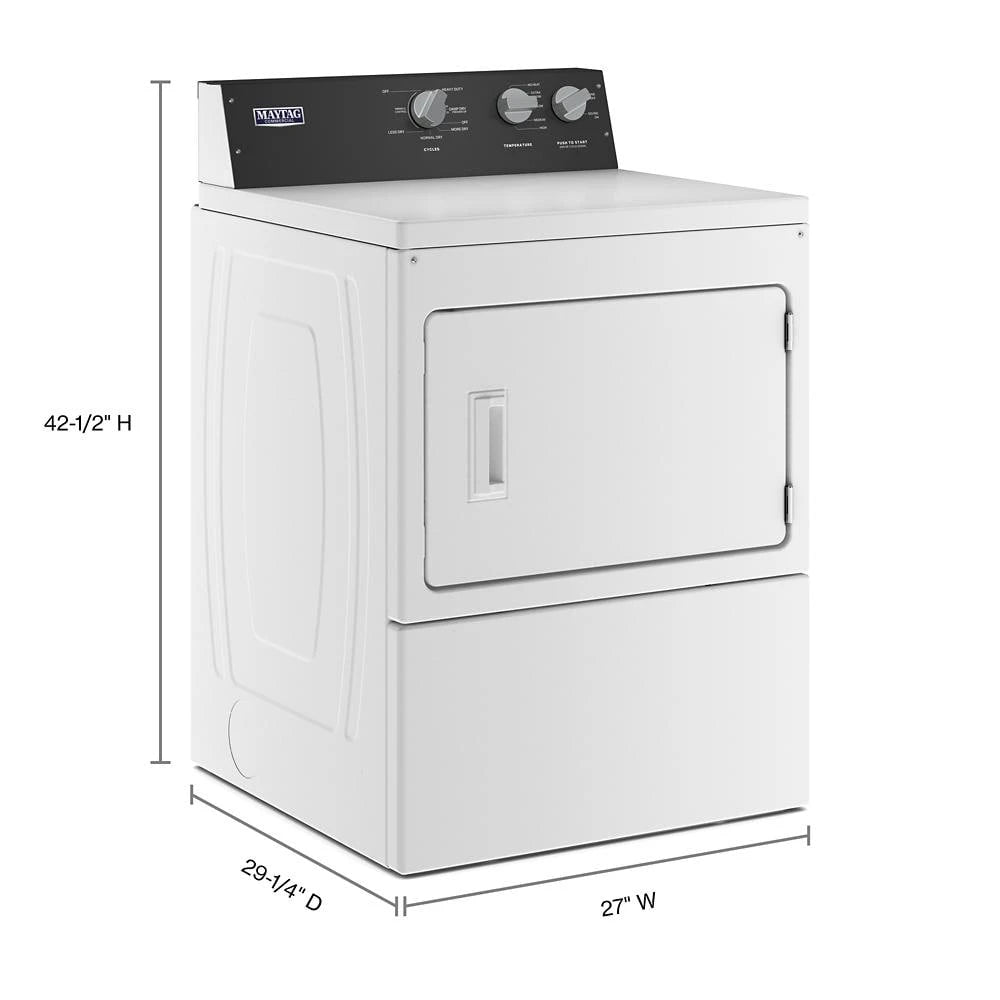

Dimensions & weight

Width 27 in.
Height 42.5 in.
Length 29.25 in.
Weight 121 lbs.
Carton Depth 31 1/2
Carton Height 45 5/16
Carton Width 28 3/4
Depth With Door Open 90 Degree 53
Gross Weight 121
Maximum Height 43 1/4
Minimum Height 42
Net Weight 114.2
Depth With Door Open 90 Degree(IN,inches) 53.0000
Depth(IN,inches) 29.2500
Door Opening Height(IN,inches) 12.00
Door Opening Width(IN,inches) 20.25
Maximum Height(IN,inches) 43.2500
Minimum Height(IN,inches) 42.0000
Carton Depth(IN,inches) 0.0000
Carton Height(IN,inches) 0.0000
Carton Width(IN,inches) 0.0000

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 32 in.
Shipping Height 47.5 in.
Shipping Length 34.25 in.
Shipping Weight 161 lbs.
Total of Shipping Weight 161 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.42 ft³
Dimensional Weight 241.47 lbs.
Total of Cubes 19.42 ft³
Total of Dimensional Weight 241.47 lbs.

Description

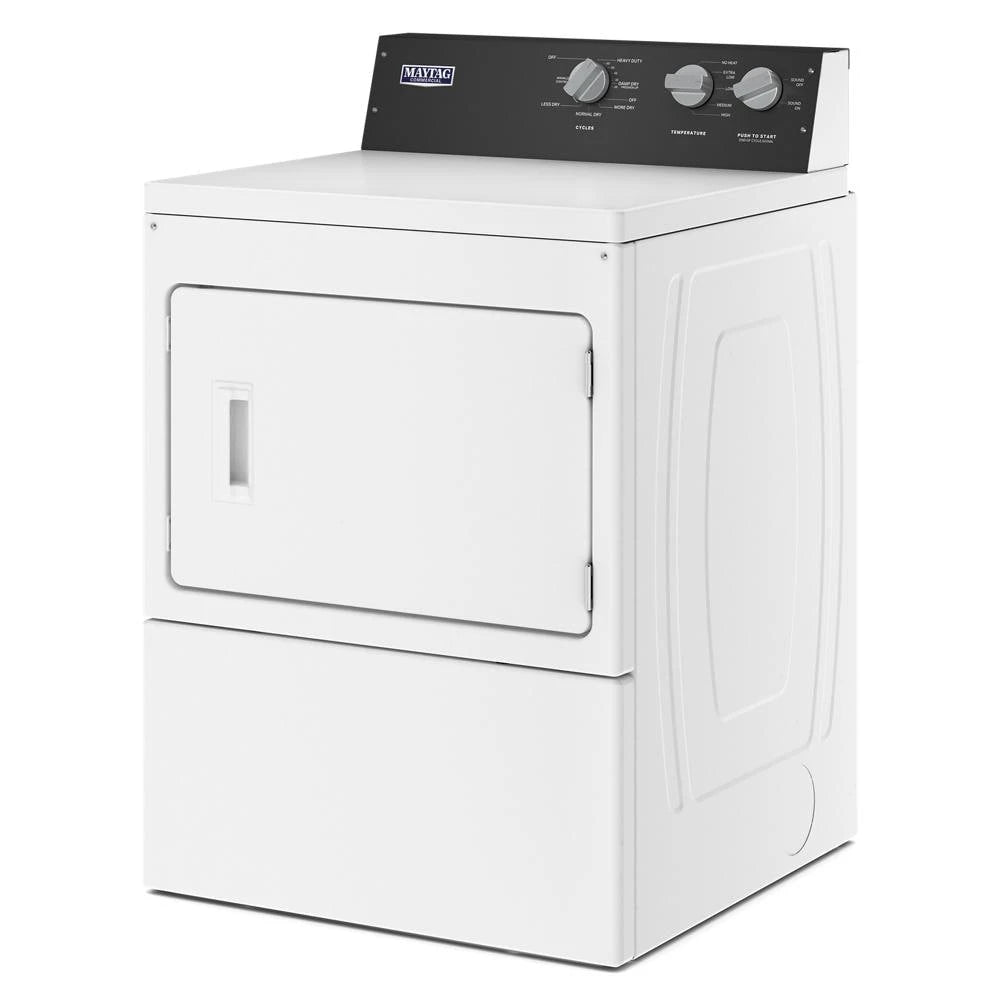

This Maytag(R) Commercial Dryer is ready to deliver the powerful strength needed to tackle large loads with ease with its premium commercial dryer motor and drive system. As a moisture sensing dryer, use the IntelliDry(R) sensor to track moisture and air temps for consistent results while the 7.4 cu. ft. capacity offers plenty of room for large loads.



Product Features

  • Commercial-Grade Dryer
    We've engineered a powerful commercial-grade Maytag dryer for your home that's truly built to last. Thick, galvanized steel panels and ultra-sturdy knobs are just two of many upgraded components.
  • An American company for over 100 years
    Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
  • Premium Motor
    Our powerful commercial motor and drive system deliver the strength to handle large loads with ease.

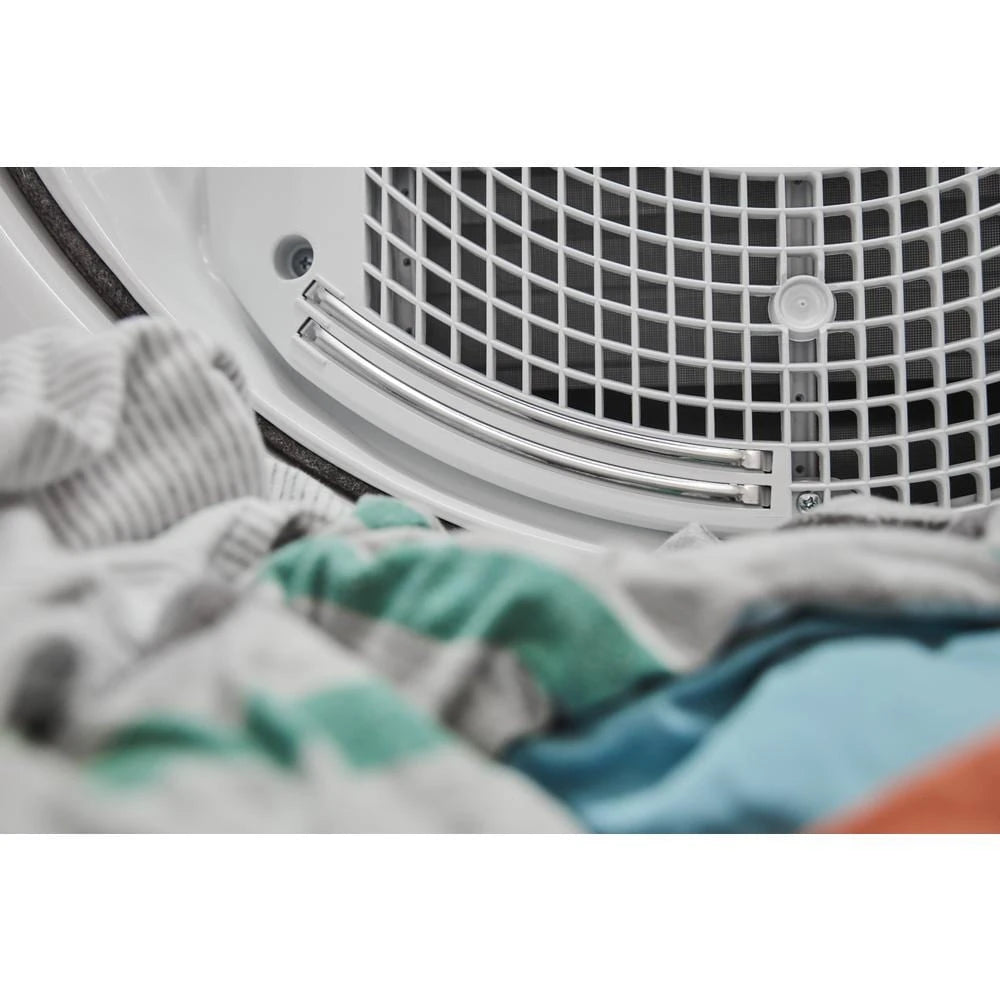

  • IntelliDry Sensor
    The IntelliDry sensor monitors inside moisture and air temperatures to help ensure exceptional drying and consistent results.

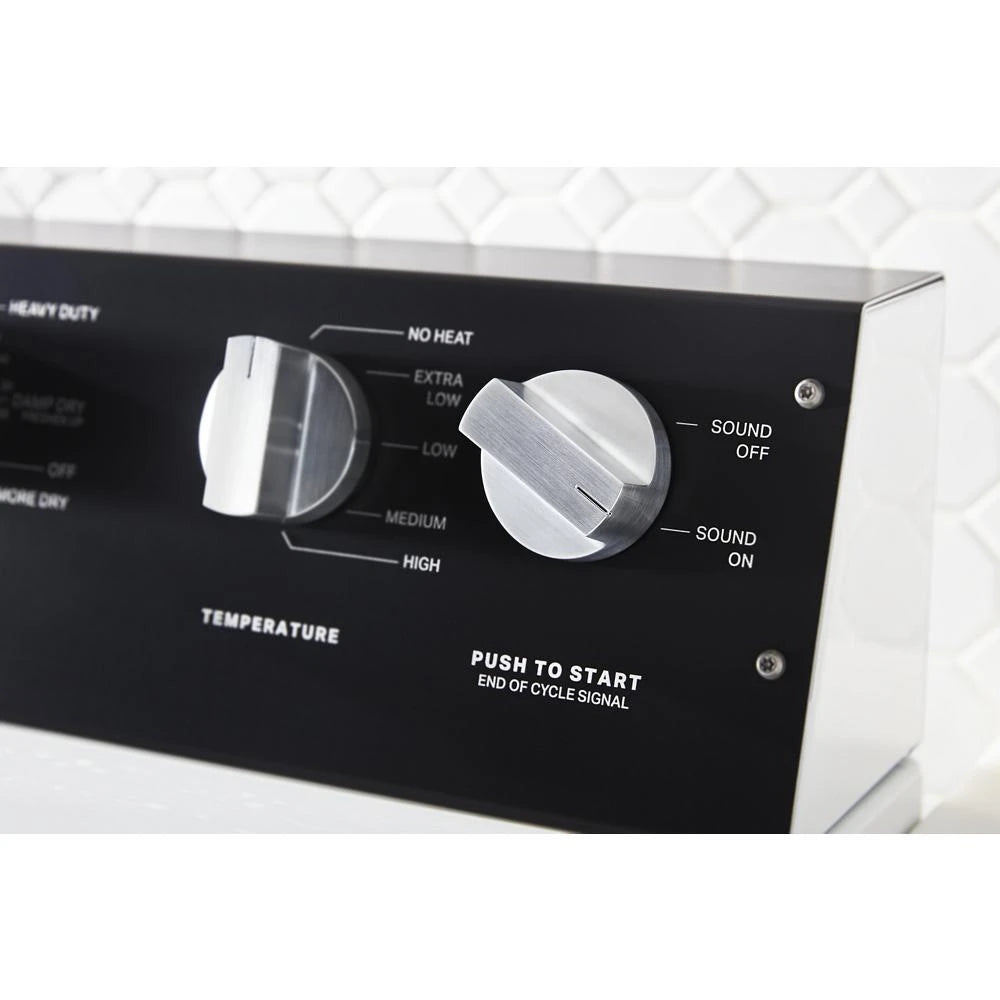

  • On/off buzzer switch
    Easily turn the end of cycle buzzer noise on or off depending on your preference.
  • 10-year limited parts warranty* on the drive motor and drum *See product warranty for details.
    We don’t just tell you a Maytag dryer will get your clothes dry for years: we confidently back our dryers with a 1-year parts and labor warranty with a 10-year limited parts warranty* on the drive motor and drum. *Visit maytag.com for Warranty details.
  • 7.4 Cu. Ft. Capacity
    Dry large loads with a spacious 7.4 cu. ft. capacity.

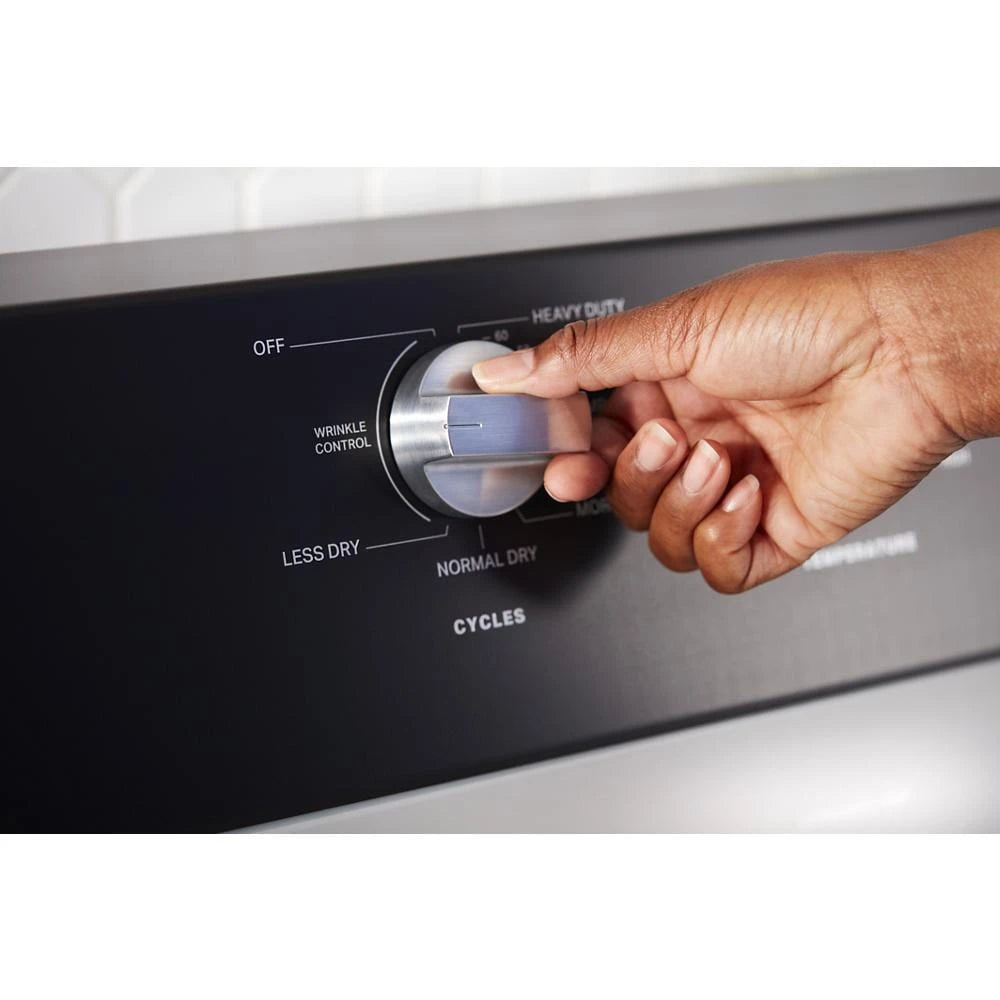

  • Wrinkle Control Feature
    The Wrinkle Control Feature* helps keep wrinkles from forming by tumbling your clothes without heat after the cycle has ended. *Only available on autocyles More Dry, Normal Dry & Less Dry
  • American Pride
    We take pride in building strong, reliable appliances for your home. These dryers are proudly assembled by hard-working employees in Marion, Ohio.

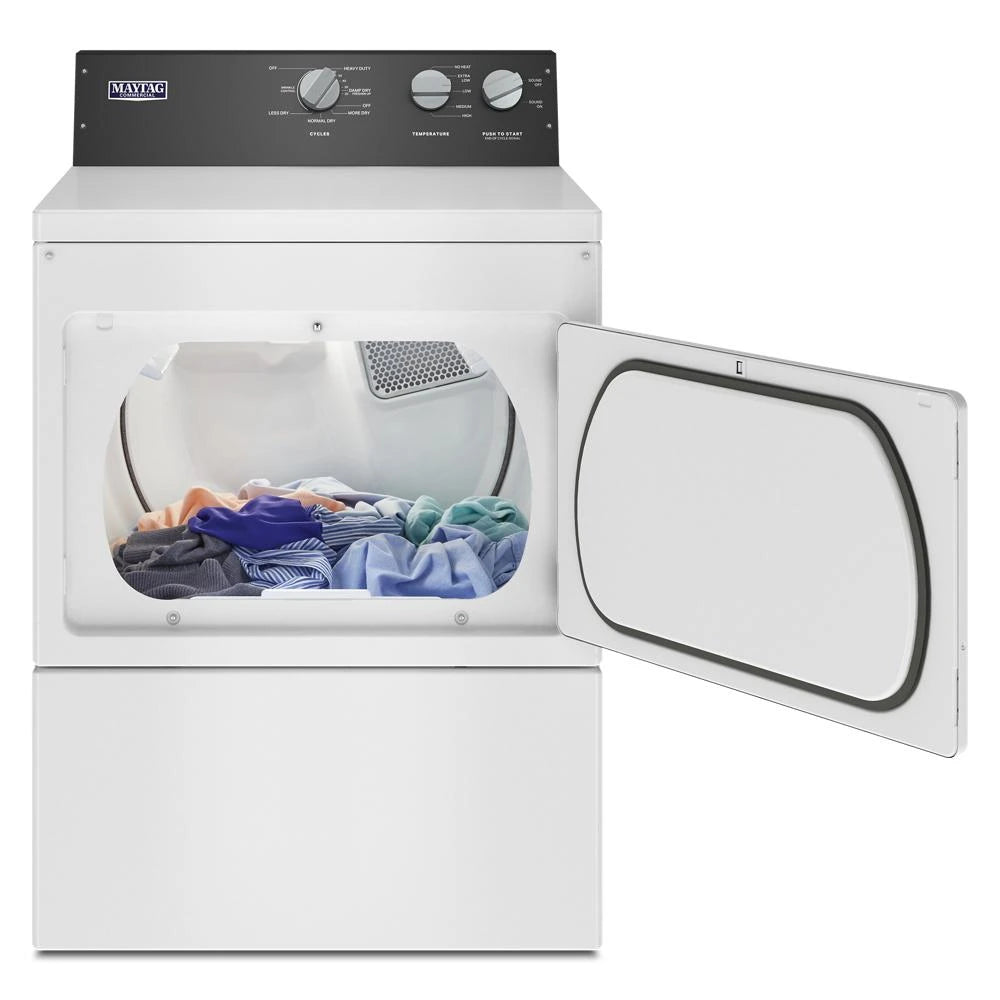

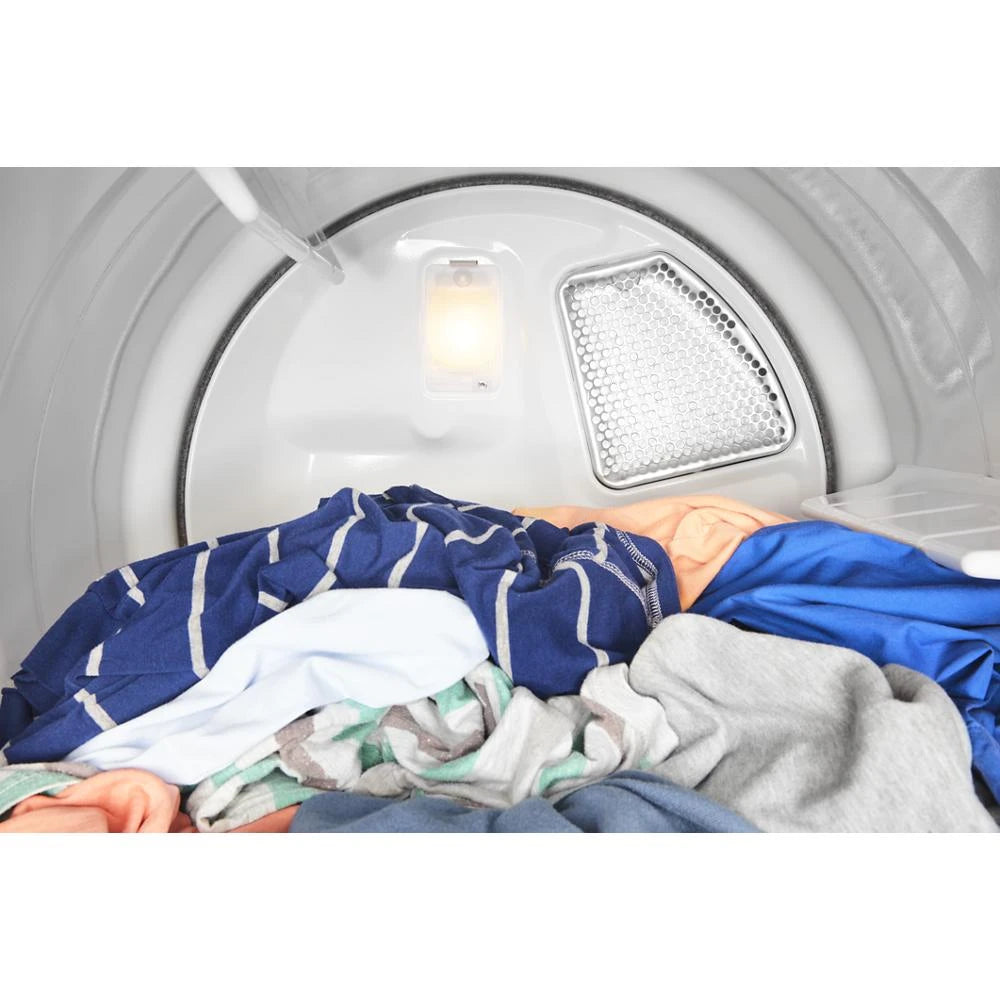

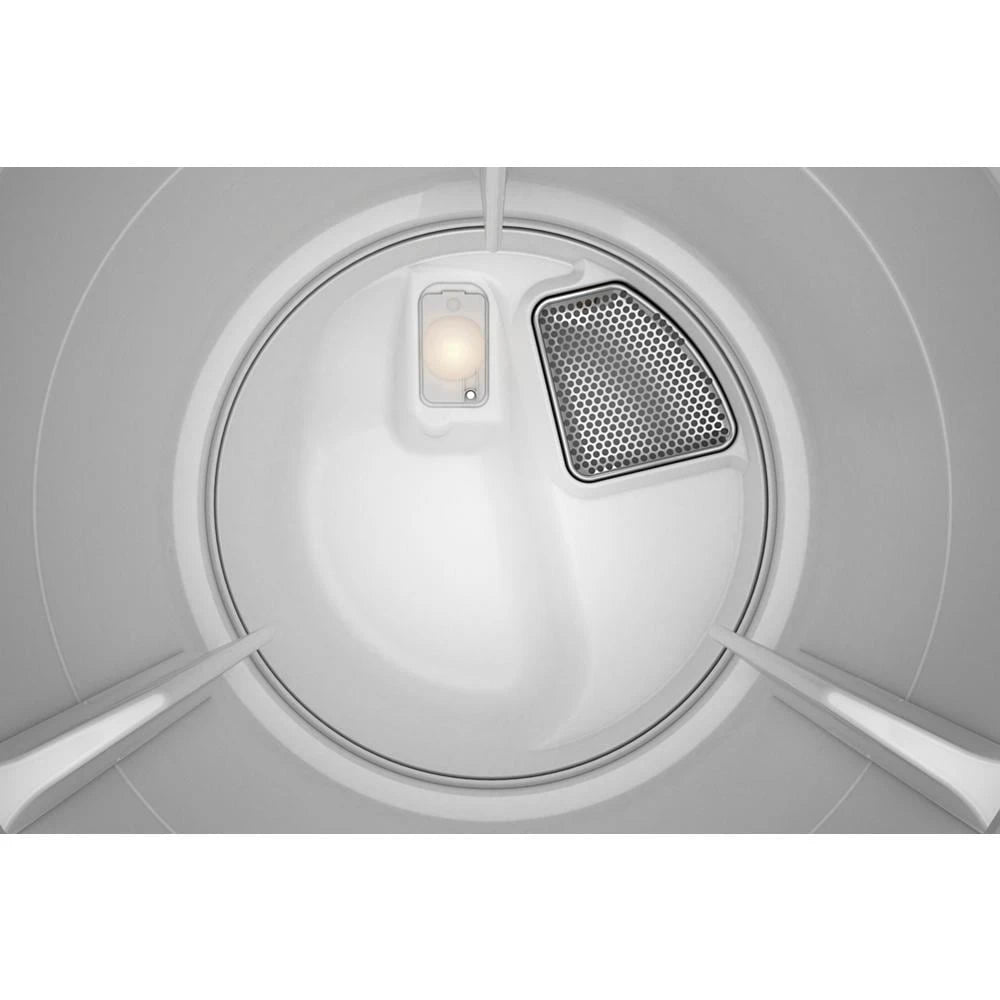

  • Drum Light
    The drum light gives a clear view of laundry for quick unloading.
