Product Details for Maytag MDG20MNTKW

Technical Details

Certifications

UL Yes
prop65 CA

Controls

Automatic Temperature Controls Yes
Control Type Dials
End of Cycle Signal No
Neon Indicator Yes

Cycles

Drying Cycles Selections Delicates; Heavy Duty; Normal
Number of Dryer Cycles 3

Details

Air Flow 230
Card Reader Ready No
Coin Drop Ready No
Coin Slide Ready No
Cycle Time Remaining No
Door Opening Direction Left
Dryer Heating Burner 20, 000
Dryer Interior Light No
Drying Rack No
EcoBoost Energy Saver No
Electronic Burner Ignition No
Fuel Type Gas
Gas Inlet Size 3/8 N.P.T
Infrared Data Collection No
LP Convertible Yes
Lint Filter Indicator No
Machine in Use Indicator Yes
Meter Case Service door No
Moisture Sensor No
Mount Type Rigid
Quad Baffles No
Secondary Lint Filter No
Service Mode Activation No
Sound Package No
Stackable No

Dimensions

Cylinder Depth 23.2
Cylinder Diameter 26.26
Cylinder Volume 7.4
Door Opening Angle 180 deg
Full Width Console Yes
carton depth 31
carton height 44.5
carton width 28.5
gross weight 164
net weight 149

Electrical

Power Cord Included No

Exterior details

Reversible Door Yes
Window No

Installation considerations

Exhaust Diameter 4
Four Way Venting Yes

Interior details

Drum Speed 45
Dryer Drum Material Powder Coat
Lint Screen Location Front

Management system details

Meter Case No

Performance details

Motor Horsepower 1/3 HP

Product details

Energy Star® Qualified No

Description

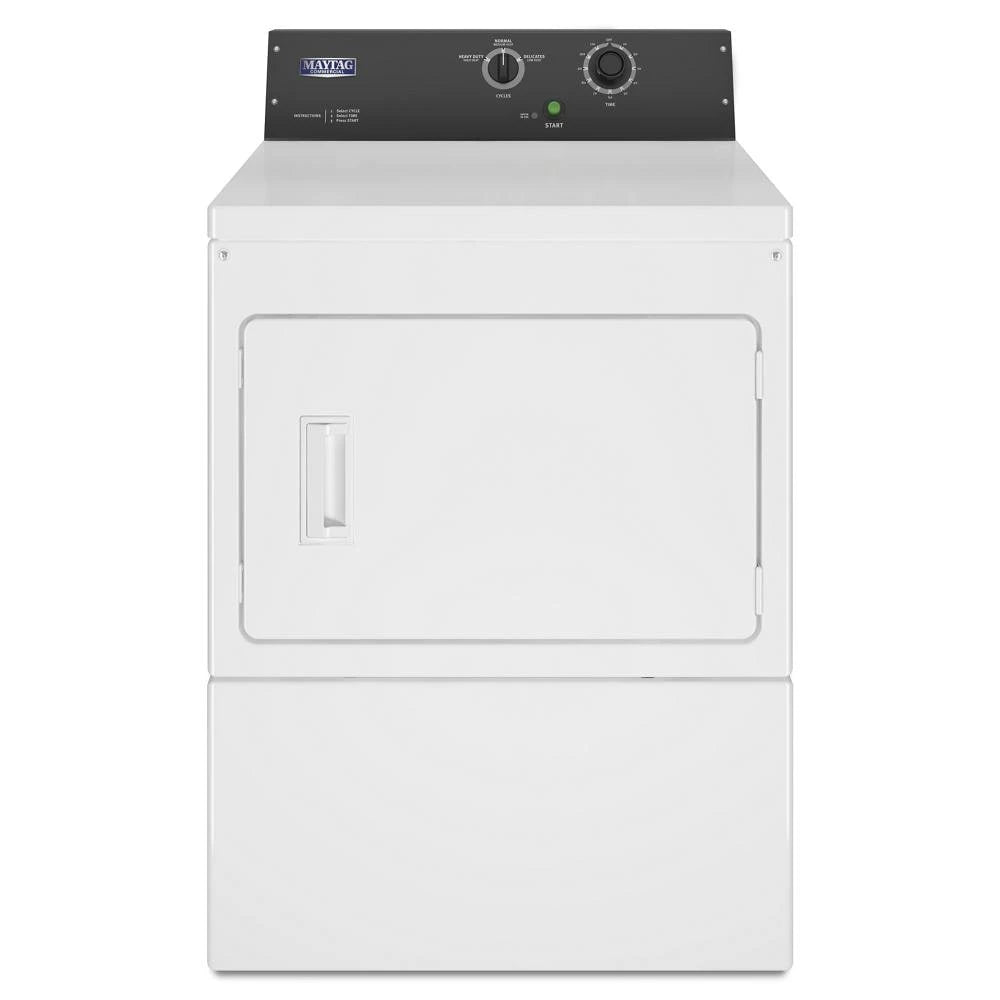

Get effective, efficient drying on loads of varying sizes with this 7.4 cu. ft. capacity gas dryer. Featuring Intelligent Controls with M-Series Technology, owners can set individual cycle pricing options and retrieve built-in diagnostics, while end users can easily use one-touch cycle selection with a display that clearly convey sprices, selections, and time remaining. Engineered for the durability, the four-roller suspension and permanently lubricated bearings, premium porcelain enamel top, and full-wrap console boost machine dependability and longevity, and the front panel is easy to remove, providing fast access to internal components. And because this powerful dryer is backed with a 5-Year Limited Parts Warranty,* you can see just how reliable a Maytag(R) machine is.



Product Features

  • 5-Year Limited Warranty
    This reliable dryer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details.
  • Extra-Large Reversible Door
    The extra-large door opening provides users easy access while loading and unloading clothes, while the reversible side-swing design provides flexibility for installation.

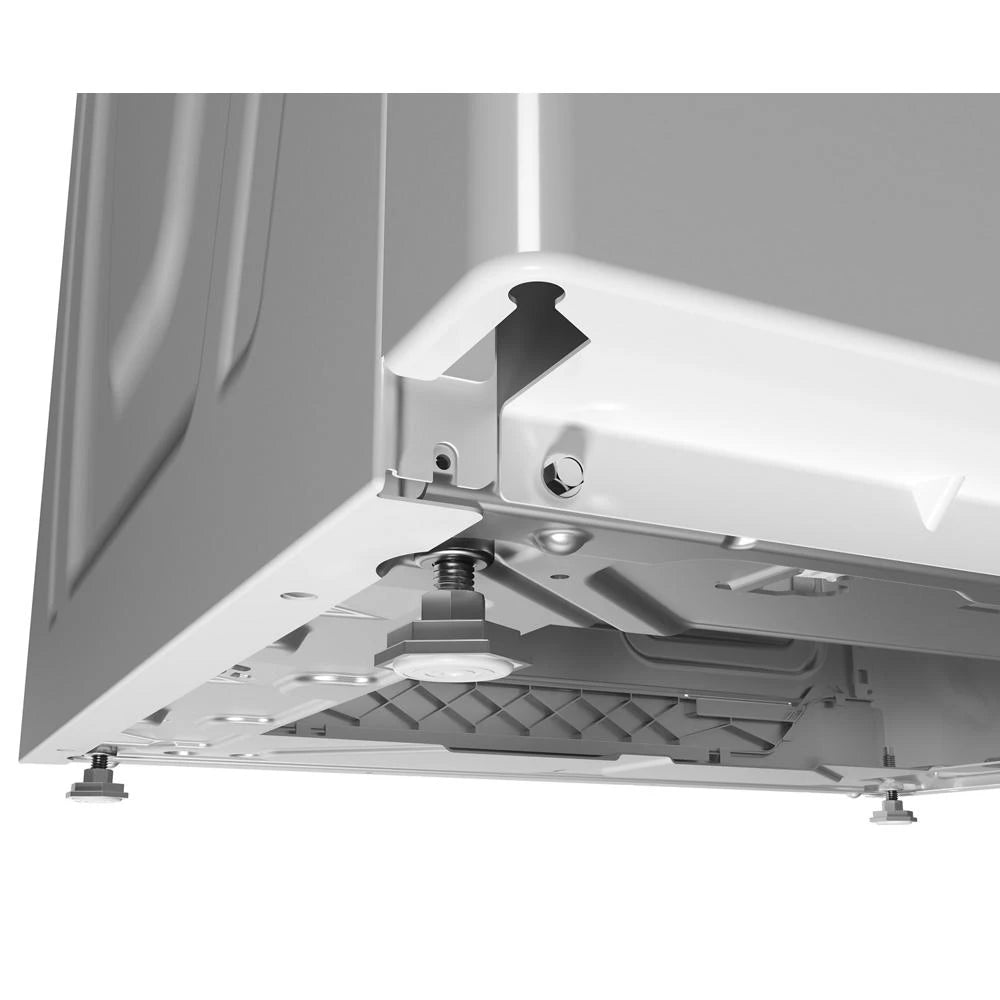

  • Four-Roller Suspension with Permanently Lubricated Bearings
    Four heavy-duty rollers in the suspension and permanently lubricated bearings are built to last.

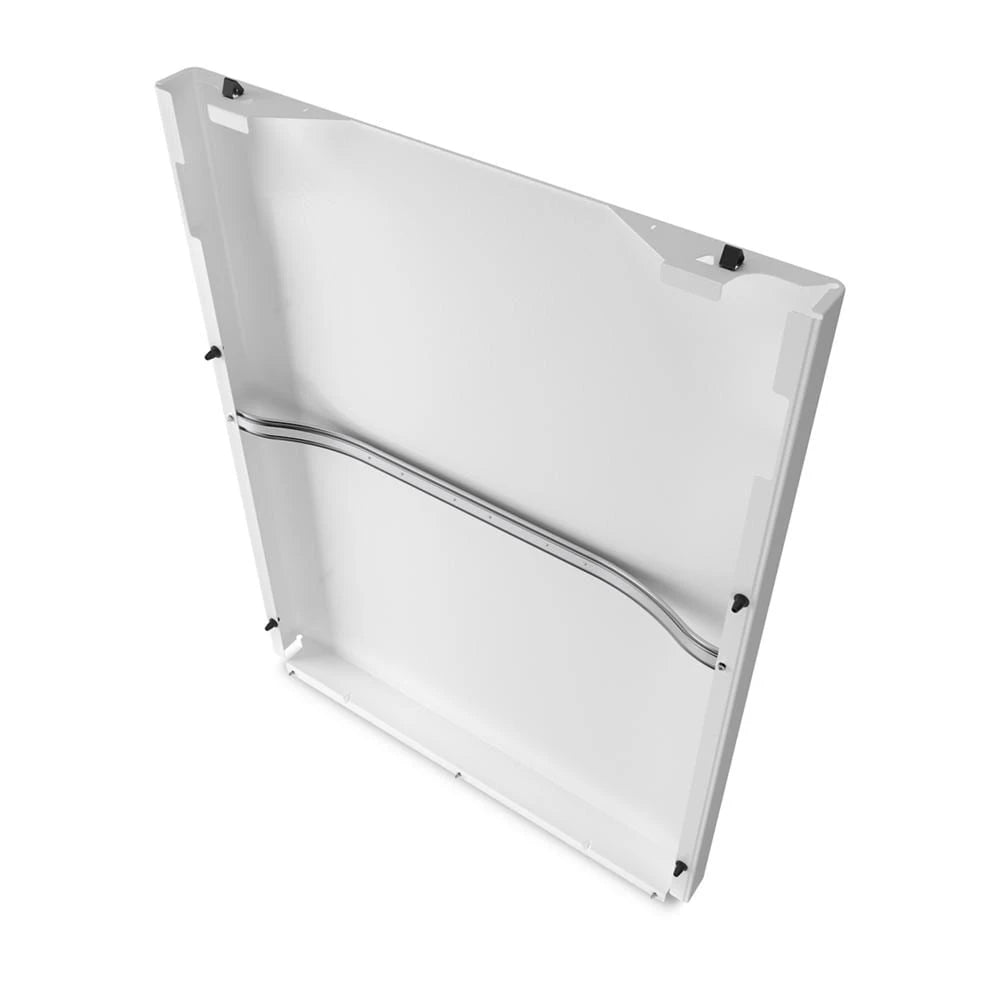

  • Front-Access Panel
    Gain access to several routine maintenance and service tasks.
  • Full-Wrap Console
    Designed to help protect the internal components from any unexpected liquids or vapor, this one-piece, full-wrap metal console is sleek, robust, and easy-to-clean.
  • Large Capacity
    The large 7.4 cu. ft. capacity dryer allows for large loads to be dried efficiently and effectively, delivering an optimal drying experience for end users and maximizing productivity.
  • Porcelain-Enamel Top
    The porcelain-enamel top is robust, boosting machine durability and aesthetics in high-use laundry environments.
  • Turbovent® System
    Our Turbovent® technology uses a high-speed blower to increase airflow for long vent installations. With 100 feet of venting capability, the Turbovent® system allows for long vent installations, while maintaining high performance.
  • Turbovent® system
    A high-speed blower wheel optimizes performance in long vents, while high airflow helps reduce drying times for a wide variety of loads — increasing efficiency and turns over the life of the machine.
  • 5-Year Limited Parts Warranty
    This reliable dryer is backed with a 5-Year Limited Parts Warranty. *See maytagcommerciallaundry.com for warranty details.
