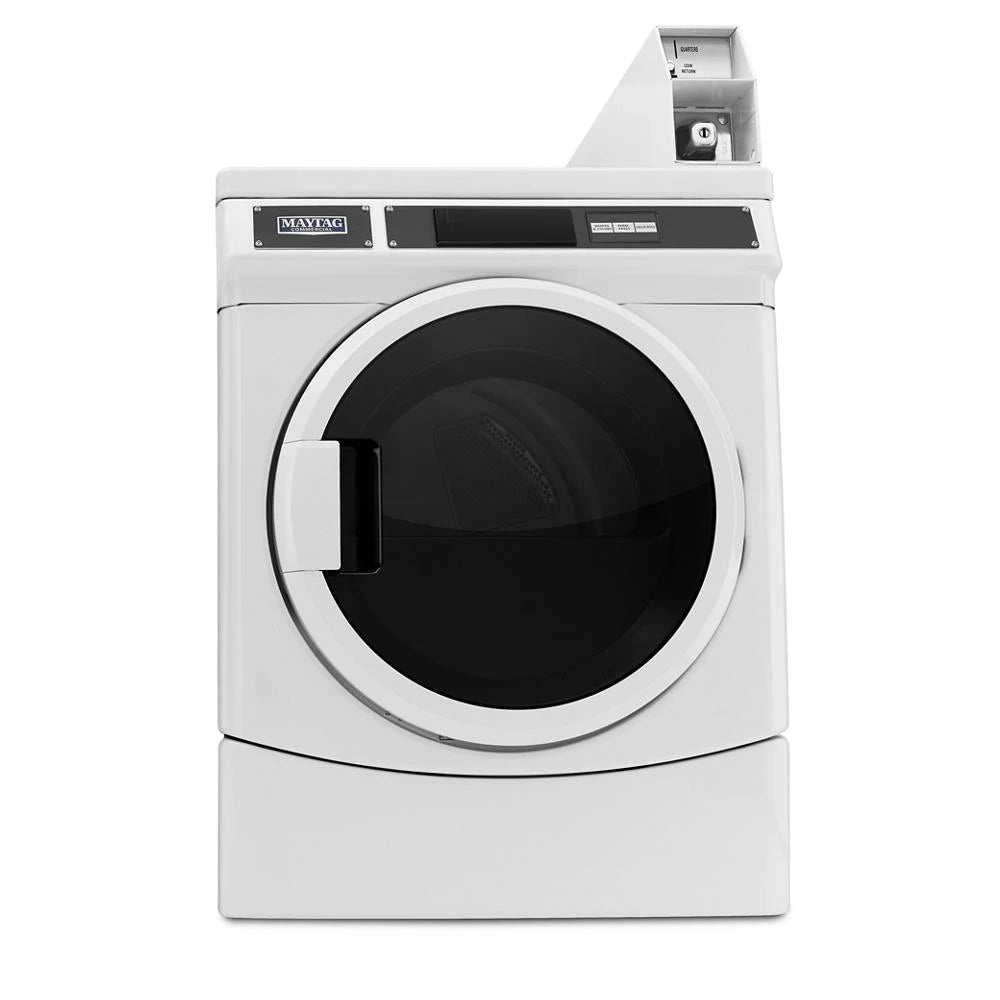

Product Details for Maytag MDE28PDTGW

Technical Details

Certifications

UL Yes
prop65 CA

Controls

Automatic Temperature Controls Yes
Control Location Front
Control Type Electronic
Electronic Display Type VFD
End of Cycle Signal No

Cycles

Drying Cycles Selections Delicates; Heavy Duty; Normal
Number of Dryer Cycles 3

Details

Air Flow 215
Card Reader Ready No
Coin Drop Ready Yes
Coin Slide Ready Yes
Cycle Time Remaining Yes
Door Opening Direction Left
Dryer Interior Light No
Drying Rack No
EcoBoost Energy Saver No
Electronic Burner Ignition No
Fuel Type Electric
Heating Elements 4, 600
Infrared Data Collection Yes
Lint Filter Indicator No
Meter Case Service door Yes
Moisture Sensor No
Mount Type Rigid
Quad Baffles No
Secondary Lint Filter No
Service Mode Activation Yes
Sound Package No
Stackable No

Dimensions

Cylinder Depth 20.46
Cylinder Diameter 26.26
Cylinder Volume 6.7
Door Opening Angle 135 deg
Full Width Console Yes
carton depth 30.5
carton height 45.63
carton width 29.06
gross weight 145
net weight 135

Electrical

Power Cord Included Yes

Exterior details

Reversible Door Yes
Window Yes

Installation considerations

Exhaust Diameter 4
Long Vent Yes

Interior details

Drum Speed 45
Dryer Drum Material Powder Coat
Lint Screen Location Front

Management system details

Meter Case Yes

Performance details

Motor Horsepower 1/3 HP

Product details

Energy Star® Qualified No
Power Cord Length (ft) 6

Description

A high-speed blower wheel in the Turbovent(R) system optimizes performance in long vents, while high airflow helps reduce drying times for a wide variety of loads. This 10.5 KG rated capacity electric dryer comes coin drop equipped with microprocessor controls that makes setup a snap and allows owners to take control of their revenue by individually pricing cycles and cycle times. To streamline maintenance, we've made the front panel easy to remove to provide fast access to internal components. Our porcelain-enamel top is robust and provides the durability required for high-traffic commercial laundry environments, and we're backing it all with a 5-Year Limited Parts Warranty.* *Visit maytagcommerciallaundry.com for warranty details.



Product Features

  • 10.5 KG Rated Capacity
    The large 10.5KG rated capacity dryer allows for large loads to be dried efficiently and effectively, delivering an optimal drying experience for end users and maximizing productivity.
  • 5-Year Limited Warranty
    This reliable dryer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details.
  • Card Reader Ready*
    Card Reader Ready* models allow owners to add card readers to use revenue generating controls to customize pricing, and read machine information and diagnostics.

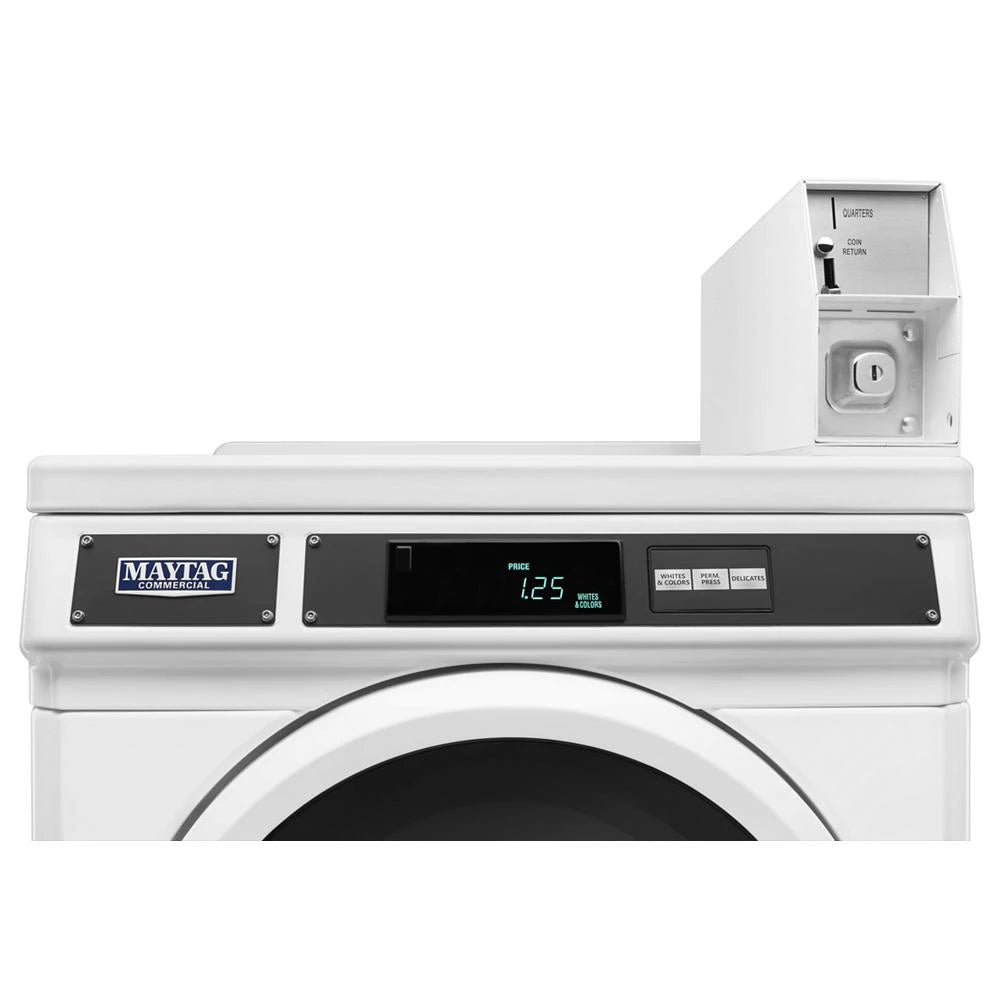

  • Coin Drop Ready
    Coin Drop Ready Models allow owners to add a coin drop and the flexibility to customize pricing, set individual cycle prices, cycle times, vend counts, and much more.
  • Four-Roller Suspension with Permanently Lubricated Bearings
    Four heavy-duty rollers in the suspension and permanently lubricated bearings are built to provide consistent and dependable drying.
  • Front-Access Panel
    Gain access to several routine maintenance and service tasks.

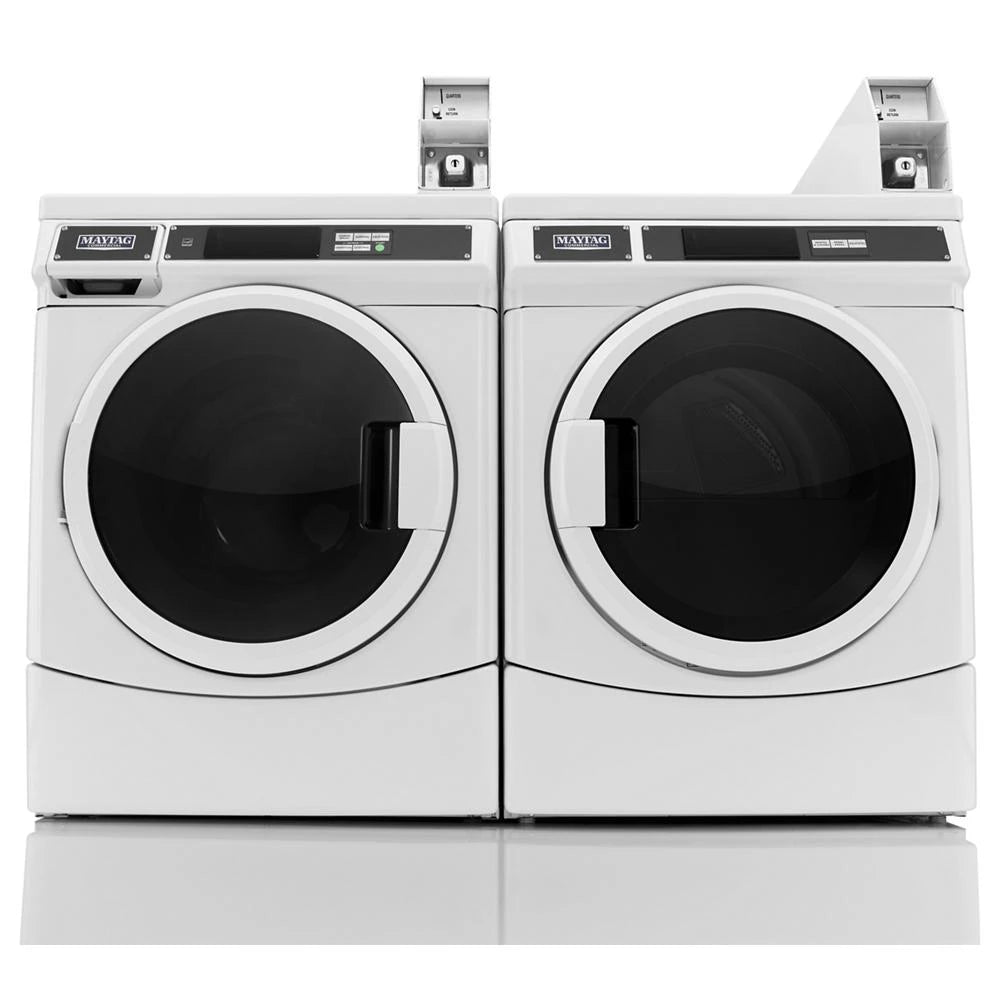

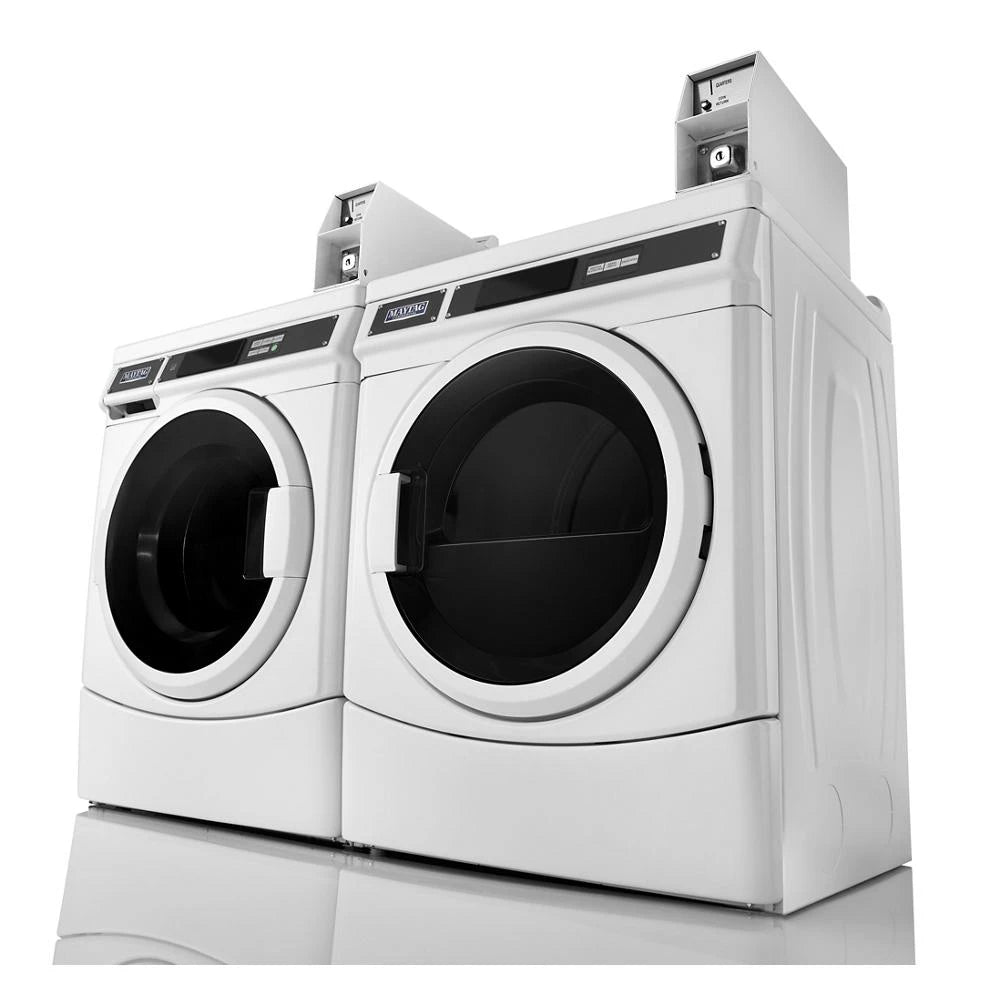

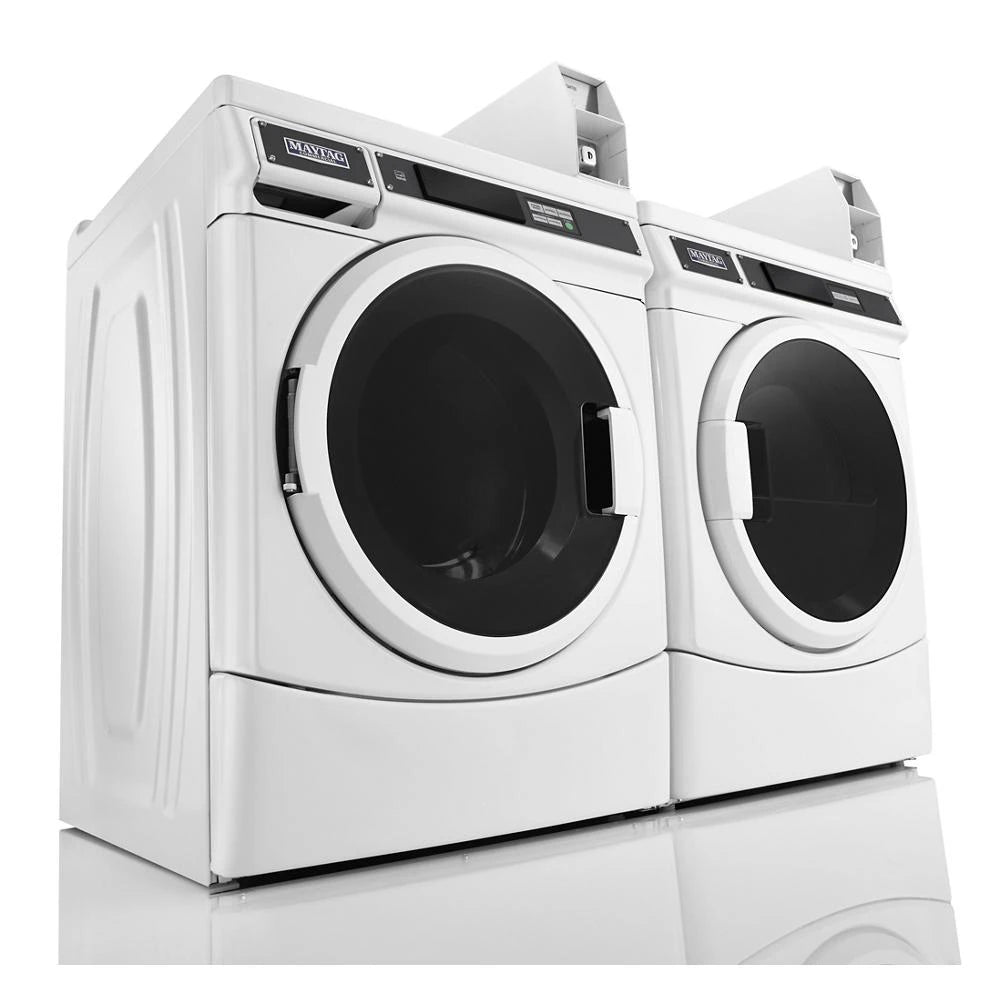

  • Matching Washer Available
    The matching MHN33 commercial single-load, front-load washer delivers constant dependability and performance with the ultra-reliable DuraCore Drive System.

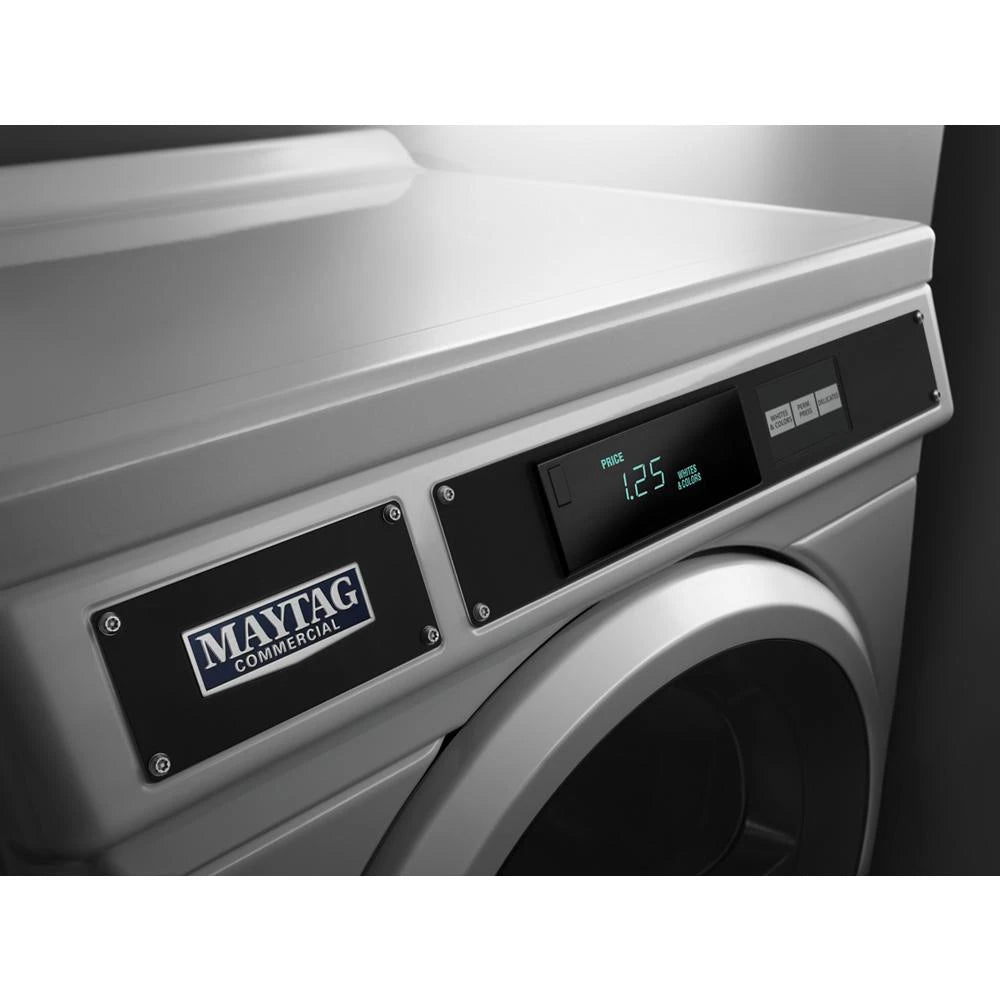

  • Microprocessor Controls
    Microprocessor controls offer flexibility and individual cycle pricing options for optimal earnings, while end users can easily choose their preferred wash experience with one-touch cycle selection. In addition, the display clearly conveys prices, selections, and time remaining. Built-in diagnostics help streamline service calls.
  • One-Touch Cycle Selection
    Simple, one-touch cycle selection provides clear options for end users.
  • Simple Programming
    Enhanced controls provide flexible, customized programming for fast setup - getting machines running quickly and efficiently.
  • Turbovent® System
    Our Turbovent® technology uses a high-speed blower to increase airflow for long vent installations. With 100 feet of venting capability, the Turbovent® system allows for long vent installations, while maintaining high performance.
  • Turbovent® system
    A high-speed blower wheel optimizes performance in long vents, while high airflow helps reduce drying times for a wide variety of loads — increasing efficiency and turns over the life of the machine.
  • 5-Year Limited Parts Warranty
    This reliable dryer is backed with a 5-Year Limited Parts Warranty. *See maytagcommerciallaundry.com for warranty details.
