Product Details for Maytag MDE20MNUGW
Technical Details
Certifications
| UL | Yes |
| prop65 | CA |
Controls
| Automatic Temperature Controls | Yes |
| Control Location | Rear Panel |
| Control Type | Dials |
| End of Cycle Signal | No |
| Neon Indicator | Yes |
Cycles
| Drying Cycles Selections | Delicates; Heavy Duty; Normal |
| Number of Dryer Cycles | 3 |
Details
| Air Flow | 215 |
| Card Reader Ready | No |
| Coin Drop Ready | No |
| Coin Slide Ready | No |
| Cycle Time Remaining | No |
| Door Opening Direction | Left |
| Dryer Interior Light | No |
| Drying Rack | No |
| EcoBoost Energy Saver | No |
| Electronic Burner Ignition | No |
| Fuel Type | Electric |
| Heating Elements | 4, 600 |
| Infrared Data Collection | Yes |
| Lint Filter Indicator | No |
| Machine in Use Indicator | Yes |
| Meter Case Service door | No |
| Moisture Sensor | No |
| Mount Type | Rigid |
| Quad Baffles | No |
| Secondary Lint Filter | No |
| Service Mode Activation | No |
| Sound Package | No |
| Stackable | No |
Dimensions
| Cylinder Depth | 25.00 |
| Cylinder Diameter | 26.26 |
| Cylinder Volume | 7.4 |
| Door Opening Angle | 180 deg |
| Full Width Console | Yes |
| carton depth | 31 |
| carton height | 44.5 |
| carton width | 28.5 |
| gross weight | 164 |
| net weight | 149 |
Electrical
| Power Cord Included | Yes |
Exterior details
| Reversible Door | Yes |
| Window | No |
Installation considerations
| Exhaust Diameter | 4 |
| Four Way Venting | Yes |
Interior details
| Drum Speed | 45 |
| Dryer Drum Material | Powder Coat |
| Lint Screen Location | Front |
Management system details
| Meter Case | No |
Performance details
| Motor Horsepower | 1/3 HP |
Product details
| Energy Star® Qualified | No |
| Power Cord Length (ft) | 6 |
Description

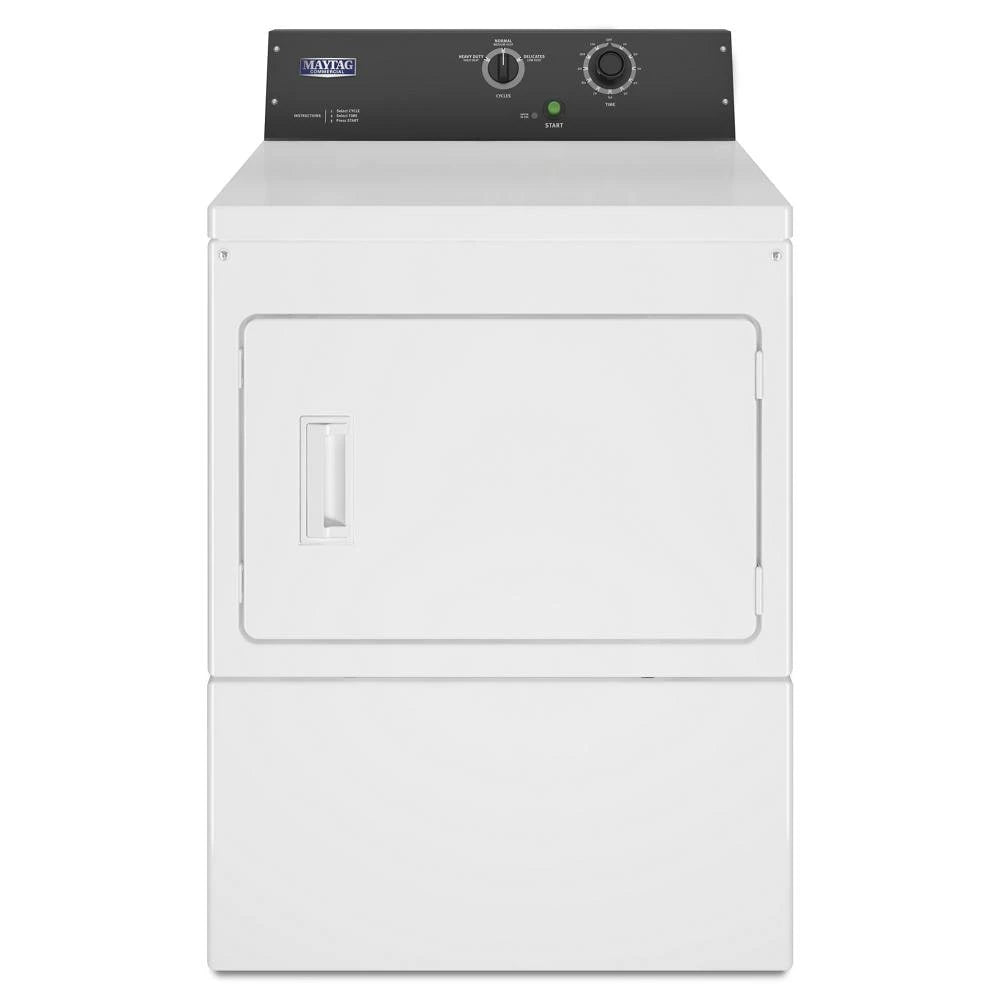

Get effective, efficient drying on loads of varying sizes with this 7.4 cu. ft. capacity electric dryer. Featuring simple, easy-to-use controls, the robust knobs stand up to the commercial environment. Engineered for the durability, the four-roller suspension and permanently lubricated bearings, premium porcelain enamel top, and full-wrap console boost machine dependability and longevity. The extra-large door opening has a reversible side-swing design providing installation flexibility. The front panel is easy to remove, which streamlines service by providing fast access to internal components. And because this powerful dryer is backed with a 5-Year Limited Parts Warranty,* you can see just how reliable a Maytag(R) machine is.
Product Features
- 5 -Year Limited Warranty
-
5-Year Limited Warranty
The reliable washer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details. -
Extra-Large Reversible Door
The extra-large door opening provides users easy access while loading and unloading clothes, while the reversible side-swing design provides flexibility for installation. -
Four-Roller Suspension with Permanently Lubricated Bearings
Four heavy-duty rollers in the suspension and permanently lubricated bearings are built to last. -
Front-Access Panel
The front-access panel streamlines service by providing quick entry to the motor, shock absorbers, and other interior parts — helping to minimize downtime and to keep the machine running. -
Full-Wrap Console
Designed to help protect the internal components from any unexpected liquids or vapor, this one-piece, full-wrap metal console is sleek, robust, and easy-to-clean. -
Large Capacity
The large 7.4 cu. ft. capacity dryer allows for large loads to be dried efficiently and effectively, delivering an optimal drying experience for end users and maximizing productivity. - Premium Porcelain-Enamel Top
-
Turbovent® System
Our Turbovent® technology uses a high-speed blower to increase airflow for long vent installations. With 100 feet of venting capability, the Turbovent® system allows for long vent installations, while maintaining high performance. -
Turbovent® system
A high-speed blower wheel optimizes performance in long vents, while high airflow helps reduce drying times for a wide variety of loads — increasing efficiency and turns over the life of the machine.
