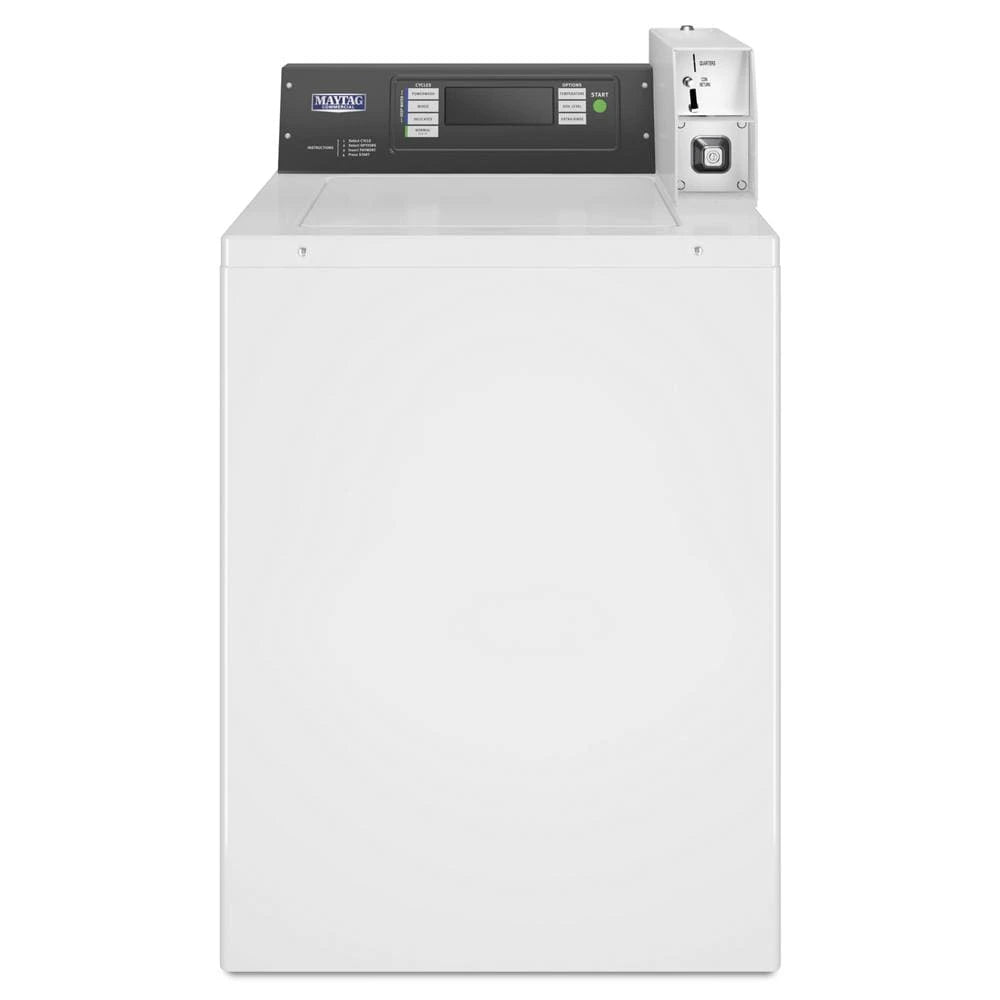

Product Details for Maytag MAT24PDAWW

Technical Details

Certifications

ADA Compliant No
prop65 CA

Controls

Control Type Electronic
Electronic Display Type VFD
LED Color Green

Cycles

Number of Wash Cycles 4
Washer Cycle Selections Delicates; Mixed; Normal/Eco; Powerwash®

Details

Average Hot Water Usage Hot Water Cycle 7.03
Average Hot Water Usage Warm Water Cycle 0.5
Average Total Water Usage per Cycle 17.85
Coin Drop Ready Single Drop-Factory Installed
Drain Hose Length 4
Extract Speed- Max G-Force/Max RPM 144/700
Hoses Included Yes, Drain
Industry Segment Multi-Housing; Vended
Infrared Data Collection No
Maximum G-Force 144
Maximum Spin Speed 700
Meter Case Service door Shipped w/o lock
Mount Type Free Standing
Number of Optic Sensors 1
Operating Pressure 20-100
Product Type Commercial Top Load Washer
Region North America
Service Mode Activation Meter case

Dimensions

Cabinet Width 27
Capacity IEC Canada 3.3
Depth Excluding Doors 26
carton depth 27.5
carton height 49
carton width 29
gross weight 164
net weight 148

Electrical

Power Cord Included Yes

Exterior details

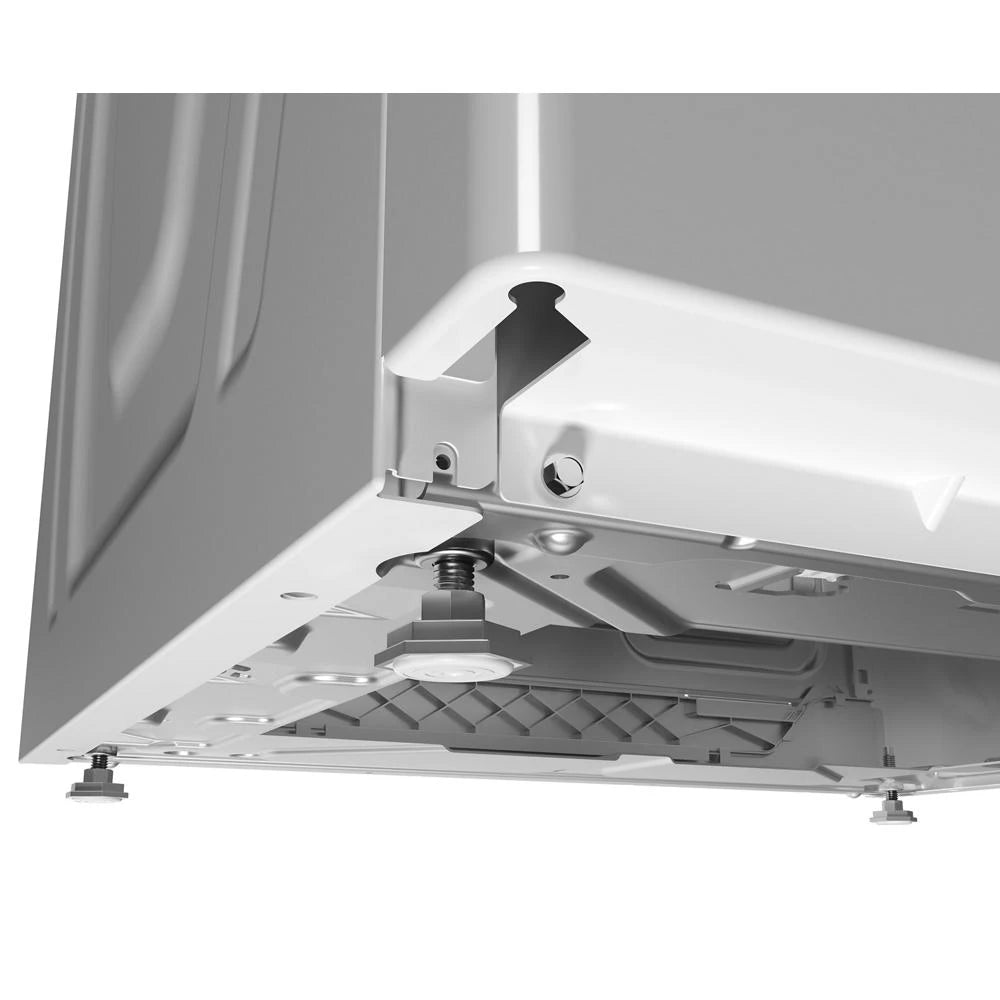

Adjustable Feet Yes
Door Aesthetic Solid Door
Lid/Door Finish Porcelain
Lid/Door Lock Yes

Interior details

Out of Balance Sensing Yes
Washer Drum Material Porcelain

Management system details

Meter Case Yes
Self-Diagnostics Yes

Modifiers

Number of Rinse Options 2
Number of Soil Levels 2
Number of Spin Speeds 1
Number of Wash/Rinse Temperatures 1
Number of Washer Options 2

Performance details

Motor Horsepower 1/2 HP

Product details

Energy Star® Qualified No
Power Cord Length (ft) 6

Description

The machine s deep-water wash system delievers exceptional rollover and vigorous cleaning action that result in optimal wash performance. Now USB supported, this washer has the ability to update firmware without the need for special equipment. The PowerWash(R) cycle delivers more agitation, hotter water, and an extra rinse for the toughest loads, while the traditional flex-vane agitator alternates between four distinct wash patterns to generate outstanding clothes movement and extensive deep-cleaning action. The 3.3 cu. ft. capacity washer has Intelligent Controls that offer owners flexibility and individual cycle pricing options. And because Maytag knows what dependability means to your owners, we back this reliable machine with a 5-Year Limited Parts Warranty.*



Product Features

  • 1/2-HP PSC Motor
    The powerful ½-HP PSC motor helps the top-load washer tackle heavy loads with ease. By alternating between long and short strokes, it generates extensive deep-cleaning action that gives clothes a thorough wash. Engineered for reliability, it’s designed to deliver consistent performance time after time.
  • 5 -Year Limited Warranty
  • 5-Year Limited Warranty
    The reliable washer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details.
  • Commonized GEN2 Interface
    We have simplified the communication protocol to allow consistency and reliability with 3rd party vendors.

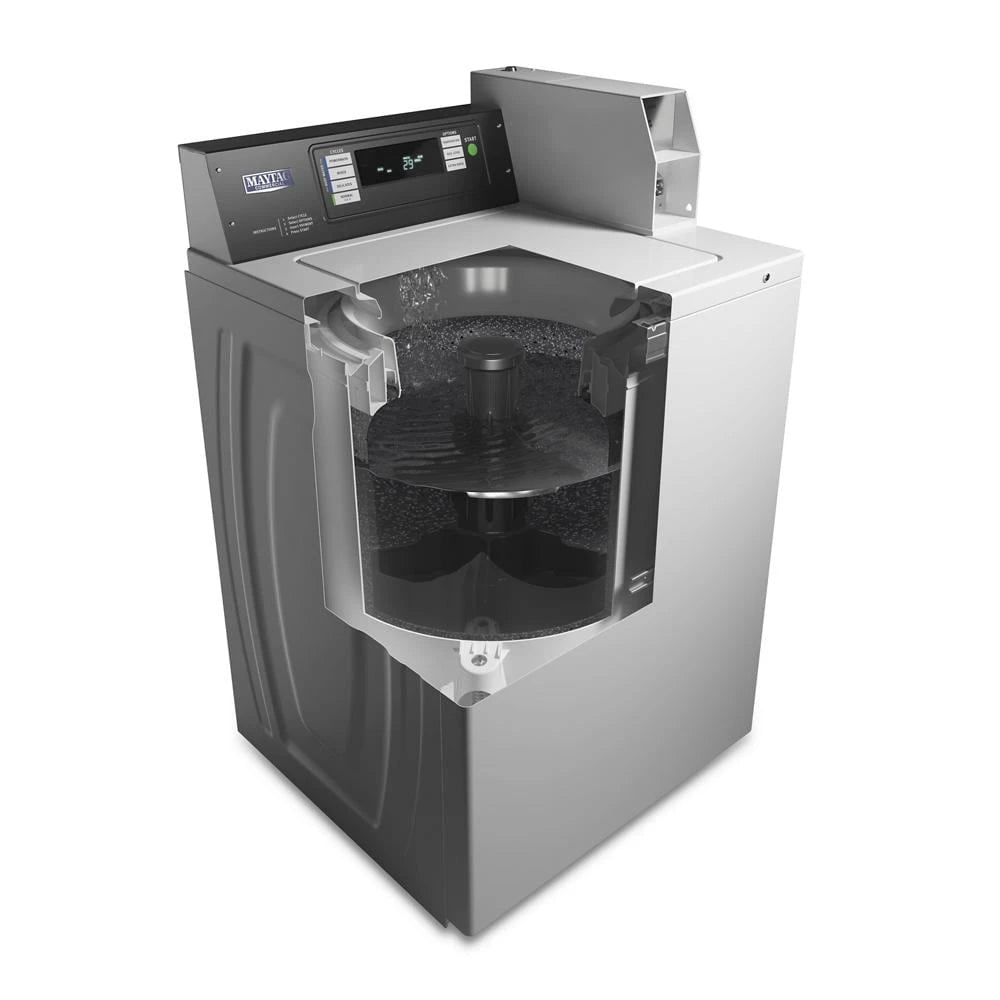

  • Deep-Water Wash System

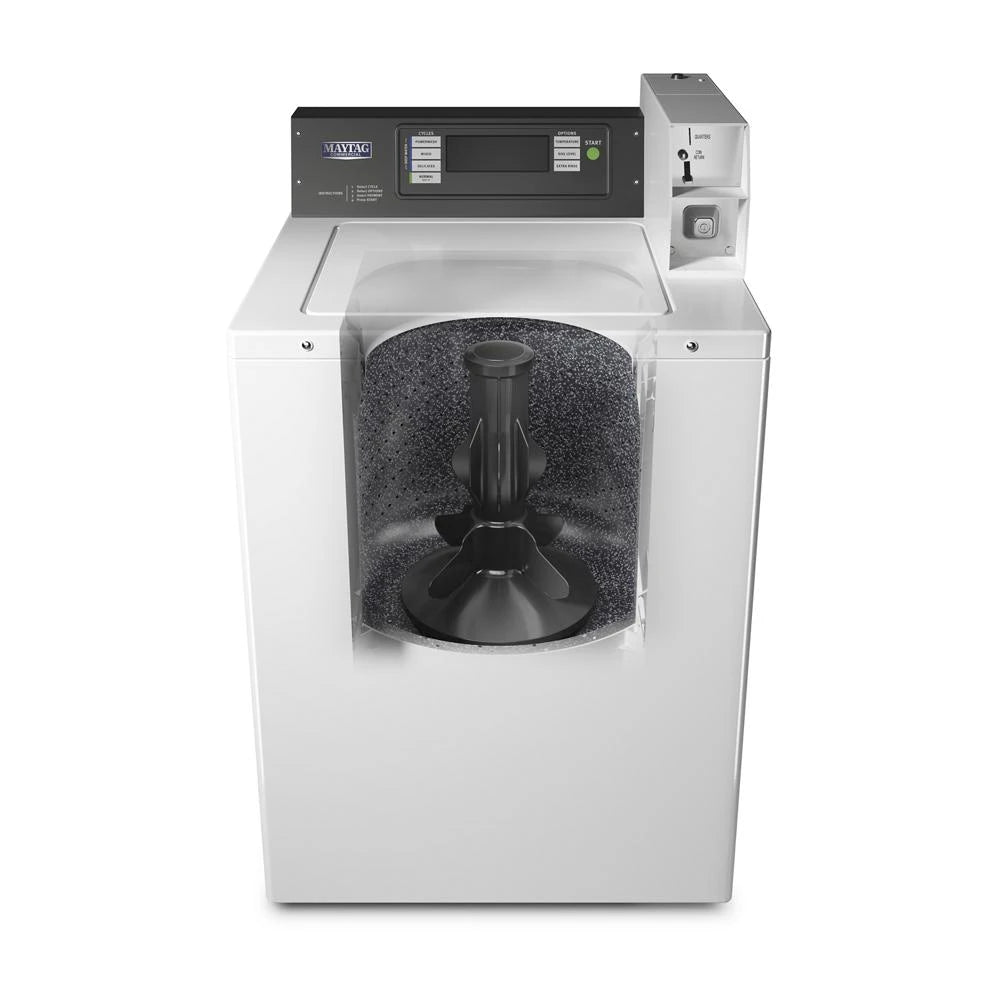

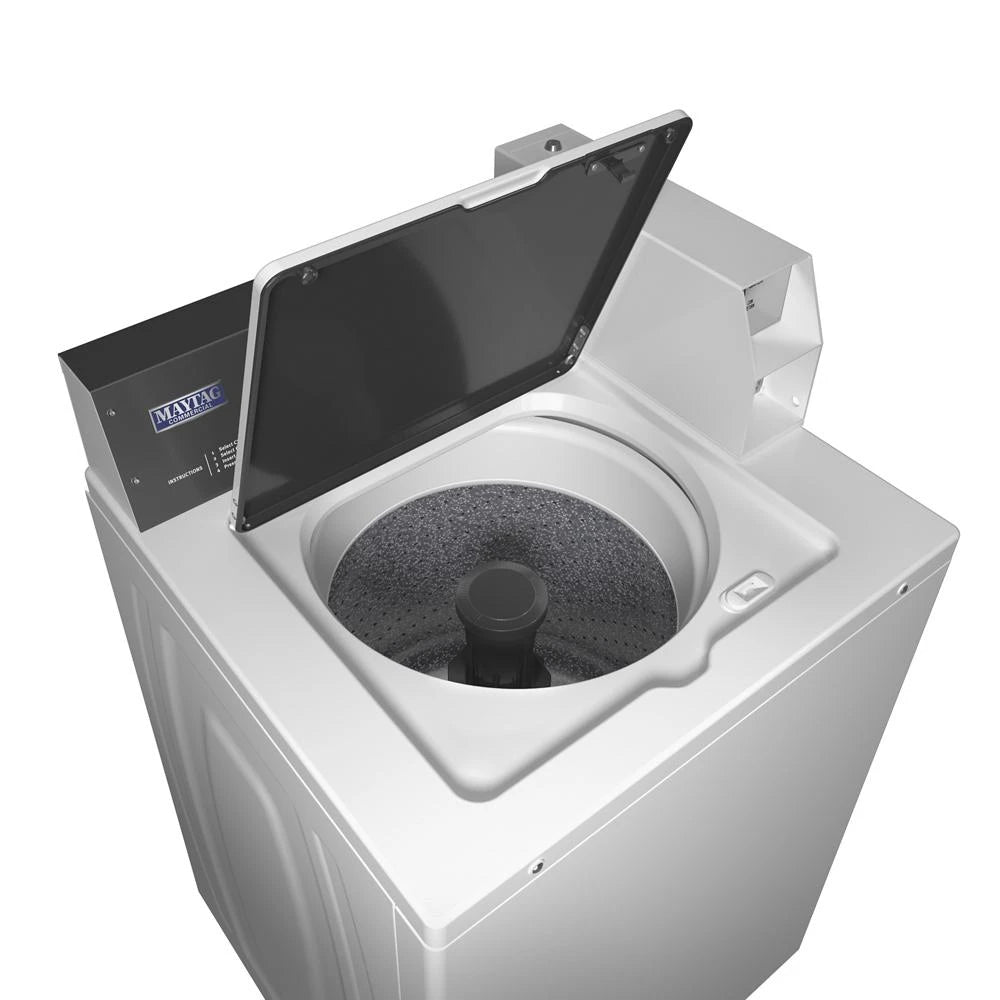

    The wash system is optimized with deep-water wash and rinse cycles and vigorous cleaning action. The traditional, flex-vane agitator uses four unique patterns — from aggressive to gentle — to deliver traditional top-load wash performance through exceptional rollover for large loads. Additionally, items can be added to the load at any time during wash, fill, and rinse portions of cycle — simply by lifting the lid.
  • Front-Access Panel

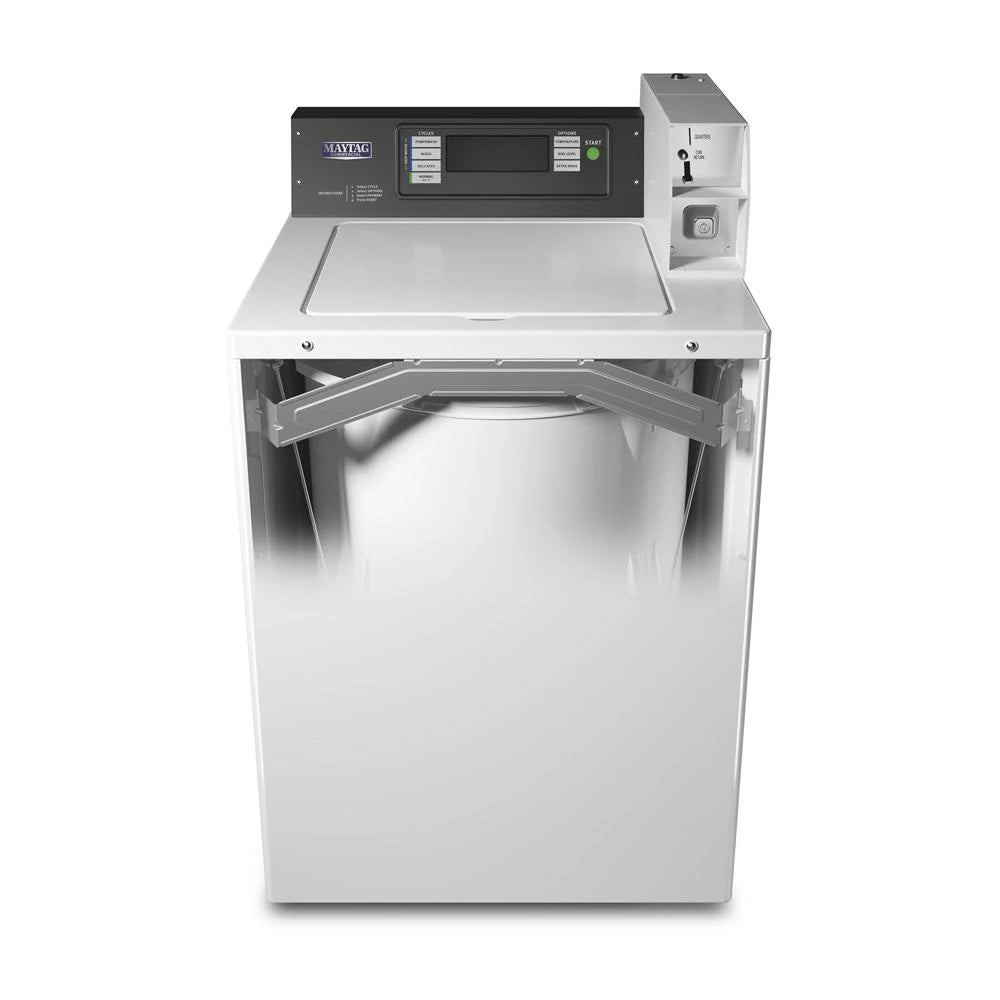

    The front-access panel streamlines service by providing quick entry to the motor, shock absorbers, and other interior parts — helping to minimize downtime and to keep the machine running.
  • Heavy-Duty Cabinet

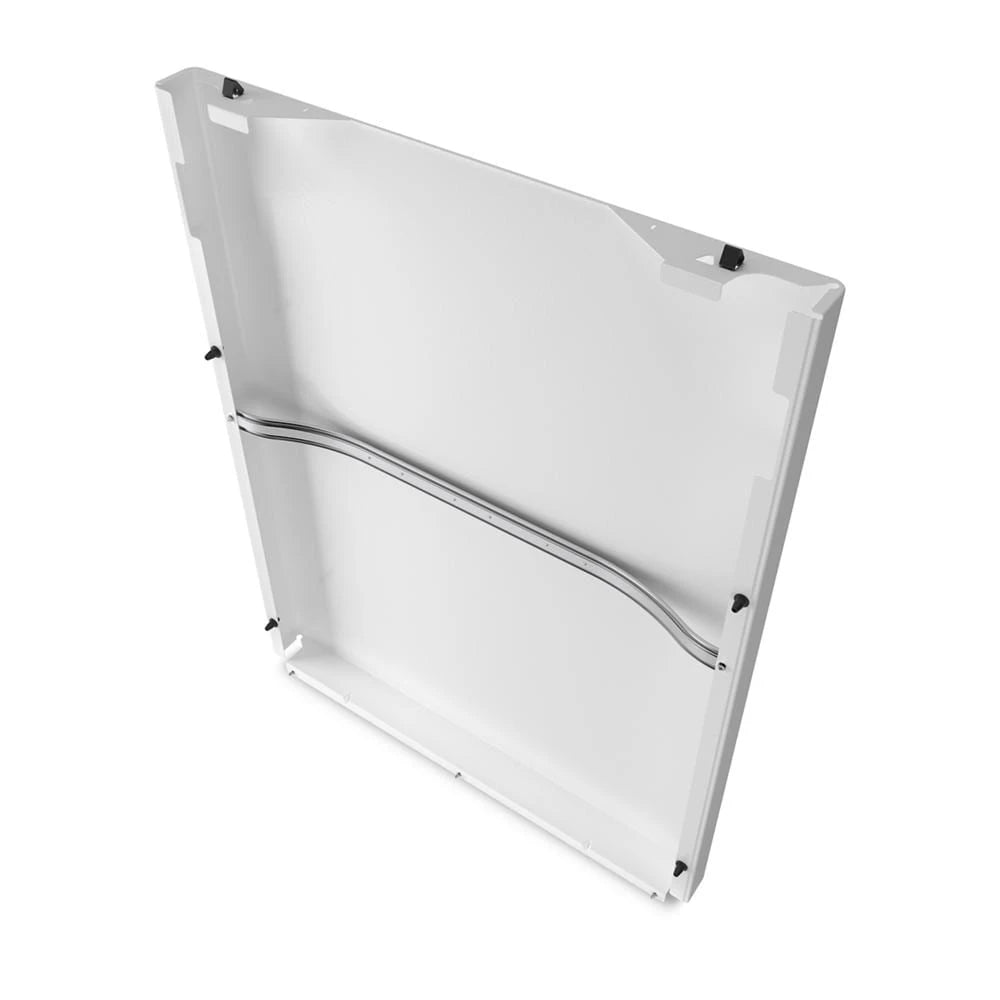

    The heavy-duty cabinet has the strength and craftsmanship needed for high demand commercial environments. The sturdy removable front, side panels and easy-access base are constructed with high-grade powder-coated galvanized steel. In addition, the full-wrap metal console is sleek and easy to clean.

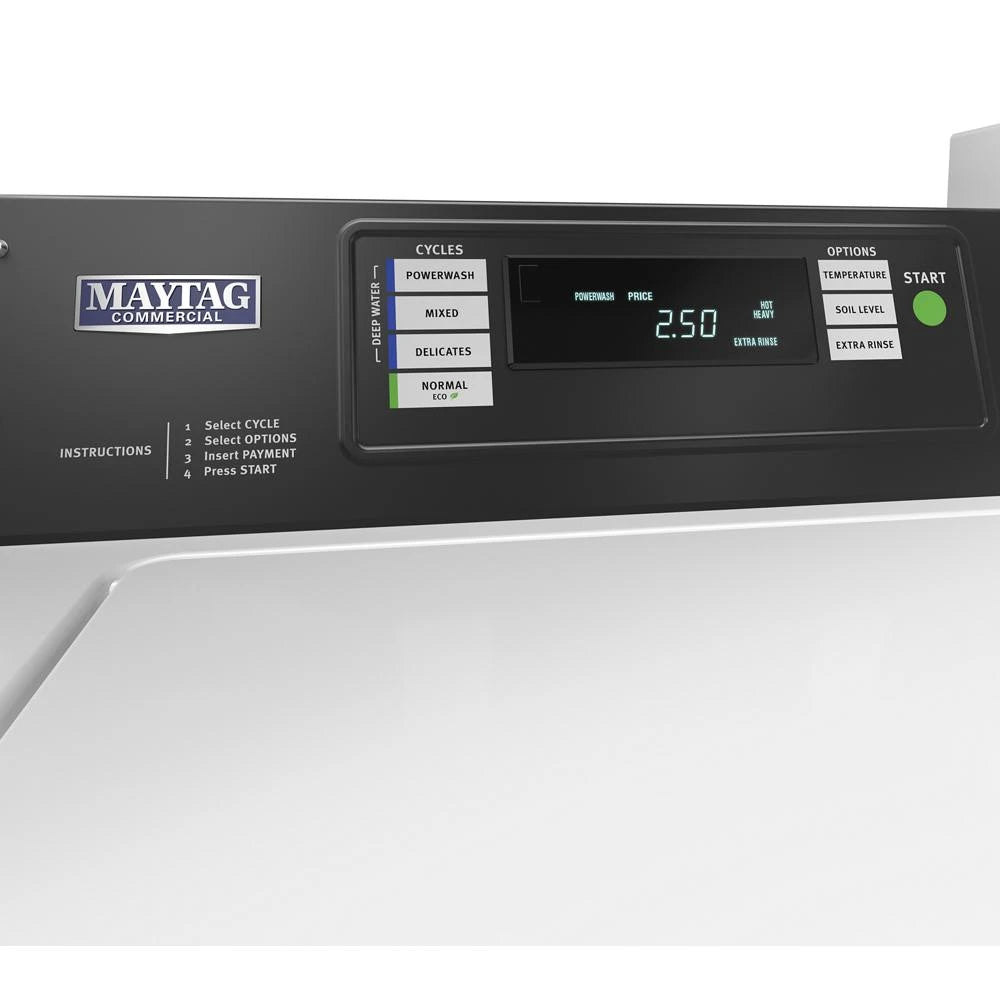

  • Intelligent Controls with M-Series Technology
    Get flexibility and individual cycle pricing options for optimal earnings through Intelligent Controls with M-Series Technology, while end users can easily choose their preferred wash experience with one-touch cycle selection. In addition, the display clearly conveys prices, selections, and time remaining. Built-in diagnostics help streamline service calls.
  • Large Capacity

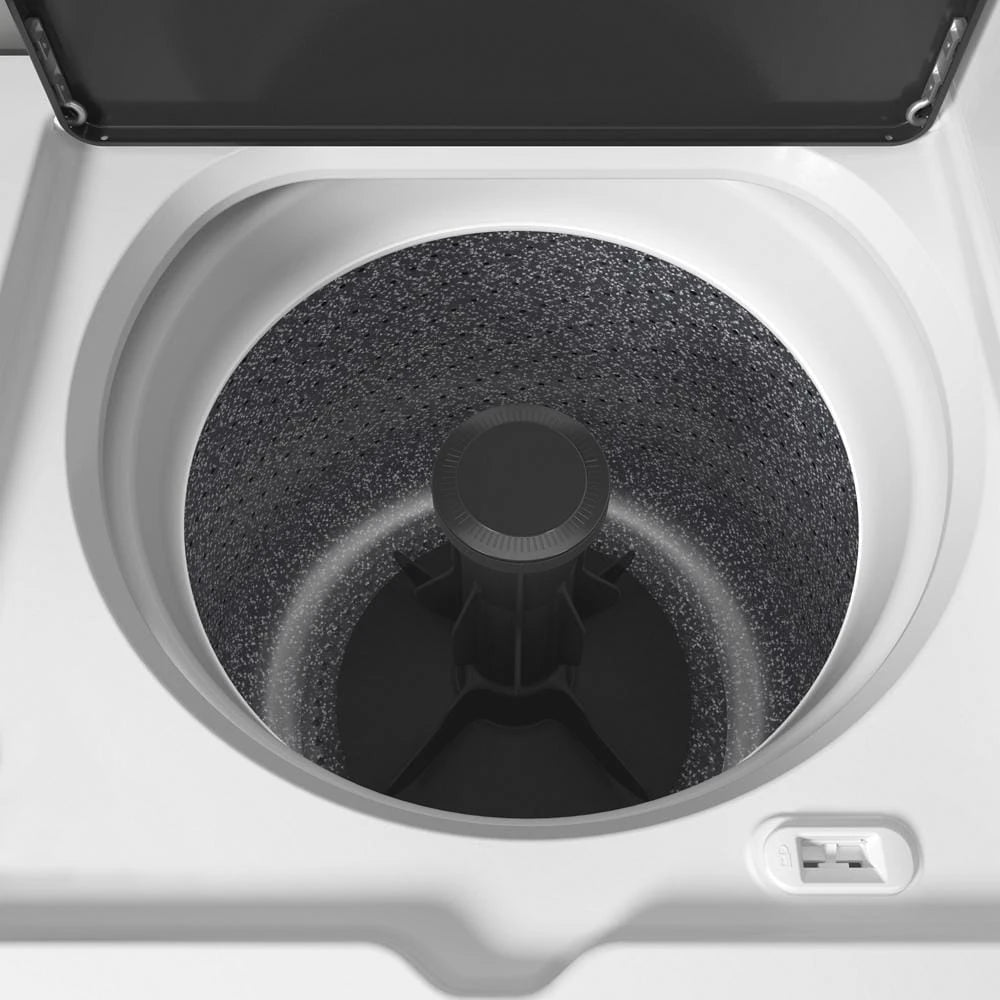

    The 3.27 cu. ft. capacity wash basket is designed to allow for single-loads of all sizes while still providing exceptional cleaning.
  • PowerWash® Cycle
    As part of the deep-water wash system, the PowerWash® cycle delivers more agitation, hotter water, and an extra rinse for the toughest loads. Hotter temperatures and rinse upgrade options create exceptional wash performance. The spin-fill wet-down process turns the basket during the initial fill to fully soak the load and dissolve any detergent that may be on top.

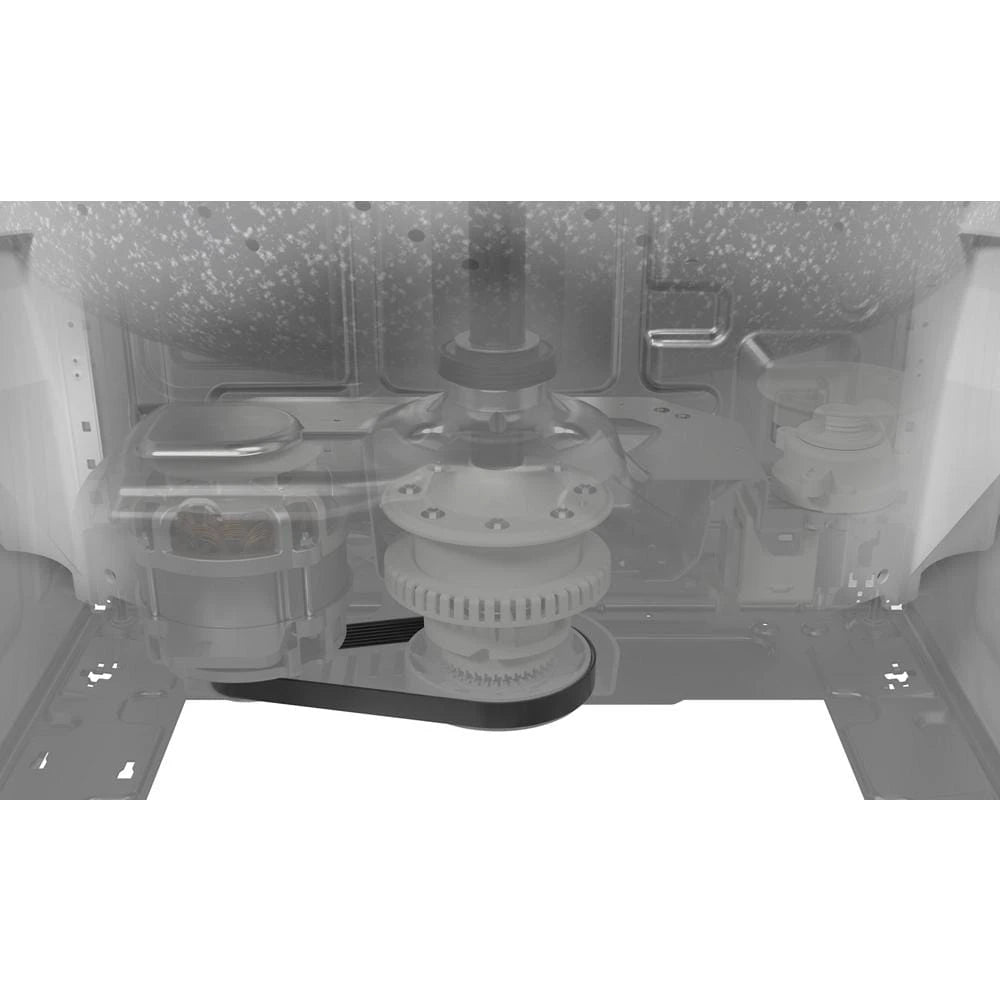

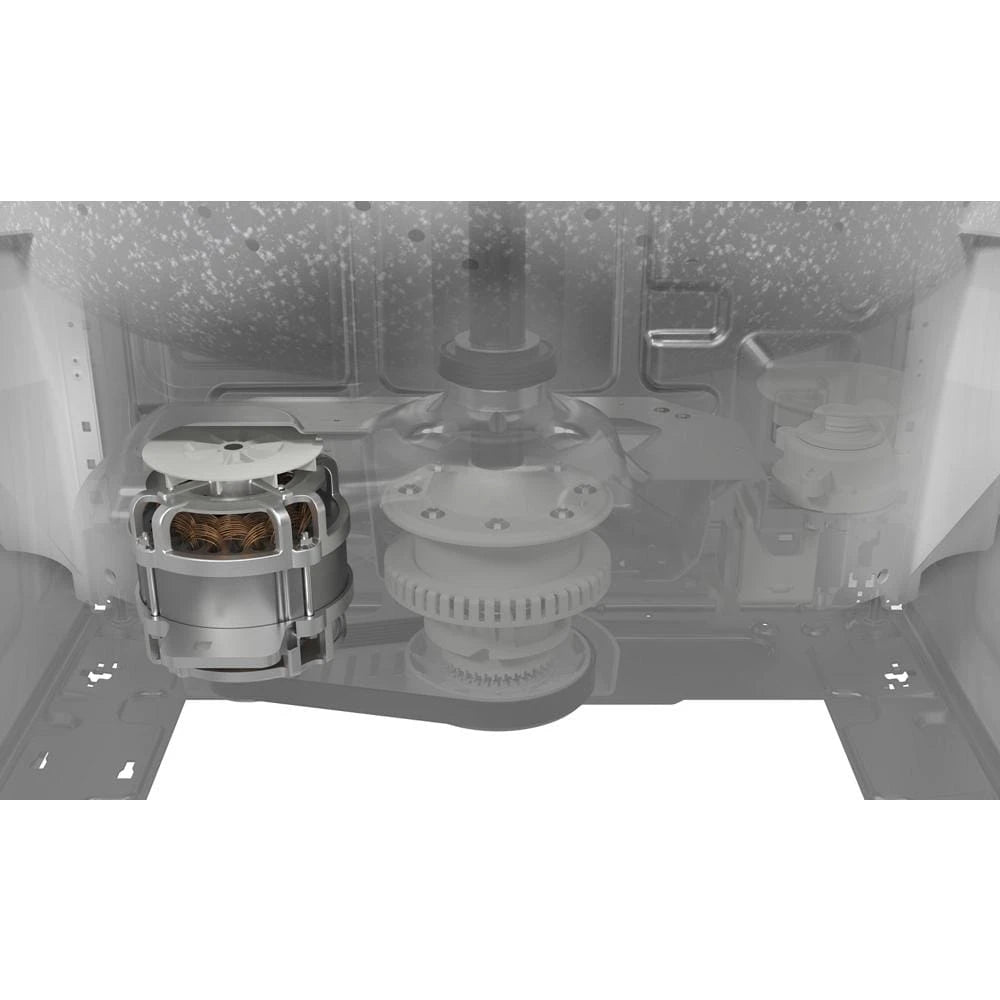

  • Powerful Drive System

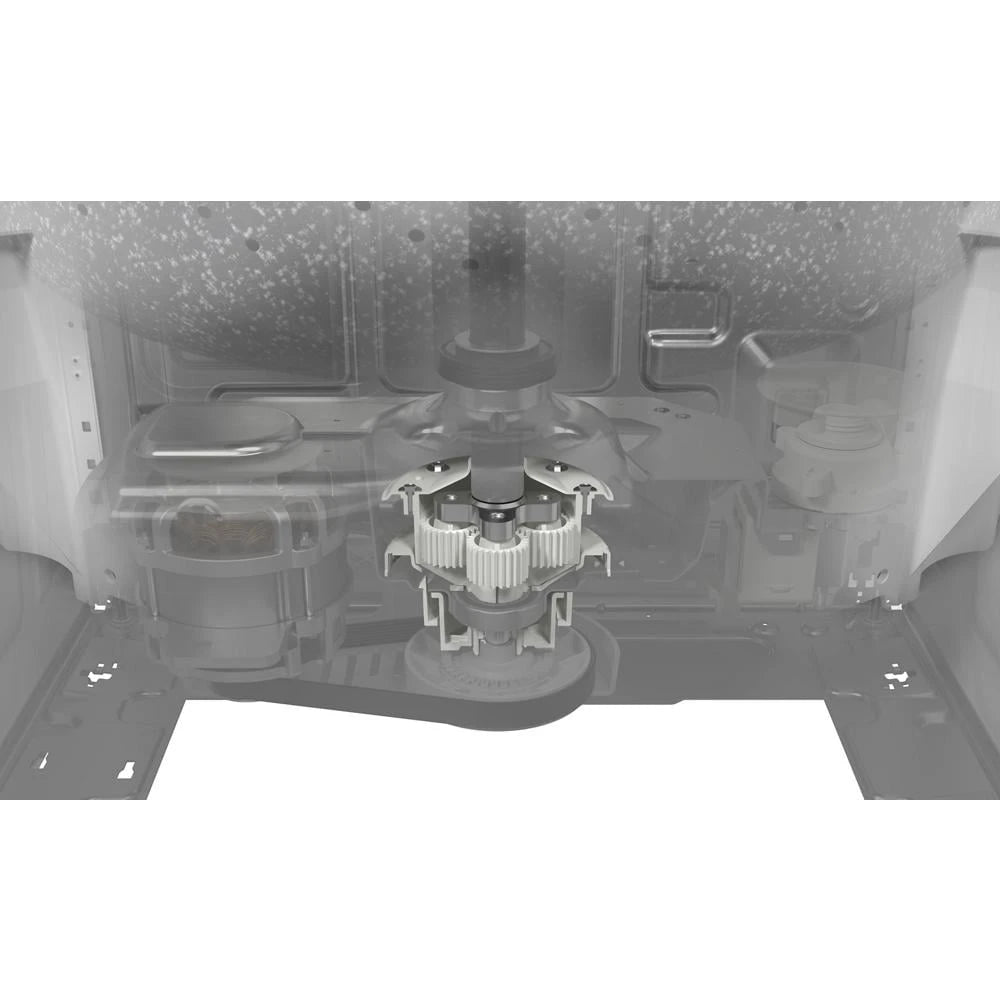

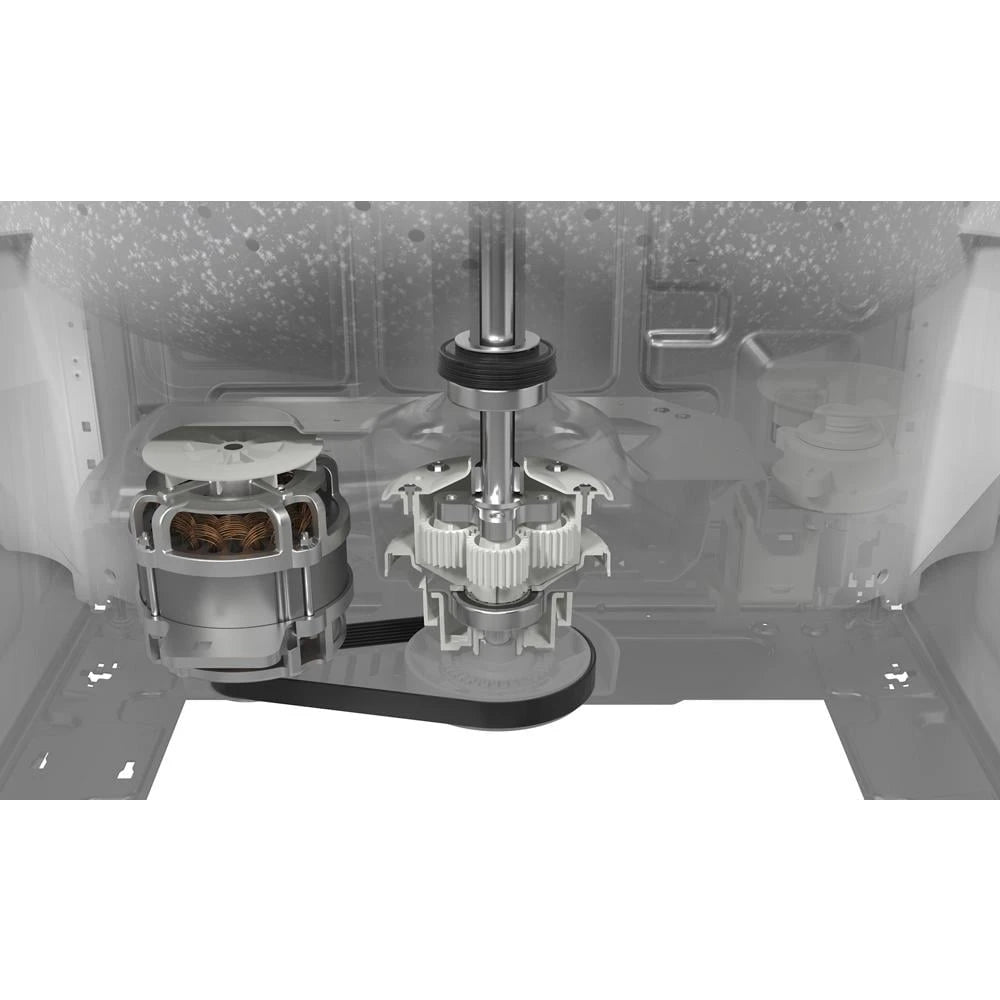

    The Drive System features an enhanced design that delivers reliability and consistency, wash after wash. A powerful ½-HP PSC motor and quad-gear transmission create an efficient wash for every load—no matter the size. Paired with a watertight, flexible, triple-lip seal to keep moisture safely away from the shaft and protecting the premium bearings, its industry-tested design continues to deliver the results you expect.
  • Service Made Easy
    Engineered to help minimize downtime and streamline maintenance with simple bottom and front-panel accessibility to the transmission and other interior parts. Should downtime occur, servicing the top-load washer is easy. With just two screws, the console can be easily removed, allowing access to the control panel, while an opening in the base provides fast access to the transmission, pump and motor. And, built-in, easy-to-use diagnostics help servicers identify the problem and get the machine back to peak performance quickly.
  • Stainless-Steel Wash Shaft
    The 100% 416-grade stainless-steel wash shaft helps protect against bleach vapor and environmental corrosion, helping maintain your investment and providing exceptional performance for the life of the machine.

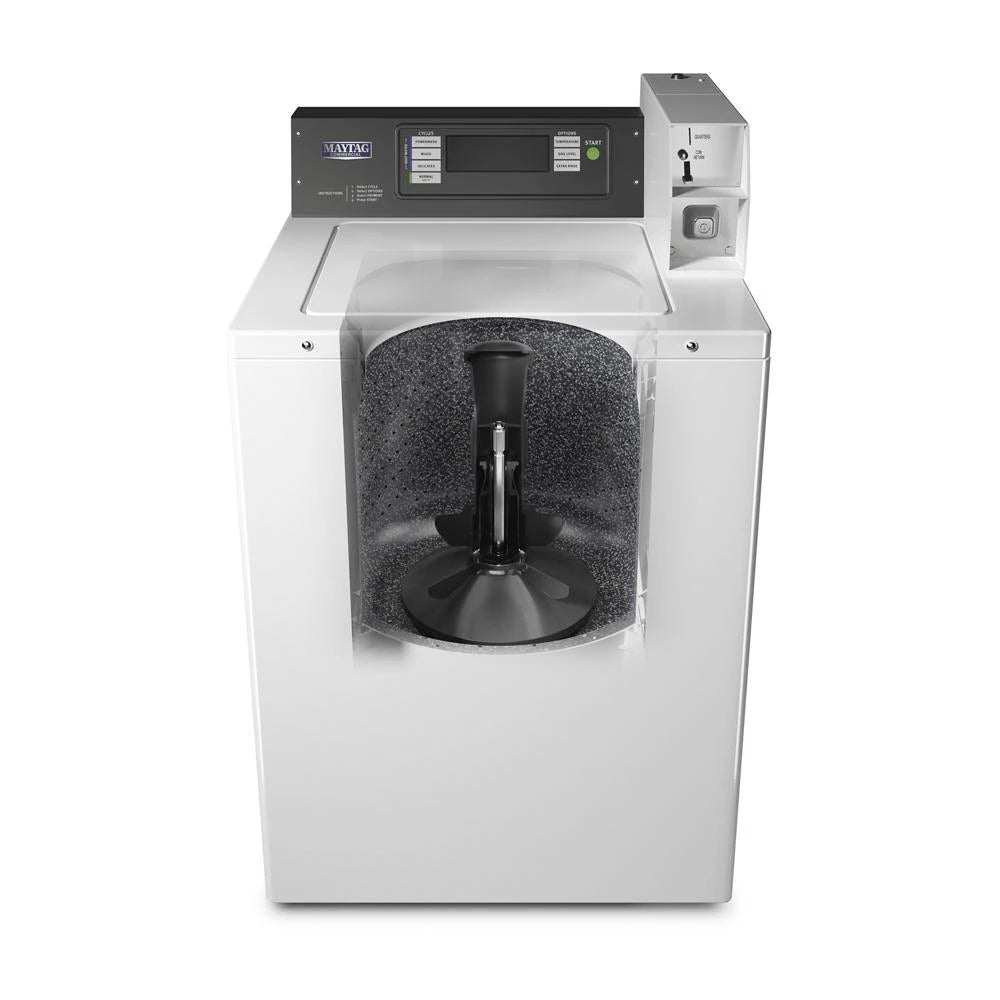

  • Traditional Flex-Vane Agitator

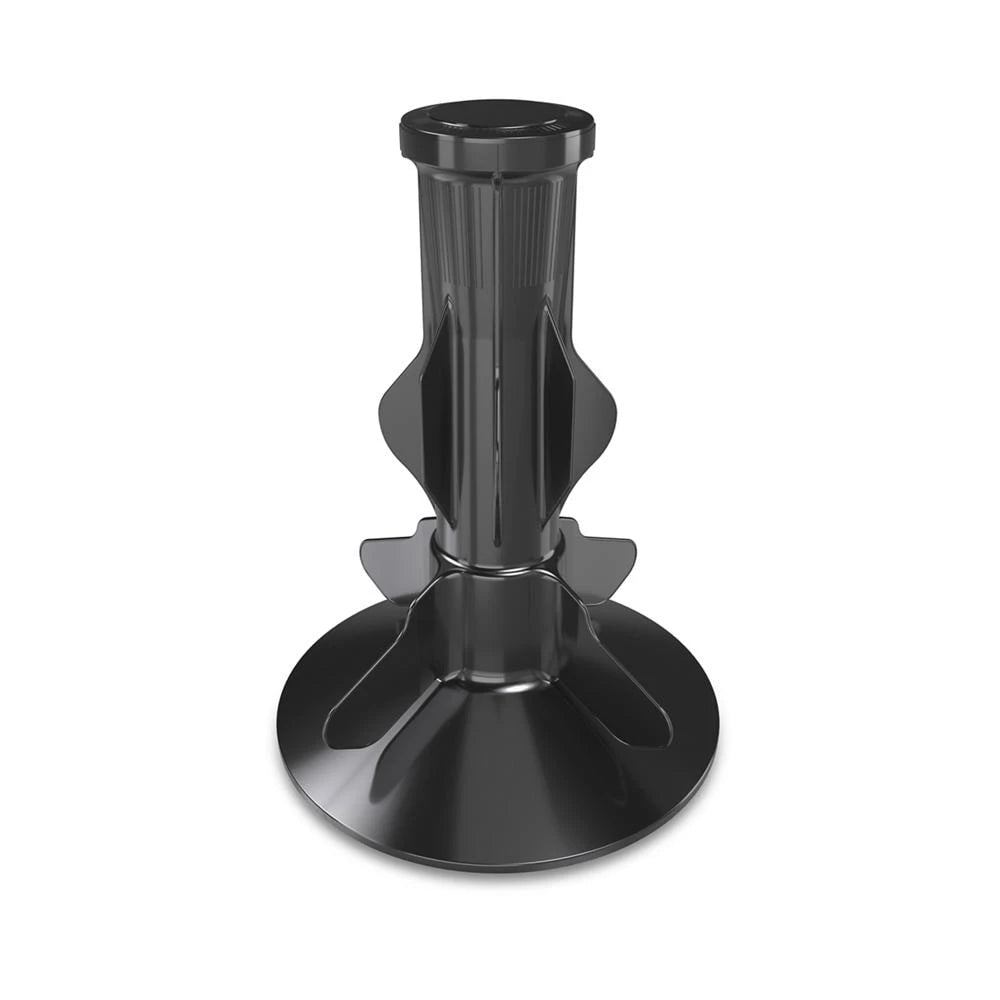

    Powered by the ½-HP PSC motor and fin design, the traditional flex-vane agitator alternates between four distinct wash patterns—from aggressive to gentle—generating outstanding clothes movement and extensive deep-cleaning action to tackle a variety of loads.

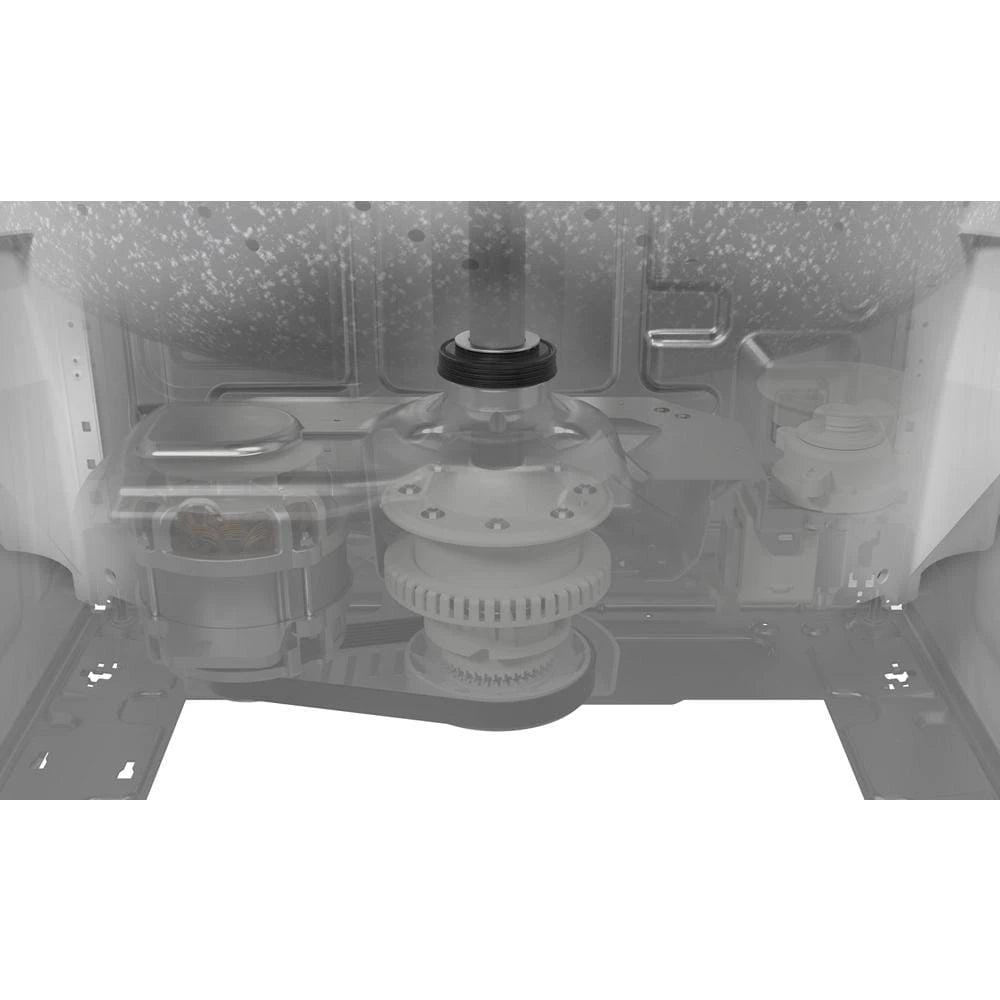

  • Triple-Lip Seal with Garter Spring
    Keeping water where it belongs—in the washtub—is important. The triple-lip seal with garter spring is flexible and watertight, designed to provide a more effective seal, protecting the shaft and bearings from moisture and water vapor.
  • USB Supported
    Our USB port enables the ability to update firmware without the need for special equipment. Import and export machine settings, export machine diagnostic and audit data
  • Upgraded HMI Control
    Our HMI features a robustly designed power circuit that is equipped to handle voltage fluctuations, to support you when your power lets you down. It is also equipped with a USB port and coin/debit connectors to make installation simpler.

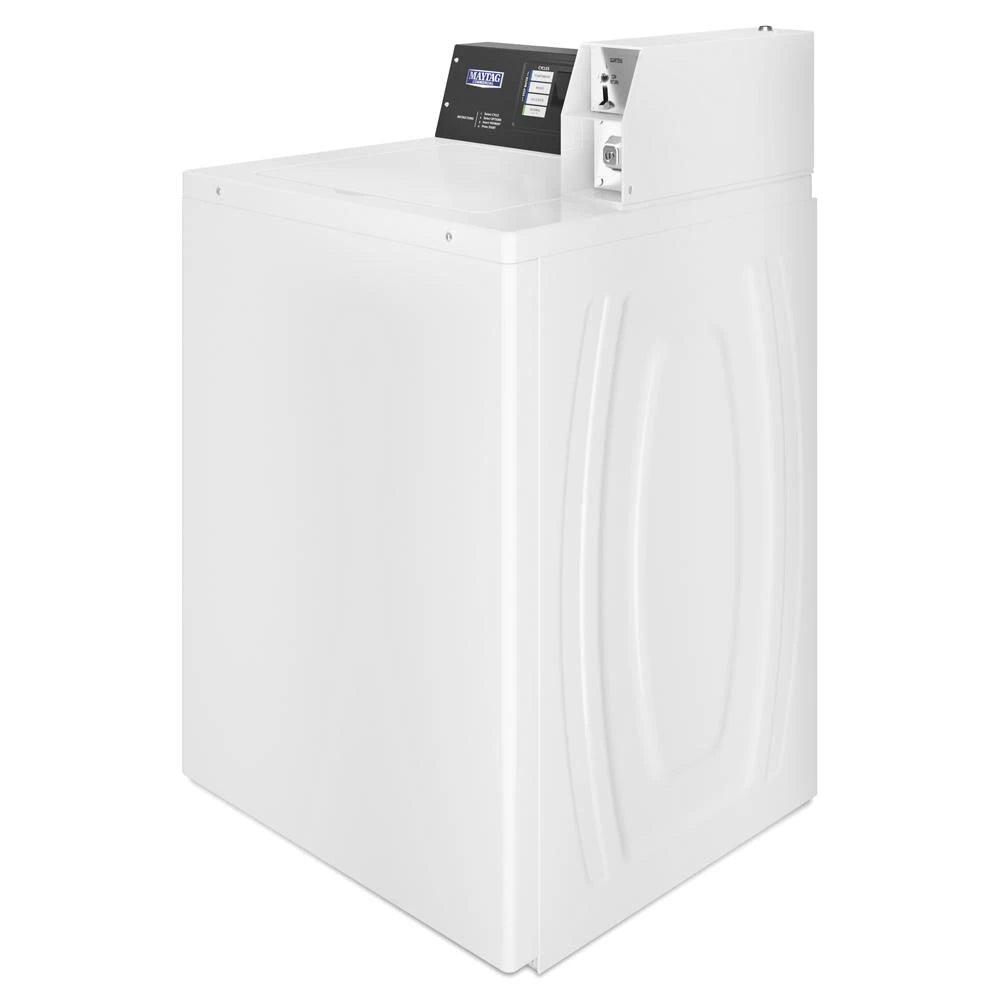

  • Coin Drop Equipped
    A robust coin drop and coin box come installed from the factory. Coin drop allows flexibility in pricing your machines for your market.
