Product Details for Maytag MAT23MNAWW

Technical Details

Certifications

ADA Compliant No
CUL Yes
MEF 1.6
UL Yes
prop65 CA

Controls

Automatic Temperature Controls Yes
Control Type Electronic
End of Cycle Signal No
Feedback-Status Indicators Done; Final Spin; In Use; Lid Lock; Rinse; Soak/Wash
LED Color Green

Cycles

Number of Wash Cycles 7
Washer Cycle Selections Bulky/Towels; Delicates; Drain & Spin; Mixed; Normal/Eco; Powerwash®; Rinse & Spin

Details

Average Hot Water Usage Hot Water Cycle 7.03
Average Hot Water Usage Warm Water Cycle 0.5
Average Total Water Usage per Cycle 25.6
Card Reader Ready No
Coin Drop Ready No
Coin Slide Ready No
Drain Hose Length 4
Energy Factor 8.5
Extract Speed- Max G-Force/Max RPM 144/700
Hoses Included Yes
Industry Segment Multi-Housing; Vended
Infrared Data Collection Yes
Inlet Hose Length 6
Maximum G-Force 144
Maximum Spin Speed 700
Meter Case Service door No
Mount Type Rigid
Operating Pressure 20-100
Service Mode Activation Yes

Dimensions

Cabinet Width 27
Depth Excluding Doors 26
Full Width Console Yes
carton depth 27.5
carton height 49
carton width 29
gross weight 177
net weight 161

Electrical

Power Cord Included Yes

Exterior details

Adjustable Feet Yes
Lid/Door Finish Porcelain
Lid/Door Lock Yes
Lid/Door Swing Hamper

Interior details

Advanced Vibration Control No
Automated Dispenser No
Automatic Load Size Sensing Technology No
Out of Balance Sensing Yes
Washer Drum Material Porcelain

Management system details

Meter Case No
Self-Diagnostics Yes

Modifiers

Number of Wash/Rinse Temperatures 5

Performance details

Motor Horsepower 1/2 HP
Motor RPM 1, 625

Product details

Power Cord Length (ft) 6

Description

The machine s deep-water wash and rinse cycles deliver exceptional rollover and vigorous cleaning action that result in optimal wash performance. As part of the deep-water wash system, the PowerWash(R) cycle delivers more agitation, hotter water, and an extra rinse for the toughest loads, while the traditional flex-vane agitator alternates between four distinct wash patterns to generate outstanding clothes movement and extensive deep-cleaning action. The 3.27 cu. ft. capacity washer has all of the components protected by a heavy-duty cabinet, with an easily-removable front panel. And because Maytag knows what dependability means to your owners, we back this reliable machine with a 5-Year Limited Parts Warranty.*



Product Features

  • 1/2-HP PSC Motor
    The powerful ½-HP PSC motor helps the top-load washer tackle heavy loads with ease. By alternating between long and short strokes, it generates extensive deep-cleaning action that gives clothes a thorough wash. Engineered for reliability, it’s designed to deliver consistent performance time after time.
  • 5 -Year Limited Warranty
  • 5-Year Limited Warranty
    The reliable washer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details.
  • Deep-Water Wash System
    The wash system is optimized with deep-water wash and rinse cycles and vigorous cleaning action. The traditional, flex-vane agitator uses four unique patterns — from aggressive to gentle — to deliver traditional top-load wash performance through exceptional rollover for large loads. Additionally, items can be added to the load at any time during wash, fill, and rinse portions of cycle — simply by lifting the lid.
  • Easy-Access Steel Base
    A strong machine means a durable machine, and that starts from the ground up. Manufactured from thick-gauge galvanized steel, the heavy-duty base provides a sturdy structure to help anchor the machine solidly to the ground. It’s designed with an opening that provides easy access to the motor, drive system, and pump, making service trips quick and efficient.
  • Heavy-Duty Cabinet
    The heavy-duty cabinet has the strength and craftsmanship needed for high demand commercial environments. The sturdy removable front, side panels and easy-access base are constructed with high-grade powder-coated galvanized steel. In addition, the full-wrap metal console is sleek and easy to clean.
  • Heavy-Duty Removable Front Panel
    Strength matters in a commercial cabinet, but so does accessibility. Built from extra-strength galvanized steel, the heavy-duty front panel is robust and easy to remove for streamlined maintenance and minimized downtime. Mounting clips and a support bracket make removal and replacement fast, providing technicians easy access to internal components.
  • Large Capacity
    The 3.27 cu. ft. capacity wash basket is designed to allow for single-loads of all sizes while still providing exceptional cleaning.
  • PowerWash® Cycle
    As part of the deep-water wash system, the PowerWash® cycle delivers more agitation, hotter water, and an extra rinse for the toughest loads. Hotter temperatures and rinse upgrade options create exceptional wash performance. The spin-fill wet-down process turns the basket during the initial fill to fully soak the load and dissolve any detergent that may be on top.

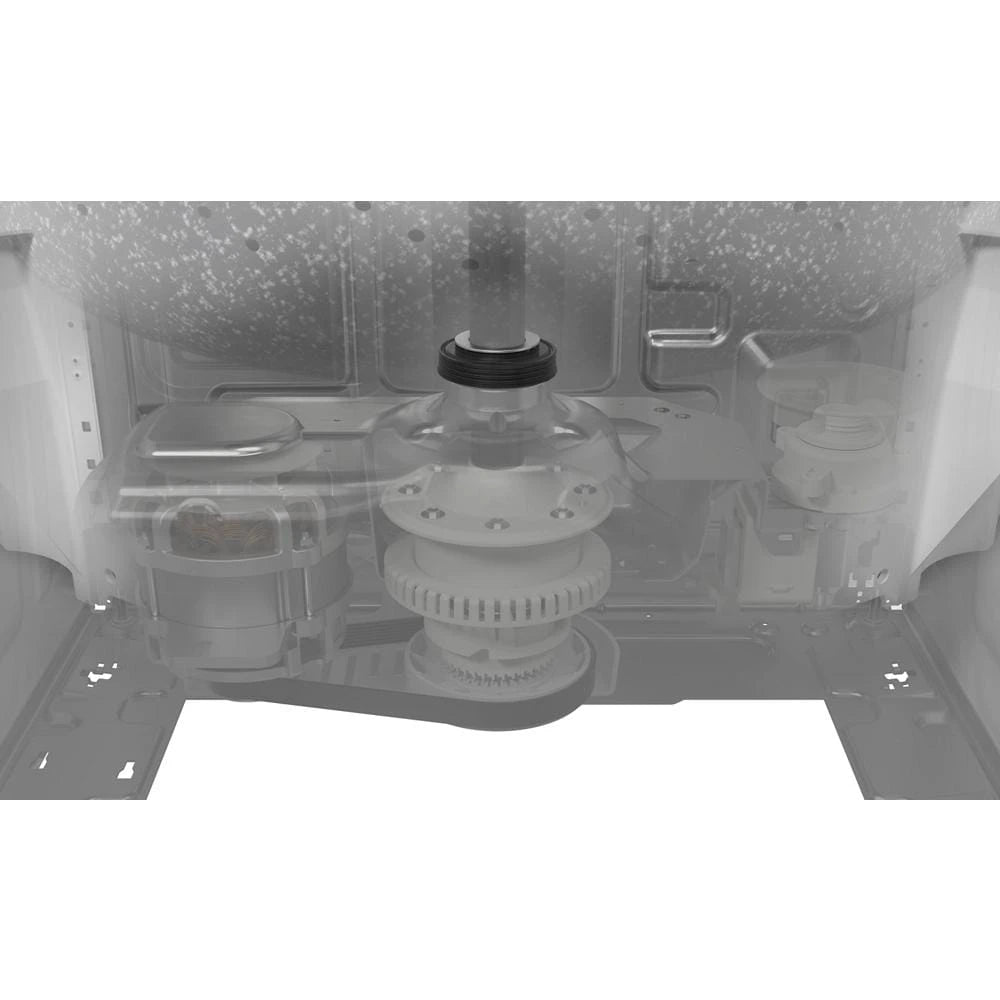

  • Powerful Drive System
    The Drive System features an enhanced design that delivers reliability and consistency, wash after wash. A powerful ½-HP PSC motor and quad-gear transmission create an efficient wash for every load—no matter the size. Paired with a watertight, flexible, triple-lip seal to keep moisture safely away from the shaft and protecting the premium bearings, its industry-tested design continues to deliver the results you expect.
  • Service Made Easy
    Engineered to help minimize downtime and streamline maintenance with simple bottom and front-panel accessibility to the transmission and other interior parts. Should downtime occur, servicing the top-load washer is easy. With just two screws, the console can be easily removed, allowing access to the control panel, while an opening in the base provides fast access to the transmission, pump and motor. And, built-in, easy-to-use diagnostics help servicers identify the problem and get the machine back to peak performance quickly.
  • Simple, Easy-to-Use Controls
    Mechanical controls provide a simple user interface with robust, easy-to-use knobs.
  • Simple, Easy-to-Use Controls, Coin Slide Ready
    Mechanical controls provide a simple user interface with robust, easy-to-use knobs. Coin slide ready models also allow owners to customize their machines to set the right price for the right environment.
  • Stainless-Steel Wash Shaft
    The 100% 416-grade stainless-steel wash shaft helps protect against bleach vapor and environmental corrosion, helping maintain your investment and providing exceptional performance for the life of the machine.
  • Traditional Flex-Vane Agitator
    Powered by the ½-HP PSC motor and fin design, the traditional flex-vane agitator alternates between four distinct wash patterns—from aggressive to gentle—generating outstanding clothes movement and extensive deep-cleaning action to tackle a variety of loads.
  • Triple-Lip Seal with Garter Spring
    Keeping water where it belongs—in the washtub—is important. The triple-lip seal with garter spring is flexible and watertight, designed to provide a more effective seal, protecting the shaft and bearings from moisture and water vapor.
