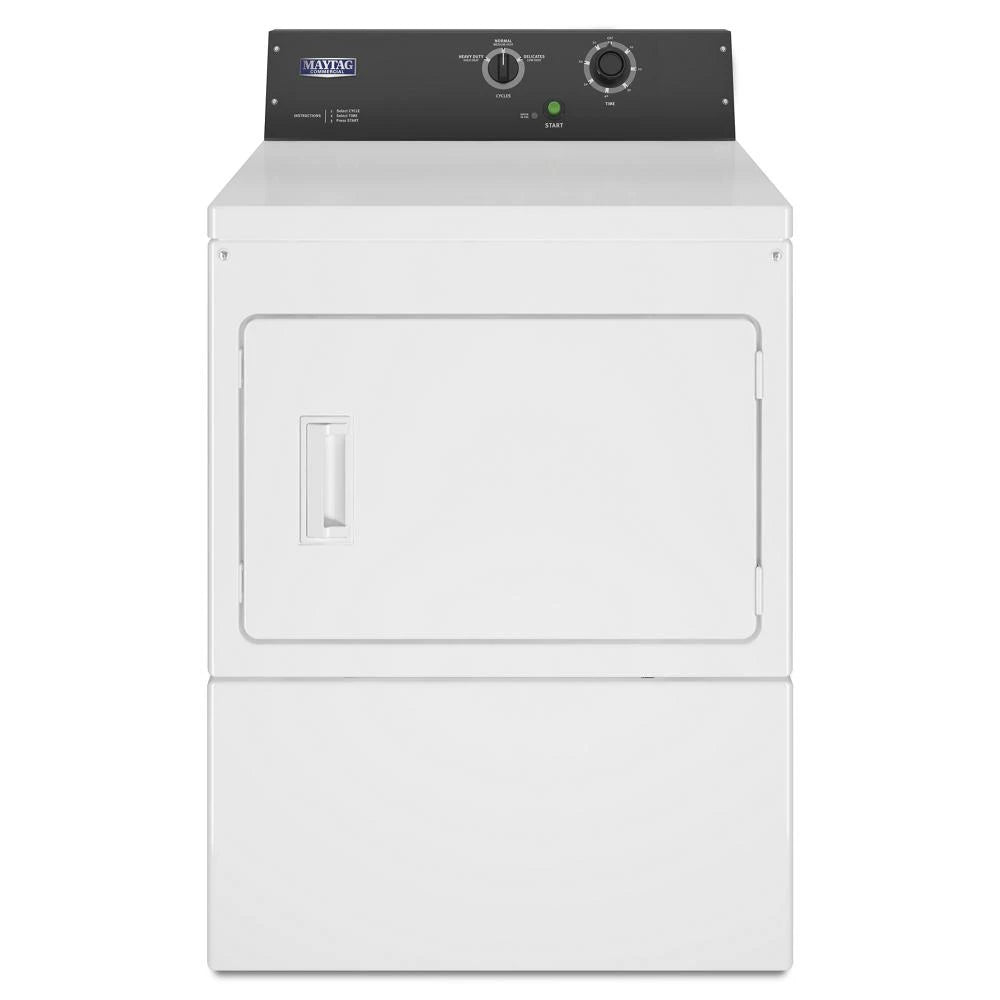

Maytag MDE20MNBYW Commercial Electric Dryer, Non-Vend White
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Product Details for MAYTAG MDE20MNBYW
Technical Details
Certifications
| Prop65 | CA |
| CSA | CSA |
| UL | Yes |
| Prop 65 | CA |
| Csa | CSA |
| Ul | Yes |
Details
| Heating Elements | 5 |
| Industry Segment | On-Premises , Multi-Housing |
| Air Flow | 178 |
| Exhaust Duct Diameter | 4 |
| Fuel Type | Electric |
| Region | North America |
| Cylinder Volume | 7.4 |
| Cylinder Diameter | 26.26 |
| Motor Horsepower | 1 |
Dimensions
| Cylinder Depth | 23.2 |
| Cylinder Diameter | 26.26 |
| Cylinder Volume | 7.4 |
| Door Opening Diameter | 7.97 |
| Gross Weight | 135 |
| Net Weight | 130 |
| Depth | 11.52 |
| Height | 16.14 |
| Width | 10.63 |
| Product Height | 41.0 |
| Carton Height | 49.0 |
| Carton Depth | 27.5 |
| Carton Width | 29.0 |
| Product Depth | 29.25 |
| Product Width | 27.0 |
| Amps | 30 |
Features
- Easily-Removable Front Access Panel
The front panel is easy to remove, which streamlines service by providing fast access to internal components. - Four-Roller Suspension with Permanently Lubricated Bearings
Four heavy-duty rollers in the suspension and permanently lubricated bearings are built to last. - 5-Year Limited Warranty
This reliable dryer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details. - 5-Year Limited Parts Warranty
This reliable dryer is backed with a 5-Year Limited Parts Warranty. *See maytagcommerciallaundry.com for warranty details. - Extra-Large Reversible Door
The extra-large door opening provides users easy access while loading and unloading clothes, while the reversible side-swing design provides flexibility for installation. - Premium Porcelain-Enamel Top
- Full-Wrap Console
Designed to help protect the internal components from any unexpected liquids or vapor, this one-piece, full-wrap metal console is sleek, robust, and easy-to-clean. - Large Capacity
The large 7.4 cu. ft. capacity dryer allows for large loads to be dried efficiently and effectively, delivering an optimal drying experience for end users and maximizing productivity. - Turbovent® system
A high-speed blower wheel optimizes performance in long vents, while high airflow helps reduce drying times for a wide variety of loads — increasing efficiency and turns over the life of the machine. - Simple, Easy-to-Use Controls
Mechanical controls provide a simple user interface with robust, easy-to-use knobs.
Description
Get effective, efficient drying on loads of varying sizes with this 7.4 cu. ft. capacity electric dryer. Featuring simple, easy-to-use controls, the robust knobs stand up to the commercial environment. Engineered for the durability, the four-roller suspension and permanently lubricated bearings, premium porcelain enamel top, and full-wrap console boost machine dependability and longevity. The extra-large door opening has a reversible side-swing design providing installation flexibility. The front panel is easy to remove, which streamlines service by providing fast access to internal components. And because this powerful dryer is backed with a 5-Year Limited Parts Warranty,* you can see just how reliable a Maytag(R) machine is.
Manuals & Guides
- MDE20MNBYW - Installation Instruction
- MDE20MNBYW - Warranty
- MDE20MNBYW - Dimension Guide
- MDE20MNBYW - Warranty
- MDE20MNBYW - Dimension Guide
- MDE20MNBYW - Dimension Guide
- MDE20MNBYW - Warranty
- MDE20MNBYW - Installation Instruction
- MDE20MNBYW - Installation Instruction
- MDE20MNBYW - Installation Instruction
- MDE20MNBYW - Dimension Guide
Key Features
Easily-Removable Front Access Panel
The front panel is easy to remove, which streamlines service by providing fast access to internal components.
Four-Roller Suspension with Permanently Lubricated Bearings
Four heavy-duty rollers in the suspension and permanently lubricated bearings are built to last.
5-Year Limited Warranty
This reliable dryer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details.
5-Year Limited Parts Warranty
This reliable dryer is backed with a 5-Year Limited Parts Warranty. *See maytagcommerciallaundry.com for warranty details.
