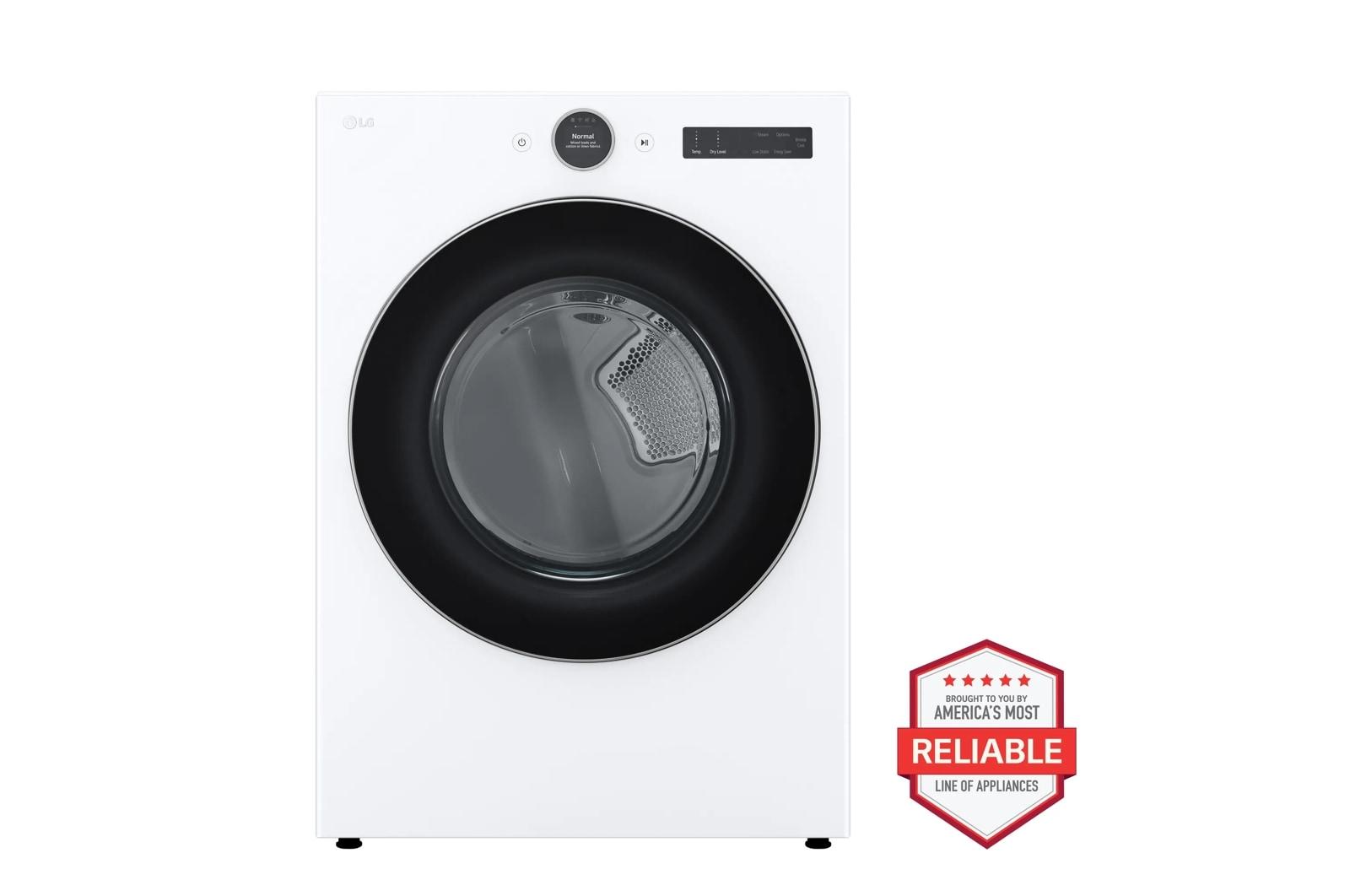

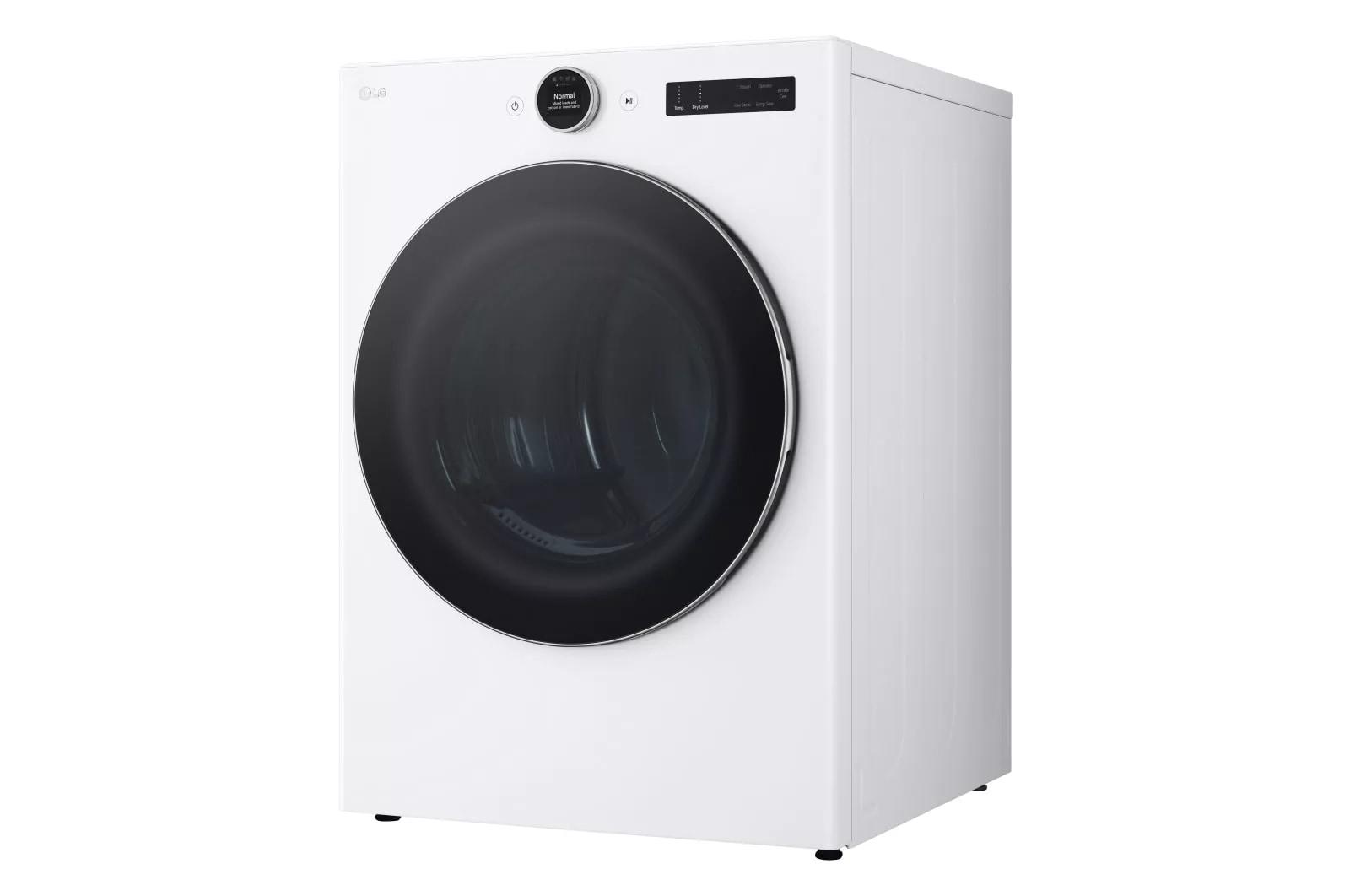

Product Details for LG DLGX5501W

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Other

Pedestal (WxHxD) 27" x 13 5/8" x 28" (43 7/8" D with door open)

Dryer programs

No. of Dryer Programs 23
Dryer Programs AI Dry, Activewear, Blanket Refresh, Large Load Dry, Easy Ironing, Jeans, X Large Load Dry, Overnight Dry, Power Dry, Quick Dry, SteamFresh™, SteamSanitary™, Timed Dry, Towels, Air Dry, Low T
No. of Dryer Options 12
Dryer Options Control Lock, Cycle Optimization, Damp Dry Signal, Cycle Edit List, Drum Light, Remote Start, Wi-Fi, Energy Saver, Reduce Static, Signal, TurboSteam®, Wrinkle Care
Drying Levels Damp Dry, Less Dry, More Dry, Normal Dry, Very Dry
Dry Modes No
Manual Dry Times 10 min ~ 100 min (10 min incremental)
Temperature Settings High, Med High, Medium, Low, Ultra Low

Laundry appliance capacity

Dryer Capacity 7.4 cu.ft.

Summary

Product Color White
Matching Washer WM5500HWA
Dial-A-Cycle™ Yes
Electric Dryer Option DLEX5500W
Gas Dryer Option DLGX5501W
Steam Yes
Touch Buttons Yes
Type of Display LCD

Energy

CEF 3.49
ENERGY STAR® Certified Yes

Fabric care features

AI Sensor Dry™ Yes
Precise Temperature Control with Variable Heater Yes
Sensor Dry Yes
Steam Technology Yes

Laundry appliance convenience features

3 Minute Installation Check Yes
4 Adjustable Legs Yes
Control Lock Yes
Drum Light Yes
End of Cycle Signal Yes
Leveling Legs Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
Reversible Door Yes
FlowSense™ Duct Clogging Indicator Yes
LoDecibel™ Quiet Operation Yes
Vent Type Vented
Venting Option 3 Way Venting

Laundry appliance thinq® smart features

ThinQ® Smart Technology Yes
Cycle Monitoring and Notification Yes
Energy Monitoring Yes
Remote Start and Cycle Monitor Yes
SmartDiagnosis™ Yes
SmartDiagnosis™ (v3.0) Yes
ThinQ Care™ Yes
Wifi Yes
ThinQ UP™ Yes

Materials and finishes

All Available Colors Graphite Steel (V), White (W)
Aluminized Alloy Steel Drum No
Cabinet Painted Steel
Door / Rim Tempered Glass Door

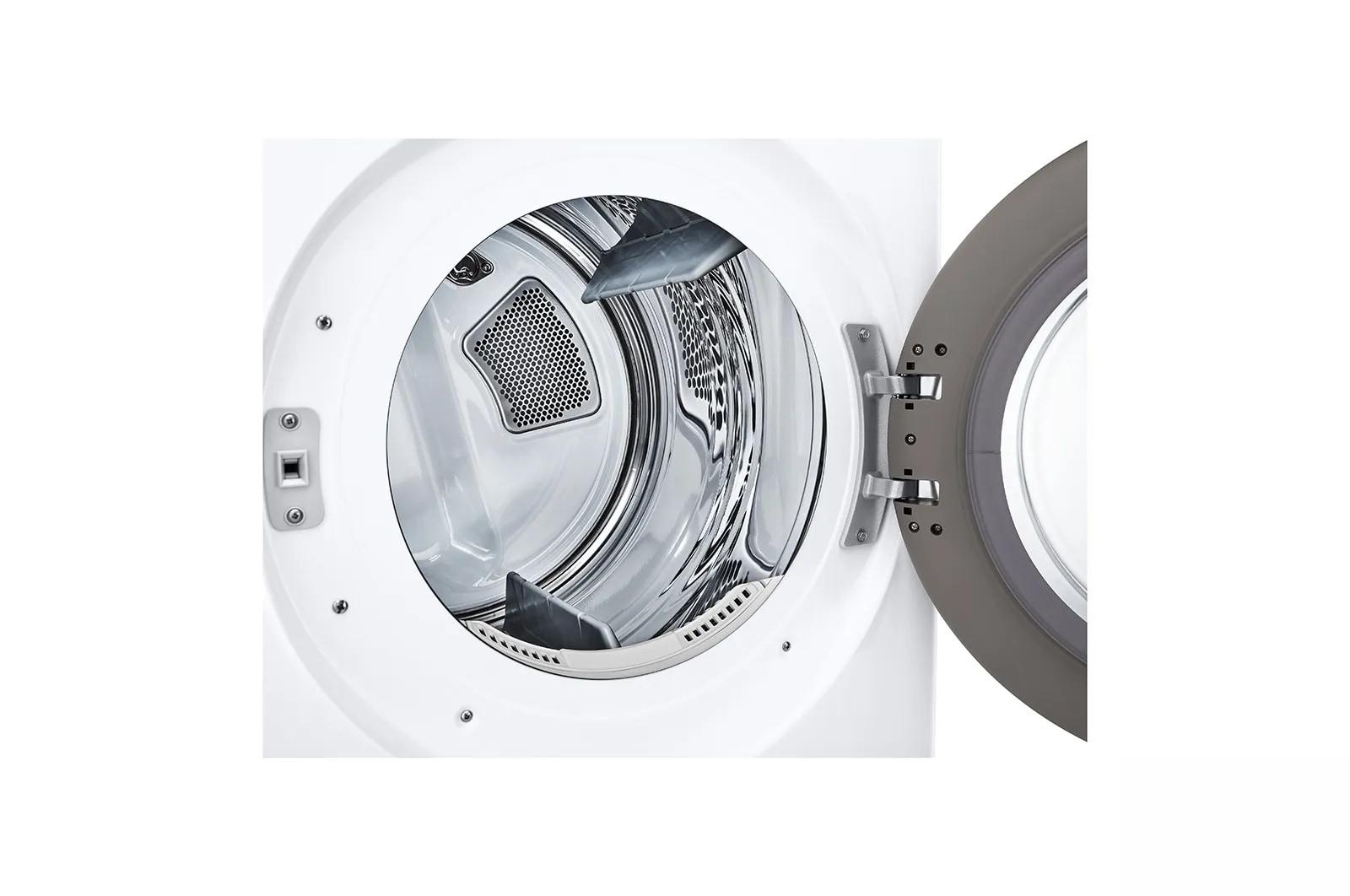

NeveRust™ Stainless Steel Drum Yes
Transparent Door Glass Yes

Power source

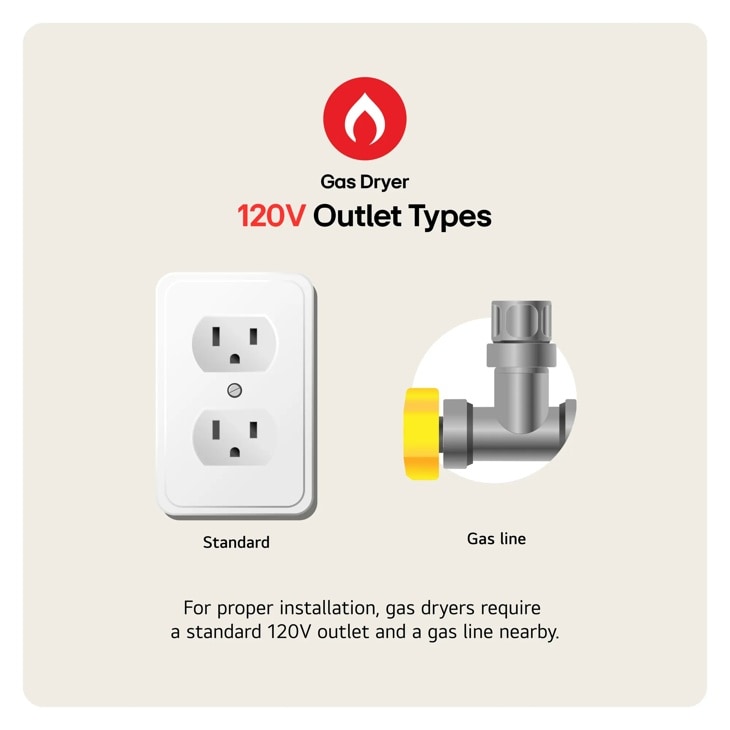

Dryer Power Source Type Gas
Dryer BTU Rating 20,000

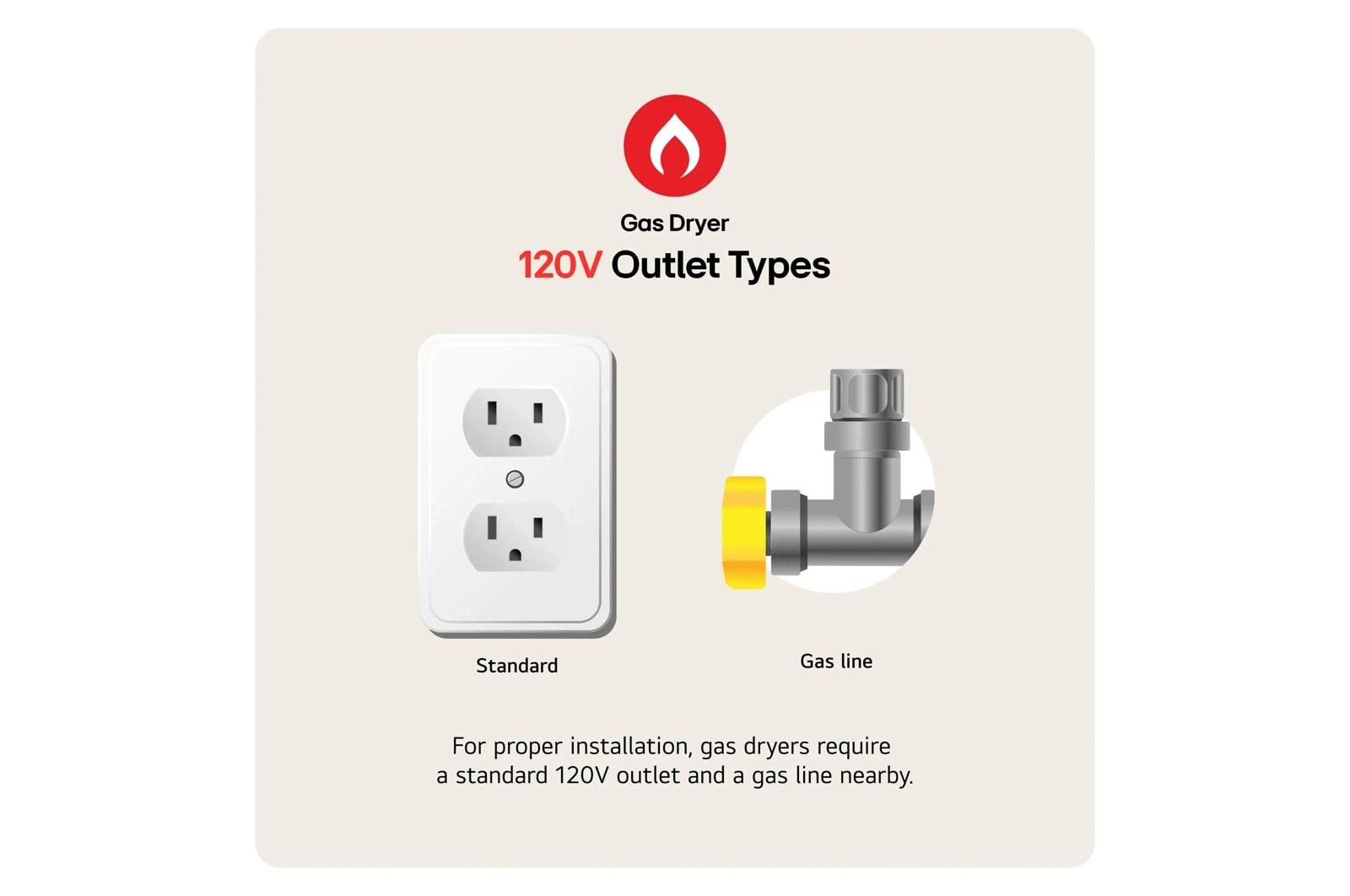

Dryer Electrical Requirements 120V, 60Hz, 11.5A
Ratings CSA Listed

Options/accessories

LP Conversion Kit 383EEL3002D
Pedestal WDP6W
Side Venting Kit 383EEL9001B
Stacking Kit KSTK4

Warranty & upc

Drum 3 Years
Parts and Labor 1 Year
UPC 195174048900

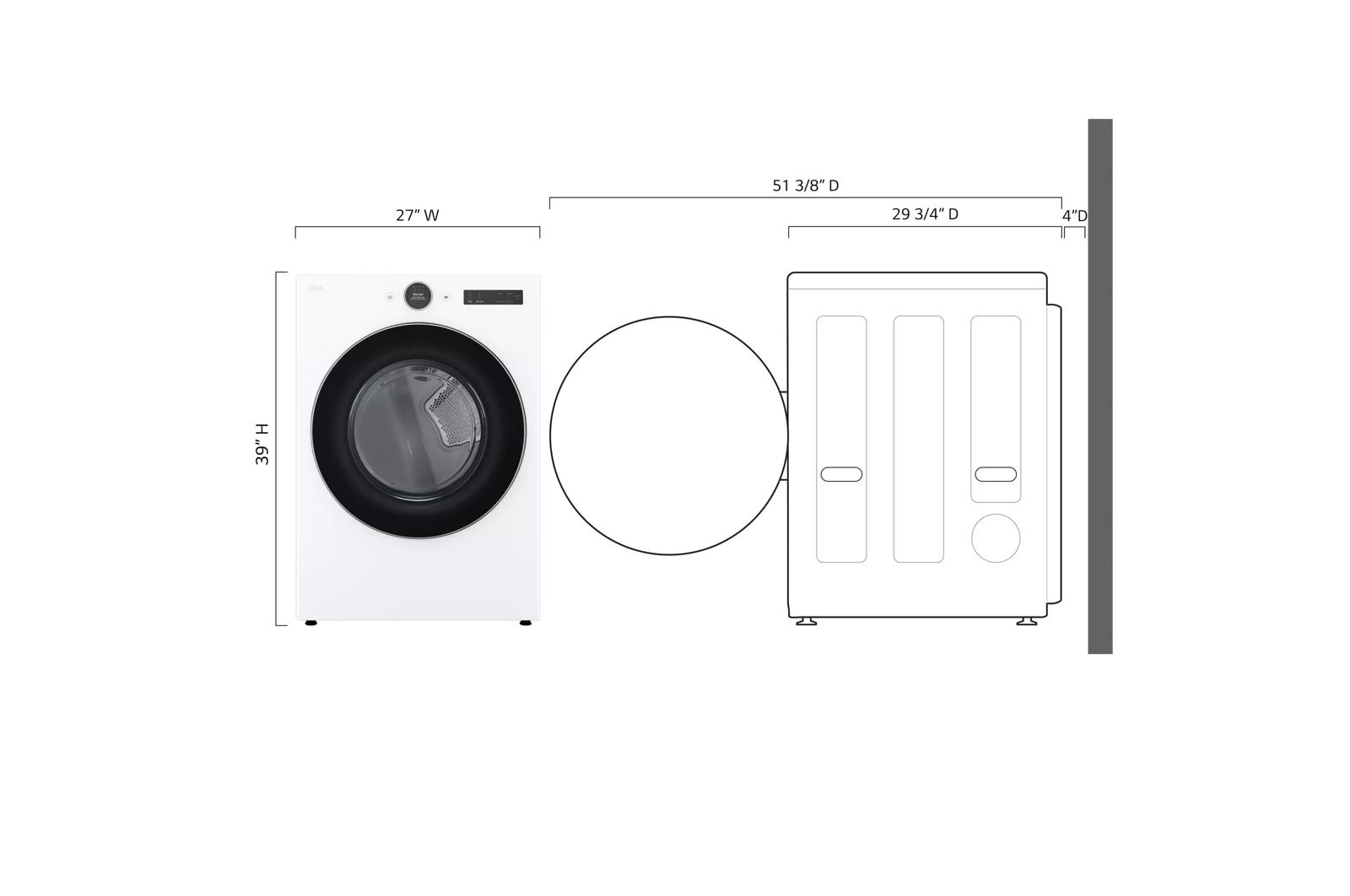

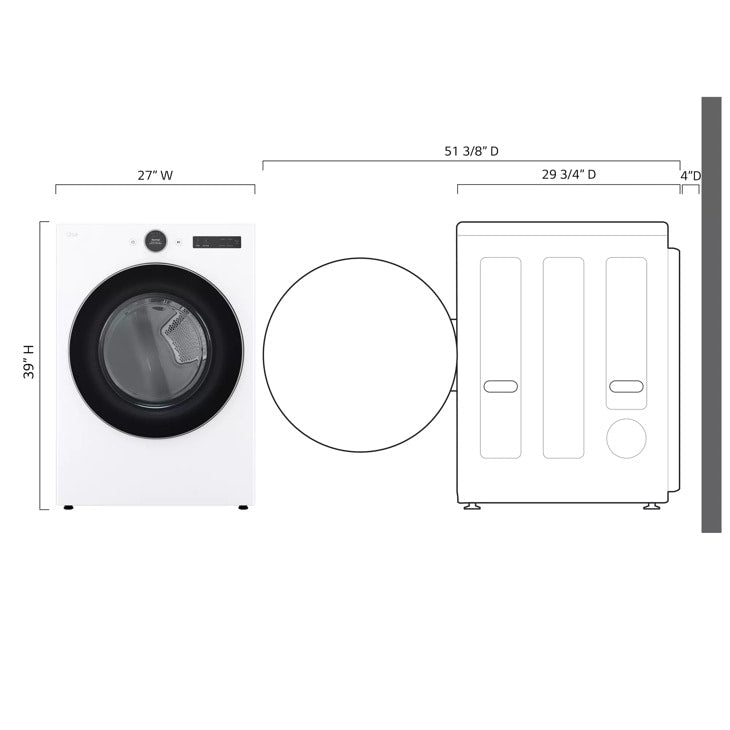

Dimensions & weight

Width 27 in.
Height 39 in.
Length 29.75 in.
Weight 136 lbs.
Depth with Door Open 51 3/8"
Weight (Carton) 146.6 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 32 in.
Shipping Height 44 in.
Shipping Length 34.75 in.
Shipping Weight 176 lbs.
Total of Shipping Weight 176 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 18.13 ft³
Dimensional Weight 225.37 lbs.
Total of Cubes 18.13 ft³
Total of Dimensional Weight 225.37 lbs.

Description

Built-in sensors use AI technology to detect fabric texture, load size, and moisture then automatically adjusts drying time - for more advanced fabric care and energy savings. Refresh instantly with TurboSteam that generates steam penetrating deep into fabrics. Periodically tumbles dry for up to 3 hours after the cycle is done to help keep wrinkles at bay.

Manuals & Guides

Key Features

Eliminate the Guesswork with AI Sensor Dry

Built-in sensors use AI technology to detect fabric texture, load size, and moisture then automatically adjusts drying time - for more advanced fabric care and energy savings.

Smart Pairing

With Smart Pairing, the washer can even tell the dryer to select a compatible drying cycle1, making it the ultimate laundry hack.

Steam Refresh Clothes in Between Washes

Refresh instantly2 with TurboSteam® that generates steam penetrating deep into fabrics.

FlowSense® Duct Clogging and Clean Filter Indicators

Know when it's time to clean the ducts & lint filter to ensure great drying & lower utility bills.

Simply. Brilliant.

No detail was overlooked in this washer’s award-winning3 style. The modern flat front design, black steel finish and tinted, tempered glass doors bring a premium point of view to your laundry space.

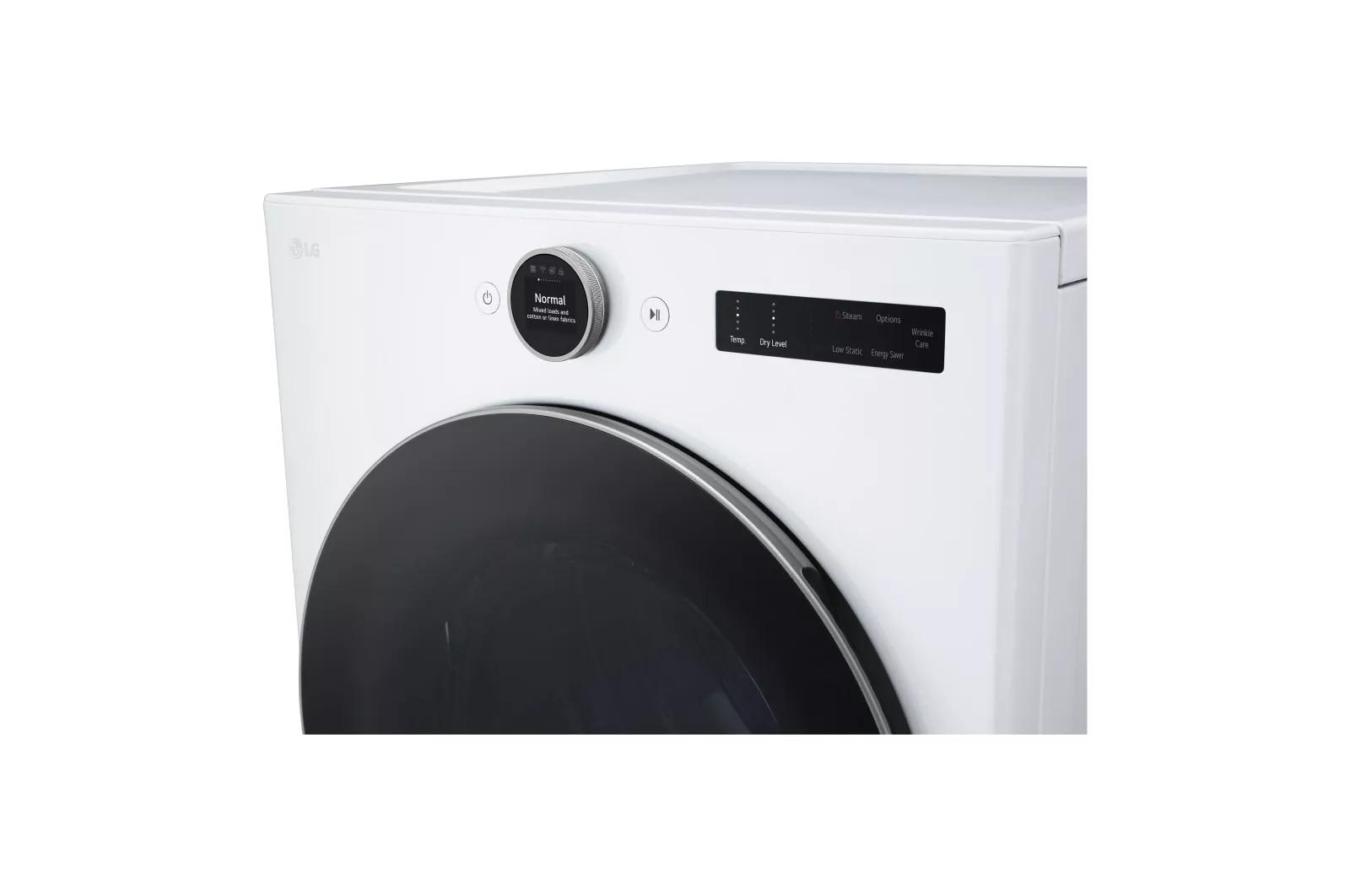

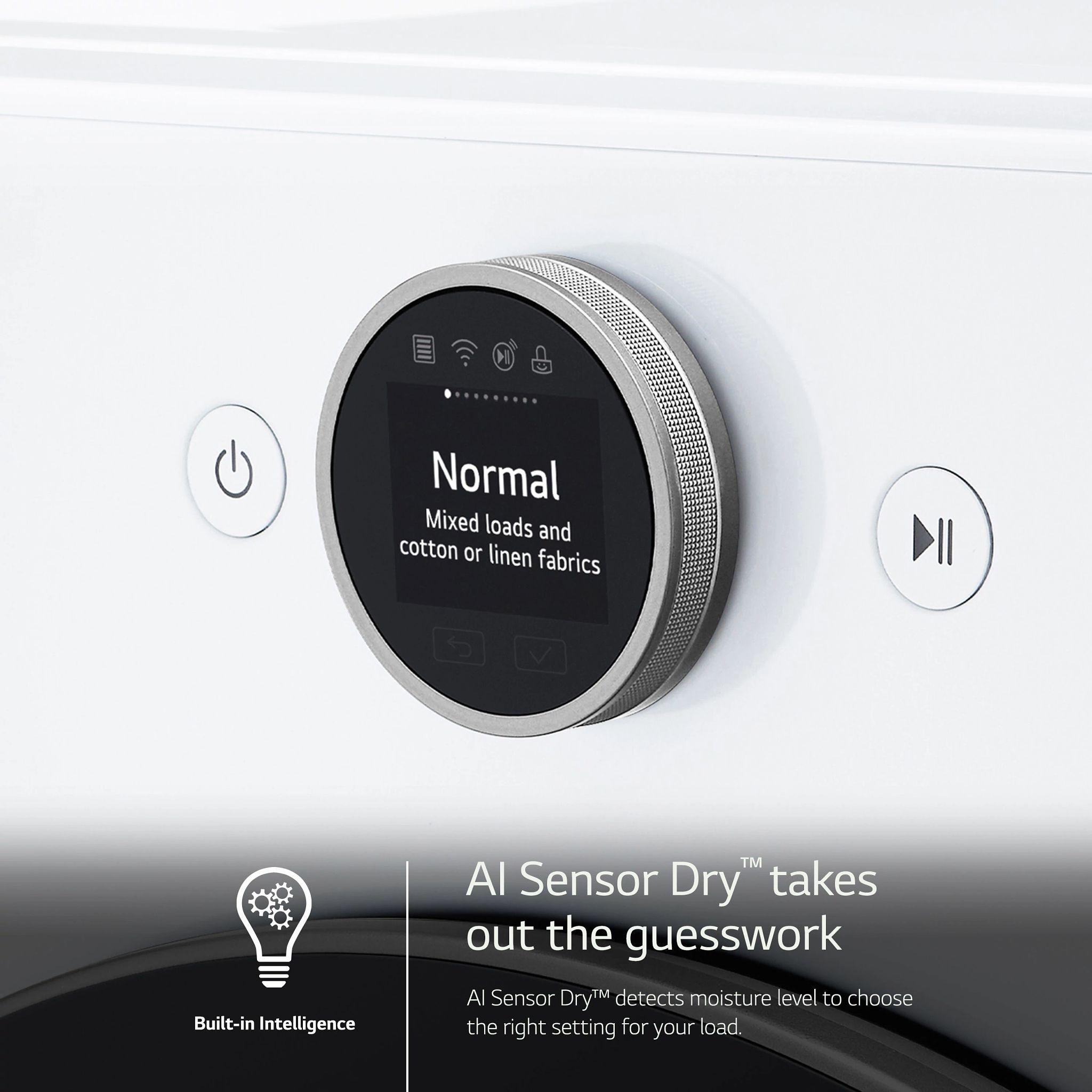

Information at Every Turn

The intuitive dial control gives you more of what you need with each turn of the dial, from descriptions of each setting and helpful prompts to status updates and remaining cycle time.

Touch Button Control Panel

Streamlined controls feature an LED Touch Button Panel that’s as easy on the eyes as it is to use.

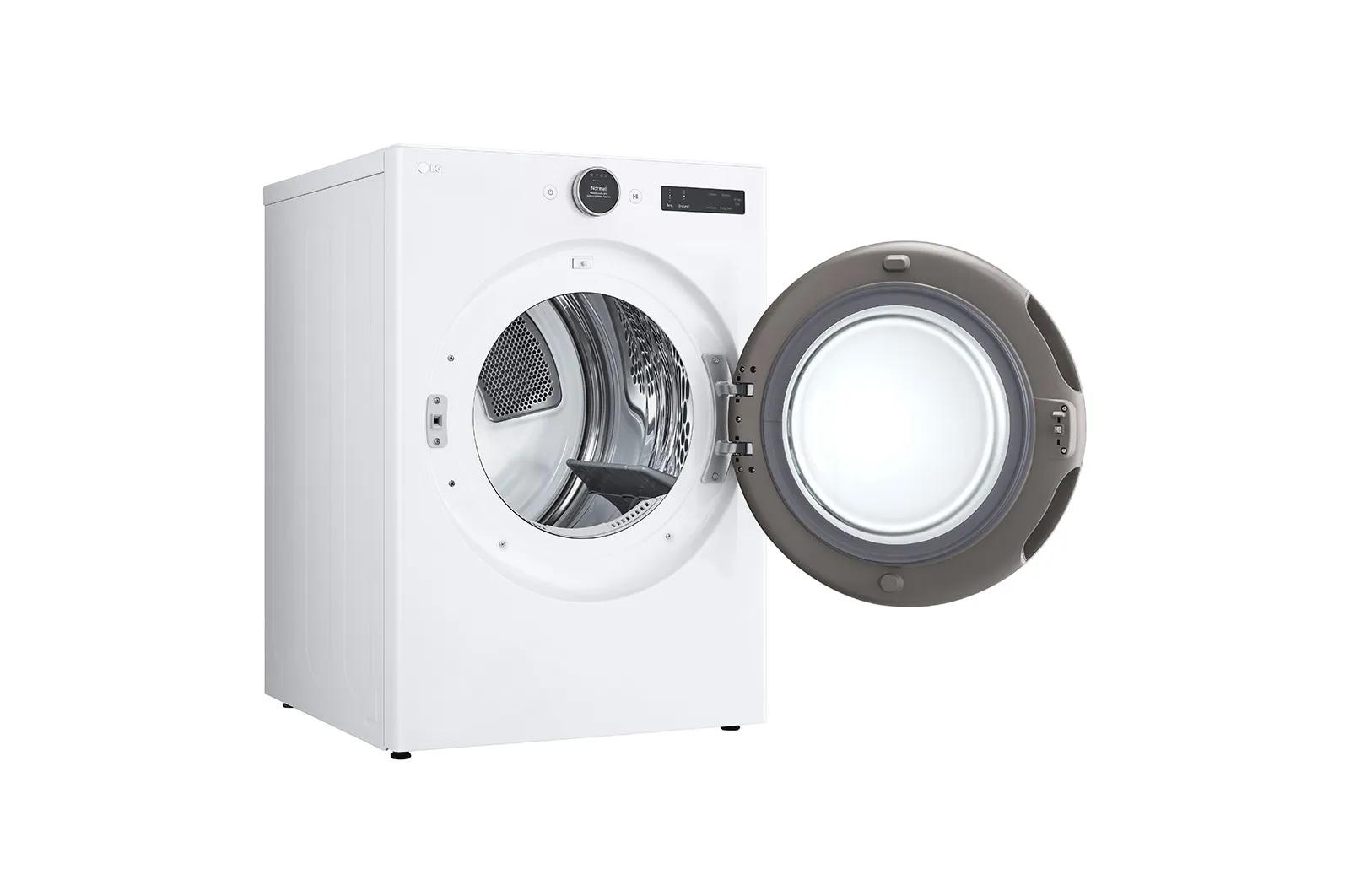

Reversible Door & Closet Depth for More Installation Options

When space is tight, the reversible door can go from right swing to left to fit almost any space.
