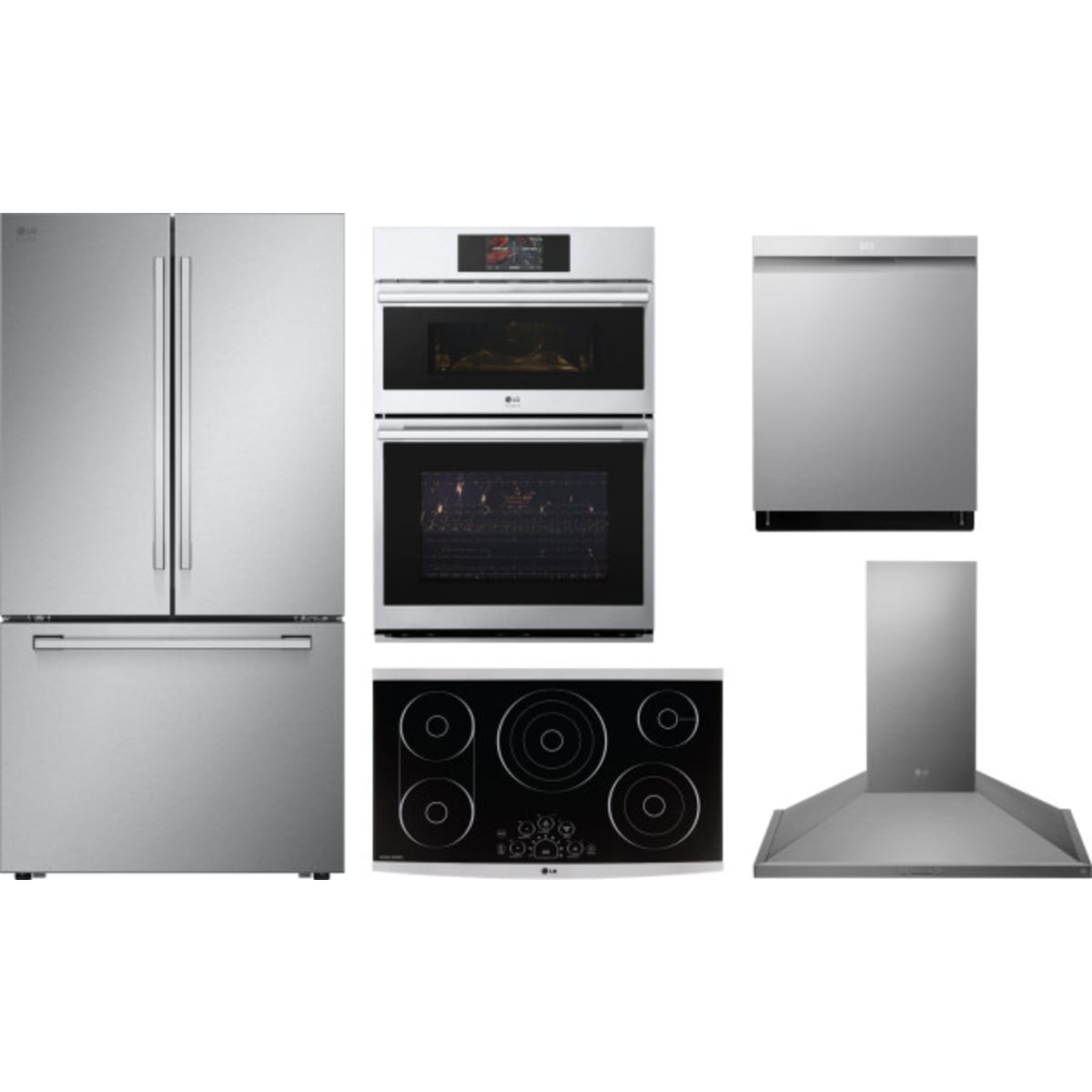

LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and LSCE365ST 36 Smoothtop Electric Cooktop and LDPH7972S 24 Integrated Dishwasher and WCES6428F 30 Combination Wall Oven and LSHD3680ST 36 Hood

Name: LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and LSCE365ST 36 Smoothtop Electric Cooktop and LDPH7972S 24 Integrated Dishwasher and WCES6428F 30 Combination Wall Oven and LSHD3680ST 36 Hood
Brand: LG
SKU: Lg-SRFB27S3-LSCE365ST-LDPH7972S-WCES6428F-LSHD3680ST
Price: 10153.25 USD
Availability: OutOfStock

LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and LSCE365ST 36 Smoothtop Electric Cooktop and LDPH7972S 24 Integrated Dishwasher and WCES6428F 30 Combination Wall Oven and LSHD3680ST 36 Hood

27 Cu. Ft. Smart Counter-depth Max™ French Door Refrigerator

24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™

1.7/4.7 Cu. Ft. Combination Double Wall Oven With Air Fry

LG 5-Piece Package SRFB27S3 36 Counter-Depth Freestanding French-Door Smart Refrigerator and LSCE365ST 36 Smoothtop Electric Cooktop and LDPH7972S 24 Integrated Dishwasher and WCES6428F 30 Combination Wall Oven and LSHD3680ST 36 Hood

$10,153.25 ~~$16,527.99~~ Save $6,374.74 / 38% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Additional Services Available:

LG Studio SRFB27S3 27 Cu. Ft. Smart Counter-depth Max™ French Door Refrigerator Print Proof Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$57.99
2-Year Extended Protection
$91.99
3-Year Extended Protection
$151.99
5-Year Extended Protection
$239.95
Manufacturer Warranty Only

Refrigerator Installation — Existing Water Line only (No Mods; No Copper lines)
$110.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG Studio LSCE365ST 36” Electric Cooktop Black Ceramic

Add Installation Services

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Cooktop Install Kit
$40.00

LG LDPH7972S 24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™ Print Proof Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

Dishwasher Install — Hardwire; Existing Non-Copper Line Only (No Panel Installation)
$220.00
Dishwasher Installation Kit - Complete with Cord
$29.95
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG Studio WCES6428F 1.7/4.7 Cu. Ft. Combination Double Wall Oven With Air Fry Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$79.99
2-Year Extended Protection
$155.99
3-Year Extended Protection
$235.99
5-Year Extended Protection
$359.99
Manufacturer Warranty Only

Wall oven double electric install
$290.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99
Wall oven electric cord
$40.00

LG Studio LSHD3680ST 36 Inch Wall Mount Chimney Hood Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

What's included: 5 items

LG Studio SRFB27S3 27 Cu. Ft. Smart Counter-depth Max™ French Door Refrigerator Print Proof Stainless Steel
- SKU SKU: SRFB27S3 UPC: 195174054215
- Type French Door Refrigerators
LG Studio LSCE365ST 36” Electric Cooktop Black Ceramic
- SKU SKU: LSCE365ST UPC: 48231316637
- Type Electric Cooktops
LG LDPH7972S 24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™ Print Proof Stainless Steel
- SKU SKU: LDPH7972S UPC: 48231344586
- Type Built-In Dishwashers
LG Studio WCES6428F 1.7/4.7 Cu. Ft. Combination Double Wall Oven With Air Fry Stainless Steel
- SKU SKU: WCES6428F UPC: 195174024133
- Type Microwave Oven Combinations
LG Studio LSHD3680ST 36 Inch Wall Mount Chimney Hood Stainless Steel
- SKU SKU: LSHD3680ST UPC: 48231339858
- Type Wall & Chimney Hoods

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$10,153.25 ~~$16,527.99~~ Save $6,374.74 / 38% OFF

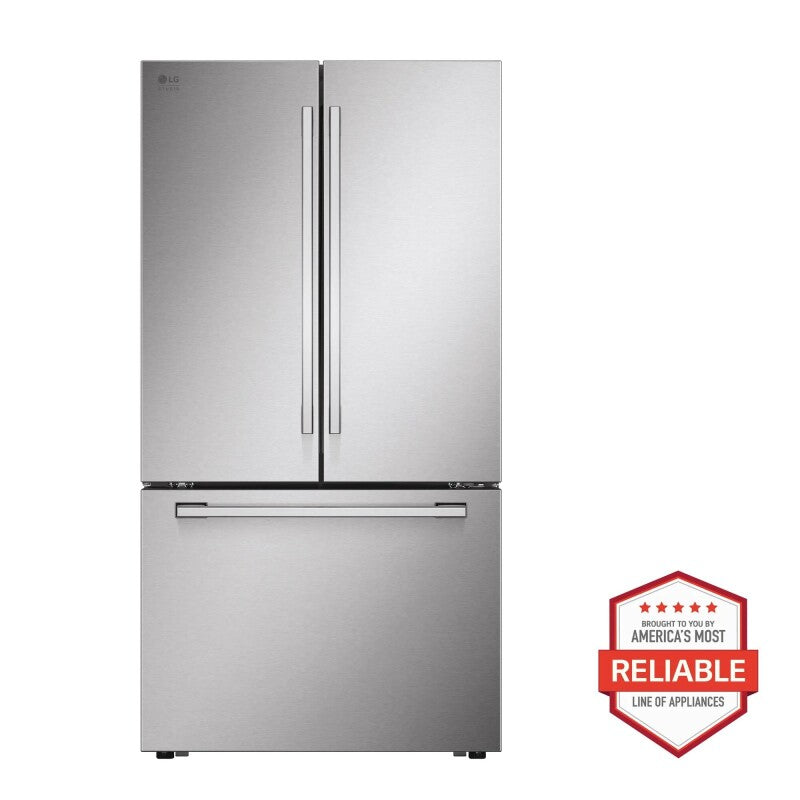

Product Details for LG SRFB27S3

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Other

Carton Dimensions (WxHxD)	38" x 73" x 32"
Counter Depth	Yes
Door Edge Clearance with Handle	4.25"
Door Edge Clearance without Handle	2.25"
Installation Clearance	Sides 1/8", Top 1", Back 2"

Capacity

Freezer (cu.ft.)	8.6 cu.ft.
Refrigerator (cu.ft.)	17.9 cu.ft.
Total Capacity (cu.ft.)	26.5 cu.ft.

Convenience

ADA Compliant	No
Auto Closing Door Hinge	Yes
Child Lock	Yes
Door Alarm	Yes
Proactive Customer Care	Yes
Sabbath Mode	Yes
Temperature Controls	Electronic/Digital

Cooling

Door Cooling+

Yes

Energy

Energy Consumption (kWh/Year)	632
ENERGY STAR® Qualified	Yes

Freezer

Door Type	Pull Drawer
Drawer Divider	Yes
Drawers	2-Tier Organization
Freezer Handle	LG Studio Handle
Freezer Light	Premium LED
Ice Bin / In-Door Ice	Icemaker & Ice bin in the freezer

Limited warranty & upc

Compressor (Parts & Labor)	5 Years
Limited Warranty	6-10 Years on Linear / Inverter Compressor (Parts Only)
Parts & Labor	2 Year
Sealed System (Parts & Labor)	5 Years
UPC	195174054215

Materials and finishes

Handle Finish	Light Bronze
Handle Material	Stainless Steel
All Available Colors	PrintProof™ Stainless Steel
Fingerprint & Smudge Resistant Exterior	Yes
Handles	LG Studio Handle
Hidden Hinges	Yes
Surface	Smooth

Refrigerator

Cool Guard	Yes
Crisper Bins	2
Door Bin Construction	1 Piece (Clear)
Glide N’ Serve™ Drawer	Yes
No. of Bins	8
No. of Shelves	4 Split (4 Fixed)
Shelf Construction	Spill Protector™ Tempered Glass

Summary

Display Type	Tact Control / White LED
LG STUDIO	Yes

Refrigerator thinq® smart features

SmartDiagnosis™	Yes
ThinQ® Smart Technology	Yes
ThinQ Care™	Yes
ThinQ UP™	Yes

Water & ice system

Daily Ice Production (lbs)	2.5 lbs
Ice & Water Dispenser	Yes
Ice Storage Capacity (lbs)	4.0 lbs
Water Filter	LT1000P
Water Filtration System	1 Stage

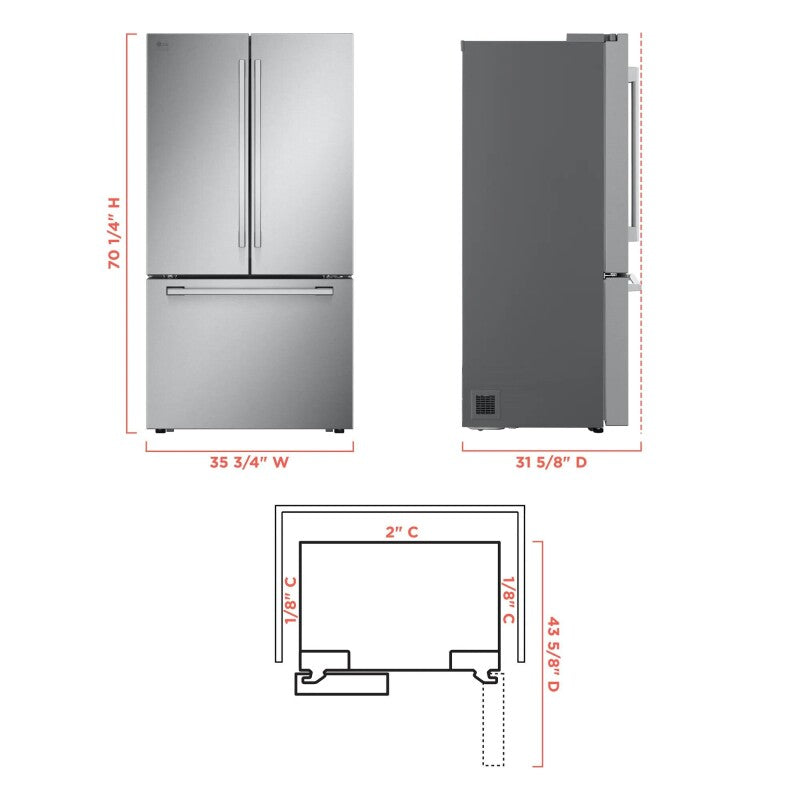

Dimensions & weight

Width	35.75 in.
Height	70.25 in.
Weight	291 lbs.
Carton Dimensions (WxHxD)	38" x 73" x 32"
Depth (Total with Door Open)	43.63"
Depth with Handles	31.63"
Depth without Door	24.88"
Depth without Handles	29.25"
Height to Top of Case	68.88"
Height to Top of Door Hinge	70.25"
Standard Depth	No
Width (Door Open 90˚ with Handle)	44.88"
Width (Door Open 90˚ without Handle)	40"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40.75 in.
Shipping Height	75.25 in.
Shipping Weight	331 lbs.
Total of Shipping Weight	331 lbs.
Source	Calculation

Description

The brand LG SRFB27S3 offers superior storage capacity and stylish functionality in a large 27 cu. ft. side-by-side refrigerator. Designed with a contemporary PrintProof™ stainless steel finish, this refrigerator features an intuitive Smooth Touch external dispenser for filtered water and ice, while the Multi-Air Flow cooling system ensures even temperature distribution throughout both compartments. LED lighting brightens the interior for better visibility, and adjustable glass shelves and clear door bins provide versatile storage options. A Door Alarm helps prevent energy loss, and the Smart Diagnosis™ system supports fast troubleshooting if issues arise. With its high capacity and smart design, the LG SRFB27S3 is ideal for busy households that need both convenience and efficiency.

Product Features

Clean Lines for Brilliant Design
A counter-depth design delivers a sleek, built-in look that elevates any space, without sacrificing storage. The ultra-large 27 cu. ft. interior is LG’s largest counter-depth fridge capacity—perfect for holding the charcuterie board for your next dinner party.

Manuals & Guides

Spec Sheet

Key Features

Express Yourself At Home

Upgrade your kitchen with design-led appliances that offer personalized finish options, upscale design details and innovative features that make your space feel good.

Unique Water Dispenser Design

Experience the simple convenience of fresh filtered water without compromising your design vision, thanks to a hidden internal water dispenser.

Keep Food as Fresh as You Are

You keep it creative in the kitchen, and LG Linear Cooling™ makes sure your food stays cool, too. The Linear Compressor reacts quickly to maintain temperatures within 1°F of the setting to help keep produce fresher longer and to help preserve all foods fresh and flavorful.¹

Stay Cool with Door Cooling+

The Door Cooling+ vent extends the reach of LG STUDIO’s Smart Cooling system. Blasts of cool air reach all areas of the refrigerator—including the door—to help maintain consistent temperatures from top to bottom. It helps keep all foods fresh and flavorful and keeps produce fresh longer.

Unique Color. Extra Cool.

A Cool Guard metal interior panel wall helps maintain cold air while adding a premium look, thanks to LG STUDIO’S unique charcoal gray interior.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home.2 Manage and monitor your refrigerator remotely, track energy and filter usage, use with Google or Alexa voice assistants, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to notify you of potential issues like temperature changes. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Effortless Beauty

Keep your kitchen looking gorgeous—LG STUDIO’s PrintProof™ fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth.

Always Ready With Ice

A built-in icemaker automatically makes ice cubes, so you’ll always have ice on hand for iced coffees, smoothies or your next big dinner party.

Videos

Reviews

Product Details
Key Features
From The Manufacturer
Videos
Reviews

$10,153.25 ~~$16,527.99~~ Save $6,374.74 / 38% OFF

Product Details for LG LSCE365ST

Technical Details

Warranty

Parts	Yes Year
Labor	Yes Year

Other

Cut-Out (WxHxD)

34 9/16" x 20 3/8"

Appearance

All Available Colors	Black, Stainless Steel
Cooktop Trim	Black / Stainless Steel
Elements Material	Ceramic Glass
Surface/Trim Color	Black / Stainless Steel

Cooktop

Element Size and Wattage	12", 9", 6" / 3.0, 2.2, 1.1kW (Triple)9", 6" / 3.0, 1.4kW (Dual)7" / 1.8kW + 0.8kW (Bridge)6" / 0.1kW (Warm)
Hot Surface LED Indicator	Yes

Controls

Automatic Safety Shut-Off	yes
Control Location	Front Center
Control Type	SmoothTouch™
SmoothTouch® Glass Controls	Yes

Oven features

Steady Heat Technology	Yes
Warm Function	Yes

Power/ratings

Electric Supply	240V/208V, 60Hz AC
Max. Amp Load	240v 50 amp, 208v 30 amp
Power Cable Location	Right Rear
Total Connected Load	10.5kW @ 240V, 7.9kW @ 208V

Summary

Fuel Type	Electric
LG STUDIO	Yes

Venting system

Vent Air Flow (CFM)

Warranty/upc

Parts and Labor	2 Year Parts and Labor, 5 Year Parts (Cooktops and Coils)
UPC	195174076385

Dimensions & weight

Width	36.68 in.
Height	4 in.
Length	22 in.
Weight	43 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	41.68 in.
Shipping Height	9 in.
Shipping Length	27 in.
Shipping Weight	83 lbs.
Total of Shipping Weight	83 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.87 ft³
Dimensional Weight	23.22 lbs.
Total of Cubes	1.87 ft³
Total of Dimensional Weight	23.22 lbs.

Key Features

Express Yourself At Home

Upgrade your kitchen with design-led appliances that offer personalized finish options, upscale design details and innovative features that make your space feel good.

Gorgeous Glass Controls

Intuitive SmoothTouch™ glass controls provide an upscale look and make it easy to operate your cooktop with just the touch of your finger. Best of all, they have been designed with practicality in mind—the smooth surface easily wipes clean.

Express Yourself in the Kitchen With More Ways to Cook

Versatile elements let you fit different sized cookware—even your largest sauté pan.

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$10,153.25 ~~$16,527.99~~ Save $6,374.74 / 38% OFF

Product Details for LG LDPH7972S

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Other

Carton Dimensions (in) (W x H x D)

28" x 34 7/10" x 29 3/5"

Capacity

Lower Rack Dish Height Limit	12.5"
Total Place Settings	15
Upper Rack Dish Height Limit	9"

Certifications

NSF

Yes

Features

Hidden Count Down Timer	Yes
Heated Dry Option	Yes
QuadWash® Pro	Yes
3-Stage Filtration System	Yes
ADA Compliant	No
Detergent and Rinse-Aid Dispenser	Yes
Drying System	Dynamic Heat Dry
End of Cycle Indicator	Beeper + END Indication on Display
Hidden Water Heater	Yes
Hybrid Condensing Drying System	Yes
Inverter Direct Drive Motor	Yes
LoDecibel™ Quiet Operation	42 dBA
Multi-Level (5) Water Direction	No
Number of Options	8(Flex Zone,Steam,High temp,Dry Boost,Delay Start-Up to 12 hours,Control Lock,Night Dry,Remote Start)
Number of Spray Arms	3 (Top, Upper, Lower)
Number of Wash Cycles	10(Auto,Heavy,Delicate,Refresh,Normal,1-Hour,Download Cycle,)
Leak Detection	Yes
Rinse-Aid Indicator	Yes
Safety Float Switch (Leaks)	Yes
SenseClean™ Wash System	Yes
Soil (Turbidity) Sensor	Yes
Time Remaining Indicator	Yes
TrueSteam®	Yes
Variable Spray Intensities	Yes
Vario Wash	Yes
Dynamic Heat Dry™	Yes
1-Hour Wash & Dry	Yes

Limited warranty

Control Board and Rack Parts	2 Years
Direct Drive Motor	10 Years
Labor	1 Year
Parts	1 Year
Stainless Steel Door Liner or Tub	2 Years
UPC	48231344586

Power ratings

CEE Tier	1
ENERGY STAR® Qualified	Yes
Energy Use (kWh/Year)	238
Water Factor (WF)	2.9

Racks and baskets

3rd Rack (Fixed)	No
BPA-Free Nylon Coated Racks and Tines	Yes
Cup Rack	Yes
Cutlery Baskets	Yes
EasyRack™ Plus System	Yes
Fold Down Tines	Yes (Fully Fold on Upper & Fully (Smart) on Lower)
Glide Rail	Yes
Height Adjustable Middle Rack	Yes
Height Adjustable Upper Rack	Yes
Height-Adjustable 3rd Rack	Yes
Rack Handle	Yes
Stemware Holder	Yes
Wheel Bearing	Yes

Style and design

All Available Colors	PrintProof™ Black Stainless Steel
Control Panel Location	Top Control
Electronic Controls	Fully Integrated Control Panel
Fingerprint Resistant	Yes
Handle	Pocket
LED Tub Light	Yes
PrintProof™ Finish	Yes
Tub Light	Yes
Tub Material	NeveRust™ Stainless Steel

Summary

Series

Dishwasher thinq® smart features

Monitor Cycle Time	Yes
NFC Tag On	No
Remote Control	No
Remote Monitoring	Yes
SmartDiagnosis™	Yes
SmartThinQ®	No
ThinQ® Smart Technology	Yes
wi-fi Enabled	Yes
ThinQ UP™	Yes

Dimensions & weight

Width	23.75 in.
Height	33.63 in.
Length	24.63 in.
Weight	92.15 lbs.
Carton Dimensions (in) (W x H x D)	28" x 34 7/10" x 29 3/5"
Depth with Door Closed with Handle (in)	26.81"
Depth with Door Open (in)	49.25"
Shipping Weight with Carton (lbs)	104.27 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.75 in.
Shipping Height	38.63 in.
Shipping Length	29.63 in.
Shipping Weight	132.15 lbs.
Total of Shipping Weight	132.15 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.38 ft³
Dimensional Weight	141.48 lbs.
Total of Cubes	11.38 ft³
Total of Dimensional Weight	141.48 lbs.

Description

Ready to de-stress with a high performance dishwasher? Look no further than the LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam®. With its advanced features and cutting-edge technology, this dishwasher is the perfect addition to any modern kitchen. The LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam® is a top-of-the-line dishwasher that makes cleaning dishes a breeze. With the 1-Hour Wash & Dry feature, you can say goodbye to waiting hours for your dishes to be ready. This feature allows you to have sparkling clean and dry dishes in just one hour, saving you time and hassle. The QuadWash® Pro system is designed to provide thorough cleaning with its four powerful spray arms. The arms rotate back and forth while spinning, ensuring that every dish is thoroughly cleaned. No more worrying about stubborn stains or stuck-on food. The QuadWash® Pro system will take care of it all. TrueSteam® technology is another powerful feature that sets this dishwasher apart from the rest. It uses high-temperature steam to provide powerful cleaning and sanitization. This means that your dishes will not only look clean but will also be free from harmful bacteria and germs. This dishwasher is more than just a cleaning machine. It's also designed to make your life easier with a handy slider, hidden LED display, and EasyRack® system that allows for maximum flexibility in loading dishes. Plus, the interior LED lighting makes it easy to see everything inside. You'll have plenty of room to fit everything with 15 total place settings, whether you're hosting a dinner party or just cooking for the family. Plus, with the option of PrintProof® black or classic stainless steel, this dishwasher is sure to match any kitchen décor. Don't settle for a subpar dishwasher. Upgrade to the LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam® today and enjoy clean, dry dishes with ease.

Product Features

The Industry's Leading 1-Hour Wash & Dry
LG's exclusive QuadWash® Pro and Dynamic Heat Dry™ technologies combine to deliver the industry's leading 1-hour wash and dry cycle1 for sparkling, table-ready dishes in less time. So you can spend more time on what matters.
Pro-Level Cleaning Performance
Tackle post-dinner cleanup like a pro with the enhanced cleaning power of QuadWash® Pro. High-pressure jets with 38% more cleaning power2, spray dishes from multiple angles, while soaking them with over one million microbubbles to help break down stubborn food residue and provide exceptional cleaning performance.
Drier than Ever
Our Dynamic Heat Dry™ technology circulates hot air throughout the dishwasher for faster, more complete drying3 that won't melt your plastics, delivering sparkling, table-ready dishes right off the rack.

Manuals & Guides

Key Features

Clean, Sanitize, and Reduce Water Spots

LG TrueSteam® uses the power of steam to penetrate food residue and help eliminate water spots by up to 60%4. Plus, LG dishwashers are certified by the National Sanitation Foundation to reduce bacteria on dishes by 99.999% and reach a final rinse temperature greater than 150°F when operated on the Steam cycle5 for peace of mind.

Keep an Eye on the Clock

Conveniently manage your time with a hidden LED display that counts down the remaining cycle time. When the dishwasher is not in use, the display disappears for a sleek look.

Make Room for Last-Minute Items

Use the handy slider to adjust the 3rd rack height—even when fully loaded—to make room for taller items at the last minute. Not only can you save time and wash fewer loads, it’s also a convenient spot for hard-to-fit items like flatware, long-handled utensils or small espresso cups.

Easy installation with pros and DIYers in mind

LG dishwashers are built with pros and DIYers in mind. Every dishwasher comes with a thoughtfully built base and standard hardware designs that helps save time and money. Every LG dishwasher includes features such as: Flexible Mounting, Factory-Installed 3/8" Brass Fitting and 6-Foot Drain House to help prevent leaking, Faster Leveling, Quick-Access Junction Box, No-Fuss Insulation Blanket, and Universal Installation Parts.

Brilliant Visibility

Now you can check on dishes in an instant with the help of interior LED lighting. Two integrated tub lights turn on when the dishwasher door is opened, so you can easily check on your favorite mug.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app7 offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your dishwasher remotely, track and download cycles, connect with Google or Alexa voice assistants, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to notify you of potential issues like water leakage. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Built In Leak Protection for Peace of Mind

ThinQ monitors water supply, drainage and leakage and will notify you if any issues arise after installation. Built right in for worry-free operation. Compatible models with ThinQ Care will alert you as soon as there is an issue.6

More Flexibility Means No Dish Gets Left Behind

EasyRack Plus® lets you fit more dishes, run fewer loads and make short work of after-dinner cleanup. With three height settings, the upper rack adjusts effortlessly and smoothly to make room for tall stemware on top or oversize pans below. Customizable tines offer greater flexibility for loading dishes of all shapes and sizes without compromising cleaning performance.

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$10,153.25 ~~$16,527.99~~ Save $6,374.74 / 38% OFF

Product Details for LG WCES6428F

Technical Details

Other

Carton Dimensions (in) (W x H x D)	33" x 50" x 30"
Oven Interior Dimensions (Lower) (in) (W x H x D)	24 1/2" x 17 5/8" x 18 7/8"
Oven Interior Dimensions (Upper) (in) (W x H x D)	20 8/11" x 8 9/25" x 17 5/13"

Accessories

Broiler pan	Yes
Glass Tray(Upper)	Yes
Gliding Rack	8
Griddle Plate	Yes
Metal Tray(Upper)	Yes
Rack(Upper)	Yes
Temp Probe	Yes

Appearance

Handle Type	Bar
All Available Colors	Stainless Steel
Color & Material	Stainless / Enamel Coating
Handle	Stainless Steel
Oven Door Feature	InstaView® & WideView™ Window
PrintProof™ Finish	Yes

Capacity

Lower Oven Capacity (cu. ft.)	4.7 cu.ft.
Total Capacity	6.4 cu.ft.
Upper Oven Capacity (cu. ft.)	1.7 cu.ft.

Controls

Automatic Safety Shut-Off	After 12 hours
Clock	12 hr or 24 hr (option)
Cooking Complete Reminder Volume	1. High 2. Low 3. Mute
Display	7" TFT LCD
Kitchen Timer	Yes
Language	English, French, Spanish
Oven Control Type	TFT LCD Film Touch + Glass Touch
Sabbath Mode	Yes
Temperature Unit of Measure	Celsius, Fahrenheit
Timed Cook	Yes

Lower oven features

# of lights

Oven features

Bake Element	2,500 watts
Bake element type	Hidden (8 pass)
Broil Element	2,500W Inner / 1,500W Outer
Convection (Watt)	2,000 watts (Sheath heater)
Convection Conversion	Yes
Convection Fan	Single Speed
Convection Type	True Convection
Oven Light	2 Halogen
Oven Modes	Bake, Conv. Bake, Conv. Roast, Broil High,Broil Low, Warm, Proof, Air fry, Air sous-vide, Frozen Meal, EasyClean, SelfClean
Proof	Yes
Self Clean	Yes
Variable broil	Yes
Variable cleaning time	Yes
Variable warm	Yes

Power/ratings

Electric Supply	240V/208V, 60Hz AC
Max. Amp Load	40a
Rating	7.8kw
Energy Requirements	60 Hz / 240 V, 208 V

Summary

LG STUDIO	Yes
Type	Combi Wall Oven

Cooking appliance thinq® smart features

3rd Party Recipe App	Innit, Sidechef
Check & Control	Yes
SmartDiagnosis™	Yes
ThinQ® Smart Technology	Yes
ThinQ Care™	Yes
Wi-Fi Connectivity	Yes

Upper oven features

Bake Element	375 W
Broil	Yes
Broil Element	1200W (500W Infrared Heating™ + 700W Miraclon heater)
Broil element pass	2
Convection Bake	Yes
Convection element	1600W
Microwave	Yes
Microwave mode power consumption	1650 W
Microwave Power output	950 W
Speed cook	Yes
Speed cook - # of Auto cook (28 Menu)	Bacon (regular sliced) / Bagels (frozen) / Baked potatoes (7-9oz/ea) / Brownie / Cod fillets (1 lb) / Corn dog (frozen) / Fresh vegetable / Frozen chicken wings / Frozen fries / Frozen chicke
Speed cook - # of Defrost (4 Menu)	Meat / Poultry / Fish / Bread
Speed cook - # of Melt (5 Menu)	Butter / Caramel / Cheese / Chocolate / Marshmallow
Speed cook - # of Sensor cook (9 Menu)	Beverage / Casserole / Chicken / Pasta / Pizza / Plate of food / Rice / Soup / Vegetable
Speed cook - # of Soften (4 Menu)	Butter / Cream Cheese / Frosting / Ice Cream

Venting system

Exhaust Grease Filter

Warranty/upc

Parts & Labor	2 Years
UPC	195174024133

Dimensions & weight

Weight	204 lbs.
Carton Dimensions (in) (W x H x D)	33" x 50" x 30"
Oven Interior Dimensions (Lower) (in) (W x H x D)	24 1/2" x 17 5/8" x 18 7/8"
Oven Interior Dimensions (Upper) (in) (W x H x D)	20 8/11" x 8 9/25" x 17 5/13"
Shipping Weight (lbs)	239 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	244 lbs.
Total of Shipping Weight	244 lbs.
Source	Manufacturer

Description

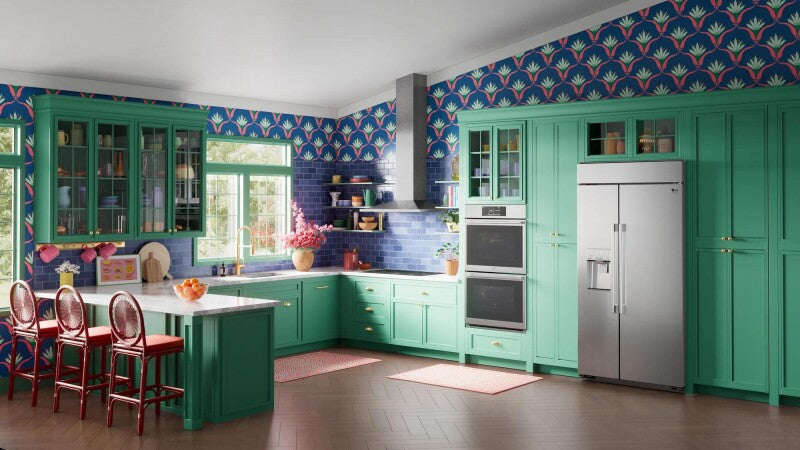

The brand + SKU: The LG WCES6428F is a sophisticated 30" combination double wall oven that integrates a spacious 1.7 cu. ft. upper convection microwave with a high-capacity 4.7 cu. ft. lower true convection oven. With Air Fry built into the lower oven, you can prepare crispy favorites with less oil and no preheating required. The upper oven features advanced Sensor Cooking and Scan-to-Cook technology, which automatically sets cooking instructions for select frozen foods. The unit’s ThinQ® smart connectivity allows remote monitoring and control, recipe management, and smart diagnostics through the LG app. Designed for ease of use, it includes SmoothTouch™ glass controls, WideView™ window, and both Self-Clean and EasyClean® functions. Wrapped in a modern stainless steel exterior, the LG WCES6428F provides a powerful and intelligent solution for today’s busy kitchens.

Product Features

Controls With an Extra Touch of Personality
Even the controls of this LG STUDIO wall oven look good, with a full-color LCD display. A few simple touches guide you through menu selection, with more than 40 auto-cook recipes from Banana Bread to London Broil. And it doesn’t just look impressive—it’s also easy to clean.
Designed for the Perfect Fit
The kitchen of your dreams is in the details. LG STUDIO wall ovens give you the option of a flush installation or the traditional position—so it looks just the way you want.
Tap Into New Cooking Techniques Like Steam Sous Vide
Using low oven temperatures and airflow around vacuum sealed ingredients, Air Sous Vide locks in moisture and aroma to deliver meats, fish and poultry that are juicy,tender and consistently delicious.²
Put the Spotlight on What’s Cooking
Check on food in an instant with two quick knocks. The uniquely designed InstaView® window lets you see inside your oven without ever opening the door and letting heat escape - and it's extra wide to see even more.

Manuals & Guides

Key Features

Cooks fast. Looks great.

Cook up to 4x faster without preheating¹ with the LG TurboCook™ speed oven. It gives you the speed of a microwave without sacrificing results. Save time and skip the preheat with instant-on Infrared Heating™ that heats lightning fast and delivers oven-quality results every time.

Cooking Confidence Comes Built-In

Bring on the crowd pleasers—now you can cook and bake with ease, thanks to LG’s True Convection oven that delivers precise heat for crisp, delicious results. Our convection technology evenly distributes continual precise heat so food is delicious on the inside, and crisp on the outside.

Enjoy Unique Features Like Air Fry

Air Fry delivers crispy flavor fast with no preheating required. Just press Air Fry to prepare favorite snacks like french fries, hot wings and more. High temperatures and the convection fan work together to deliver the flavor and crunch you crave without the oil—or the guilt.

ThinQ® Helps Make Life Happen

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life. Manage and monitor your oven remotely, send it cooking instructions with ThinQ Recipe or scan-to-cook³, connect with Google or Alexa voice assistants, and access Smart Diagnosis, customer support, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to help them run smoothly. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Make Cooking Look Effortless with Presets

Take the guesswork out of cooking with multiple preset cooking functions. Perfect for defrosting, reheating, melting and more. With a full menu of options from quick snacks to frozen entrees, we’ve got you covered from breakfast to dinner parties.

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$10,153.25 ~~$16,527.99~~ Save $6,374.74 / 38% OFF

Product Details for LG LSHD3680ST

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Appearance

All Available Colors	Black Stainless Steel (BD), Stainless Steel (ST )
Fingerprint & Smudge Resistant	Yes

Controls

5-Speed IR Touch Controls	Yes
Control Type	IR Touch

Features

Auto Delay-Off	Yes
Filters	Decorative Mesh (2) Dishwasher-Safe
RoHS Compliant	Yes

Lighting

Dual-Level Lighting	Yes
Lighting	9W LED Light Strip

Lower oven features

Broil element pass

Power/ratings

Circuit Breaker Size	15 A
Ratings/Requirements/Type	120V, 4Amps, 60Hz
UL Listed	Yes

Summary

5” Low-Profile Body	Yes
Decorative Mesh Filters	Yes
LG STUDIO	Yes

Cooking appliance thinq® smart features

ThinQ® Smart Technology	Yes
Wi-Fi Connectivity	Yes

Venting system

CFM (min-max)	200-600
Sones (min-max)	1-6
Vertical Internal Blower	6” Round

Warranty/upc

Parts and Labor

2 Year Parts and Labor

Dimensions & weight

Width	35.44 in.
Height	26.94 in.
Carton Dimensions (in) (W x H x D)	39 1/2" x 27 3/8" x 26 5/8"
Shipping Weight (lbs)	37 lbs
Surface Width	36"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40.44 in.
Shipping Height	31.94 in.
Source	Manufacturer

Description

The brand LG LSHD3680ST is a 36-inch wall-mount chimney range hood engineered to provide powerful performance with modern connectivity. Finished in stainless steel, it delivers a sleek, professional look ideal for contemporary kitchens. With a 600 CFM blower, this range hood effectively removes smoke, grease, and odors from the air while maintaining a low noise level of just 6 sones at its highest setting. Its Wi-Fi connectivity enables control and monitoring through the LG SmartThinQ® app and voice commands via smart home platforms. Dual-level LED lighting illuminates your cooktop clearly, and electronic touch controls offer intuitive operation. The 3-speed fan, dishwasher-safe mesh filters, and auto delay-off function add functionality and convenience, making the LSHD3680ST a high-performance and smart addition to any kitchen.

Manuals & Guides

Key Features

Low Profile. Big on Design.

The streamlined look of the elevated chimney-style hood vent offers plenty of design appeal for 36” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profileappearance while enjoying the high-tech power behind the hood.

Seamless Design for Effortless Control

The built-in touch pads give you complete control over 5 fan speeds, delay-off function, auto reminders and Airflow Control Technology. This LG STUDIO hood vent also illuminates your cooktop with brilliant dual-level LED lighting, so you’ll always have perfect lighting for cooking, entertaining or relaxing at home

Keep Things Comfortable in the Kitchen

The LG STUDIO hood vent offers superior ventilation to quickly neutralize smoke, grease and cooking odors. The professional-grade blower adjusts from 200 to 600 CFM for greater ventilation, so whether you’re hosting or relaxing, you’ll have the moisture and odor removal you need.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app1 offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your hood remotely, sync it with a smart LG range or cooktop to automatically activate the light and vent when the cooktop is in use, and more. Learn more.
