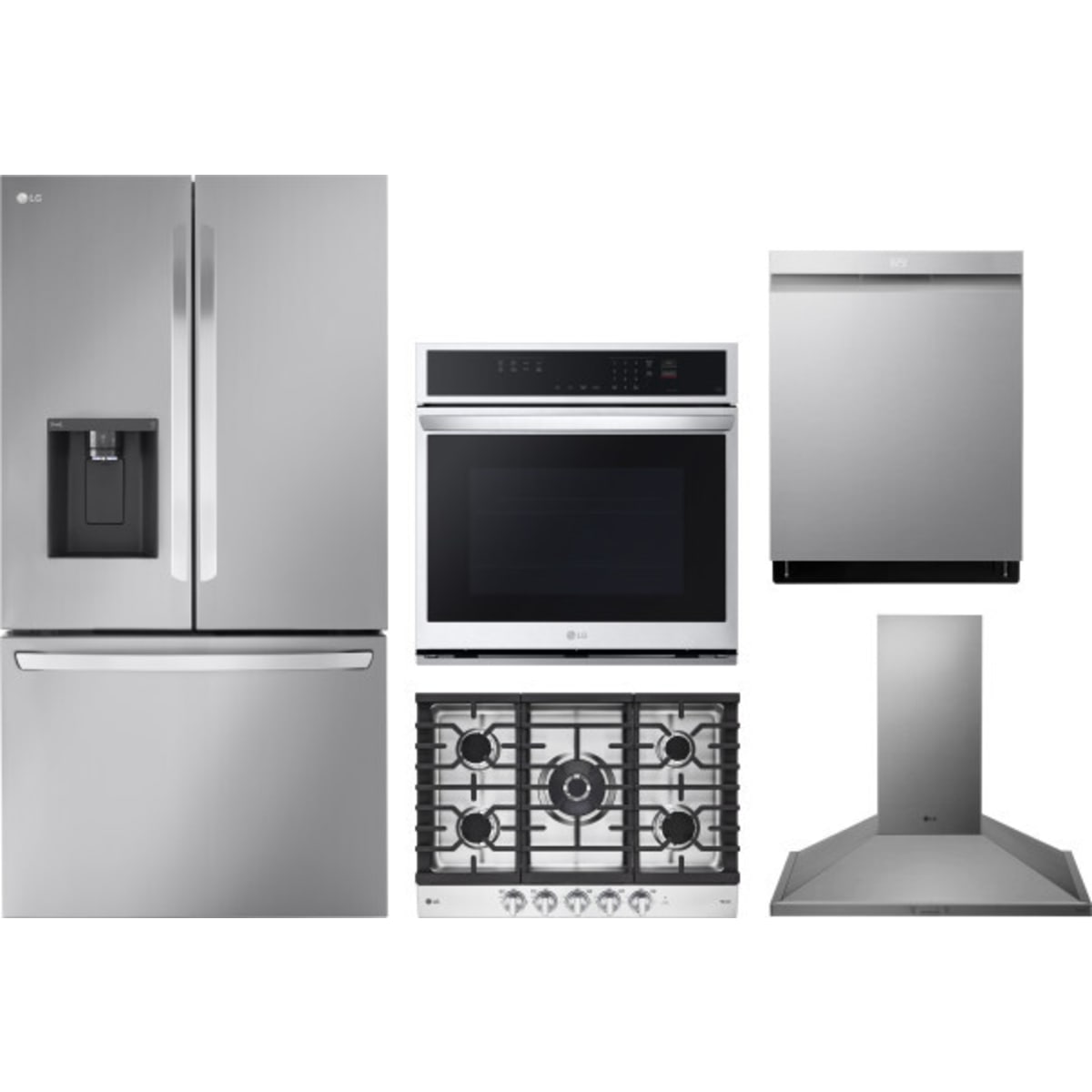

LG 5-Piece Package LRFXS3106S 36 Smart Depth MAX French-Door Refrigerator and CBGJ3027S 30 Gas Smart Cooktop and WSEP4723F 30 Single Electric Smart Wall Oven and LDPH7972S 24 Integrated Smart Dishwasher and HCED3015S 30 Wall Mount Range Hood

Name: LG 5-Piece Package LRFXS3106S 36 Smart Depth MAX French-Door Refrigerator and CBGJ3027S 30 Gas Smart Cooktop and WSEP4723F 30 Single Electric Smart Wall Oven and LDPH7972S 24 Integrated Smart Dishwasher and HCED3015S 30 Wall Mount Range Hood
Brand: LG
SKU: Lg-LRFXS3106S-CBGJ3027S-WSEP4723F-LDPH7972S-HCED3015S
Price: 6382.21 USD
Availability: OutOfStock

LG 5-Piece Package LRFXS3106S 36 Smart Depth MAX French-Door Refrigerator and CBGJ3027S 30 Gas Smart Cooktop and WSEP4723F 30 Single Electric Smart Wall Oven and LDPH7972S 24 Integrated Smart Dishwasher and HCED3015S 30 Wall Mount Range Hood

31 Cu. Ft. Smart Standard-depth Max™ French Door Refrigerator With Dual Ice

30 Inch Smart Gas Cooktop With Ultraheat™ 22k Btu Dual Burner And Led Knobs

4.7 Cu. Ft. Smart Wall Oven With Convection And Air Fry

24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™

LG 5-Piece Package LRFXS3106S 36 Smart Depth MAX French-Door Refrigerator and CBGJ3027S 30 Gas Smart Cooktop and WSEP4723F 30 Single Electric Smart Wall Oven and LDPH7972S 24 Integrated Smart Dishwasher and HCED3015S 30 Wall Mount Range Hood

$6,382.21 ~~$10,352.99~~ Save $3,970.78 / 38% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Additional Services Available:

LG LRFXS3106S 31 Cu. Ft. Smart Standard-depth Max™ French Door Refrigerator With Dual Ice Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$49.99
2-Year Extended Protection
$83.99
3-Year Extended Protection
$131.99
5-Year Extended Protection
$195.99
Manufacturer Warranty Only

Refrigerator Installation — Existing Water Line only (No Mods; No Copper lines)
$110.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG CBGJ3027S 30 Inch Smart Gas Cooktop With Ultraheat™ 22k Btu Dual Burner And Led Knobs Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

Cooktop Install Kit
$40.00
Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG WSEP4723F 4.7 Cu. Ft. Smart Wall Oven With Convection And Air Fry Print Proof Stainless Steel

Add Installation Services

Wall oven single electric install
$250.00
Wall oven electric cord
$40.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG LDPH7972S 24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™ Print Proof Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

Dishwasher Install — Hardwire; Existing Non-Copper Line Only (No Panel Installation)
$220.00
Dishwasher Installation Kit - Complete with Cord
$29.95
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

LG HCED3015S 30 Inch Wall Mount Chimney Hood Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

What's included: 5 items

LG LRFXS3106S 31 Cu. Ft. Smart Standard-depth Max™ French Door Refrigerator With Dual Ice Stainless Steel
- SKU SKU: LRFXS3106S UPC: 195174065792
- Type French Door Refrigerators
LG CBGJ3027S 30 Inch Smart Gas Cooktop With Ultraheat™ 22k Btu Dual Burner And Led Knobs Stainless Steel
- SKU SKU: CBGJ3027S UPC: 48231345224
- Type Gas Cooktops
LG WSEP4723F 4.7 Cu. Ft. Smart Wall Oven With Convection And Air Fry Print Proof Stainless Steel
- SKU SKU: WSEP4723F UPC: 48231344777
- Type Single Wall Ovens
LG LDPH7972S 24 Inch Smart Top Control Dishwasher With 1-hour Wash & Dry, Quadwash® Pro, Truesteam® And Dynamic Heat Dry™ Print Proof Stainless Steel
- SKU SKU: LDPH7972S UPC: 48231344586
- Type Built-In Dishwashers
LG HCED3015S 30 Inch Wall Mount Chimney Hood Stainless Steel
- SKU SKU: HCED3015S UPC: 48231341370
- Type Wall & Chimney Hoods

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$6,382.21 ~~$10,352.99~~ Save $3,970.78 / 38% OFF

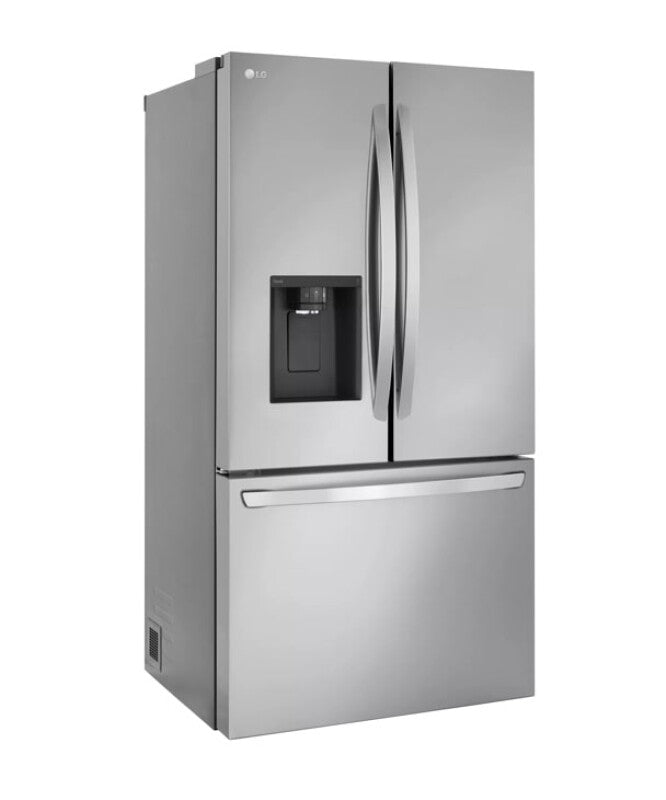

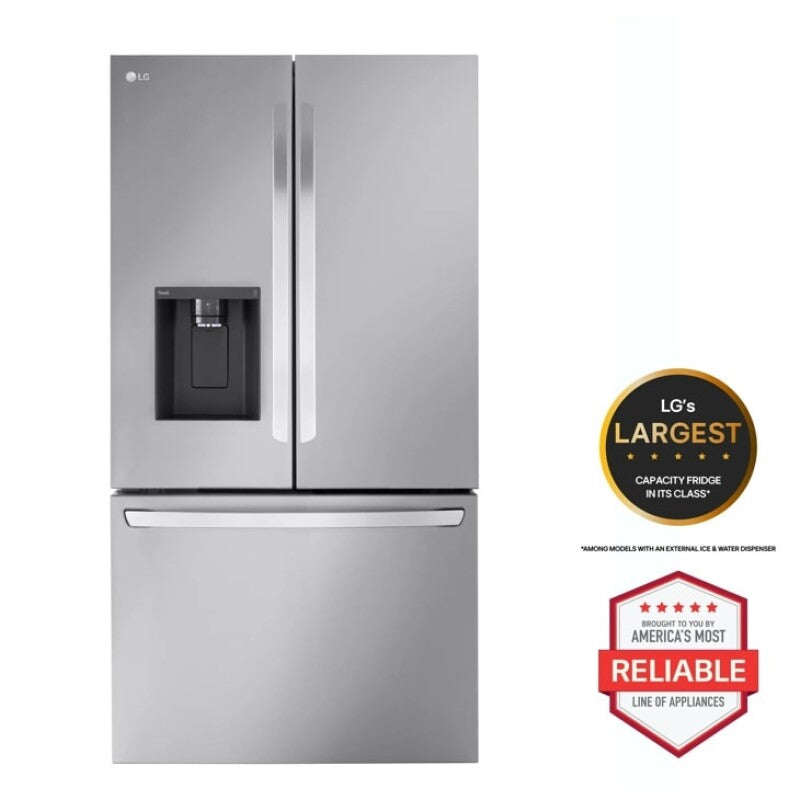

Product Details for LG LRFXS3106S

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Capacity

Freezer (cu.ft.)	10.3 cu.ft.
Refrigerator (cu.ft.)	20.4 cu.ft.
Total Capacity (cu.ft.)	30.7 cu.ft.

Convenience

ADA Compliant	Yes
Auto Closing Door Hinge	Yes
Child Lock	Yes
Door Alarm	Yes
Sabbath Mode	Yes
Temperature Controls	Electronic/Digital

Cooling

Compressor Type	Smart Inverter
Evaporator	Yes (1)
Multi-Air Flow™ System	Yes
Temperature Sensors	2

Energy

Energy Consumption (kWh/Year)	755
ENERGY STAR® Qualified	Yes

Freezer

Door Type	Pull Drawer
Drawers/Shelves	2-Tier ogarnization
Freezer Handle	Smart Pull™ Handle

Limited warranty & upc

Compressor (Parts & Labor)	5 Years
Parts & Labor	1 Year
Sealed System (Parts & Labor)	5 Years
UPC	195174065792

Materials and finishes

All Available Colors	STS
Hidden Hinges	Yes

Refrigerator

Cool Guard	Yes
Crisper Bins	2
Handle Type	Bar
No. of Door Bins	4 (left door) / 4 (right door)
No. of Shelves	4 Split (4 Fixed)
Refrigerator Light	Yes
Shelf Construction	Spill protector / Tempered glass

Summary

Display Type

Smooth Touch Control / White LED

Refrigerator thinq® smart features

ThinQ® Smart Technology	Yes
ThinQ Care™	Yes
wi-fi Enabled	Yes
ThinQ UP™	Yes

Water & ice system

Ice & Water Dispenser	Yes
Water Filter	LT1000P
Water Filtration System	1 Stage

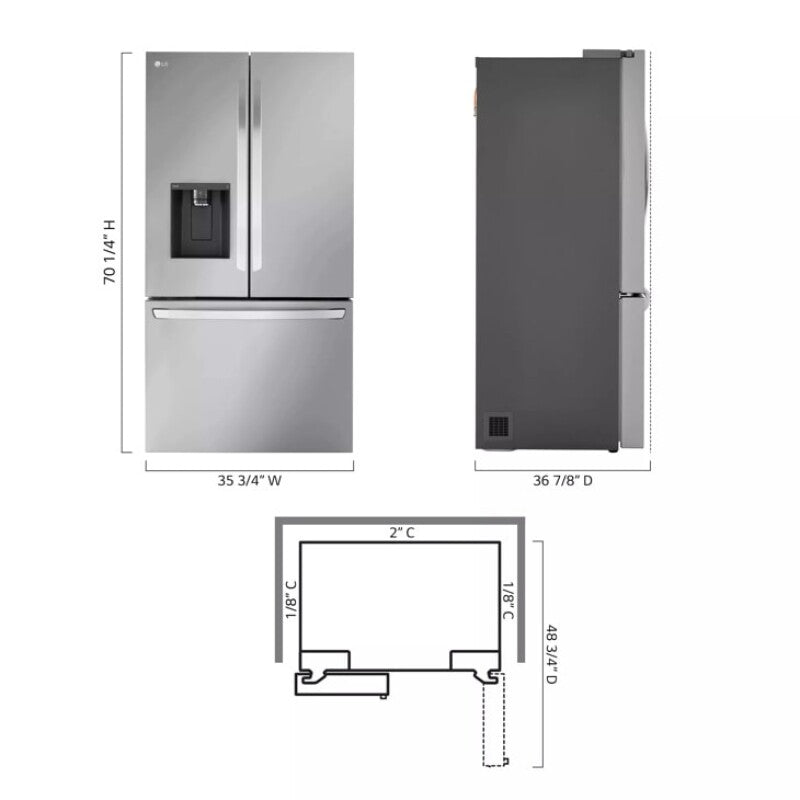

Dimensions & weight

Width	35.75 in.
Height	72.38 in.
Length	37.88 in.
Weight	304 lbs.
Carton Dimensions (WxHxD)	37 7/8 x 72 3/8 " x 37 7/8"
Depth (Draw Open Fully without Handle)	57.87"
Depth (to Hinge Cover)	23.18"
Depth (Total with Door Open)	48.75"
Depth with Handles	36.87"
Depth without Door	29.87"
Depth without Handles	34.37"
Height to Top of Case	68.87"
Height to Top of Door Hinge	70.25"
Standard Depth	Yes
Width (Door Fully Open without Handle)	56.75"
Width (Door Open 90˚ with Handle)	44.87"
Width (Door Open 90˚ without Handle)	40"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	42.88 in.
Shipping Height	77.38 in.
Shipping Length	42.88 in.
Shipping Weight	344 lbs.
Total of Shipping Weight	344 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	56.71 ft³
Dimensional Weight	705.02 lbs.
Total of Cubes	56.71 ft³
Total of Dimensional Weight	705.02 lbs.

Description

Why choose between the built-in style you love and the storage space you need? Only LG could innovate a way to give you both. 31-cu. ft. large capacity lets you stock up on more of your favorites. Dual ice makers ensure you always have extra ice on hand for those hot summer days or when entertaining large parties. Top it off with the Tall Ice and Water Dispenser that can accommodate just about any container, from pitchers to pint glasses. Located in the top of the fresh food section, the Door Cooling + vent extends the reach of LG’s Smart Cooling system. Blasts of cool air reach all areas of the refrigerator—including the door—to help maintain consistent temperatures from top to bottom and help keep all foods fresh and flavorful. With every feature thoughtfully designed, this appliance helps you create the sophisticated, distinctive kitchen you want and deserve.

Product Features

Consistent Temps from Top to Bottom
Located in the top of the fresh food section, the Door Cooling + vent extends the reach of LG’s Smart Cooling system. Blasts of cool air reach all areas of the refrigerator—including the door—to help maintain consistent temperatures from top to bottom and help keep all foods fresh and flavorful.
IcePlus™
Still need more ice? Turn on IcePlus™ to kick ice production into high gear by automatically lowering freezer temperatures to the coldest setting for 24 hours.

Manuals & Guides

Specifications

Key Features

MAX out your space

With the super-capacity 31 cu. ft. refrigerator, you have even more usable space¹ allowing you to store more food than ever before.

Sophisticated Style & Design

With every feature thoughtfully designed, this appliance helps you create the sophisticated, distinctive kitchen you want—and deserve.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your refrigerator remotely, track energy and filter usage, use with Google or Alexa voice assistants, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to notify you of potential issues like temperature changes. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Organize Your Freezer.

The 3-Tier Organization™ Freezer system can keep food organized and easily accessible. Now you can prioritize what's in your freezer so you can find anything fast.

Fresher is Better.

Multi-Air Flow System is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator and strategically-placed vents in every section to help surround your food with cool air no matter where you put it.

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$6,382.21 ~~$10,352.99~~ Save $3,970.78 / 38% OFF

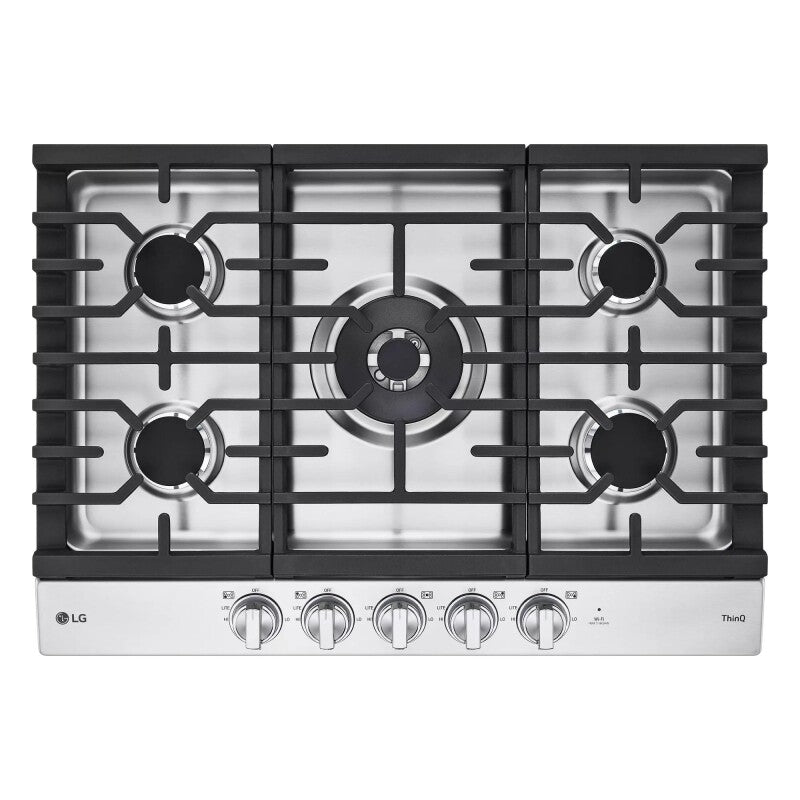

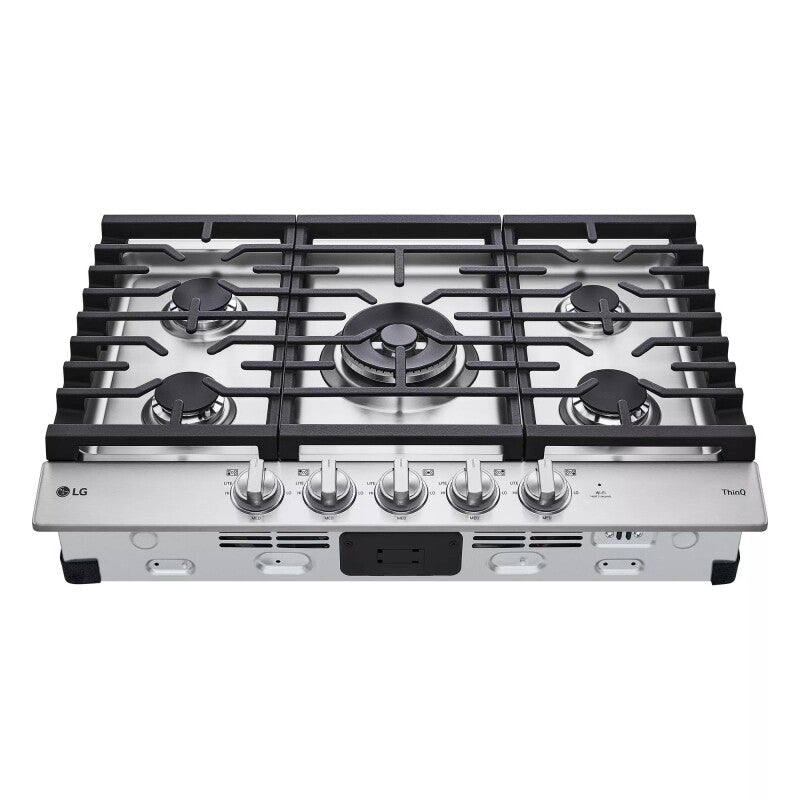

Product Details for LG CBGJ3027S

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Other

Carton Dimensions (in) (W x H x D)	33 15/16 x 9 3/4 x 25 3/8
Cut-Out (WxHxD)	28 1/2" x 3 3/4" x 19 5/8"

Accessories

Conversion Kit	Yes
Griddle Plate	Yes

Appearance

All Available Colors	Stainless Steel
Cooktop Finish	EasyClean®

Cooktop

Burner Simmer / BTU - Left Front	1270
Burner Simmer / BTU - Left Rear	670
Burner Simmer / BTU - Right Front	1270
Burner/BTU - Center (LNG/LPG)	22000/16000 (warming zone)
Burner/BTU - Left Front	10000/7500
Burner/BTU - Left Rear	10000/7500
Burner/BTU - Right Front	12000/10000
Burner/BTU - Right Rear	5000 / 4000

Controls

Control Location	Front Center
Cooktop Control Type	Weighted Backlit Knob

Features

Auto Reheat

1270

Power/ratings

kW at 120V	120v 60hz / 0.12a
Energy Requirements	120 V / 60Hz AC

Summary

Series	LG
Type	30" Gas Cooktop

Cooking appliance thinq® smart features

ThinQ® Smart Technology	Yes
Wi-Fi Connectivity	Yes

Venting system

Vent Air Flow (CFM)

Warranty/upc

Parts & Labor	1 Year
UPC	048231345224

Dimensions & weight

Width	30 in.
Height	3.75 in.
Length	21 in.
Weight	47 lbs.
Carton Dimensions (in) (W x H x D)	33 15/16 x 9 3/4 x 25 3/8
Shipping Weight (lbs)	63 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	8.75 in.
Shipping Length	26 in.
Shipping Weight	87 lbs.
Total of Shipping Weight	87 lbs.
Source	Manufacturer

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.37 ft³
Dimensional Weight	17 lbs.
Total of Cubes	1.37 ft³
Total of Dimensional Weight	17 lbs.

Description

With 5 sealed gas burners, including an ultra-powerful 22,000 BTU burner that instantly goes from sizzle to true simmer, this smart cooktop delivers a pro-level experience for every meal. Featuring LED knobs that illuminate to let you know which burners are on, heavy-duty continuous cast iron grates for even heating and stability, and a griddle perfect for pancakes, eggs, bacon, and more, it's as stylish as it is practical. Plus, enjoy smarter cooking with the ThinQ app which lets you monitor your cooktop remotely, and sync your cooktop with your smart LG range hood or over-the-range microwave to automatically turn the fans and lights on and off.

Manuals & Guides

Key Features

5 Sealed Gas Burners

Five cooktop burners of varying sizes and power levels provide all the power and precision you need.

UltraHeat™ 22K BTU Dual Burner

Turn up the power with a dual burner that can rapidly go to high heat for quick boiling, or turn down to a true simmer.

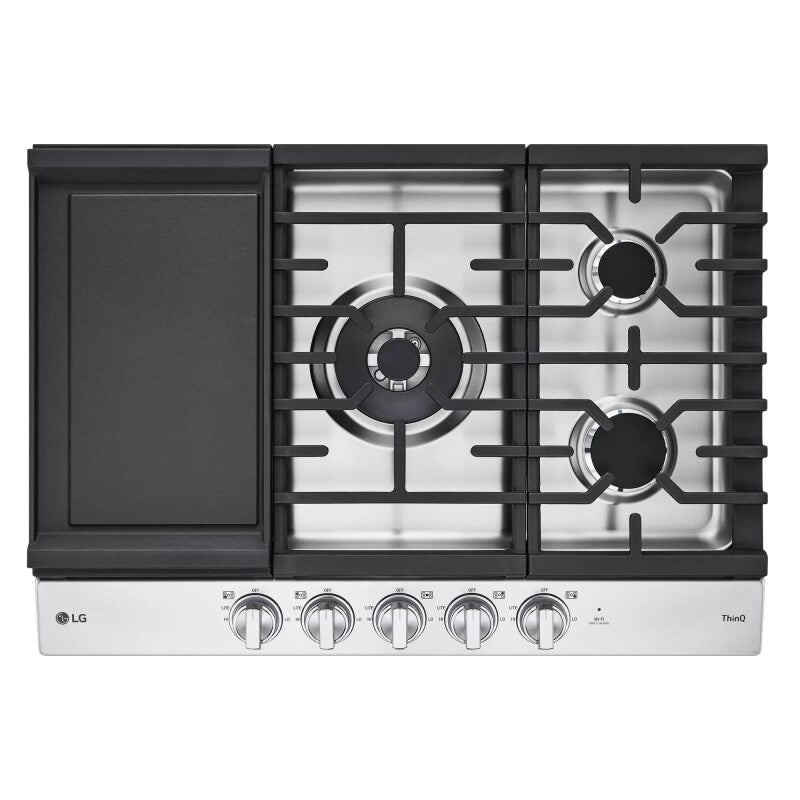

Removeable Cast-Iron Griddle

The removable cast-iron griddle is perfect for pancakes, eggs and bacon, tortillas and more.

White LED Illuminated Knobs

The white LED knobs conveniently illuminate to let you know which burners are on at a quick glance, while delivering a bit of wow with every turn.

Continuous Cast-Iron Grates

Not only do our heavy-duty, continuous cast-iron grates look great, but they also help provide even heating and a stable surface for your cookware.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your cooktop remotely, sync it with your smart LG hood or over-the-range microwave to auto-activate the light and vent, and more. Learn more.

Sync with Your LG Smart Hood

The cooktop burners sync with your LG smart hood or over-the-range microwave via the ThinQ® app to auto-activate the fans and lights for a seamless cooking experience.

EasyClean® Stainless Steel Cooktop

Easily wipe away spills and splatters thanks to the specially-coated stainless-steel surface.¹

Auto Reignition

Auto reignition is a safety feature that automatically reignites the burners if the flame accidently goes out, preventing gas leakage and ensuring uninterrupted cooking.

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

$6,382.21 ~~$10,352.99~~ Save $3,970.78 / 38% OFF

Product Details for LG WSEP4723F

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Other

Cut-Out (WxHxD)	Standard(Min. 28 1/2" x 29 1/8" x 24" Max. 28 5/8" x 29 3/16" x 24") / Flush(30" x 29 5/8" x 25")
Shipping Dimensions (WxHxD)	33" x 30" x 34"

Appearance

Handle Type	Curved Bar
All Available Colors	PrintProof® Black Stainless Steel, PrintProof® Stainless Steel
Handle/Knobs	PrintProof® Stainless Steel / PrintProof® Black Stainless Steel
Oven Door Feature	WideView™ Window
PrintProof™ Finish	Yes

Capacity

Total Capacity

4.7 cu.ft.

Controls

Automatic Safety Shut-Off	yes
Control Type	SmoothTouch® Glass Controls
Sabbath Mode	Yes

Lower oven features

# of lights

Oven features

Bake Element	2500W
Broil Element	2,900W inner / 1,500W outer
Convection Type	Fan Convection
Oven Cleaning Type	EasyClean® and Self Clean
Oven Modes	Air Fry / Convection Bake / Convection Roast / Bake / Broil / Self Clean / Easy Clean® / Frozen Meal / Warm / Proof / Favorite
Variable broil	Yes
Variable cleaning time	Yes
Variable warm	Yes

Power/ratings

Amp Rating at 240V	25.4a
KW Rating at 240V	6.1 kw
Energy Requirements	120 / 240 VAC, 120 / 208 VAC

Summary

Self + EasyClean®	Yes
Series	LG
Type	Single Wall Oven

Cooking appliance thinq® smart features

3rd Party Recipe App	Sidechef
Check & Control	Yes
SmartDiagnosis™	Yes
ThinQ® Smart Technology	Yes
ThinQ Care™	Yes
Wi-Fi Connectivity	Yes
3rd Party Connected Compatibility	Amazon Alexa, Google Assistant
ThinQ UP™	Yes

Upper oven features

Broil element pass

Warranty/upc

Parts & Labor	1 Year
UPC	048231344777

Dimensions & weight

Width	29.75 in.
Height	29.44 in.
Length	23.38 in.
Weight	126 lbs.
Shipping Dimensions (WxHxD)	33" x 30" x 34"
Shipping Weight (lbs)	158 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.75 in.
Shipping Height	34.44 in.
Shipping Length	28.38 in.
Shipping Weight	166 lbs.
Total of Shipping Weight	166 lbs.
Source	Manufacturer

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.85 ft³
Dimensional Weight	147.27 lbs.
Total of Cubes	11.85 ft³
Total of Dimensional Weight	147.27 lbs.

Description

Elevate your cooking game with convection and air fry that allows you to evenly brown, bake, roast and bring meals to crispy perfection—all in one oven. The SmoothTouch glass controls and large tinted window deliver sleek, modern style that’s sure to elevate the look of any kitchen. Plus, enjoy smart features like scan-to-cook, remote monitoring and more via the ThinQ app.

Manuals & Guides

Key Features

Upgrade to Convection for Even Cooking

LG’s convection technology delivers the ideal temperature and hot air circulation needed for faster preheating and more even cooking on every rack.¹

Air Fry Crispy Favorites to Feed a Crowd

Air fry favorites like wings, fries and more while saving counter space. High temperatures and the convection fan work together to deliver the flavor and crunch you crave with little to no oil.²

Sleek SmoothTouch® Glass Controls

The intuitive SmoothTouch® glass controls deliver sleek style and easy operation, with just a touch of your finger. Plus, the smooth surface easily wipes clean for a design that is as practical as it is stylish.

PrintProof® Stainless Steel Finish

Our PrintProof® fingerprint and smudge-resistant finish easily wipes clean with a soft, dry cloth for a distinctive kitchen that handles real-life in style.

Brilliant Blue Interior

An outstanding oven should meet your needs and look beautiful doing it. Our EasyClean®, blue porcelain-enamel interior provides a distinctive look while offering easy visibility inside the oven.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app3 offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your oven remotely, send it cooking instructions with ThinQ Recipe or scan-to-cook⁴, connect with Google or Alexa voice assistants, and access Smart Diagnosis, customer support, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to help them run smoothly. Learn more.

EasyClean® Your Oven Without the Elbow Grease

Simply spray the oven interior with water, press the EasyClean® button, and let the oven do the work in just 10 minutes—without chemicals or high-heat. Then, easily wipe away the leftover residue.5

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$6,382.21 ~~$10,352.99~~ Save $3,970.78 / 38% OFF

Product Details for LG LDPH7972S

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Other

Carton Dimensions (in) (W x H x D)

28" x 34 7/10" x 29 3/5"

Capacity

Lower Rack Dish Height Limit	12.5"
Total Place Settings	15
Upper Rack Dish Height Limit	9"

Certifications

NSF

Yes

Features

Hidden Count Down Timer	Yes
Heated Dry Option	Yes
QuadWash® Pro	Yes
3-Stage Filtration System	Yes
ADA Compliant	No
Detergent and Rinse-Aid Dispenser	Yes
Drying System	Dynamic Heat Dry
End of Cycle Indicator	Beeper + END Indication on Display
Hidden Water Heater	Yes
Hybrid Condensing Drying System	Yes
Inverter Direct Drive Motor	Yes
LoDecibel™ Quiet Operation	42 dBA
Multi-Level (5) Water Direction	No
Number of Options	8(Flex Zone,Steam,High temp,Dry Boost,Delay Start-Up to 12 hours,Control Lock,Night Dry,Remote Start)
Number of Spray Arms	3 (Top, Upper, Lower)
Number of Wash Cycles	10(Auto,Heavy,Delicate,Refresh,Normal,1-Hour,Download Cycle,)
Leak Detection	Yes
Rinse-Aid Indicator	Yes
Safety Float Switch (Leaks)	Yes
SenseClean™ Wash System	Yes
Soil (Turbidity) Sensor	Yes
Time Remaining Indicator	Yes
TrueSteam®	Yes
Variable Spray Intensities	Yes
Vario Wash	Yes
Dynamic Heat Dry™	Yes
1-Hour Wash & Dry	Yes

Limited warranty

Control Board and Rack Parts	2 Years
Direct Drive Motor	10 Years
Labor	1 Year
Parts	1 Year
Stainless Steel Door Liner or Tub	2 Years
UPC	48231344586

Power ratings

CEE Tier	1
ENERGY STAR® Qualified	Yes
Energy Use (kWh/Year)	238
Water Factor (WF)	2.9

Racks and baskets

3rd Rack (Fixed)	No
BPA-Free Nylon Coated Racks and Tines	Yes
Cup Rack	Yes
Cutlery Baskets	Yes
EasyRack™ Plus System	Yes
Fold Down Tines	Yes (Fully Fold on Upper & Fully (Smart) on Lower)
Glide Rail	Yes
Height Adjustable Middle Rack	Yes
Height Adjustable Upper Rack	Yes
Height-Adjustable 3rd Rack	Yes
Rack Handle	Yes
Stemware Holder	Yes
Wheel Bearing	Yes

Style and design

All Available Colors	PrintProof™ Black Stainless Steel
Control Panel Location	Top Control
Electronic Controls	Fully Integrated Control Panel
Fingerprint Resistant	Yes
Handle	Pocket
LED Tub Light	Yes
PrintProof™ Finish	Yes
Tub Light	Yes
Tub Material	NeveRust™ Stainless Steel

Summary

Series

Dishwasher thinq® smart features

Monitor Cycle Time	Yes
NFC Tag On	No
Remote Control	No
Remote Monitoring	Yes
SmartDiagnosis™	Yes
SmartThinQ®	No
ThinQ® Smart Technology	Yes
wi-fi Enabled	Yes
ThinQ UP™	Yes

Dimensions & weight

Width	23.75 in.
Height	33.63 in.
Length	24.63 in.
Weight	92.15 lbs.
Carton Dimensions (in) (W x H x D)	28" x 34 7/10" x 29 3/5"
Depth with Door Closed with Handle (in)	26.81"
Depth with Door Open (in)	49.25"
Shipping Weight with Carton (lbs)	104.27 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.75 in.
Shipping Height	38.63 in.
Shipping Length	29.63 in.
Shipping Weight	132.15 lbs.
Total of Shipping Weight	132.15 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.38 ft³
Dimensional Weight	141.48 lbs.
Total of Cubes	11.38 ft³
Total of Dimensional Weight	141.48 lbs.

Description

Ready to de-stress with a high performance dishwasher? Look no further than the LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam®. With its advanced features and cutting-edge technology, this dishwasher is the perfect addition to any modern kitchen. The LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam® is a top-of-the-line dishwasher that makes cleaning dishes a breeze. With the 1-Hour Wash & Dry feature, you can say goodbye to waiting hours for your dishes to be ready. This feature allows you to have sparkling clean and dry dishes in just one hour, saving you time and hassle. The QuadWash® Pro system is designed to provide thorough cleaning with its four powerful spray arms. The arms rotate back and forth while spinning, ensuring that every dish is thoroughly cleaned. No more worrying about stubborn stains or stuck-on food. The QuadWash® Pro system will take care of it all. TrueSteam® technology is another powerful feature that sets this dishwasher apart from the rest. It uses high-temperature steam to provide powerful cleaning and sanitization. This means that your dishes will not only look clean but will also be free from harmful bacteria and germs. This dishwasher is more than just a cleaning machine. It's also designed to make your life easier with a handy slider, hidden LED display, and EasyRack® system that allows for maximum flexibility in loading dishes. Plus, the interior LED lighting makes it easy to see everything inside. You'll have plenty of room to fit everything with 15 total place settings, whether you're hosting a dinner party or just cooking for the family. Plus, with the option of PrintProof® black or classic stainless steel, this dishwasher is sure to match any kitchen décor. Don't settle for a subpar dishwasher. Upgrade to the LG Smart Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and TrueSteam® today and enjoy clean, dry dishes with ease.

Product Features

The Industry's Leading 1-Hour Wash & Dry
LG's exclusive QuadWash® Pro and Dynamic Heat Dry™ technologies combine to deliver the industry's leading 1-hour wash and dry cycle1 for sparkling, table-ready dishes in less time. So you can spend more time on what matters.
Pro-Level Cleaning Performance
Tackle post-dinner cleanup like a pro with the enhanced cleaning power of QuadWash® Pro. High-pressure jets with 38% more cleaning power2, spray dishes from multiple angles, while soaking them with over one million microbubbles to help break down stubborn food residue and provide exceptional cleaning performance.
Drier than Ever
Our Dynamic Heat Dry™ technology circulates hot air throughout the dishwasher for faster, more complete drying3 that won't melt your plastics, delivering sparkling, table-ready dishes right off the rack.

Manuals & Guides

Key Features

Clean, Sanitize, and Reduce Water Spots

LG TrueSteam® uses the power of steam to penetrate food residue and help eliminate water spots by up to 60%4. Plus, LG dishwashers are certified by the National Sanitation Foundation to reduce bacteria on dishes by 99.999% and reach a final rinse temperature greater than 150°F when operated on the Steam cycle5 for peace of mind.

Keep an Eye on the Clock

Conveniently manage your time with a hidden LED display that counts down the remaining cycle time. When the dishwasher is not in use, the display disappears for a sleek look.

Make Room for Last-Minute Items

Use the handy slider to adjust the 3rd rack height—even when fully loaded—to make room for taller items at the last minute. Not only can you save time and wash fewer loads, it’s also a convenient spot for hard-to-fit items like flatware, long-handled utensils or small espresso cups.

Easy installation with pros and DIYers in mind

LG dishwashers are built with pros and DIYers in mind. Every dishwasher comes with a thoughtfully built base and standard hardware designs that helps save time and money. Every LG dishwasher includes features such as: Flexible Mounting, Factory-Installed 3/8" Brass Fitting and 6-Foot Drain House to help prevent leaking, Faster Leveling, Quick-Access Junction Box, No-Fuss Insulation Blanket, and Universal Installation Parts.

Brilliant Visibility

Now you can check on dishes in an instant with the help of interior LED lighting. Two integrated tub lights turn on when the dishwasher door is opened, so you can easily check on your favorite mug.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app7 offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your dishwasher remotely, track and download cycles, connect with Google or Alexa voice assistants, and more. ThinQ Care appliances send usage, maintenance, and diagnostic alerts to notify you of potential issues like water leakage. ThinQ UP appliances receive software updates for new features and enhancements. Learn more.

Built In Leak Protection for Peace of Mind

ThinQ monitors water supply, drainage and leakage and will notify you if any issues arise after installation. Built right in for worry-free operation. Compatible models with ThinQ Care will alert you as soon as there is an issue.6

More Flexibility Means No Dish Gets Left Behind

EasyRack Plus® lets you fit more dishes, run fewer loads and make short work of after-dinner cleanup. With three height settings, the upper rack adjusts effortlessly and smoothly to make room for tall stemware on top or oversize pans below. Customizable tines offer greater flexibility for loading dishes of all shapes and sizes without compromising cleaning performance.

Videos

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Reviews

$6,382.21 ~~$10,352.99~~ Save $3,970.78 / 38% OFF

Product Details for LG HCED3015S

Technical Details

Other

Carton Dimensions (in) (W x H x D)	34 1/4" x 27 3/8" x 26 5/8"
Distance Over Cooking Surface	26" - 34"

Appearance

All Available Colors

Stainless Steel

Controls

Control Type

IR Touch

Features

Auto Delay-Off	Yes
Filters	Decorative Mesh (2) Dishwasher-Safe
RoHS Compliant	Yes

Lighting

8W LED Light Strip

Lower oven features

Broil element pass

Power/ratings

Circuit Breaker Size	15 A
Ratings/Requirements/Type	120V, 4Amps, 60Hz
UL Listed	Yes

Cooking appliance thinq® smart features

ThinQ® Smart Technology

Yes

Venting system

CFM (min-max)	200-600
Sones (min-max)	1-6
Vertical Internal Blower	6” Round

Warranty/upc

Parts and Labor	1 Year Parts & Labor
UPC	048231341356

Dimensions & weight

Width	29.94 in.
Height	27 in.
Length	22.06 in.
Carton Dimensions (in) (W x H x D)	34 1/4" x 27 3/8" x 26 5/8"
Shipping Weight (lbs)	52 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.94 in.
Shipping Height	32 in.
Shipping Length	27.06 in.
Source	Manufacturer

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.32 ft³
Dimensional Weight	128.3 lbs.
Total of Cubes	10.32 ft³
Total of Dimensional Weight	128.3 lbs.

Description

The LG 30-inch Wall Mount Chimney Hood seamlessly integrates into every kitchen. The streamlined styling of the sleek chimney-style hood vent offers plenty of design appeal for 30-inch spaces without distracting from your overall kitchen aesthetic. The professional-grade blower adjusts from 200 to 600 CFM for greater ventilation with a quiet performance. This hood features integrated touch controls that allow you to choose from 5 fan speeds, a delay-off function, auto reminders and Airflow Control Technology. Spend more time cooking and less time cleaning with aluminum mesh filters that can be easily removed and are dishwasher safe.

Product Features

Sync With Your Smart LG Range or Cooktop
For a seamless cooking experience, sync the Hood with your smart LG Range or Cooktop via the ThinQ® app. This feature automatically activates the hood's fan and light when the cooktop burners are in use, and deactivates them when the burners are turned off.

Manuals & Guides

Key Features

Check Under this Hood

When your mouthwatering meal leaves an equally impressive scent trail, the LG hood vent offers superior ventilation to quickly neutralize smoke, grease and cooking odors. The professional-grade blower adjusts from 200 to 600 CFM for greater ventilation as well as moisture and odor removal when you need it most. Powerful, yes, but with quiet performance that won’t disrupt your dinner conversations.

Sleek. Seamless. Stylish.

Whether an accomplished chef or eager apprentice, you’ll always look like a pro operating your LG hood vent with stylish touch controls. Seamlessly integrated into the hood with no cumbersome knobs to turn, the touch pads give you complete control over 5 fan speeds, delay-off function, auto reminders and Airflow Control Technology.

Low Profile. Big on Design.

The streamlined styling of the sleek chimney-style hood vent offers plenty of design appeal for 30” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profile appearance while enjoying the high-tech power behind the hood.

A Smarter Home Starts with the LG ThinQ® App

The ThinQ app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home. Manage and monitor your hood remotely, sync it with a smart LG range or cooktop to automatically activate the light and vent when the cooktop is in use, and more. Learn more.

Cook More. Clean Less.

All cooks can agree that one of the less glamorous aspects of cooking is the cleanup. Fortunately, this LG hood vent not only whisks away smoke and steam while you’re cooking, it includes removable aluminum mesh filters that can simply be popped into the dishwasher when you’re done—making smoke buildup and grease splatters a distant memory.
