Product Details for KITCHENAID KVUB406GSS

Technical Details

Controls

Control Location Front
Control Type Electronic Touch

Dimensions & weight

Width 35.94 in.
Height 2.38 in.
Length 19.69 in.
Weight 51 lbs.
Carton Depth 18 1/8
Carton Height 23 1/4
Carton Width 39
Gross Weight 51
Net Weight 38.5
Maximum Height(IN,inches) 16.5000
Minimum Height(IN,inches) 2.3750
Net Weight(LB,pounds) 38
Carton Depth(IN,inches) 18.1250
Carton Height(IN,inches) 23.2500
Carton Width(IN,inches) 39.0000
Gross Weight(LB,pounds) 51

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.94 in.
Shipping Height 7.38 in.
Shipping Length 24.69 in.
Shipping Weight 91 lbs.
Total of Shipping Weight 91 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.97 ft³
Dimensional Weight 10.12 lbs.
Total of Cubes 0.97 ft³
Total of Dimensional Weight 10.12 lbs.

Certifications

prop65 Standard

Details

Hood Type Under Cabinet
Number of Night Light Settings 1
Number of Task Light Settings 2
Number of Vent Speeds 4
Task Lighting Yes

Dimensions

carton depth 18
carton height 23
carton width 39
gross weight 51
net weight 38.5

Ventilation details

Auto Function Auto On
Auto On Yes
Blower Motor N/A
Blower Type Centrifugal
CFM Motor Class 400
Duct Direction Vertical
Duct Outlet Size 6
Duct Type Round
Exhaust Vent Location Top
Filters Grease Filters
Minimum Motor CFM 100
Night Light Yes
Night Light Type LED
Sones High Speed Vertical 3
Task Light Type LED
Venting Exterior or Recirculating

Product details

Energy Star® Qualified No

Description

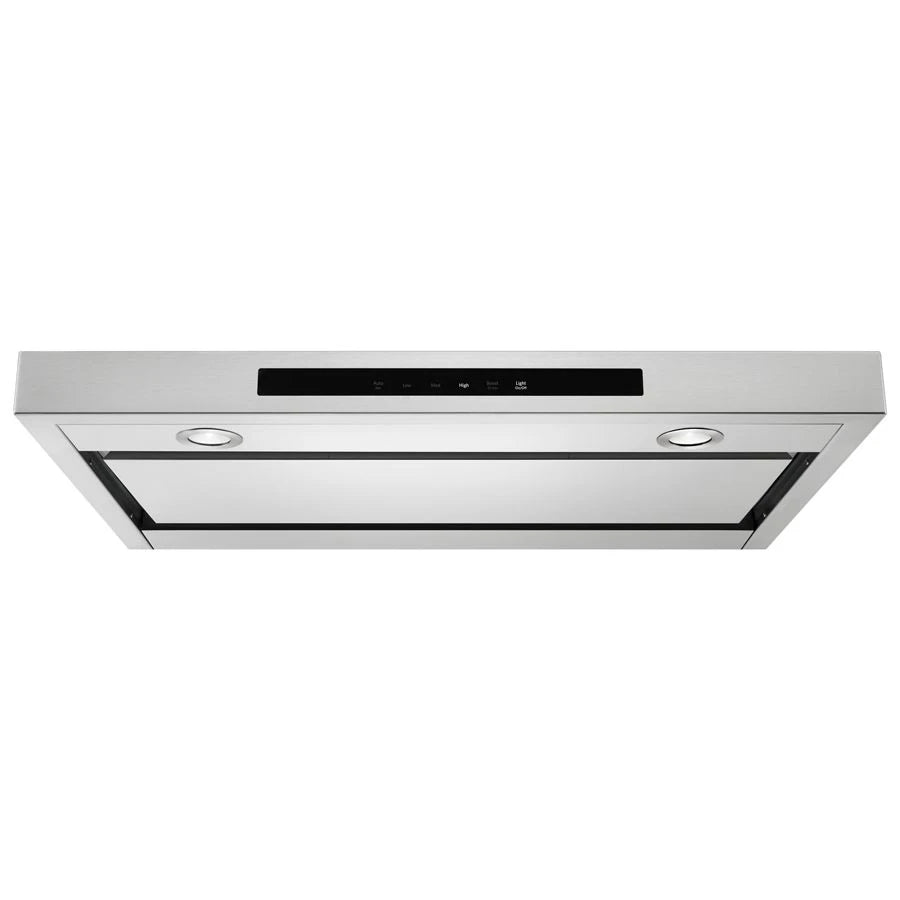

The KitchenAid KVUB406GSS is a 36" low-profile under-cabinet ventilation hood designed to provide powerful yet quiet performance in your kitchen. Equipped with a 400 CFM internal blower, it effectively clears smoke, odors, and grease from the air. The Whisper Quiet® System ensures minimal noise, operating at just 0.1 sones on low speed, allowing for a peaceful cooking environment. The perimeter ventilation system pulls air from the edges of the hood, enhancing airflow and capturing more smoke and odors. Its 3-speed electronic glass touch controls offer precise operation, while the LED task lighting illuminates your cooktop for better visibility. The dishwasher-safe grease filters make maintenance easy, and the sleek stainless steel design complements modern kitchen aesthetics. With a height of 2-3/8 inches and a depth of 19-11/16 inches, this hood is ideal for installations with limited space above the cooktop.



Product Features

  • Low Profile Design
    Affords more space between the bottom of the hood and the cooking surface. The visible portion of the hood extends just 2-3/8" below the cabinetry above it, enabling ventilation even in limited spaces and offering more room for creativity.
  • 400 CFM Motor Class Ventilation System
    Helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.
  • Perimeter Ventilation
    Can handle up to a 65,000 BTU total output by pulling air from the edges of the hood and speeding up the movement of the air at the center
  • Auto Speed Setting
    Detects via a heat sensor when your cooktop is in use, then automatically adjusts the fan. The feature keeps your kitchen ventilation up to speed with even your most adventurous cooking techniques, so you can pan-sear scallops without a second thought.
  • Automatic Turn On
    Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
  • 3-Speed Electronic Glass Touch Control with Boost Function
    Provides precise electronic control with visual feedback on settings and selections. Supports cooking methods such as pan-searing meats by initiating a 10-minute burst of high-speed ventilation to filter smoke and steam, then returning to normal setting.
  • Two LED Task Lights with Night Light Setting
    Helps you fully utilize the extra cooktop workspace afforded by the hood's Low Profile Design. Brilliant dual LEDs let you keep a sharp eye on the back burner, and provide a convenient Night Light low setting.
  • Removable Filters
    help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
  • 65,000 BTU Rating
    Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
