Product Details for KITCHENAID KVUB400GSS
Technical Details
Controls
| Control Location | Front |
| Control Type | Electronic Touch |
Dimensions & weight
| Width | 29.94 in. |
| Height | 2.38 in. |
| Length | 19.69 in. |
| Weight | 48 lbs. |
| Carton Depth | 18 1/8 |
| Carton Height | 23 1/4 |
| Carton Width | 33 1/8 |
| Gross Weight | 48 |
| Net Weight | 35.8 |
| Maximum Height(IN,inches) | 16.5000 |
| Minimum Height(IN,inches) | 2.5000 |
| Net Weight(LB,pounds) | 36 |
| Carton Depth(IN,inches) | 18.1250 |
| Carton Height(IN,inches) | 23.2500 |
| Carton Width(IN,inches) | 33.1250 |
| Gross Weight(LB,pounds) | 48 |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 34.94 in. |
| Shipping Height | 7.38 in. |
| Shipping Length | 24.69 in. |
| Shipping Weight | 88 lbs. |
| Total of Shipping Weight | 88 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 0.81 ft³ |
| Dimensional Weight | 8.43 lbs. |
| Total of Cubes | 0.81 ft³ |
| Total of Dimensional Weight | 8.43 lbs. |
Certifications
| prop65 | Standard |
Details
| Hood Type | Under Cabinet |
| Number of Night Light Settings | 1 |
| Number of Task Light Settings | 2 |
| Number of Vent Speeds | 4 |
| Task Lighting | Yes |
Dimensions
| carton depth | 18 |
| carton height | 23 |
| carton width | 33 |
| gross weight | 48 |
| net weight | 35.8 |
Ventilation details
| Auto Function | Auto On |
| Auto On | Yes |
| Blower Motor | N/A |
| Blower Type | Centrifugal |
| CFM Motor Class | 400 |
| Duct Direction | Vertical |
| Duct Outlet Size | 6 |
| Duct Type | Round |
| Exhaust Vent Location | Top |
| Filters | Grease Filters |
| Minimum Motor CFM | 100 |
| Night Light | Yes |
| Night Light Type | LED |
| Sones High Speed Vertical | 3 |
| Task Light Type | LED |
| Venting | Exterior or Recirculating |
Product details
| Energy Star® Qualified | No |
Description

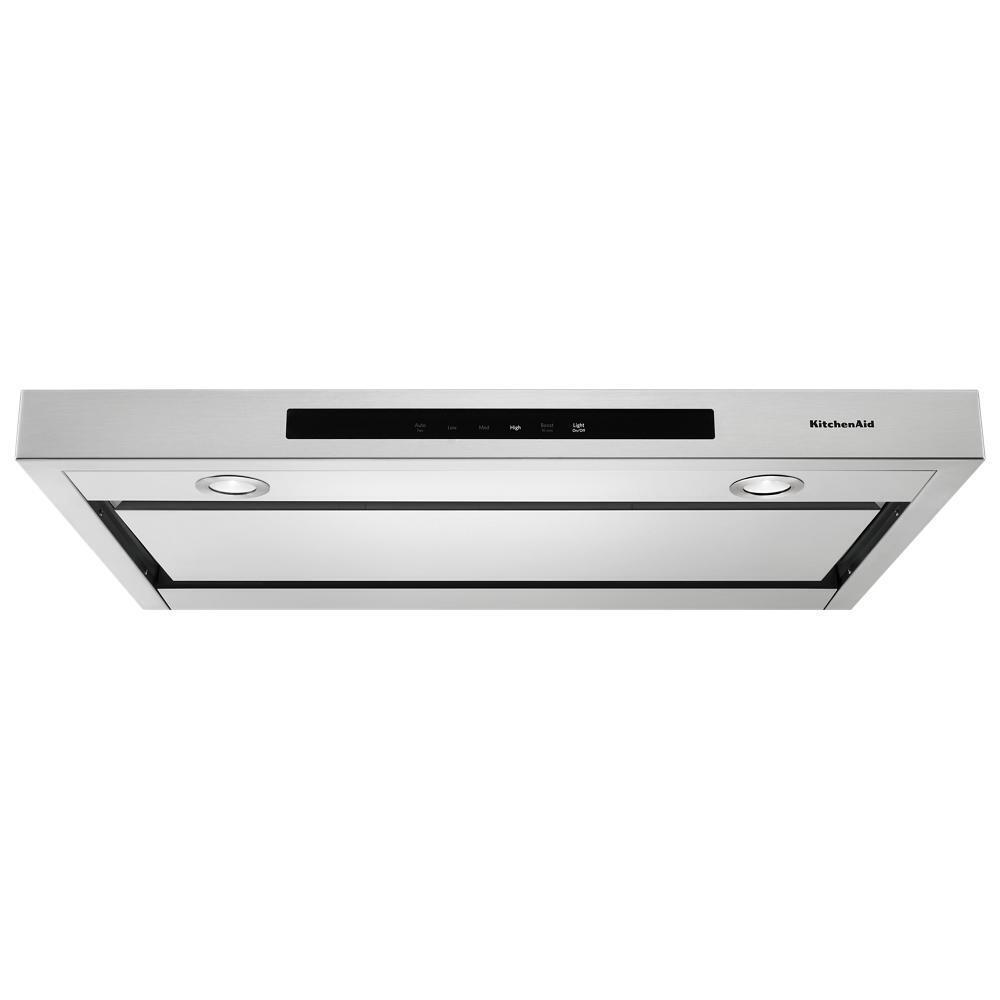

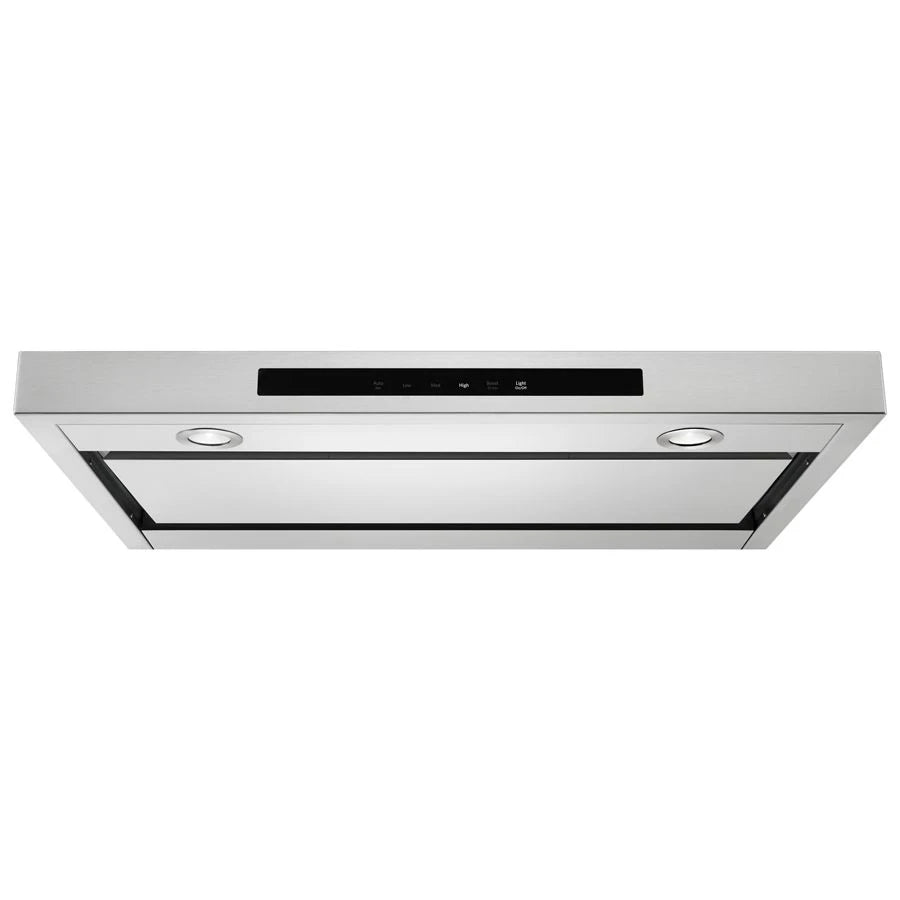

The brand KitchenAid KVUB400GSS is a compact yet powerful 30" low-profile under-cabinet ventilation hood engineered for everyday cooking needs. Featuring an adjustable 150–400 CFM motor with three-speed fan control, it effectively removes smoke, steam, and odors from your kitchen while matching various cooktop outputs. The energy-efficient LED lighting provides bright, clear illumination for your cooking surface, and the durable smudge-resistant stainless steel finish resists fingerprints and smudges. With dishwasher-safe baffle filters for quick cleaning and a heat sensor that increases fan speed automatically under high heat, this hood blends convenience, efficiency, and sleek design—perfect for kitchens where space is premium and style matters.
Product Features
-

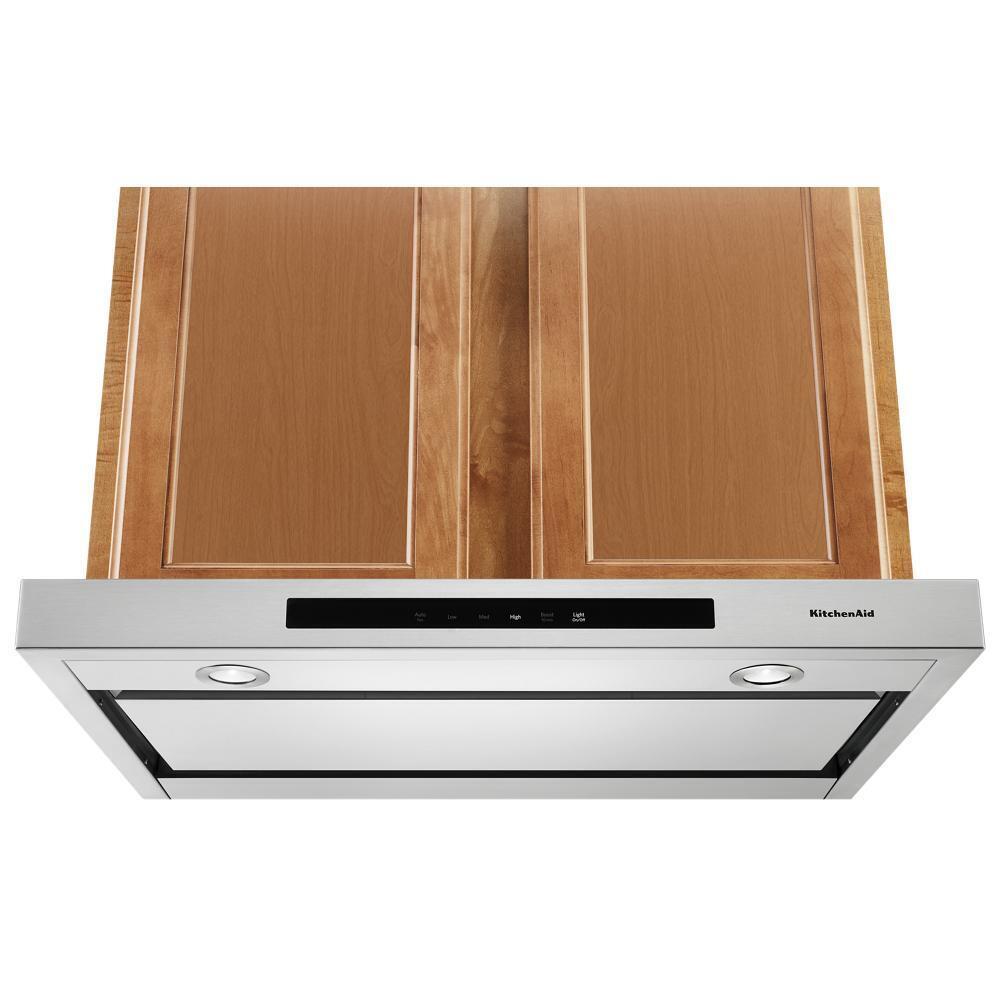

Low Profile Design
Affords more space between the bottom of the hood and the cooking surface. The visible portion of the hood extends just 2-3/8" below the cabinetry above it, enabling ventilation even in limited spaces and offering more room for creativity. -

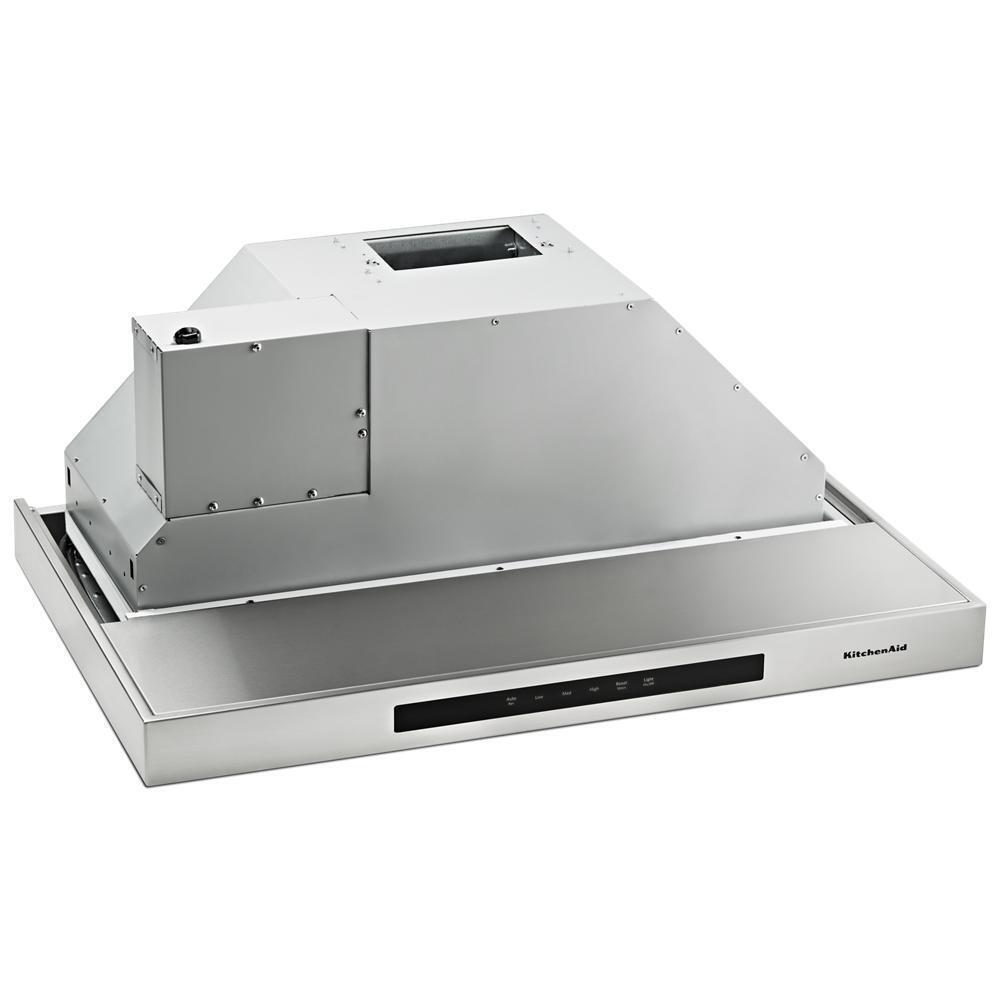

400 CFM Motor Class Ventilation System
Helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence. -
Perimeter Ventilation
Can handle up to a 65,000 BTU total output by pulling air from the edges of the hood and speeding up the movement of the air at the center -
Auto Speed Setting
Detects via a heat sensor when your cooktop is in use, then automatically adjusts the fan. The feature keeps your kitchen ventilation up to speed with even your most adventurous cooking techniques, so you can pan-sear scallops without a second thought. -
Automatic Turn On
Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost. -
3-Speed Electronic Glass Touch Control with Boost Function
Provides precise electronic control with visual feedback on settings and selections. Supports cooking methods such as pan-searing meats by initiating a 10-minute burst of high-speed ventilation to filter smoke and steam, then returning to normal setting. -
Two LED Task Lights with Night Light Setting
Helps you fully utilize the extra cooktop workspace afforded by the hood's Low Profile Design. Brilliant dual LEDs let you keep a sharp eye on the back burner, and provide a convenient Night Light low setting. -
Removable Filters
help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water. -
65,000 BTU Rating
Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
