Sale price Contact us for Pricing

Product Details for KitchenAid KUWR314KBS

Technical Details

Controls

Automatic Defrost Yes
Control Lockout Yes
Cooling On/Off Yes
Door Ajar/Open Alarm Yes
Sabbath Mode Yes

Details

Number of Racks 6
Rack Front Material Stainless Steel
Zone 1 Capacity 24 Bottles
Zone 1 Description Upper
Zone 1 Temperature Range 42F to 54F
Zone 2 Capacity 22 Bottles
Zone 2 Description Lower
Zone 2 Temperature Range 42F to 64F
Refrigerator Type Wine Cellar
Ice Maker On/Off No

Certifications

ADA Compliant No
Star K Certified Yes
Energy Star® Qualified No
Prop 65 Standard - Standard

Electrical

Amps 15
Volts 115

Dimensions & weight

Width 23.88 in.
Height 35.94 in.
Length 26.44 in.
Weight 140 lbs.
Cabinet Width (in) 23 7/8
Carton Depth 29 11/16
Carton Height 35 15/16
Carton Width 25 3/4
Cutout Depth (in) 24
Cutout Height (in) 34 1/2
Cutout Width (in) 24
Depth Excluding Doors 21 11/16
Depth With Door Open 90 Degree 48
Gross Weight 140
Height To Top Of Cabinet 34 3/16
Height To Top Of Door Hinge 34 3/8
Net Weight 129.0
Cabinet Width (IN,inches) 23.8750
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 34.5000
Cutout Width(IN,inches) 24.0000
Depth Closed Excluding Handles(IN,inches) 23.6250
Depth Closed Including Handles(IN,inches) 26.4375
Depth Excluding Doors(IN,inches) 21.6875
Depth With Door Open 90 Degree(IN,inches) 48.0000
Height To Top Of Cabinet(IN,inches) 34.1875
Height To Top Of Door Hinge(IN,inches) 34.3750
Net Weight(LB,pounds) 129
Carton Depth(IN,inches) 29.6875
Carton Height(IN,inches) 35.9375
Carton Width(IN,inches) 25.7500
Cutout Height Min(IN,inches) 34.5000
Gross Weight(LB,pounds) 140

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.88 in.
Shipping Height 40.94 in.
Shipping Length 31.44 in.
Shipping Weight 180 lbs.
Total of Shipping Weight 180 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.13 ft³
Dimensional Weight 163.24 lbs.
Total of Cubes 13.13 ft³
Total of Dimensional Weight 163.24 lbs.

Exterior details

Handle Location Vertical
Reversible Door No
Window Yes
Cabinet Color Black
Door Color Black Stainless Steel
Handle Material Metal
Handle Type Reach Through Handle

Filter details

Water Filter Indicator/Reset No

Icemaker details

Ice Maker On/Off No

Refrigerator details

Number of Temperature Controlled Zones 2
Liner Finish Plastic

Interior details

Interior Light LED

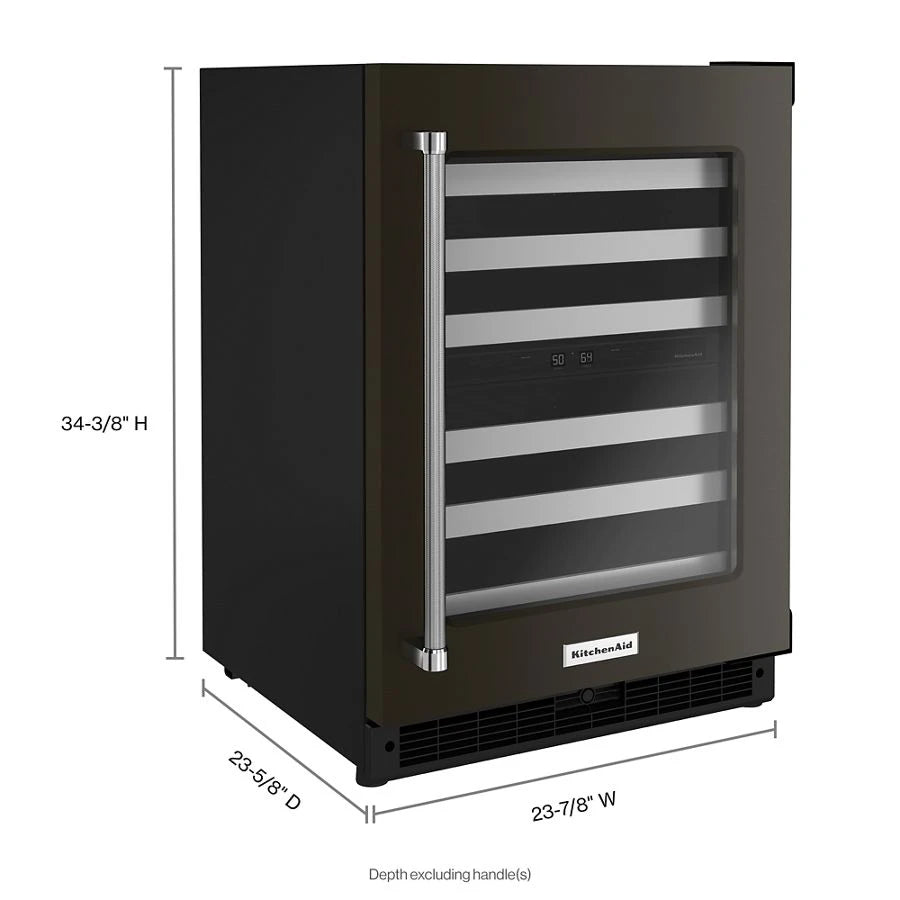

Dimensions

Capacity 4.97 cu. ft.
Cutout Depth 24 in
Cutout Height 34-1/2 in
Cutout Width 24 in
Depth 26-7/16 in
Depth Closed Excluding Handles 23-5/8 in
Depth Closed Including Handles 26-219/500 in
Depth Excluding Doors 21-86/125 in
Depth With Door Open 90 Degree 48 in
Gross Weight 136-7/10 lbs
Height To Top Of Cabinet 34-47/250 in
Height To Top Of Door Hinge 34-3/8 in
Net Weight 125-7/10 lbs
Width 23-7/8 in

Description

This Undercounter Wine Cellar with Full-Extension Metal-Front Racks holds up to 46 standard Bordeaux-size bottles. Two Temperature-Controlled Zones let you separate reds and whites to store each at the temperature you enjoy, and Motion-Activated LED Lighting turns on as you approach, making it easy to see what’s inside. Fully Flush Installation with Hidden Hinges provides a built-in look within cabinetry.


Product Features

  • Door Alarm
    alerts you if the door has been left open for five minutes or more and repeats every two minutes until you close the door or touch the controls.
  • Sabbath Mode (Star-K Certified)
    to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. Turning on Sabbath Mode disables automatic lights and alarm tones.
  • Automatic Defrost
    cycles automatically to help reduce frost build-up, freeing you from having to regularly empty the appliance and manually defrost.

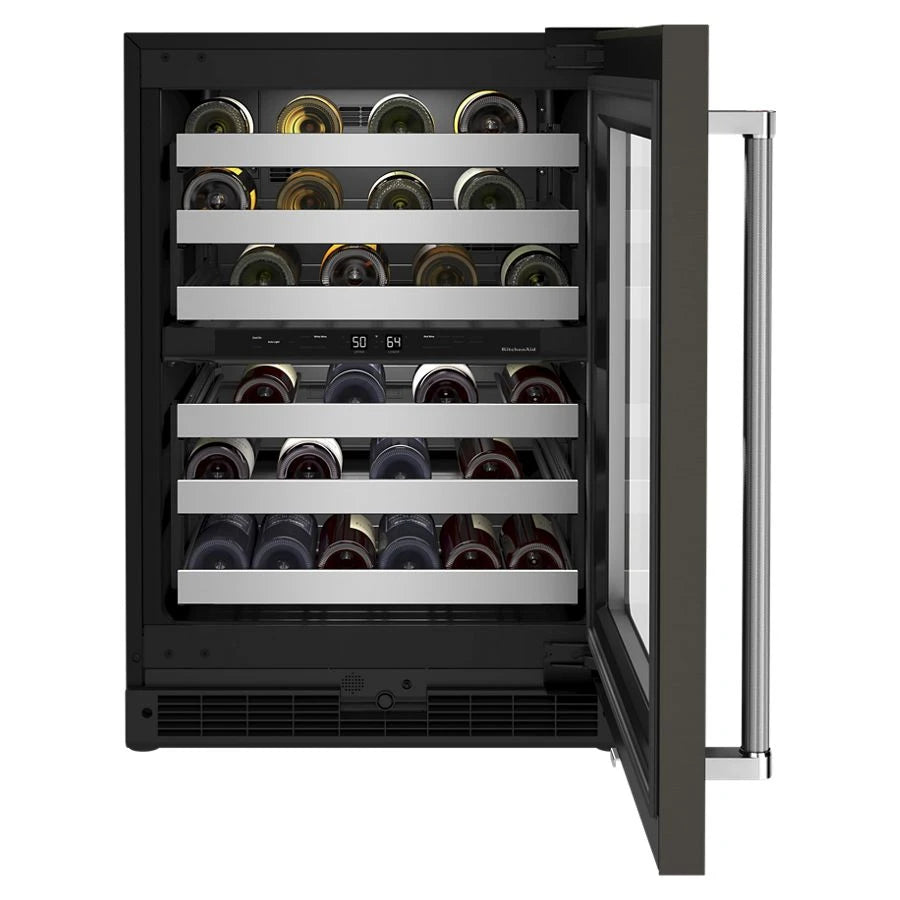

  • 46 Standard Wine Bottle Capacity
    Provides room for 8 Bordeaux-size bottles on each of the five upper racks and 6 Champagne-style bottles on the lower rack. Overall capacity may be lower for collections that include taller or wider bottles in non-standard shapes and sizes.
  • Two Temperature-Controlled Zones
    let you separate reds and whites to store and serve each at the temperature you enjoy. Adjust the top zone from 42–54°F for whites and the bottom zone from 42–64°F for reds.
  • Temperature Monitoring System
    uses sensors to monitor temperatures inside the wine cellar for added peace of mind. If the system detects temperatures above 70°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.
  • Motion-Activated LED Lighting
    turns on inside as you approach, so you can see what's inside without opening the door. Lights will gradually dim and turn off when no longer needed.

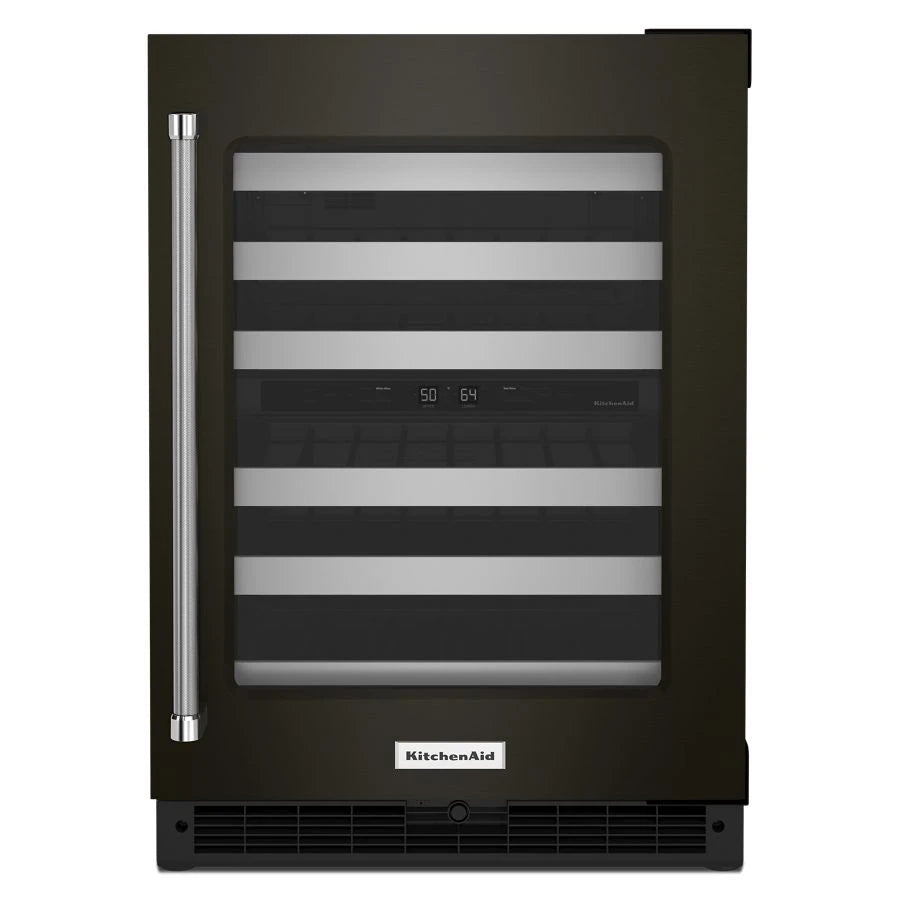

  • UV-Protected Thermal Glass Door
    filters UV rays to protect the contents of your wine cellar from the damaging effects of heat and light.
  • Stainless Steel Cabinet and Base Grille
    complement the stainless steel door for a fully finished look.

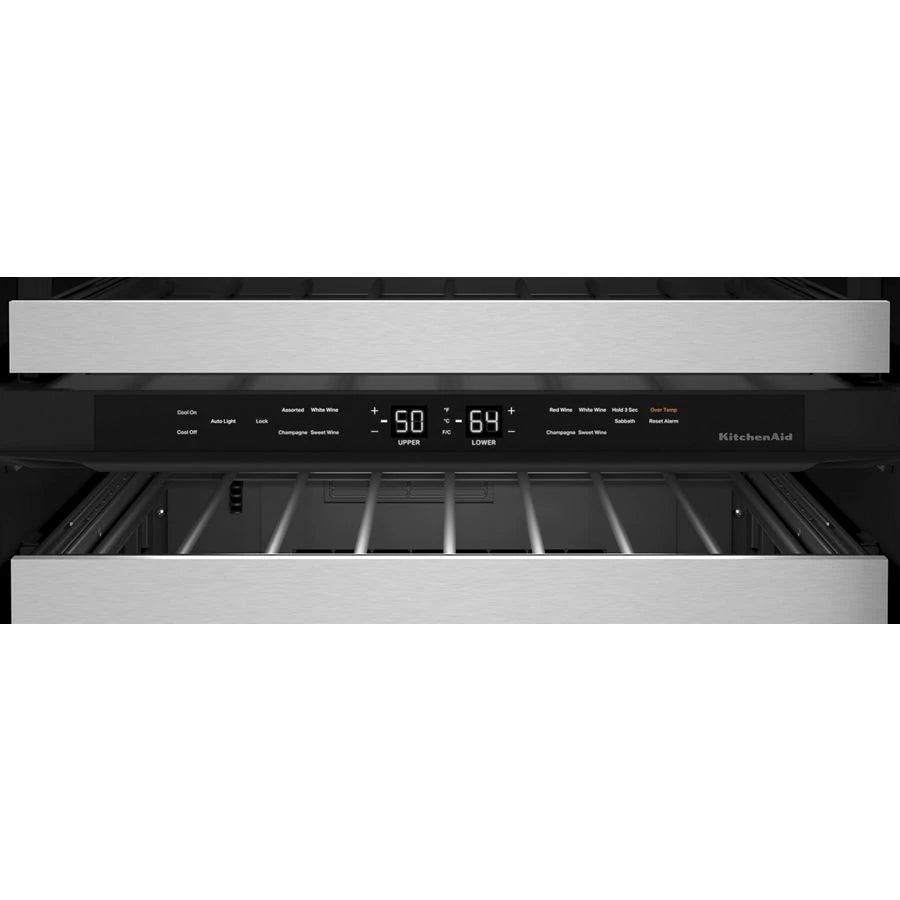

  • Backlit Touch Controls
    located on the divider between the two temperature zones make it easy to choose settings for what you're storing. The lighted control panel displays current temperatures for each zone and other status alerts.

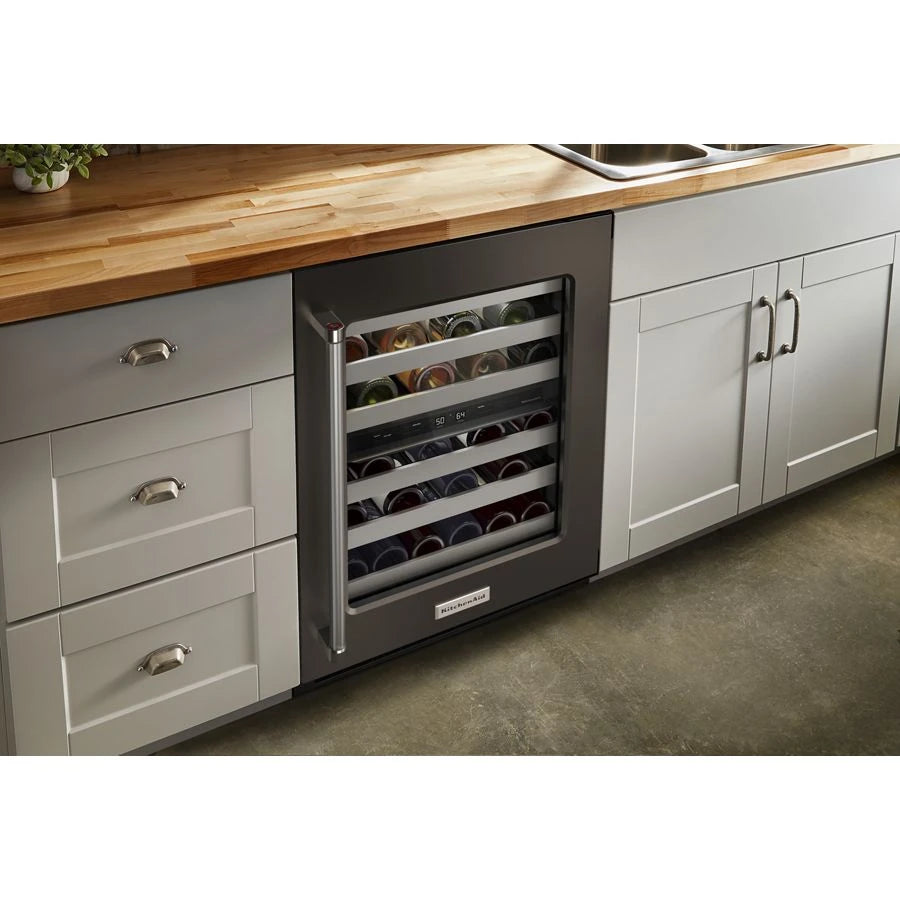

  • Fully Flush Installation with Hidden Hinges for a built-in look
    provides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the wine cellar door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 115 degrees.

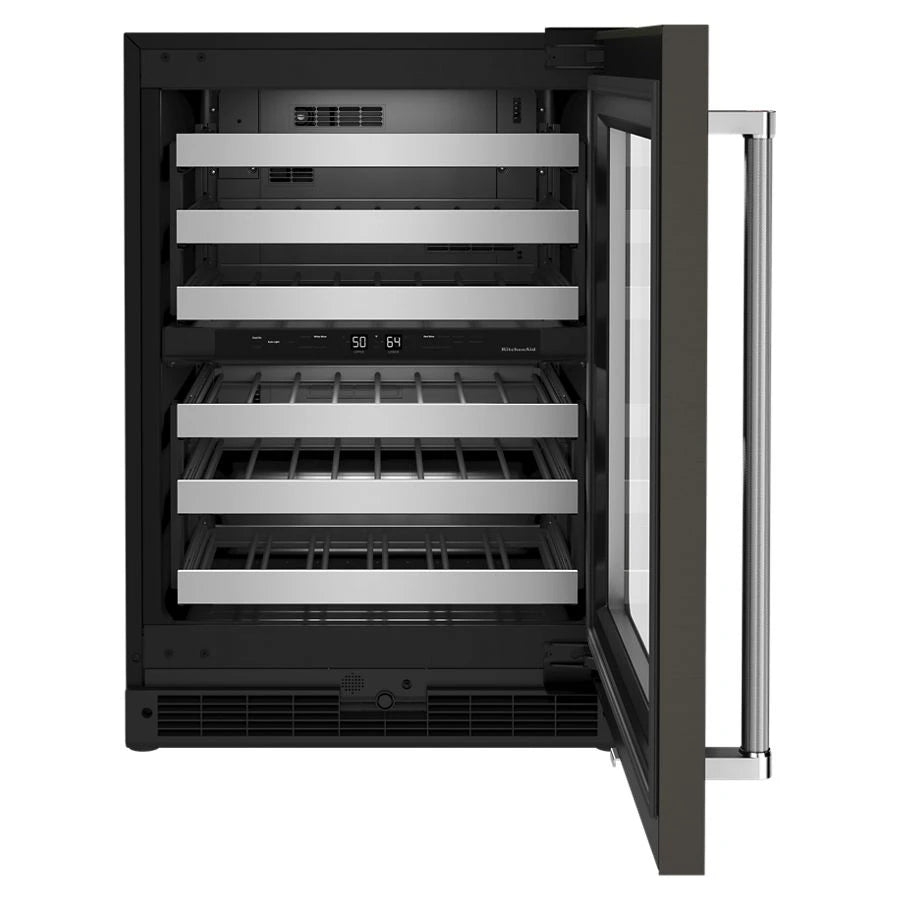

  • SatinGlide® Full-Extension Metal-Front Racks
    pull all the way out, making it easy to load bottles in when restocking and find just the one you want when serving. Metal fronts let you coordinate with your home decor.
