SKU: KUWL214KPA | UPC: 883049935980

KitchenAid KUWL214KPA 24" Panel-ready Undercounter Wine Cellar With Wood-front Racks Panel Ready

Quick Specification More details

Width:
23.88"
Depth:
26" - 27"
Height:
35.94"
Type:
Wine Coolers

About this product

46 Standard Wine Bottle Capacity
Panel-Ready Design
Two Temperature-Controlled Zones
Temperature Monitoring System

SKU: KUWL214KPA | UPC: 883049935980

KitchenAid KUWL214KPA 24" Panel-ready Undercounter Wine Cellar With Wood-front Racks Panel Ready

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.88"
Depth:
26" - 27"
Height:
35.94"
Type:
Wine Coolers

About this product

46 Standard Wine Bottle Capacity
Panel-Ready Design
Two Temperature-Controlled Zones
Temperature Monitoring System

Related Products

Refrigerator Handle Medallion (set Of 2) With Wrenches (1-inches 1- Metric) For Kad Models - Red

KitchenAid W10846207 Refrigerator Handle Medallion (set Of 2) With Wrenches (1-inches 1- Metric) For Kad Models - Red

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for KitchenAid KUWL214KPA

Technical Details

Controls

Automatic Defrost	Yes
Control Lockout	Yes
Cooling On/Off	Yes
Door Ajar/Open Alarm	Yes
Max Cool/Fast Cool	No
Sabbath Mode	Yes

Details

Number of Racks	6
Rack Front Material	Wood
Zone 1 Capacity	24 Bottles
Zone 1 Description	Upper
Zone 1 Temperature Range	42F to 54F
Zone 2 Capacity	22 Bottles
Zone 2 Description	Lower
Zone 2 Temperature Range	42F to 64F
Refrigerator Type	Wine Cellar
Ice Maker On/Off	No

Certifications

ADA Compliant	No
Star K Certified	Yes
Energy Star® Qualified	No

Electrical

Amps	15
Volts	115

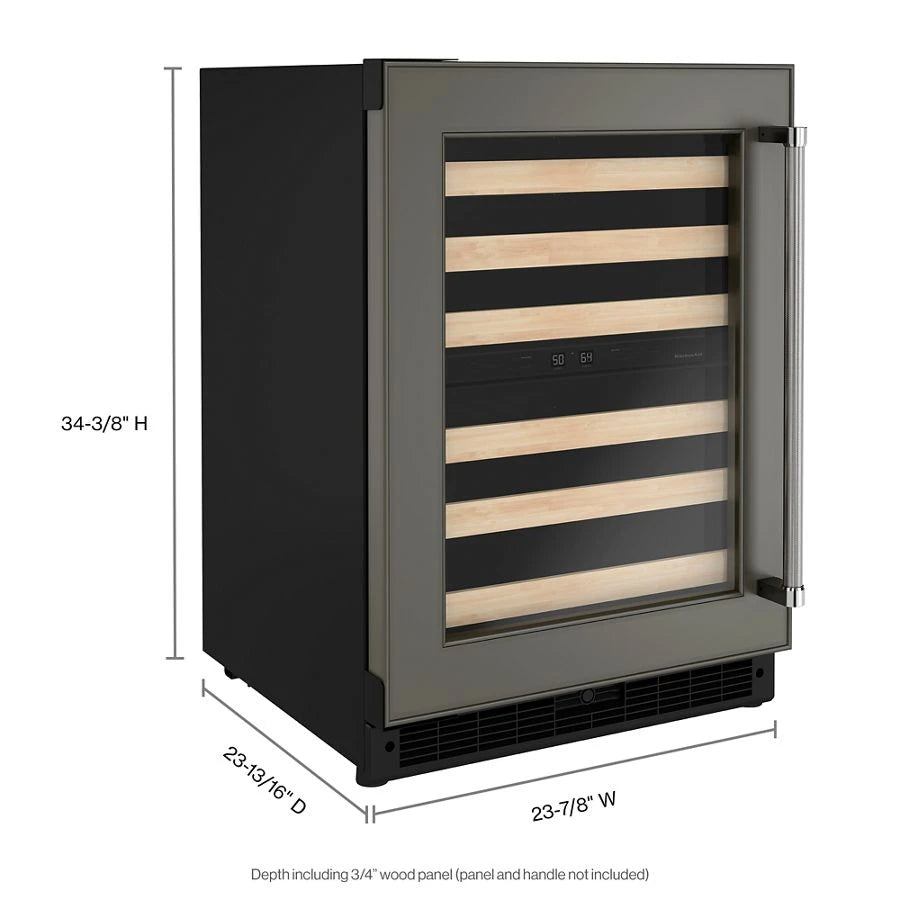

Dimensions & weight

Width	23.88 in.
Height	35.94 in.
Length	26.74 in.
Weight	139 lbs.
Cabinet Width (in)	23 7/8
Carton Depth	29 11/16
Carton Height	35 15/16
Carton Width	25 3/4
Cutout Depth (in)	24
Cutout Height (in)	34 1/2
Cutout Width (in)	24
Depth With Door Open 90 Degree	48
Gross Weight	139
Height To Top Of Cabinet	34 3/16
Height To Top Of Door Hinge	34 3/8
Net Weight	128.4
Cabinet Width (IN,inches)	23.8750
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	34.5000
Cutout Width(IN,inches)	24.0000
Depth Closed Excluding Handles(IN,inches)	23.6250
Depth Closed Including Handles(IN,inches)	26.4375
Depth Excluding Doors(IN,inches)	21.6875
Depth With Door Open 90 Degree(IN,inches)	48.0000
Height To Top Of Cabinet(IN,inches)	34.1875
Height To Top Of Door Hinge(IN,inches)	34.3750
Net Weight(LB,pounds)	128
Carton Depth(IN,inches)	29.6875
Carton Height(IN,inches)	35.9375
Carton Width(IN,inches)	25.7500
Cutout Height Min(IN,inches)	34.5000
Gross Weight(LB,pounds)	139

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.88 in.
Shipping Height	40.94 in.
Shipping Length	31.74 in.
Shipping Weight	179 lbs.
Total of Shipping Weight	179 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	13.28 ft³
Dimensional Weight	165.09 lbs.
Total of Cubes	13.28 ft³
Total of Dimensional Weight	165.09 lbs.

Exterior details

Cabinet Finish	Textured
Handle Location	Vertical
Reversible Door	No
Window	Yes
Cabinet Color	Black
Door Color	Panel Ready

Filter details

Water Filter Indicator/Reset

No

Icemaker details

Ice Maker On/Off

No

Refrigerator details

Number of Temperature Controlled Zones	2
Liner Finish	Plastic

Interior details

Interior Light

LED

Dimensions

Capacity	4.97 cu. ft.
Cutout Depth	24 in
Cutout Width	24 in
Depth With Door Open 90 Degree	48 in
Gross Weight	140 lbs
Net Weight	129 lbs
Cutout Height	34.5 in
Depth	23.625 in
Depth Closed Excluding Handles	23.625 in
Depth Closed Including Handles	26.438 in
Depth Excluding Doors	21.688 in
Height	34.375 in
Height To Top Of Cabinet	34.188 in
Height To Top Of Door Hinge	34.375 in
Width	23.875 in

Description

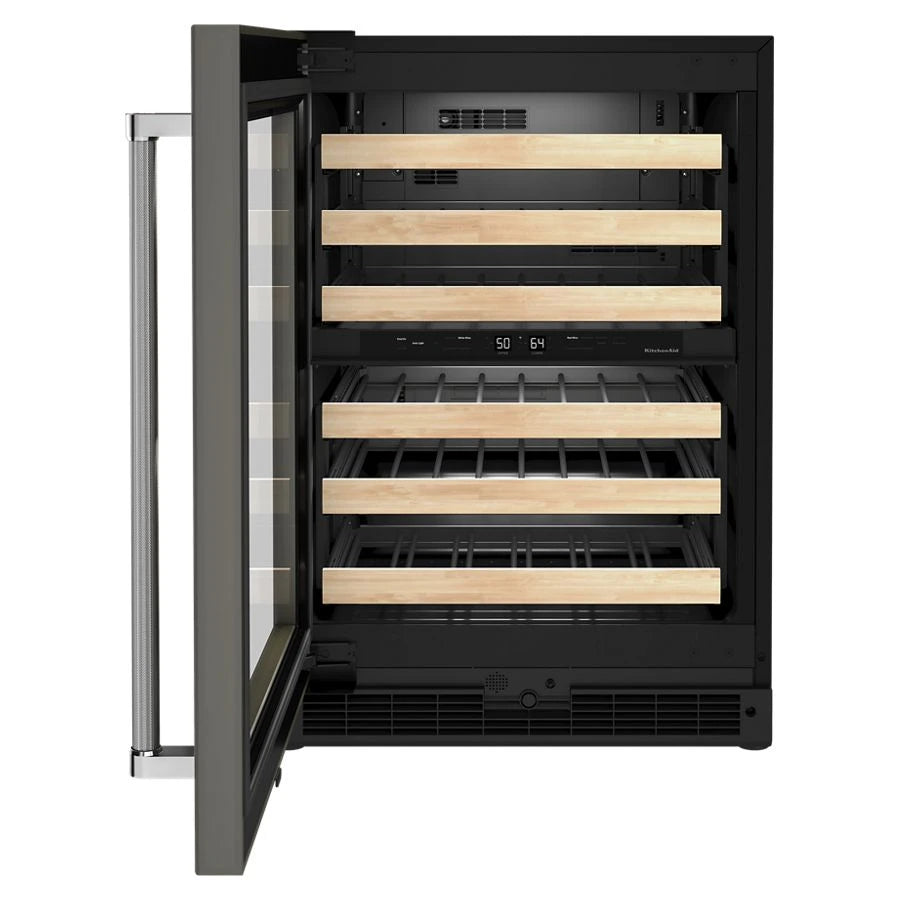

This Undercounter Wine Cellar with Full-Extension Wood-Front Racks holds up to 46 standard Bordeaux-size bottles. Two Temperature-Controlled Zones let you separate reds and whites to store each at the temperature you enjoy, and Motion-Activated LED Lighting turns on as you approach, making it easy to see what’s inside. Fully Flush Installation and Panel-Ready Design let you seamlessly match your cabinetry.

Manuals & Guides

Key Features

46 Standard Wine Bottle Capacity

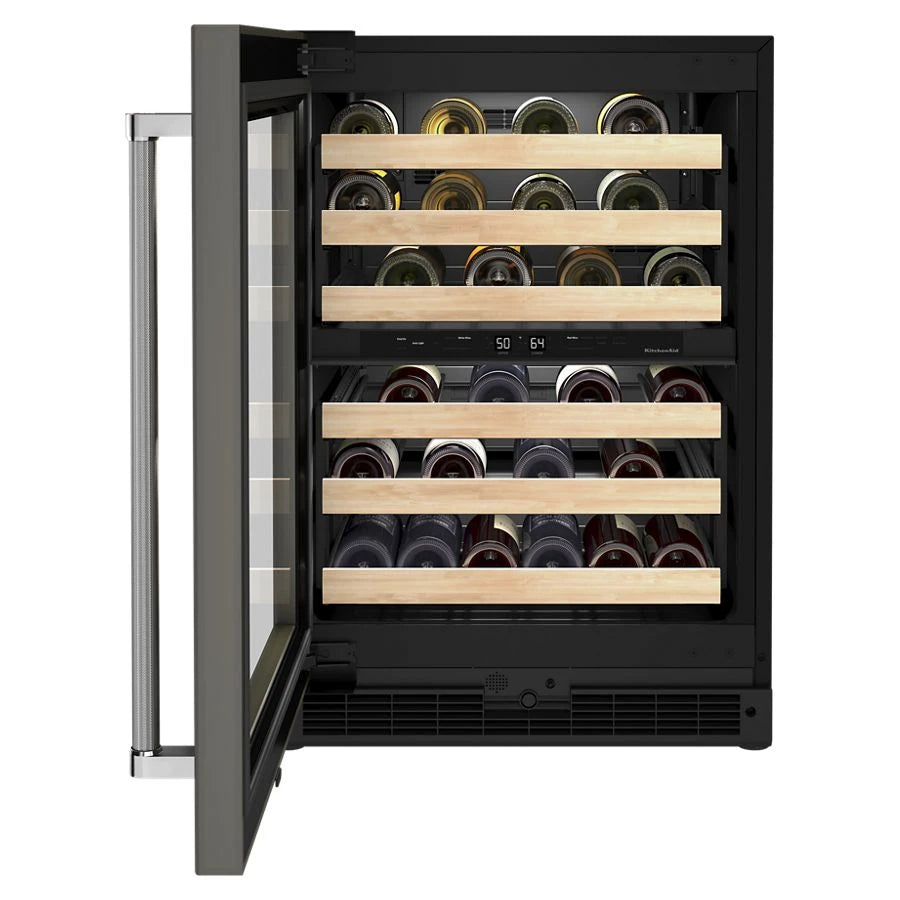

provides room for 8 Bordeaux-size bottles on each of the five upper racks and 6 Champagne-style bottles on the lower rack. Overall capacity may be lower for collections that include taller or wider bottles in non-standard shapes and sizes.

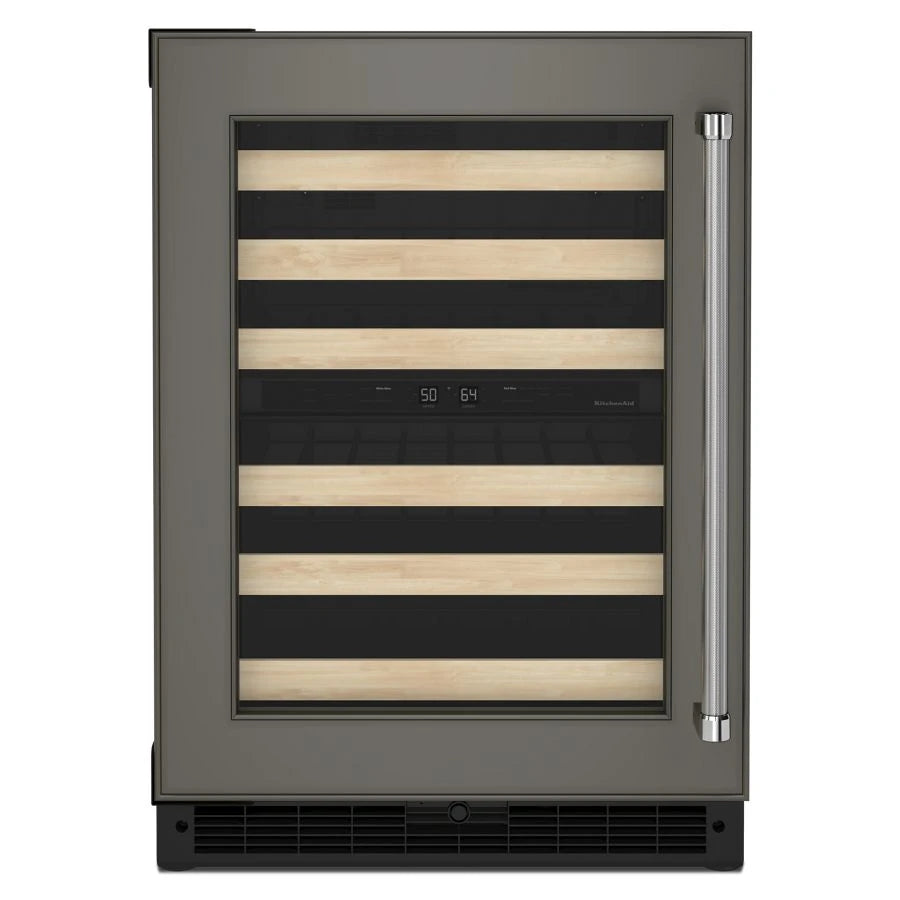

Panel-Ready Design

allows you to install a custom front panel and handle (not included) over the door to create a seamless look with kitchen cabinetry.

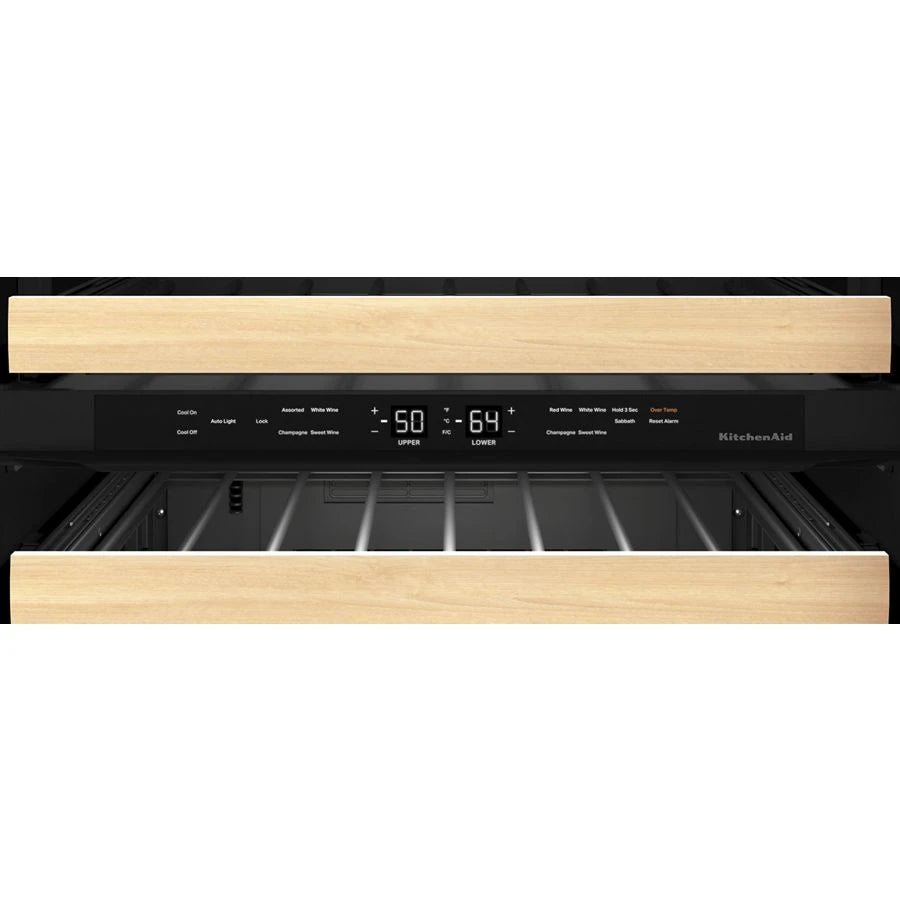

Two Temperature-Controlled Zones

let you separate reds and whites to store and serve each at the temperature you enjoy. Adjust the top zone from 42–54°F for whites and the bottom zone from 42–64°F for reds.

Temperature Monitoring System

uses sensors to monitor temperatures inside the wine cellar for added peace of mind. If the system detects temperatures above 70°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.

Motion-Activated LED Lighting

turns on inside as you approach, so you can see what's inside without opening the door. Lights will gradually dim and turn off when no longer needed.

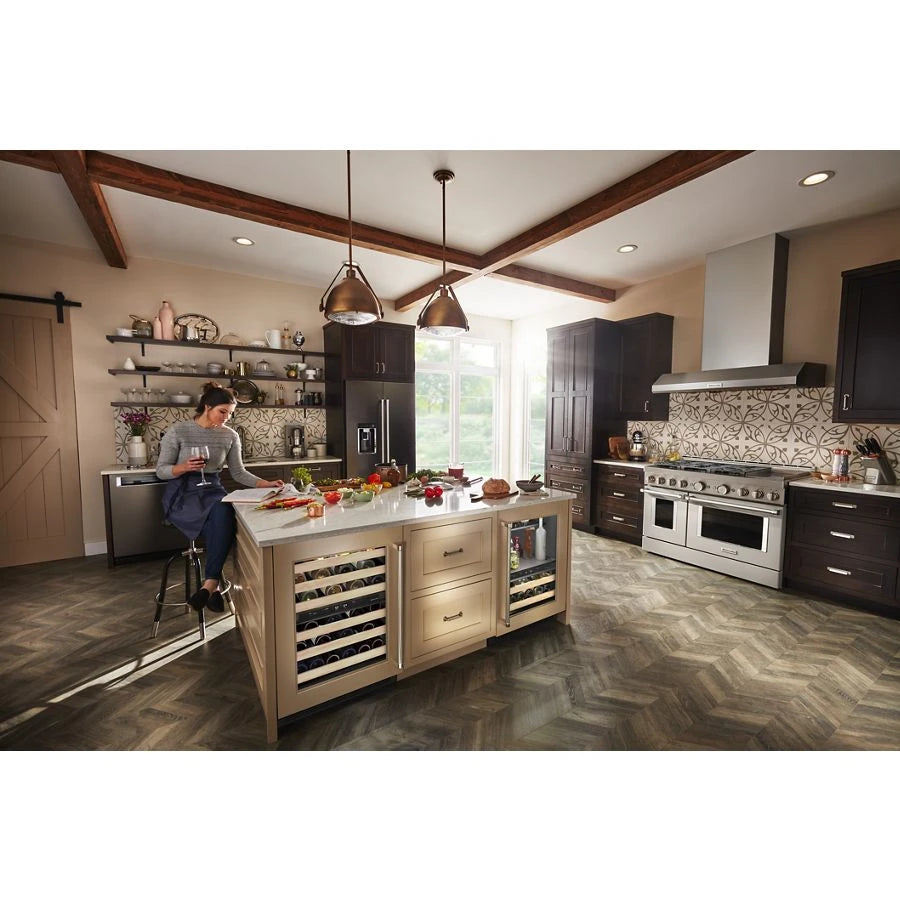

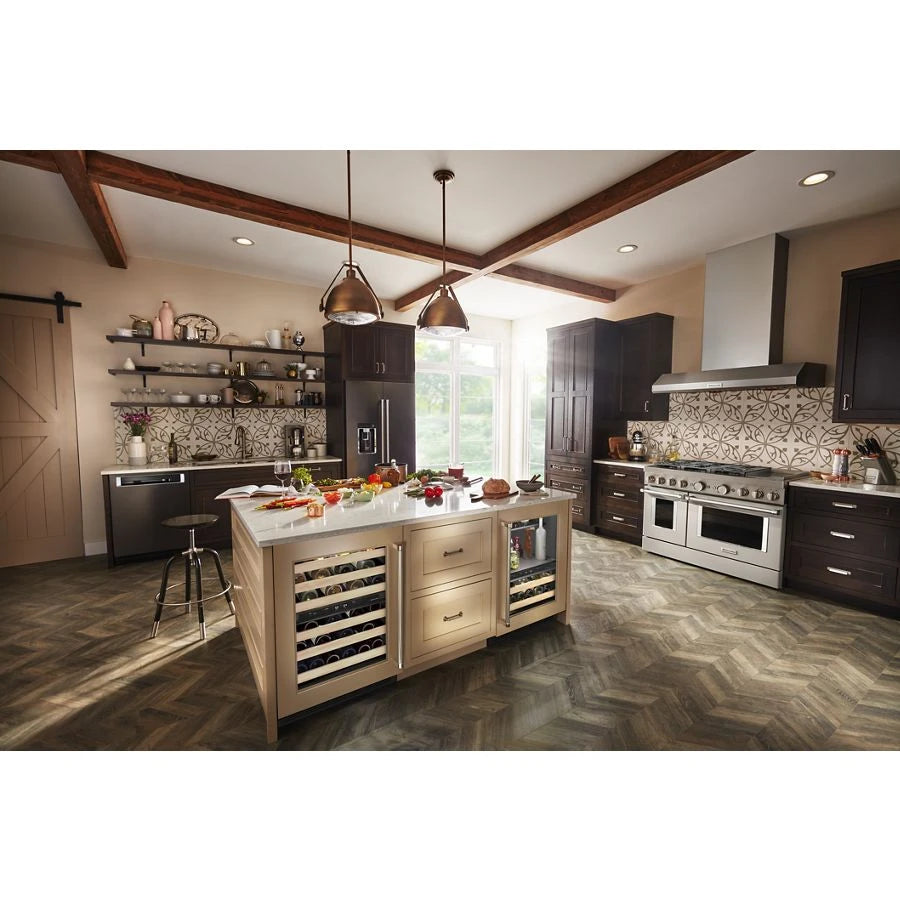

Fully Flush Installation with Hidden Hinges for a built-in look

provides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the wine cellar door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 115 degrees.
