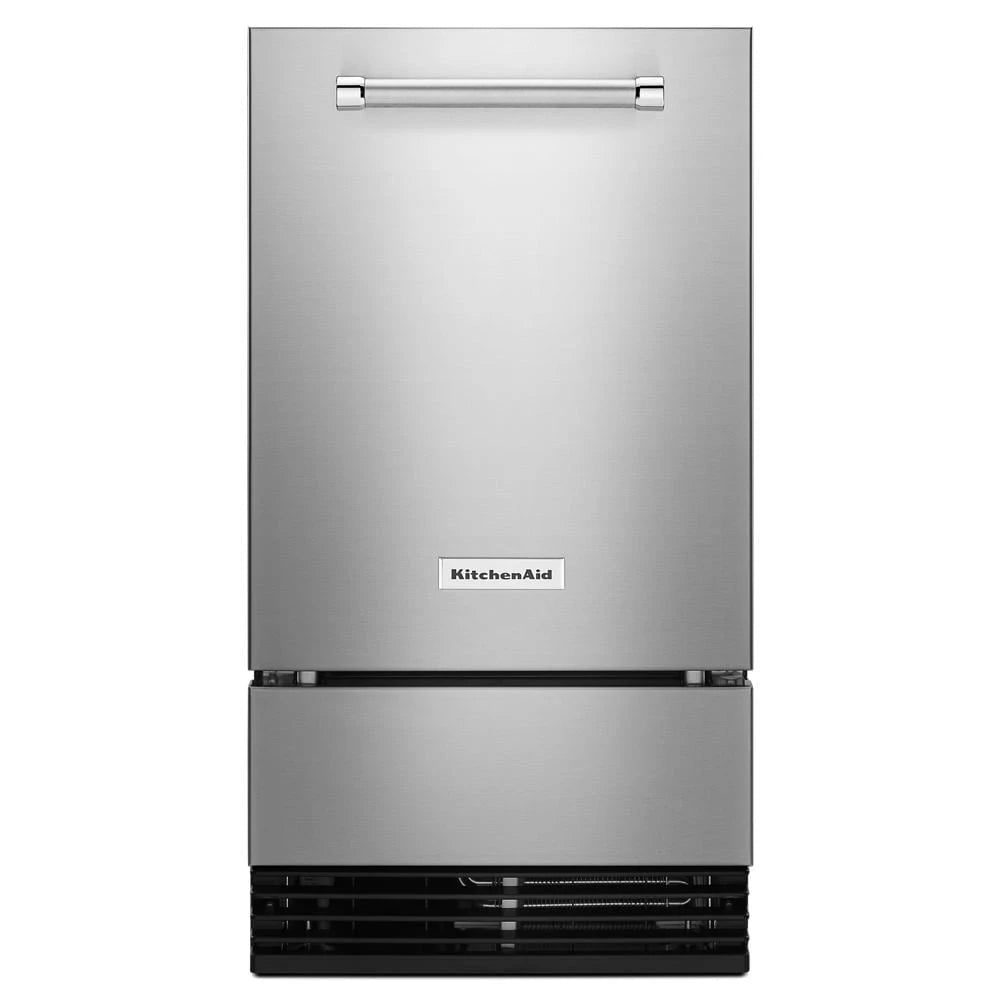

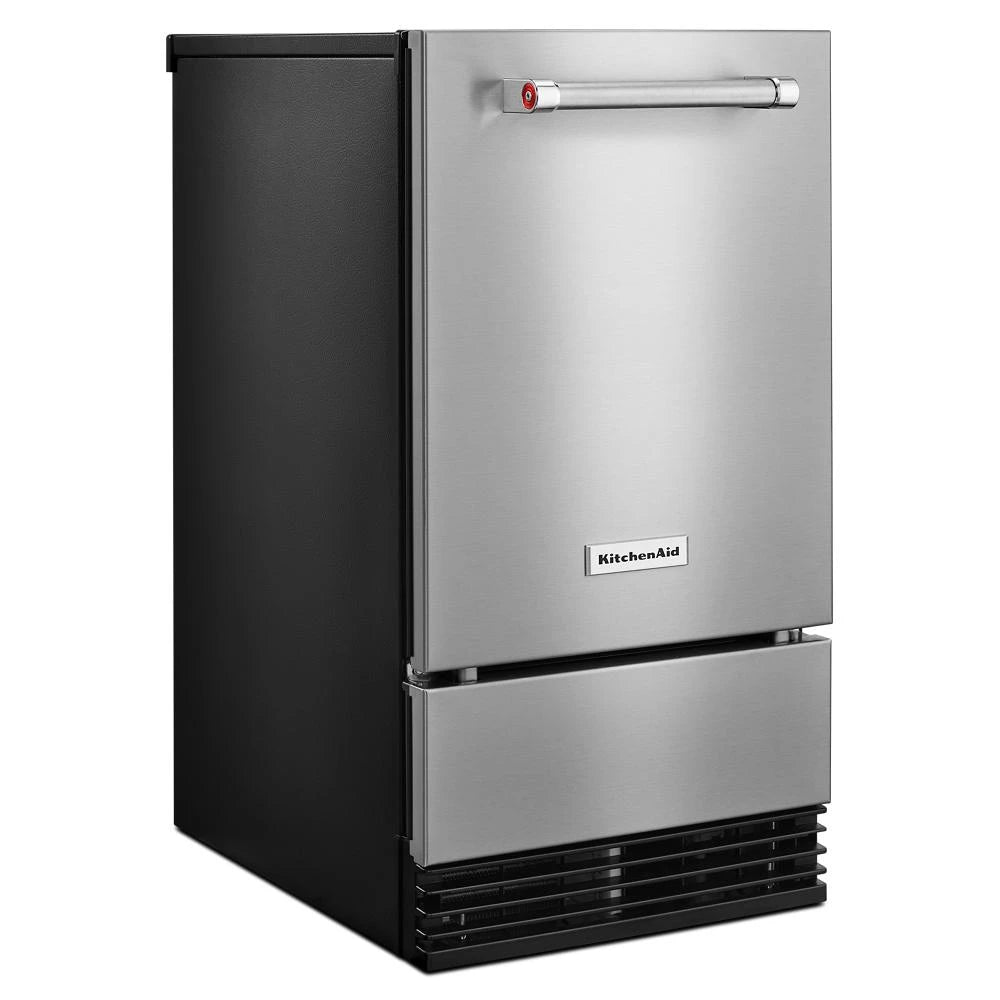

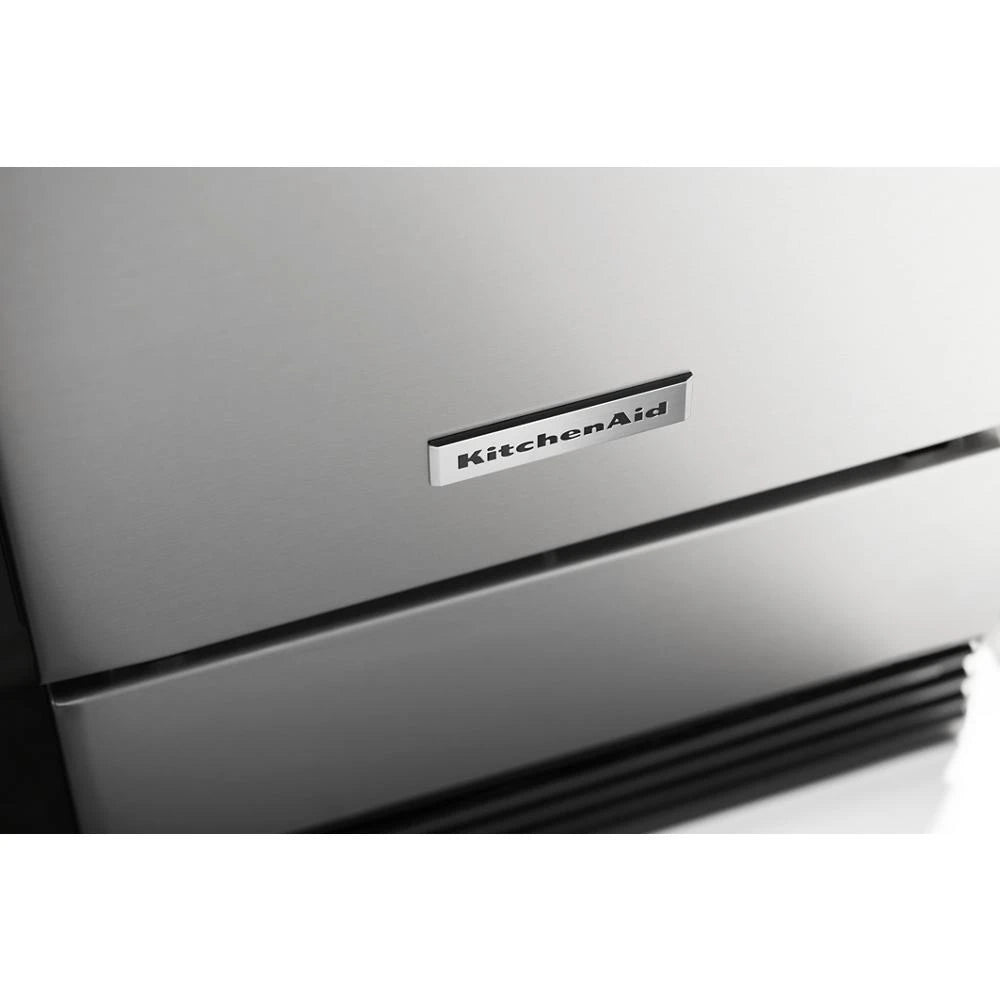

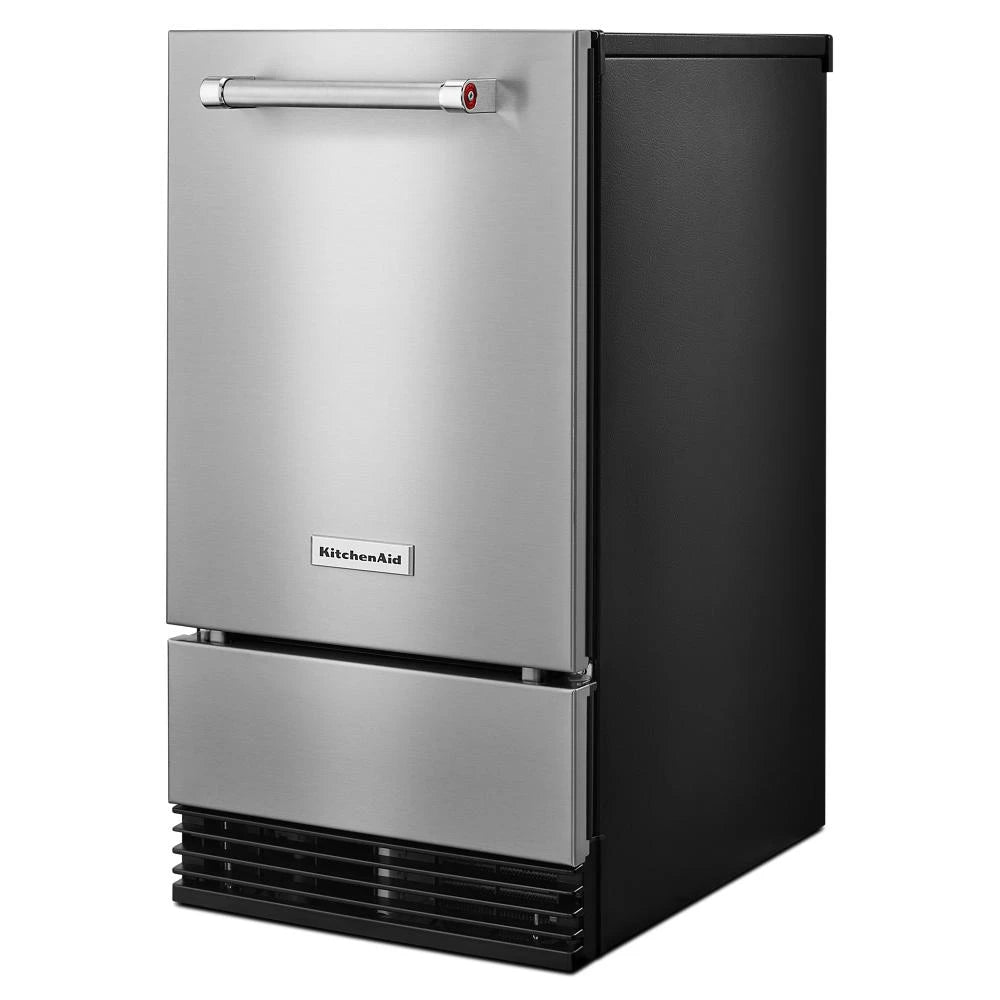

KitchenAid KUID508HPS 18'' Automatic Ice Maker with PrintShield™ Finish Stainless Steel with PrintShield™ Finish
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
$42.60
Regular price
$60.97
Save
$18.37
/ 30% OFF
Sale price
$42.60
Regular price
$59.97
Save
$17.37
/ 28% OFF
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Product Details for KitchenAid KUID508HPS
Technical Details
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Controls
| Control Location | Interior Up Front |
| Control Type | Electronic Touch |
| Ambient Temperature Range | 55F to 110F |
Details
| Drain Connection | Rear Access 5/8in. OD |
| Drain Pump | Pump Included |
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
| Water Inlet Connection | 1/4in. OD PEX Tubing |
| Door Opening Direction | Drop Down |
| Ice Capacity Storage | 35 |
| Water Supply Pressure | 30 - 120 psi |
Certifications
| ADA Compliant | No |
| UL | Yes |
| prop65 | Standard |

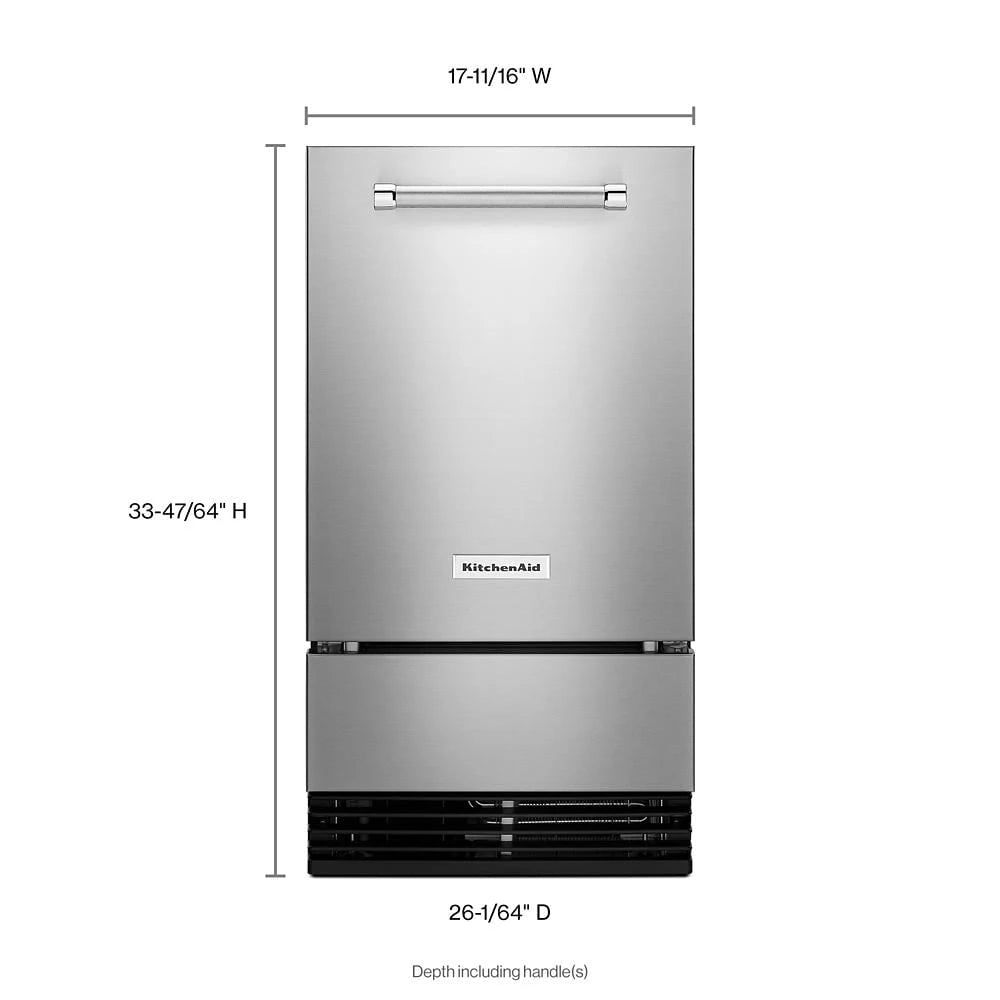

Dimensions & weight
| Width | 20.43 in. |
| Height | 36.61 in. |
| Length | 28.58 in. |
| Weight | 135 lbs. |
| Cabinet Width (in) | 17 7/8 |
| Carton Depth | 28 5/8 |
| Carton Height | 36 5/8 |
| Carton Width | 20 7/16 |
| Cutout Depth (in) | 25 |
| Cutout Height (in) | 34 1/2 |
| Cutout Width (in) | 18 |
| Depth Closed Excluding Handles | 23 1/8 |
| Depth Closed Including Handles | 25 5/8 |
| Depth Excluding Doors | 21 1/2 |
| Depth With Door Open 90 Degree | 44 1/8 |
| Gross Weight | 135 lbs. |
| Height To Top Of Cabinet | 34 3/8 |
| Height To Top Of Door Hinge | 34 3/8 |
| Net Weight | 124.5 |
| Cabinet Width (IN,inches) | 17.8750 |
| Cutout Depth(IN,inches) | 25.0000 |
| Cutout Height(IN,inches) | 34.5000 |
| Cutout Width(IN,inches) | 18.0000 |
| Depth Closed Excluding Handles(IN,inches) | 23.1250 |
| Depth Closed Including Handles(IN,inches) | 25.6250 |
| Depth Excluding Doors(IN,inches) | 21.5000 |
| Depth With Door Open 90 Degree(IN,inches) | 44.1250 |
| Height To Top Of Cabinet(IN,inches) | 34.3750 |
| Height To Top Of Door Hinge(IN,inches) | 34.3750 |
| Net Weight(LB,pounds) | 124 |
| Carton Depth(IN,inches) | 28.6250 |
| Carton Height(IN,inches) | 36.6250 |
| Carton Width(IN,inches) | 20.4375 |
| Cutout Height Min(IN,inches) | 34.5000 |
| Gross Weight(LB,pounds) | 135 |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 23 in. |
| Shipping Height | 41.63 in. |
| Shipping Length | 30.63 in. |
| Shipping Weight | 175 lbs. |
| Total of Shipping Weight | 175 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 9.78 ft³ |
| Dimensional Weight | 121.55 lbs. |
| Total of Cubes | 9.78 ft³ |
| Total of Dimensional Weight | 121.55 lbs. |
Dimensions
| Cutout Depth | 25 |
| Cutout Height | 34.5 |
| Cutout Width | 18 |
| Depth Closed Excluding Handles | 23.125 |
| Depth Closed Including Handles | 25.625 |
| Depth Excluding Doors | 21.5 |
| Depth With Door Open 90 Degree | 44.125 |
| Height To Top Of Cabinet | 34.375 |
| Height To Top Of Door Hinge | 34.375 |
| carton depth | 28.58 |
| carton height | 36.61 |
| carton width | 20.43 |
| gross weight | 135 lbs. |
| net weight | 124.5 |
Exterior details
| Cabinet Finish | Textured |
| Cabinet Material | Prepainted Steel |
| Handle Location | Horizontal |
| Reversible Door | No |
Filter details
| Water Filter Indicator/Reset | Yes |
| Water Filter Location | Interior |
| Water Filter Part Number | F2WC9I1 |
Freezer details
| Defrost Type | Automatic Defrost |
Icemaker details
| Ice Maker On/Off | Yes |
Oven details
| Interior Light | LED |
Refrigerator details
| Interior Liner Finish | Plastic |
| Liner Color | White |
Capacity
| Volume | 12.371 Cu.Ft. |
Description
This 18" ice maker produces ice with a shape and size that makes it ideal for a variety of entertaining needs. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look. A drop-down door helps enable that flush appearance while providing convenient access to the deep storage bin, which can hold up to 35 pounds of ice.
Product Features
-
Clear Ice Technology
provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly. -
Built-In Drain Pump System
Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space -
Holds 35 Pounds of Ice
ensures a generous supply of fresh ice is conveniently at your fingertips. - Max Ice
-
Freestanding or Built-In Installation
creates installation options and opens other areas of your home to supplemental ice storage.
Manuals & Guides
Key Features
Fully Flush Installation
allows the door to sit flush without protruding or leaving a gap between the ice maker and adjoining cabinets, providing a built-in look that adds a touch of style to your kitchen or bar space.

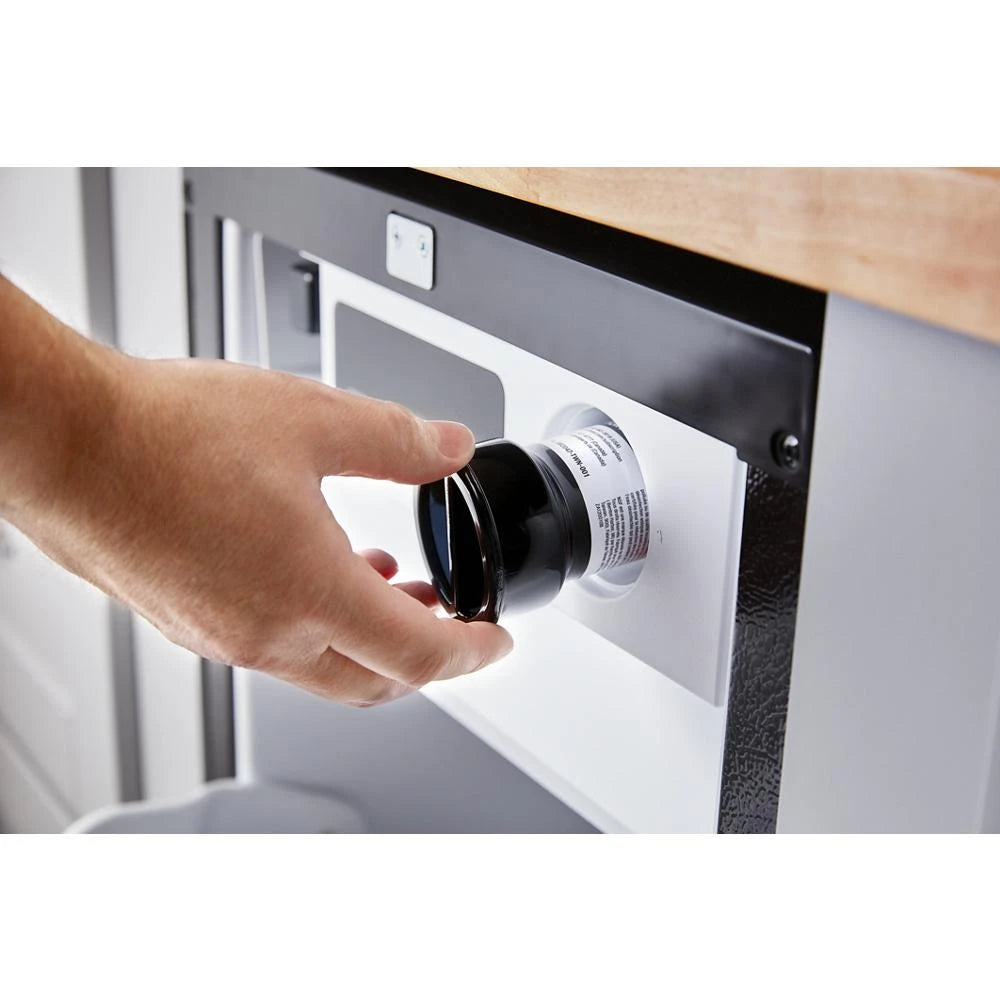

Filter-Ready
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

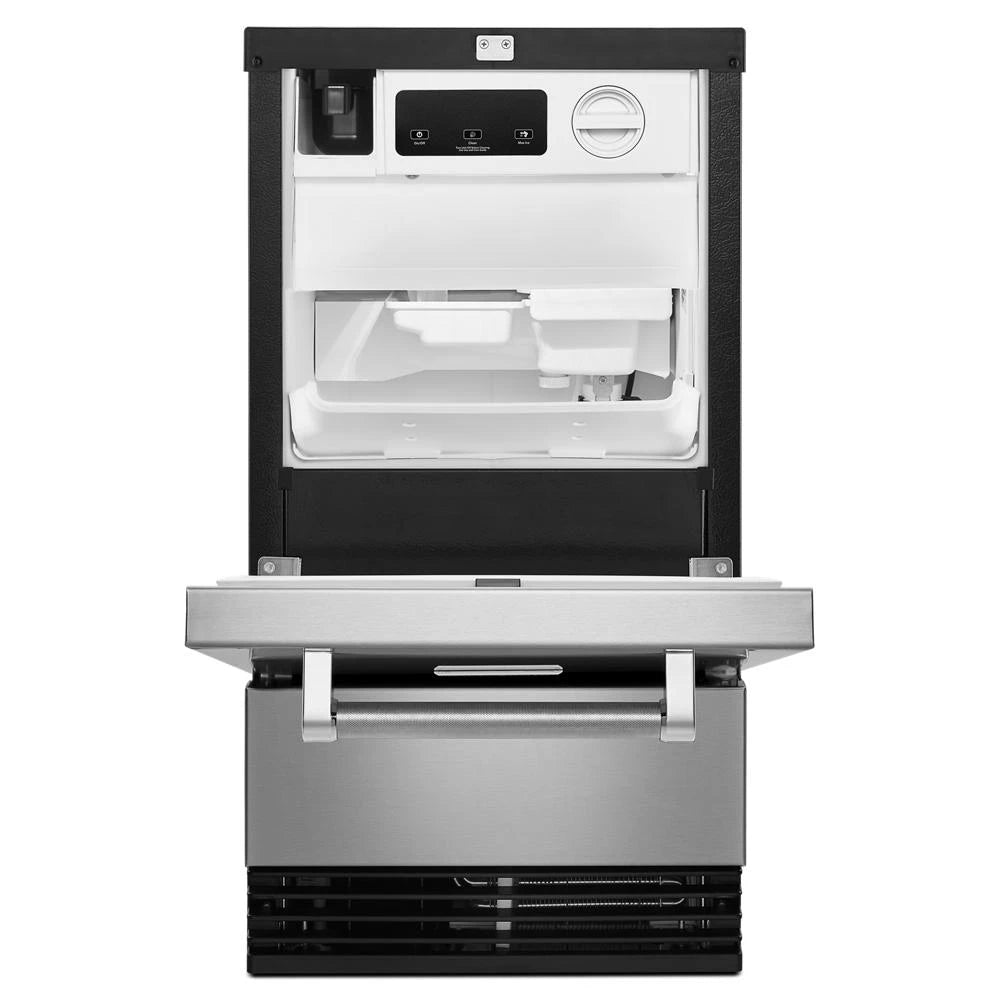

Drop-Down Door
Allows a more custom installation with a design that removes the need to account for a hinge.
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
