Product Details for KitchenAid KUBL314KSS

Technical Details

Controls

Automatic Defrost Yes
Control Lockout Yes
Cooling On/Off Yes
Door Ajar/Open Alarm Yes
Max Cool/Fast Cool No
Sabbath Mode Yes

Details

Number of Racks 2
Number of Shelves 2
Rack Front Material Stainless Steel
Shelf Description 1 Fixed Full Depth Shelf, 1 Fixed Half Depth Shelf
Zone 1 Description Upper
Zone 1 Temperature Range 33F to 40F
Zone 2 Capacity 14 Bottles
Zone 2 Description Lower
Zone 2 Temperature Range 42F to 64F
Refrigerator Bottle Capacity 14
Refrigerator Type Beverage Center
Ice Maker On/Off No

Certifications

ADA Compliant No
Prop 65 Standard
Star K Certified Yes
Energy Star® Qualified No

Electrical

Amps 15
Volts 115

Dimensions & weight

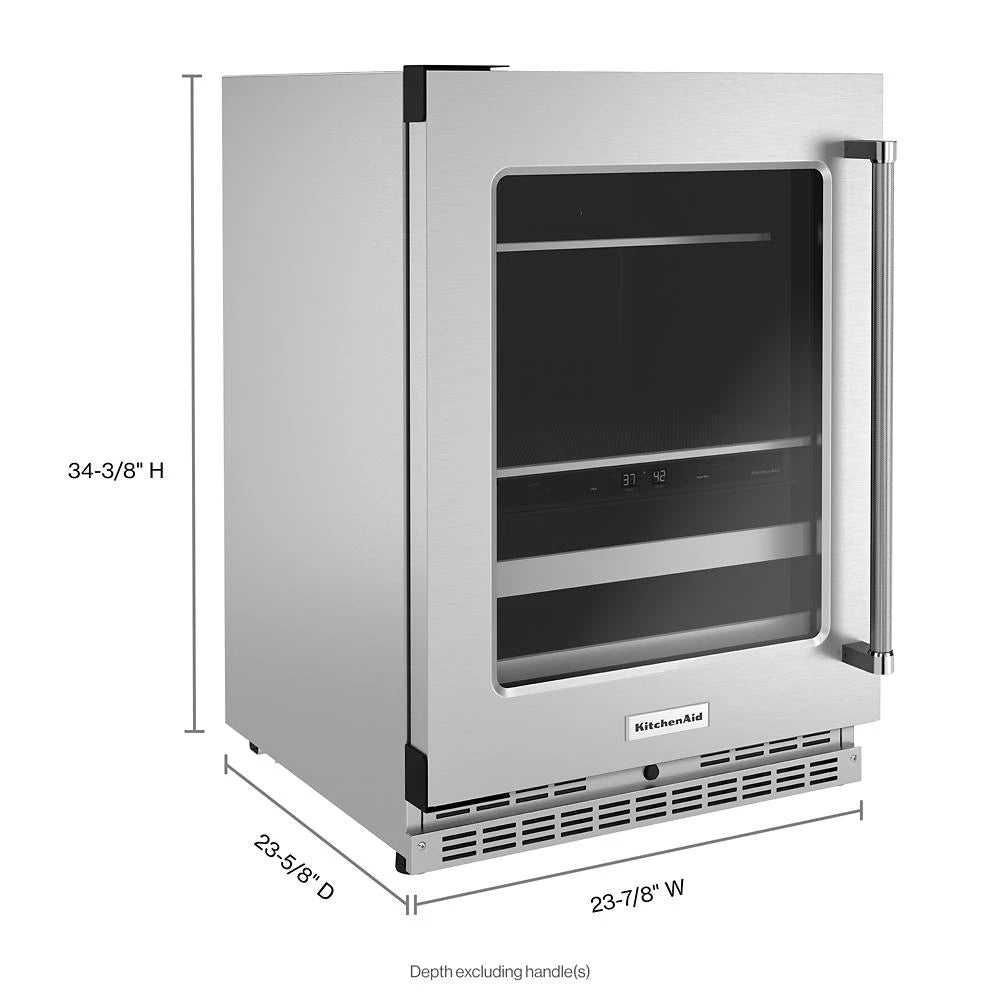

Width 23.88 in.
Height 35.94 in.
Length 26.44 in.
Weight 117 lbs.
Cabinet Width (in) 23 7/8
Carton Depth 29 11/16
Carton Height 35 15/16
Carton Width 25 3/4
Cutout Depth (in) 24
Cutout Height (in) 34 1/2
Cutout Width (in) 24
Depth Closed Excluding Handles 23 5/8
Depth Closed Including Handles 26 7/16
Depth Excluding Doors 21 11/16
Depth With Door Open 90 Degree 48
Gross Weight 117
Height To Top Of Cabinet 34 3/16
Height To Top Of Door Hinge 34 3/8
Net Weight 105.8
Cabinet Width (IN,inches) 23.8750
Cutout Depth(IN,inches) 24.0000
Cutout Height(IN,inches) 34.5000
Cutout Width(IN,inches) 24.0000
Depth Closed Excluding Handles(IN,inches) 23.6250
Depth Closed Including Handles(IN,inches) 26.4375
Depth Excluding Doors(IN,inches) 21.6875
Depth With Door Open 90 Degree(IN,inches) 48.0000
Height To Top Of Cabinet(IN,inches) 34.1875
Height To Top Of Door Hinge(IN,inches) 34.3750
Net Weight(LB,pounds) 106
Carton Depth(IN,inches) 29.6875
Carton Height(IN,inches) 35.9375
Carton Width(IN,inches) 25.7500
Cutout Height Min(IN,inches) 34.5000
Gross Weight(LB,pounds) 117

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.88 in.
Shipping Height 40.94 in.
Shipping Length 31.44 in.
Shipping Weight 157 lbs.
Total of Shipping Weight 157 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.13 ft³
Dimensional Weight 163.2 lbs.
Total of Cubes 13.13 ft³
Total of Dimensional Weight 163.2 lbs.

Exterior details

Cabinet Finish Smooth
Handle Location Vertical
Reversible Door No
Window Yes
Cabinet Color Stainless
Door Color Stainless Steel
Handle Material Metal
Handle Type Reach Through Handle

Filter details

Water Filter Indicator/Reset No

Icemaker details

Ice Maker On/Off No

Refrigerator details

Number of Temperature Controlled Zones 2

Dimensions

Capacity 4.89 cu. ft.
Cutout Depth 24 in
Cutout Height 34-1/2 in
Cutout Width 24 in
Depth 23-31/50 in
Depth Closed Excluding Handles 23-5/8 in
Depth Closed Including Handles 26-219/500 in
Depth Excluding Doors 21-86/125 in
Depth With Door Open 90 Degree 48 in
Gross Weight 116-4/5 lbs
Height 34-67/100 in
Height To Top Of Cabinet 34-47/250 in
Height To Top Of Door Hinge 34-3/8 in
Net Weight 105-4/5 lbs
Width 23-31/50 in

Description

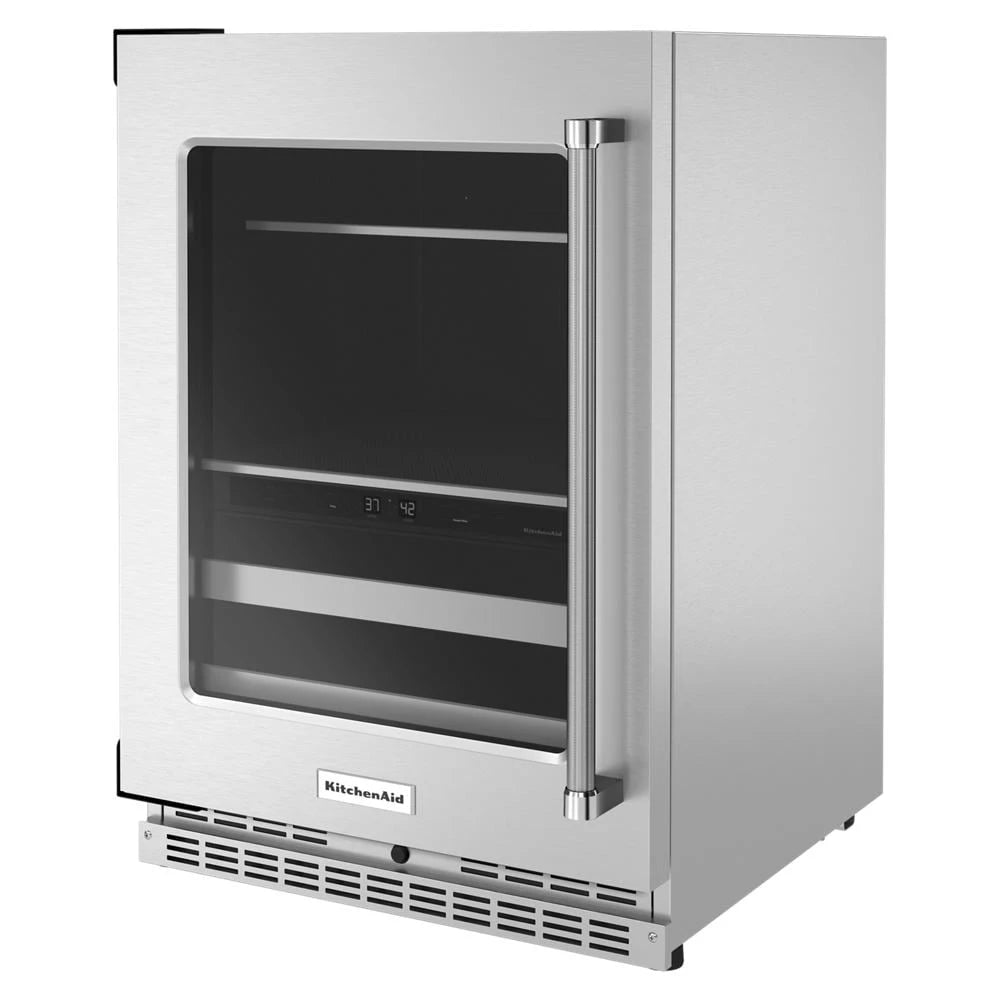

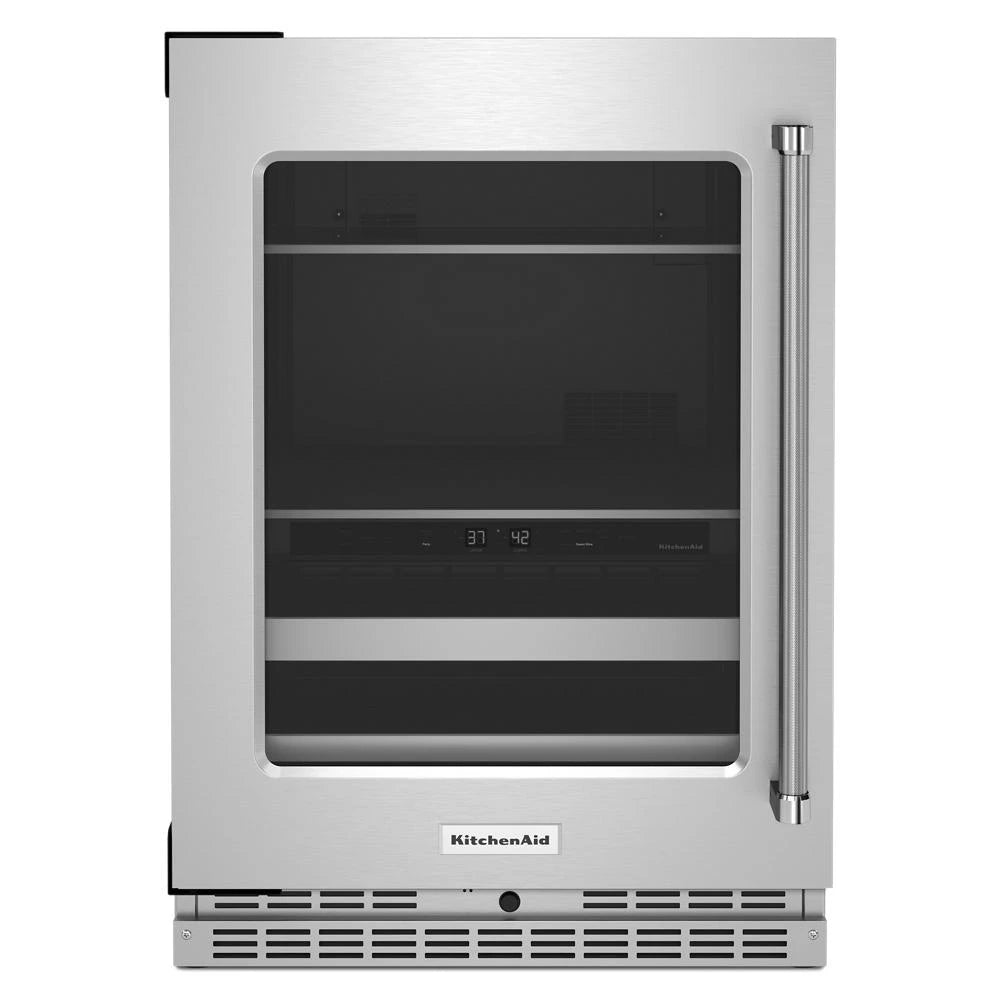

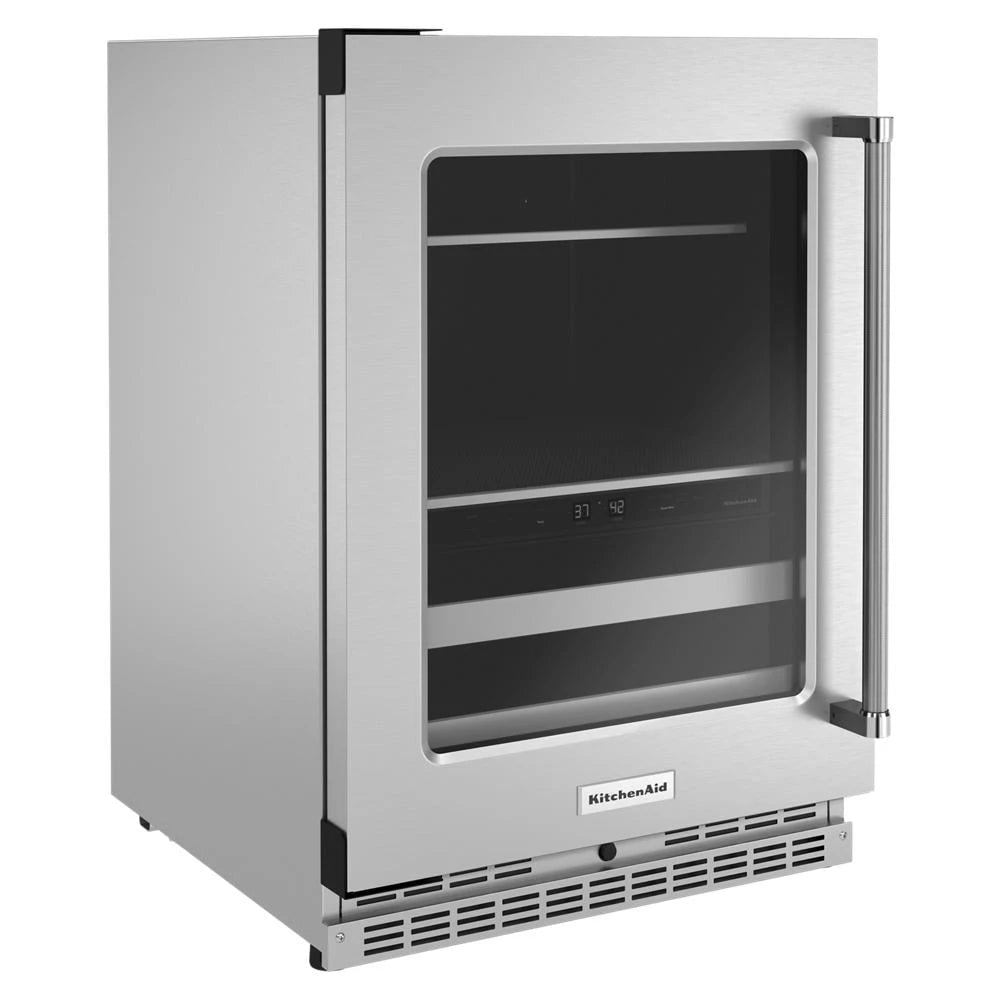

KitchenAid 24" Beverage Center with SatinGlide® Metal-Front Racks and Two Temperature-Controlled Zones


Product Features

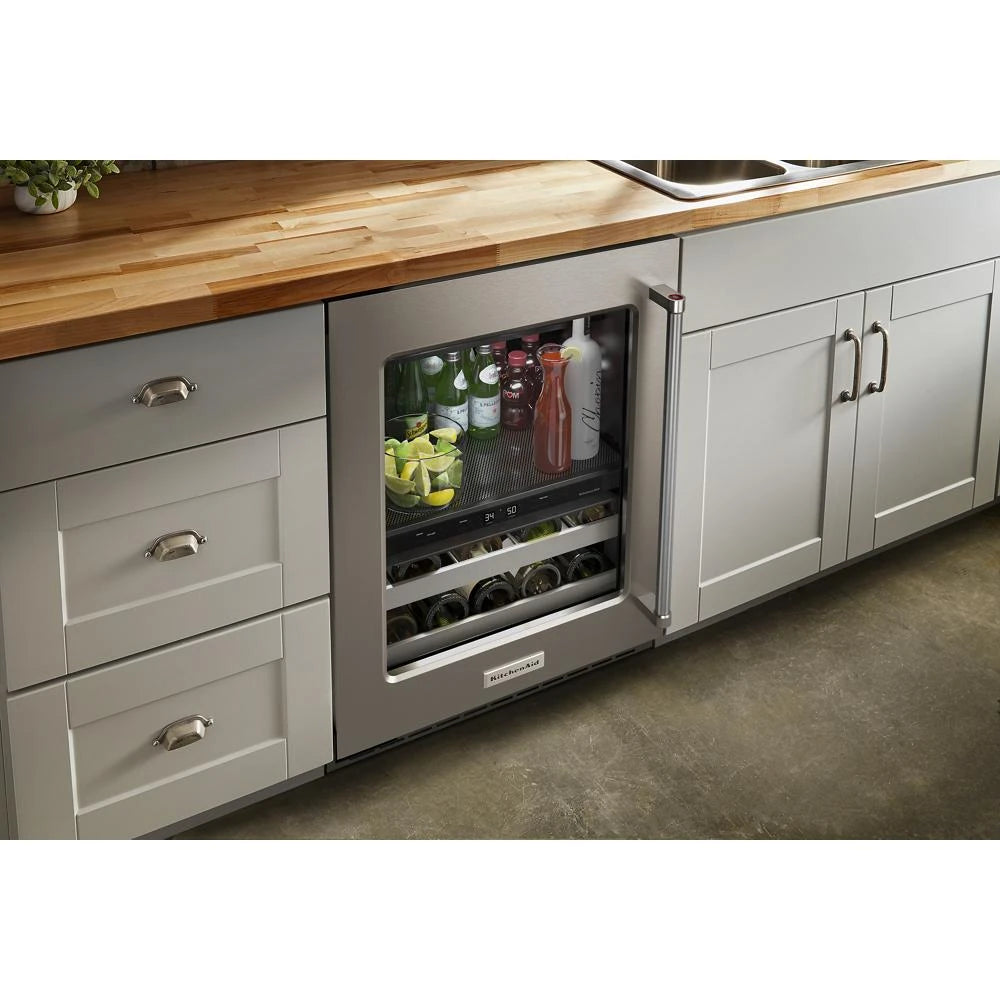

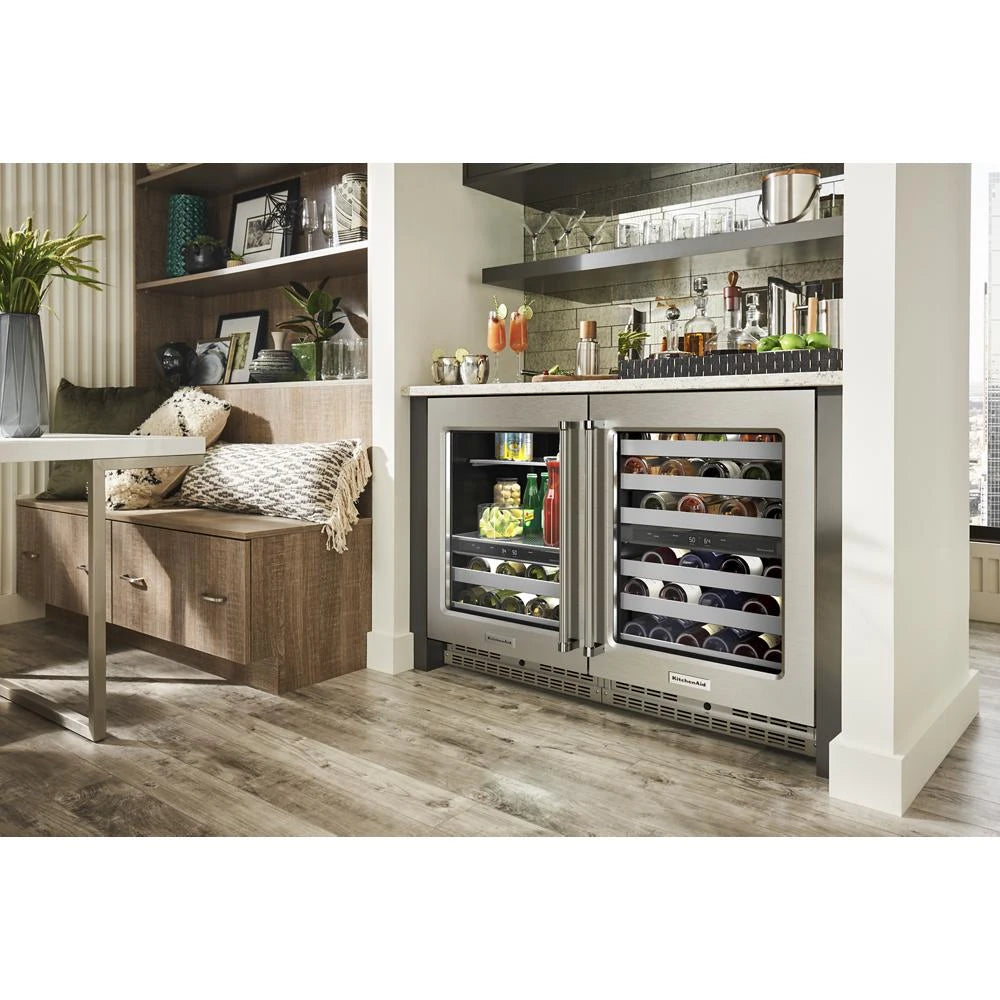

  • Fully Flush Installation with Hidden Hinges
    provides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the beverage center door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 115 degrees.
  • Door Alarm
    alerts you if the door has been left open for five minutes or more and repeats every two minutes until you close the door or touch the controls.

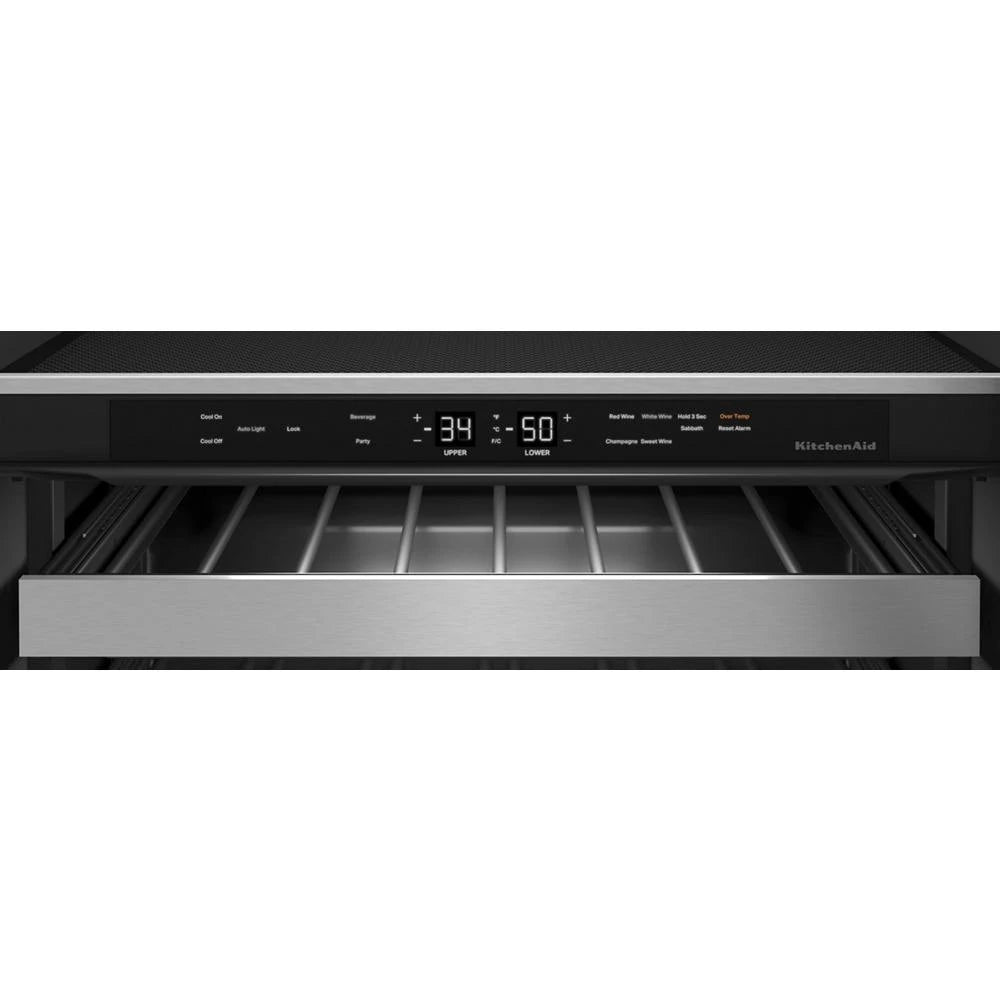

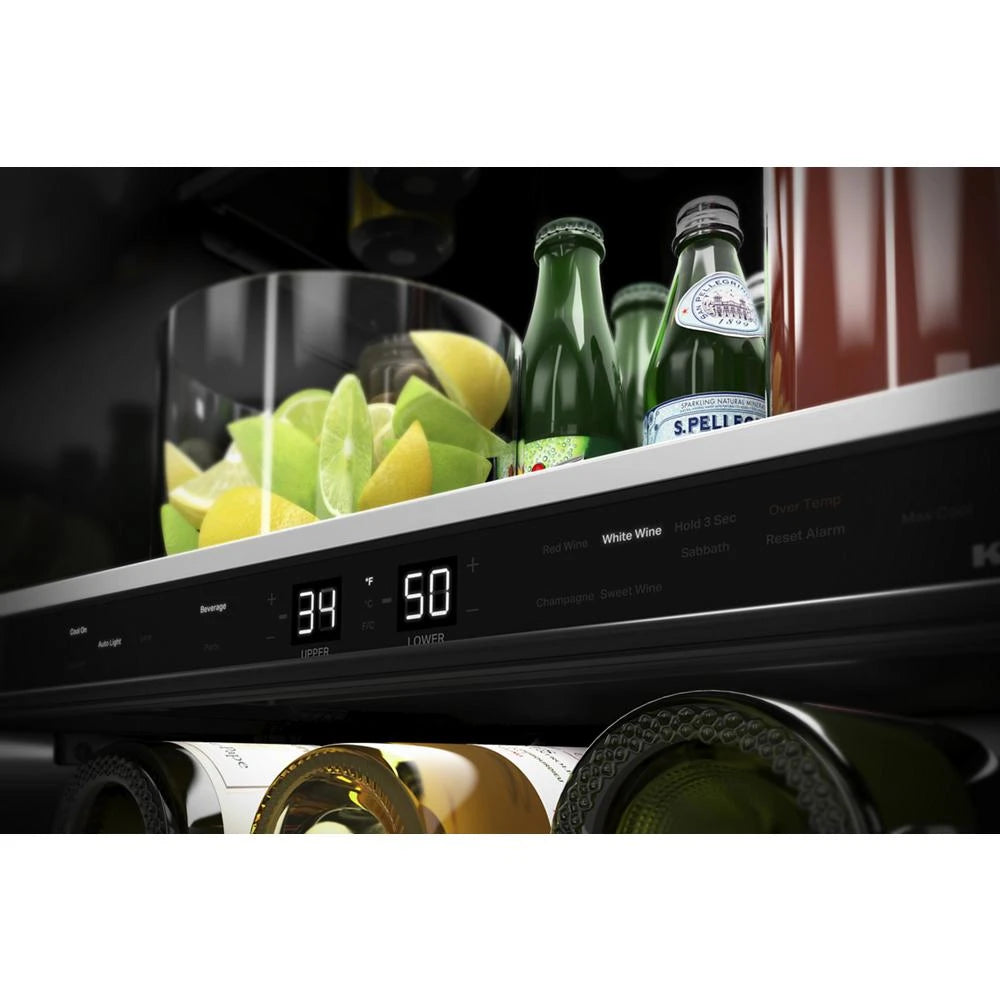

  • Backlit Touch Controls
    located inside the refrigerator make it easy to choose settings for what you're storing. The lighted control panel displays the current temperature and other status alerts.
  • Sabbath Mode (Star-K Certified)
    to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. Turning on Sabbath Mode disables automatic lights and alarm tones.
  • Max Cool
    sets both zones to their lowest temperature for up to 24 hours, so you can turn up the cold when the beverage center door will be open while serving or restocking.
  • Automatic Defrost
    cycles automatically to help reduce frost build-up, freeing you from having to regularly empty the appliance and manually defrost.
  • Two Temperature-Controlled Zones
    allow you to chill red and white wines between 42–64°F in the lower zone and keep sodas, seltzers and craft brews at colder temperatures in the upper zone, which adjusts from a low of 33°F for cold drinks up to 40°F for cheese and charcuterie.
  • Temperature Monitoring System
    uses sensors to monitor temperatures inside the wine cellar for added peace of mind. If the system detects temperatures above 70°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.

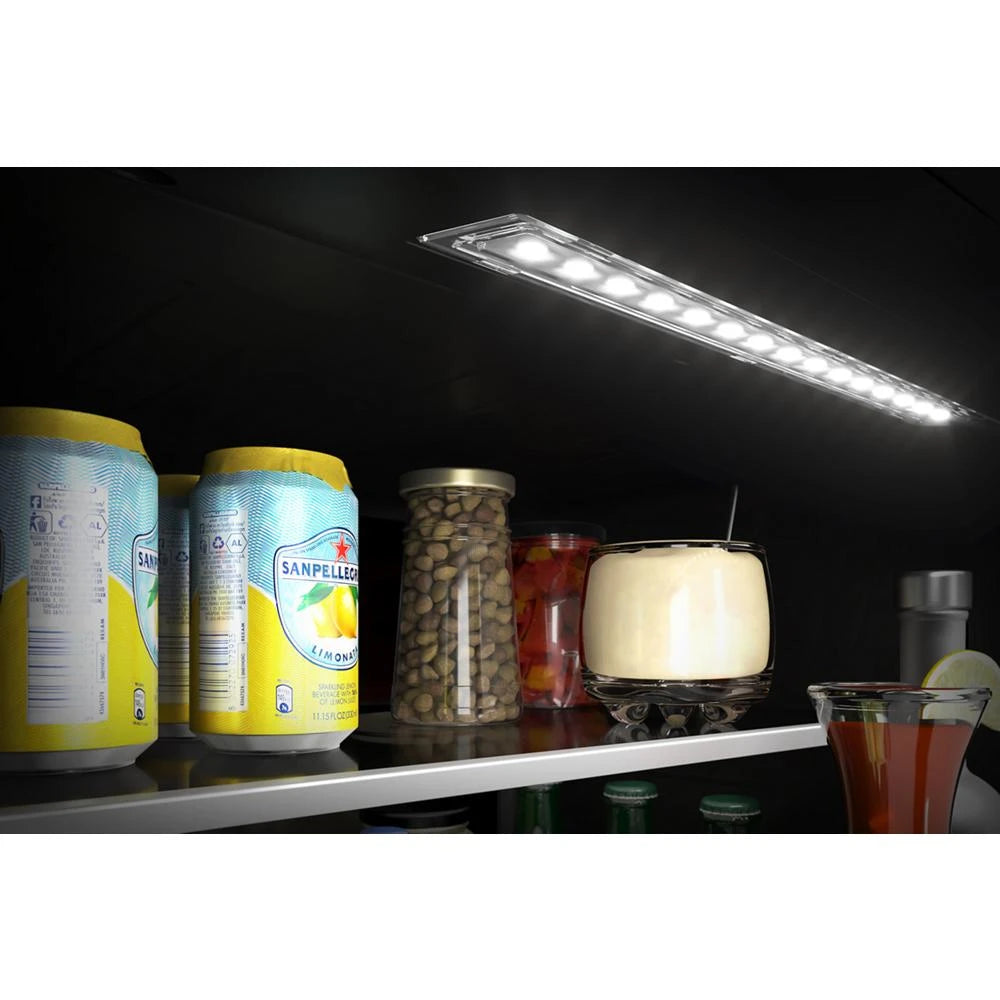

  • Motion-Activated LED Lighting
    turns on inside as you approach, so you can see what's inside without opening the door. Lights will gradually dim and turn off when no longer needed.
  • UV-Protected Thermal Glass Door
    filters UV rays to protect the contents of your beverage center from the damaging effects of heat and light.
  • Stainless Steel Cabinet and Base Grille
    complement the stainless steel door for a fully finished look.

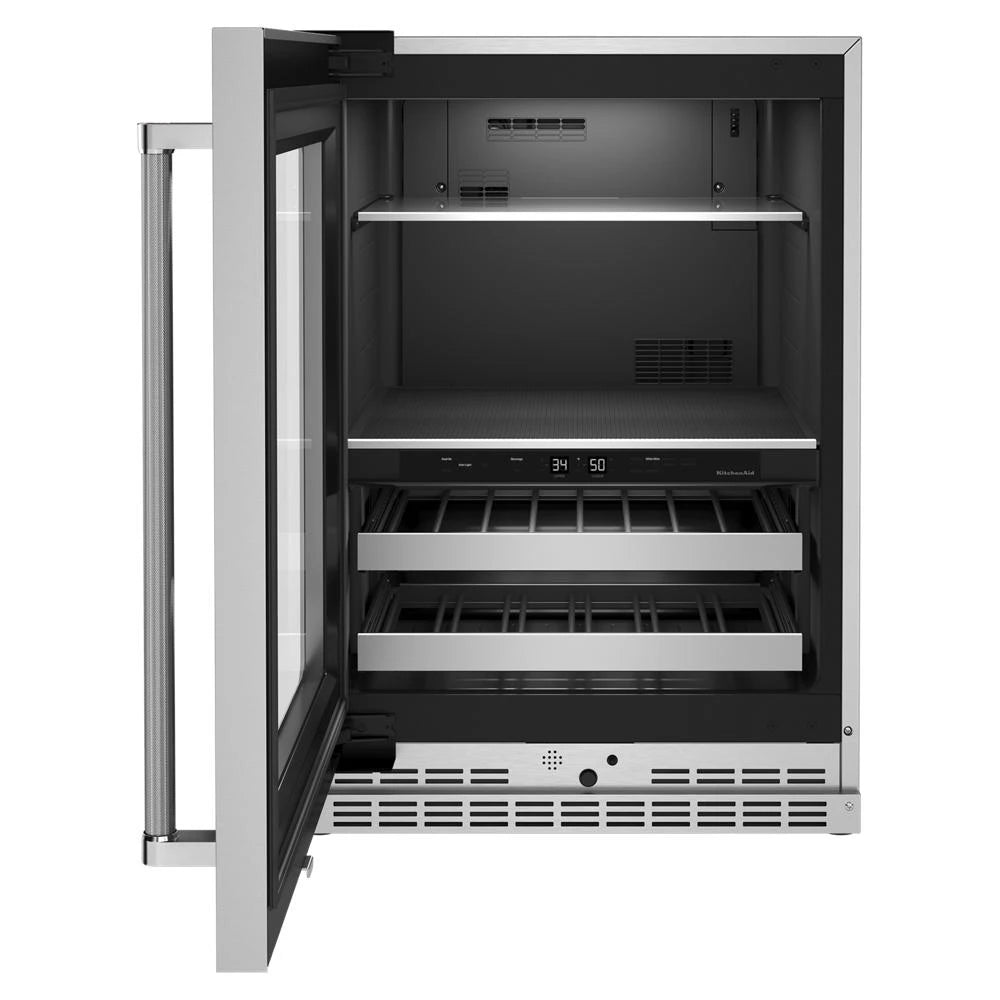

  • Glass Shelves with Metallic Accents
    bring distinctive style inside with a solid glass design that makes it easy to wipe up spills. Metallic accents along the front edges add to the premium look.

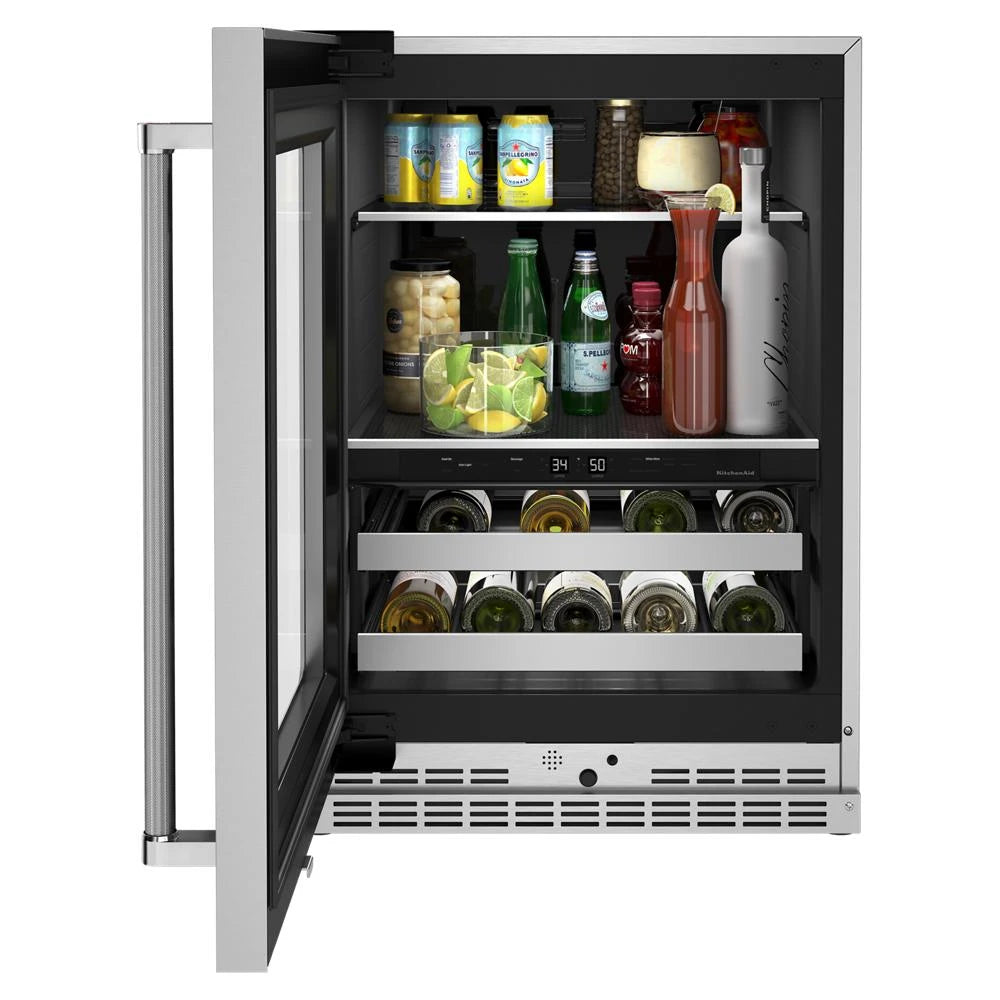

  • 4.8 Cu. Ft. Capacity
    features two lower racks for up to 14 bottles of wine and two full-width upper shelves for drinks and food. Now you can stash sodas, seltzers and syrups along with cheese plates and charcuterie boards.

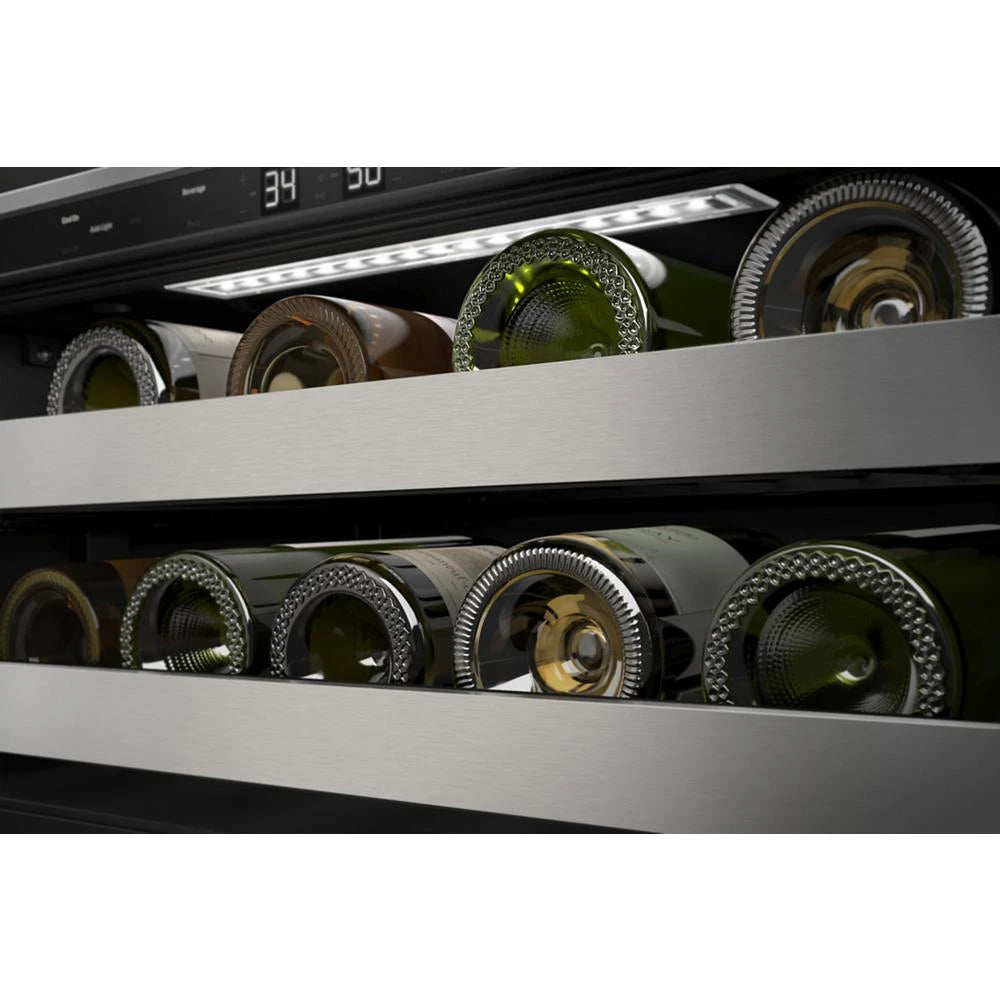

  • SatinGlide® Full-Extension Metal-Front Racks
    pull all the way out, making it easy to load bottles in when restocking and find just the one you want when serving. Metal fronts let you coordinate with your home decor.
