SKU: KTTS505ESS | UPC: 8830493551916

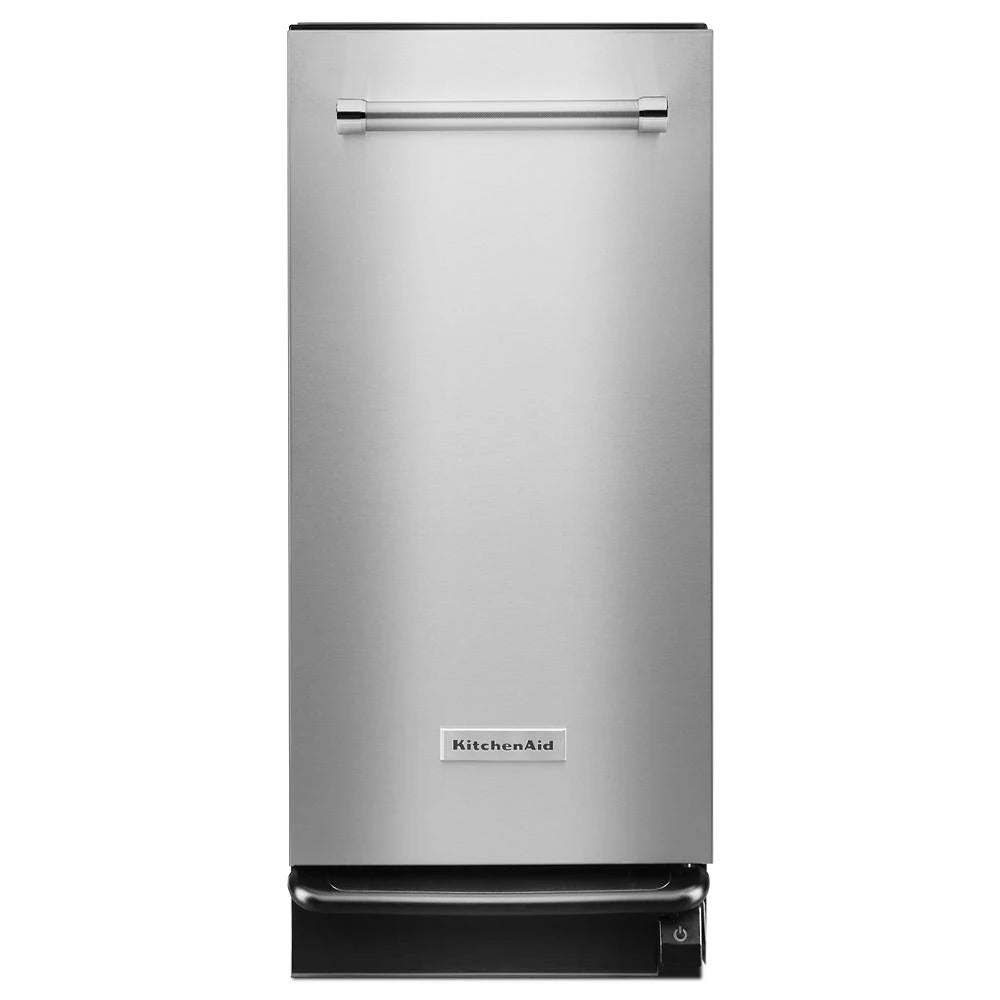

KITCHENAID KTTS505ESS 1.4 Cu. Ft. Built-In Trash Compactor in Stainless Steel

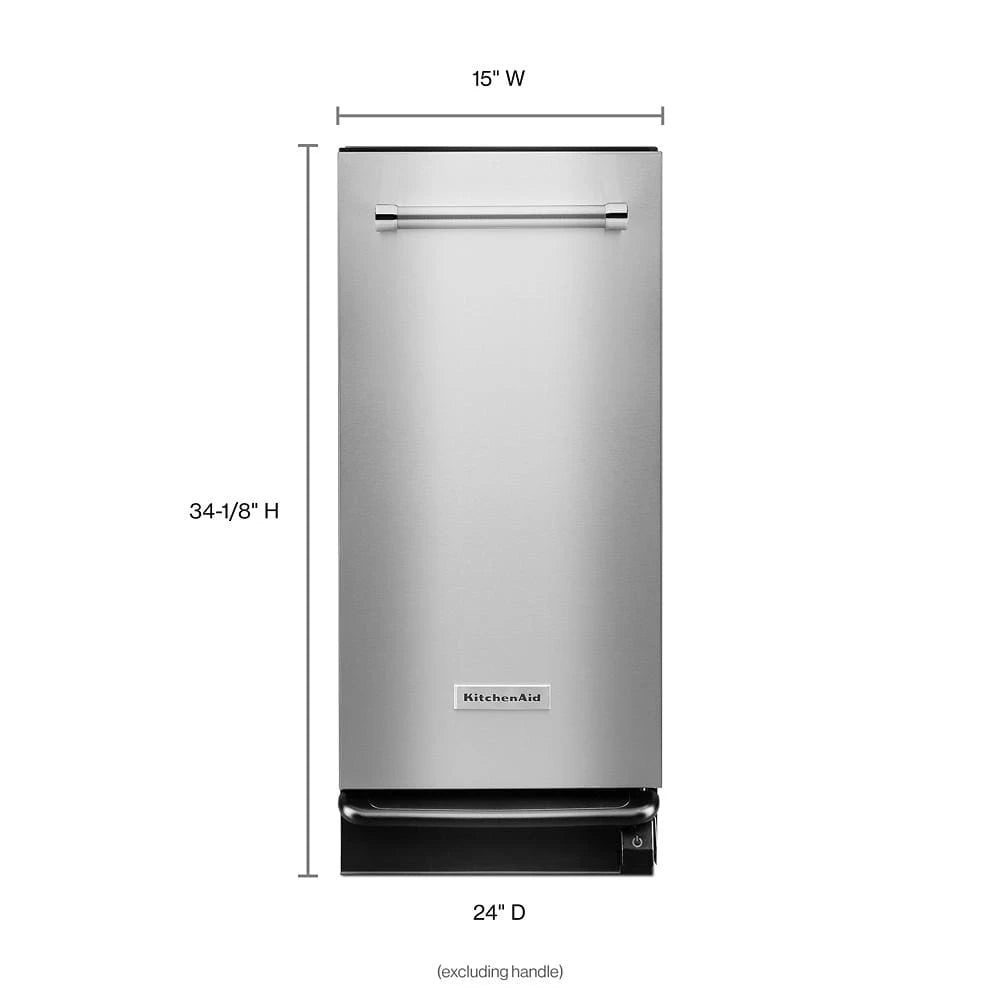

Quick Specification More details

Width:
15.0 Inch
Depth:
24.0 Inch
Height:
34.13 Inch
Type:
Trash Compactors

About this product

1/3 HP Motor helps ensure power, worry-free operation
Odor Management System helps to minimize unpleasant odors
SOLID PACK Control with 5:1 Compaction Ratio reduces waste volume
WHISPER QUIET Plus helps to maintain a quiet home environment

Quickship

On Sale

SKU: KTTS505ESS | UPC: 8830493551916

KITCHENAID KTTS505ESS 1.4 Cu. Ft. Built-In Trash Compactor in Stainless Steel

$1,949.00 ~~$2,934.97~~ Save $985.97 / 33% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$49.99
2-Year Extended Protection
$83.99
3-Year Extended Protection
$131.99
5-Year Extended Protection
$195.99
Manufacturer Warranty Only

Trash compactor install
$290.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.95

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
15.0 Inch
Depth:
24.0 Inch
Height:
34.13 Inch
Type:
Trash Compactors

About this product

1/3 HP Motor helps ensure power, worry-free operation
Odor Management System helps to minimize unpleasant odors
SOLID PACK Control with 5:1 Compaction Ratio reduces waste volume
WHISPER QUIET Plus helps to maintain a quiet home environment

Product Details for KITCHENAID KTTS505ESS

Technical Details

Certifications

Prop65	CA
Ul	Yes
UL	Yes
prop65	Standard

Dimensions & weight

Width	15 in.
Height	34.13 in.
Length	24 in.
Weight	140 lbs.
Carton Depth	27 1/4
Carton Height	36 1/4
Carton Width	16 3/4
Cutout Depth (in)	24
Cutout Height (in)	34 1/4
Cutout Width (in)	15 1/4
Depth With Door Open 90 Degree	47
Gross Weight	140
Maximum Height	34 1/2
Net Weight	130.0
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	34.2500
Cutout Width(IN,inches)	15.2500
Depth With Door Open 90 Degree(IN,inches)	47.0000
Maximum Height(IN,inches)	34.5000
Net Weight(LB,pounds)	130
Carton Depth(IN,inches)	27.2500
Carton Height(IN,inches)	36.2500
Carton Width(IN,inches)	16.7500
Cutout Height Min(IN,inches)	34.2500
Gross Weight(LB,pounds)	140

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	20 in.
Shipping Height	39.13 in.
Shipping Length	29 in.
Shipping Weight	180 lbs.
Total of Shipping Weight	180 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	7.11 ft³
Dimensional Weight	88.38 lbs.
Total of Cubes	7.11 ft³
Total of Dimensional Weight	88.38 lbs.

Controls

Air Filter Fan On/off	Yes
Control Type	Touch Pad
Air Filter Fan On/Off	Yes

Details

Automatic Anti-jam	Yes
Bag Retainer Buttons	Yes
Compactor Type	Built-In
Construction Type	All Welded
Front Levelers Rear Rollers	Yes
Odor Management System	Fan with Charcoal Filter
Side Release Bin	Yes
Solid Pack	Yes
Solid Pack On/off	Yes
Sound Package	Yes
Tilt Switch	Yes
Tilt-away Trash Basket	Yes
Toe Bar Drawer Opener	Yes
Compaction Ratio	5 to 1
Tilt-Away Trash Basket	Yes
Automatic Anti-Jam	Yes
Solid Pack On/Off	Yes

Dimensions

Product Height	34.13
Cutout Height	34.25
Carton Height	36.25
Gross Weight	140
Carton Depth	27.25
Carton Width	16.75
Cutout Width	15.25
Product Depth	24.0
Net Weight	130
Product Width	15.0
Cutout Depth	24
Depth With Door Open 90 Degree	47
carton depth	27.25
carton height	36.25
carton width	16.75
net weight	130
gross weight	140

Exterior details

Door Color	Stainless Steel
Door Style	Flat
Handle Color	Stainless Steel
Handle Material	Stainless Steel
Handle Type	Towel Bar
Removable Key Lock	Hidden Removable - Knob

Features

1/3 HP Motor helps ensure power, worry-free operation
Odor Management System helps to minimize unpleasant odors
SOLID PACK Control with 5:1 Compaction Ratio reduces waste volume
WHISPER QUIET Plus helps to maintain a quiet home environment

Description

The brand KitchenAid KTTS505ESS is a high-performance 1.4 cu. ft. built-in trash compactor engineered for efficient waste reduction and seamless kitchen integration. With a powerful 5:1 compaction ratio, this unit significantly compresses household trash, reducing the need for frequent disposal. The Solid Pack™ Control ensures constant pressure to tightly compact waste, while the Quiet Pack™ sound insulation minimizes operational noise. Designed with a stylish stainless steel exterior, touch-to-open drawer, and hands-free foot pedal, this compactor combines convenience, durability, and modern aesthetics—ideal for maintaining a clean and organized kitchen environment.
