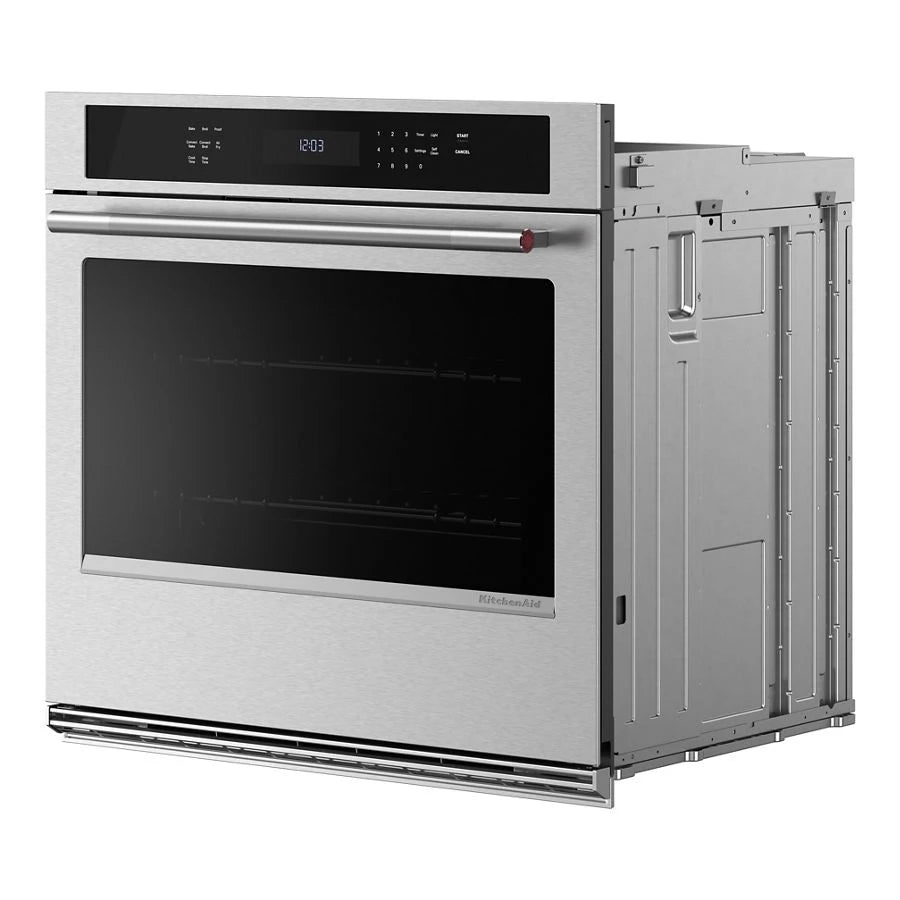

KitchenAid KOES530SPS 30-inch Electric Single Wall Oven With No Preheat Air Fry Mode - Printshield™ Finish PrintShield Stainless
Quickship
Active Rebates
KitchenAid Appliance Bundle – Unlock Up to $3,000 in Rebate Savings Expires on 03/31/2026
Delivery services
Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.
For more details, please visit our Delivery and Installation Services page.
-
$250.00
-
$40.00
-
$49.99
Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Product Details for KITCHENAID KOES530SPS
Technical Details
Certifications
| Ada Compliant | Yes |
| Cul | Yes |
| Energy Rating (kwh/year) | 356 |
| Prop65 | CA |
| Star K Certified | Star K Certified |
| Ul | Yes |

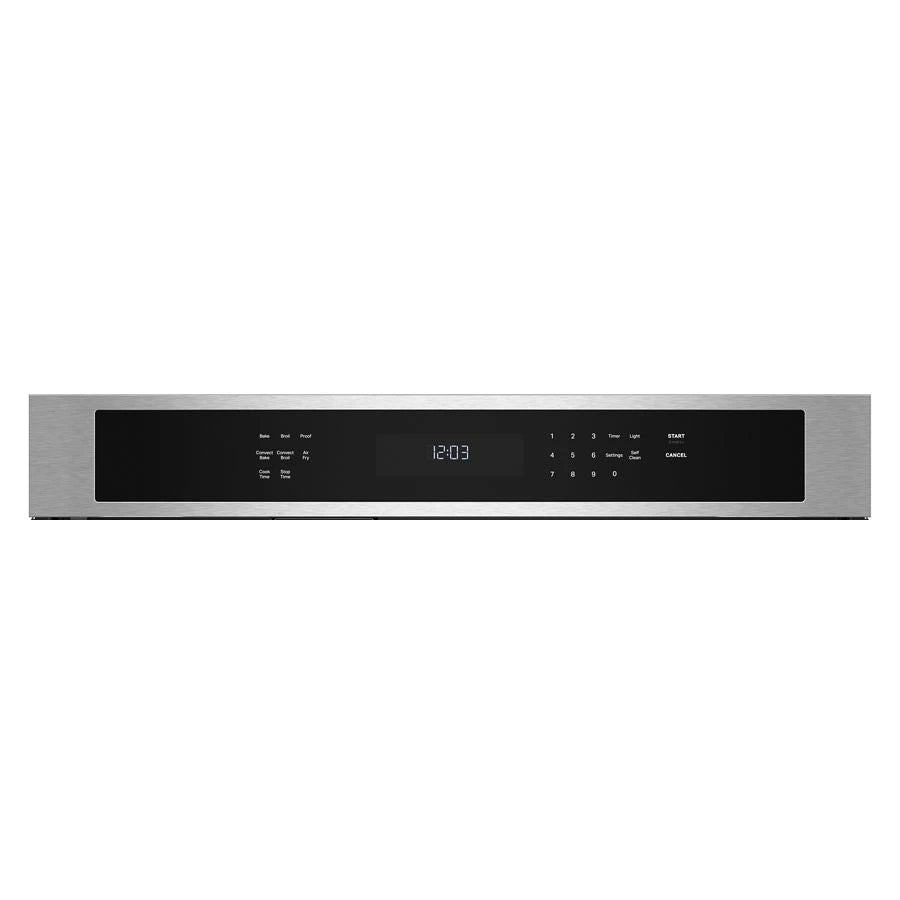

Controls
| Control Type | Electronic Touch |
| Display Color | White |
| Electronic Display Type | Digital |
Details
| Air Fry | Yes |
| Cooktop Combinations | KCES550; KCES556; KCES950; KCES956; KCGS350; KCGS356; KCGS550; KCGS556; KCGS950; KCGS956; KECC056; KECC602; KECC604; KECC607; KECC664; KECC667; KGCC506; KGCC566; KICU509; KICU569 |
| Delay Clean | No |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Light Control | Oven Light Touch Pad |
| Lp Convertible | No |
| Oven Automatic Shut-off | Yes |
| Oven Configuration | Single Oven |
| Oven Selections | Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Bake; Convect Broil; Cook Time Indicator; Delay Start; Sabbath Mode; Stop Time; Temperature Probe; Temperature-Sensor Baking; Timer |
| Oven Type | Single |
| Power On Indicator Light | Yes |
| Temperature Conversion | Yes |

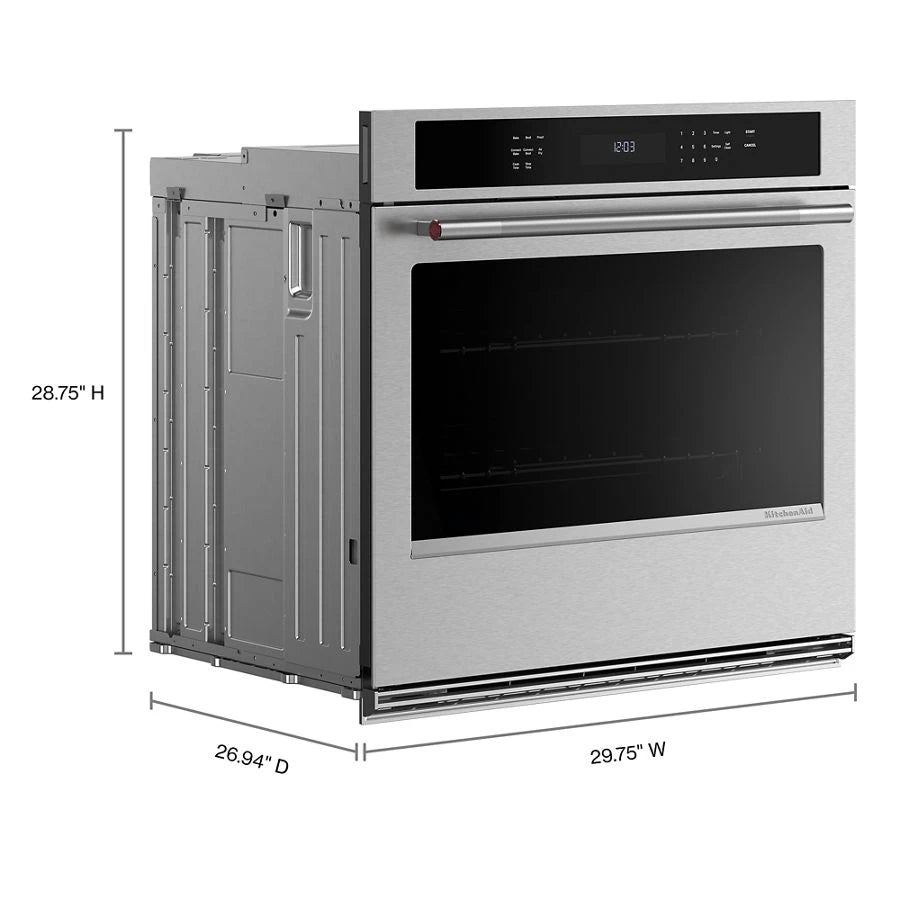

Dimensions
| Product Height | 28.75 |
| Carton Height | 31.81 |
| Gross Weight | 172.4 |
| Oven Interior Height | 18.0 |
| Carton Width | 35.0 |
| Product Depth | 26.94 |
| Oven Interior Depth | 19.0 |
| Depth With Door Open 90 Degree | 46.19 |
| Depth Excluding Doors | 23.25 |
| Cutout Depth | 24.0 |
| Cutout Height | 28.0 |
| Depth Closed Excluding Handles | 24.5 |
| Depth Closed Including Handles | 26.94 |
| Carton Depth | 31.0 |
| Cutout Width | 28.5 |
| Oven Capacity | 5 |
| Oven Interior Width | 25.0 |
| Net Weight | 167.4 |
| Product Width | 29.75 |
Exterior details
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
Oven details
| Bake Element Power | 2800 |
| Broiler Element Power | 4000 |
| Broiler Location | Top of Oven |
| Convection Element Power | 3200 |
| Convection Element Type | True Convection |
| Convection Functions | Bake, Broil, Air Fry; Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Installable Under Oven | Yes |
| Interior Coating | Porcelain |
| Light Type | Halogen |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | True Convection |
| Oven Rack Type | 1 |
| Self-cleaning Oven Racks | No |
| Temperature Probe | Yes |
Smart compatibility
| Connectivity | No |
| Smart Appliance | No |
| Works With | No |
Features
- 5.0 Cu. Ft. Oven Capacity perfect for large items
- Even-Heat(TM) True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables. - 5.0 Cu. Ft. Oven Capacity to cook multiple dishes at once
- Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe-down at the end of the cycle so you can get right back to cooking. - EASYCONVECT Conversion System automatically adjusts temperatures
- EVEN-HEAT True Convection for consistent baking and roasting
- Even-Heat(TM) True Convection for consistent baking and roasting
- FIT System Limited Guarantee allows oven to match existing cabinet cutout height
- Fit System Limited Guarantee. Exclusions apply. See terms.

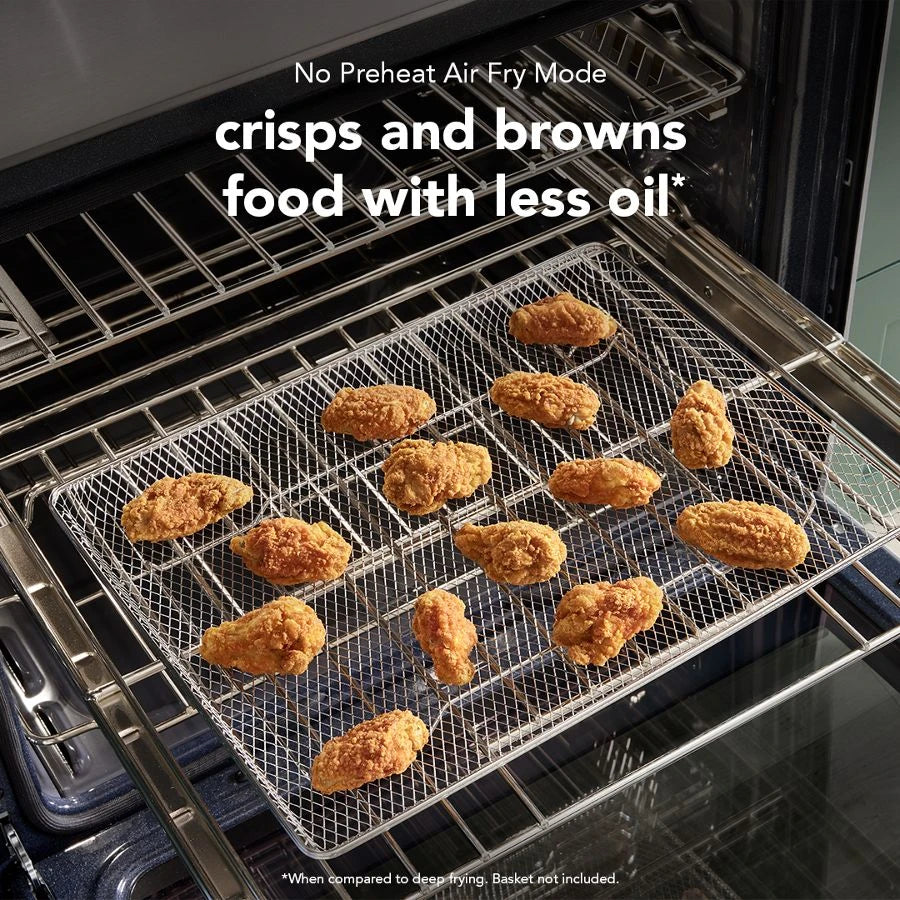

- No Preheat Air Fry Mode circulates hot air to crisp and brown
- PRINTSHIELD Finish coating resists fingerprints and smudges

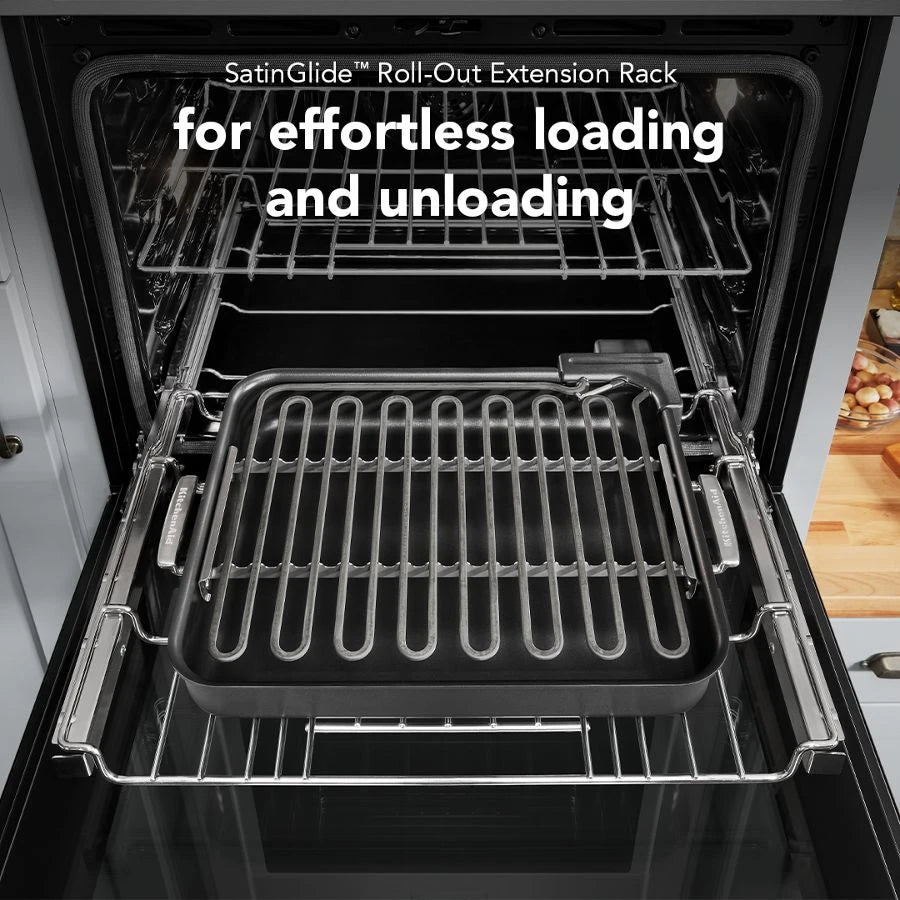

- SATINGLIDE Roll-Out Extension Rack with an easy-grip handle
- Proudly assembled in Cleveland, Tennessee, U.S.A.
- Self cleaning cycle enables easy cleaning of oven cavity
- Smooth-Close Door effortlessly closes to help prevent slamming
- Steam Clean helps make spills easy to wipe off

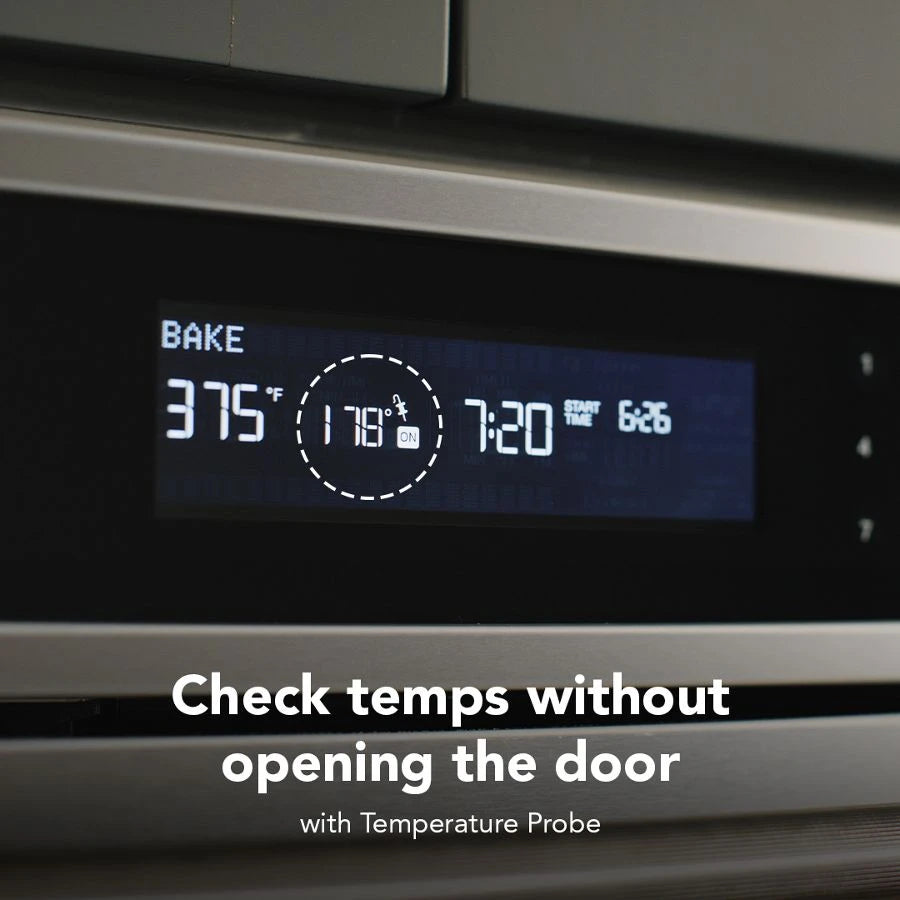

- Temperature Probe provides readouts wihtout opening the door
- Star-K Certified Sabbath Mode for use on religious holidays
- Steam Clean & Self-Cleaning Cycles help keep your oven clean
Description
Manuals & Guides
Key Features

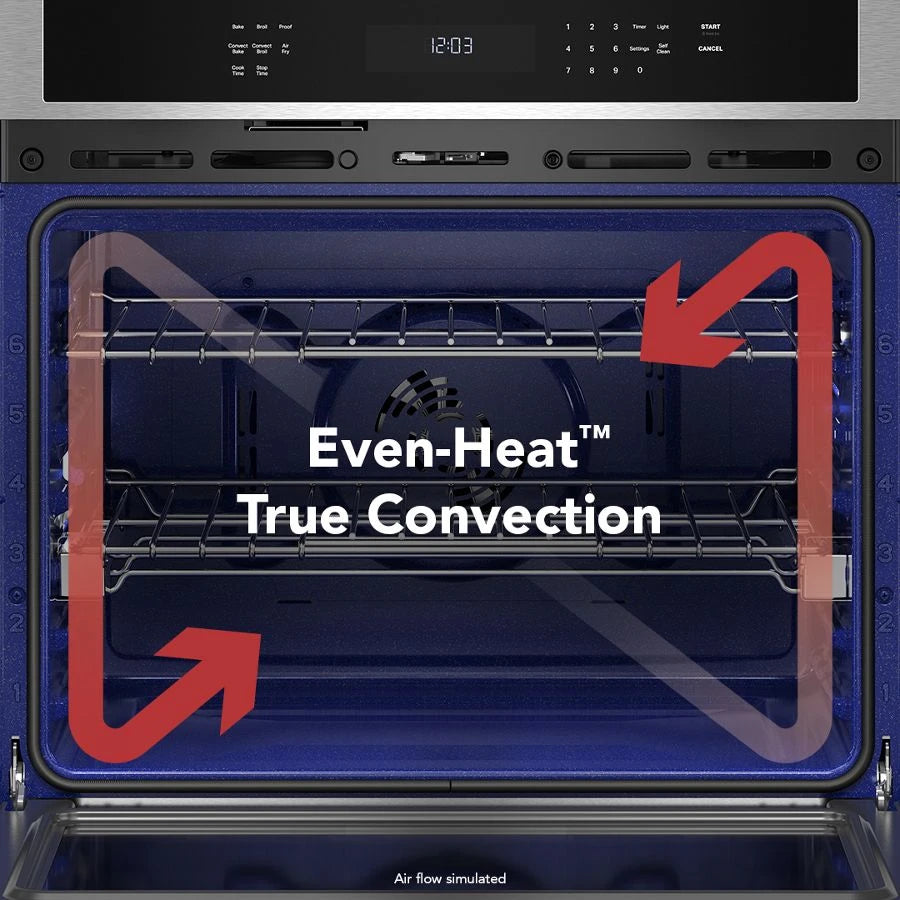

Even-Heat(TM) True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe-down at the end of the cycle so you can get right back to cooking.
5.0 Cu. Ft. Oven Capacity to cook multiple dishes at once
5.0 Cu. Ft. Oven Capacity perfect for large items
EASYCONVECT Conversion System automatically adjusts temperatures
EVEN-HEAT True Convection for consistent baking and roasting
Even-Heat(TM) True Convection for consistent baking and roasting
FIT System Limited Guarantee allows oven to match existing cabinet cutout height
Fit System Limited Guarantee. Exclusions apply. See terms.
No Preheat Air Fry Mode circulates hot air to crisp and brown
PRINTSHIELD Finish coating resists fingerprints and smudges
SATINGLIDE Roll-Out Extension Rack with an easy-grip handle
Proudly assembled in Cleveland, Tennessee, U.S.A.
Self cleaning cycle enables easy cleaning of oven cavity
Smooth-Close Door effortlessly closes to help prevent slamming
Steam Clean helps make spills easy to wipe off
Temperature Probe provides readouts wihtout opening the door
