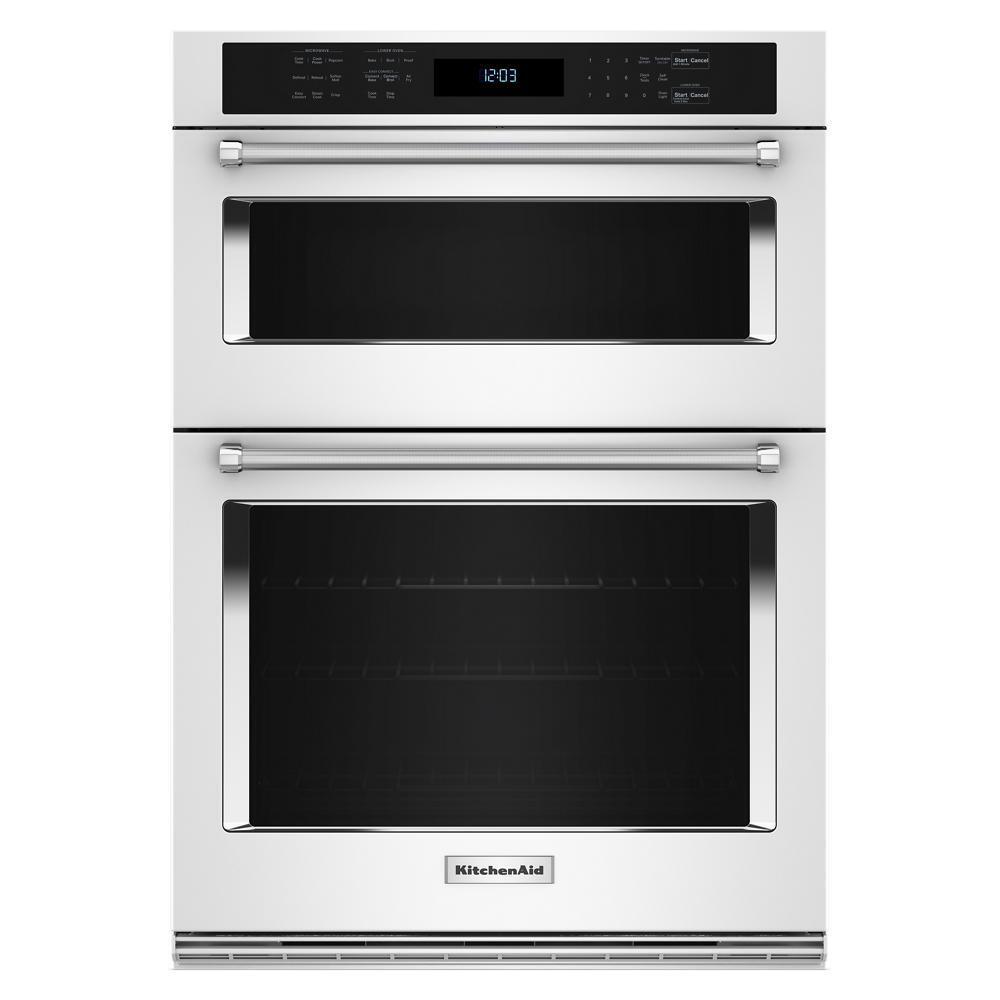

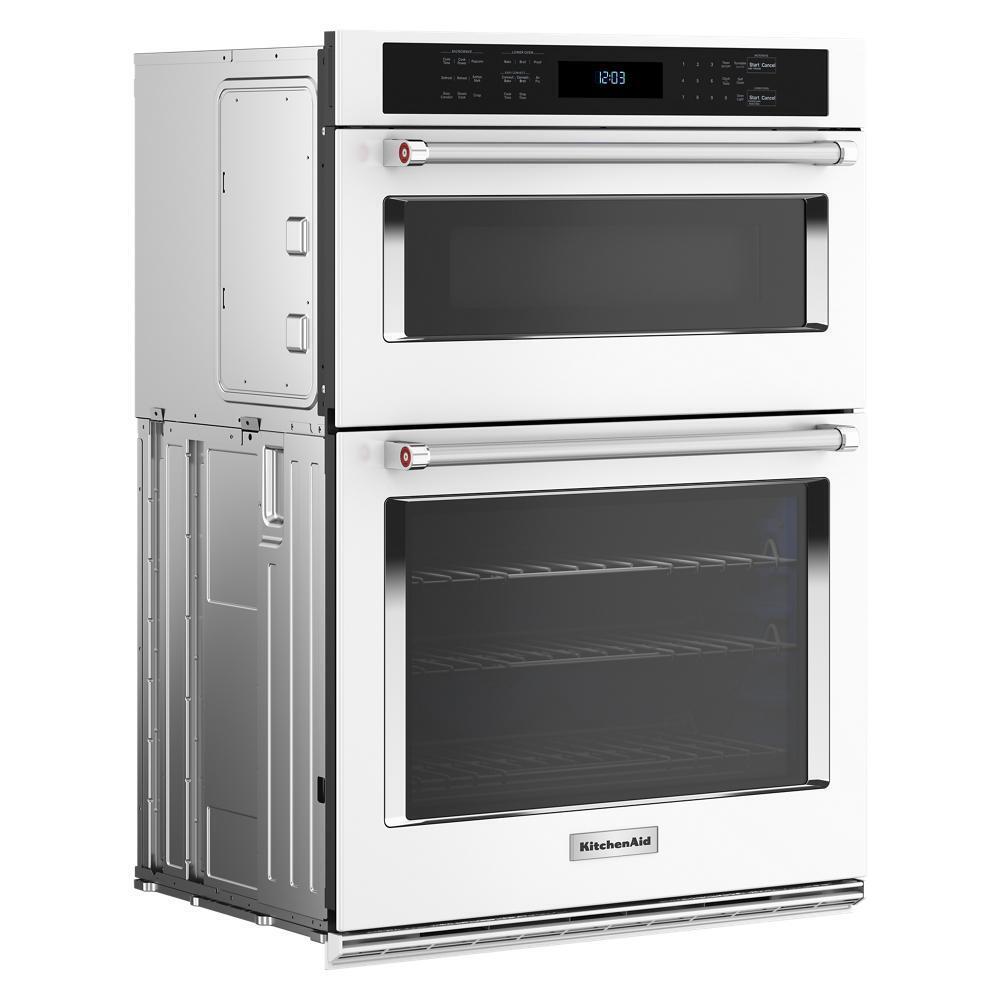

Product Details for KITCHENAID KOEC530PWH

Technical Details

Other

Capacity (Cu Ft) 6.40

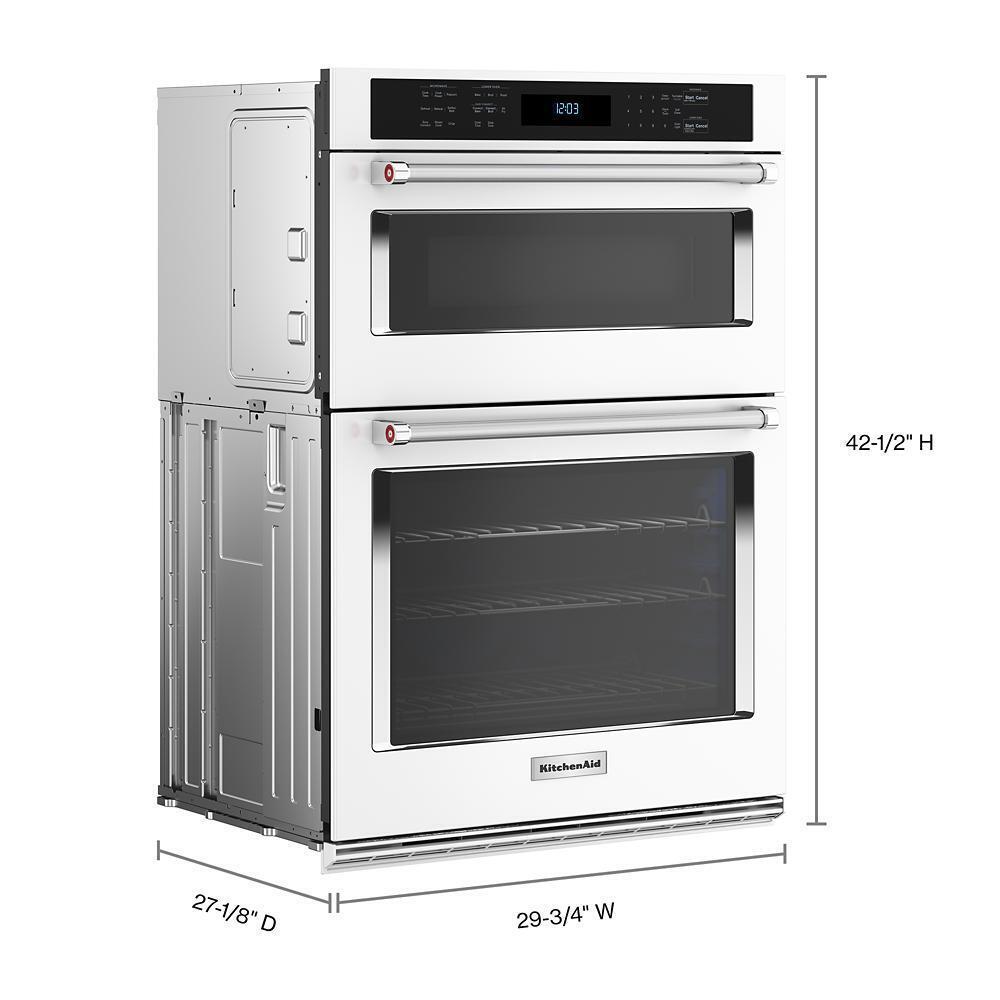

Dimensions & weight

Width 29.75 in.
Height 42.5 in.
Length 27.13 in.
Weight 220 lbs.
Carton Depth 30 13/16
Carton Height 45
Carton Width 34 13/16
Cutout Depth (in) 24
Cutout Height (in) 41 5/16
Cutout Width (in) 28 1/2
Depth Closed Excluding Handles 24 1/2
Depth Closed Including Handles 27 1/8
Depth With Door Open 90 Degree 46 3/4
Gross Weight 220
Net Weight 198.0
Cutout Width 72.39 cm, 72.39 cm, 28-1/2 in, 28-1/2 in
Cutout Depth 60.96 cm, 60.96 cm, 24 in, 24 in
Cutout Height 104.94 cm, 104.94 cm, 41-313/1000 in, 41-313/1000 in
Depth Closed Excluding Handles 62.23 cm, 62.23 cm, 24-1/2 in, 24-1/2 in
Depth Closed Including Handles 68.90 cm, 68.90 cm, 27-1/8 in, 27-1/8 in
Depth With Door Open 90 Degree 118.74 cm, 118.74 cm, 46-3/4 in, 46-3/4 in
Gross Weight 99.79 kg, 99.79 kg, 99.79 kg, 220 lbs, 220 lbs, 220 lbs
Microwave Interior Depth 41.91 cm, 16-1/2 in
Microwave Interior Height 20.96 cm, 8-1/4 in
Net Weight 89.81 kg, 89.81 kg, 89.81 kg, 198 lbs, 198 lbs, 198 lbs
Microwave Interior Width 44.77 cm, 17-5/8 in
Oven Interior Height 45.72 cm, 45.72 cm, 18 in, 18 in
Oven Interior Width 63.50 cm, 63.50 cm, 25 in, 25 in
Oven Interior Depth 48.26 cm, 48.26 cm, 19 in, 19 in
Depth Closed Excluding Handles(IN,inches) 24.5000
Depth Closed Including Handles(IN,inches) 27.1250
Depth With Door Open 90 Degree(IN,inches) 46.7500

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 47.5 in.
Shipping Length 32.13 in.
Shipping Weight 260 lbs.
Total of Shipping Weight 260 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.85 ft³
Dimensional Weight 246.74 lbs.
Total of Cubes 19.85 ft³
Total of Dimensional Weight 246.74 lbs.

Certifications

ADA Compliant No
CUL Yes
Energy Rating (kWh/year) 356
Star K Certified Star K Certified
UL Yes
prop65 Standard - Standard

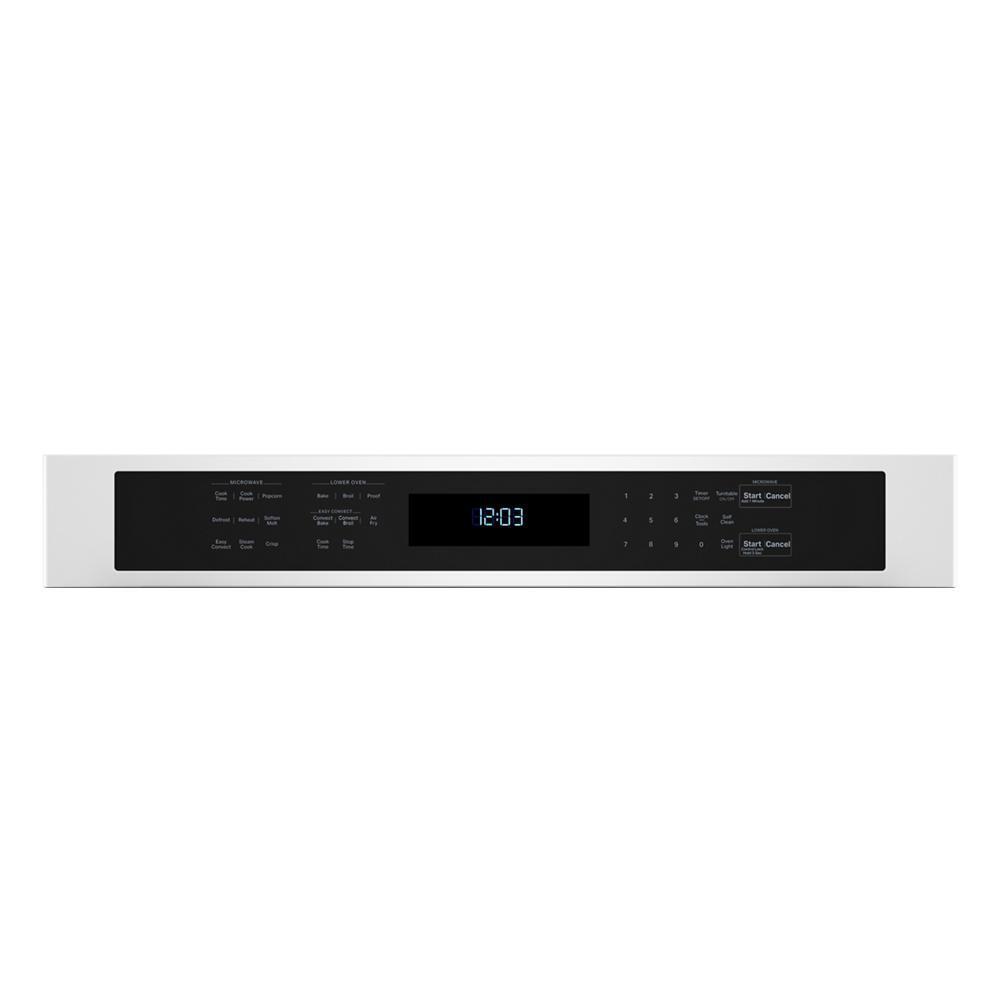

Controls

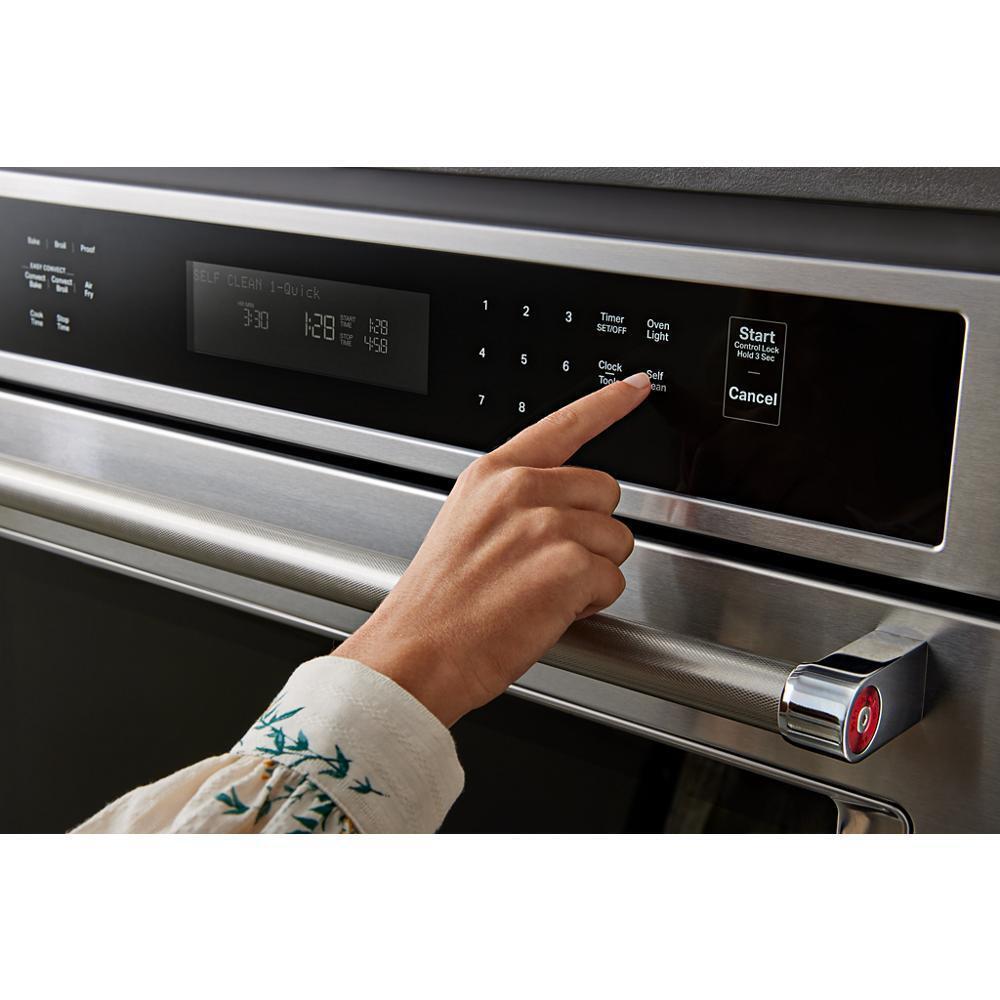

Control Type Electronic Touch
Display Color White
Electronic Display Type Digital
Microwave Selections Add A Minute; Control Lock; Convect; Cook Power; Cook Time; Cook/Start; Crisp; Defrost; Easy Convect; End of Cycle Signal; Off/Cancel; Popcorn; Reheat; Soften/Melt; Sound On/Off; Steam; Time

Details

Air Fry Yes
Flush Installation Approved Yes
Fuel Type Electric
Grill Yes
Grill Power 1, 600
Oven Automatic Shut-Off Yes
Oven Selections Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Temperature Pr
Turntable Yes

Dimensions

Cutout Depth 24
Cutout Height 41.313
Cutout Width 28.5
Depth Closed Excluding Handles 24.5
Depth Closed Including Handles 27.125
Depth With Door Open 90 Degree 46.75
Oven Capacity 5
Oven Interior Depth 19
Oven Interior Height 18
Oven Interior Width 25
carton depth 30.8
carton height 45
carton width 34.8
gross weight 220
net weight 198

Electrical

Power Cord Included No

Exterior details

Door Type Metal & Glass

Microwave details

Door Release Handle
Language Conversion English/French/Spanish
Microwave Capacity 1.4
Number of Microwave Racks 2
Sensor Cooking Yes - Microwave
Turntable Diameter Size 14.125

Oven details

Bake Element Power 2, 800 W
Broiler Element Power 4, 000 W
Broiler Location Top of Oven
Convection Yes
Convection Element Power 3, 200
Convection Element Type True Convection
Convection Functions Bake; Broil; Convection Conversion
Convection Power 1, 200
Cooking Power 900
Door Broil Position Closed
Door Lock Yes
Hidden Bake Element Yes
Interior Coating Porcelain
Number of Oven Lights 2
Number of Oven Racks 3
Number of Rack Guides 6
Oven Cleaning Type Self-Cleaning
Oven Light Type Halogen
Self-Cleaning Oven Racks No

Product details

Microwave Interior Depth 16.5
Microwave Interior Height 8.25
Microwave Interior Light Halogen
Microwave Interior Width 17.625

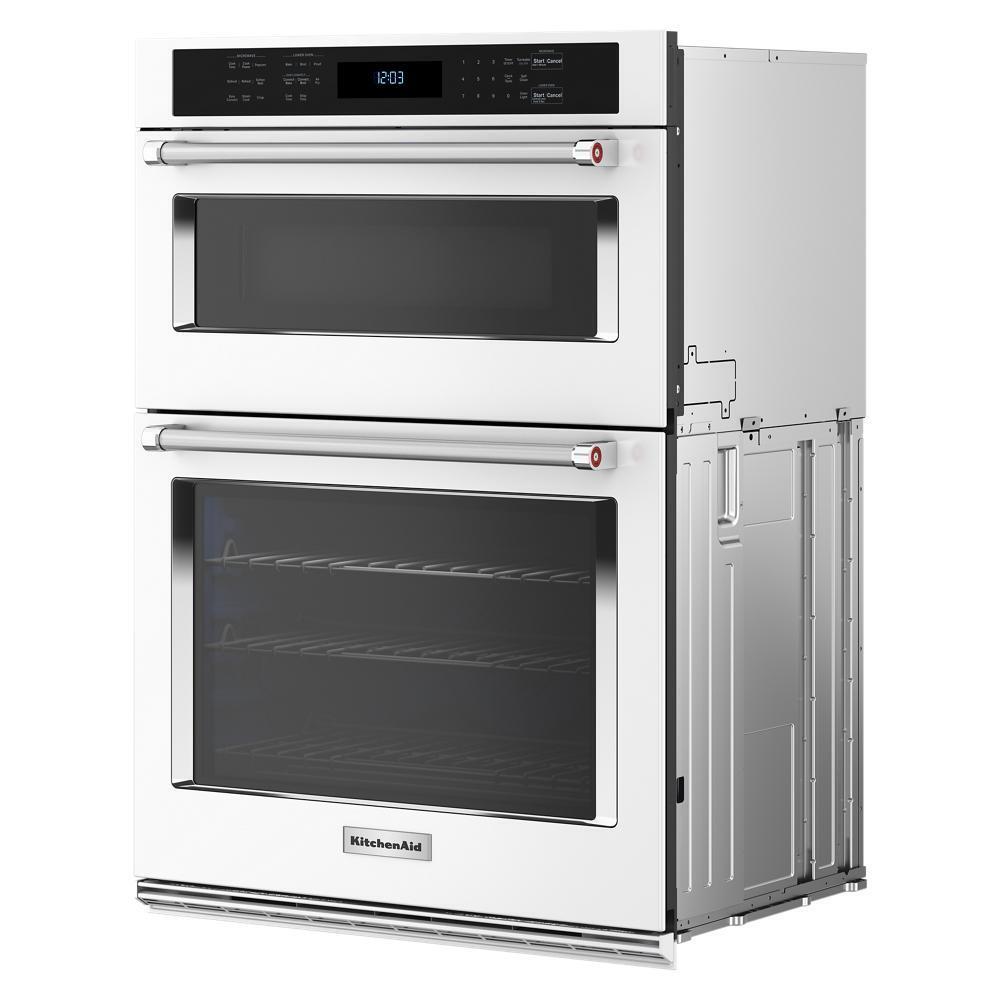

Description

Get the crisp you crave, right from your oven. KitchenAid® Combination Microwave Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.

*When compared to deep frying.


Product Features

  • Dishwasher-Safe Air Fry Basket
    Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
  • EasyConvect™ Conversion System
    Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
  • 4,000-Watt Broil Element
    Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
  • Self-Close Doors
    Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
  • Even-Heat™ Preheat
    Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

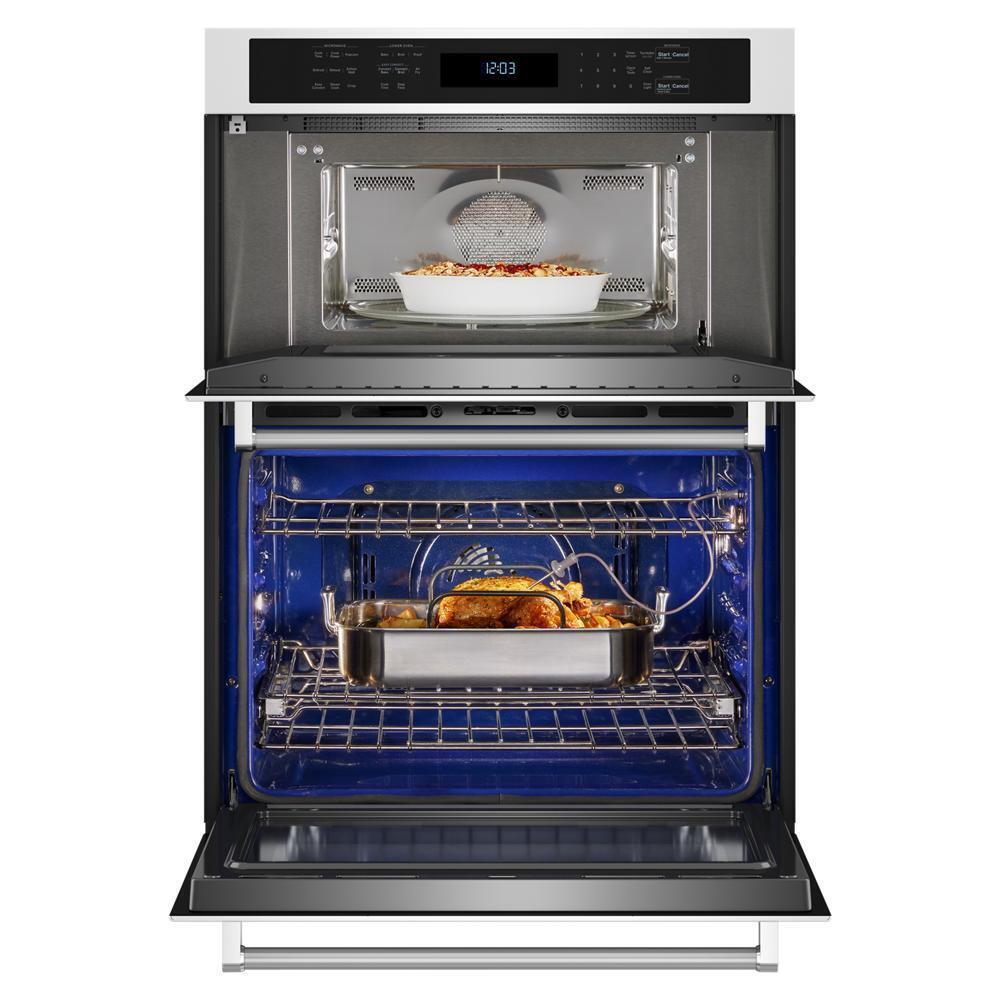

  • 5.0 Cu. Ft. Oven Capacity
    Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
  • FIT System Limited Guarantee
    Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions.
  • Star-K Certified
    To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
  • Self-Cleaning Cycle
    Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
  • What's in the box

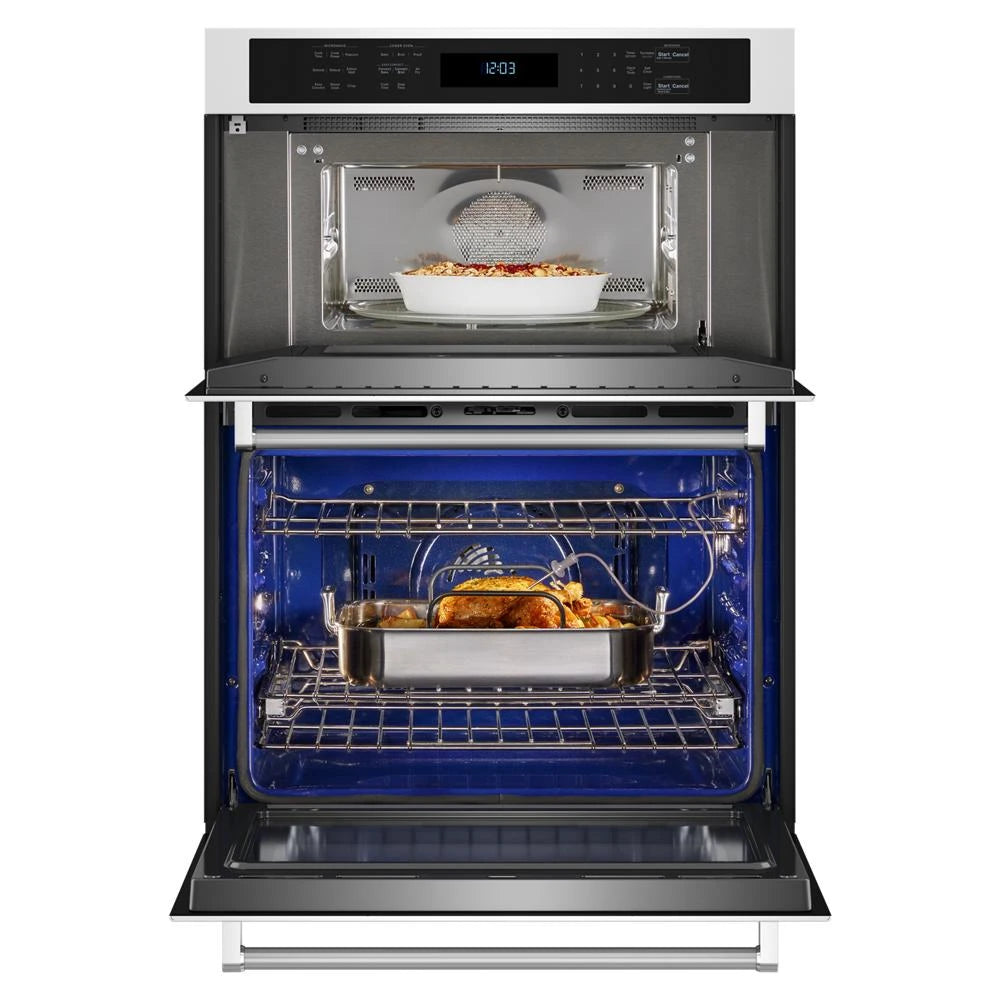

    Combination Microwave Wall Oven includes a Dishwasher-Safe Air Fry Basket, a Microwave Crisper Pan, and an Integrated Meat Thermometer

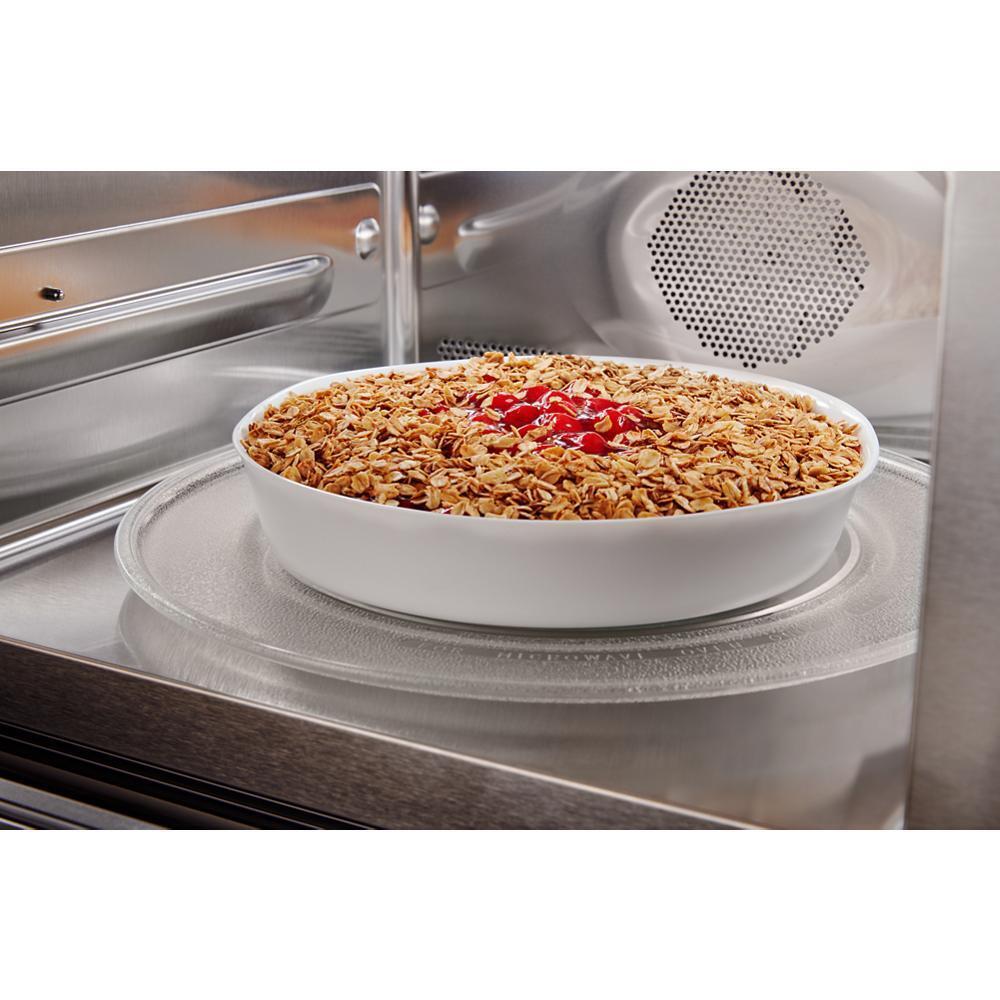

  • 1.4 Cu. Ft. Microwave Oven Capacity
    Comfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish.

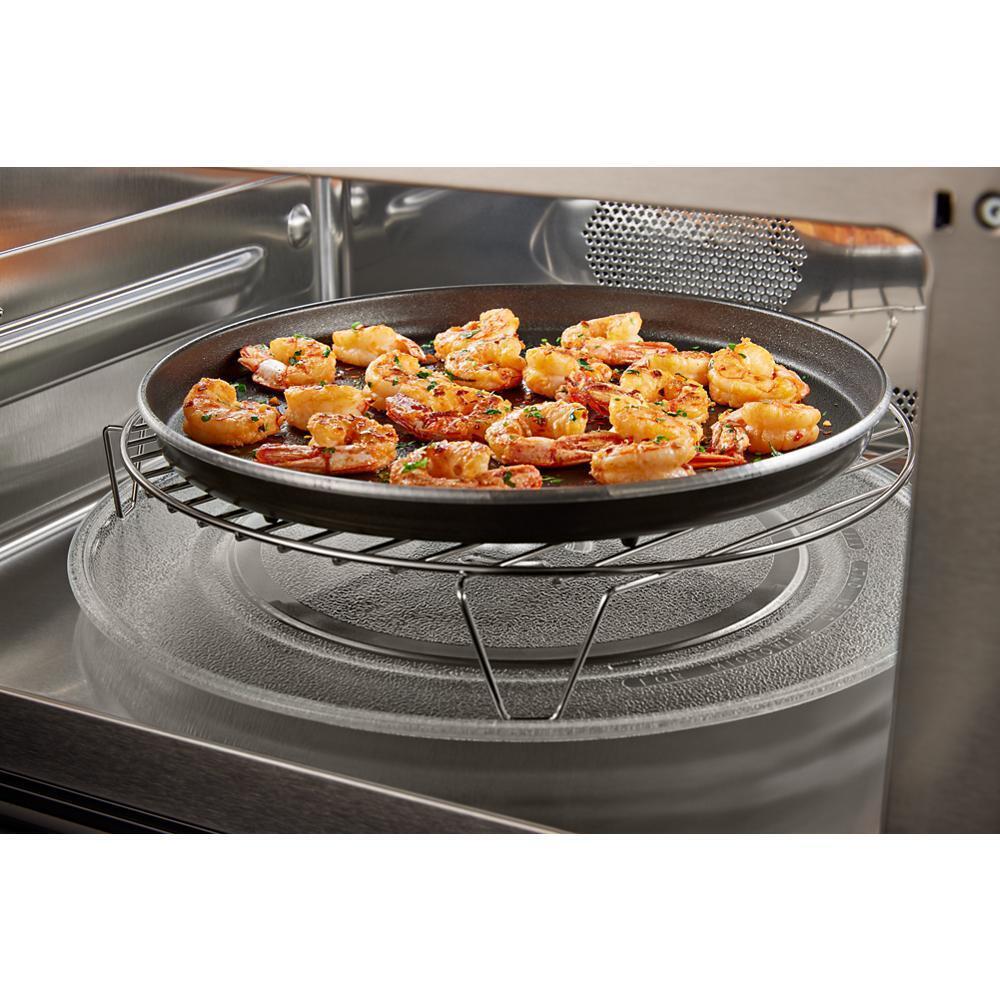

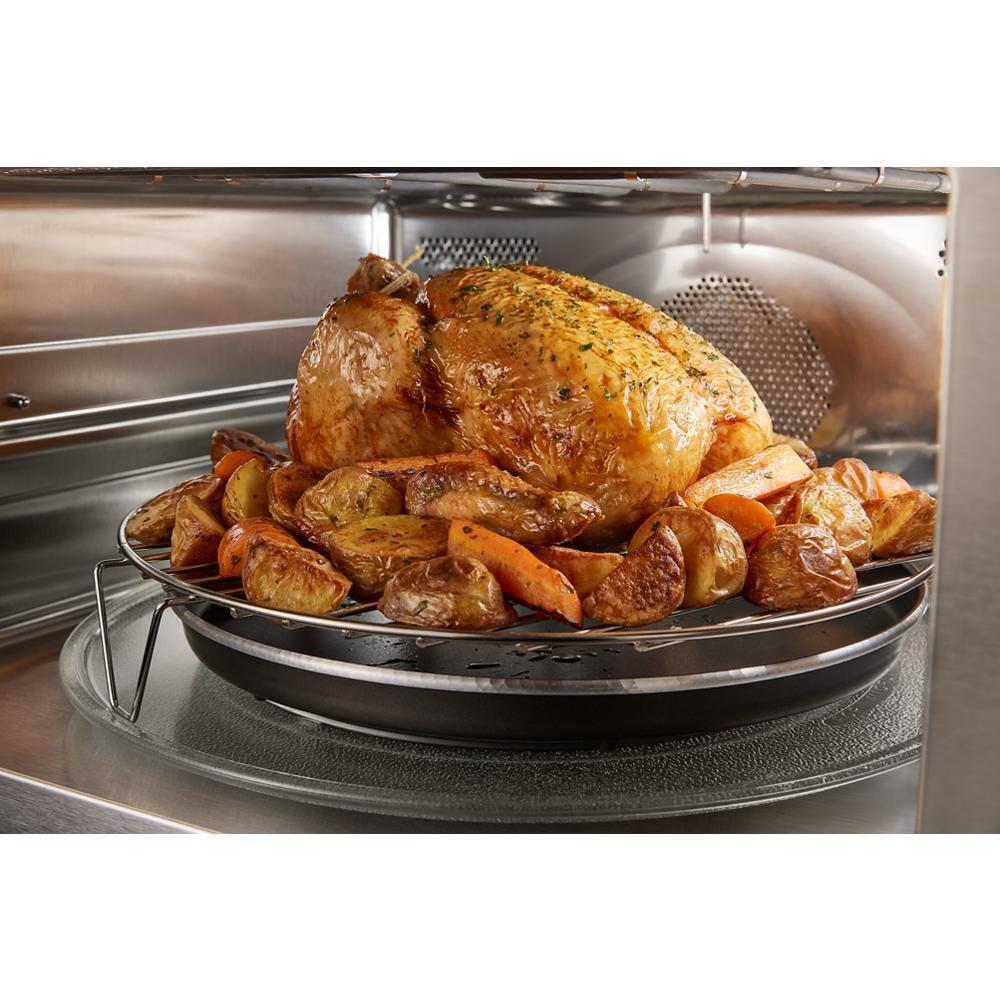

  • CrispWave™ Technology
    Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.

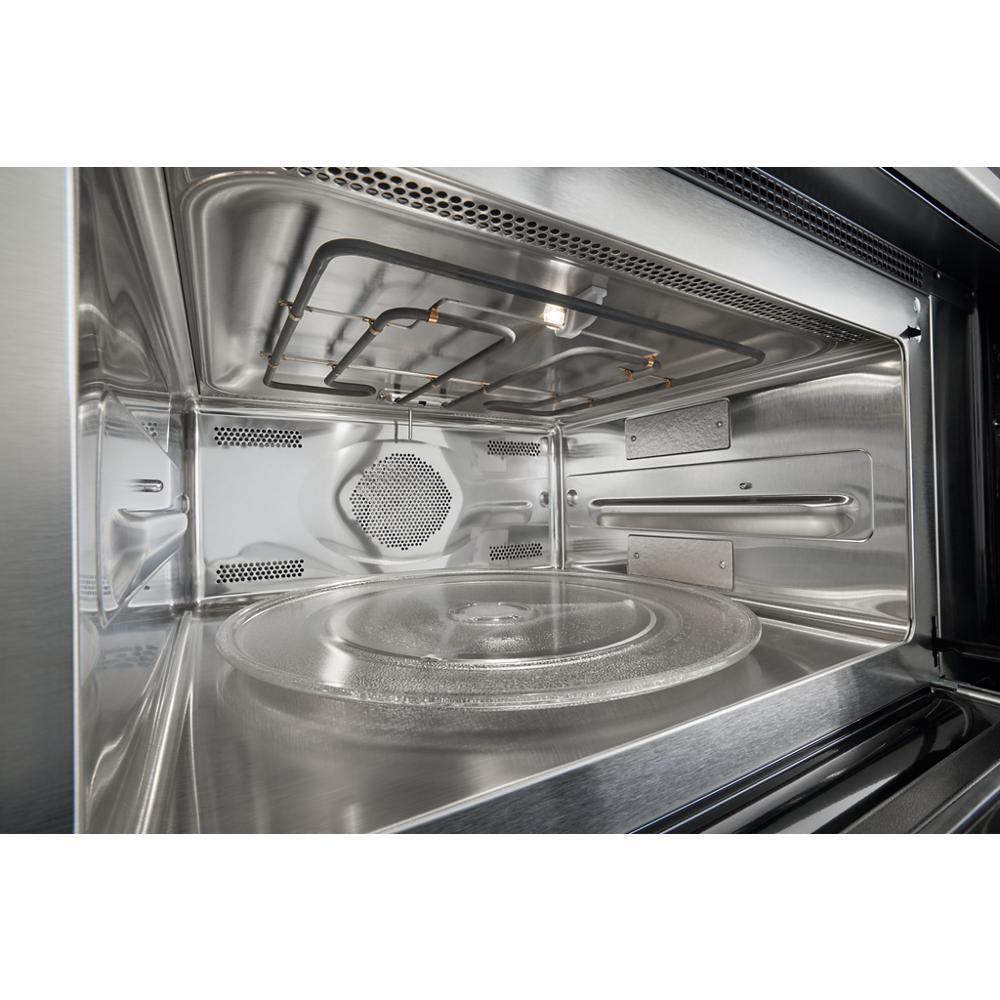

  • Microwave Convection Cooking
    Uses dual heating elements and a fan to reach temperatures up to 450°F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.

Key Features

Integrated Meat Thermometer

Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

Air Fry Mode

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.

Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.

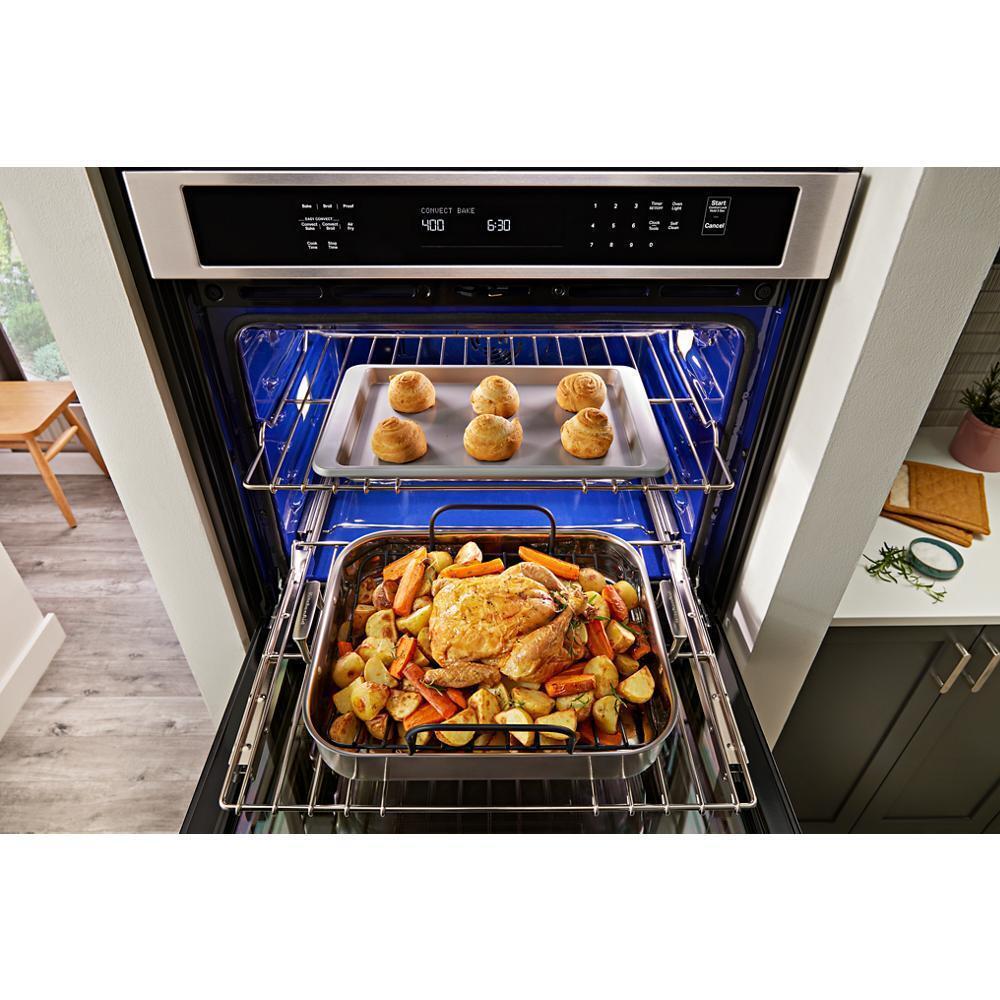

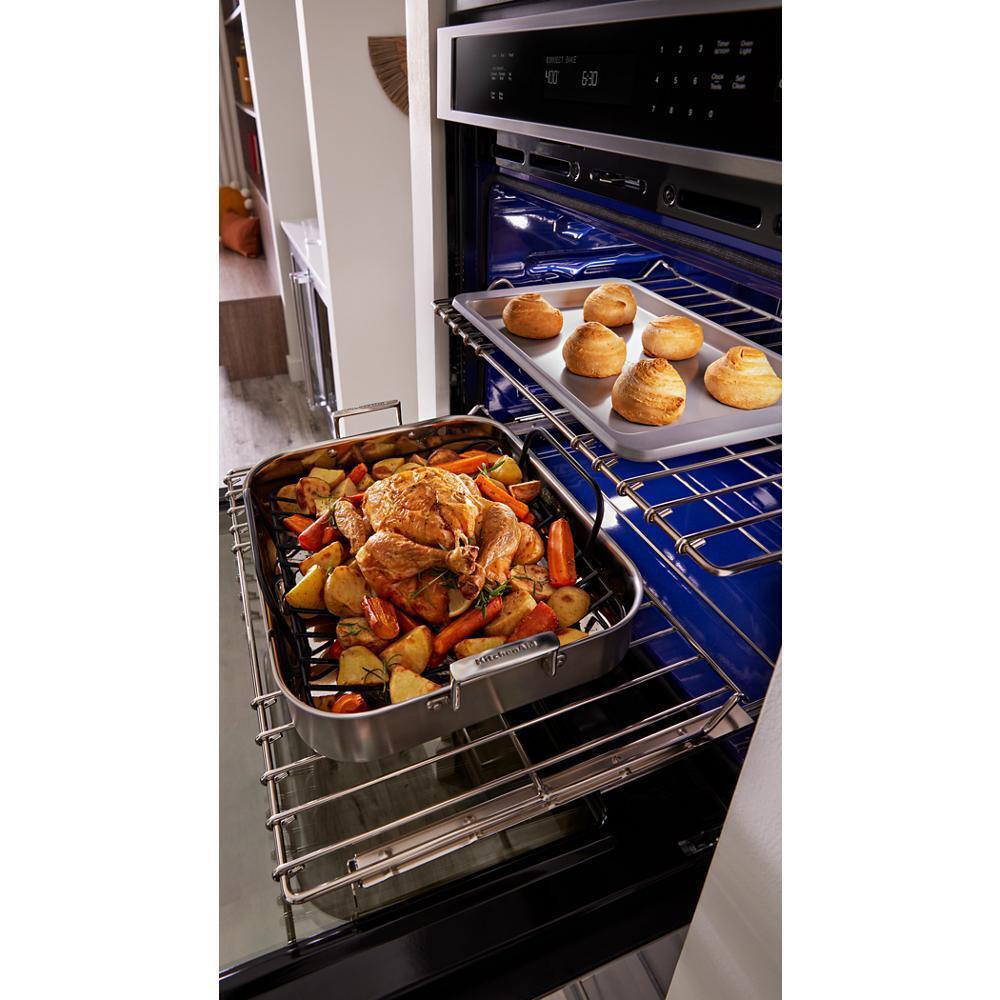

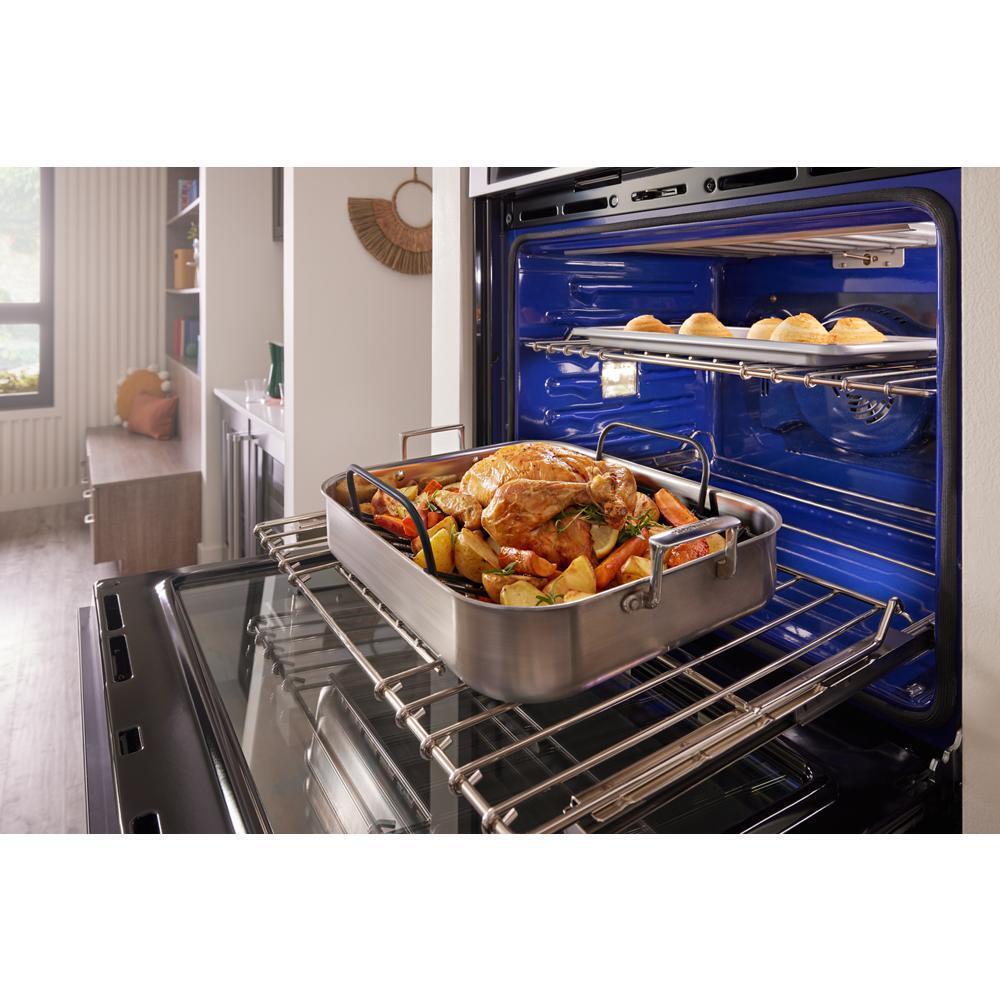

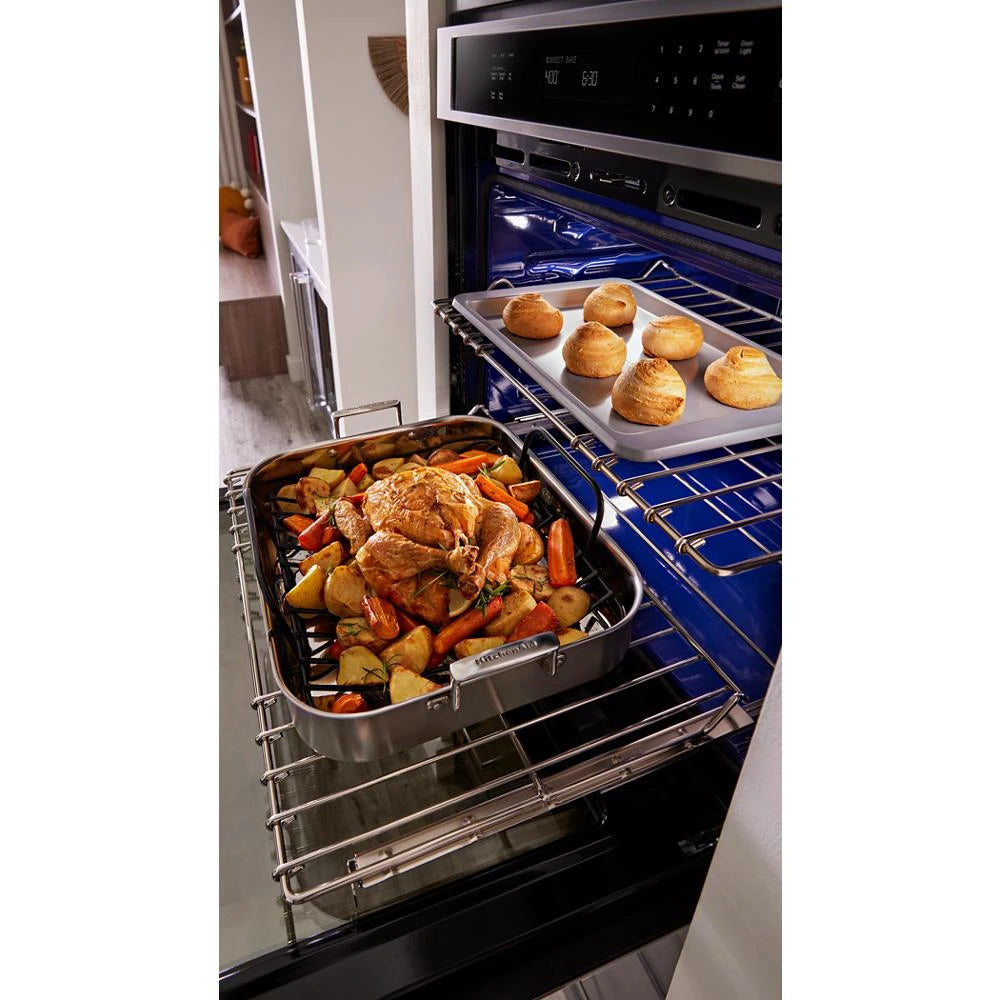

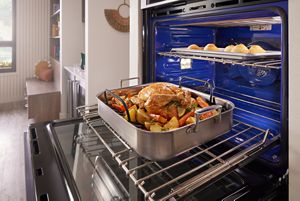

SatinGlide™ Roll-Out Extension Rack

Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
