SKU: KDTM804KBS | UPC: 883049919638

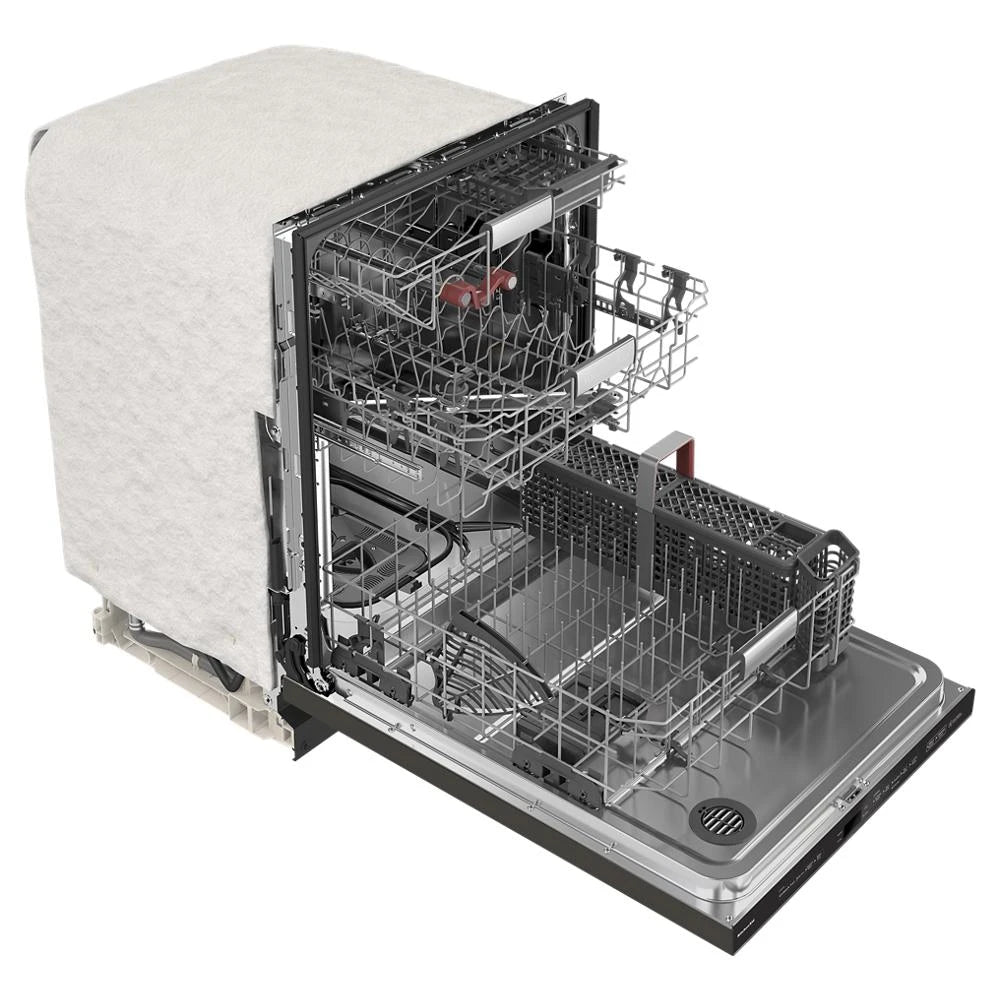

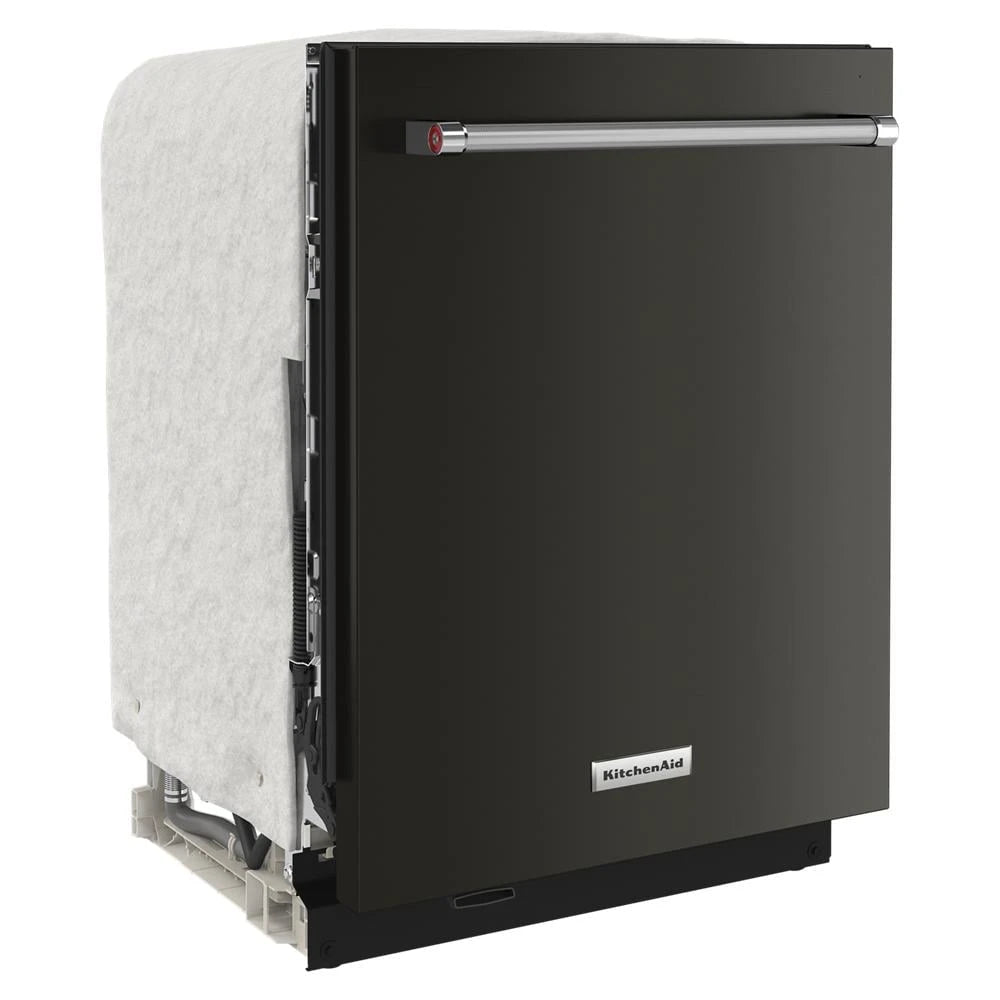

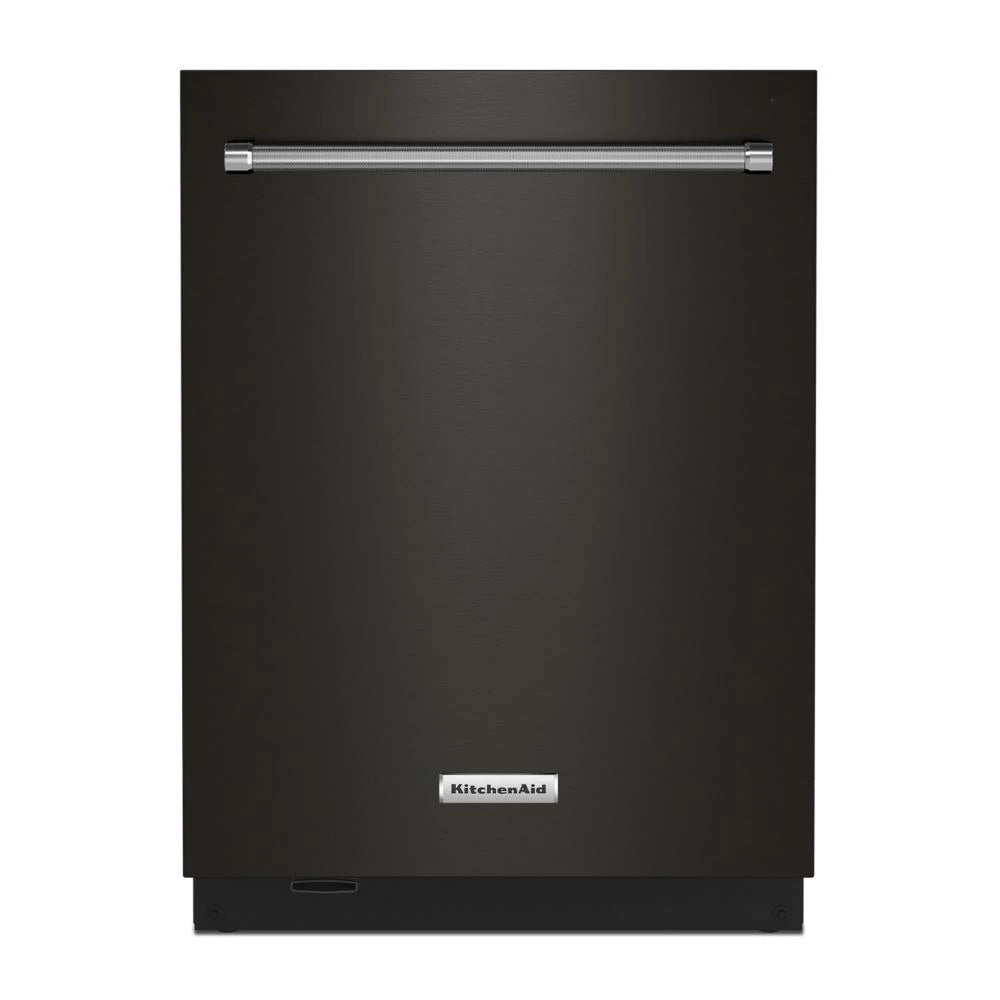

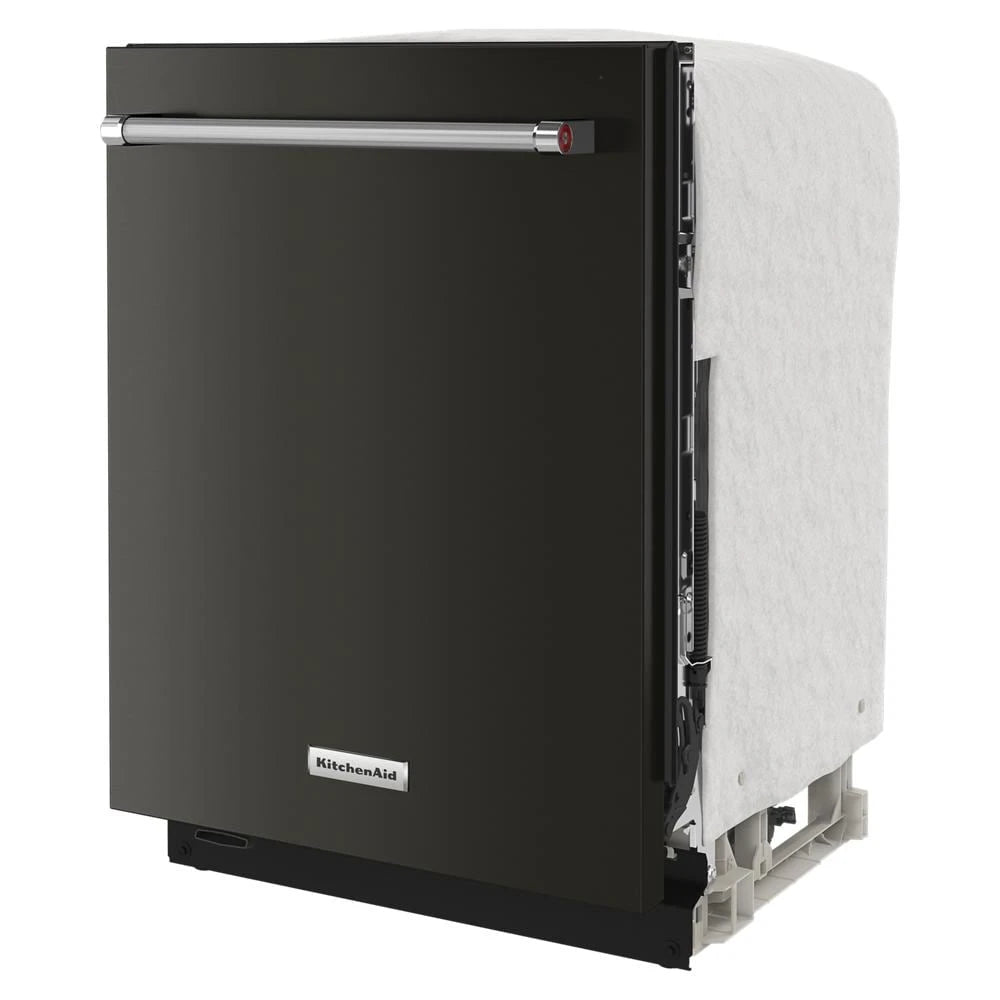

KitchenAid KDTM804KBS 360° Max Jets™ Third Rack Dishwasher with Stainless Steel Third Rack Wash Jets, 44 dBA Black Stainless Steel with PrintShield™ Finish

Name: KitchenAid KDTM804KBS 360° Max Jets™ Third Rack Dishwasher with Stainless Steel Third Rack Wash Jets, 44 dBA Black Stainless Steel with PrintShield™ Finish
Brand: KitchenAid
SKU: KDTM804KBS
Availability: OutOfStock

Quick Specification More details

Width:
23.88"
Depth:
26.75"
Height:
34.63"
Type:
Built-In Dishwashers

About this product

Durable Stainless Steel Interior
Adjustable Rows in Middle and Lower Racks
Six Stemware Holders in Middle Rack
Express Wash Cycle

SKU: KDTM804KBS | UPC: 883049919638

KitchenAid KDTM804KBS 360° Max Jets™ Third Rack Dishwasher with Stainless Steel Third Rack Wash Jets, 44 dBA Black Stainless Steel with PrintShield™ Finish

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.88"
Depth:
26.75"
Height:
34.63"
Type:
Built-In Dishwashers

About this product

Durable Stainless Steel Interior
Adjustable Rows in Middle and Lower Racks
Six Stemware Holders in Middle Rack
Express Wash Cycle

Product Details for KitchenAid KDTM804KBS

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Controls

Automatic Temperature Controls	Yes
Control Type	Tap Touch with Display
End of Cycle Signal	Yes
Status Light	White
Control Location	Top

Cycles

Number of Wash Cycles

Details

Built-In Water Softener	No
Drying System Type	Fan Dry with Heating Element
Number of Racks	3
Number of Washarms	5
Tub Material	Stainless Steel
Tub Style	Built-in Tall Tub 24in.
Wash System	Clean Water Wash
Water Filtration	Yes
Hoses Included	Drain Hose
Dishwasher Cycle Selection	Express Wash; Normal; ProWash™; Rinse; Tough
Dishwasher Option Selections	1-24 Hour Delay; Extended ProDry; Hi Temp Wash; ProDry™; Sani Rinse; Top 2 Racks Wash
Dishwasher Type	Built-In

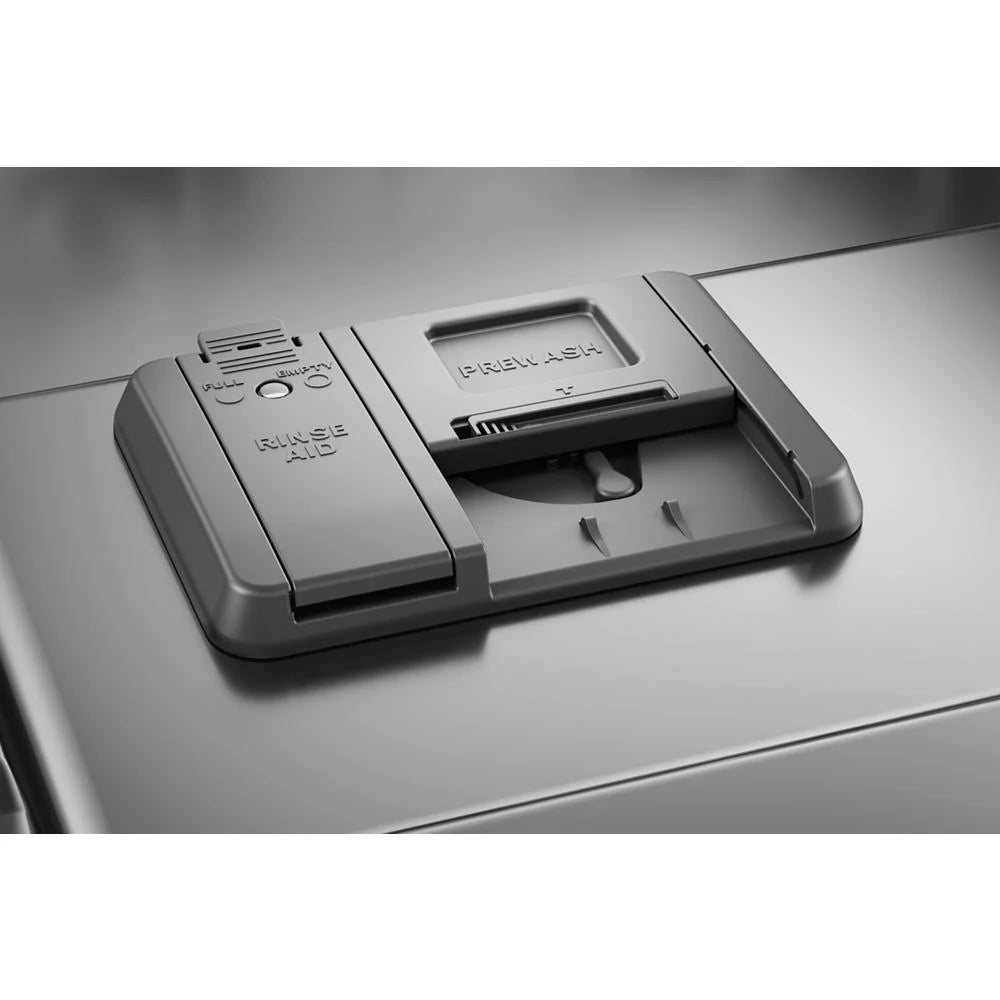

Dispensers	Detergent and Rinse Aid
Number of Place Settings	16
Number of Wash Levels	7
Rinse Aid Dispenser Level Indicator	Yes
Sensor	Yes
Sound Package	Yes
True Hold Door	Yes
Wash System Type	True Self-Cleaning Filtration

Certifications

ADA Compliant	No
CUL	Yes
Energy Rating (kWh/year)	270
CEE Tier Rating	Tier I
NSF Certified	Yes
prop65	Standard

Electrical

Power Cord Included

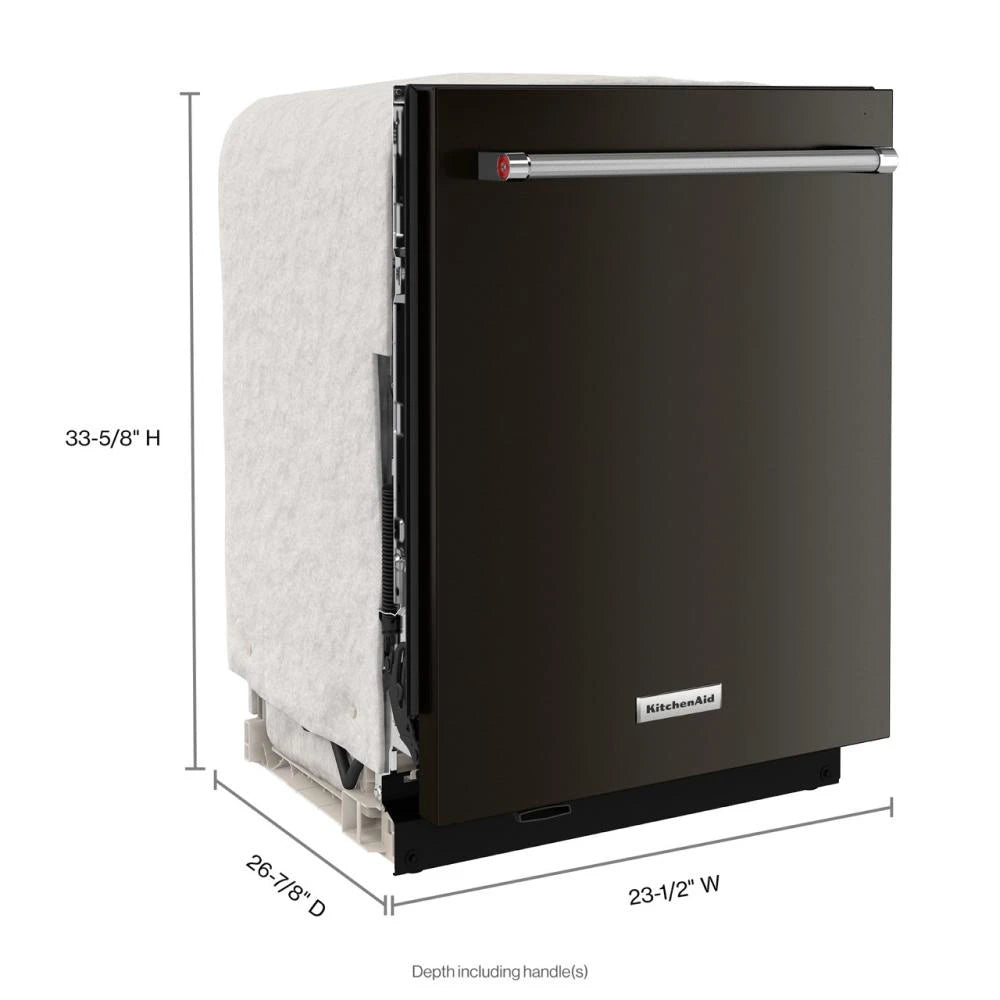

Dimensions & weight

Width	23.88 in.
Height	34.63 in.
Length	26.75 in.
Weight	116 lbs.
Carton Depth	26 7/16
Carton Height	35 1/16
Carton Width	24 1/4
Depth Closed Excluding Handles	24 1/2
Depth Closed Including Handles	26 3/4
Depth With Door Open 90 Degree	51
Gross Weight	116
Maximum Height	34 5/8
Minimum Height	33 5/8
Net Weight	105.0
Depth Closed Excluding Handles(IN,inches)	24.5000
Depth Closed Including Handles(IN,inches)	26.7500
Depth With Door Open 90 Degree(IN,inches)	51.0000
Maximum Height(IN,inches)	34.6250
Minimum Height(IN,inches)	33.6250
Net Weight(LB,pounds)	105
Carton Depth(IN,inches)	26.4375
Carton Height(IN,inches)	35.0625
Carton Width(IN,inches)	24.2500
Gross Weight(LB,pounds)	116

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.88 in.
Shipping Height	39.63 in.
Shipping Length	31.75 in.
Shipping Weight	156 lbs.
Total of Shipping Weight	156 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	12.8 ft³
Dimensional Weight	159.09 lbs.
Total of Cubes	12.8 ft³
Total of Dimensional Weight	159.09 lbs.

Dimensions

Depth Closed Excluding Handles	24.5
Depth Closed Including Handles	26.75
Depth With Door Open 90 Degree	51
carton depth	26.38
carton height	35.04
carton width	24.25
gross weight	116
net weight	105

Exterior details

Magnetic Door

Yes

Oven details

Interior Light	Yes
Lower Rack Glides	Ball Bearings
Lower Rack Utility Basket	Yes

Rack details

Lower Rack Cushion-Tip Tines	Yes
Lower Rack Extras	Knife Holder; Sliding Tines; Stainless Steel Wash Arm
Lower Rack Fold-Down Tines	1 Adjustable; 1 Fold Down
Lower Rack Style	Extended
Second Level Rack Adjustable	2 Position Removable
Second Level Rack Cushion-Tip Tines	Yes
Second Level Rack Extras	6 Stemware Holders; Stainless Steel Wash Arm
Second Level Rack Fold-Down Tines	1 Row 6 Position
Second Level Rack Glides	Ball Bearings
Third Level Rack Adjustable	No
Third Level Rack Glides	SatinGlide Max Rails
Third Level Rack Removable	Yes
Third Level Rack Type	360° Max Jets™ Third Rack

Silverware basket details

Culinary Basket	Yes
Silverware Basket Covers	Yes
Silverware Basket Location	Bottom Rack

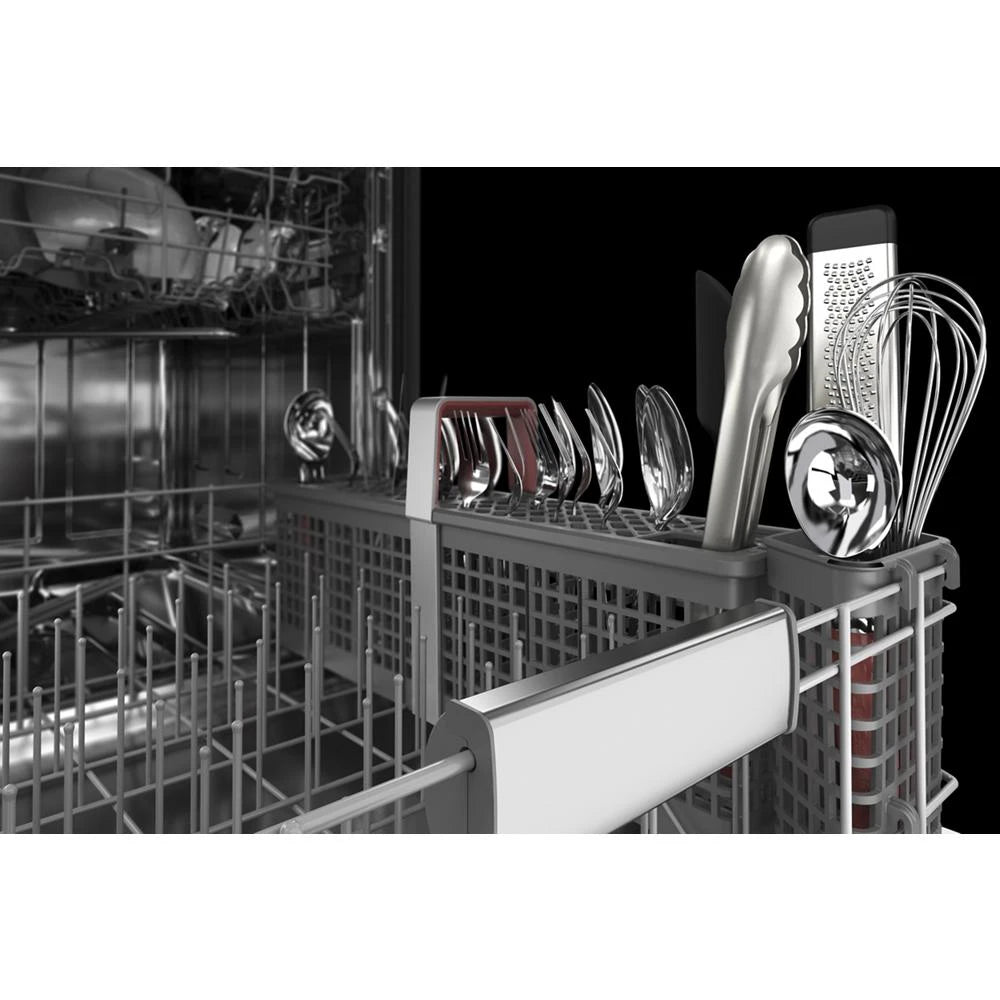

Silverware Basket Type	Large In the Rack Basket

Product details

Decibel Level (dBA)	44
Dishwasher Rack Material	Nylon
Energy Star® Qualified	No
Kosher Consumer Friendly	Yes

Description

Fall in love at first wash with this top control dishwasher’s MaxTub largest dishwasher tub,* over 50 total wash jets and true self-cleaning filtration that eliminates pre-rinsing and manual filter cleaning. The only third rack with 360° wash jets fits 10 extra glasses and mugs,** freeing up space for larger items below. Ultra-Bright LED Lighting turns on when the door is open to illuminate loading and unloading. And the Fan-Enabled ProDry™ System circulates hot air after the wash cycle to give dishes a thorough dry. *Based on usable volume. **Compared to KDTE204K and KDFE204K models.

Product Features

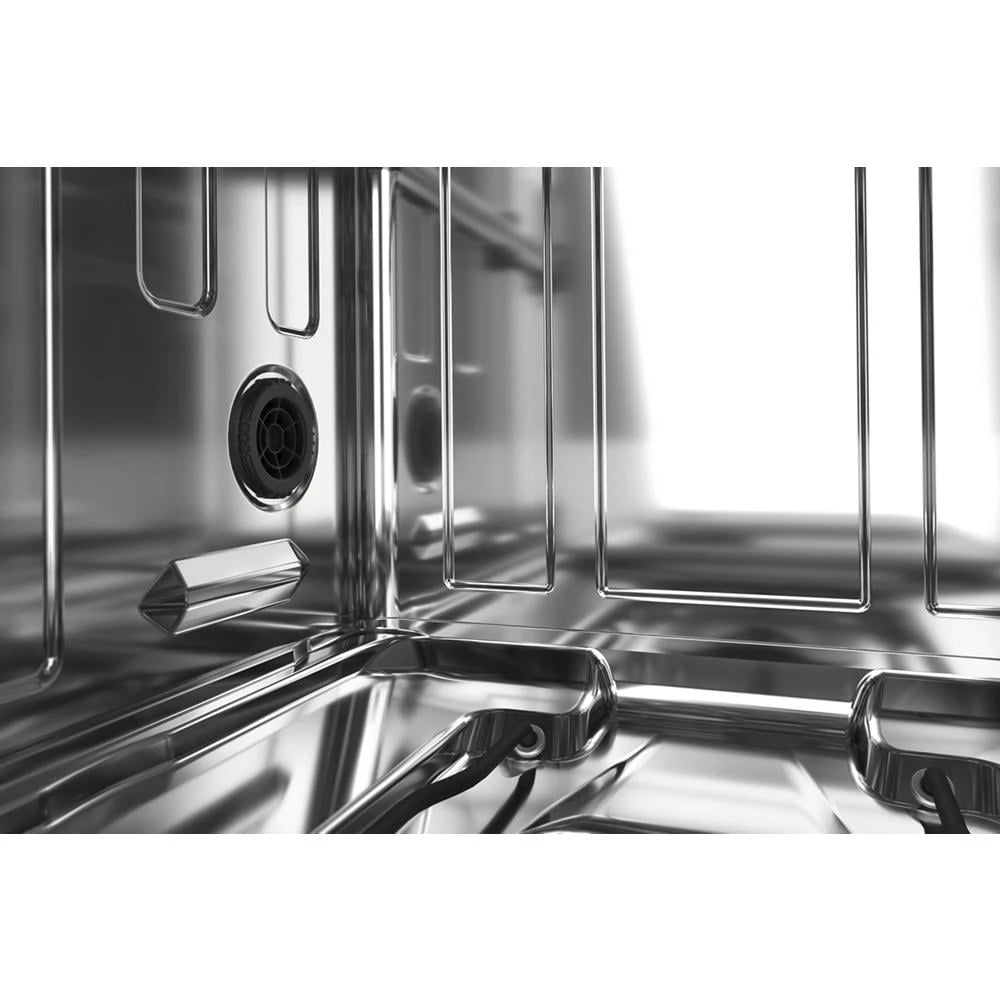

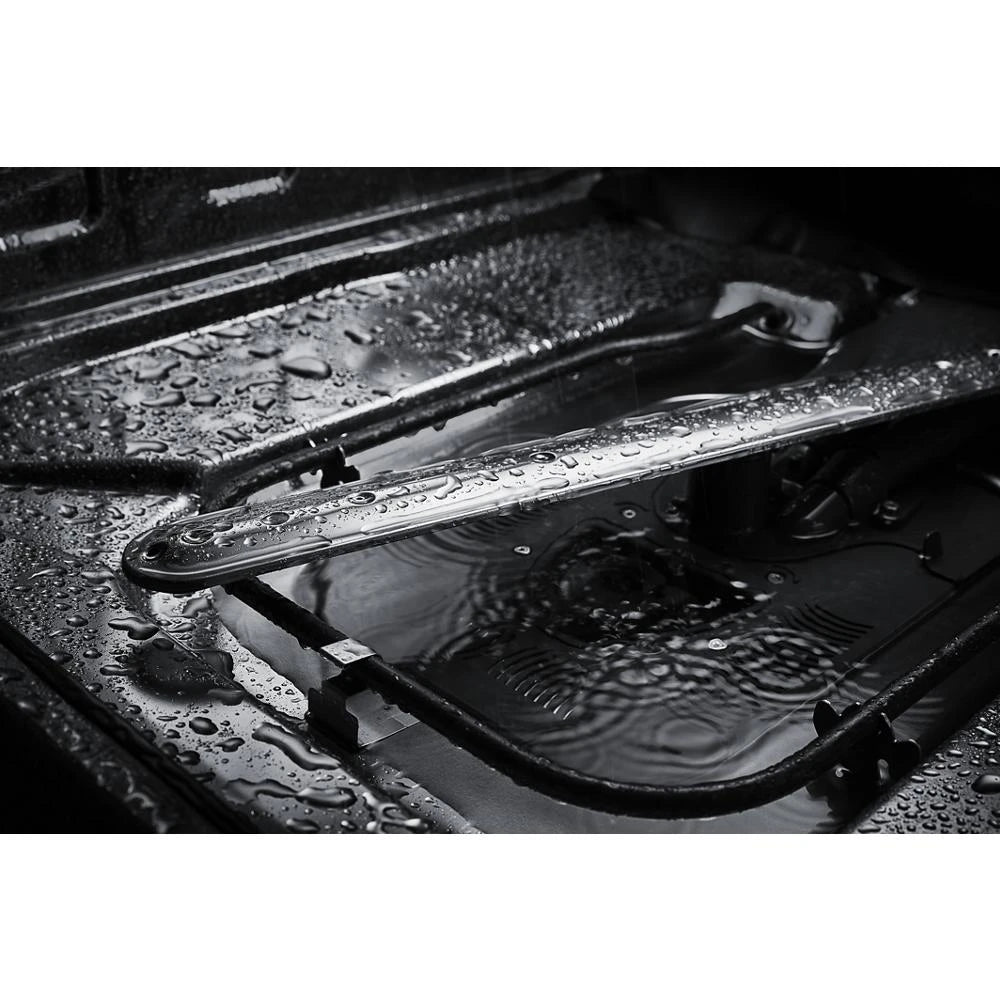

Durable Stainless Steel Interior
offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors while retaining heat to help improve drying.

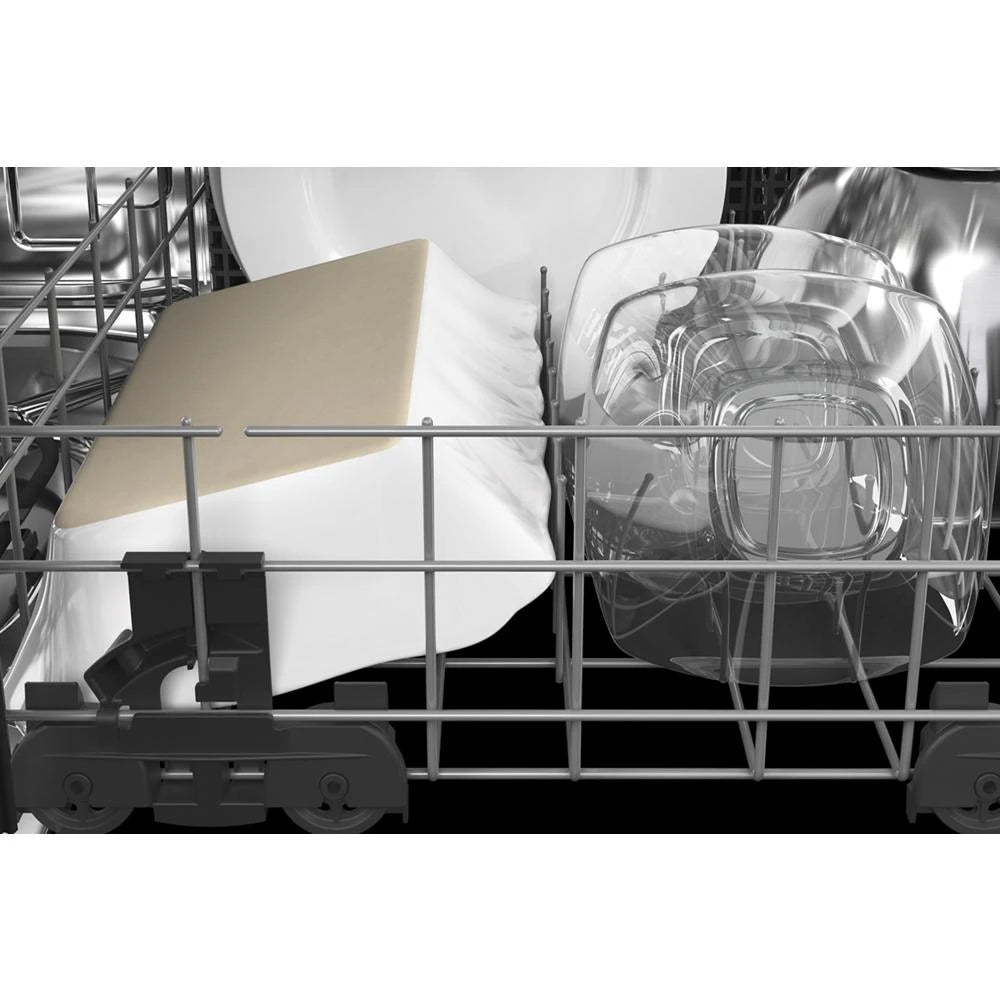

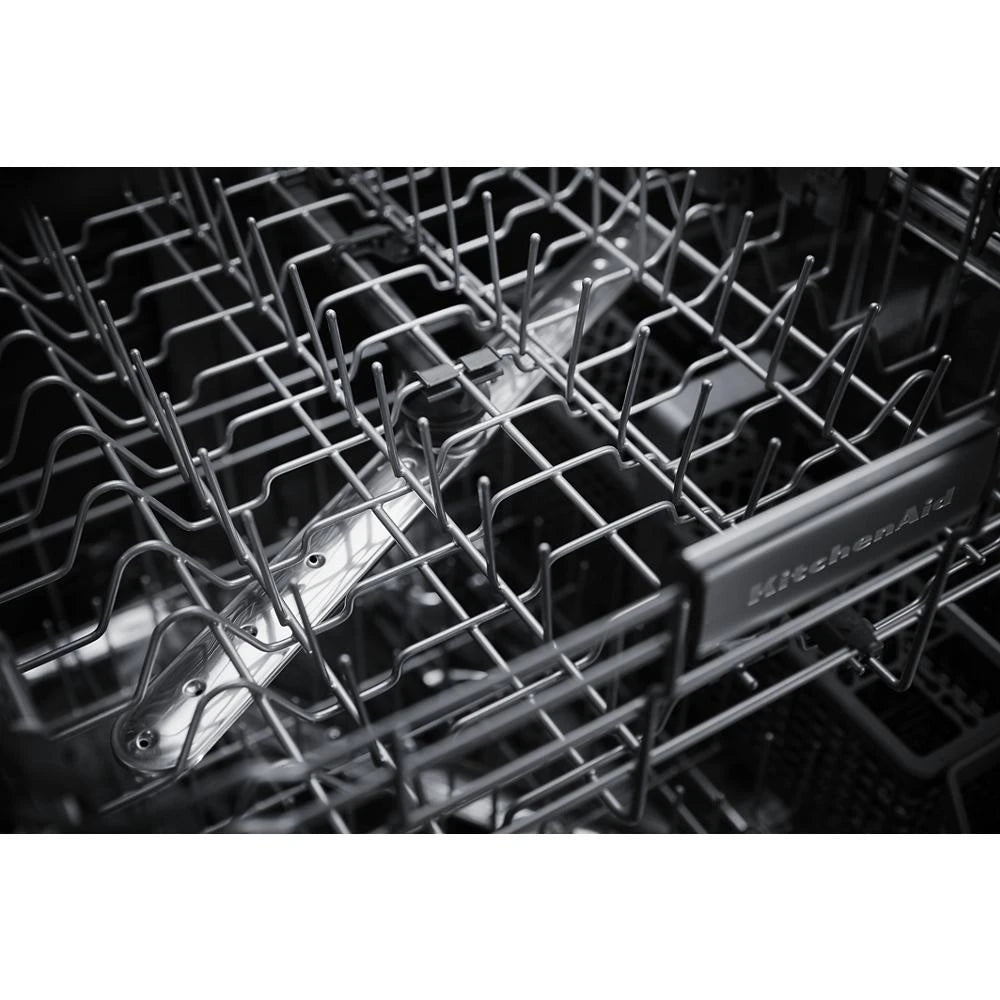

Adjustable Rows in Middle and Lower Racks
fold down to make room for dishes in a variety of shapes and sizes like roasting pans, serving bowls, colanders and dutch ovens.

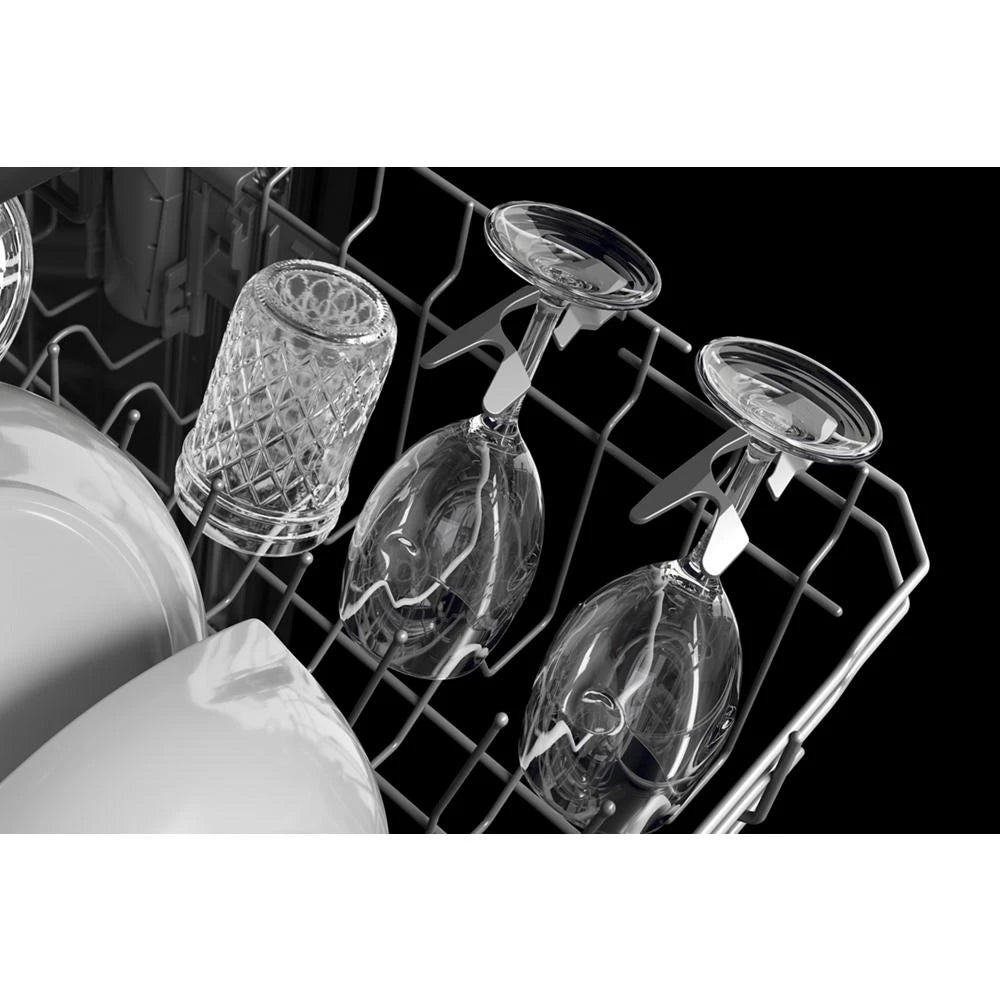

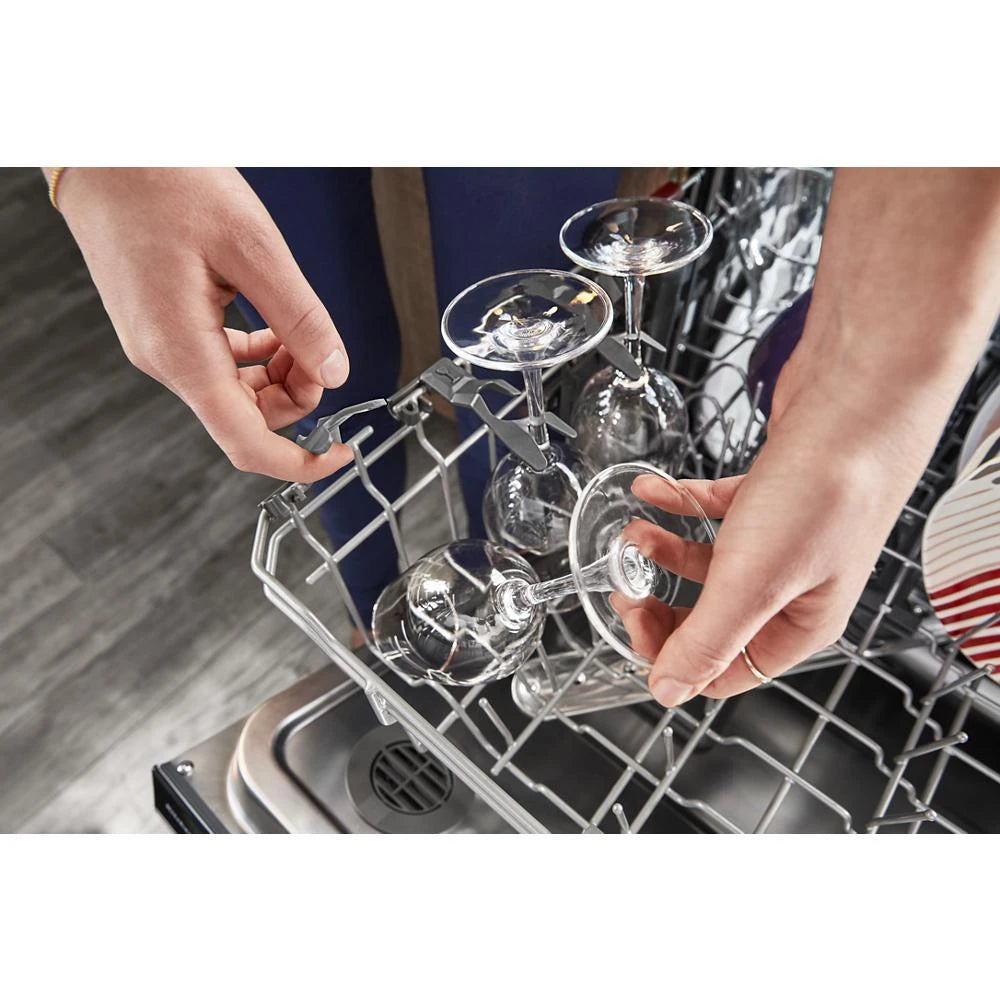

Six Stemware Holders in Middle Rack
secure wine glasses along the sides of the rack to prevent them from moving around during the wash cycle.
Sani-Rinse Option
eliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.

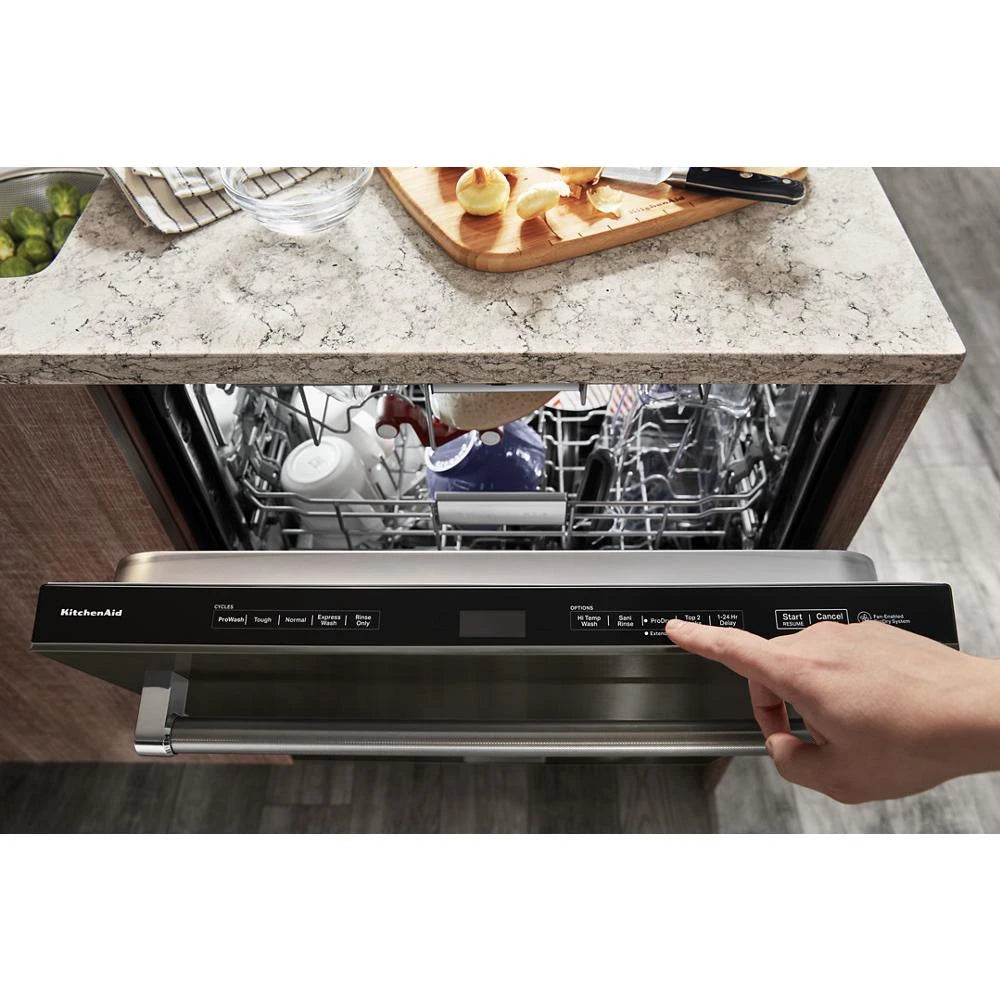

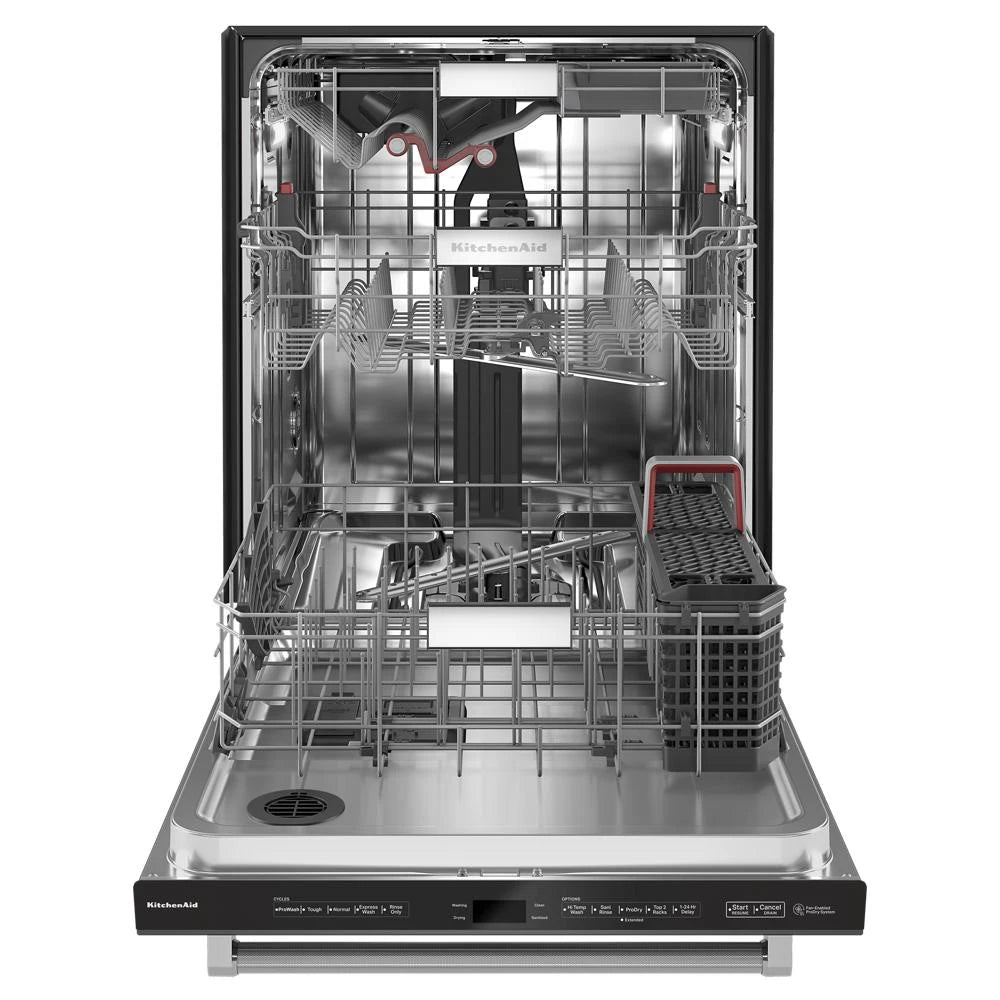

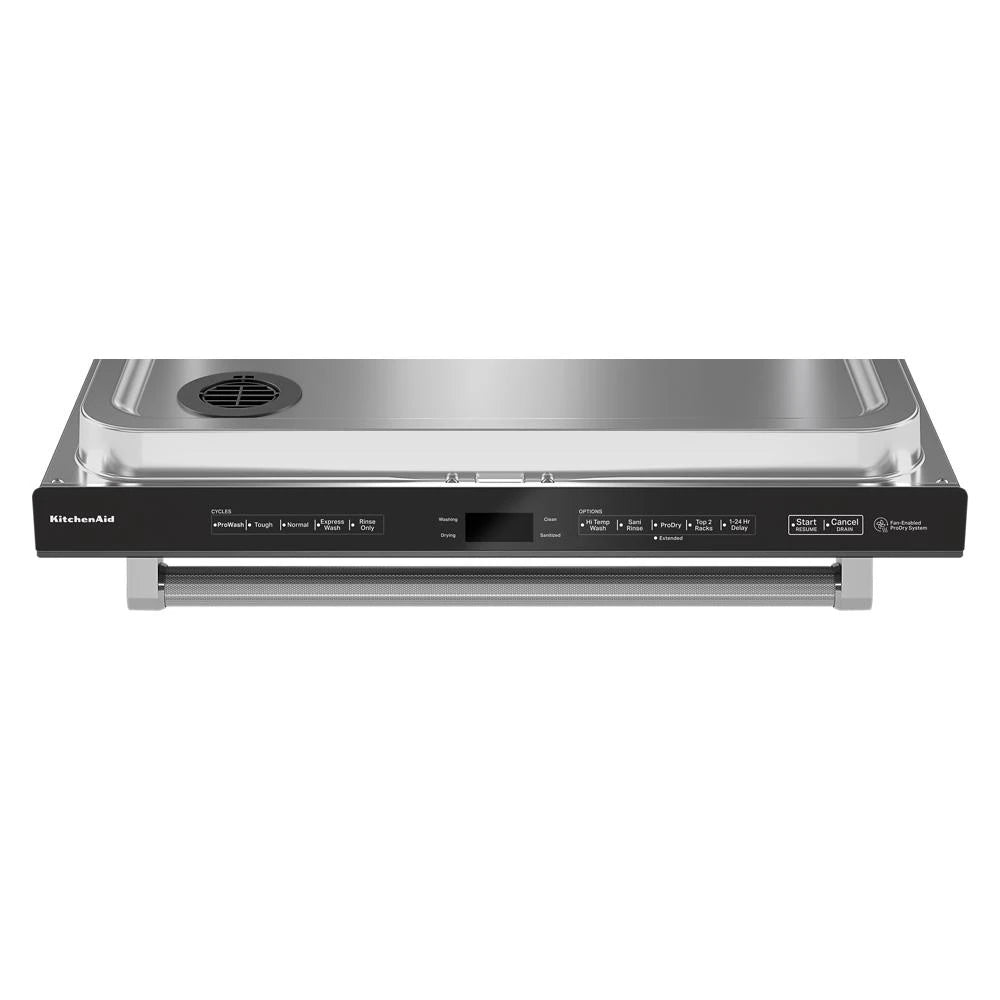

Top Controls
are tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
Eco Series
Eco Series dishwashers from KitchenAid brand are designed with efficiency in mind, delivering next level wash and dry performance while saving you water, energy and money.*Compared to dishwashers meeting the minimum 2023 Department of Energy efficiency standards.

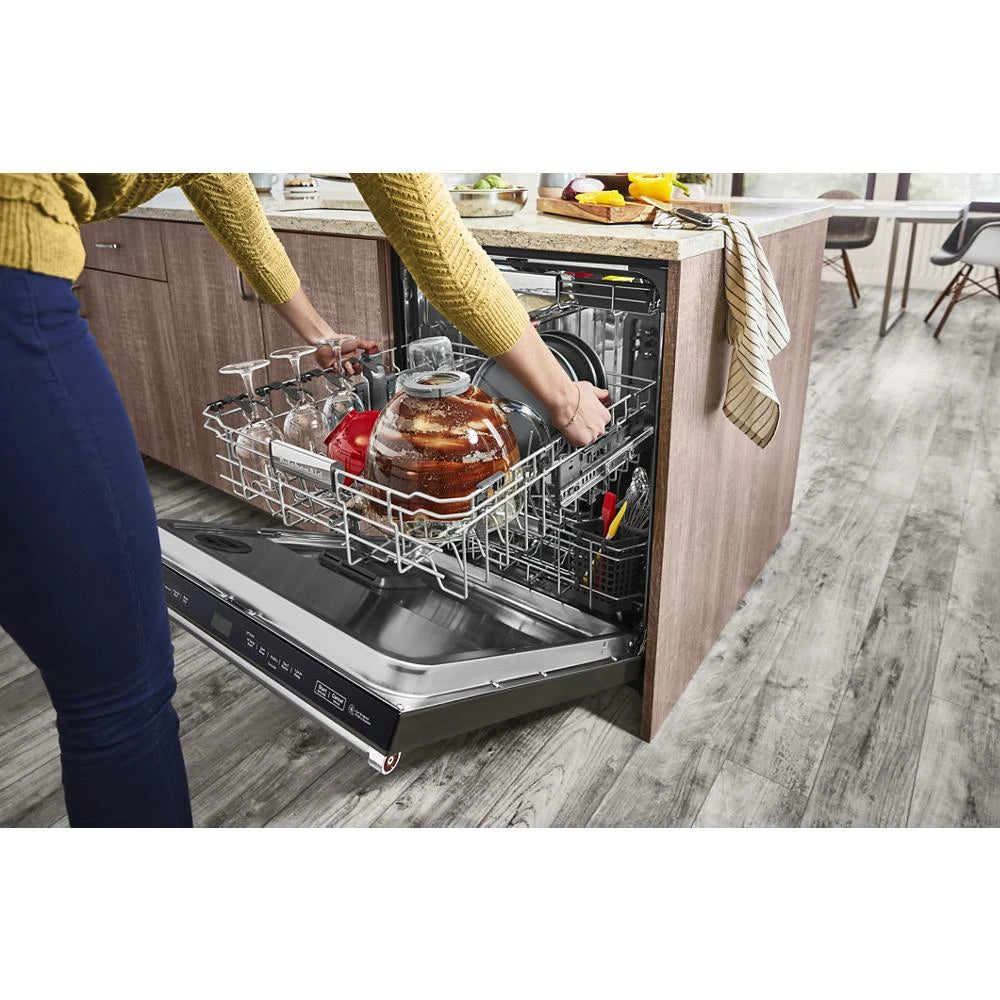

Adjustable Middle Rack
adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.

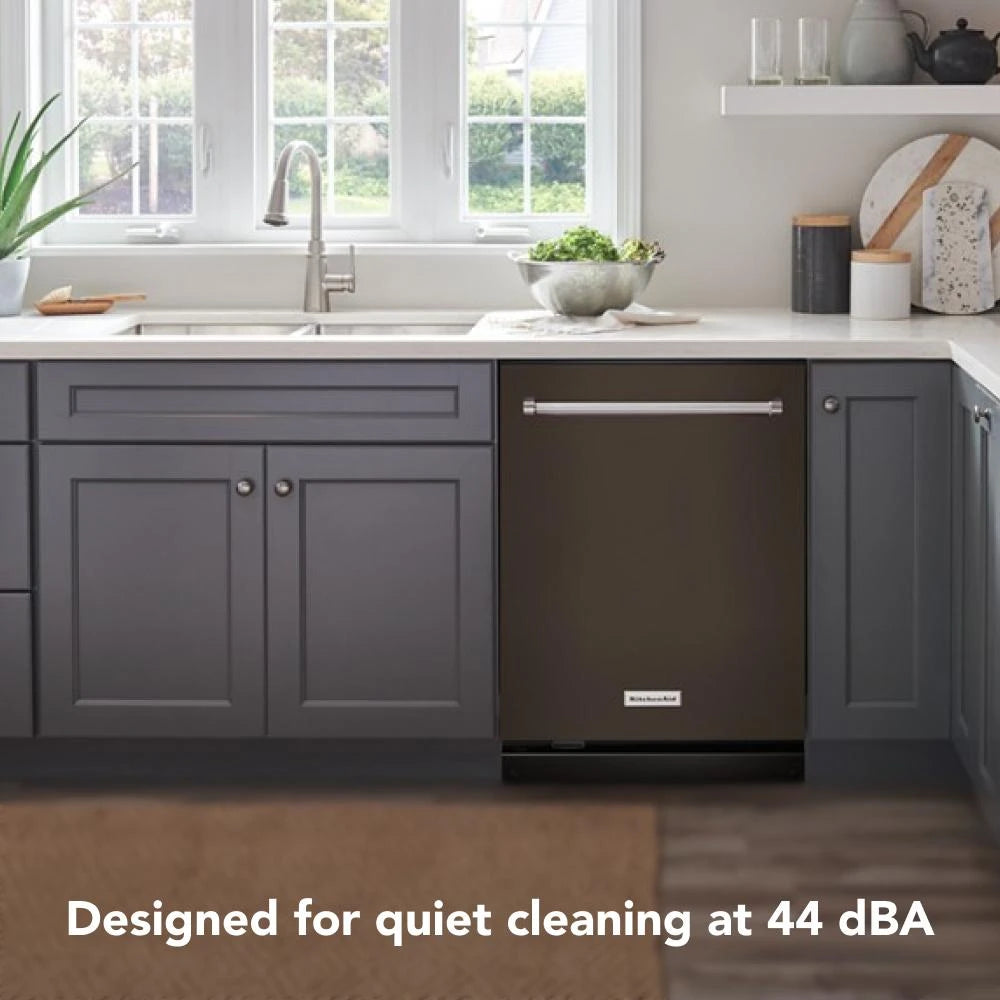

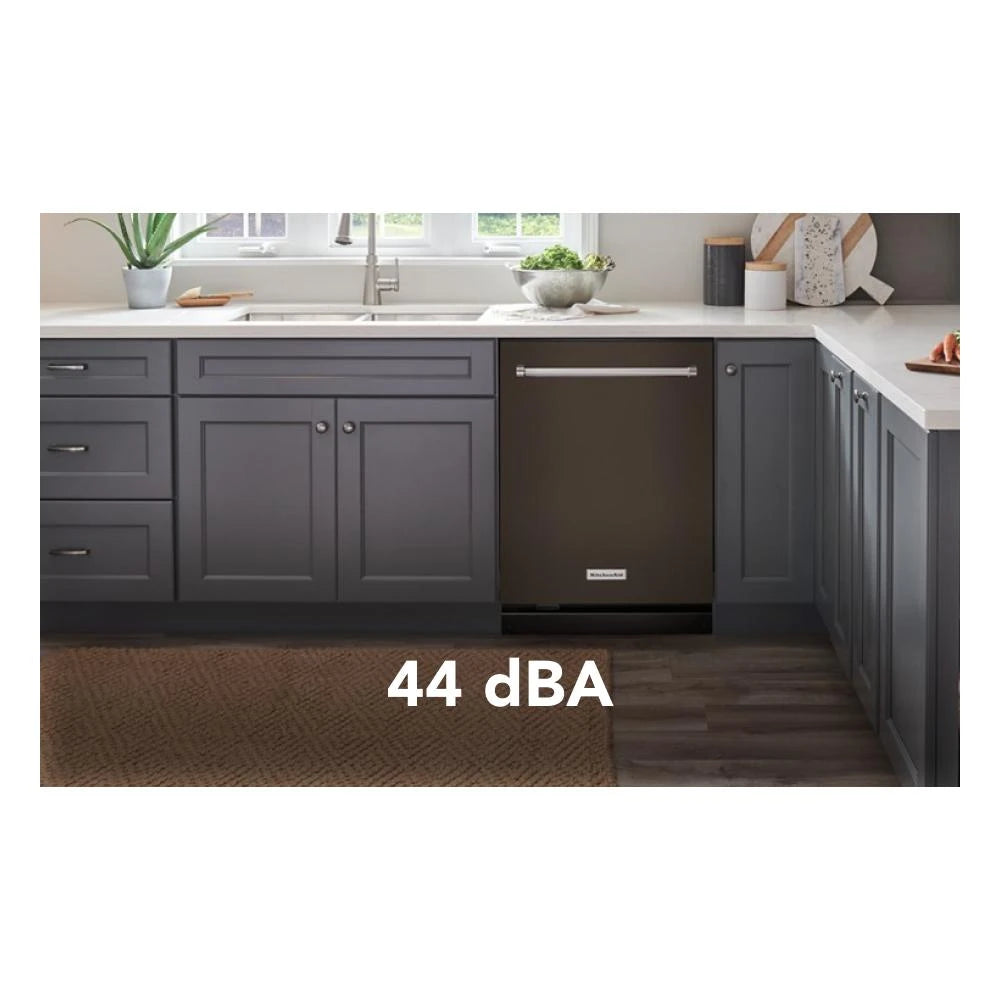

Designed for Quiet Cleaning at 44 dBA
so you can let the dishwasher get a head start on cleanup while you entertain and enjoy meals, even in open-concept kitchens.

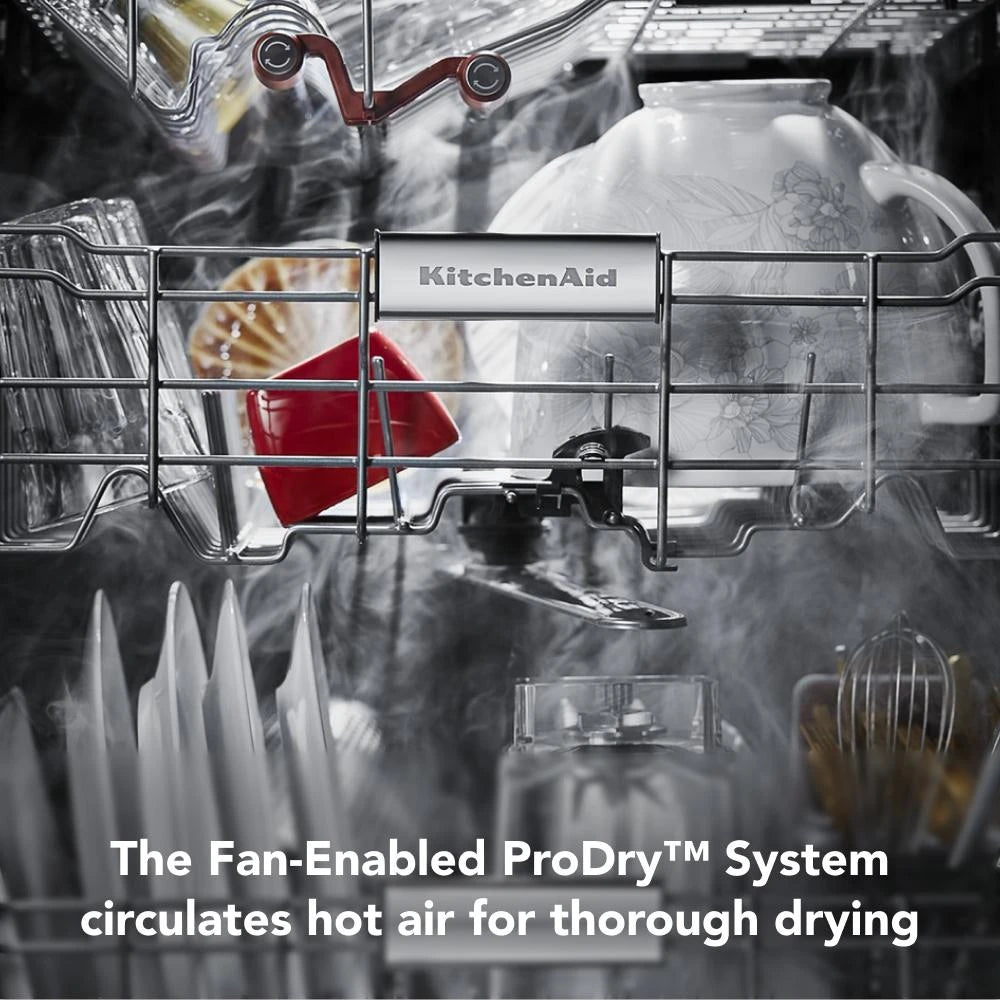

Fan-Enabled ProDry™ System
gives dishes a thorough dry using a heating element and fan to circulate hot air after the wash cycle ends. Regular and extended cycle options let you adjust drying time for different loads.
Leak Identification System
Helps detect most types of leaks and includes a drip tray underneath. If the system detects a problem, the dishwasher can stop filling, drain the tub and alert that service is needed.**Will not detect leaks from the water inlet or tub drain connections and hoses or leaks due to cracked tubs or doors

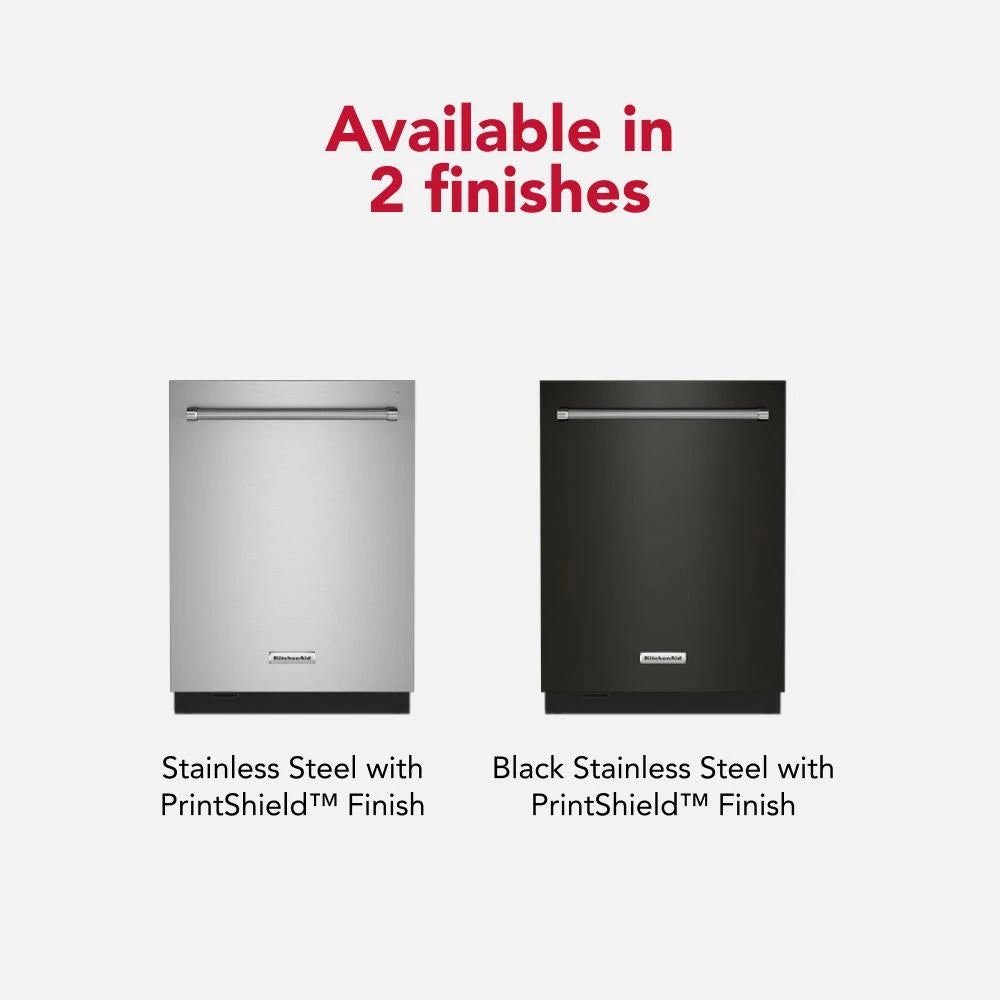

PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

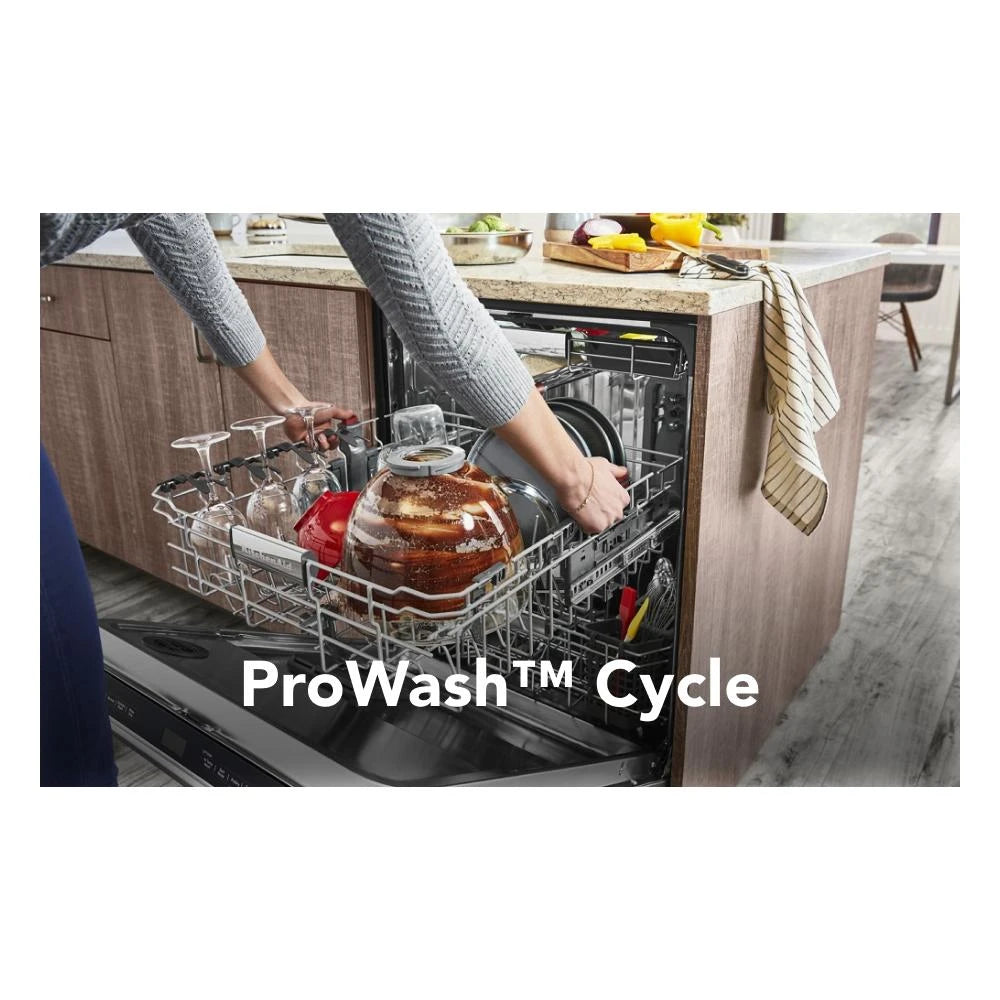

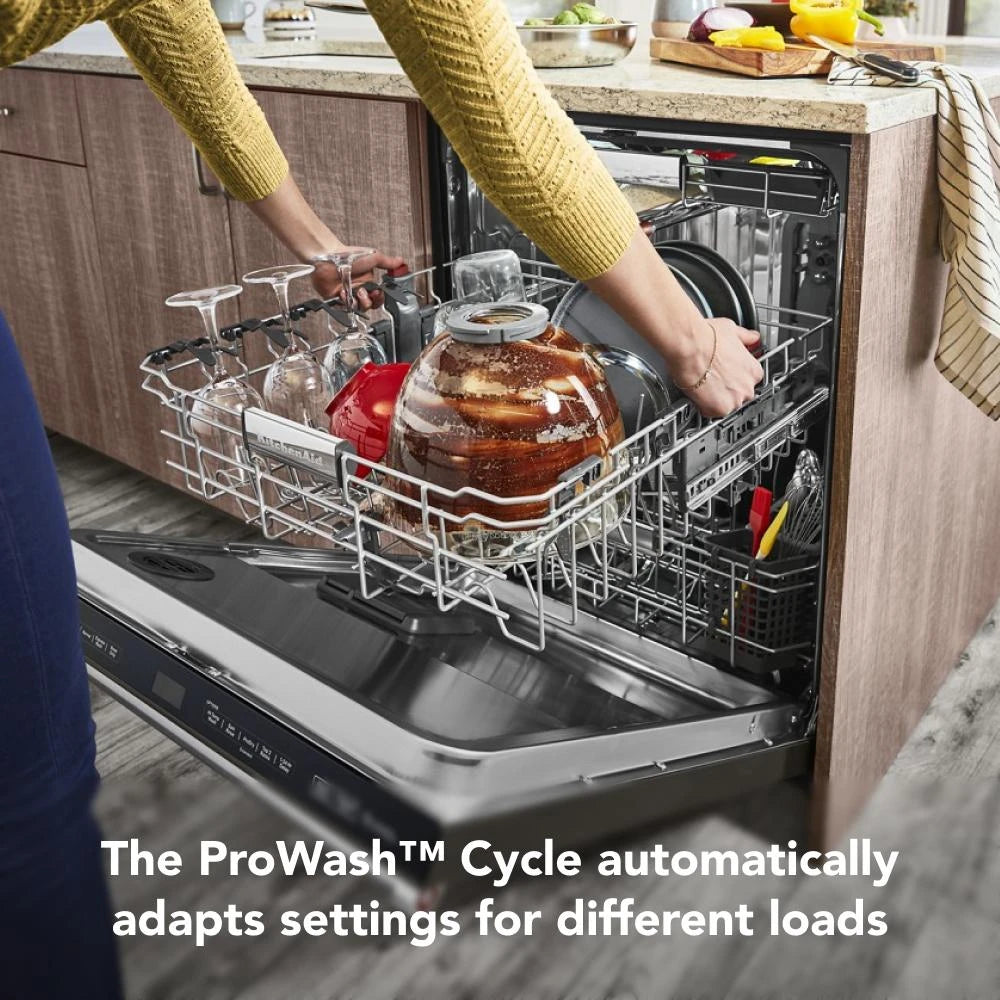

ProWash™ Cycle
uses sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough messes or lighter loads because no two meals or the dishes that result are exactly the same.

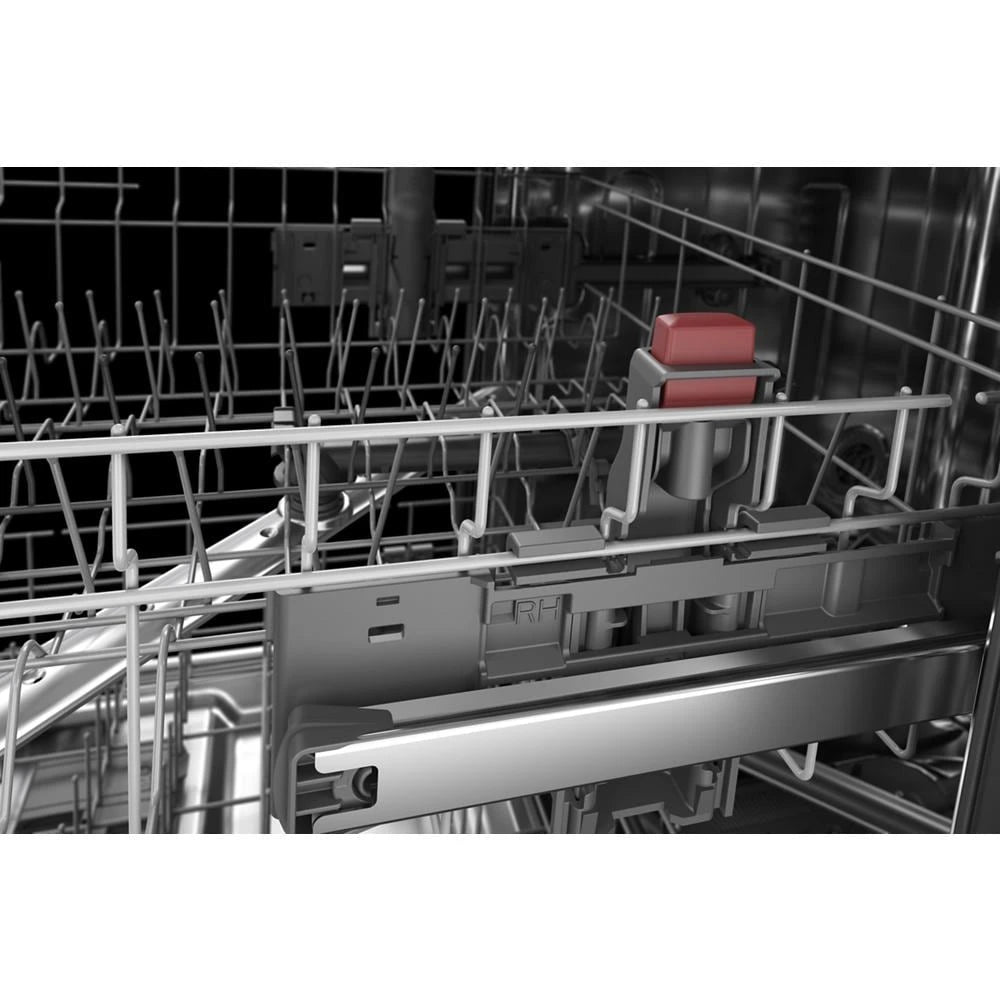

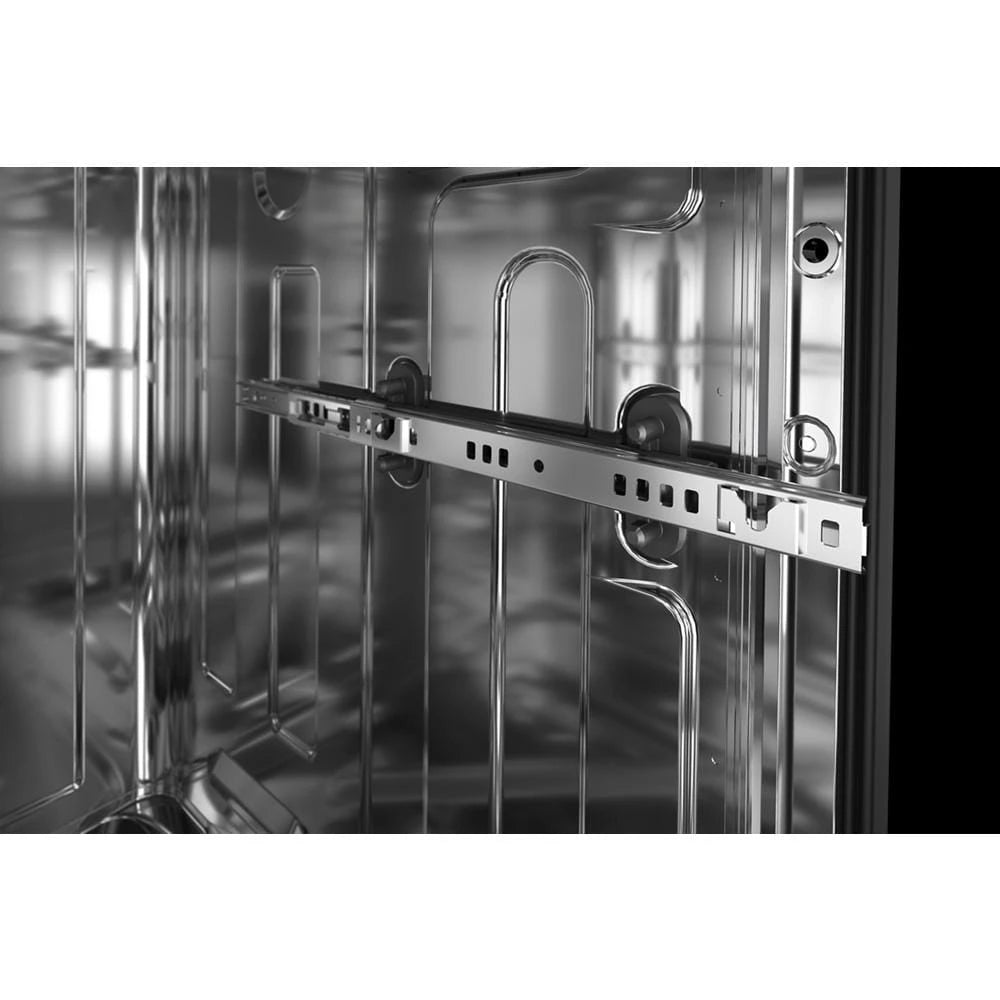

SatinGlide® Rails in Third and Middle Racks
move smoothly for easy loading and unloading.

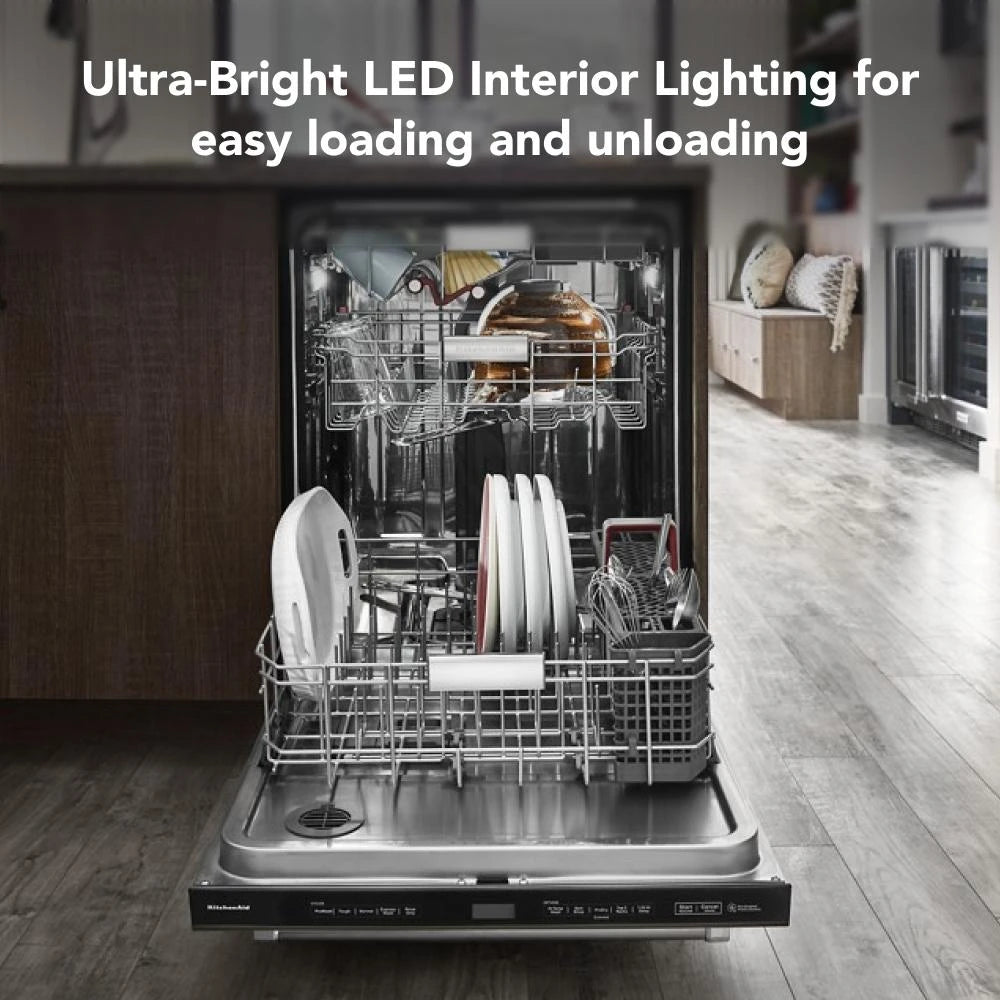

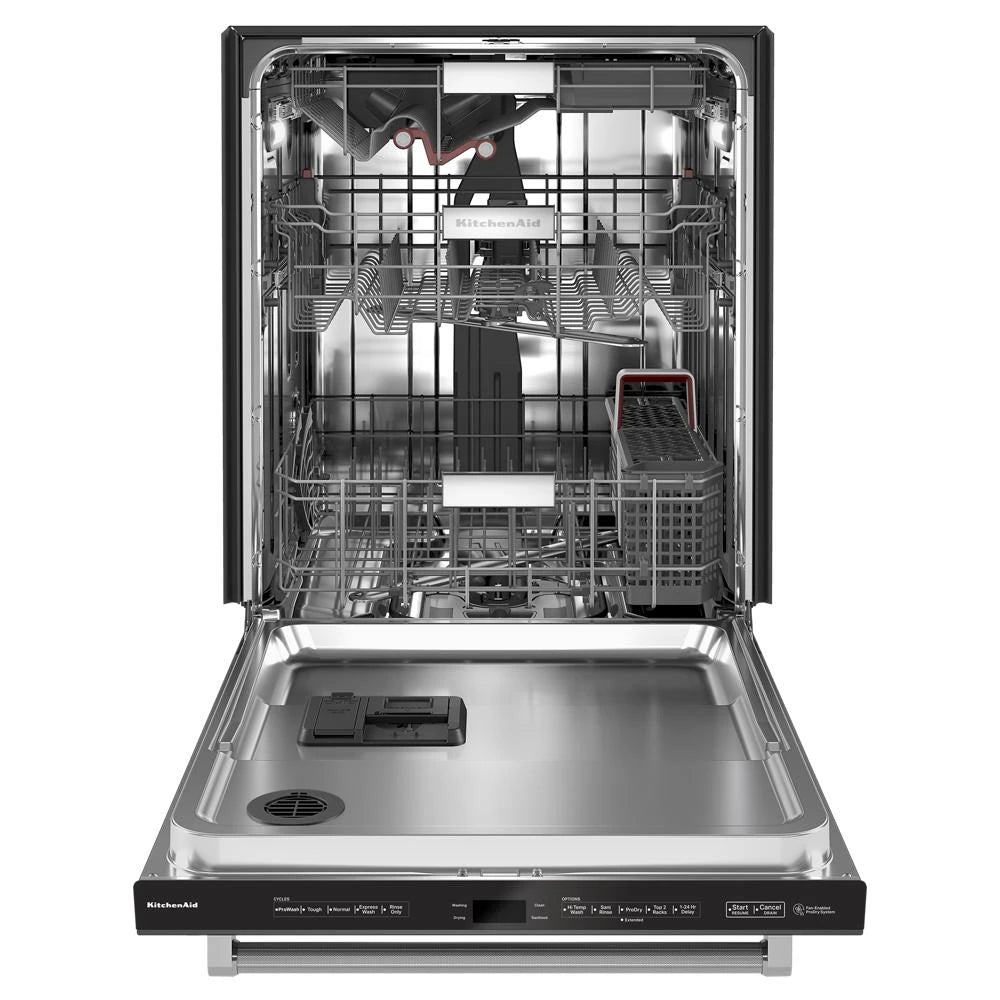

Ultra-Bright LED Interior Lighting
turns on when the door is open, making it easy to see inside while loading and unloading.

Manuals & Guides

Key Features

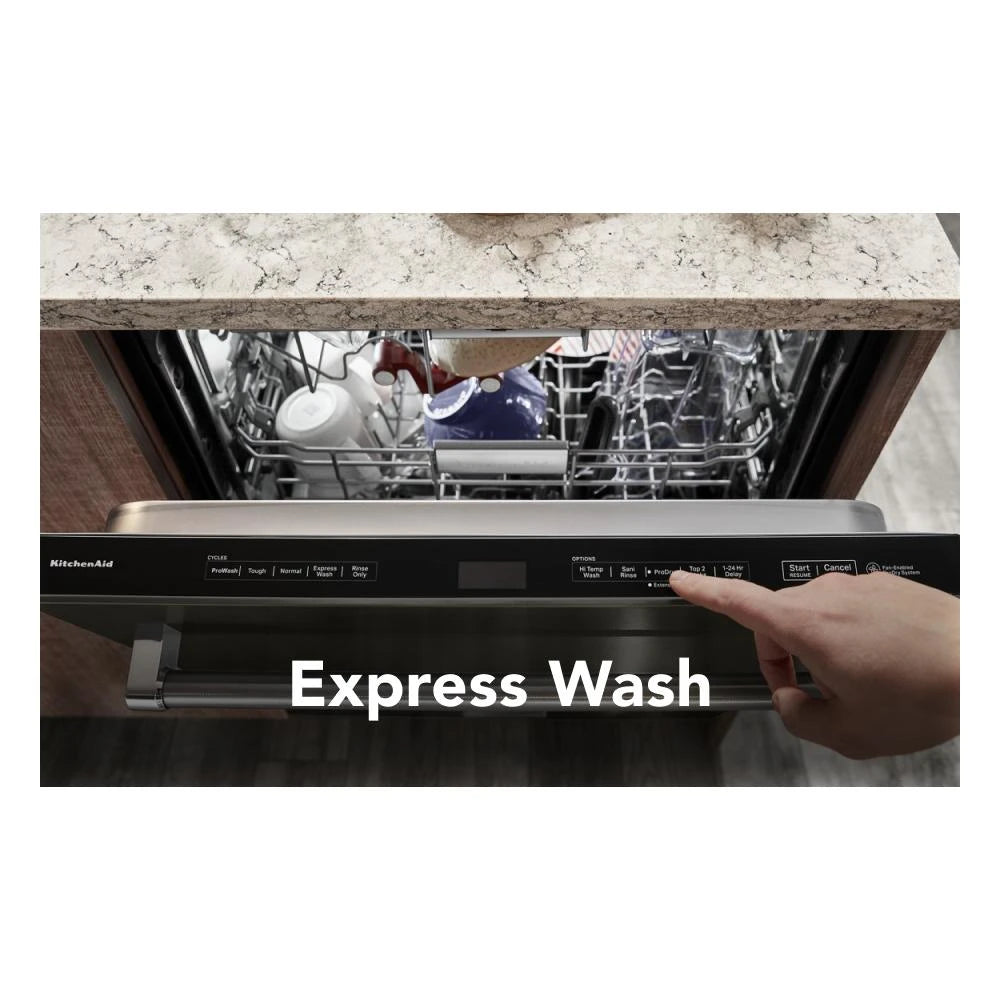

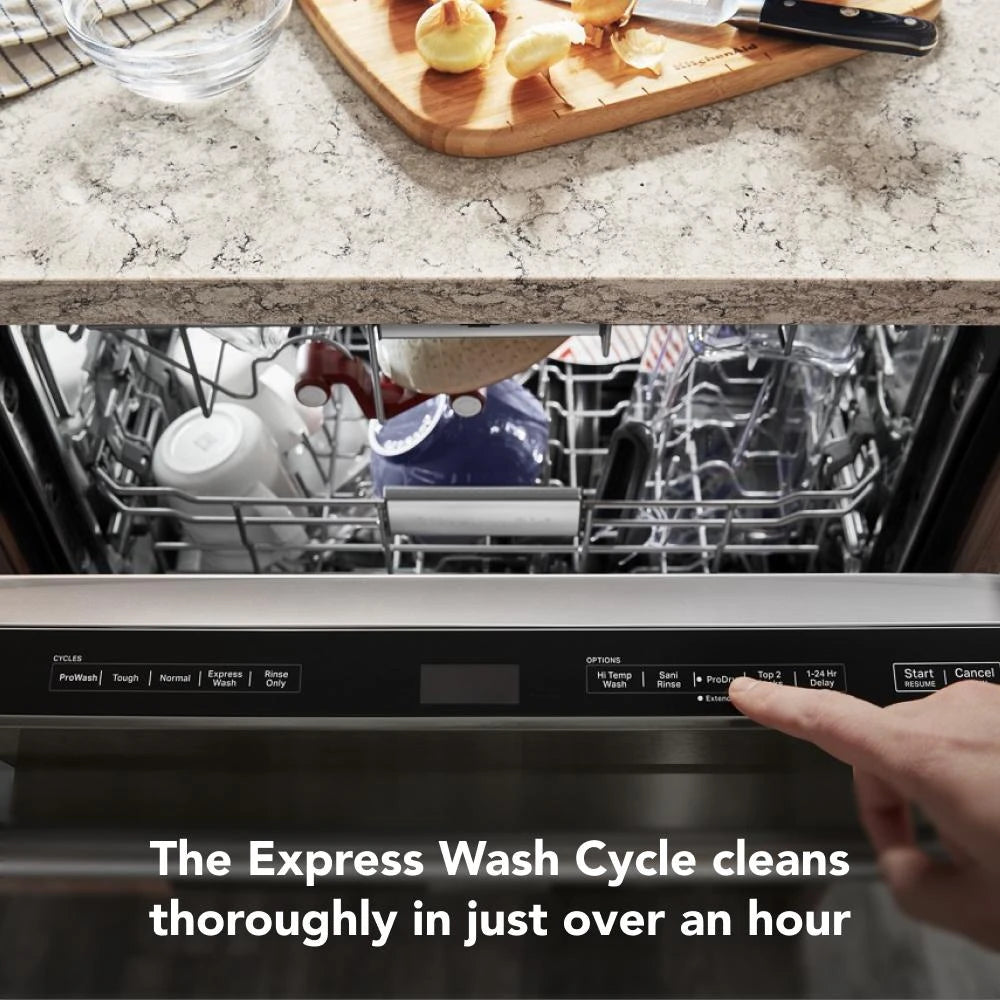

Express Wash Cycle

cleans 72% better than the leading competitor's Speed 60 cycle.* Dishes get a thorough wash in just over an hour, so you always have what you need while prepping, cooking and entertaining.*Compared to Bosch SHX9PCM5N.

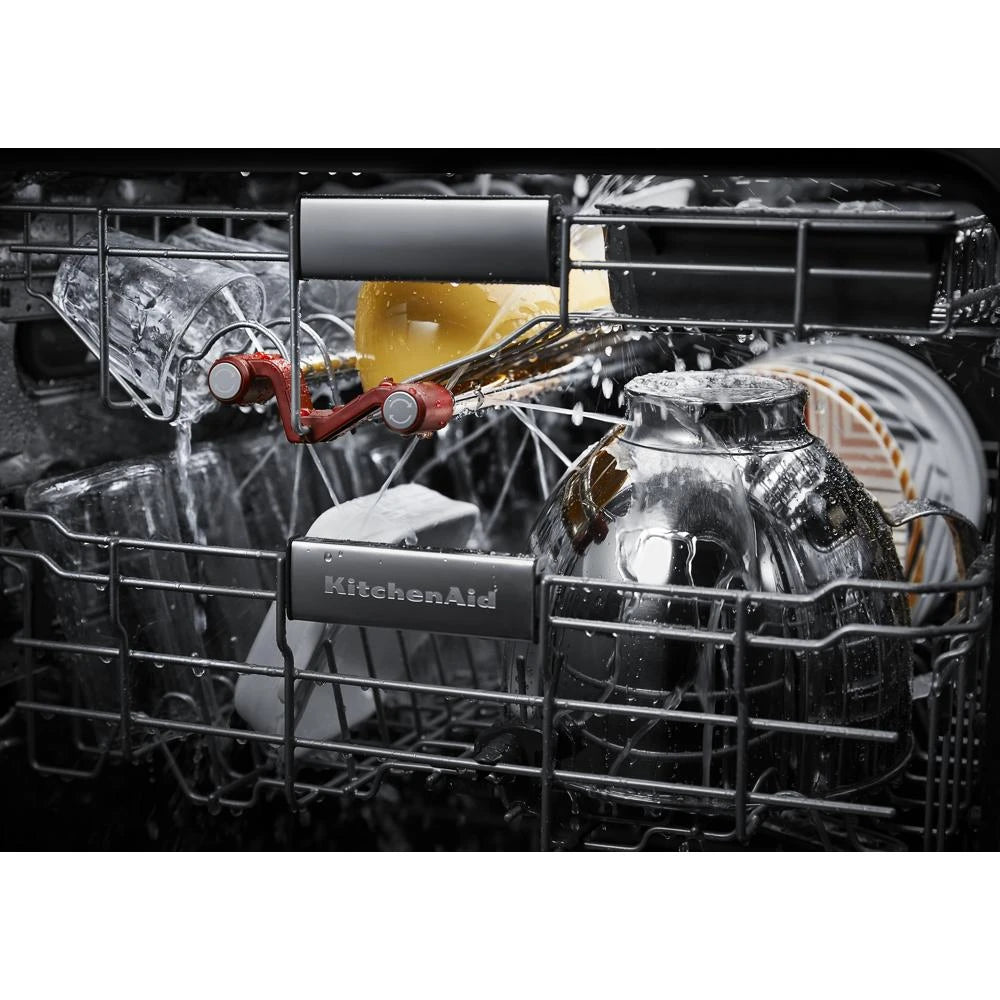

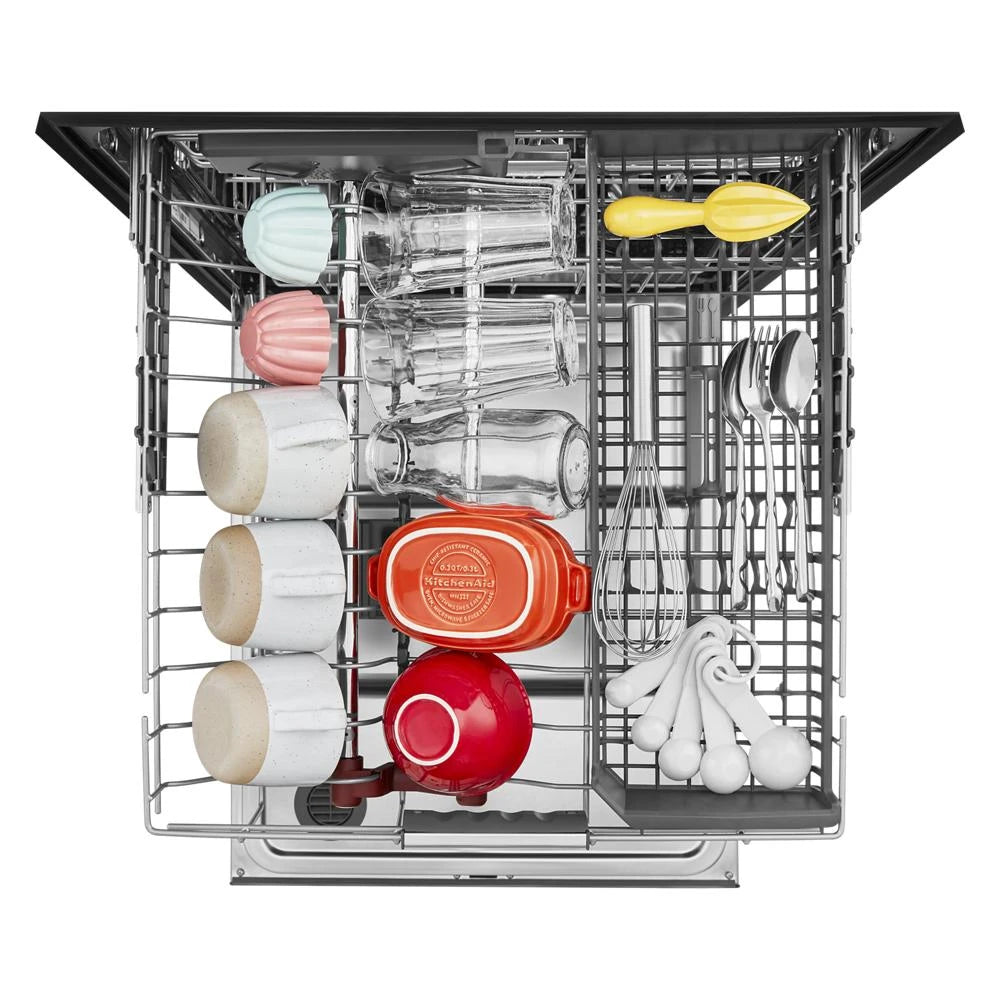

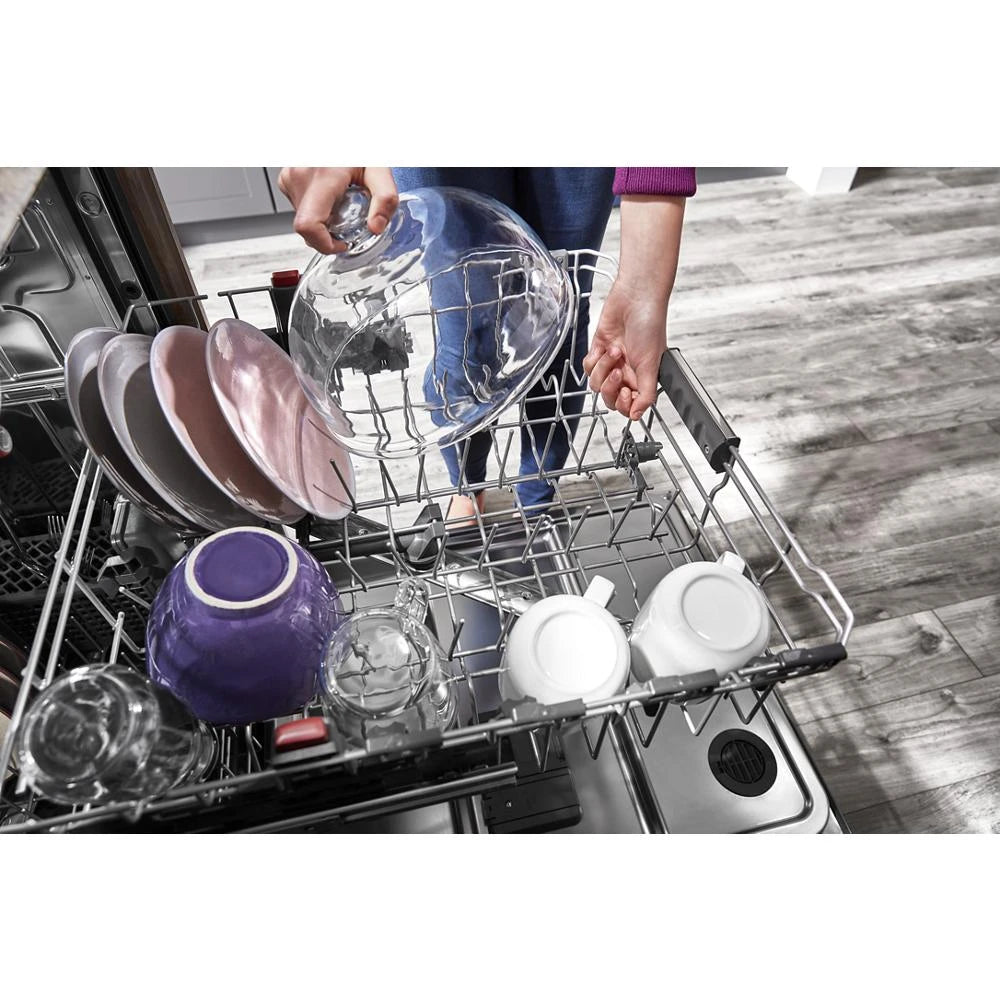

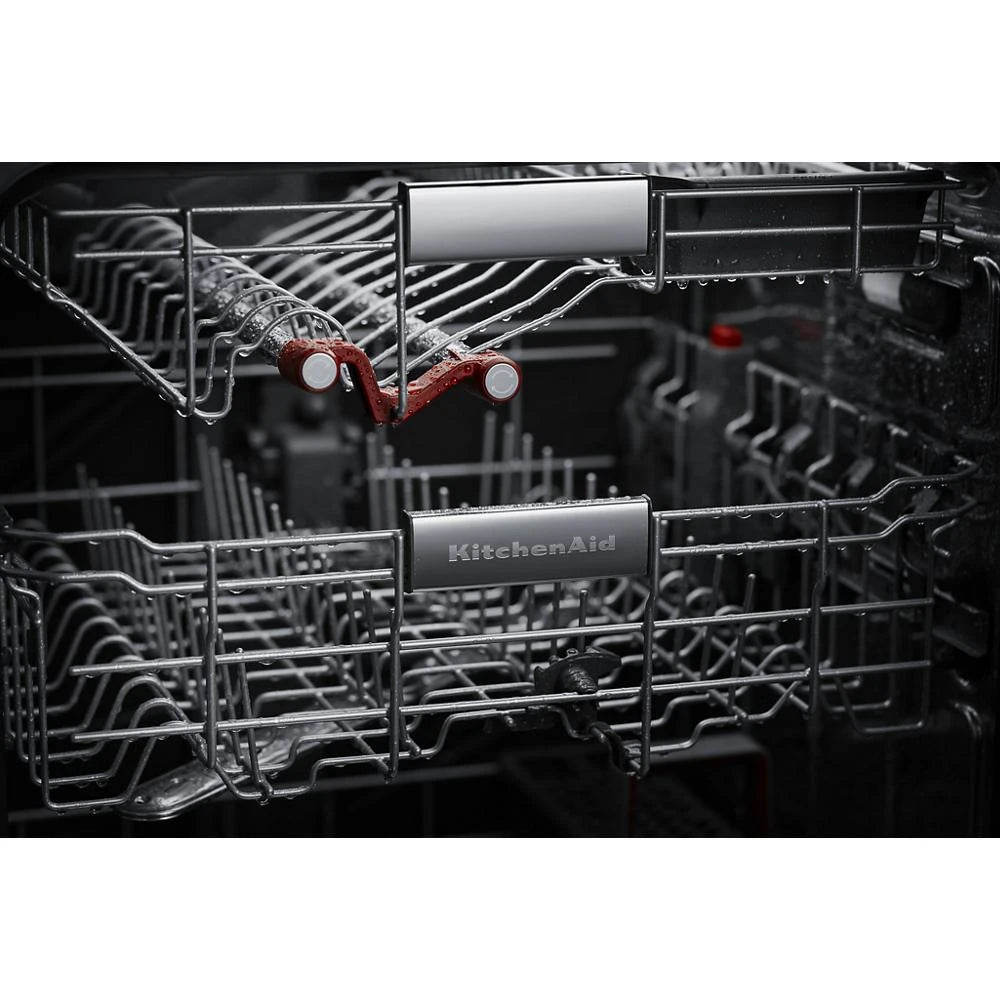

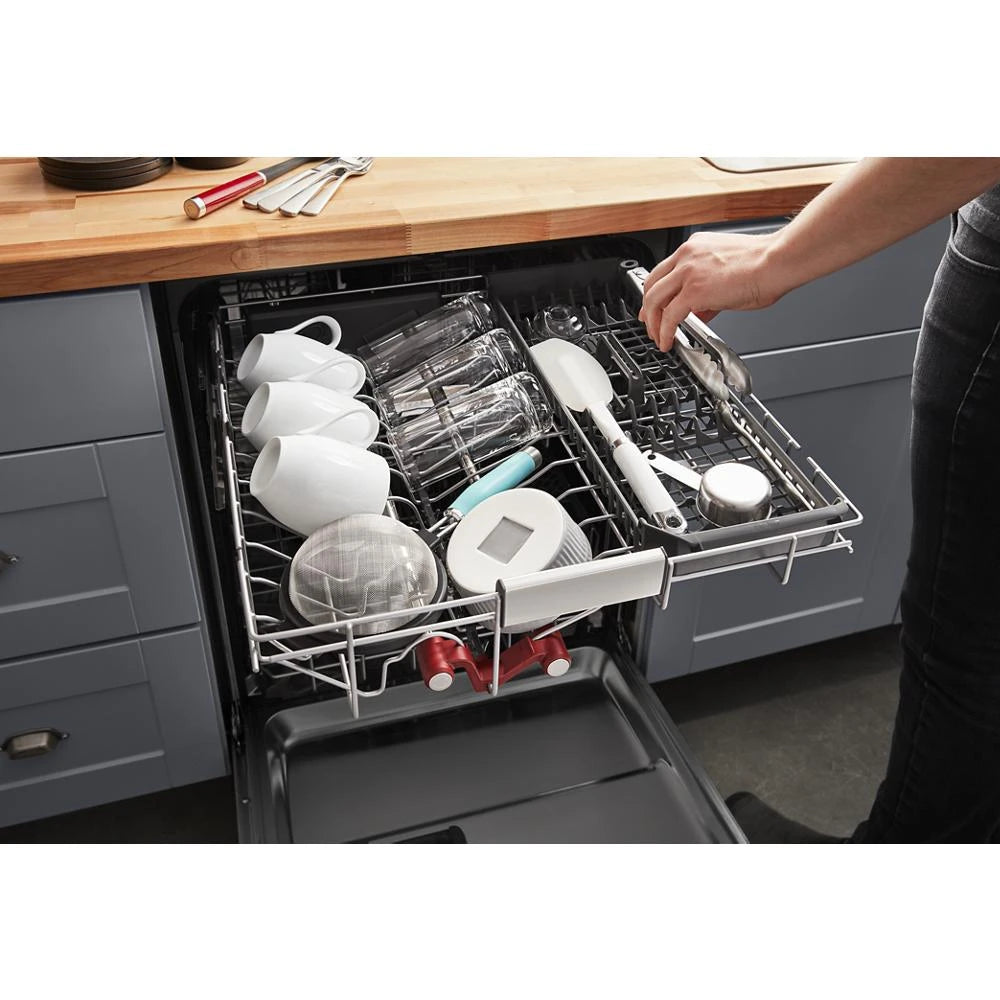

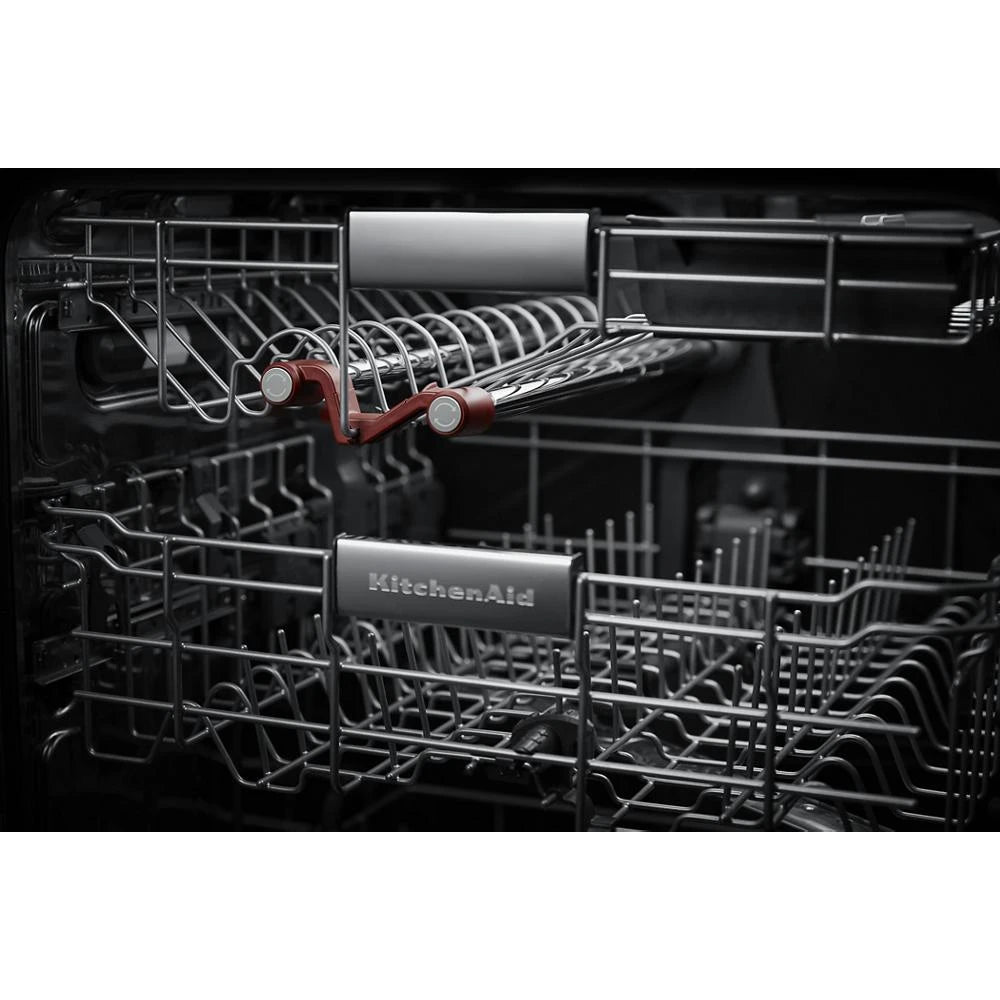

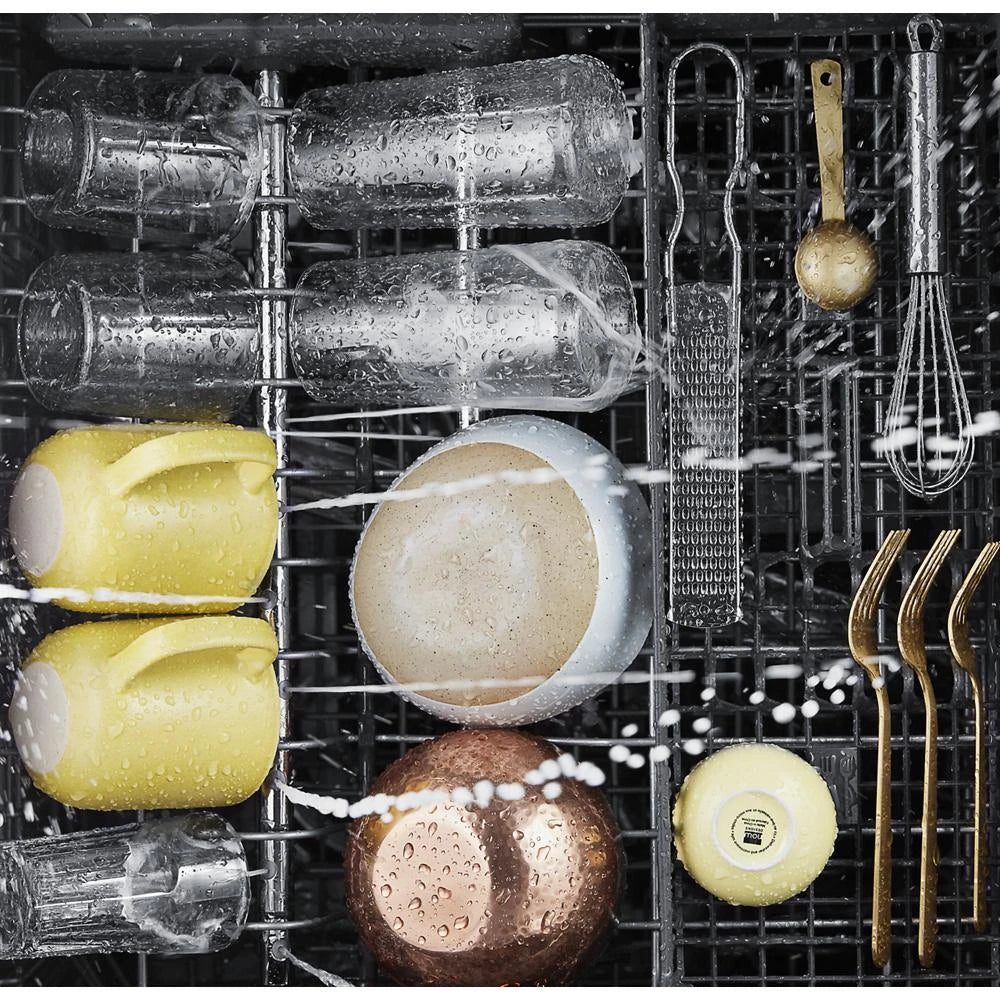

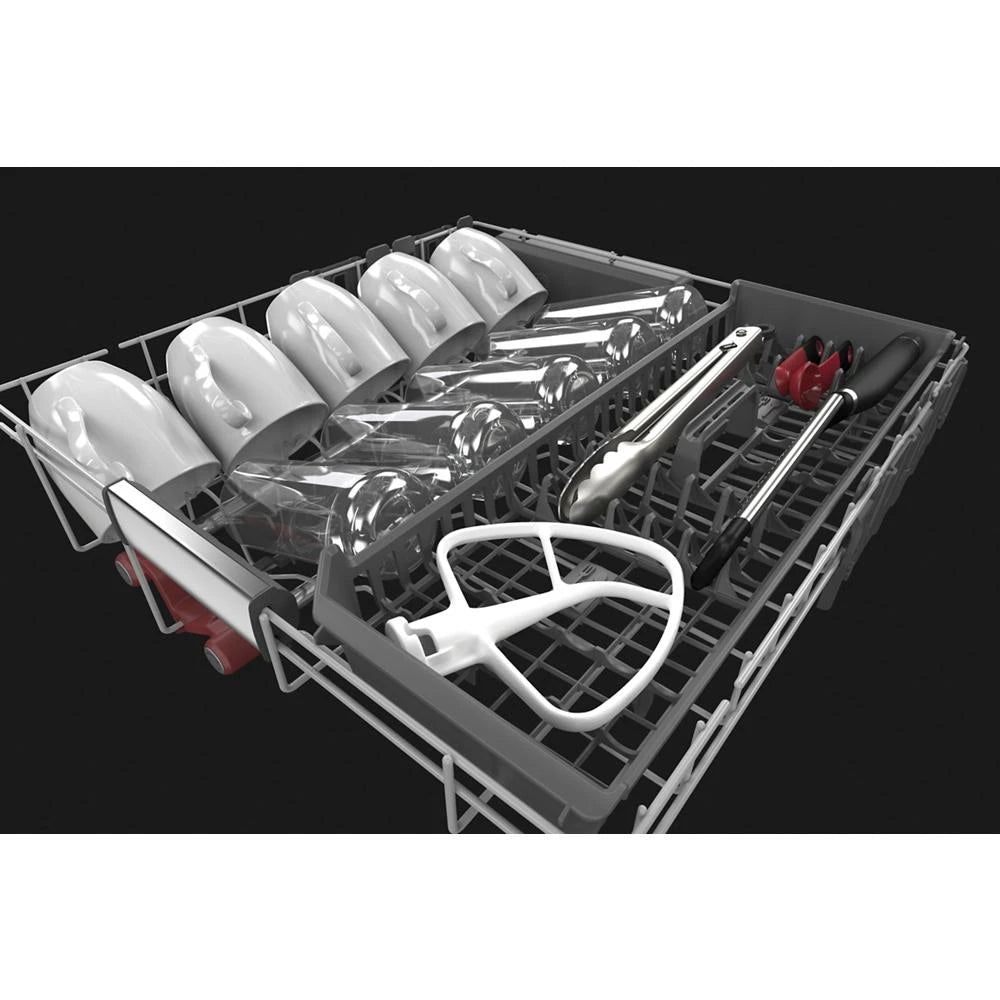

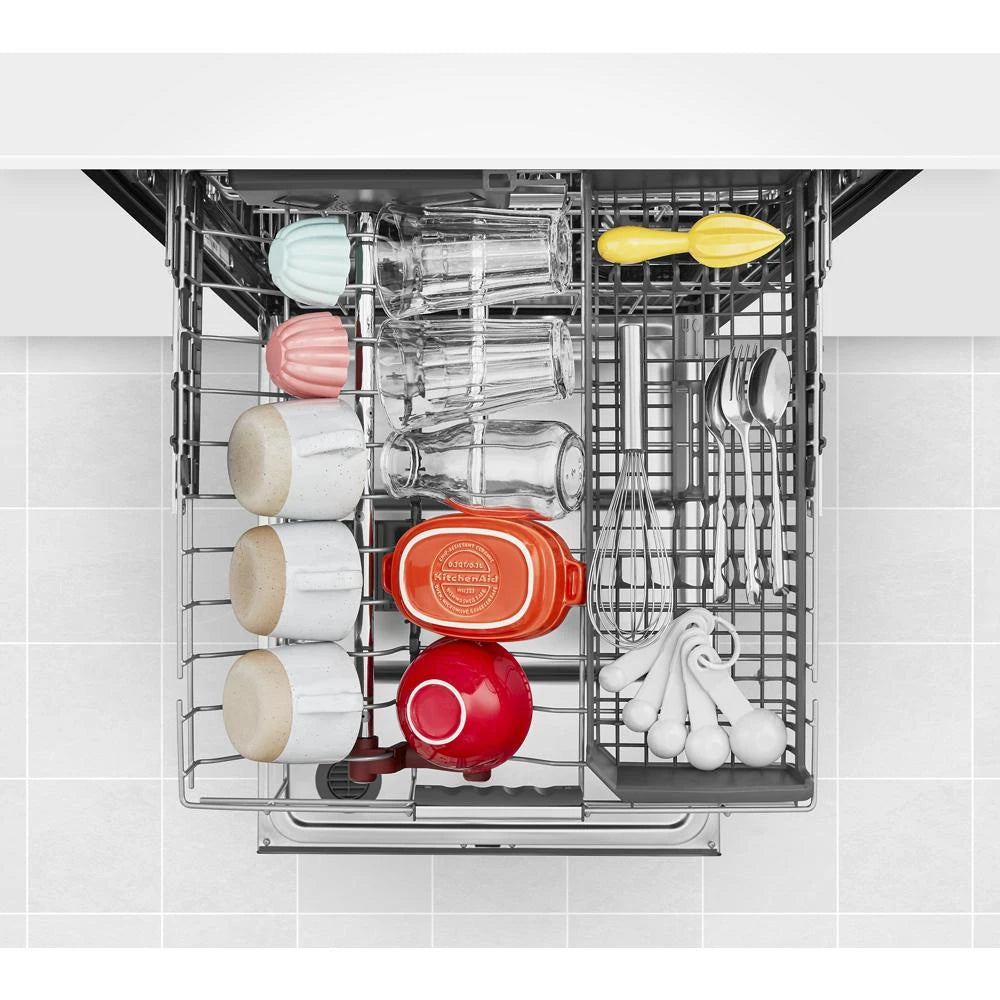

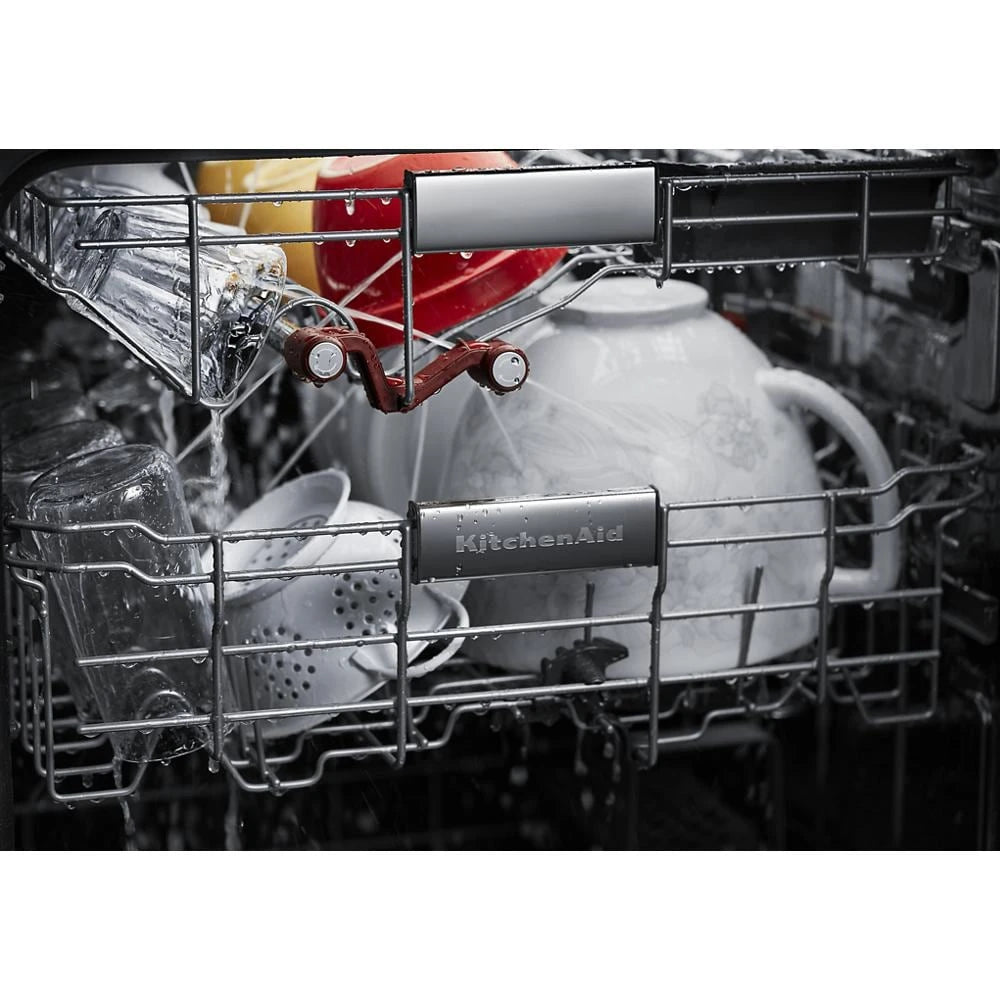

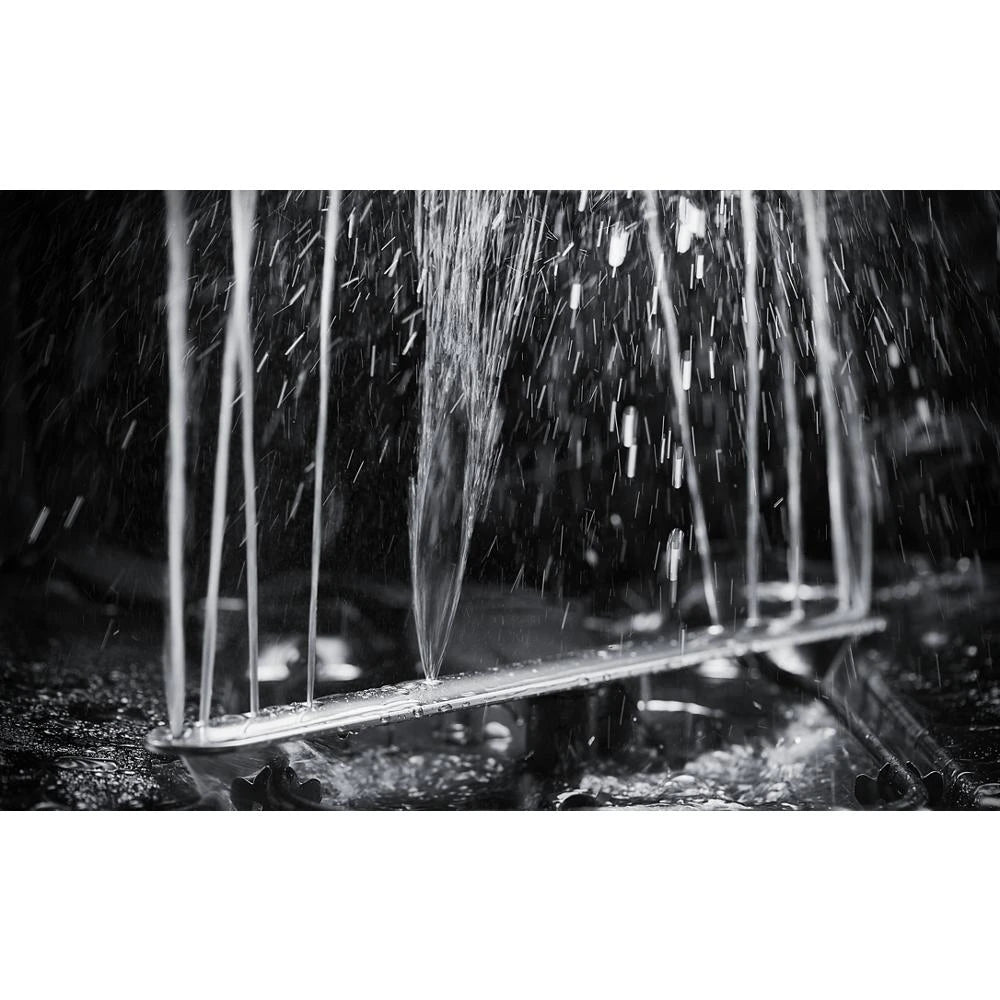

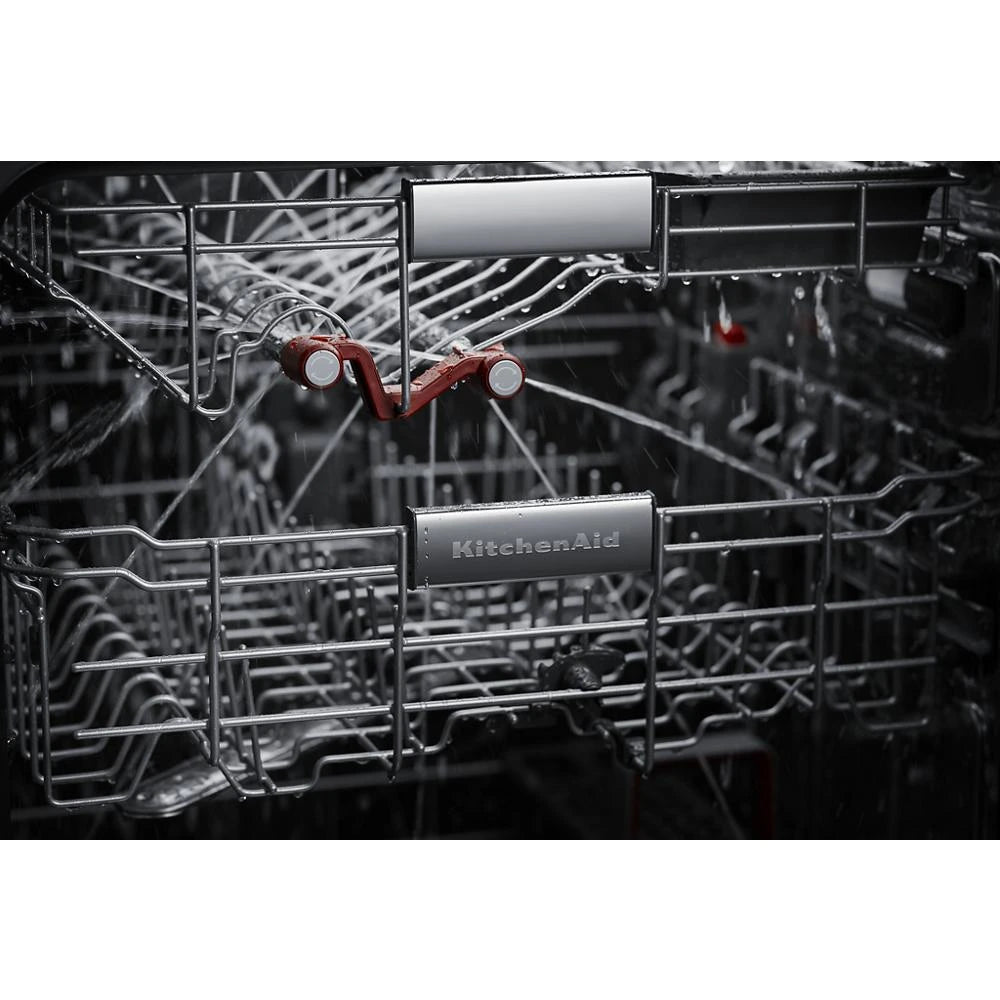

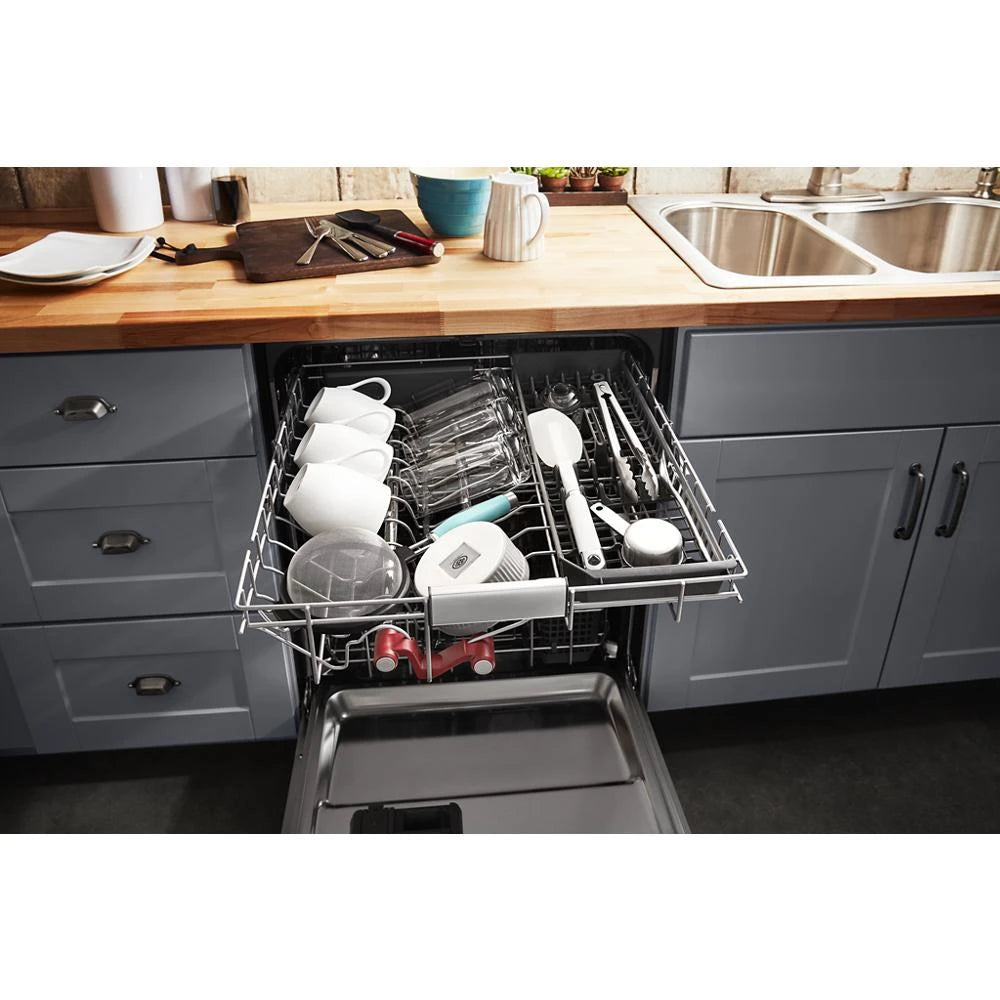

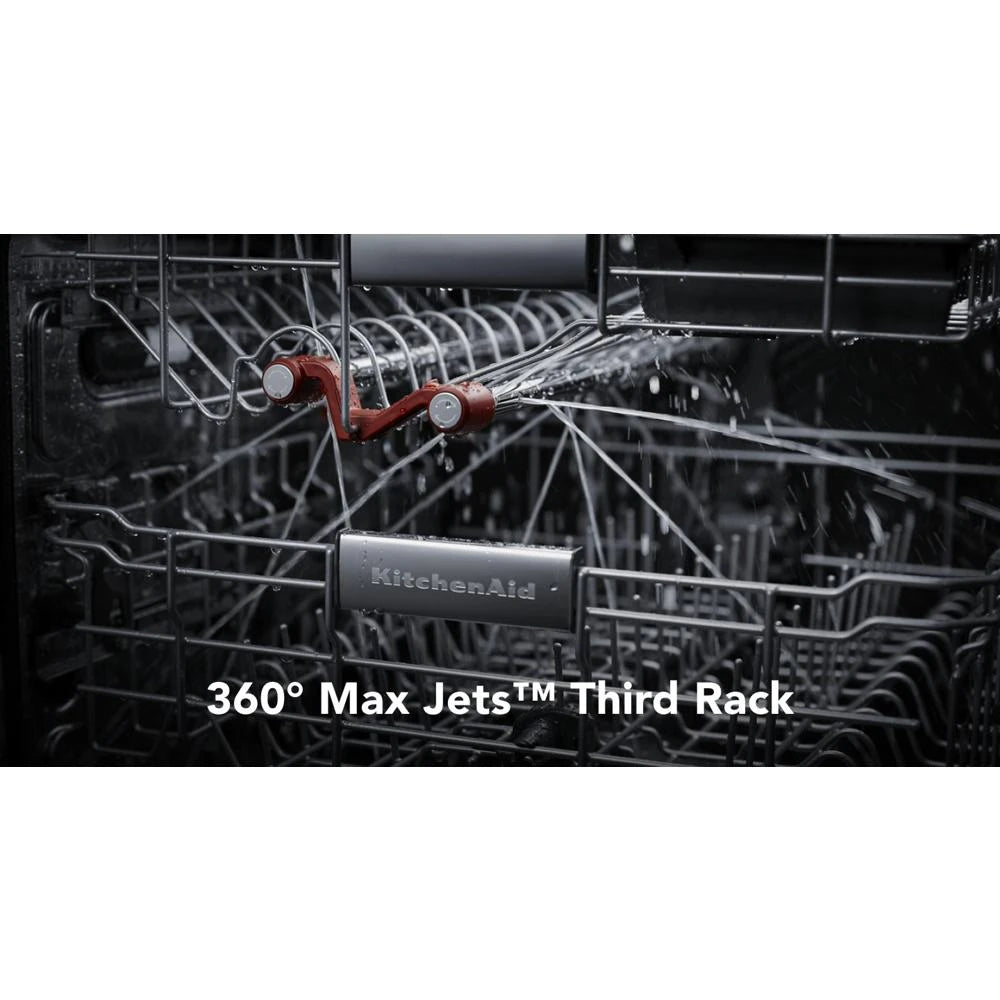

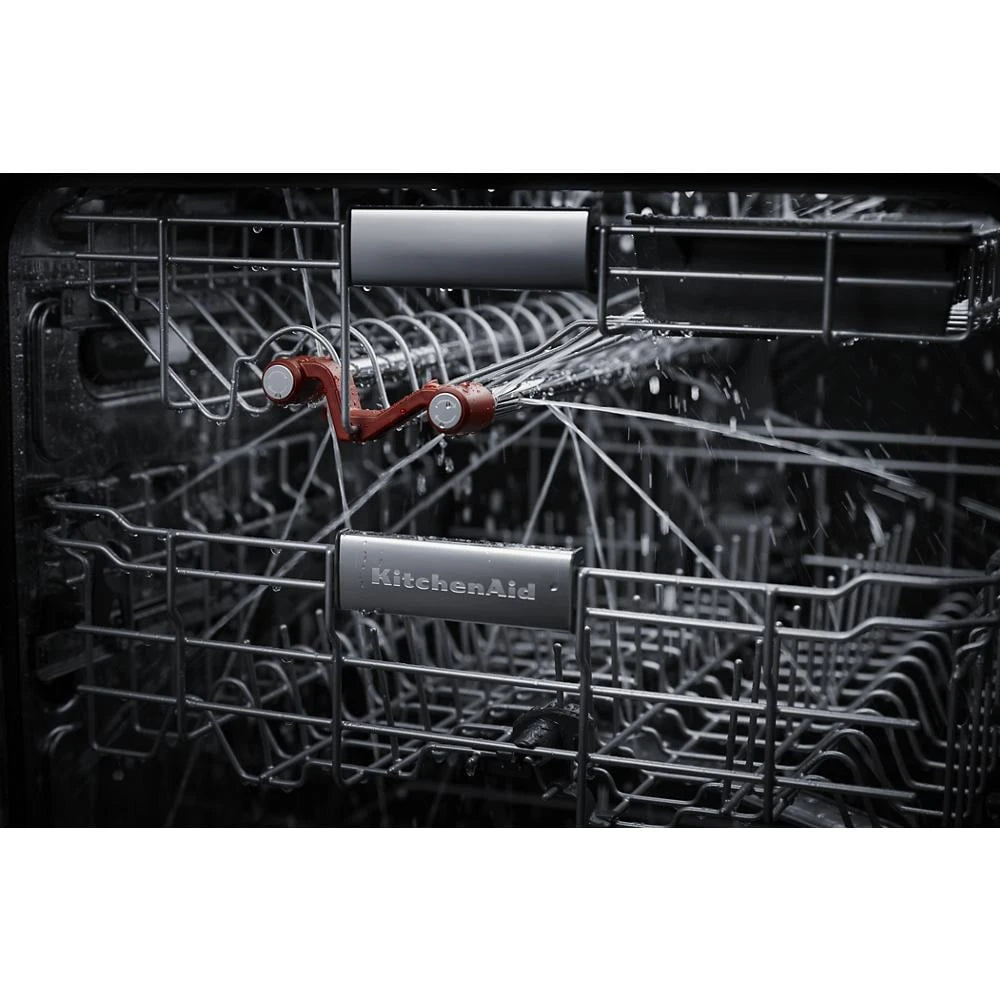

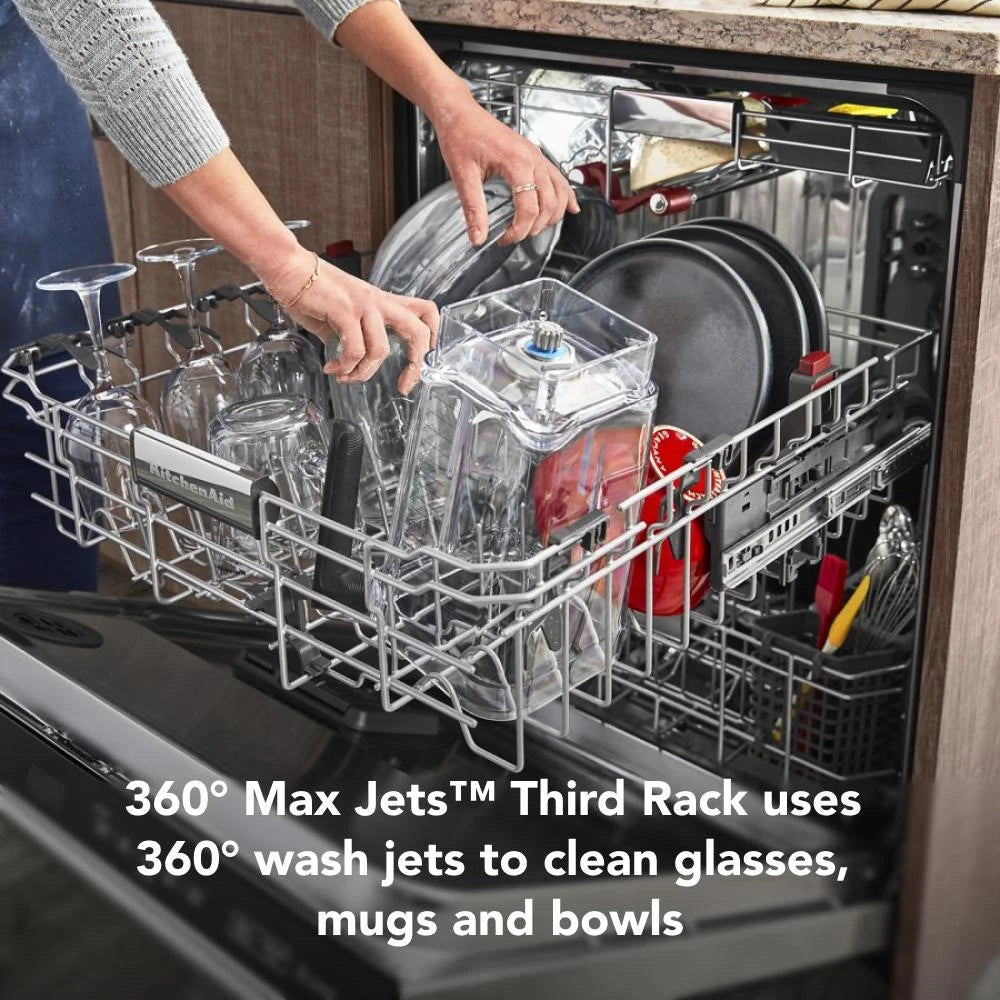

360° Max Jets™ Third Rack

is the only third rack with 360° wash jets to clean pint glasses, coffee mugs and cereal bowls inside and out. The largest third rack available,* it also has a removable utensil tray for cooking tools and moisture-wicking tines for thorough drying. *Among leading brands based on usable volume.

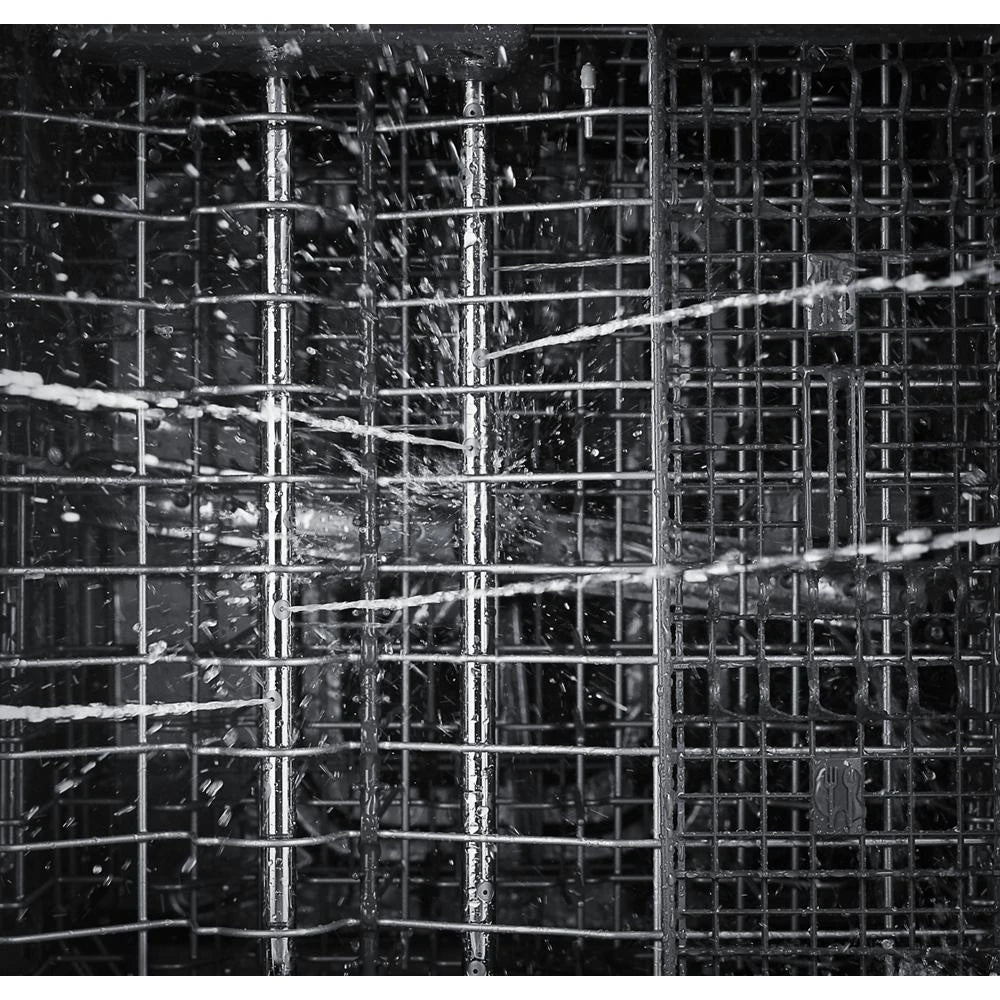

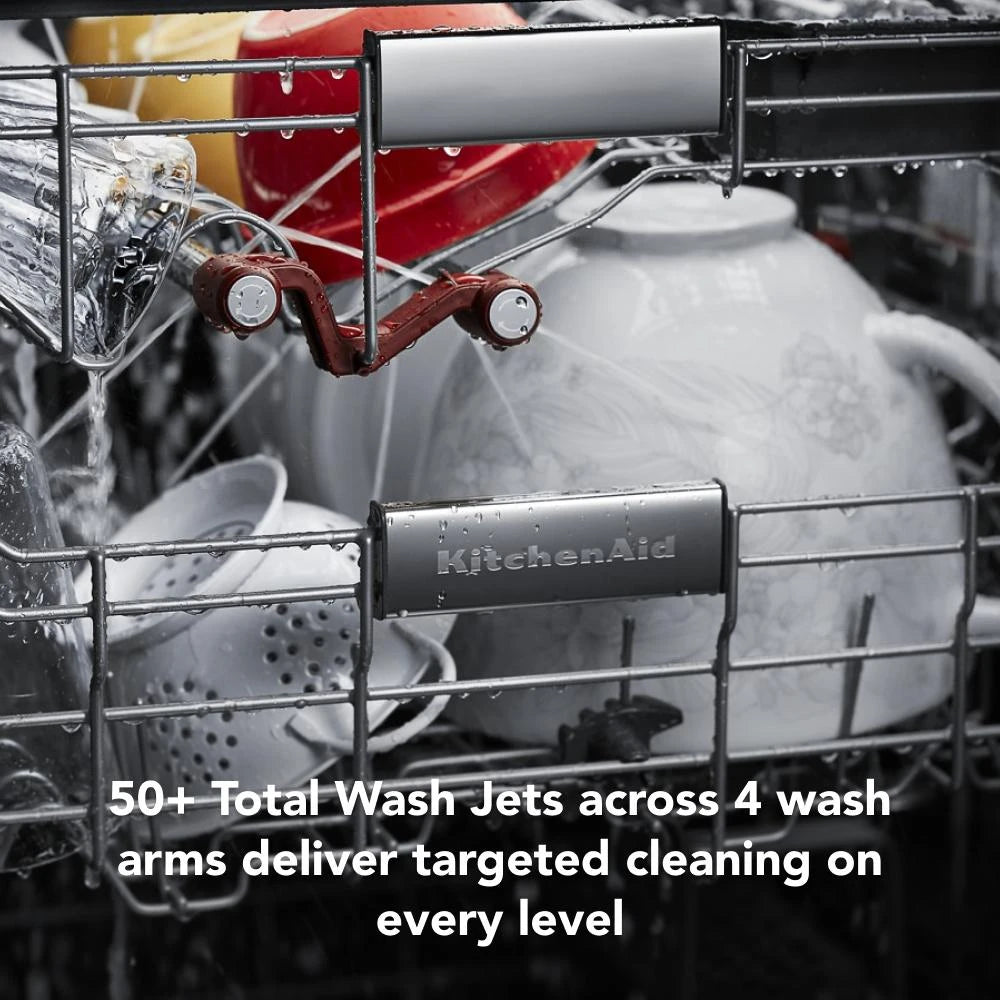

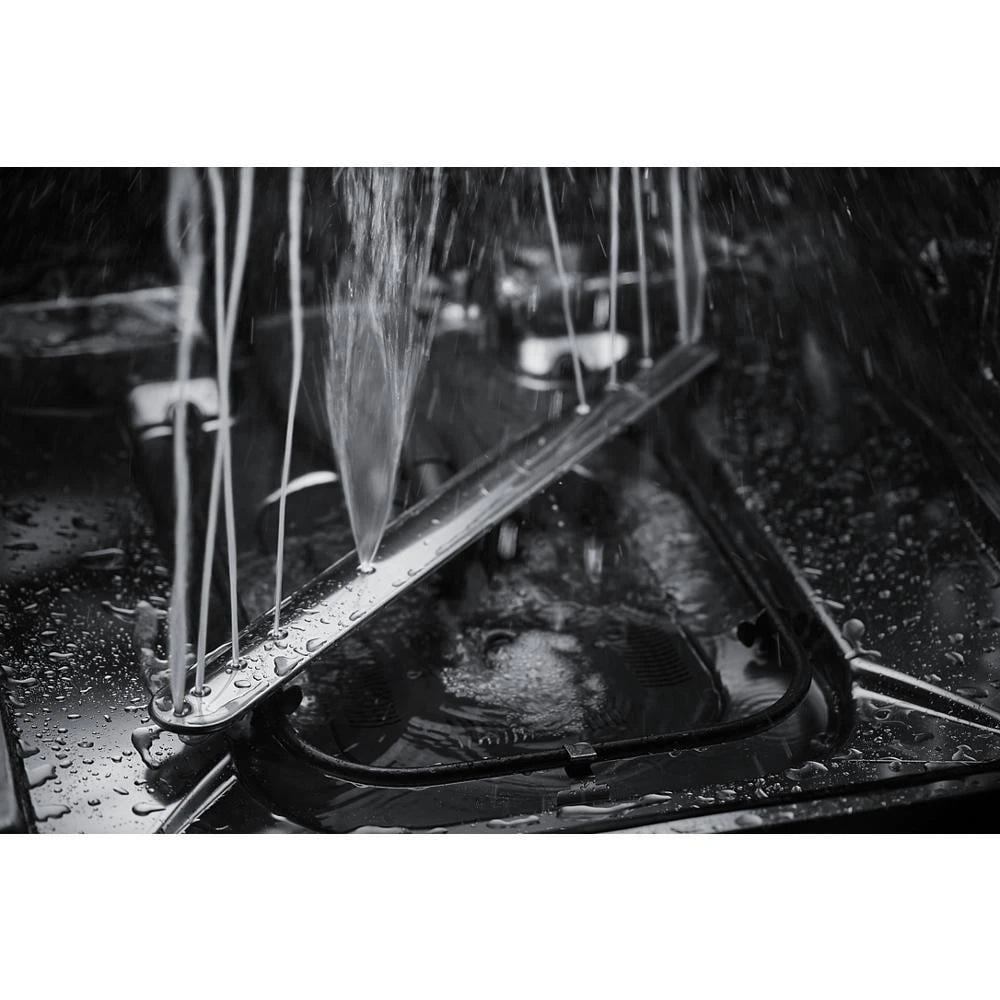

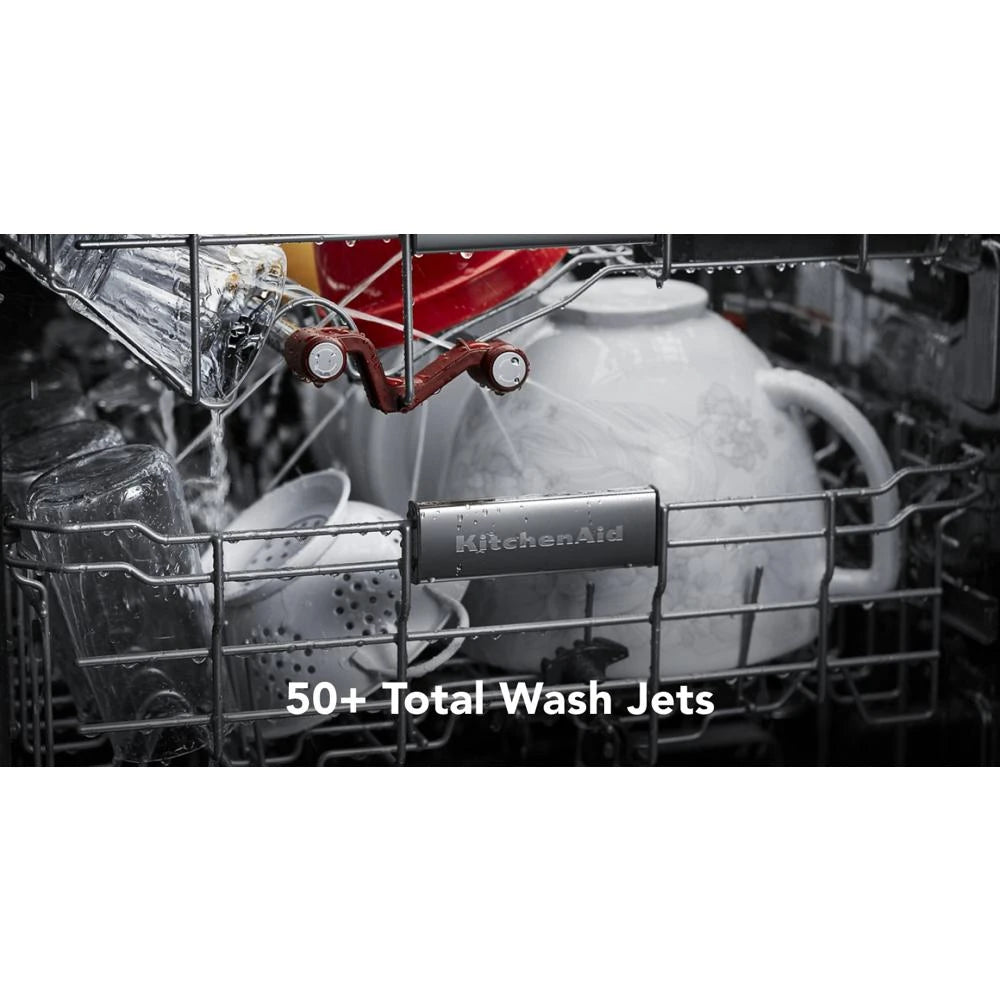

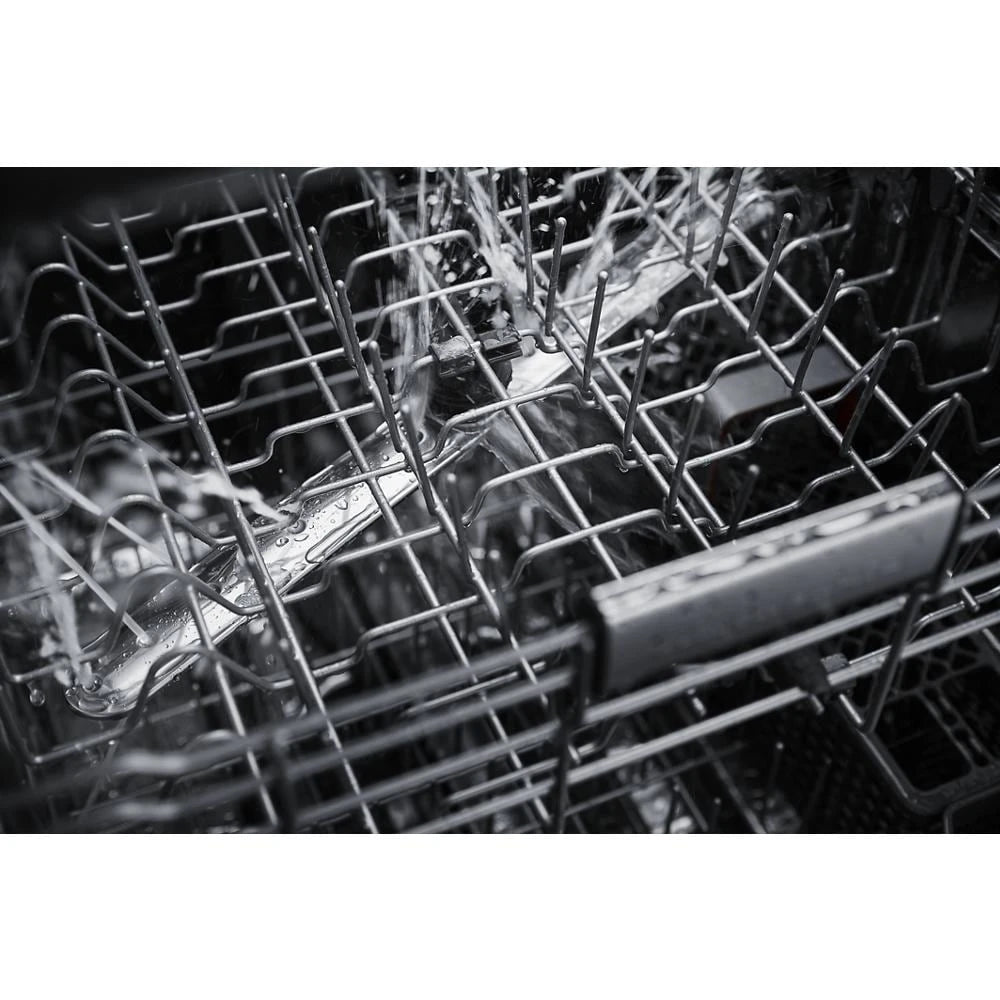

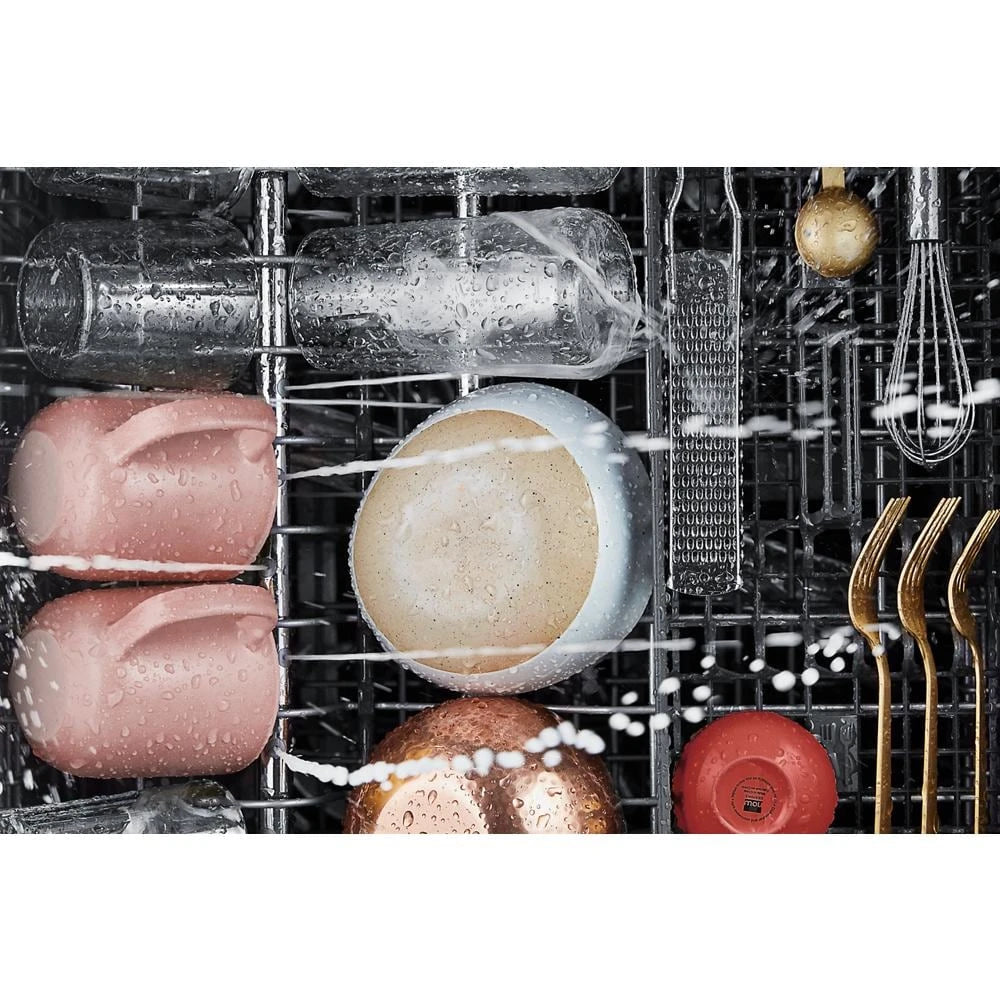

50+ Total Wash Jets

provide total cleaning coverage for dishes in all three racks with more than 50 targeted jets across four wash arms, so you can load without pre-rinsing.

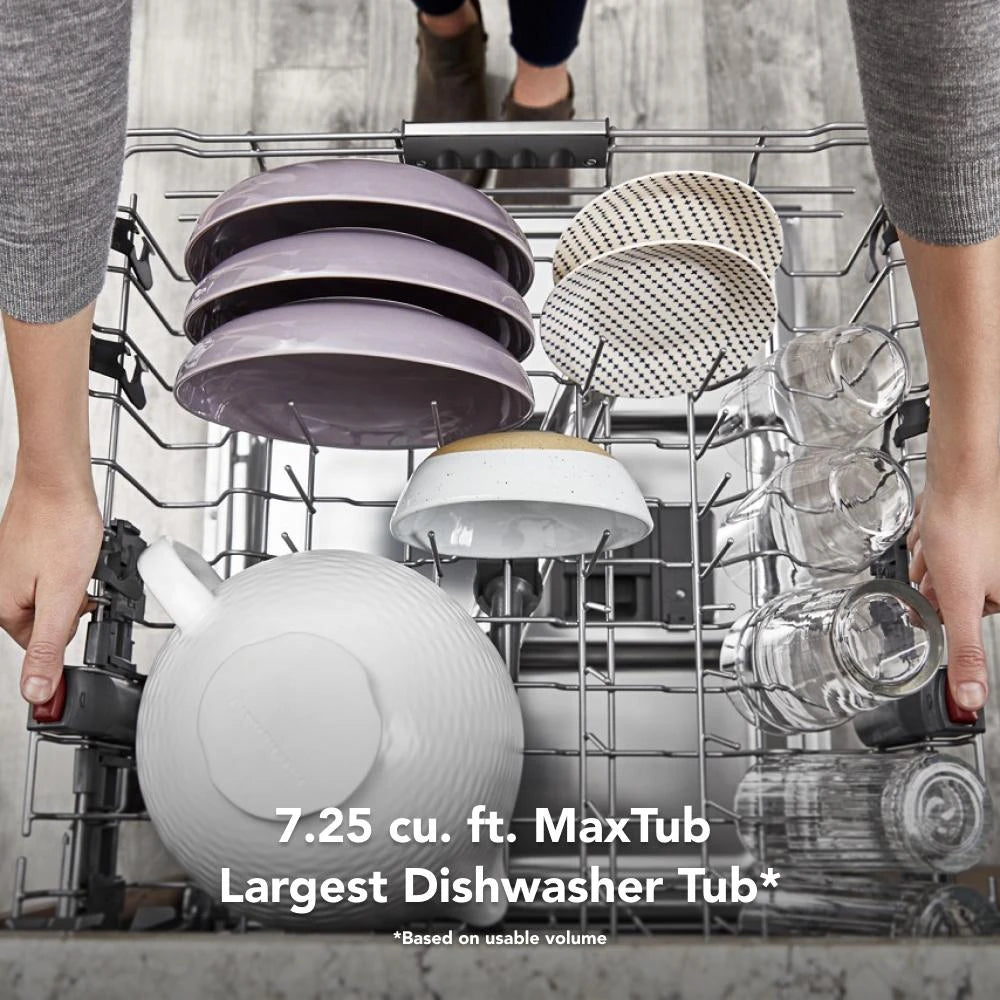

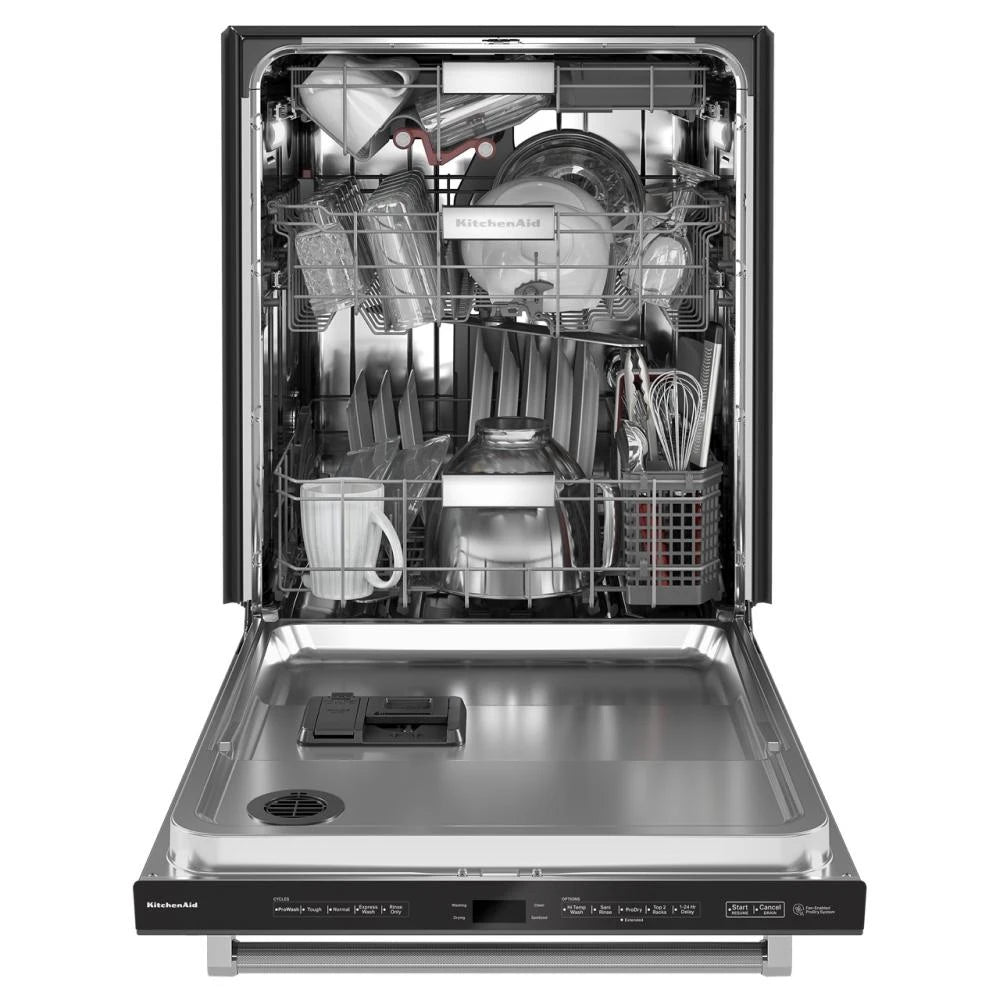

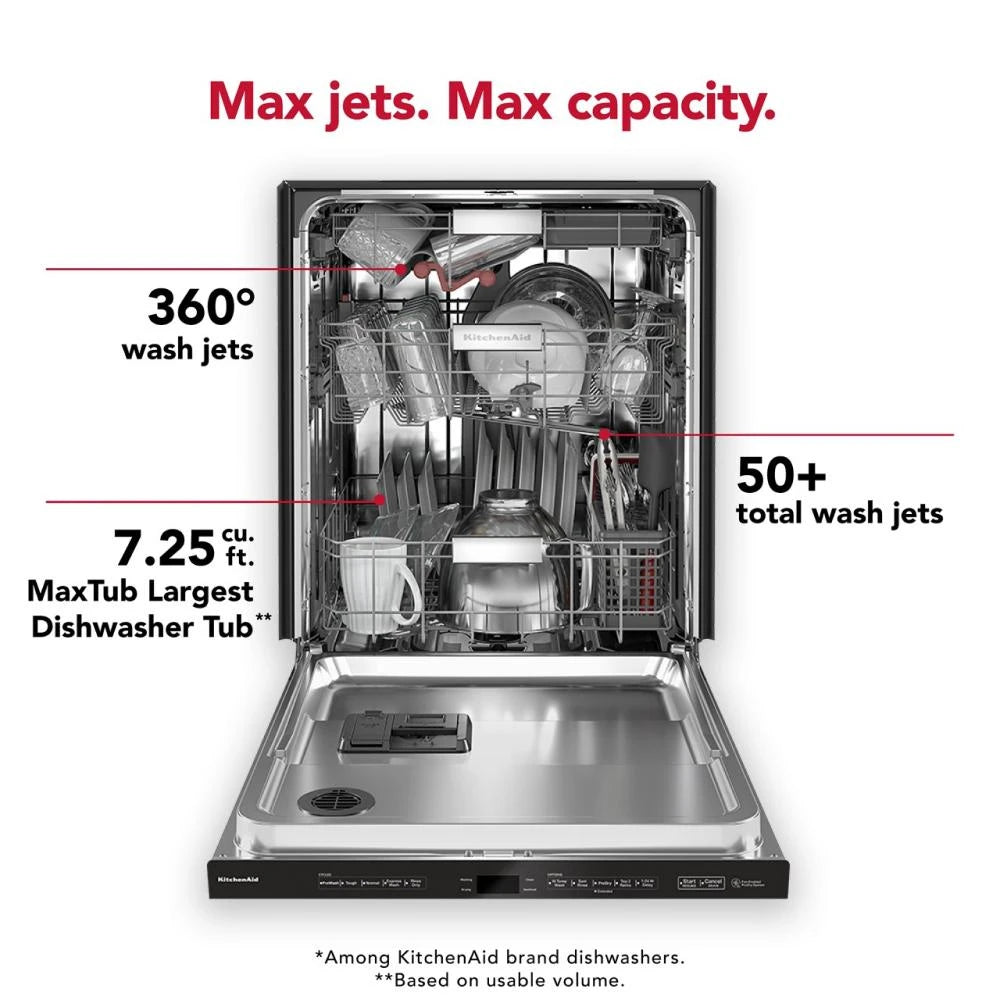

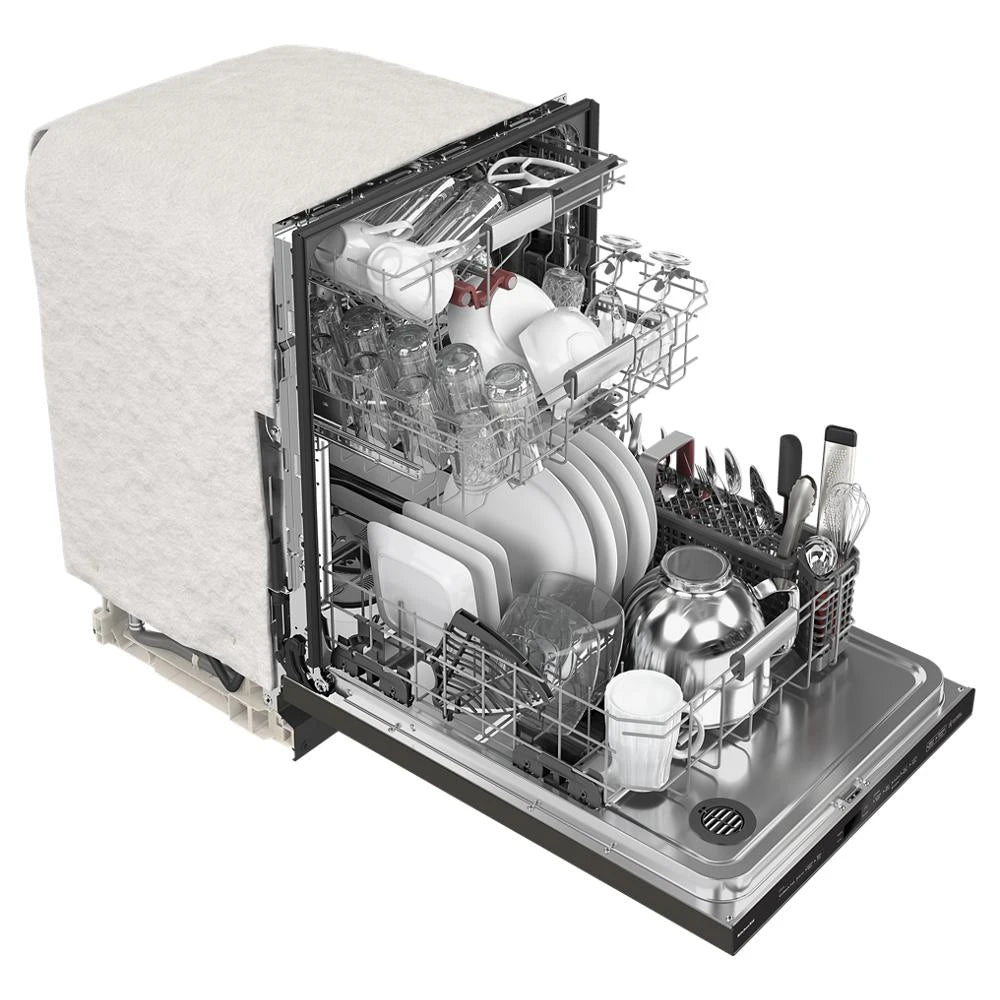

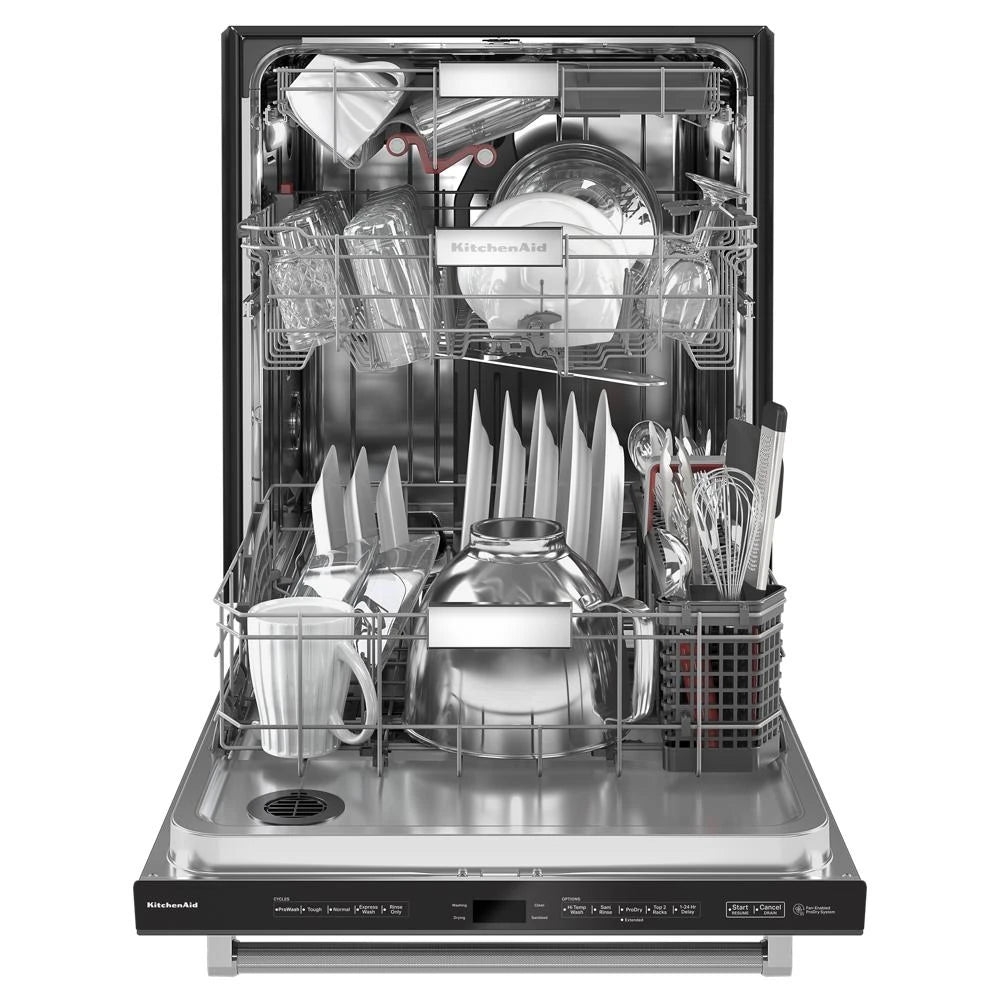

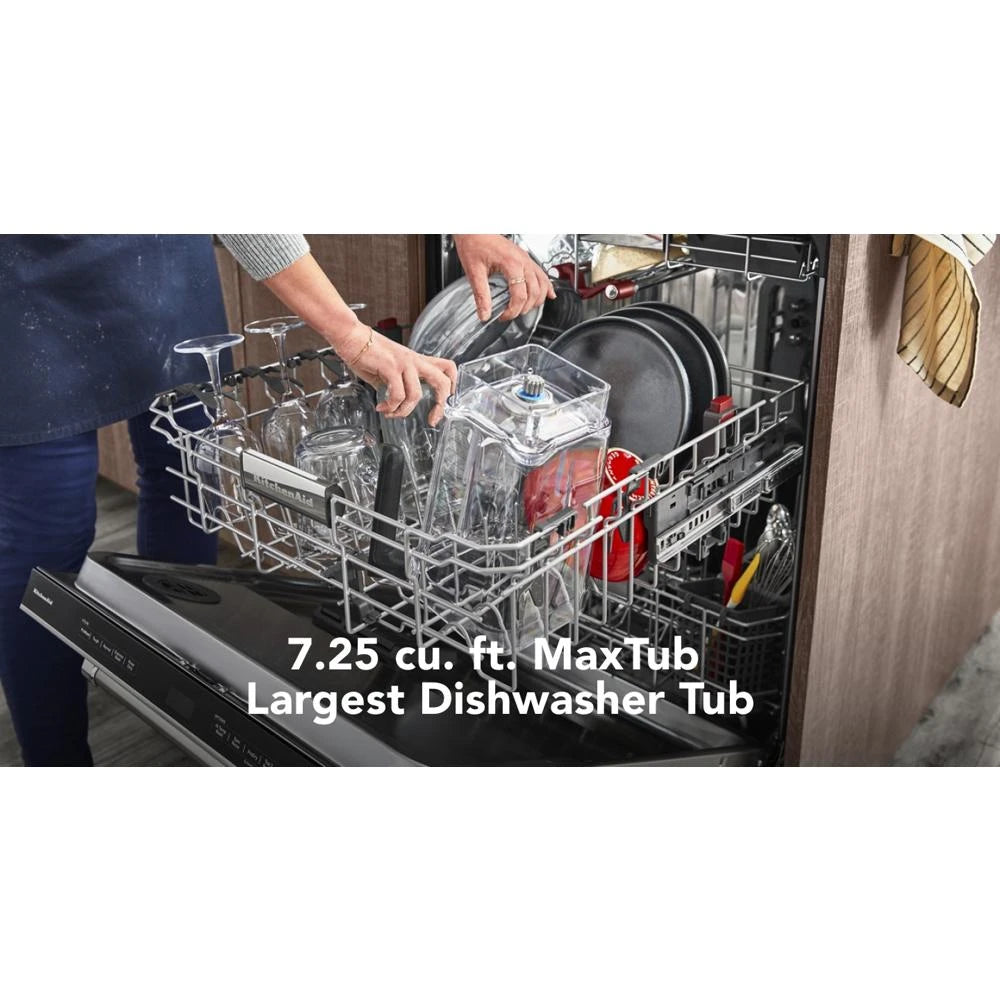

7.25 cu. ft. MaxTub Largest Dishwasher Tub* *Based on usable volume.

makes room for the 360° Max Jets™ Third Rack, which fits 10 extra glasses and mugs,* freeing up space for larger items below. Stemware holders in the adjustable middle rack secure wine glasses. And fold-down rows in the lower rack accommodate cookware of various shapes and sizes. *Compared to KDTE204K and KDFE204K models

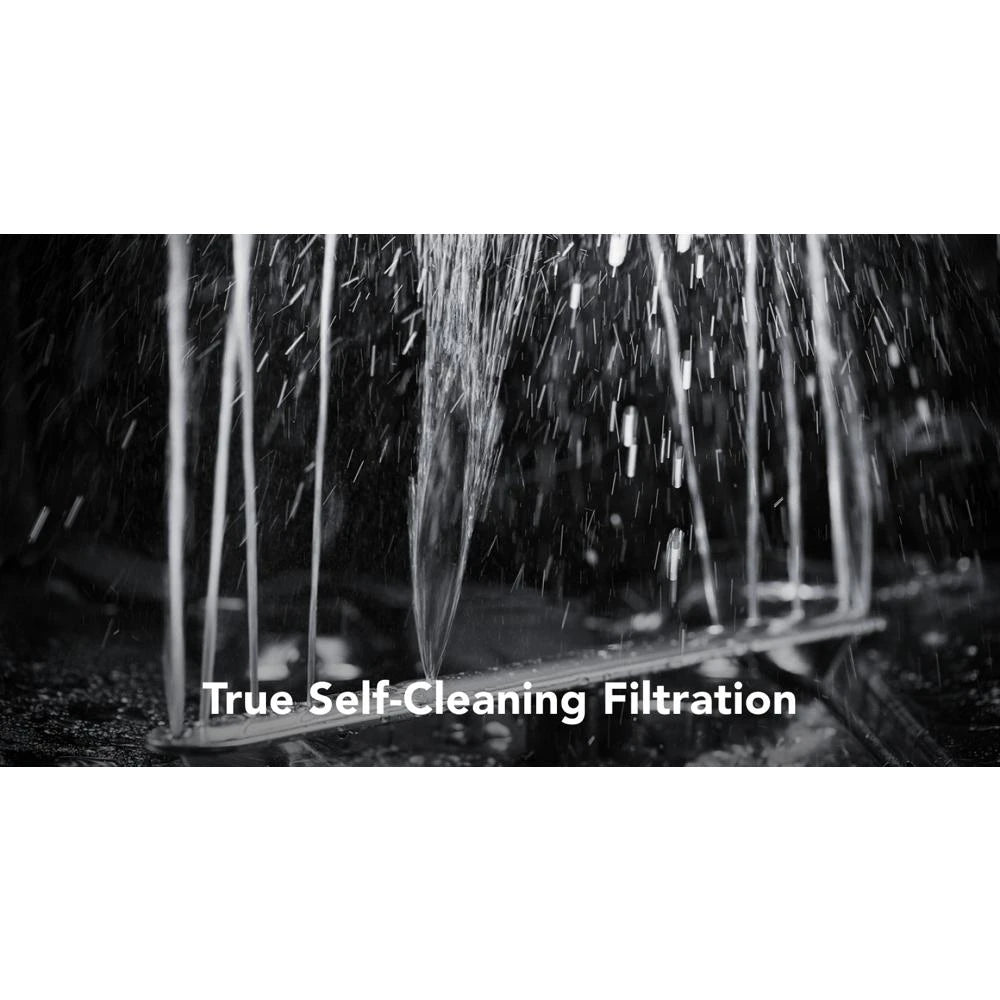

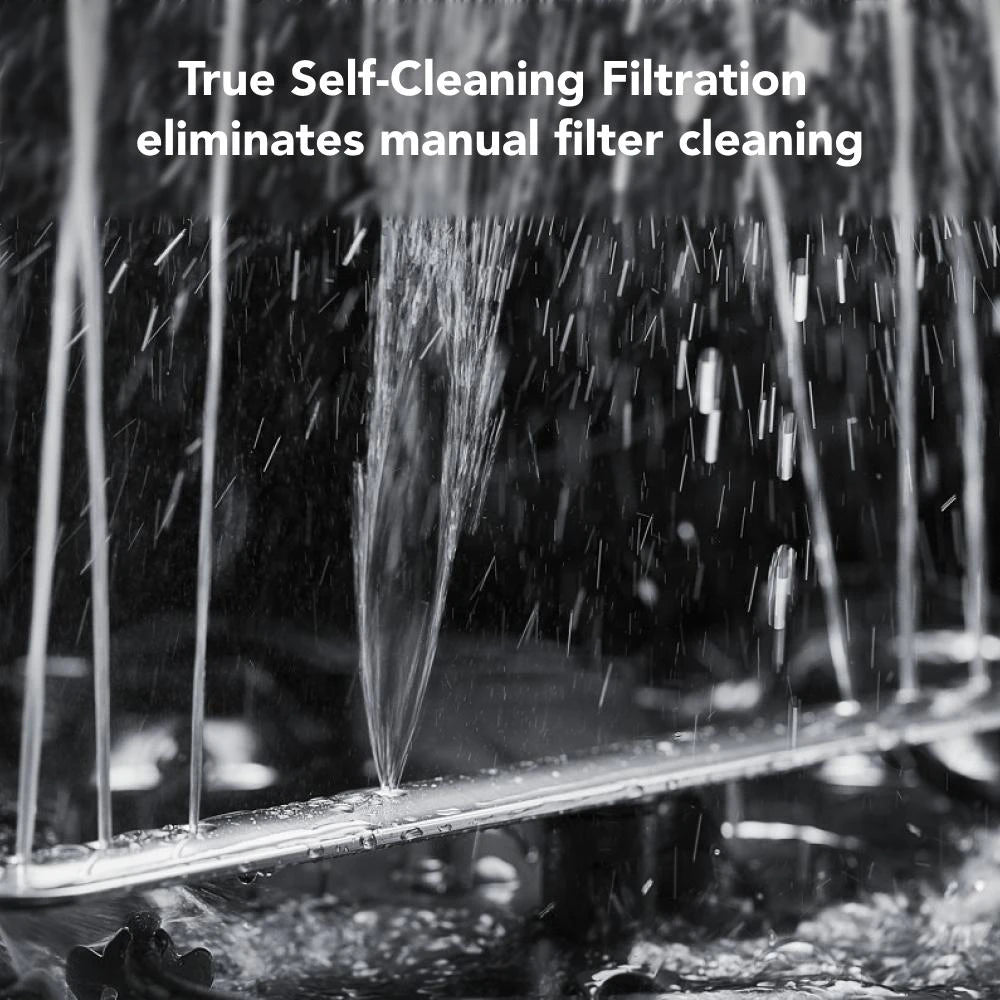

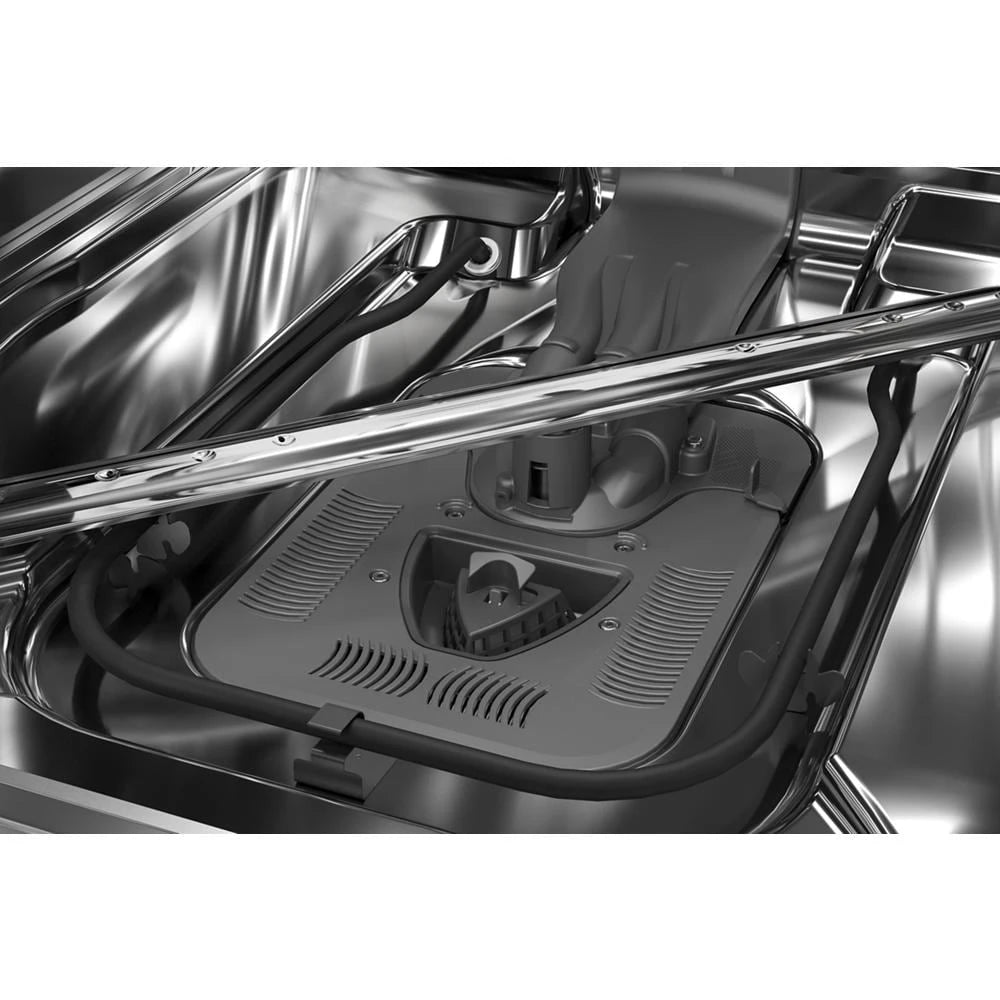

True Self-Cleaning Filtration

is the only dishwasher filtration system that eliminates the need for manual filter cleaning. It continuously captures food particles, so only clean water circulates through the wash jets, then cleans itself as the dishwasher drains.
