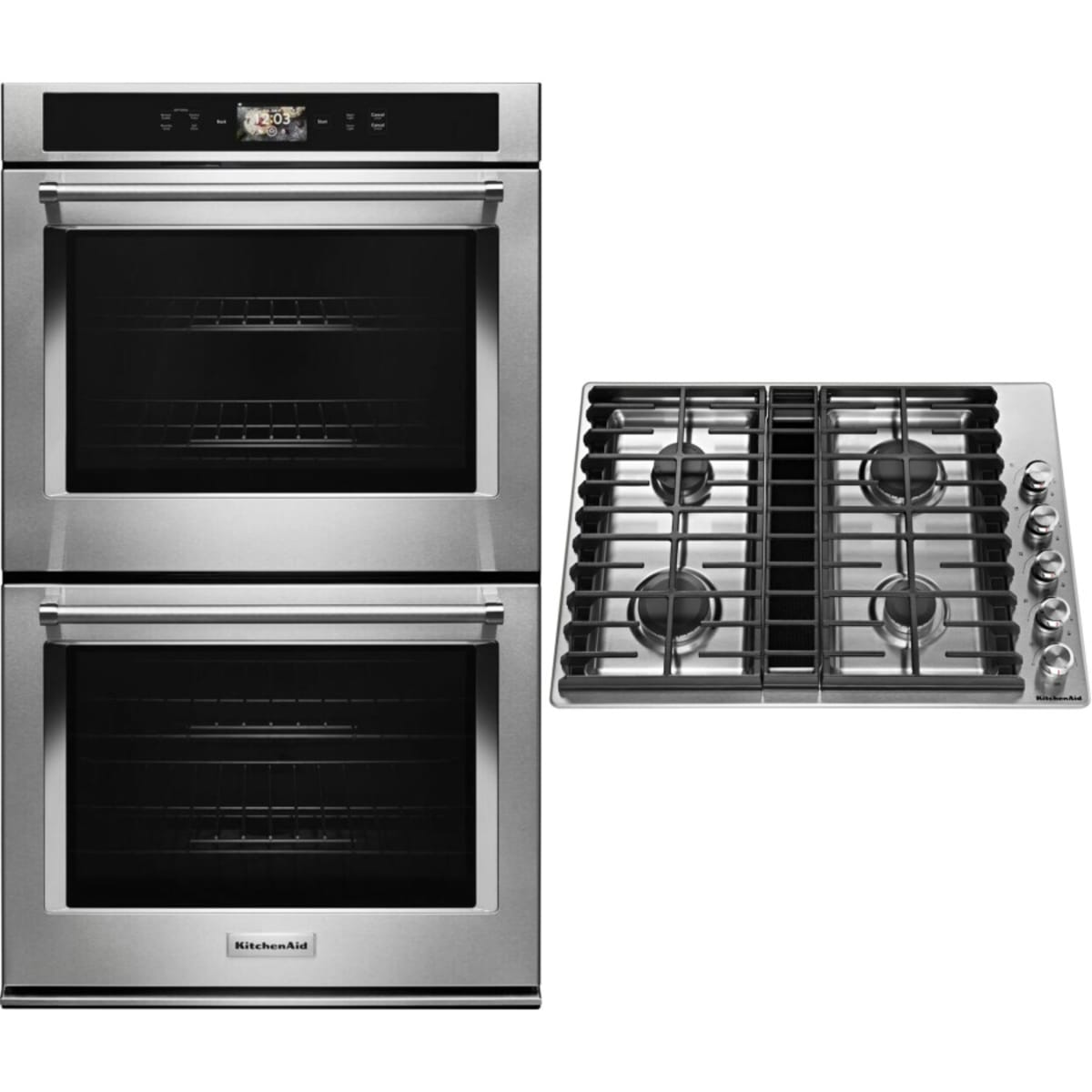

What's included: 2 items

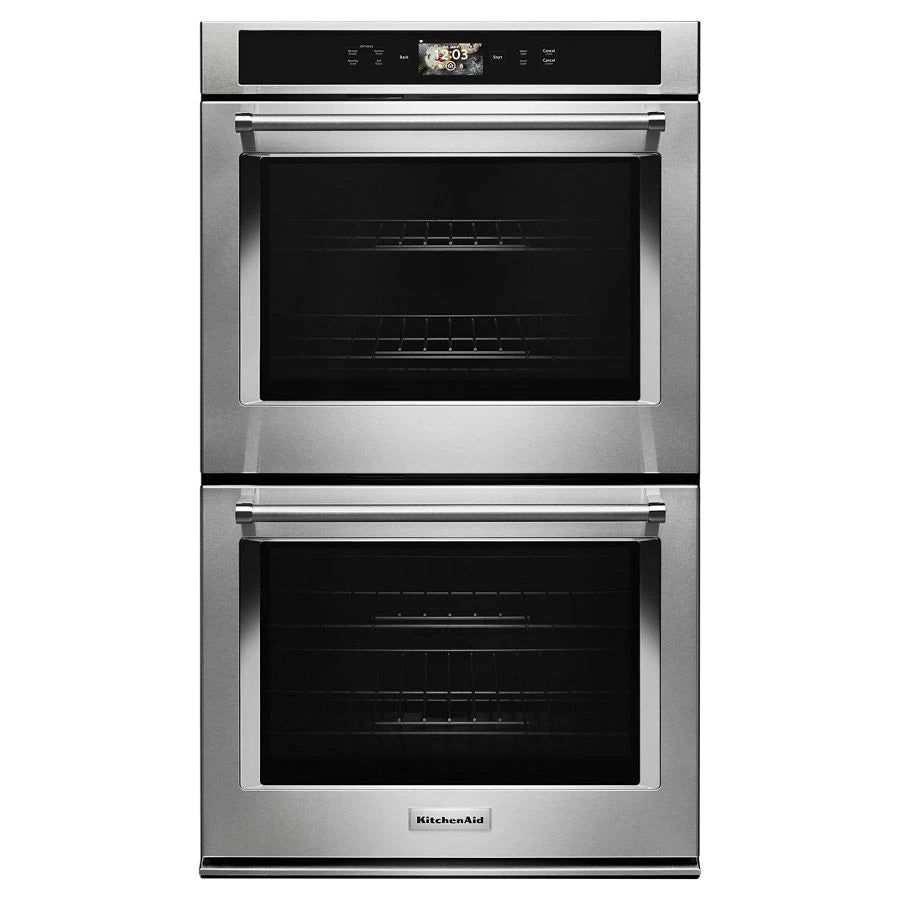

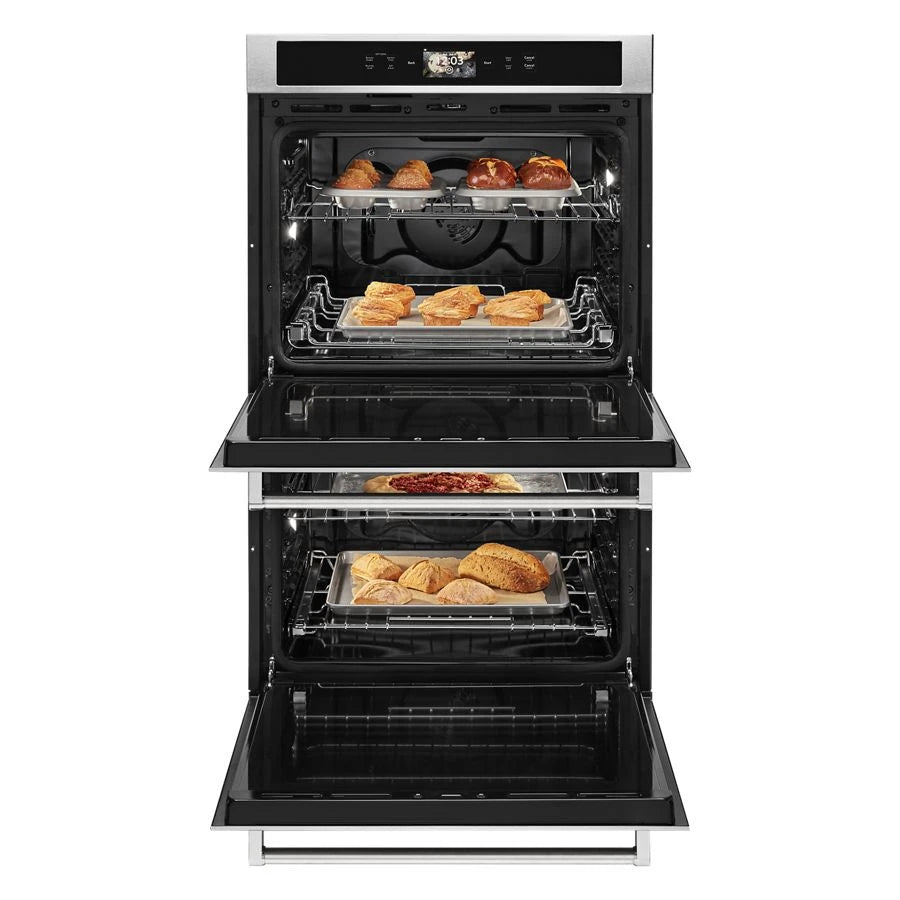

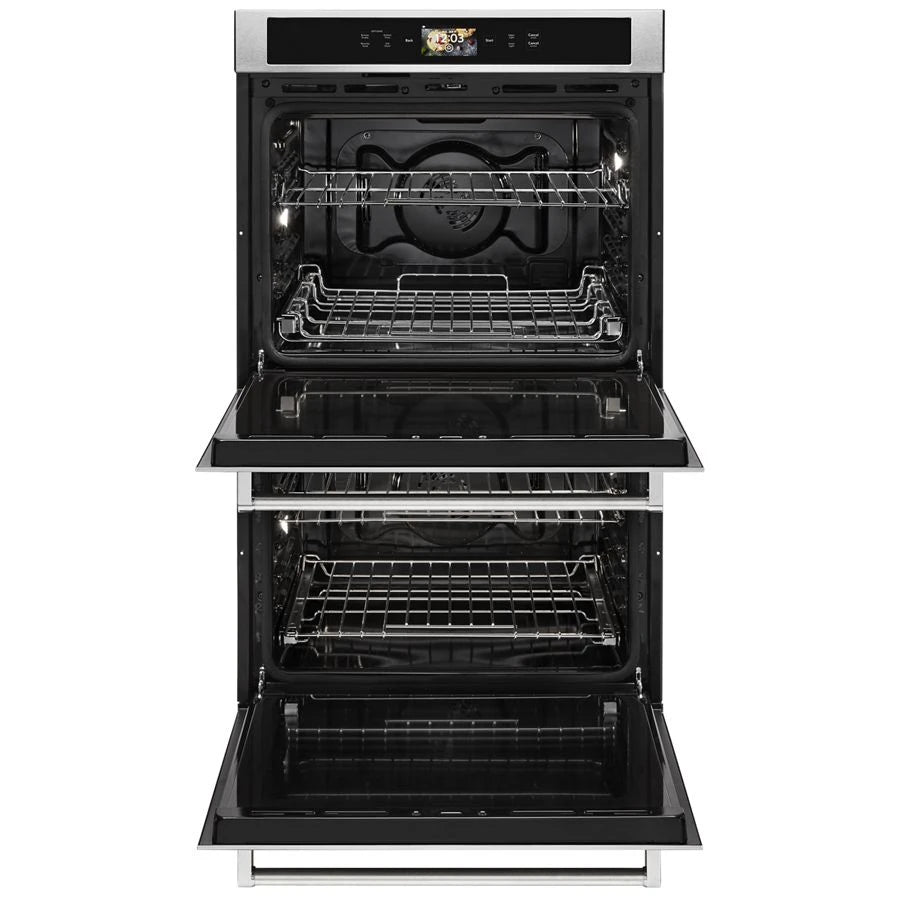

  • Smart Oven+ 30" Double Oven With Powered Attachments

    KitchenAid KODE900HSS Smart Oven+ 30" Double Oven With Powered Attachments Stainless Steel

    • SKU SKU: KODE900HSS UPC: 883049446158
    • Type Double Wall Ovens
  • 30" 4 Burner Gas Downdraft Cooktop

    KitchenAid KCGD500GSS 30" 4 Burner Gas Downdraft Cooktop Stainless Steel

    • SKU SKU: KCGD500GSS UPC: 883049415055
    • Type Gas Cooktops
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Sale price $7,408.00 Regular price $10,939.99 Save $3,531.99 / 32% OFF

Product Details for KITCHENAID KODE900HSS

Technical Details

Controls

Control Type Glass Touch Digital Display
Electronic Display Type Full Color LCD, LCD Screen
Language Conversion English/French
Light Control Oven Light Touch Pad

Features

Oven Selections Audible Signal, Automatic Door Latch, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect

Details

Oven Automatic Shut-Off Yes
Delay Clean Yes
Flush Installation Approved Yes
Fuel Type Electric
Oven Configuration Double Oven
Oven Type Double
Oven Selections Audible Signal, Automatic Door Latch, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect

Certifications

CUL Yes
Prop 65 Standard
UL Yes
Star K Certified Yes

Electrical

Amps 40
Volts 240

Dimensions & weight

Width 30 in.
Height 51.25 in.
Length 27.13 in.
Weight 330 lbs.
Carton Depth 31 7/16
Carton Height 54
Carton Width 35 9/16
Cutout Height (in) 50 1/4
Cutout Width (in) 28 1/2
Depth Closed Excluding Handles 24 1/2
Depth Closed Including Handles 27 1/8
Depth Excluding Doors 23 1/4
Depth With Door Open 90 Degree 46 3/4
Gross Weight 330
Net Weight 306.0
Cutout Height(IN,inches) 50.2500
Cutout Width(IN,inches) 28.5000
Depth Closed Excluding Handles(IN,inches) 24.5000
Depth Closed Including Handles(IN,inches) 27.1250
Depth Excluding Doors(IN,inches) 23.2500
Depth With Door Open 90 Degree(IN,inches) 46.7500
Net Weight(LB,pounds) 306
Carton Depth(IN,inches) 31.4375
Carton Height(IN,inches) 54.0000
Carton Width(IN,inches) 35.5625
Cutout Height Min(IN,inches) 50.2500
Gross Weight(LB,pounds) 330

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 56.25 in.
Shipping Length 32.13 in.
Shipping Weight 370 lbs.
Total of Shipping Weight 370 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 24.13 ft³
Dimensional Weight 300.03 lbs.
Total of Cubes 24.13 ft³
Total of Dimensional Weight 300.03 lbs.

Exterior details

Door Type Metal & Glass
Oven Window Size Extra Large Upper and Lower Oven
Door Lock Yes
Handle Color Stainless Steel
Handle Material Metal

Smart compatibility

Smart Appliance Yes
Connectivity Amazon Alexa, Android, Google Assistant, iOS
Works With App, Remote Access, Voice Controlled, WiFi

Oven cavity details

Bake Element Power 2,800 W
Broiler Element Power 4,000 W
Broiler Location Top of Oven
Convection Element Type True
Convection Functions Bake, Broil, Roast
Door Broil Position Closed
Door Lock Yes
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Interior Color Black
Light Type Halogen
Lower Oven Number of Oven Lights 2
Number of Bake Elements 2
Number of Broil Elements 2
Number of Lower Oven Racks 2
Number of Lower Rack Guides 6
Number of Upper Oven Racks 2
Number of Upper Rack Guides 6
Oven Cleaning Type Adjustable Self Cleaning
Oven Cooking System Convection
Self-Cleaning Oven Racks No
Upper Oven Number of Oven Lights 2
Convection Element Power 3,200 w
Lower Oven Capacity 5 cu. ft.
Upper Oven Capacity 5 cu. ft.

Dimensions

Capacity 10 cu. ft.
Common Size 30 in
Cutout Height 50-1/4 in
Cutout Width 28-1/2 in
Depth 27-1/8 in
Depth Closed Excluding Handles 24-1/2 in
Depth Closed Including Handles 27-1/8 in
Depth Excluding Doors 23-1/4 in
Depth With Door Open 90 Degree 46-3/4 in
Gross Weight 330 lbs
Height 51-1/4 in
Lower Oven Interior Depth 19 in
Lower Oven Interior Height 18 in
Lower Oven Interior Width 25 in
Net Weight 306 lbs
Upper Oven Interior Depth 19 in
Upper Oven Interior Height 18 in
Upper Oven Interior Width 25 in
Width 30 in

Description

KitchenAid 30" Double Oven with Powered Attachments and Oven SatinGlide™ Roll-Out Extension Racks


Product Features

  • Smart Oven+ Powered Attachments
    Offer you the first-ever collection of oven-powered grill, baking stone and steamer attachments. Each fits interchangeably into a provided heating element and base pan that connect onto the back of the oven cavity. You control the cooking process through the oven's controls or a mobile app to take on classic recipes and new culinary challenges. The base pan, heating element and grill are shipped with the oven. Connect, call or register to get baking stone and steamer by mail at no additional cost.
  • FIT System
    Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.
  • 5.0 Cu. Ft. Oven Capacity (both ovens)
    Provides an extra-large cooking capacity in both ovens that’s perfect for large turkeys and roasts. It can even fit multiple dishes at once.
  • Broil Element
    Combines the high power and even coverage needed to give you results similar to outdoor grilling.
  • Temperature Probe (both ovens)
    Accurately measures the internal temperature of meats or casseroles and communicates with the oven, so you can control whether your roast beef tenderloin comes out rare, medium rare, or medium without ever having to open the oven door.
  • Self Cleaning Cycle
    Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe-down at the end of the cycle so you can get right back to cooking.
  • Smart Oven+ Mobile App Connectivity
    Gives you control of your oven in or out of the kitchen. Use our mobile app to remotely monitor and control the oven, suggest when it's time to tend the food, or enter your own cooking instructions and save them for next time. You can control your oven with simple voice commands through your Google Assistant or an Alexa-enabled device. And download the Yummly® app and search "KitchenAid" to find 90 attachment-ready recipes that will open up even more possibilities for you to create.
  • +Grill Attachment
    Allows true grilling year-round. It minimizes smoke and eliminates the flares common on outdoor grills, and its advanced design heats evenly from edge to edge. The grill fits interchangeably onto the base pan and heating element and connects to a powered hub in the oven, allowing you to control cooking manually or select modes that helpfully suggest when to turn chops or remove scallops. Easy-clean, dishwasher safe. The base pan, heating element and grill are shipped with the oven.
  • +Steamer Attachment
    Connect, register or call to get your steamer by mail at no additional cost. It fits interchangeably onto the base pan and heating element and connects to a powered hub in your oven, enabling control through the oven's display so you can precisely steam-cook vegetables, entrees or even a complete dinner for four of salmon, potatoes and asparagus. The attachment can also be used with the Steam Assist mode to create a humid cooking environment ideal for baked goods, breads and roasts. Easy-clean, dishwasher safe.
  • +Baking Stone Attachment
    Connect, register or call to get your baking stone by mail at no additional cost. It stone-bakes a large 14"" pizza, seared kabobs or crab cakes right in your oven. The attachment fits interchangeably onto the base pan and heating element and connects to a powered hub in your oven to preheat in half the time of a non-integrated stone and alert you when preheating is complete. Easy-clean, dishwasher safe.
  • Recipe Guide mode for Powered Attachments
    Helps you get started by giving you a step-by-step tutorial to prepare introductory recipes using each attachment. This mode makes it easy to unlock the system's full potential and expand your culinary horizons.
  • 4.5" Full Color Glass-Touch LCD Display
    Lets you easily see and select among your oven system's many capabilities. High-res 4.5" color display shows video, gives you control of all cooking modes, takes commands from your mobile device, and can add even more capability via Wi-Fi in the future.
  • Cook's Assistant Option
    Helps you explore the abilities of the oven's attachments, convection baking and sensor cooking by programming them automatically. Simply select "Auto" on the display, then select the food and desired level of cooking. The assistant suggests an optimum time and temperature for best results, then lets you use that recommendation or adjust it.
  • Even-Heat™ Preheat
    Helps prevent cold spots for even baking by ensuring that the oven cavity – including walls and racks – is heated to the correct temperature right from the start, so all the madeleines in every batch turn out just as you desire.
  • Even-Heat™ True Convection Ovens
    features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
  • SatinGlide™ Roll-Out Extension Rack (lower oven)
    Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
  • SatinGlide™ Roll-Out Extension Rack for Smart Oven+ Attachments (upper oven)
    Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading. Upper-oven rack is designed to hold the attachment base pan securely in place during use, yet allows easy pan insertion and removal.

From The Manufacturer

Reviews

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $7,408.00 Regular price $10,939.99 Save $3,531.99 / 32% OFF

Product Details for KITCHENAID KCGD500GSS

Technical Details

Controls

Control Location Right Side
Control Type Knobs
Infinite Heat Controls Yes

Cooktop details

Number of Open Bays N/A
Cooktop Surface Material Stainless Steel
Digital Display No
Heating Element On Indicator Light No
Hot Surface Indicator Light No

Certifications

ADA Compliant No
UL Yes
prop65 Standard

Electrical

Power Cord Included Yes

Dimensions & weight

Width 30 in.
Height 18.44 in.
Length 21.5 in.
Weight 78 lbs.
Carton Depth 26 7/16
Carton Height 23 13/16
Carton Width 35 1/8
Gross Weight 78
Net Weight 66.0
Cutout Depth(IN,inches) 19.9375
Cutout Width(IN,inches) 28.6250
Net Weight(LB,pounds) 66
Carton Depth(IN,inches) 26.4375
Carton Height(IN,inches) 23.8125
Carton Width(IN,inches) 35.1250
Gross Weight(LB,pounds) 78

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 35 in.
Shipping Height 23.44 in.
Shipping Length 26.5 in.
Shipping Weight 118 lbs.
Total of Shipping Weight 118 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.88 ft³
Dimensional Weight 85.57 lbs.
Total of Cubes 6.88 ft³
Total of Dimensional Weight 85.57 lbs.

Details

Automatic Pan Detection No
Fuel Type Gas
Installs Over Built-In Oven No
LP Convertible Yes
Number of Vent Speeds 3
Power Outage Compatible Yes

Dimensions

Cutout Depth 19.938
Cutout Width 28.625
carton depth 26.38
carton height 23.78
carton width 35.12
gross weight 78
net weight 66

Element/burner details

Cooktop Element Style Sealed Burner
Cooktop Type Downdraft
Left Front Element-Burner Power 17, 000 BTU
Left Front Element-Burner Type Burner
Left Rear Element-Burner Power 5, 000 BTU
Left Rear Element-Burner Type Even-Heat™
Number of Cooking Element-Burners 4
Power Boost No
Right Front Element-Burner Power 10, 000 BTU
Right Front Element-Burner Type Burner
Right Rear Element-Burner Power 15, 000 BTU
Right Rear Element-Burner Type Burner

Grate details

Grate Details Cast Iron Grates; Continuous; Matte Finish
Number of Grates 3

Ventilation details

CFM Motor Class 300
Downdraft Vent Yes

Description

KitchenAid 30" Gas Cooktop with Downdraft Ventilation, 4 Burners, and Full-Width Cast-Iron Grates


Product Features

  • Downdraft Ventilation
    Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
  • Stainless Steel Knobs
    Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
  • Full-Width Cast-Iron Grates
    Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
  • LP Conversion Kit
    Allows you to convert the cooktop so it can be used with LP gas.
  • 17K BTU Professional Burner
    Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
  • 300 CFM Exhaust Rating
    Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
  • 3-Speed Fan Control
    Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
  • 15K BTU Professional Burner
    Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
  • Convertible to Duct-Free Ventilation
    Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
  • Melt Cap
    Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
  • Electronic Ignition and Automatic Re-Ignition
    Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
  • 5K BTU Even-Heat™ Simmer Burner
    A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
