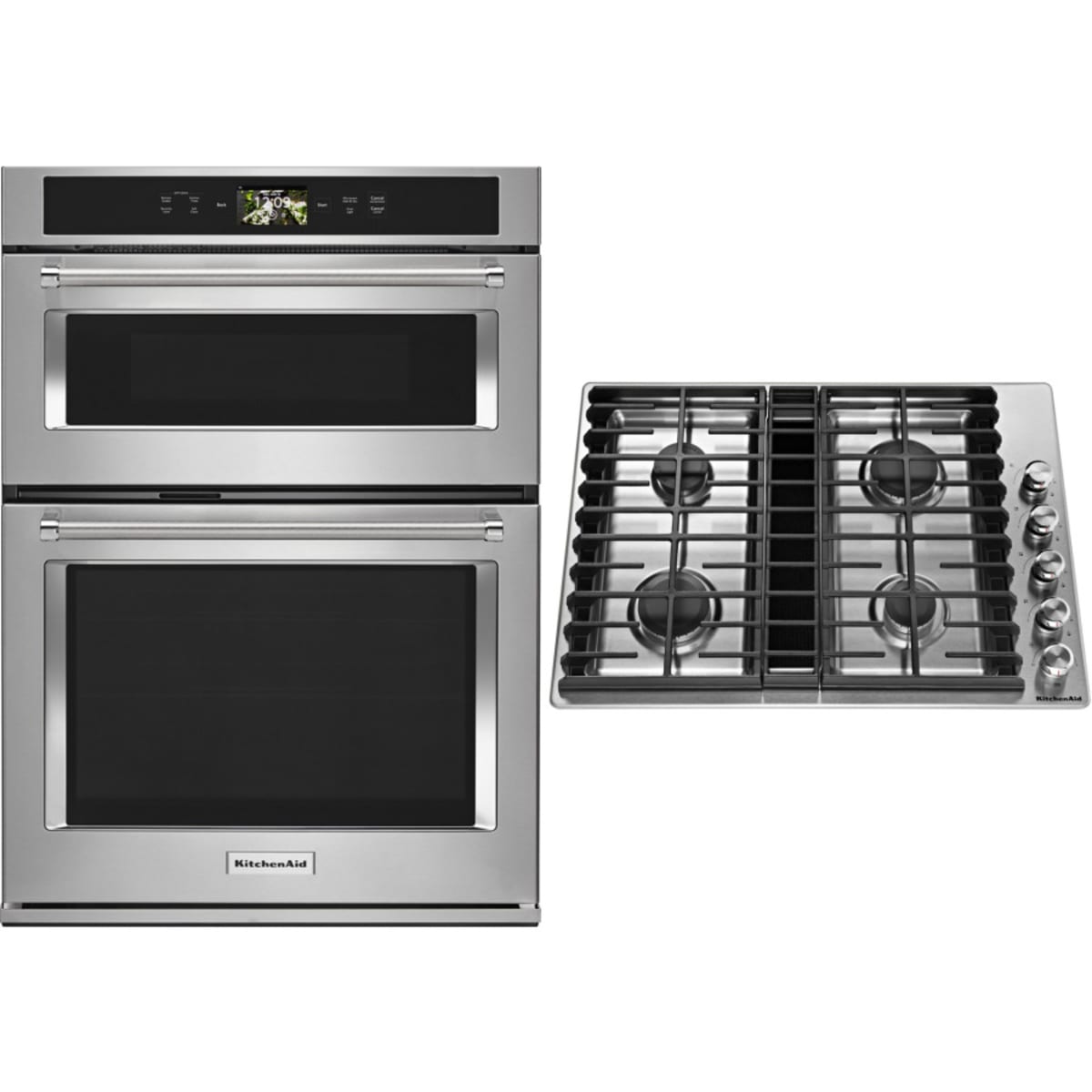

Name: Kitchen Aid 2-Piece Package KCGD500GSS 30 Inch Gas Downdraft Cooktop and KOCE900HSS 30 Inch Smart Combination Wall Oven
Brand: KITCHENAID
SKU: KitchenAid-KCGD500GSS-KOCE900HSS
Price: 7693.00 USD
Availability: OutOfStock

What's included: 2 items

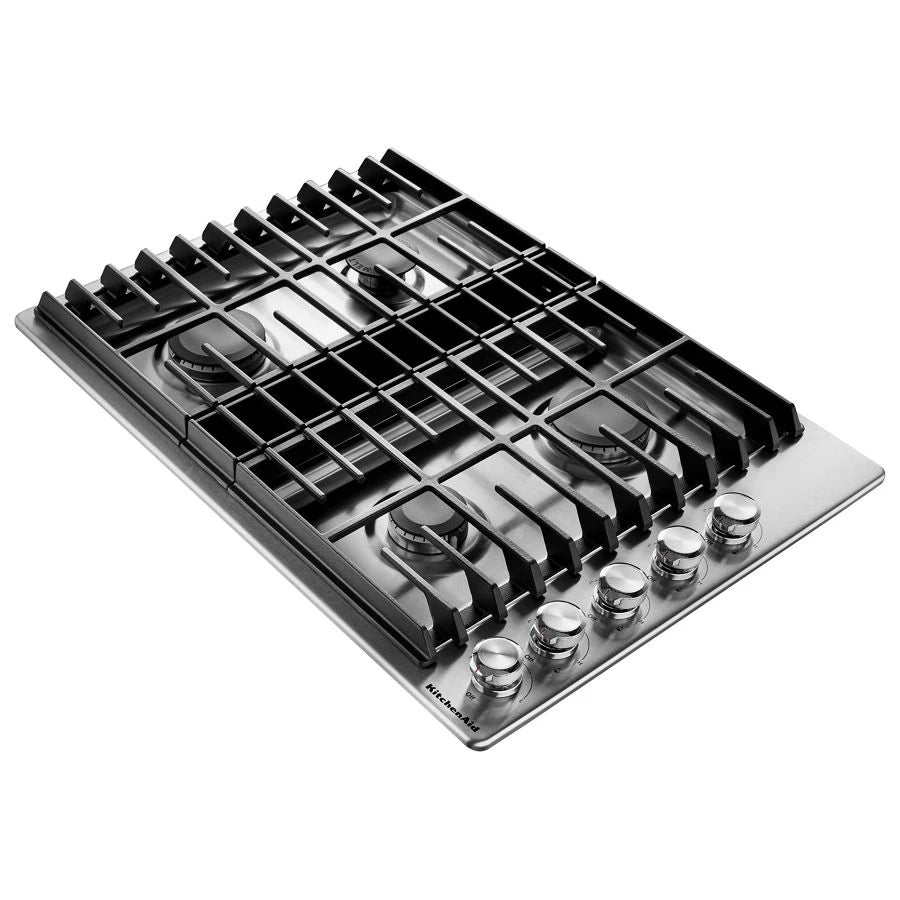

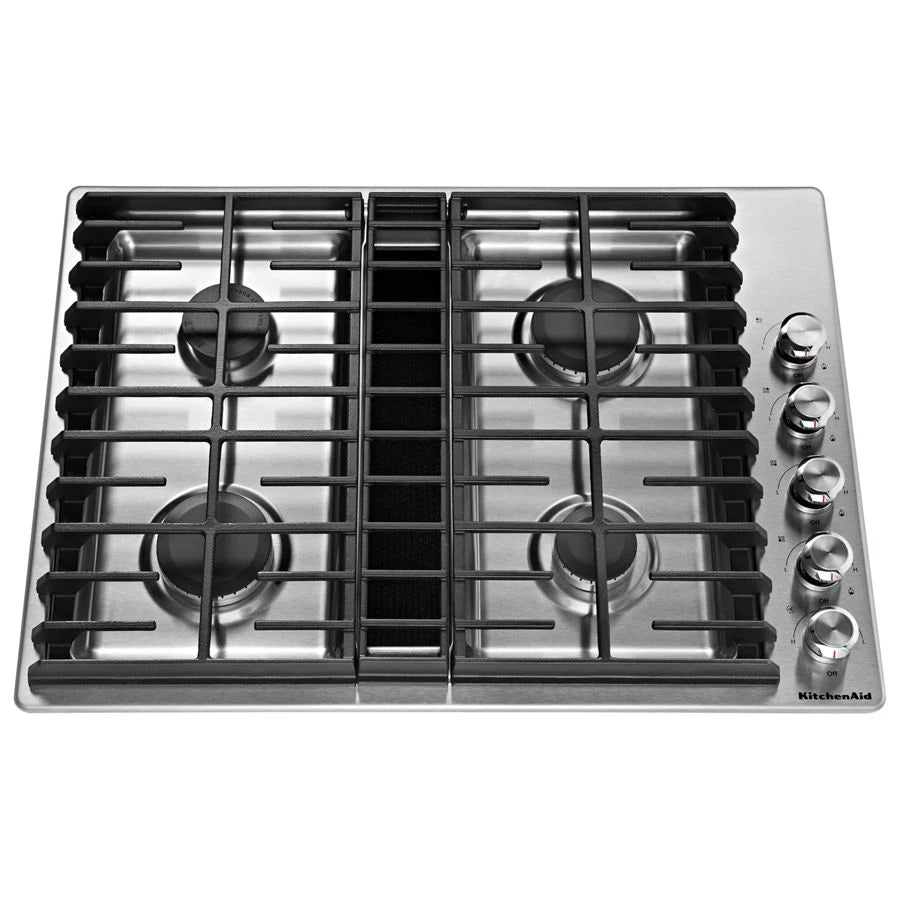

KitchenAid KCGD500GSS 30" 4 Burner Gas Downdraft Cooktop Stainless Steel
- SKU SKU: KCGD500GSS UPC: 883049415055
- Type Gas Cooktops
KitchenAid KOCE900HSS Smart Oven+ 30" Combination Oven With Powered Attachments Stainless Steel
- SKU SKU: KOCE900HSS UPC: 883049446172
- Type Microwave & Oven Combos

Product Details
Manuals & Guides
From The Manufacturer
Rebates
Reviews

$7,693.00 ~~$12,541.99~~ Save $4,848.99 / 38% OFF

Product Details for KITCHENAID KCGD500GSS

Technical Details

Controls

Control Location	Right Side
Control Type	Knobs
Infinite Heat Controls	Yes

Cooktop details

Number of Open Bays	N/A
Cooktop Surface Material	Stainless Steel
Digital Display	No
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No

Certifications

ADA Compliant	No
UL	Yes
prop65	Standard

Electrical

Power Cord Included

Yes

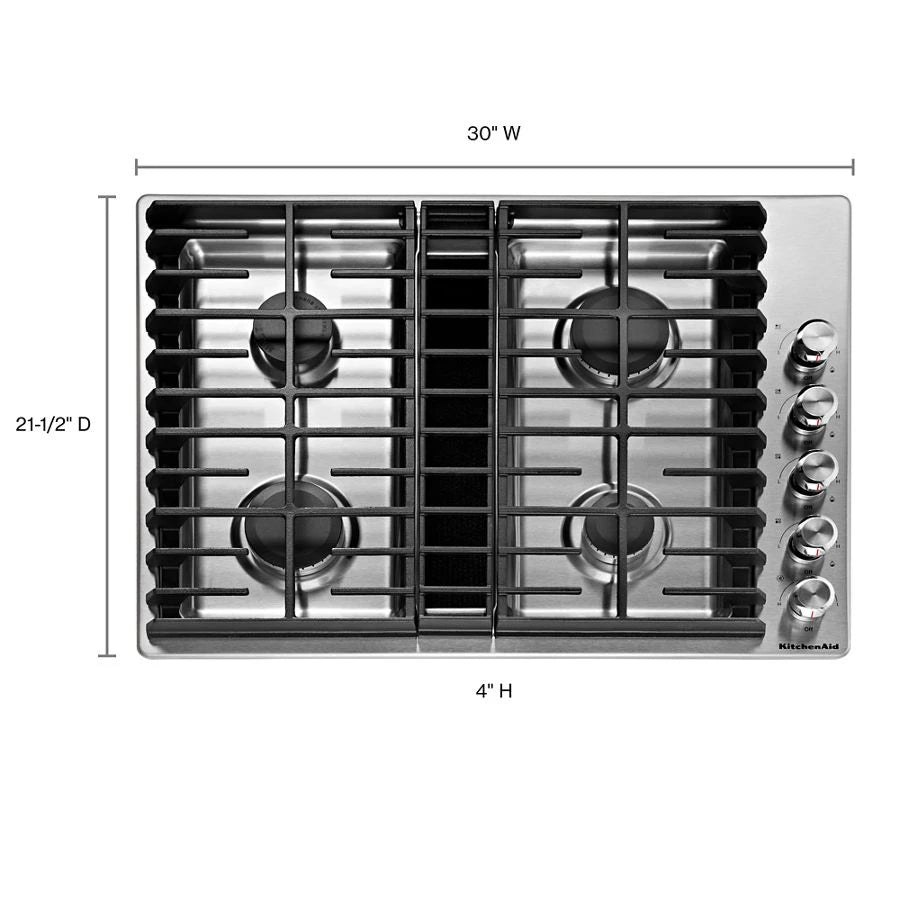

Dimensions & weight

Width	30 in.
Height	18.44 in.
Length	21.5 in.
Weight	78 lbs.
Carton Depth	26 7/16
Carton Height	23 13/16
Carton Width	35 1/8
Gross Weight	78
Net Weight	66.0
Cutout Depth(IN,inches)	19.9375
Cutout Width(IN,inches)	28.6250
Net Weight(LB,pounds)	66
Carton Depth(IN,inches)	26.4375
Carton Height(IN,inches)	23.8125
Carton Width(IN,inches)	35.1250
Gross Weight(LB,pounds)	78

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	23.44 in.
Shipping Length	26.5 in.
Shipping Weight	118 lbs.
Total of Shipping Weight	118 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.88 ft³
Dimensional Weight	85.57 lbs.
Total of Cubes	6.88 ft³
Total of Dimensional Weight	85.57 lbs.

Details

Automatic Pan Detection	No
Fuel Type	Gas
Installs Over Built-In Oven	No
LP Convertible	Yes
Number of Vent Speeds	3
Power Outage Compatible	Yes

Dimensions

Cutout Depth	19.938
Cutout Width	28.625
carton depth	26.38
carton height	23.78
carton width	35.12
gross weight	78
net weight	66

Element/burner details

Cooktop Element Style	Sealed Burner
Cooktop Type	Downdraft
Left Front Element-Burner Power	17, 000 BTU
Left Front Element-Burner Type	Burner
Left Rear Element-Burner Power	5, 000 BTU
Left Rear Element-Burner Type	Even-Heat™
Number of Cooking Element-Burners	4
Power Boost	No
Right Front Element-Burner Power	10, 000 BTU
Right Front Element-Burner Type	Burner
Right Rear Element-Burner Power	15, 000 BTU
Right Rear Element-Burner Type	Burner

Grate details

Grate Details	Cast Iron Grates; Continuous; Matte Finish
Number of Grates	3

Ventilation details

CFM Motor Class	300
Downdraft Vent	Yes

Description

KitchenAid 30" Gas Cooktop with Downdraft Ventilation, 4 Burners, and Full-Width Cast-Iron Grates

Product Features

Downdraft Ventilation
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
Stainless Steel Knobs
Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
LP Conversion Kit
Allows you to convert the cooktop so it can be used with LP gas.
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
300 CFM Exhaust Rating
Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
15K BTU Professional Burner
Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Melt Cap
Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
Electronic Ignition and Automatic Re-Ignition
Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
5K BTU Even-Heat™ Simmer Burner
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.

Manuals & Guides

Rebates

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Reviews

$7,693.00 ~~$12,541.99~~ Save $4,848.99 / 38% OFF

Product Details for KITCHENAID KOCE900HSS

Technical Details

Other

Capacity (Cu Ft)

6.40

Dimensions & weight

Width	35.53 in.
Height	45.54 in.
Length	31.42 in.
Weight	280 lbs.
Carton Depth	31 7/16
Carton Height	45 9/16
Carton Width	35 9/16
Cutout Depth (in)	24
Cutout Height (in)	41 3/8
Cutout Width (in)	28 1/2
Depth Closed Excluding Handles	24 1/2
Depth Closed Including Handles	27 1/8
Depth With Door Open 90 Degree	46 3/4
Gross Weight	280 lbs.
Net Weight	259.7
Cutout Depth(IN,inches)	24.0000
Cutout Height(IN,inches)	41.3750
Cutout Width(IN,inches)	28.5000
Depth Closed Excluding Handles(IN,inches)	24.5000
Depth Closed Including Handles(IN,inches)	27.1250
Depth With Door Open 90 Degree(IN,inches)	46.7500
Net Weight(LB,pounds)	260
Carton Depth(IN,inches)	31.4375
Carton Height(IN,inches)	45.5625
Carton Width(IN,inches)	35.5625
Cutout Height Min(IN,inches)	41.3750
Gross Weight(LB,pounds)	280

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	47.5 in.
Shipping Length	32.13 in.
Shipping Weight	320 lbs.
Total of Shipping Weight	320 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	20.01 ft³
Dimensional Weight	248.81 lbs.
Total of Cubes	20.01 ft³
Total of Dimensional Weight	248.81 lbs.

Certifications

ADA Compliant	No
CUL	Yes
Star K Certified	Kosher Consumer Friendly
UL	Yes

Controls

Control Type	Glass Touch Digital Display
Display Color	Full Color
Electronic Display Type	LCD
Number of Keypads	1
Language Conversion	English/French
Microwave Selections	Add 30 Seconds, Beverage, Control Lock, Convect, Cook Power, Cook Time, Cook/Start, Crisp, Defrost, Dinner Plate, End of Cycle Signal, Favorites, Fresh Vegetable, Frozen Vegetable, Off/Cancel

Details

Flush Installation Approved	Yes
Fuel Type	Electric
Grill	Yes
Oven Automatic Shut-Off	Yes
Oven Configuration	Microwave Combination
Turntable	Yes
Door Release	Handle
Microwave Interior Light	Halogen
Number of Microwave Racks	1
Oven Selections	Audible Signal, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Cook and Hold, Delay Start, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Favor
Convection Power	1,600 w
Turntable Diameter Size	14.125 in

Electrical

Power Cord Included	Yes
Amps	40
Hz	60
Volts	240

Exterior details

Door Type	Metal & Glass
Oven Window Size	Extra Large
Door Lock	Yes
Handle Color	Stainless Steel
Handle Material	Stainless Steel

Microwave details

Door Release	Handle
Grill	Yes
Microwave Interior Light	Halogen
Grill Power	1,600 w
Microwave Capacity	1.4 cu. ft.
Microwave Interior Depth	16.5 in
Microwave Interior Height	8.875 in
Microwave Interior Width	17.625 in
Turntable Diameter Size	14.125 in

Smart compatibility

Smart Appliance	Yes
Connectivity	Amazon Alexa, Android, Google Assistant, iOS
Works With	App, Remote Access, Voice Controlled, WiFi

Oven cavity details

Bake Element Power	2,800 W
Broiler Element Power	4,000 W
Broiler Location	Top of Oven
Convection	Yes
Convection Element Type	True
Convection Functions	Bake, Broil, Convection Conversion, Roast
Door Broil Position	Closed
Door Lock	Yes
Door Removable	Yes
Hidden Bake Element	Yes
Interior Color	Black
Number of Oven Lights	2
Number of Oven Racks	2
Number of Rack Guides	6
Oven Cleaning Type	Adjustable Self Cleaning
Oven Cooking System	Convection
Oven Light Type	Halogen
Self-Cleaning Oven Racks	No
Convection Element Power	3,200 w
Convection Power	1,600 w
Cooking Power	900 w

Dimensions

Common Size	30 in
Cutout Depth	24 in
Oven Capacity	5 cu. ft.
Oven Interior Depth	19 in
Oven Interior Height	18 in
Oven Interior Width	25 in
Capacity	6.4 cu. ft.
Gross Weight	280 lbs
Width	30 in
Cutout Height	41.375 in
Cutout Width	28.5 in
Depth	27.125 in
Depth Closed Excluding Handles	24.5 in
Depth Closed Including Handles	27.125 in
Depth With Door Open 90 Degree	46.75 in
Height	42.5 in
Microwave Interior Depth	16.5 in
Microwave Interior Height	8.875 in
Microwave Interior Width	17.625 in
Net Weight	259.7 lbs

Capacity

Volume

29.421 Cu.Ft.

Description

Open up new culinary possibilities. KitchenAid introduces the first combination wall oven that comes with interchangeable attachments in the tradition of the iconic KitchenAid® Stand Mixer to enable grilling, stone cooking and steaming. As cooks expect today from a premium wall oven, it also supports a full complement of smart capabilities as well as baking, broiling and Even-Heat™ True Convection.

Manuals & Guides

Key Features

Smart Oven+ Mobile App Connectivity

Gives you control of your oven in or out of the kitchen. Use our mobile app to remotely monitor and control the oven, suggest when it's time to tend the food, or enter your own cooking instructions and save them for next time. You can control your oven with simple voice commands through your Google Assistant or an Alexa-enabled device. And download the Yummly® app and search ""KitchenAid"" to find 90 attachment-ready recipes that will open up even more possibilities for you to create✝.

Smart Oven+ Powered Attachments

Offer you the first-ever collection of oven-powered grill, baking stone and steamer attachments. Each fits interchangeably into a provided heating element and base pan that connect onto the back of the oven cavity. You control the cooking process through the oven's controls or a mobile app to take on classic recipes and new culinary challenges. The base pan, heating element and grill are shipped with the oven. Connect, call or register to get baking stone and steamer by mail at no additional cost.

+Grill Attachment

Allows true grilling year-round. It minimizes smoke and eliminates the flares common on outdoor grills, and its advanced design heats evenly from edge to edge. The grill fits interchangeably onto the base pan and heating element and connects to a powered hub in the oven, allowing you to control cooking manually or select modes that helpfully suggest when to turn chops or remove scallops. Easy-clean, dishwasher safe. The base pan, heating element and grill are shipped with the oven.

Even-Heat™ True Convection Oven

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures crisp, flaky baked goods, juicy, well-browned roasts and carmerlized vegetables.

+Baking Stone Attachment

Connect, register or call to get your baking stone by mail at no additional cost. It stone-bakes a large 14"" pizza, seared kabobs or crab cakes right in your oven. The attachment fits interchangeably onto the base pan and heating element and connects to a powered hub in your oven to preheat in half the time of a non-integrated stone and alert you when preheating is complete. Easy-clean, dishwasher safe.

+Steamer Attachment

Connect, register or call to get your steamer by mail at no additional cost. It fits interchangeably onto the base pan and heating element and connects to a powered hub in your oven, enabling control through the oven's display so you can precisely steam-cook vegetables, entrees or even a complete dinner for four of salmon, potatoes and asparagus. The attachment can also be used with the Steam Assist mode to create a humid cooking environment ideal for baked goods, breads and roasts. Easy-clean, dishwasher safe.
