Hotpoint RAS200DMWW Energy Star® 20" Electric Free-standing Front-cont

Product Details for HOTPOINT RAS200DMWW-CLEARANCE

Technical Details

Warranty

Parts	1 Year
Labor	1 Year
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Dimensions & weight

Width	19.75 in.
Height	41.88 in.
Length	26.63 in.
Weight	71 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	24.75 in.
Shipping Height	46.88 in.
Shipping Length	31.63 in.
Shipping Weight	111 lbs.
Total of Shipping Weight	111 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	12.74 ft³
Dimensional Weight	158.42 lbs.
Total of Cubes	12.74 ft³
Total of Dimensional Weight	158.42 lbs.

Features

Control Type	Rotary knobs
Leveling System	Easy Level System
Product Type	Free-Standing Single Oven
Sabbath Mode	Yes
Control Location	Front
Fuel Type	Electric
Cooktop Burner Type	Coil
Cooking Technology	Traditional
Oven Cooking Modes	Bake, Broil
Cooktop Surface	Lift-Up, Porcelain-Enamel
Element - Left Front	6" 1250W Temp Limiting Coil
Element - Left Rear	6" 1250W Temp Limiting Coil
Element - Right Front	8" 2400W Temp Limiting Coil
Element - Right Rear	6" 1250W Temp Limiting Coil
Oven Control Features	Oven "ON" Light
Oven Features	4-Pass Bake Element, 4-Pass Broil Element
Oven Cleaning Type	Standard Clean
Oven Rack Features	2 Oven Racks
Removable One-piece Drip Bowls	Chrome
Cooktop Type	Coil
Heating Element "on" Indicator Light	Yes
Ou Certified	No
Oven Rack Positions (single Or Upper/lower)	4

Capacity

Total Capacity (cubic Feet)

2.3 cu ft

Appearance

Door Swing	Pull-Down
Color Appearance	White
Handle Color	White
Control Knobs	White
Textured Steel Side Panels	Yes

Weights & dimensions

Overall Depth	26 5/8 in
Overall Height	41 7/8 in
Overall Width	19 3/4 in
Approximate Shipping Weight	83 lb
Net Weight	71 lb
Depth Without Handle	24 5/8 in
Cabinet Width	20 in
Depth With Door Open	44 3/8 in
Oven Interior Dimensions (w X H X D) (in.)	15 x 15-3/8 x 17-1/8
Height To Cooking Surface (in.)	36.75 +/- .25

Power / ratings

Electrical Requirements	208/240V ; 60Hz ; 40A
Kw Rating At 208v	7.2
Kw Rating At 240v	9.3
Amp Rating At 208v	40
Amp Rating At 240v	40
Bake Wattage	2000W
Broiler Wattage	2400W
Hertz	60

Claims & certifications

Yes

Description

Front controls
Easily operate your range stove without reaching over hot pots and pans

Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety

Lift-up cooktop
Quickly clean up spills and remove crumbs from the subtop

Two oven racks
Feature a durable construction to help accommodate any size or type of cookware

Standard clean oven
Smooth surface makes cleaning by hand easier

One-piece durable handle
Strong and long-lasting

Chrome drop bowls
Contain spills and remove for easy cleaning

Cooktop "On" Indicator Light
Know when an element is on

Product Features

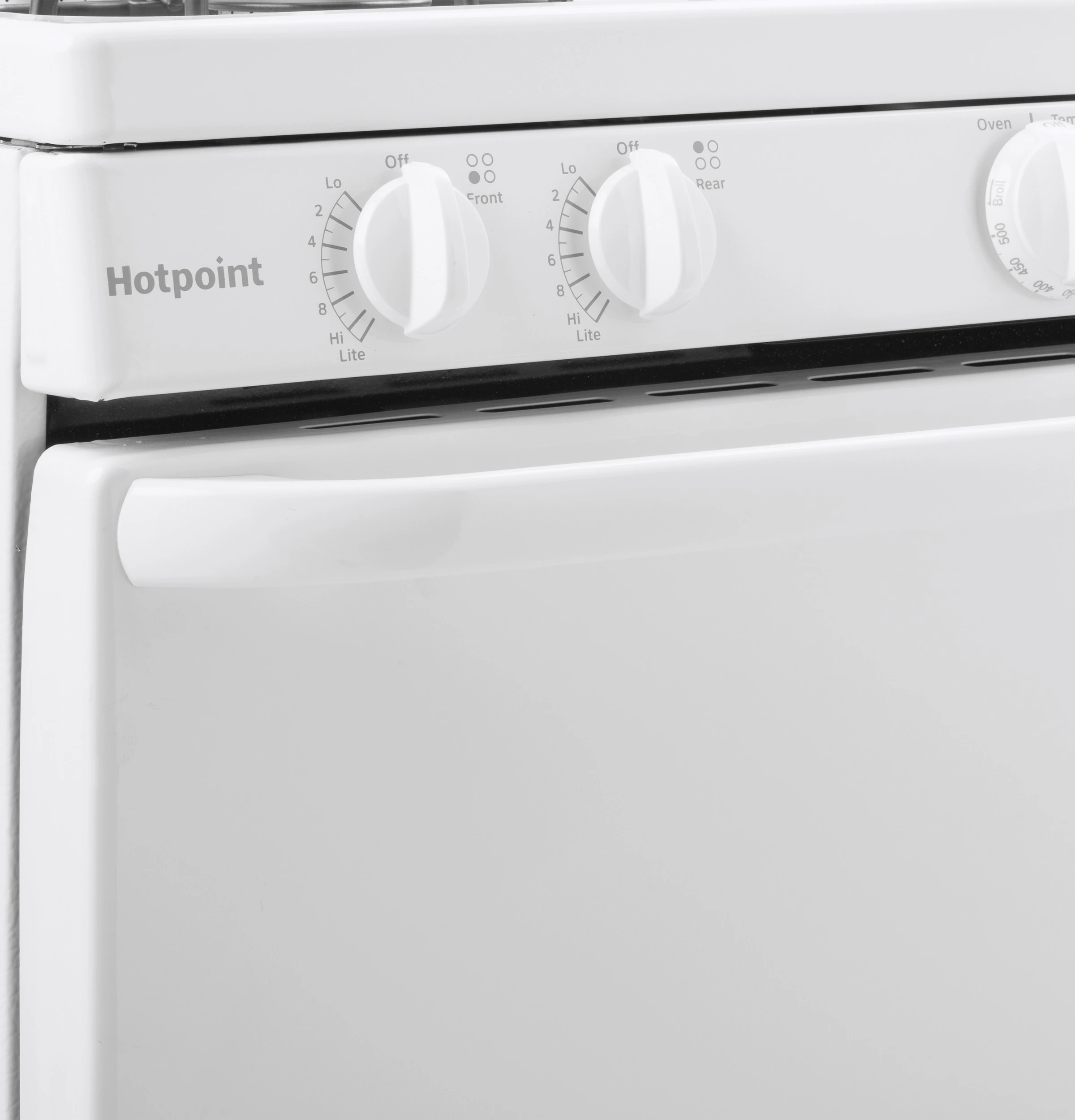

Front controls
Easily operate your range stove without reaching over hot pots and pans
Cooktop "On" Indicator Light
Know when an element is on

Key Features

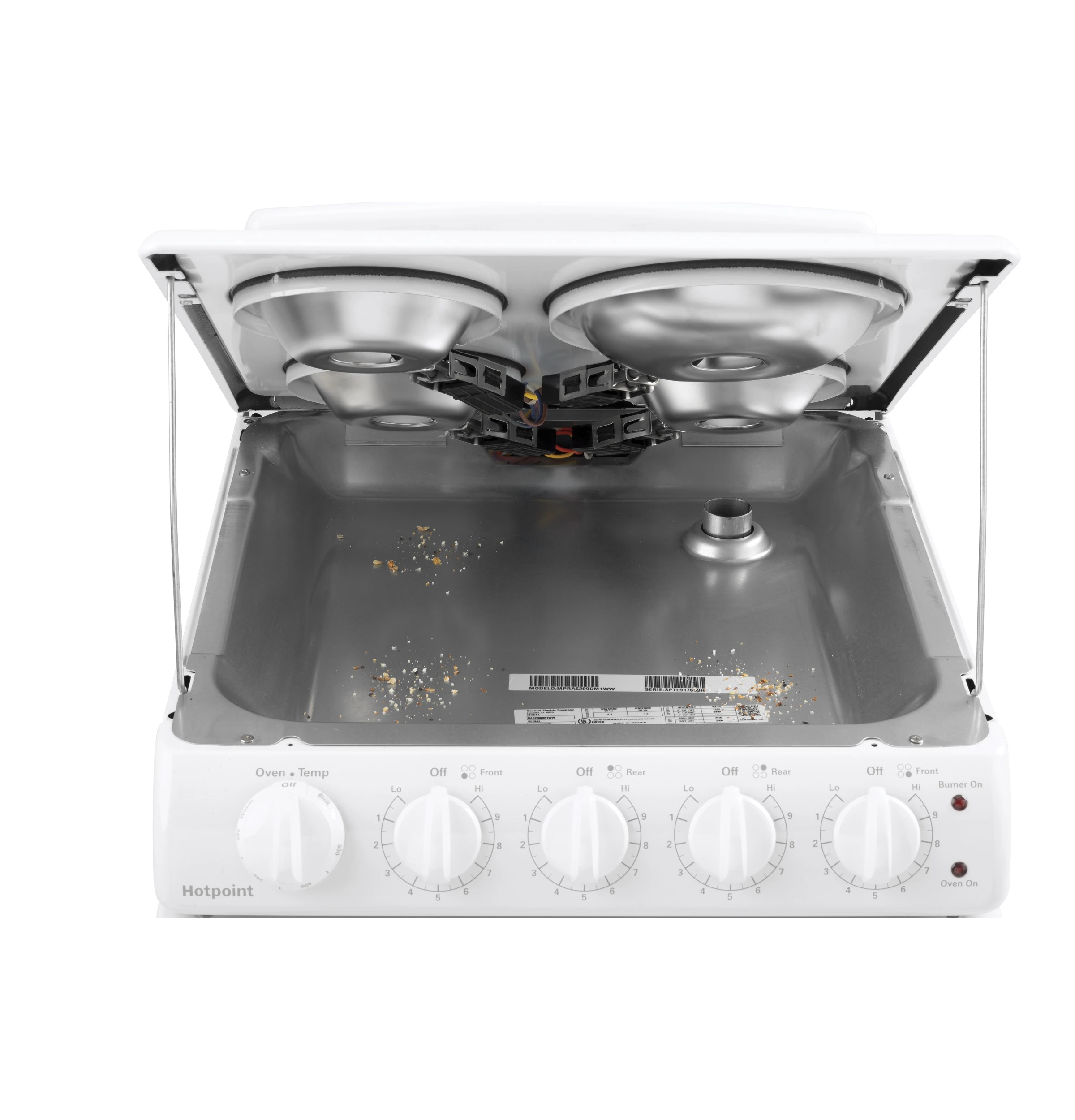

Lift-up cooktop

Quickly clean up spills and remove crumbs from the subtop

Two oven racks

Feature a durable construction to help accommodate any size or type of cookware

Standard clean oven

Smooth surface makes cleaning by hand easier

One-piece durable handle

Strong and long-lasting

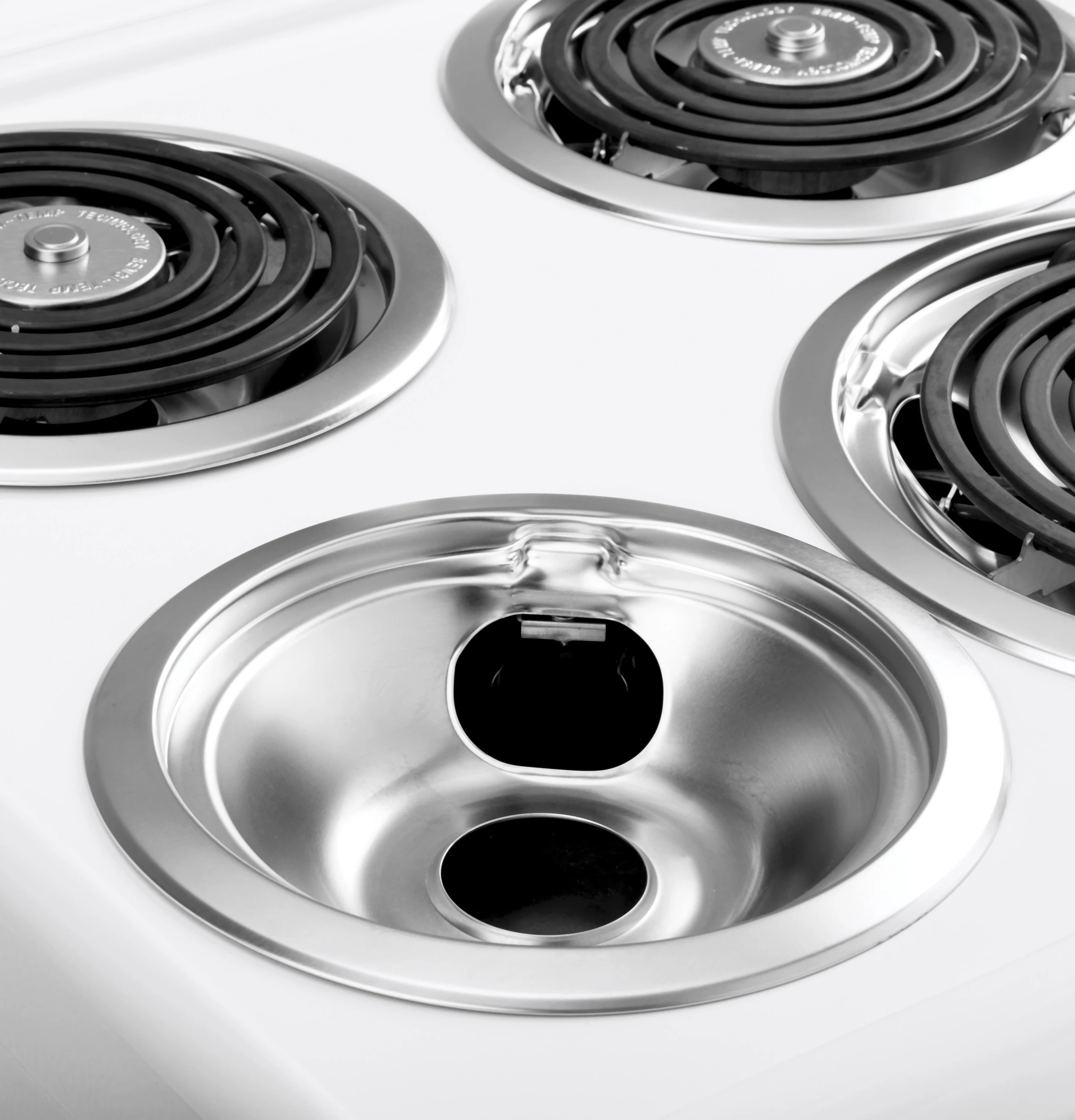

Chrome drop bowls

Contain spills and remove for easy cleaning

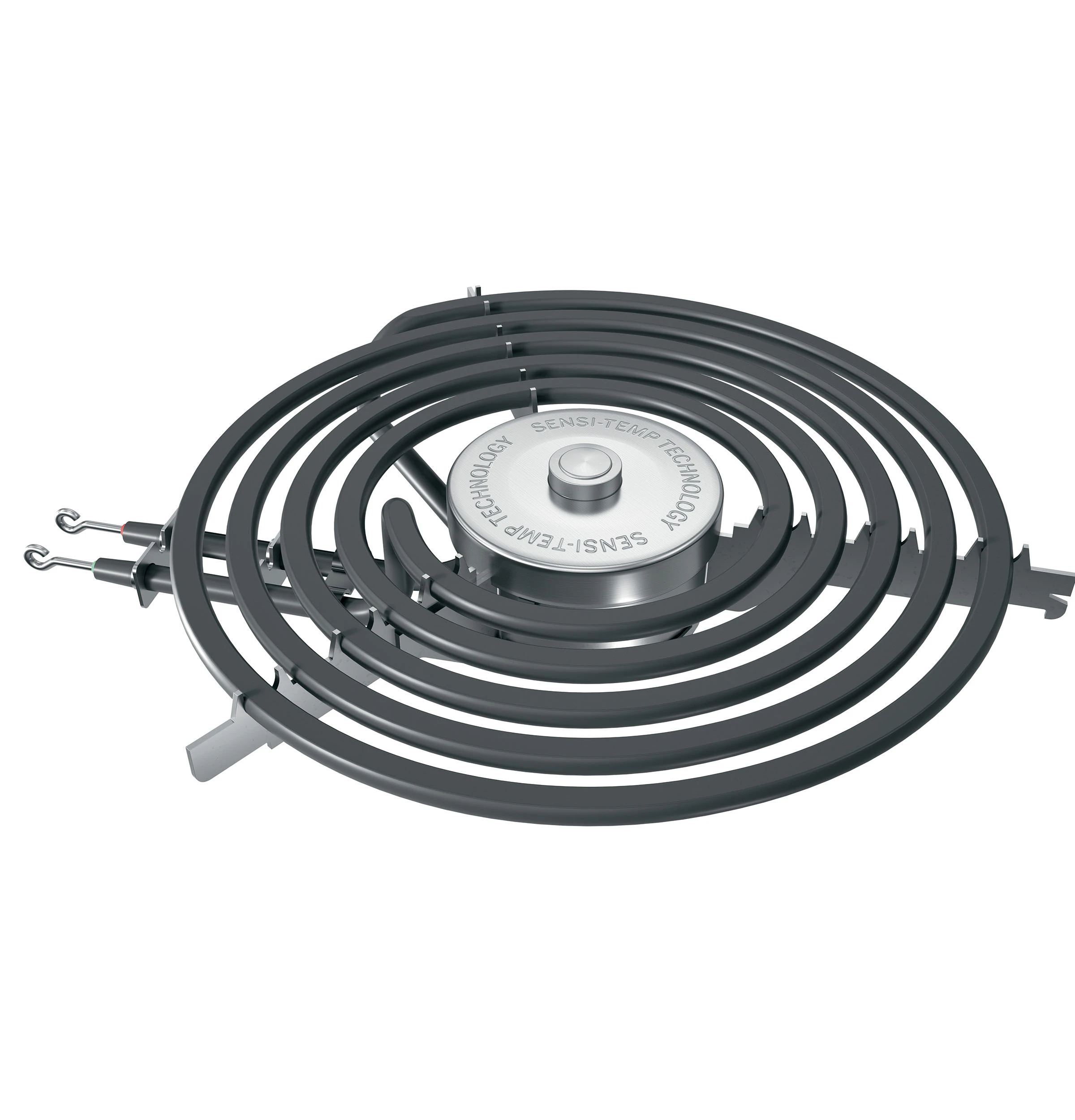

Sensi-temp technology

Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
