SKU: AH12E12D3B | UPC: 084691923848

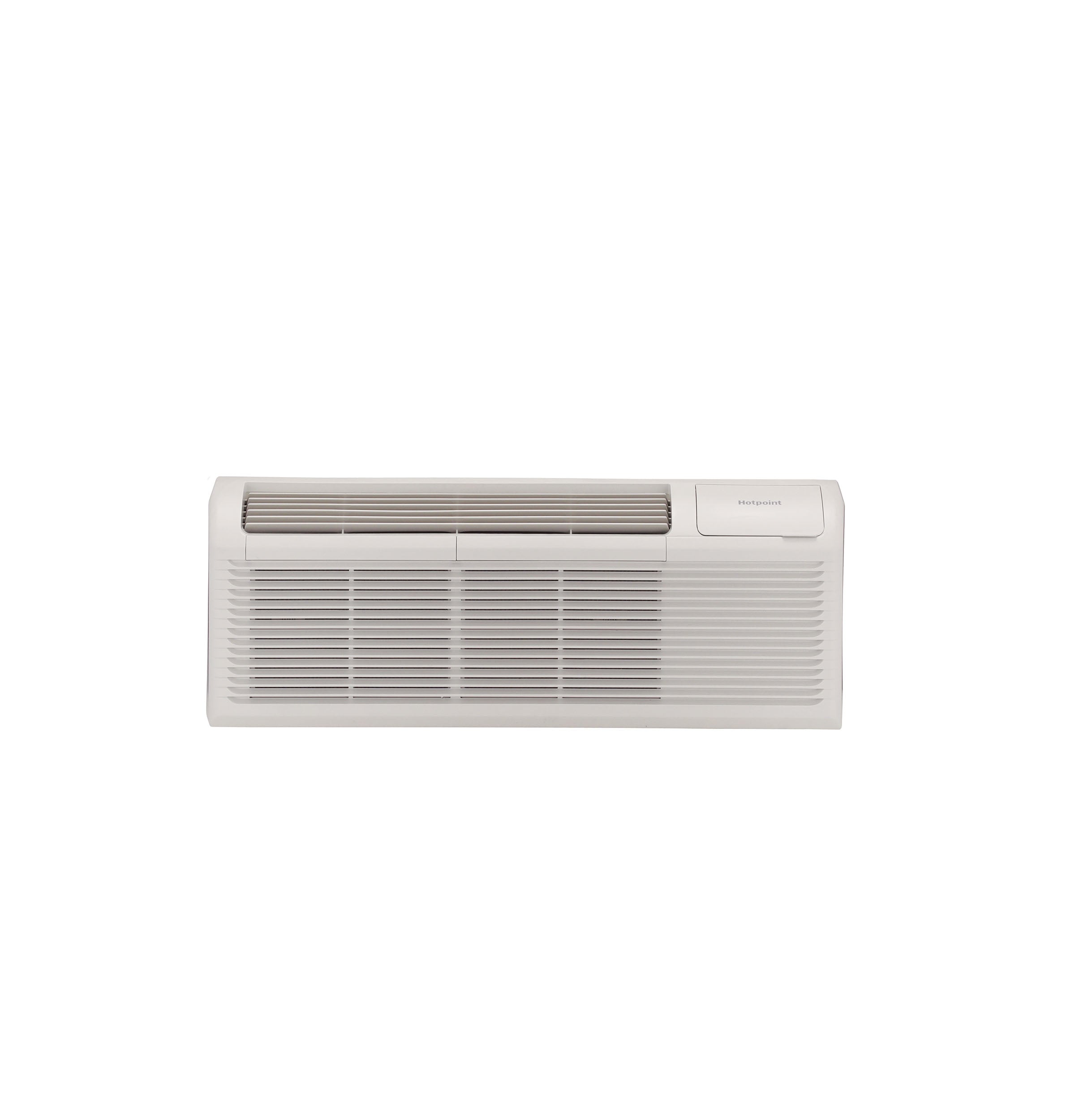

Hotpoint AH12E12D3B PTAC with Electric Heat 12,000 BTU, 230/208V, 20amp White

Quick Specification More details

Width:
42.4"
Depth:
20.9"
Height:
16"
Type:
PTAC Air Conditioners

Summer Sale

Clearance

SKU: AH12E12D3B | UPC: 084691923848

Hotpoint AH12E12D3B PTAC with Electric Heat 12,000 BTU, 230/208V, 20amp White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
42.4"
Depth:
20.9"
Height:
16"
Type:
PTAC Air Conditioners

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hotpoint AH12E12D3B

Technical Details

Capacity

Cooling BTUH (MAX)	12000 Btu
CFM Indoor Fan Low	310
CFM Indoor Fan Medium	348
CFM Indoor Fan High	383
Cooling EER (BTUH / Watt)	10.7
Cooling BTUH (MIN)	11800 Btu

Features

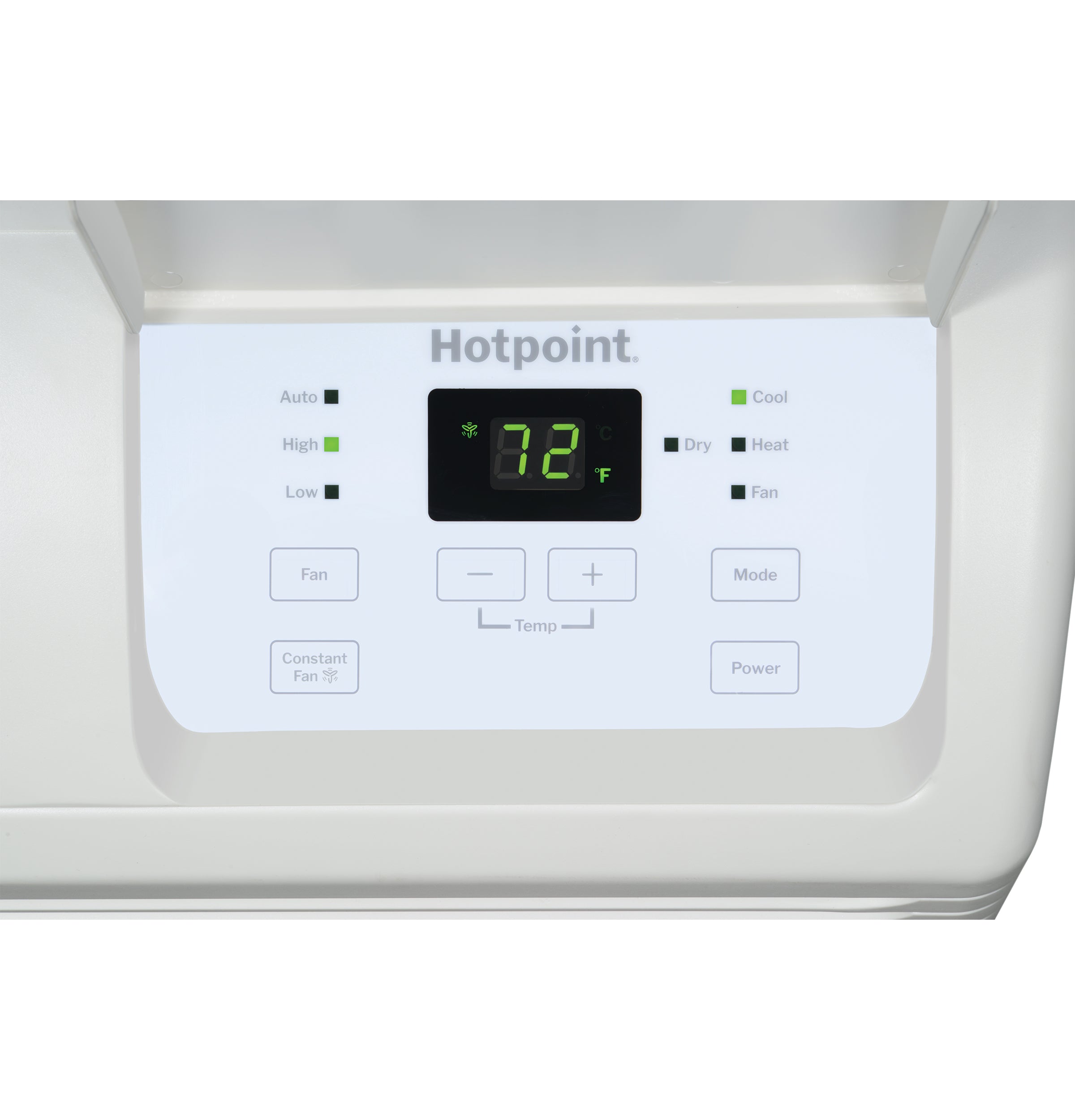

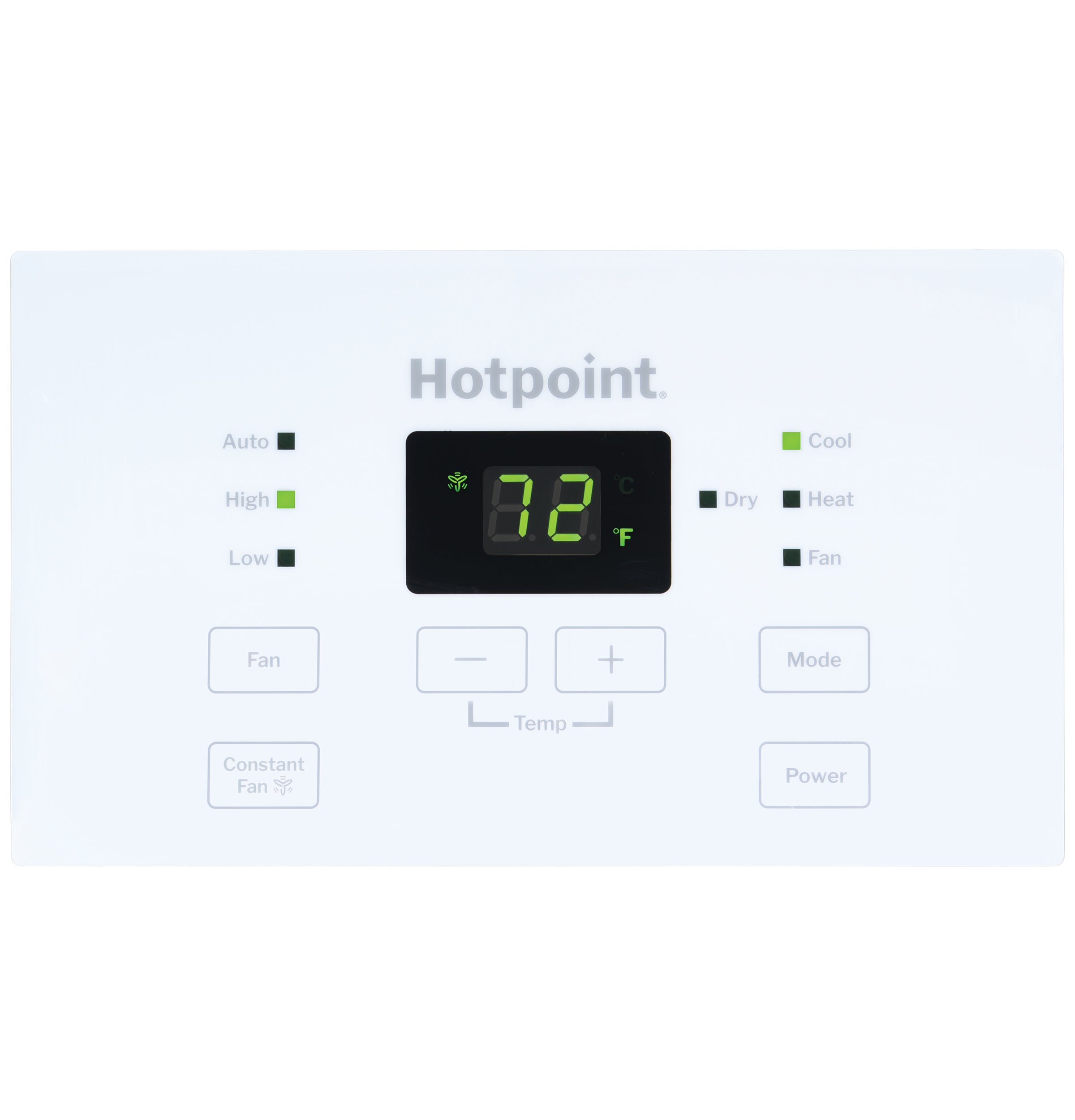

Control Type	Electronic
Discharge Grille	2-position
Fan Speed Selections	3 Heating
Refrigerant Type	R32
Product Type	Packaged Terminal Air Conditioners (PTAC)
Manual Vent Control	Hidden
"SmartFan" Fan Cycle	Yes
Chassis Type	Slide-In
Fan Motor	2
Unit Features	Remote Thermostat Compatibility
Temperature Range	62 - 80 F
Heat - Cool	Yes
Auto Power Recovery	Yes
Rotary Compressor	Yes
Outdoor Vent / Exhaust	Yes
Venting Features	Vent Air Filter
Heating System	Electric Resistance

Warranty

Warranty Notes	See written warranty for full details
Labor Warranty	Limited 5-year sealed refrigerating system
Parts Warranty	Limited 5-year sealed refrigerating system

Power / ratings

Cooling - Amperes	4.9/5.3
Cooling - Watts	1120/1100
Voltage (MIN)	208 V
Heating - Electric - Heater Watts	3535/2900
Voltage (MAX)	230 V
Heating - Electric - Heater Amps	15.3/13.7

Appearance

Installation	Through-the-Wall
Color Appearance	White

Dimensions & weight

Width	42.4 in.
Height	16 in.
Length	20.9 in.
Weight	108.7 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	47.4 in.
Shipping Height	21 in.
Shipping Length	25.9 in.
Shipping Weight	148.7 lbs.
Total of Shipping Weight	148.7 lbs.
Source	Calculation
