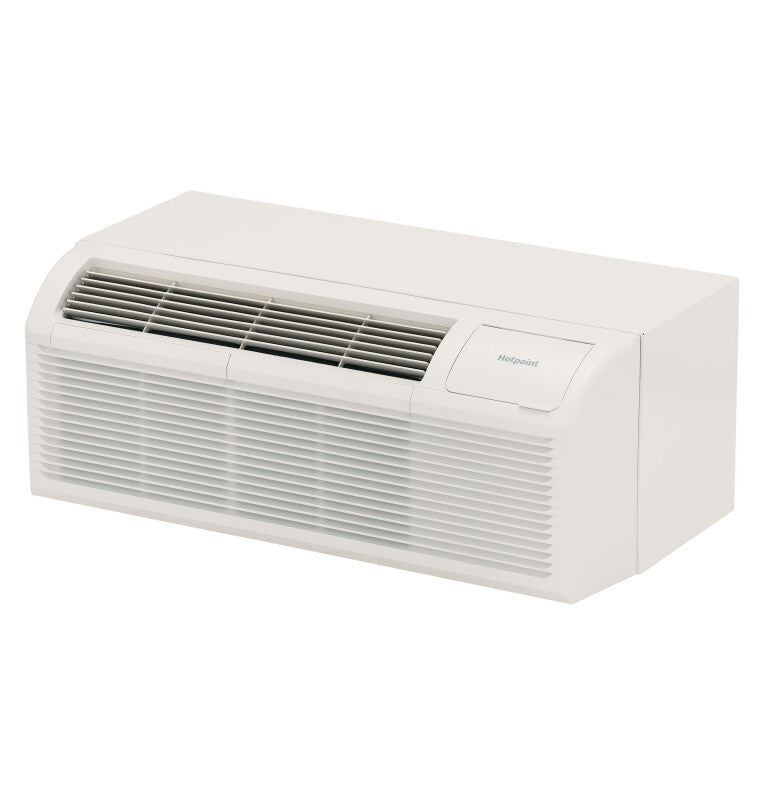

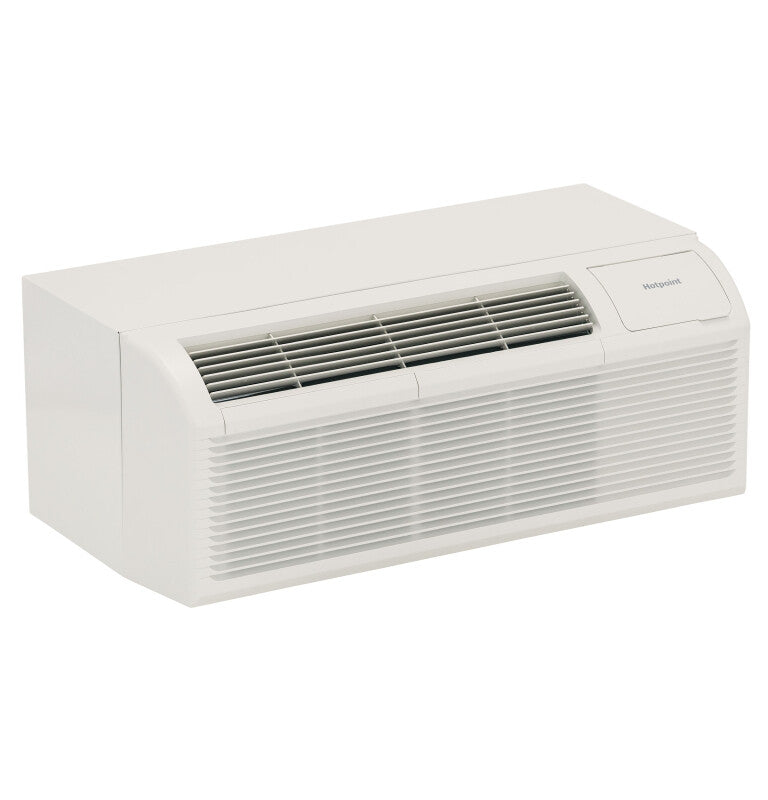

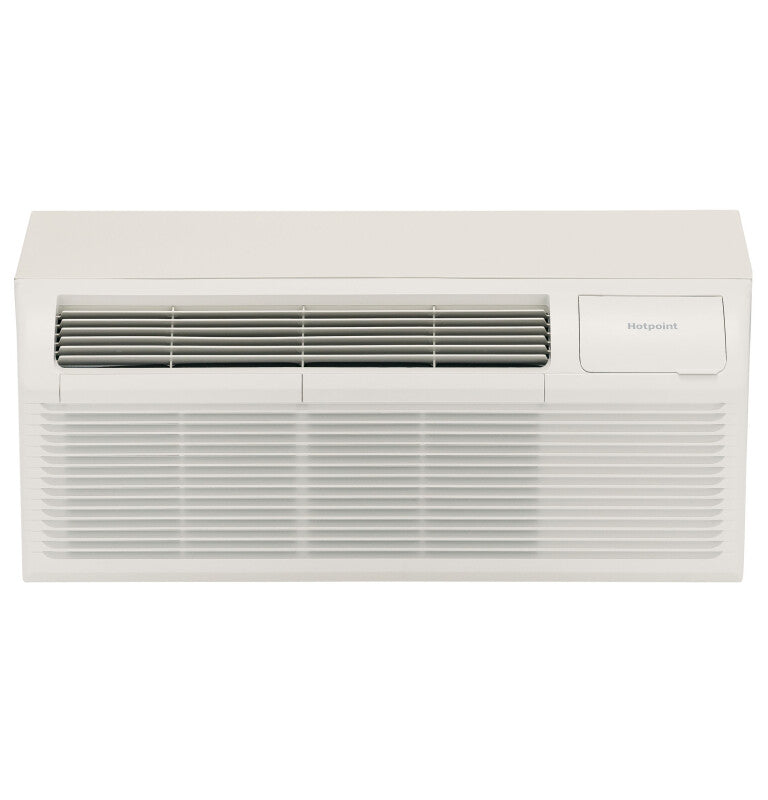

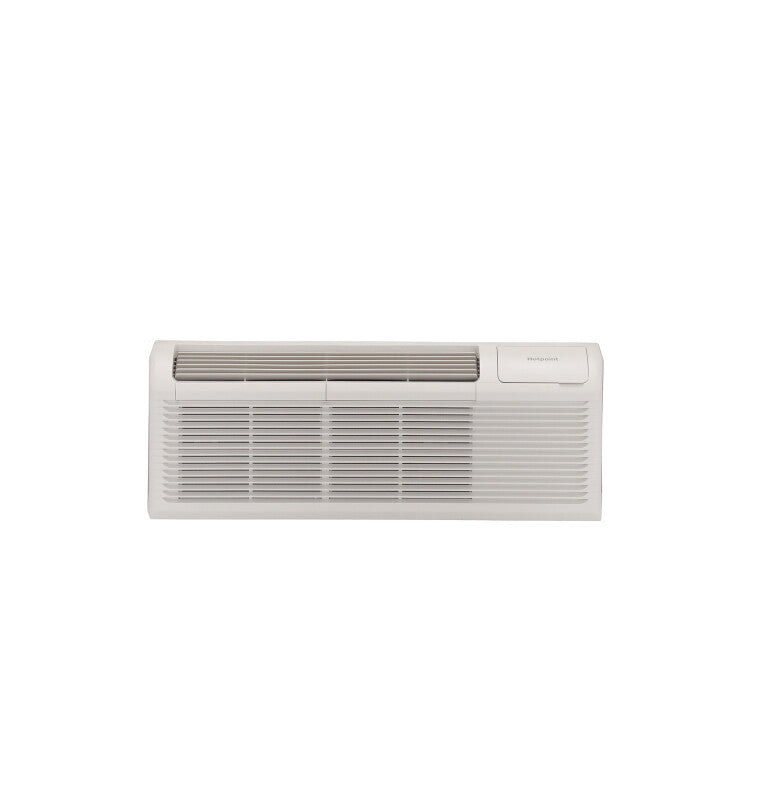

Product Details for Hotpoint AH11H15D3B
Technical Details
Capacity
| Cooling BTUH (MAX) | 14700 Btu |
| CFM Indoor Fan Low | 311 |
| CFM Indoor Fan Medium | 344 |
| CFM Indoor Fan High | 373 |
| Cooling EER (BTUH / Watt) | 9.7 |
| Heating - Reverse Cycle - BTUH | 13500/13200 |
| Cooling BTUH (MIN) | 14500 Btu |
Features
| Control Type | Electronic |
| Discharge Grille | 2-position |
| Fan Speed Selections | 3 Heating |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |

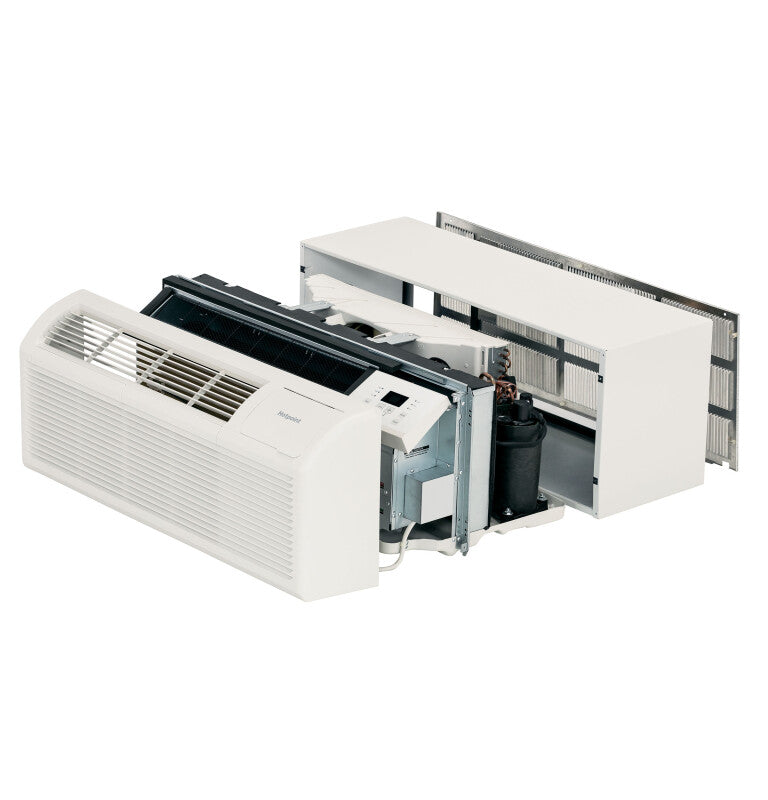

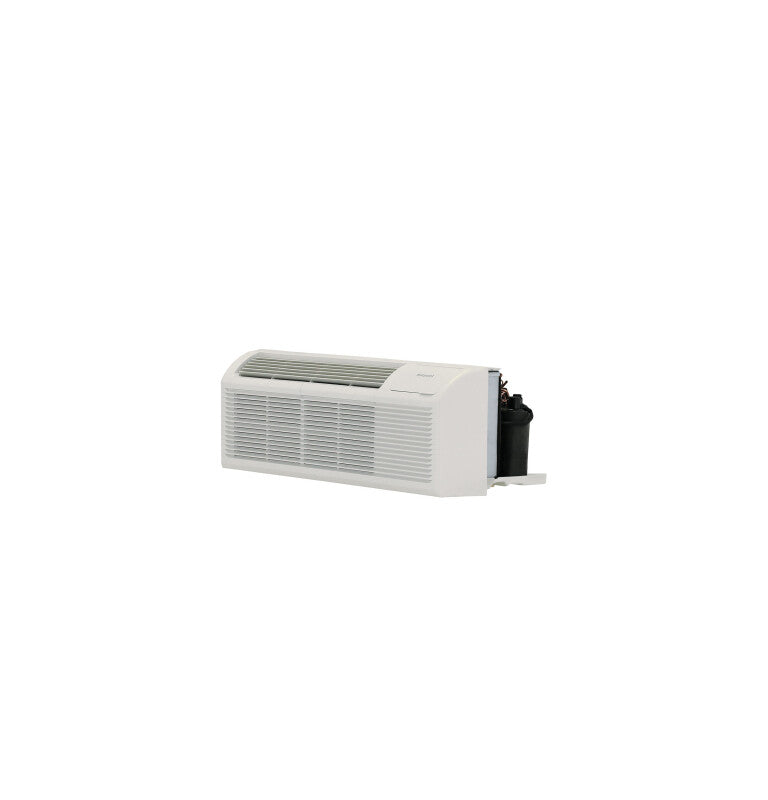

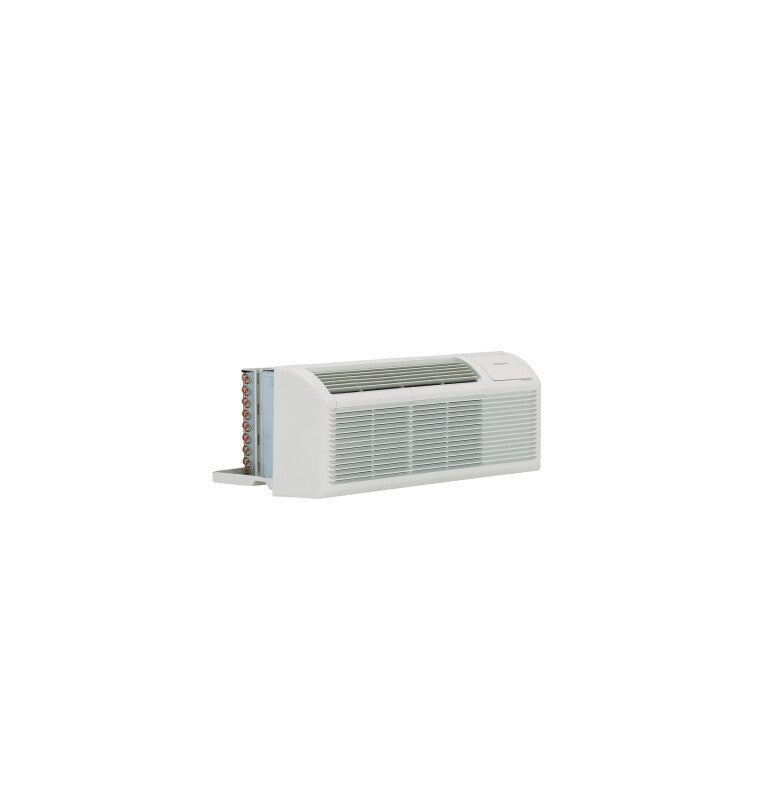

| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Heat Pump | Yes |
| Unit Features | Remote Thermostat Compatibility |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Outdoor Vent / Exhaust | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.0 |

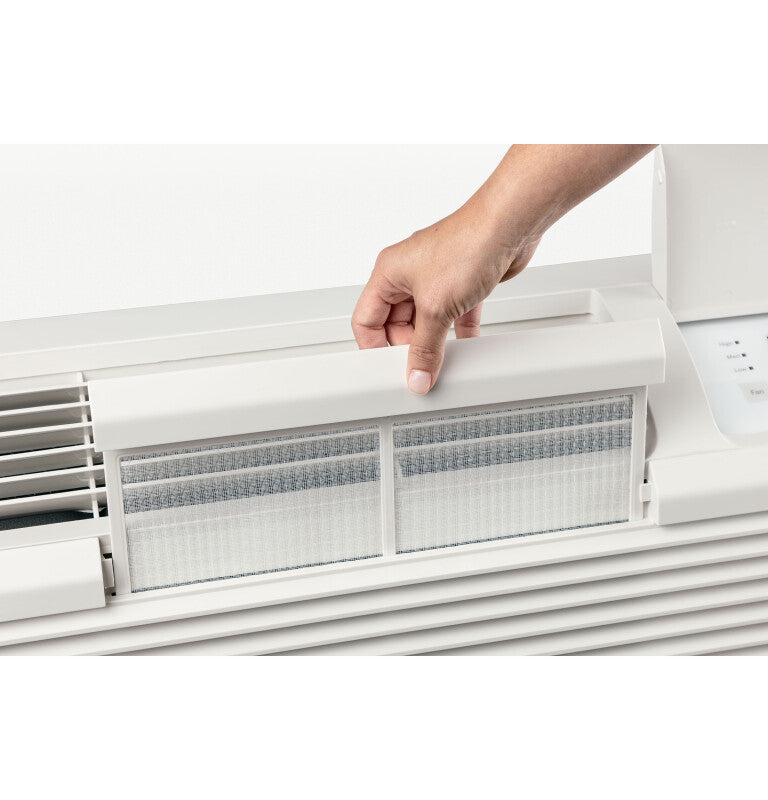

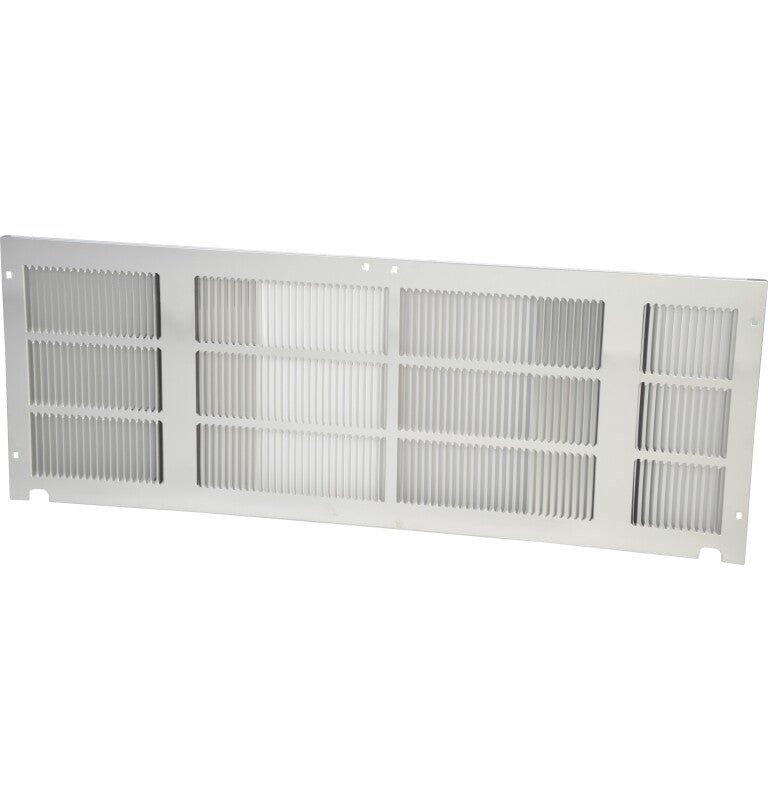

| Venting Features | Concealed Manual Vent Control • Vent Air Filter |
| Heating System | Heat Pump with Resistance Backup |
Warranty
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
Power / ratings
| Heating - Reverse Cycle - Watts | 1315/1285 |
| Cooling - Amperes; F.L. - Cooling | 6.7/7.3 |
| Cooling - Amperes | 6.03/6.58 |
| Cooling - Watts | 1515/1490 |
| Heating - Reverse Cycle - Amps | 5.38/5.82 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3535/2935 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.3/13.7 |
Appearance

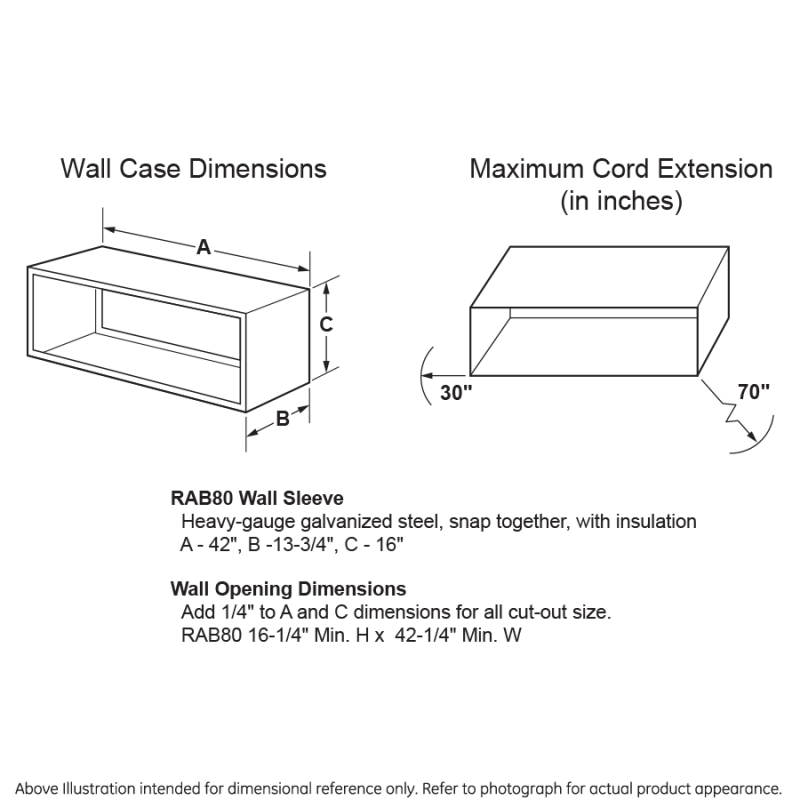

| Installation | Through-the-Wall |
| Color Appearance | White |
Dimensions & weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 21 in. |
| Weight | 116.4 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 156.4 lbs. |
| Total of Shipping Weight | 156.4 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 8.17 ft³ |
| Dimensional Weight | 101.53 lbs. |
| Total of Cubes | 8.17 ft³ |
| Total of Dimensional Weight | 101.53 lbs. |
Description
Product Features
-
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort -
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls -
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition -
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system -
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode -
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand -
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network -
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation - Remote thermostat compatibility
- Works with central desk control systems
- Energy-efficient heat pump models available
- Heatpump models include staged heating
- Tangential fan for air flow and smooth sound
Manuals & Guides
Key Features
3-speed fan
Give guests control over their comfort with three fan speeds to choose from

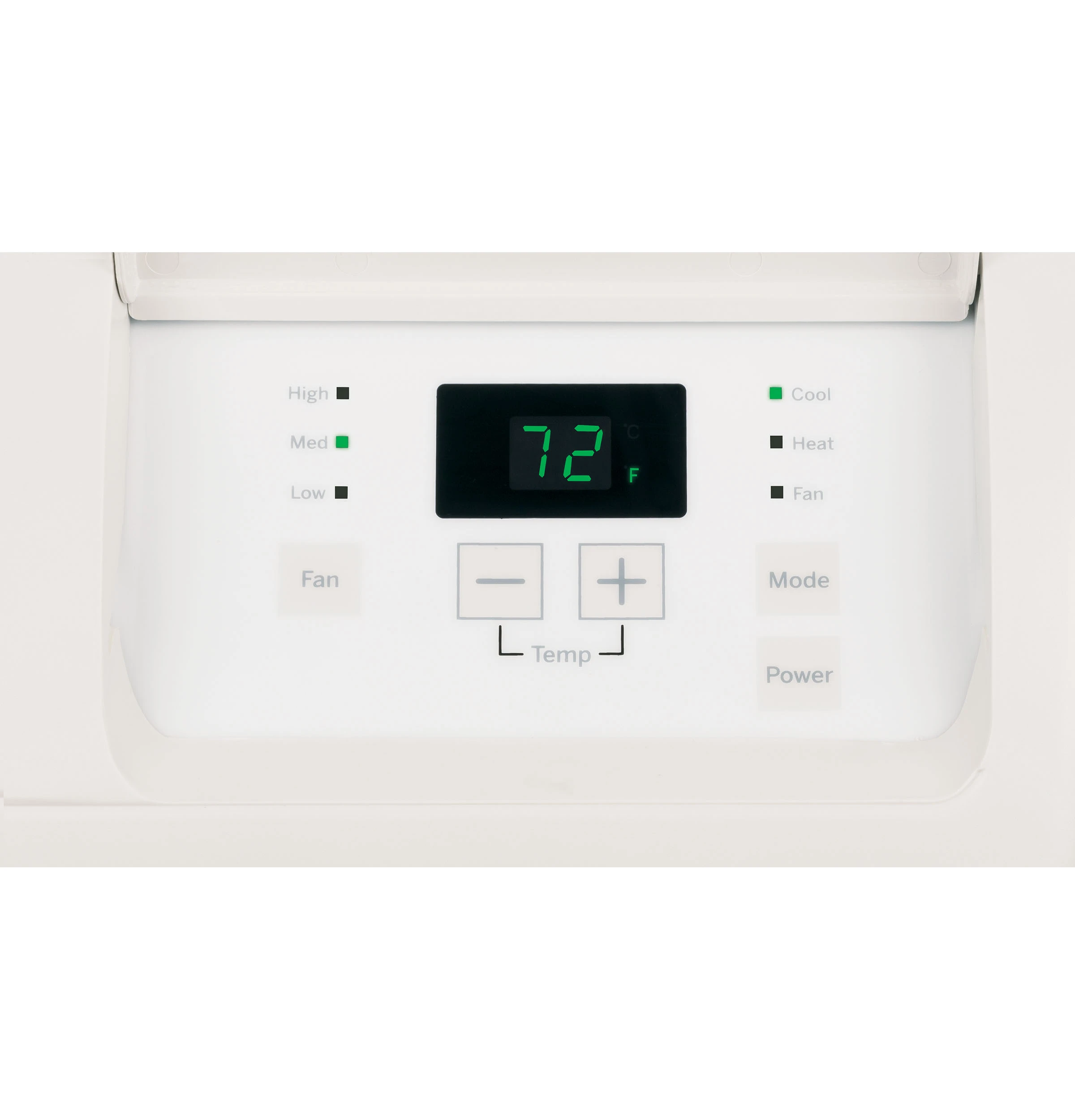

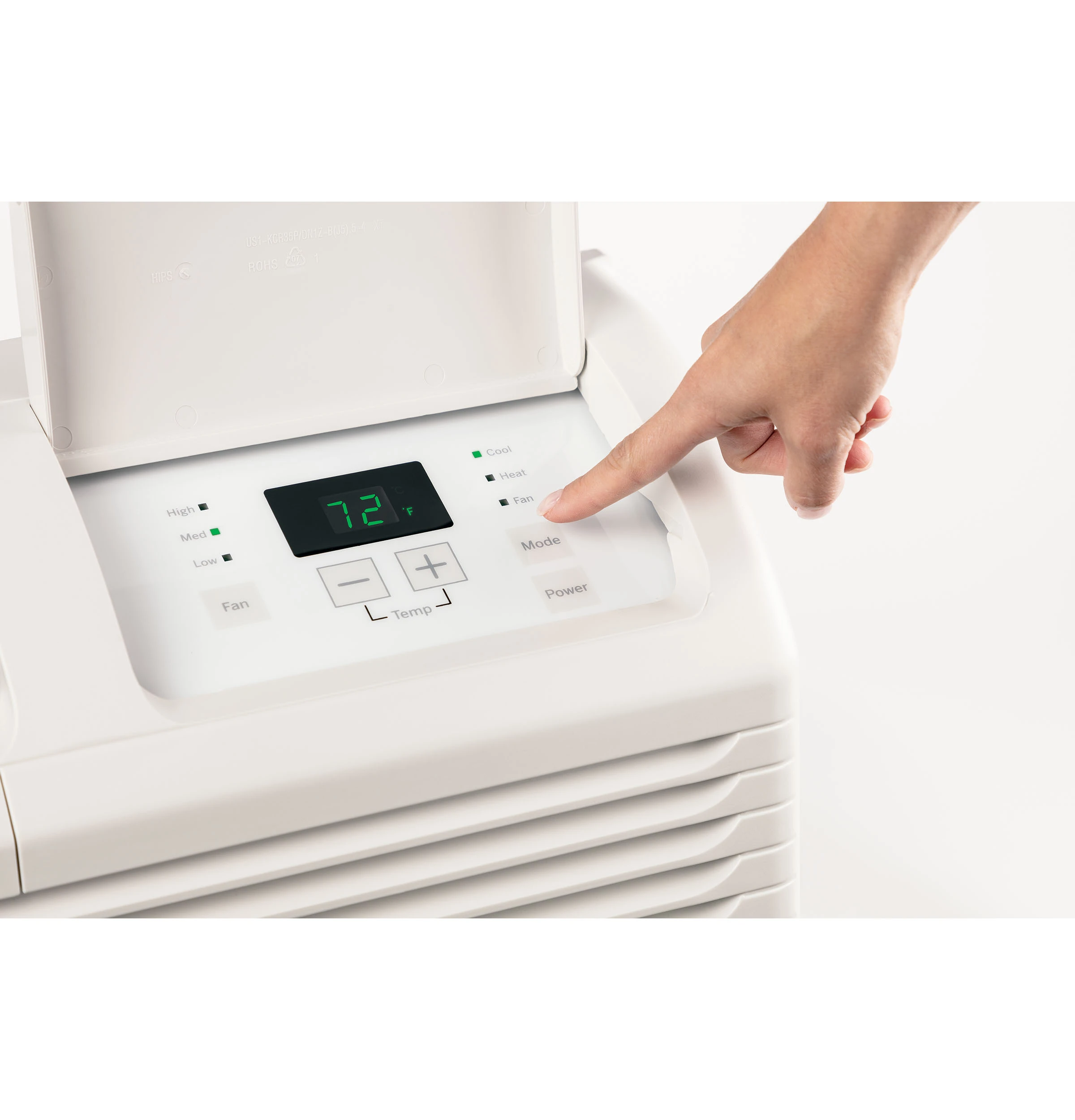

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
