Product Details for Hotpoint AH11E12D3B

Technical Details

Capacity

Cooling BTUH (MAX) 12000 Btu
CFM Indoor Fan Low 310
CFM Indoor Fan Medium 349
CFM Indoor Fan High 383
Cooling EER (BTUH / Watt) 10.7
Cooling BTUH (MIN) 11800 Btu

Features

Control Type Electronic

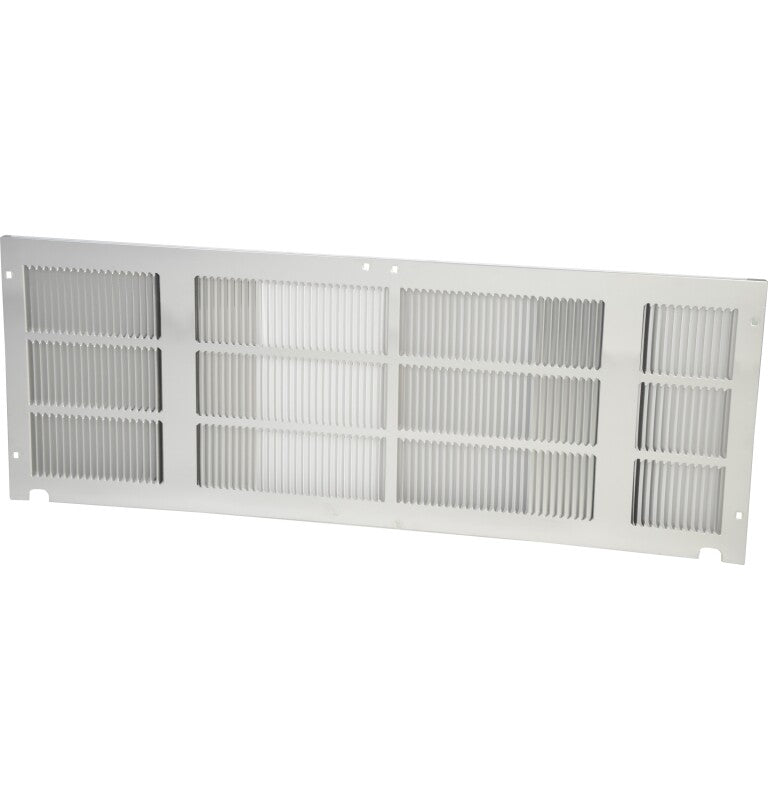

Discharge Grille 2-position
Fan Speed Selections 3 Heating
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Manual Vent Control Hidden
"SmartFan" Fan Cycle Yes

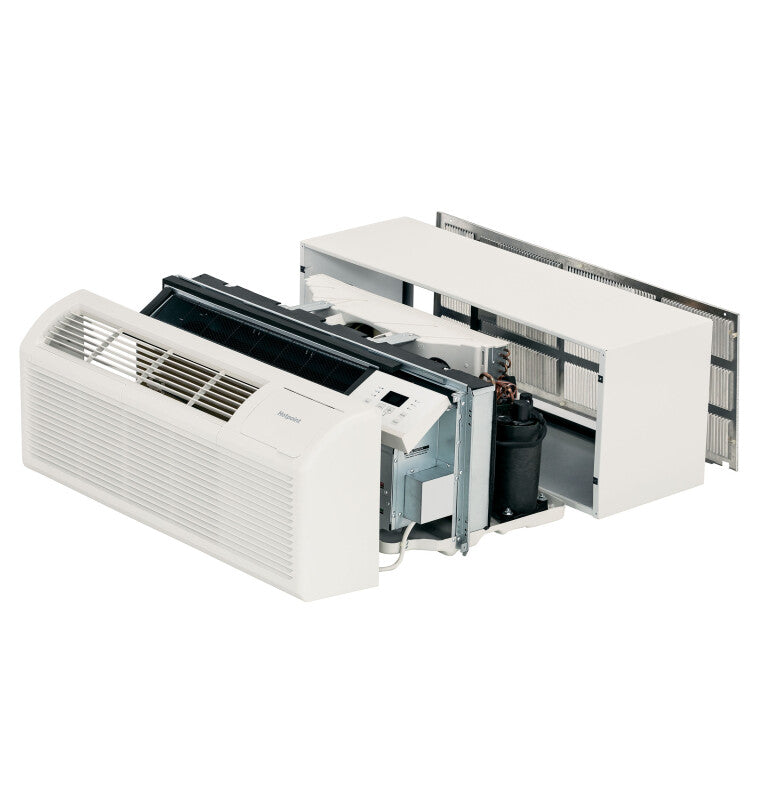

Chassis Type Slide-In
Fan Motor 2
Unit Features Remote Thermostat Compatibility
Temperature Range 62 - 86 F
Heat - Cool Yes
Auto Power Recovery Yes
Rotary Compressor Yes
Outdoor Vent / Exhaust Yes
Venting Features Concealed Manual Vent Control • Vent Air Filter
Heating System Electric Resistance

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 5-year sealed refrigerating system
Parts Warranty Limited 5-year sealed refrigerating system

Power / ratings

Cooling - Amperes; F.L. - Cooling 4.9/5.3
Cooling - Amperes 4.9/5.3
Cooling - Watts 1120/1100
Voltage (MIN) 208 V
Heating - Electric - Heater Watts 3535/2935
Voltage (MAX) 230 V
Heating - Electric - Heater Amps 15.3/13.7

Appearance

Installation Through-the-Wall
Color Appearance White

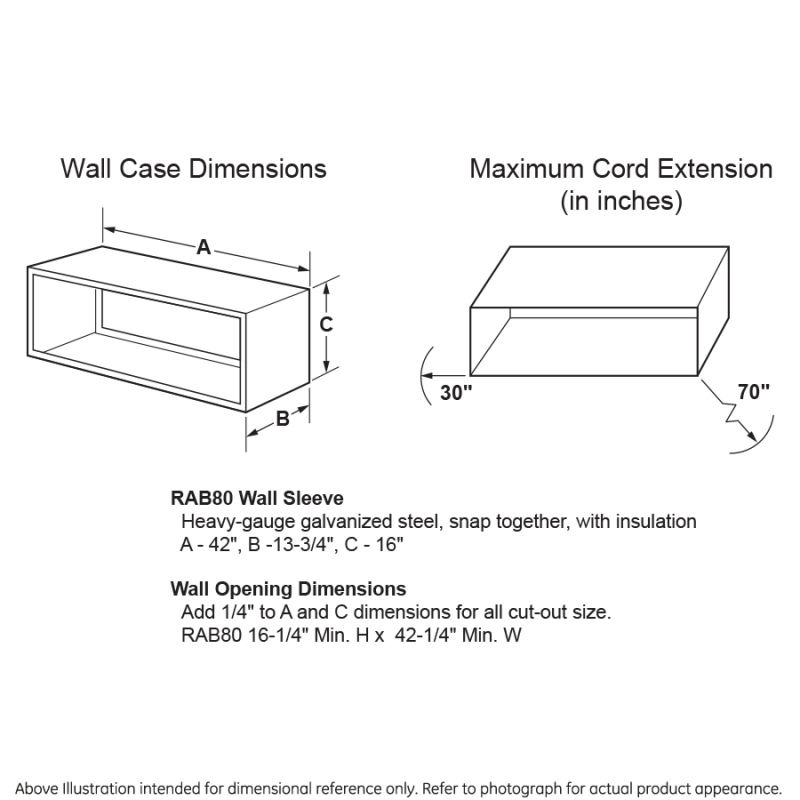

Dimensions & weight

Width 42 in.
Height 16 in.
Length 21 in.
Weight 111.8 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 21 in.
Shipping Length 26 in.
Shipping Weight 151.8 lbs.
Total of Shipping Weight 151.8 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.17 ft³
Dimensional Weight 101.53 lbs.
Total of Cubes 8.17 ft³
Total of Dimensional Weight 101.53 lbs.

Description

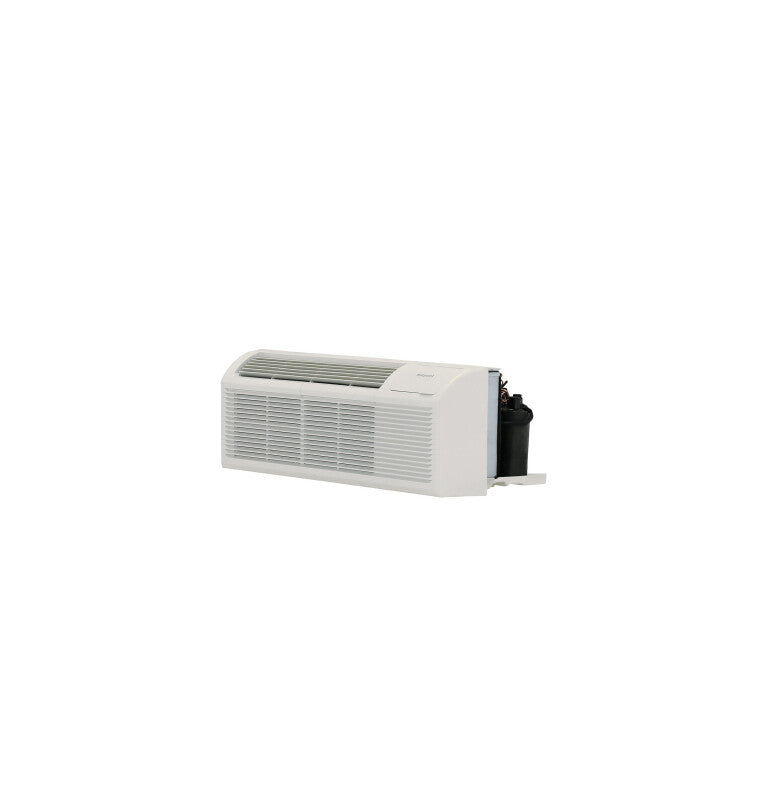

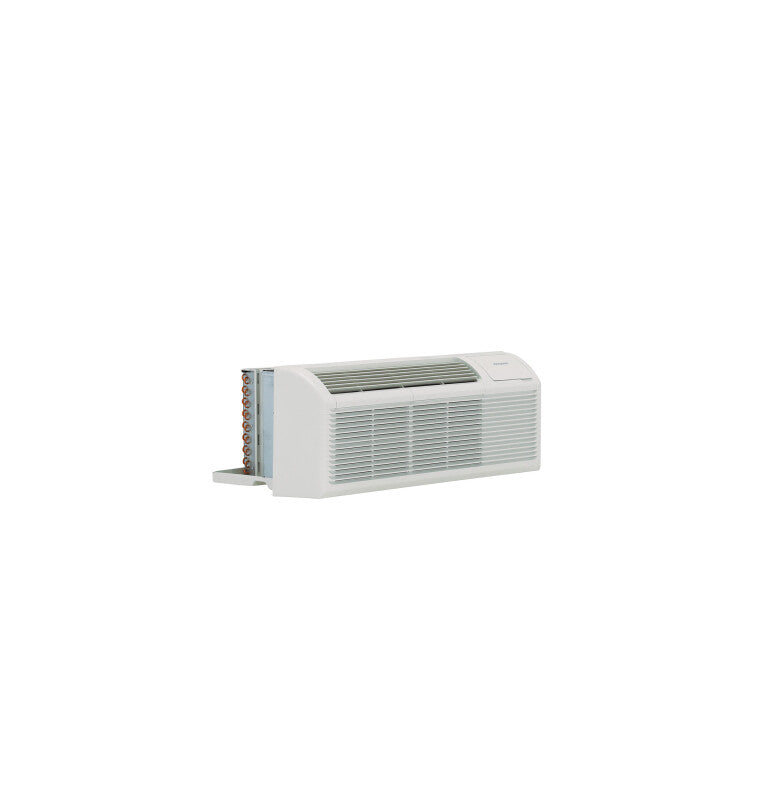

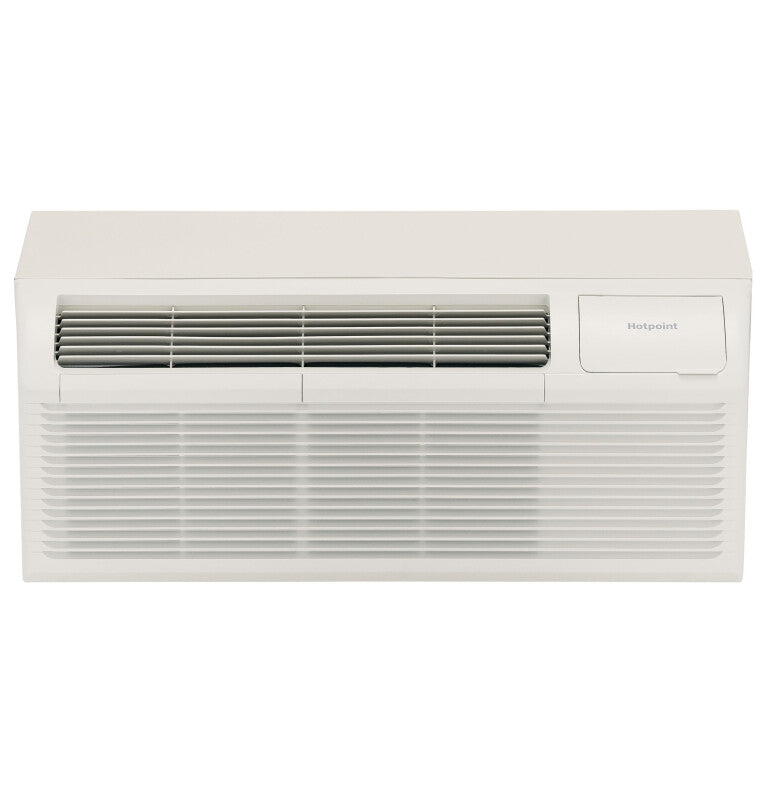

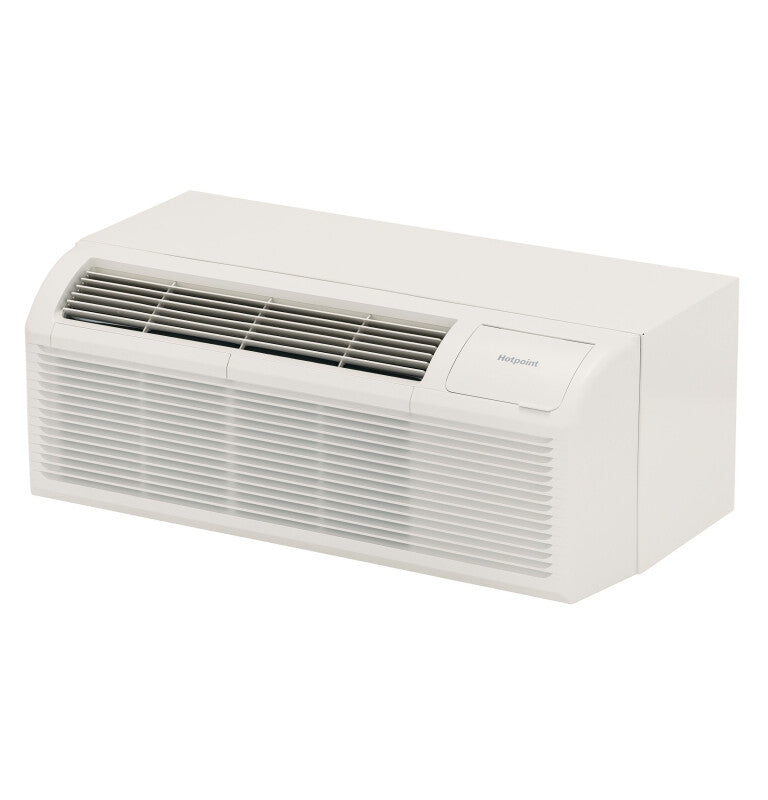

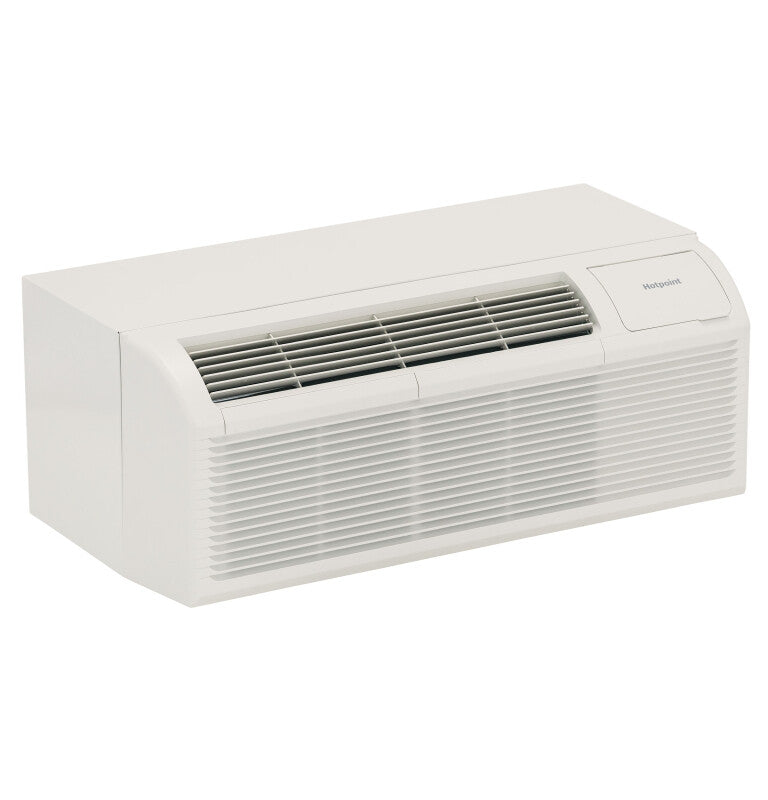

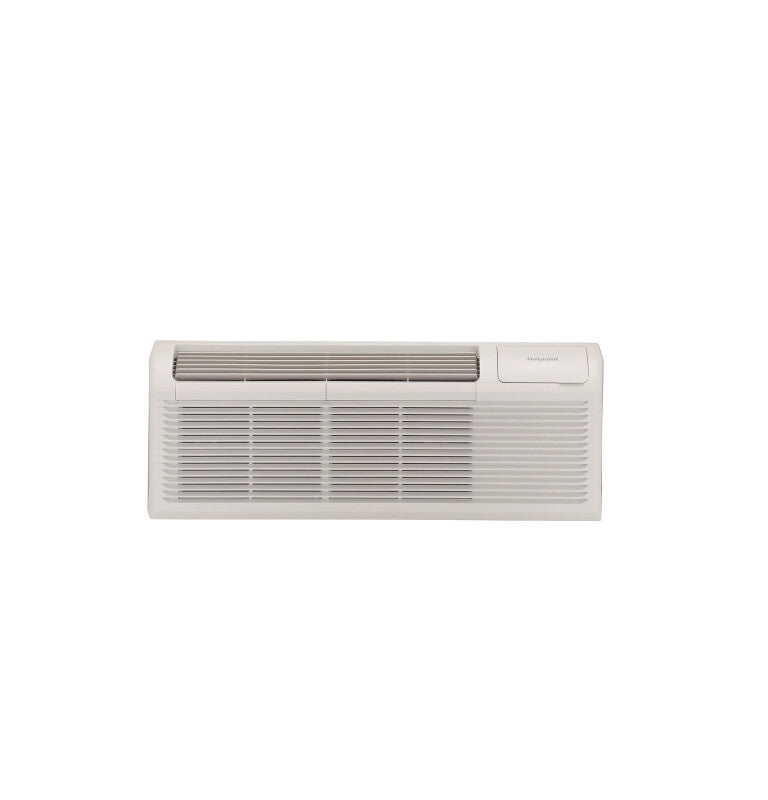

Hotpoint Wall Mount PTAC with Tangential 3-speed Fan and Frost Protection in White


Product Features

  • Freeze and frost protection
    Automatic freeze and indoor frost control keep units operating in peak condition
  • Auto power recovery
    In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
  • 4-temperature limiting options
    Easily select one of four temperature ranges for peak efficiency and total customer comfort
  • Self diagnostics
    Quickly and easily identify service needs with a nine-point diagnostic code system
  • Automatic emergency heat
    Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
  • Backed by an industry leader
    With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
    Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
  • Power cord (LCDI) included
    Hotpoint PTACs come with everything needed for a quick and easy installation
  • Remote thermostat compatibility
  • Works with central desk control systems
  • Tangential fan for air flow and smooth sound

Key Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

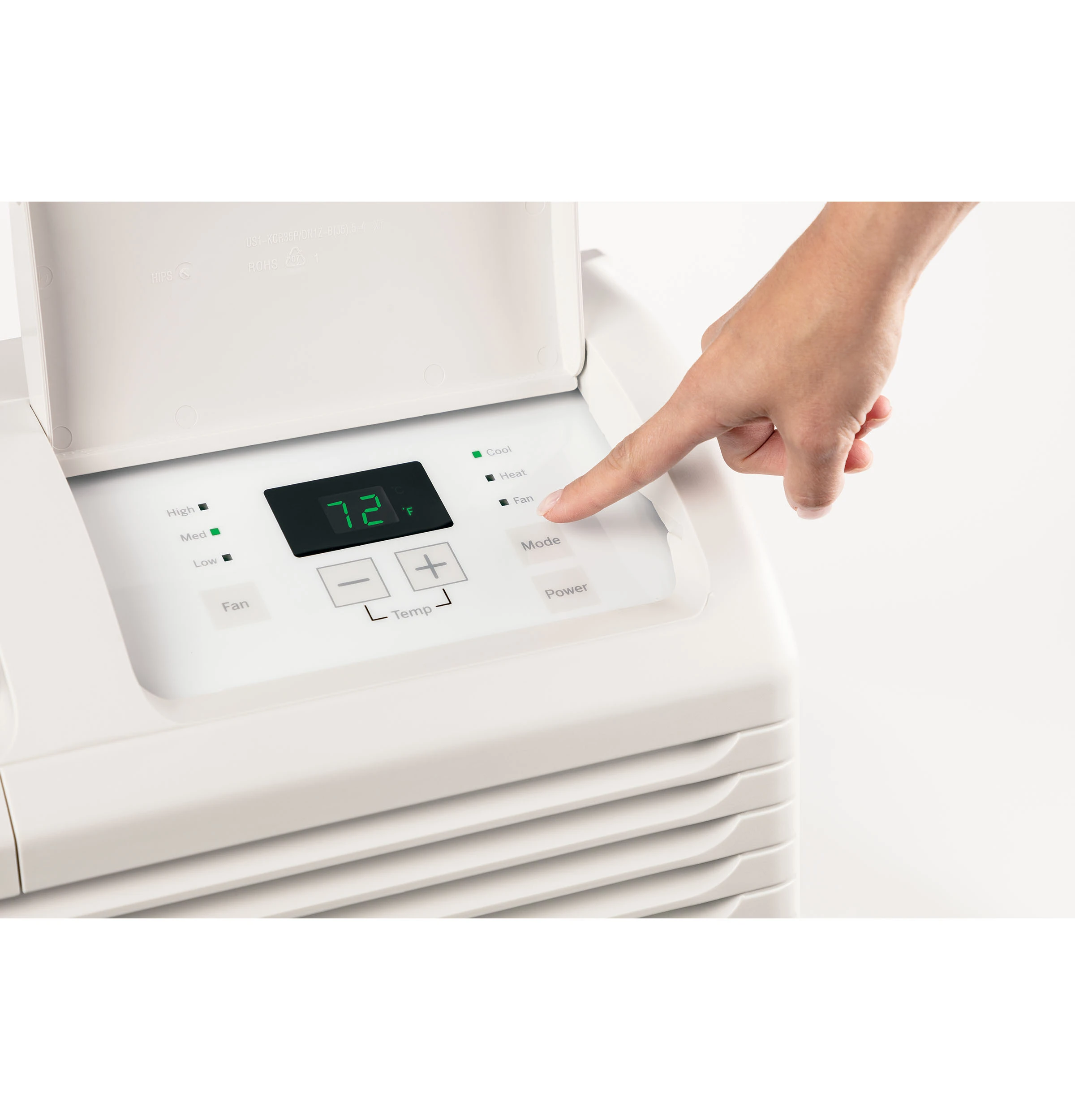

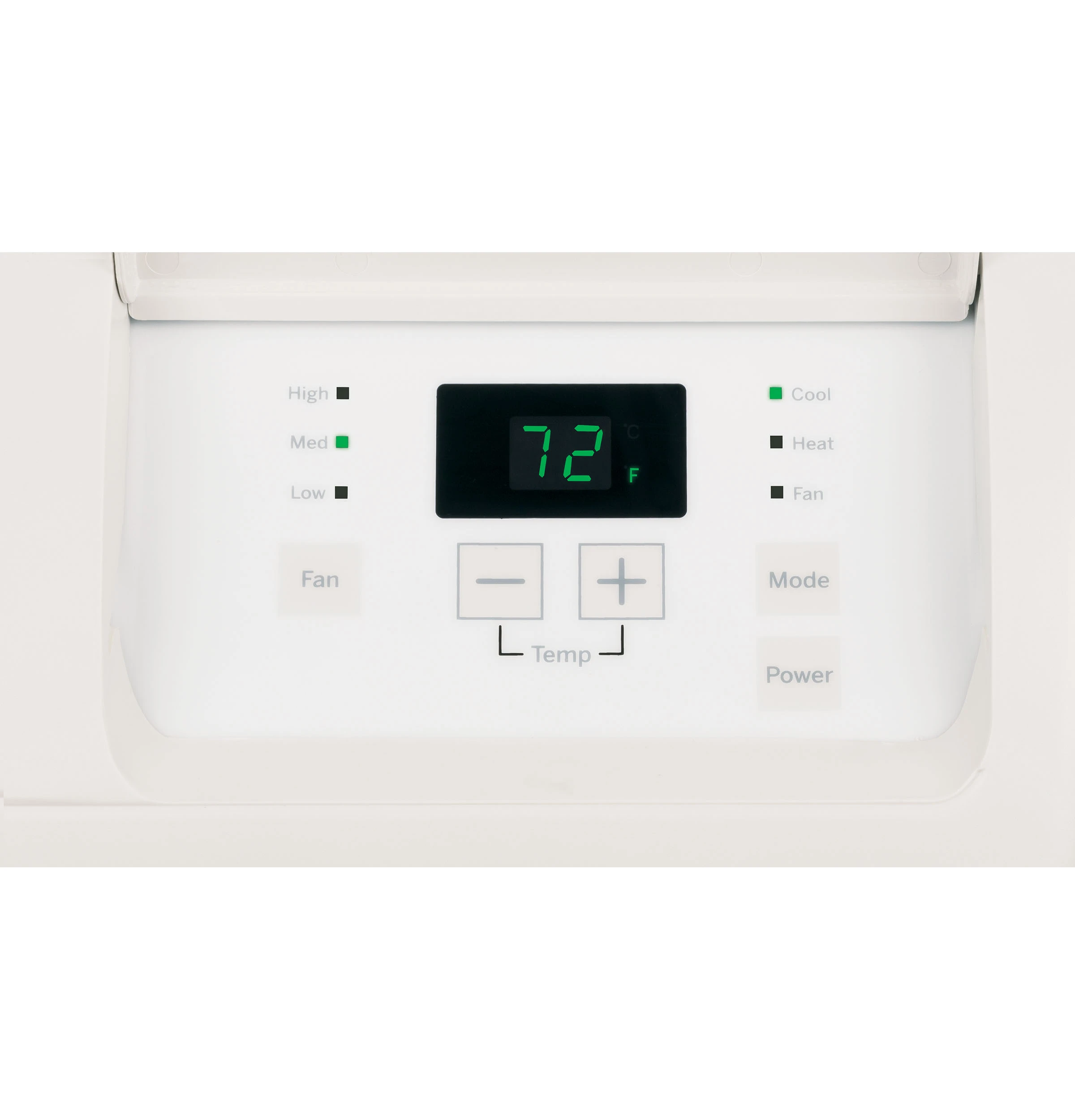

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

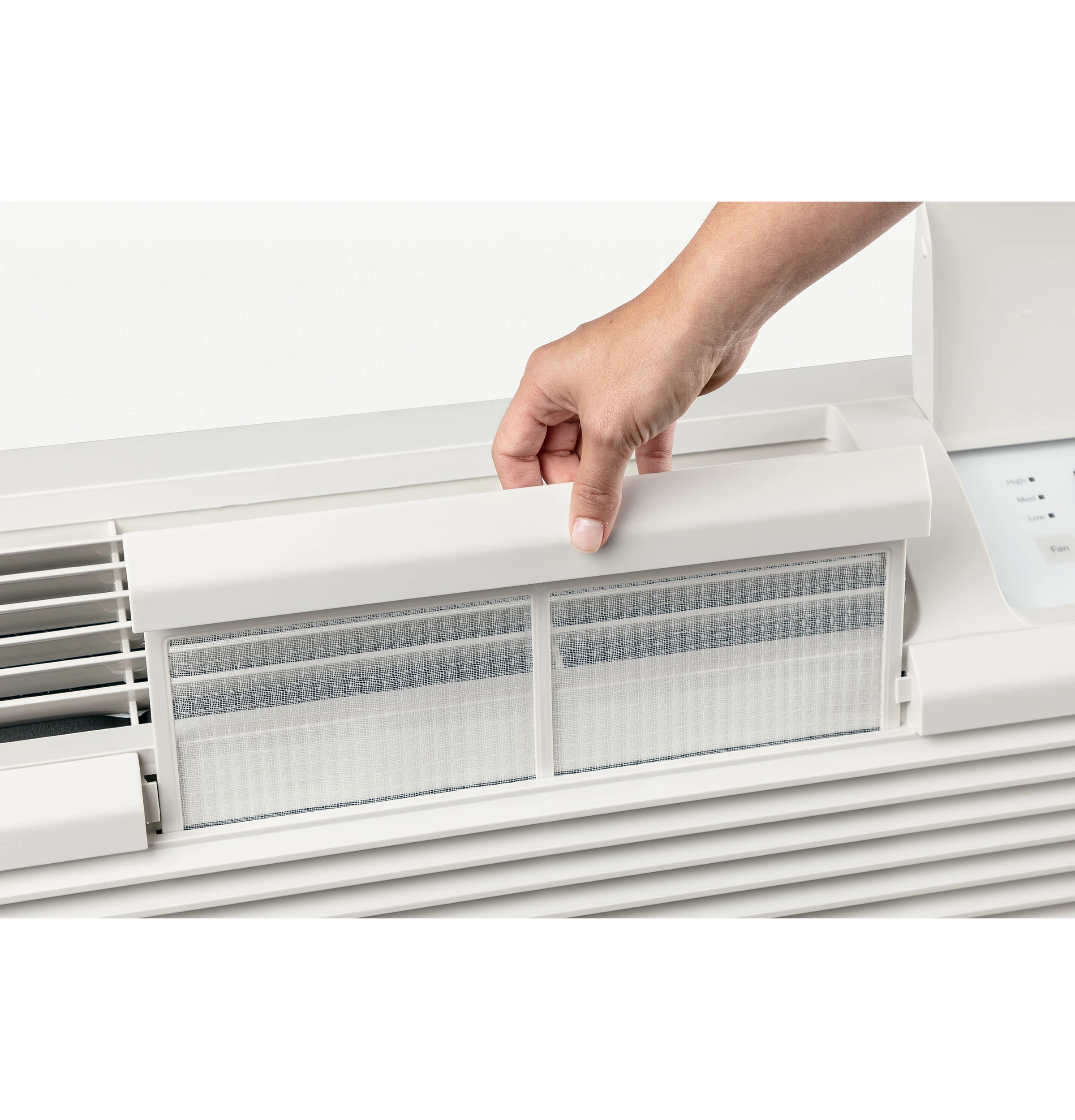

Removable filters for easy maintenance
