| Cooling BTUH (MAX) | 9200 Btu |
| CFM Indoor Fan Low | 340 |
| CFM Indoor Fan Medium | 391 |
| CFM Indoor Fan High | 434 |
| Cooling EER (BTUH / Watt) | 11.3 |
| Cooling BTUH (MIN) | 9000 Btu |
| Control Type | Electronic |
| Fan Speed Selections | 3 Heating |
| Discharge Grille | 2-position |

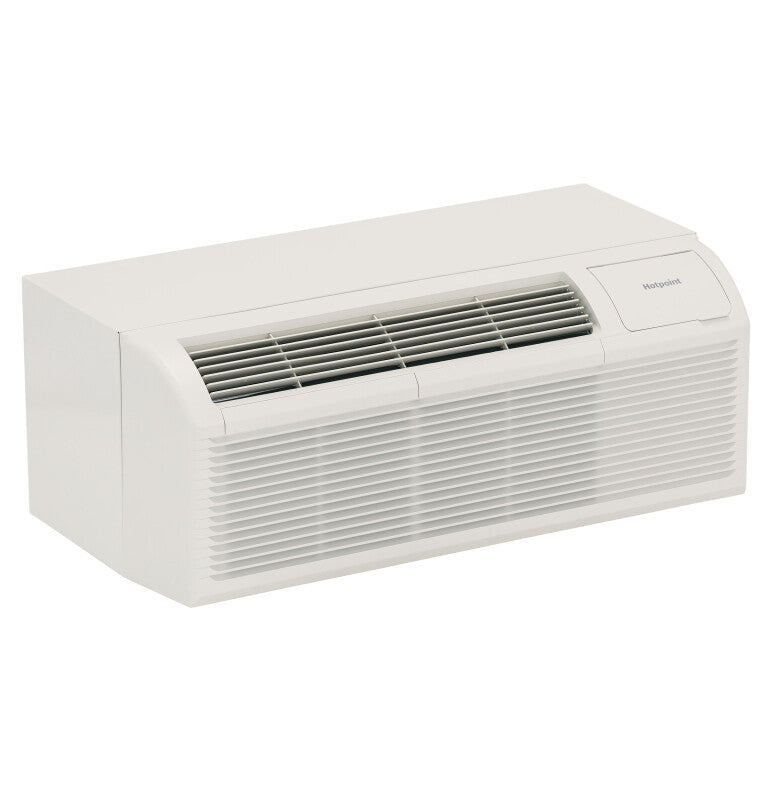

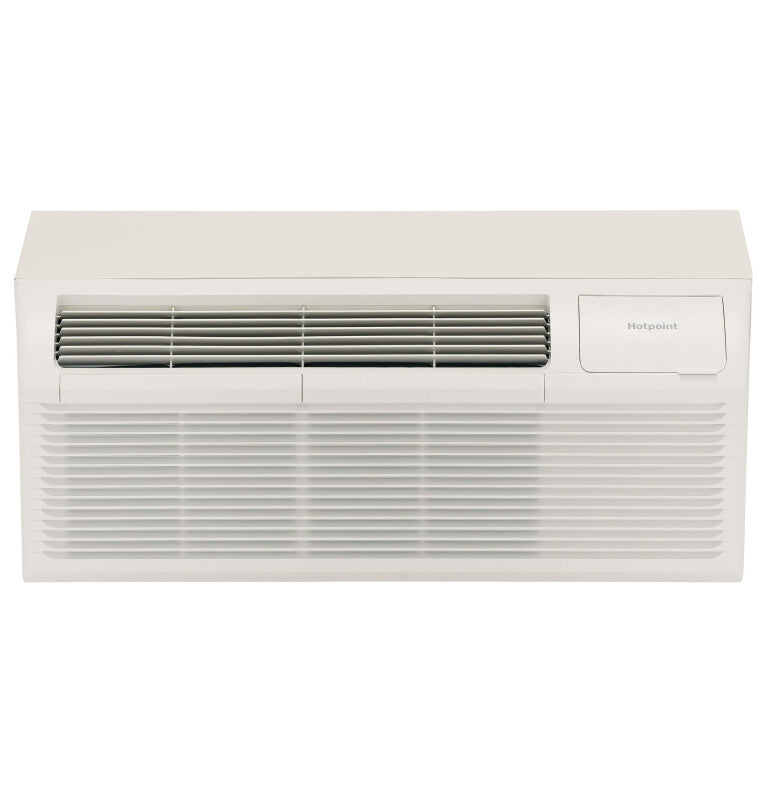

| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| "SmartFan" Fan Cycle | Yes |
| Manual Vent Control | Hidden |

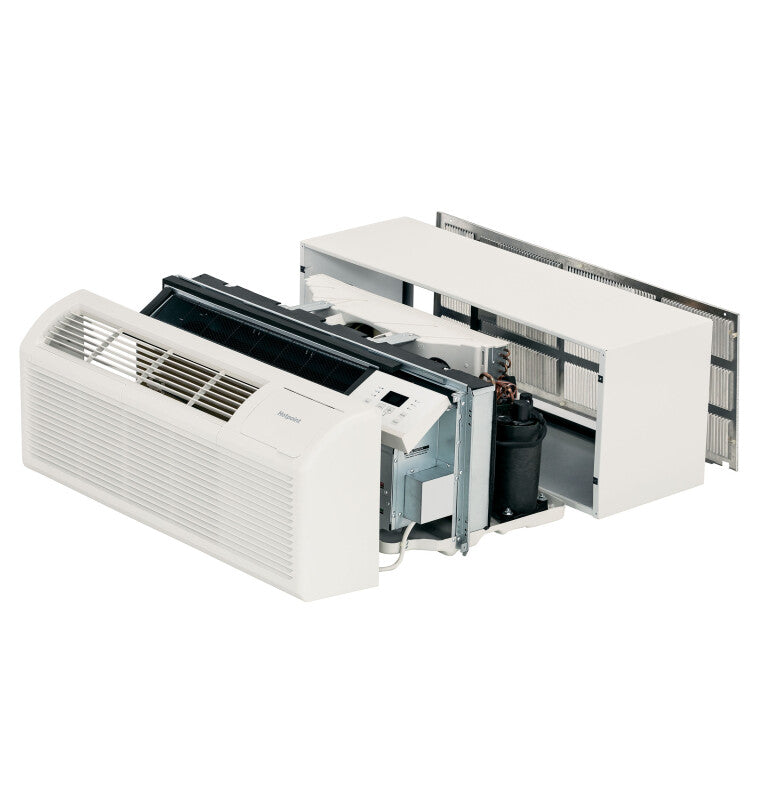

| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Unit Features | Remote Thermostat Compatibility |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |

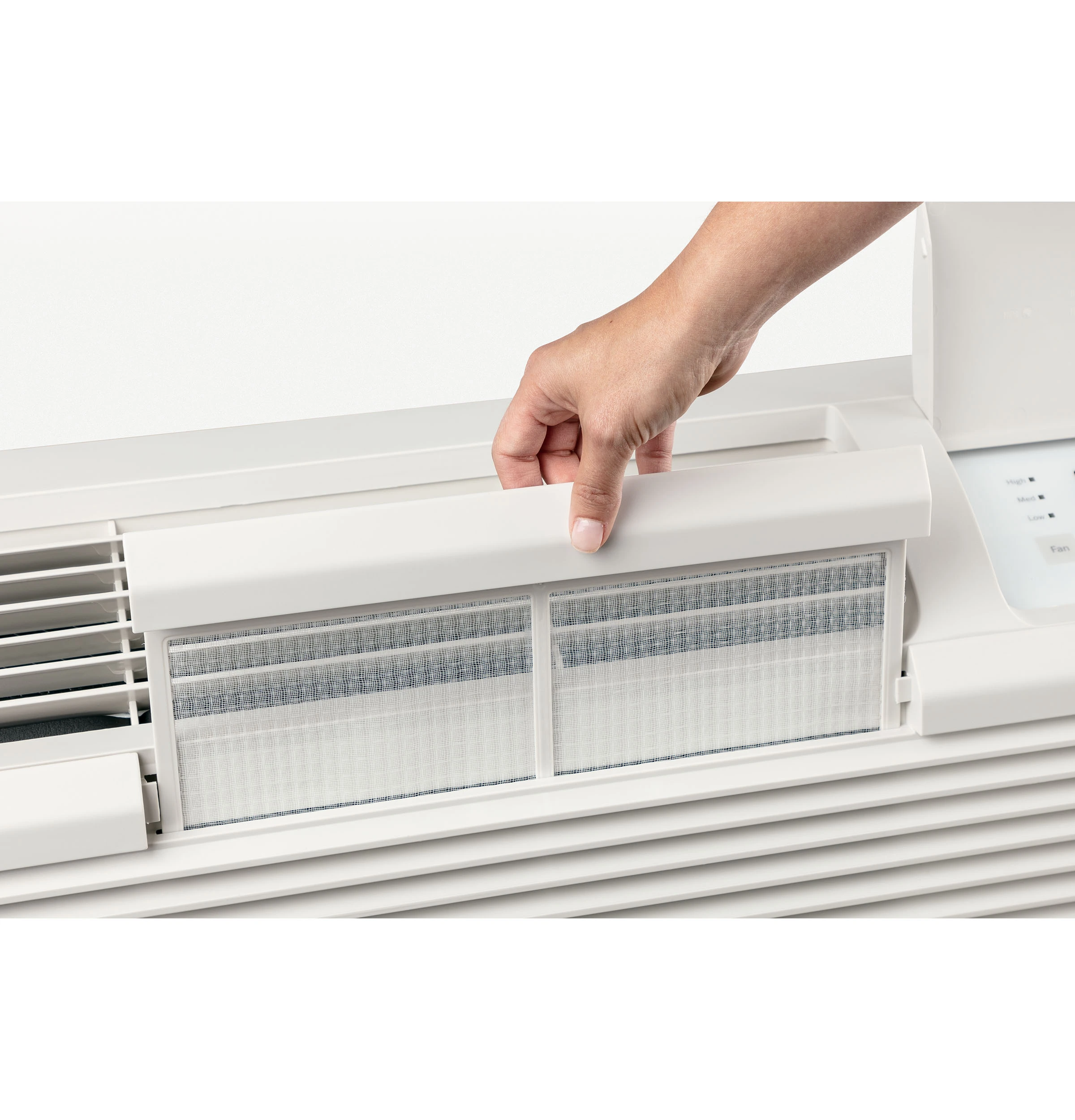

| Venting Features | Concealed Manual Vent Control • Vent Air Filter |
| Heating System | Electric Resistance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.8 |
| Cooling - Amperes | 3.5/3.8 |
| Cooling - Watts | 810/795 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3535/2935 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.3/13.7 |
| Installation | Through-the-Wall |
| Color Appearance | White |

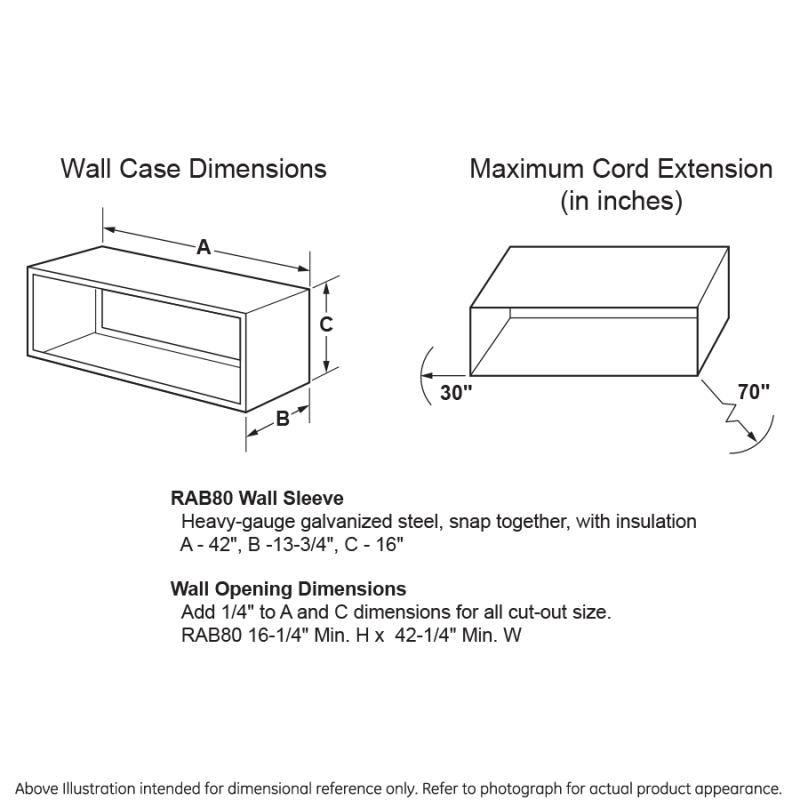

| Width | 42 in. |
| Height | 16 in. |
| Length | 21 in. |
| Weight | 104.7 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 144.7 lbs. |
| Total of Shipping Weight | 144.7 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 8.17 ft³ |
| Dimensional Weight | 101.53 lbs. |
| Total of Cubes | 8.17 ft³ |
| Total of Dimensional Weight | 101.53 lbs. |
Give guests control over their comfort with three fan speeds to choose from

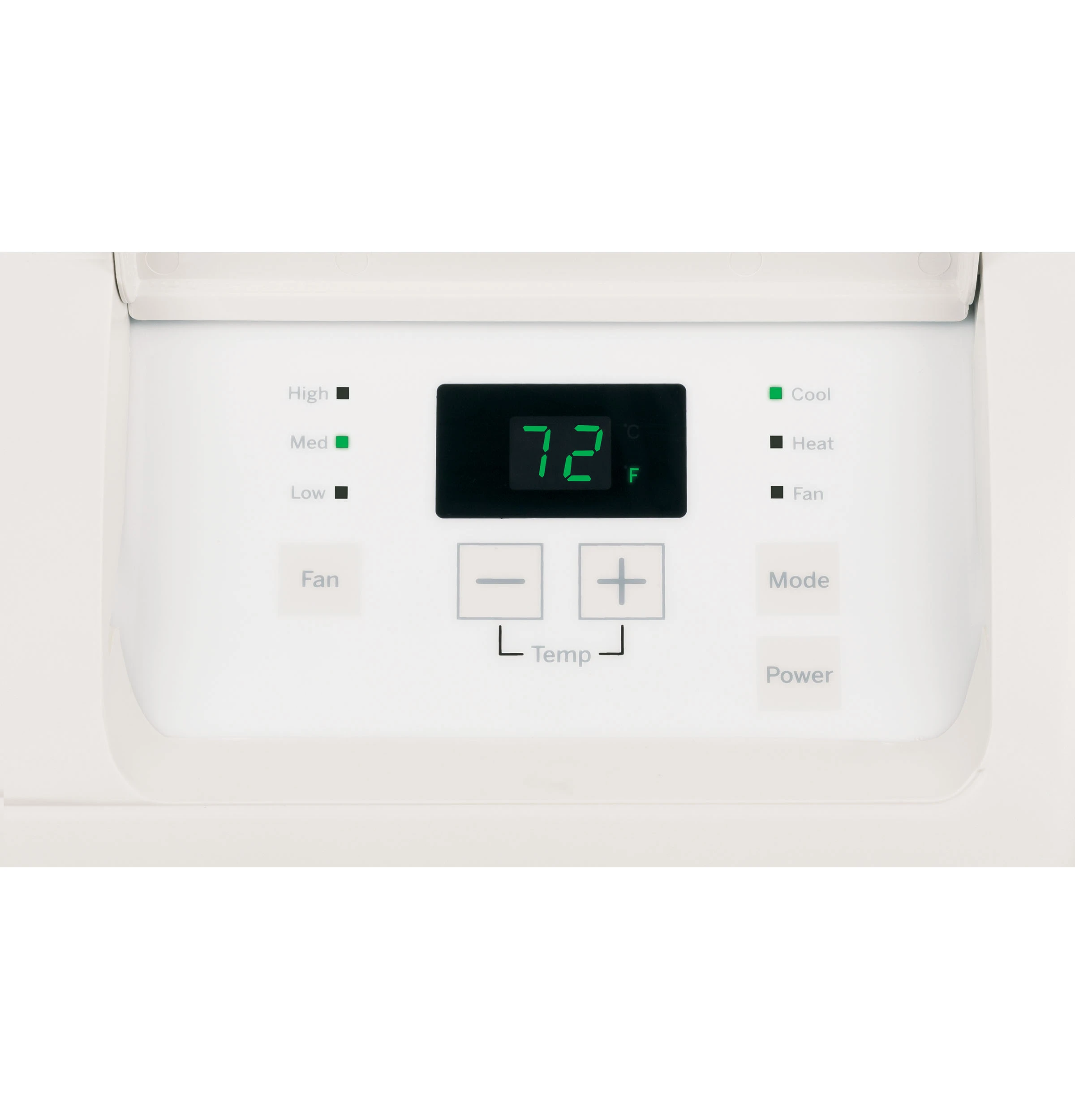

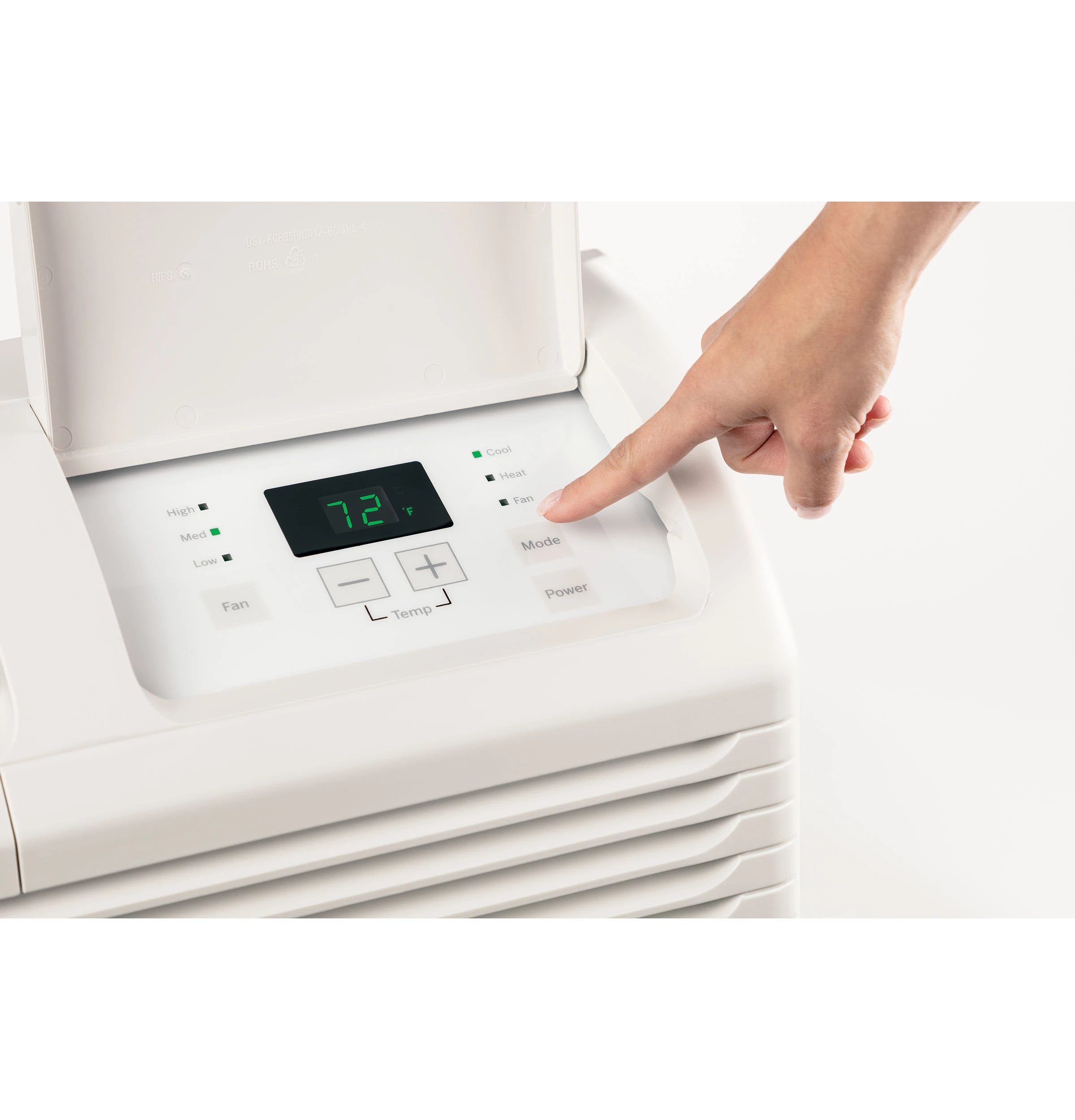

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
