Product Details for Hotpoint AH11E07D3B

Technical Details

Capacity

Cooling BTUH (MAX) 7200 Btu
CFM Indoor Fan Low 236
CFM Indoor Fan Medium 280
CFM Indoor Fan High 334
Cooling EER (BTUH / Watt) 11.9
Cooling BTUH (MIN) 7000 Btu

Features

Control Type Electronic
Fan Speed Selections 3 Heating
Discharge Grille 2-position
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Manual Vent Control Hidden
"SmartFan" Fan Cycle Yes

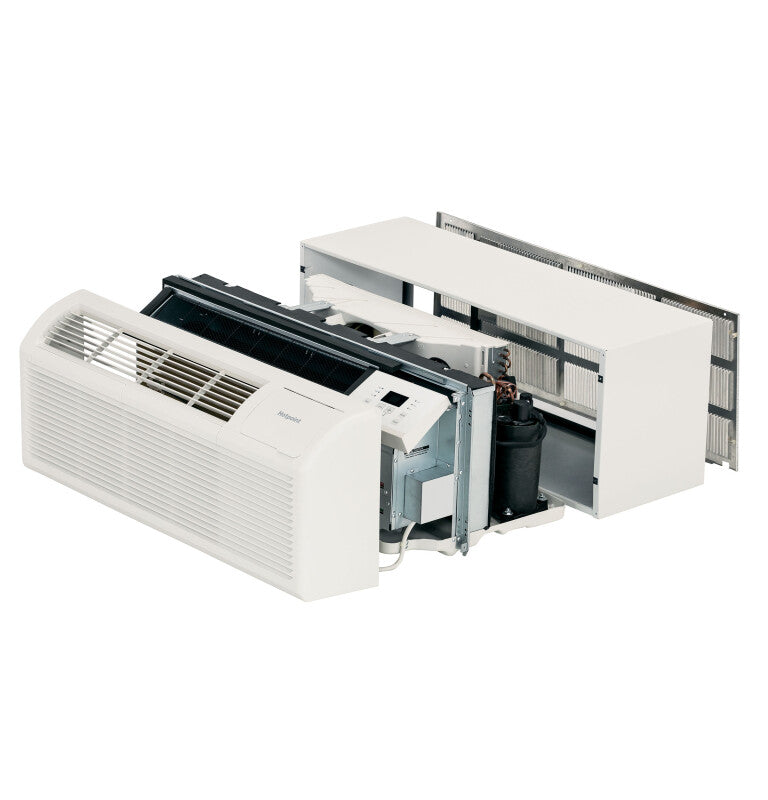

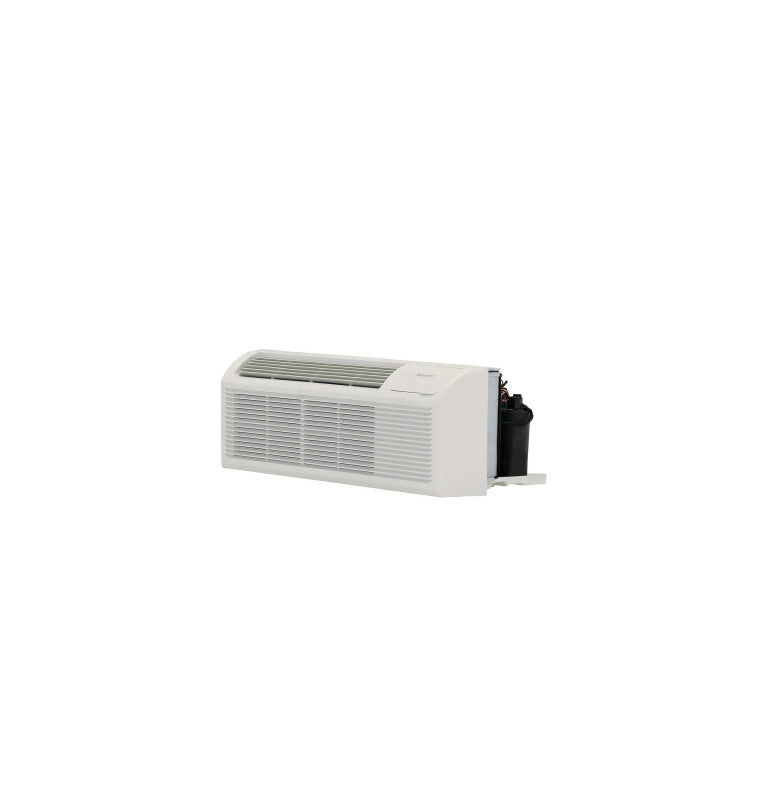

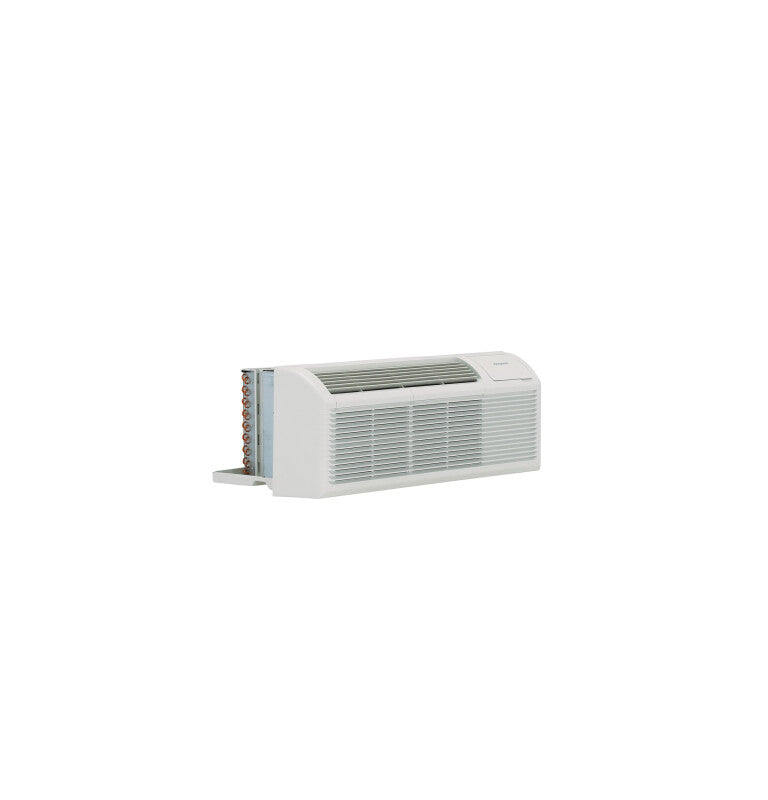

Chassis Type Slide-In
Fan Motor 2
Unit Features Remote Thermostat Compatibility
Temperature Range 62 - 86 F
Heat - Cool Yes
Auto Power Recovery Yes
Rotary Compressor Yes
Outdoor Vent / Exhaust Yes
Venting Features Concealed Manual Vent Control • Vent Air Filter
Heating System Electric Resistance

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 5-year sealed refrigerating system
Parts Warranty Limited 5-year sealed refrigerating system

Power / ratings

Cooling - Amperes; F.L. - Cooling 2.7/2.9
Cooling - Amperes 2.45/2.6
Cooling - Watts 605/585
Voltage (MIN) 208 V
Heating - Electric - Heater Watts 3535/2935
Voltage (MAX) 230 V
Heating - Electric - Heater Amps 15.3/13.7

Appearance

Installation Through-the-Wall
Color Appearance White

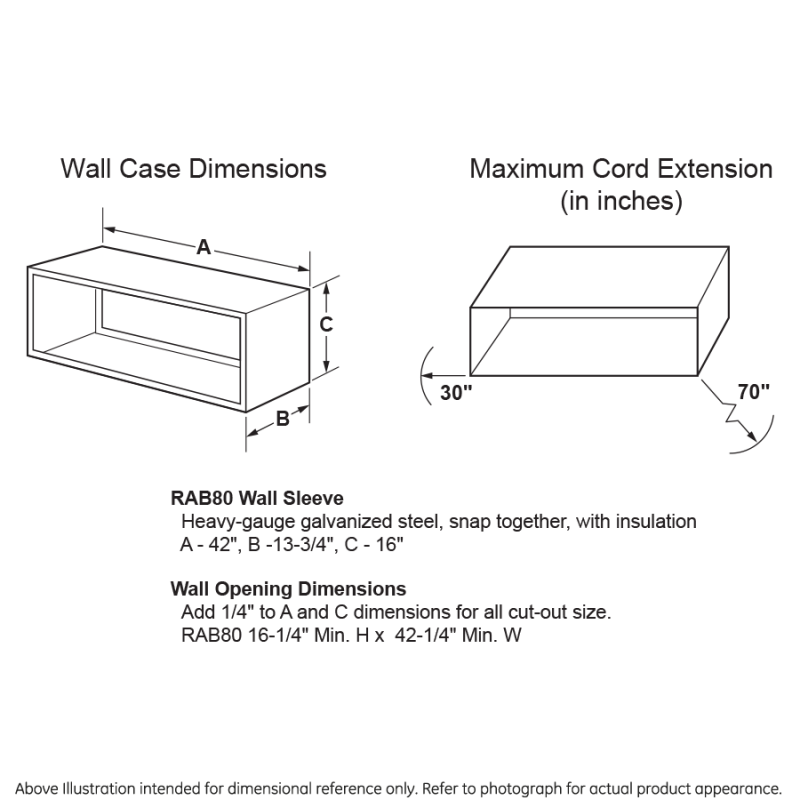

Dimensions & weight

Width 42 in.
Height 16 in.
Length 21 in.
Weight 99.2 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 21 in.
Shipping Length 26 in.
Shipping Weight 139.2 lbs.
Total of Shipping Weight 139.2 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.17 ft³
Dimensional Weight 101.53 lbs.
Total of Cubes 8.17 ft³
Total of Dimensional Weight 101.53 lbs.

Description

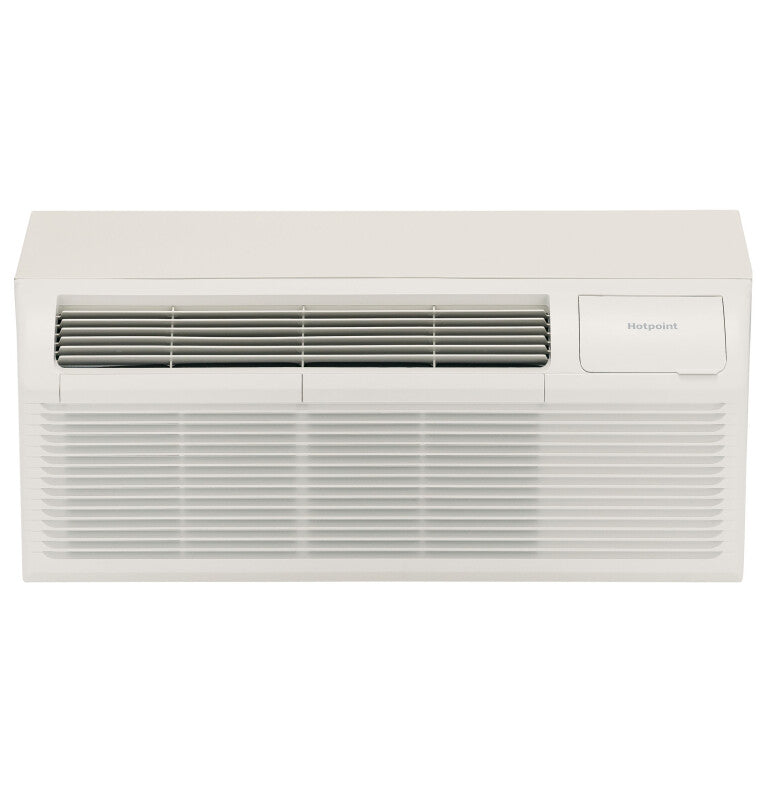

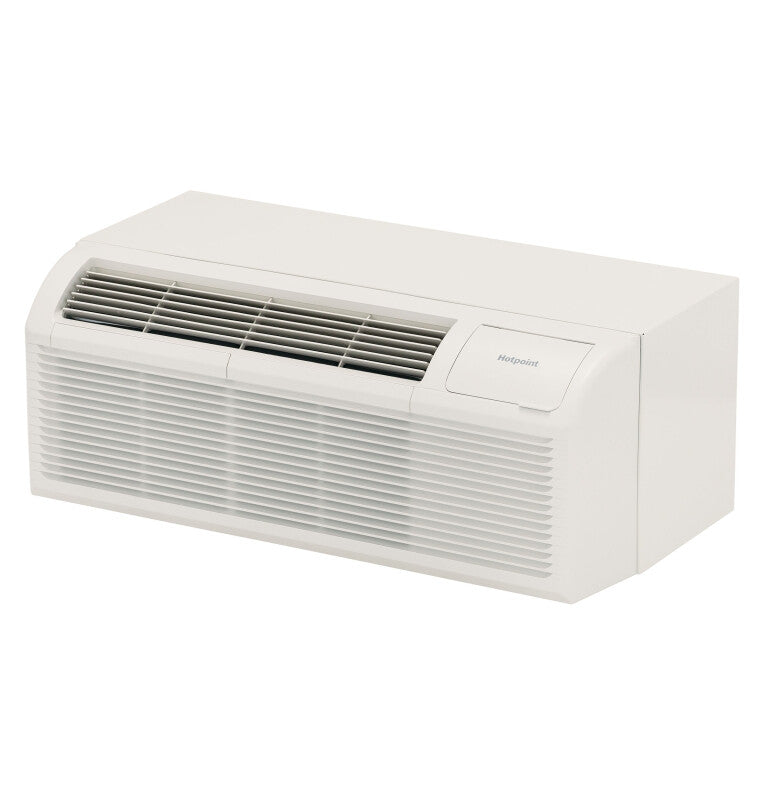

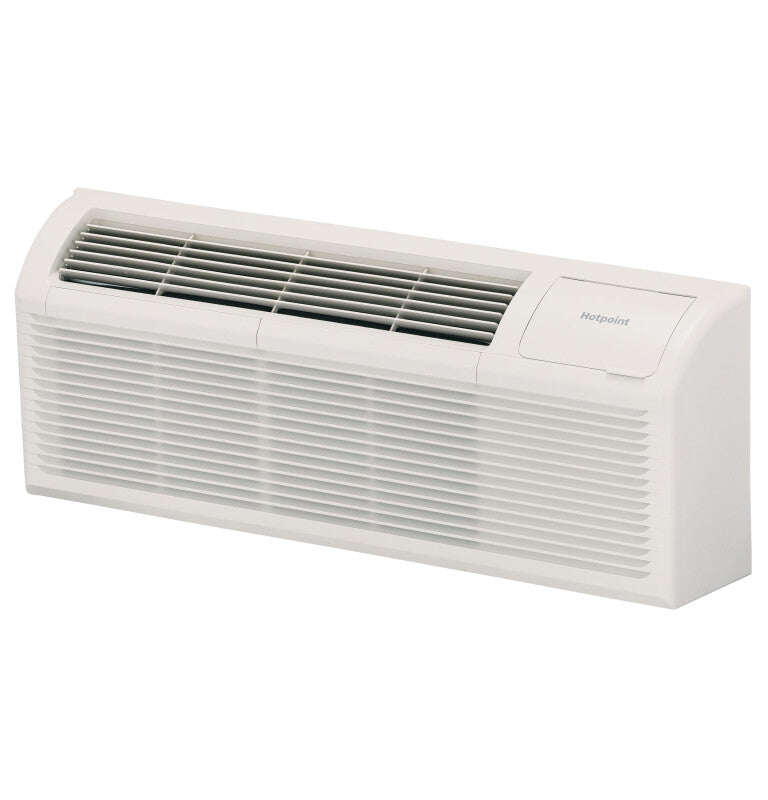

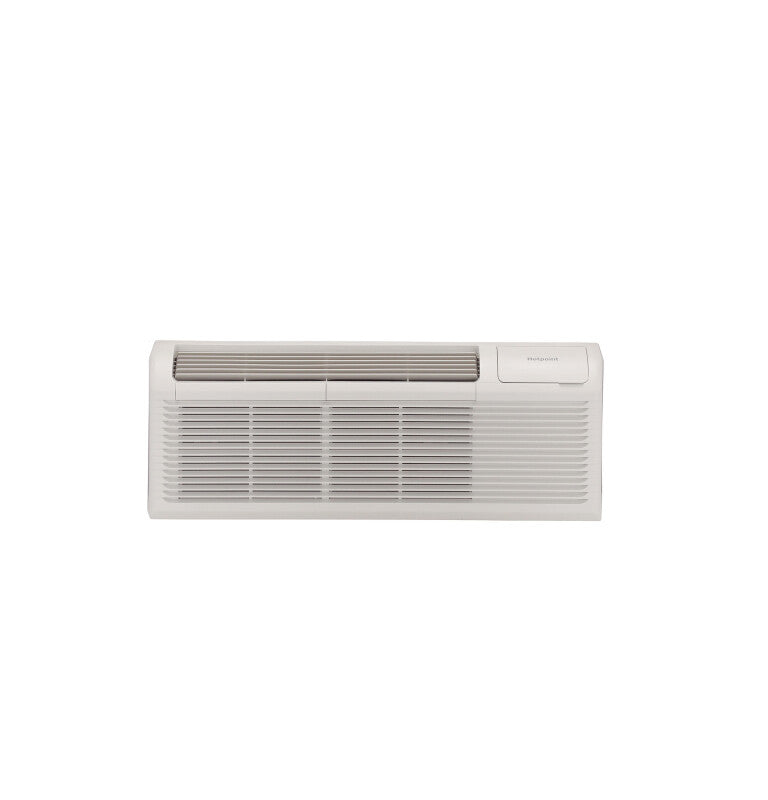

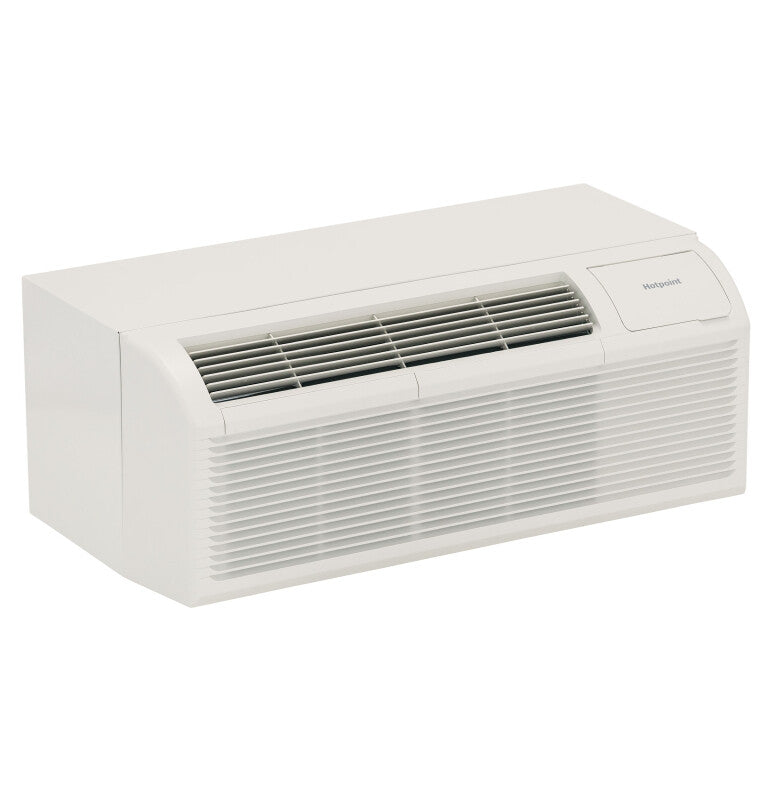

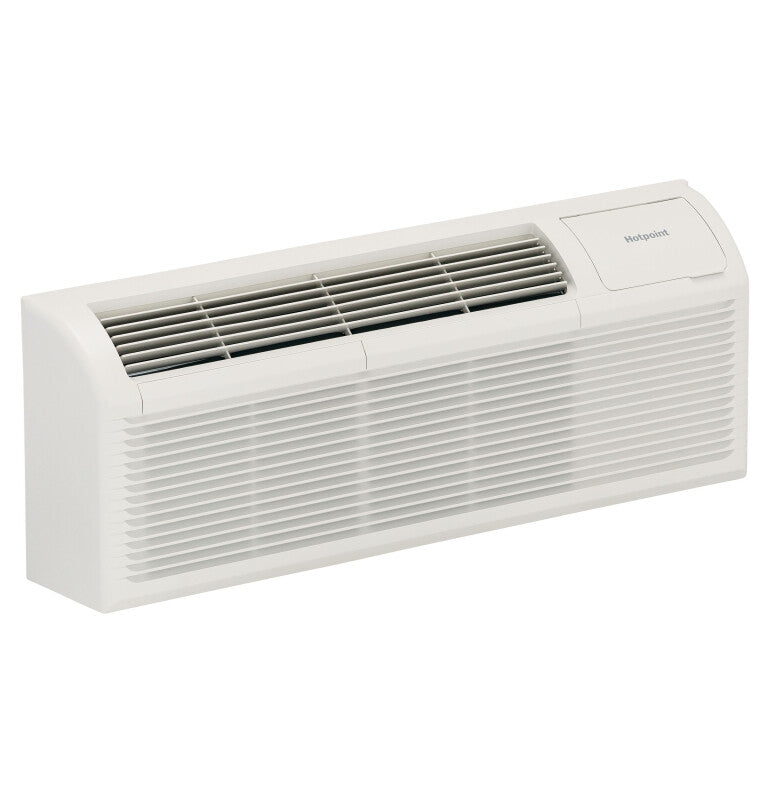

Hotpoint Wall Mount PTAC with Freeze/Frost Protection and Automatic Emergency Heat in White


Product Features

  • Backed by an industry leader
    With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
  • 4-temperature limiting options
    Easily select one of four temperature ranges for peak efficiency and total customer comfort
  • Power cord (LCDI) included
    Hotpoint PTACs come with everything needed for a quick and easy installation
  • Automatic emergency heat
    Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
  • Freeze and frost protection
    Automatic freeze and indoor frost control keep units operating in peak condition
  • Auto power recovery
    In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
    Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
  • Self diagnostics
    Quickly and easily identify service needs with a nine-point diagnostic code system
  • Remote thermostat compatibility
  • Works with central desk control systems
  • Tangential fan for air flow and smooth sound

Key Features

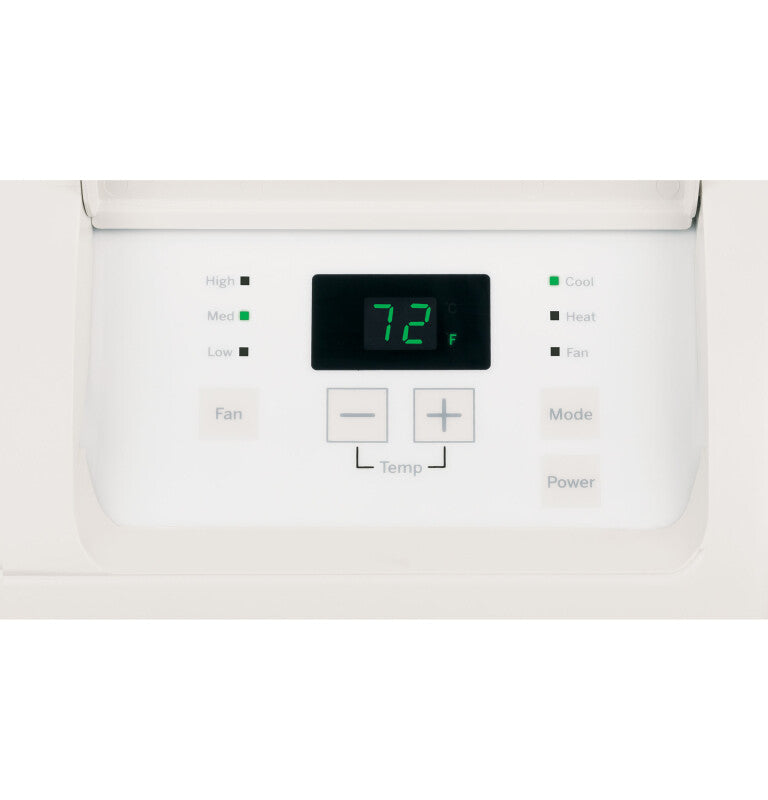

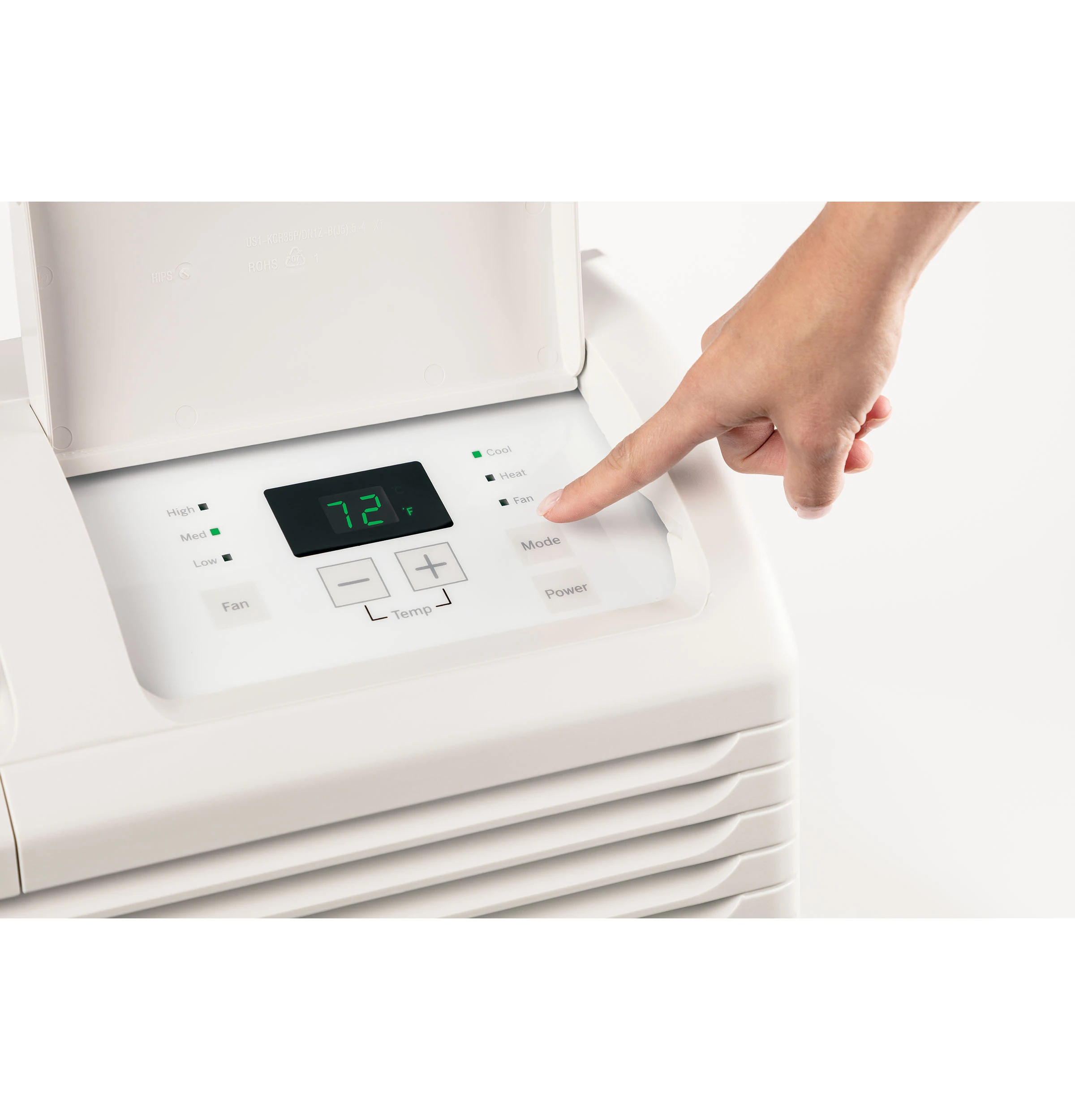

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

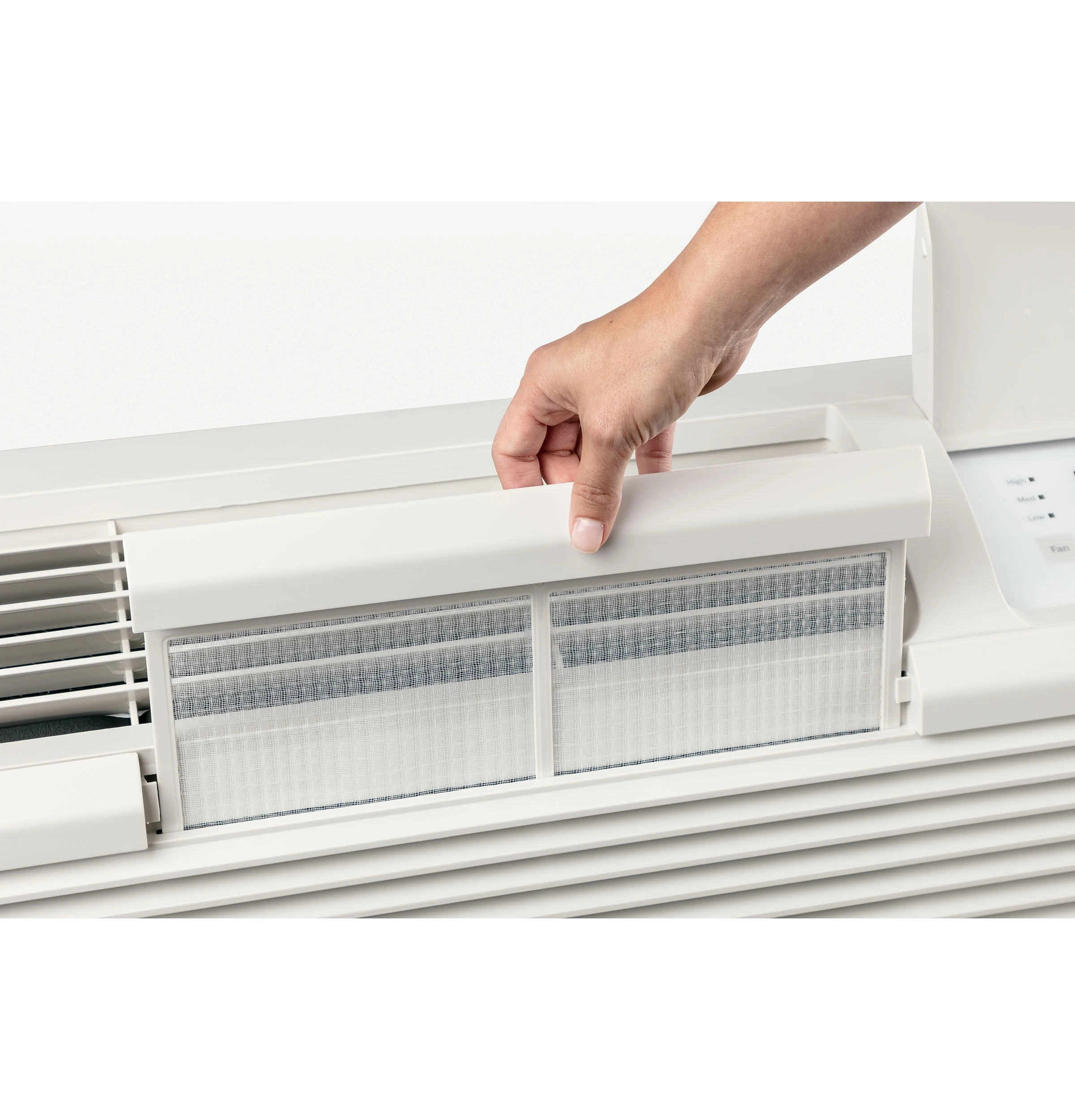

Removable filters for easy maintenance
