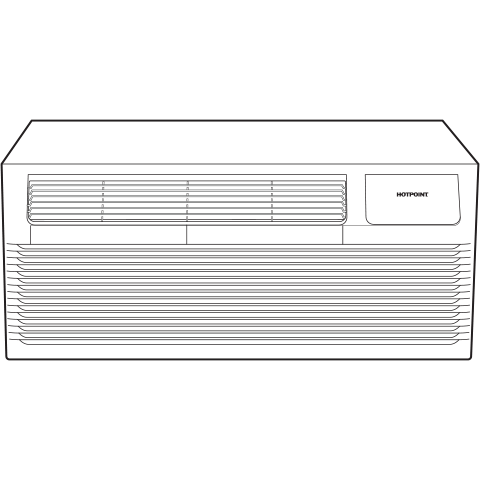

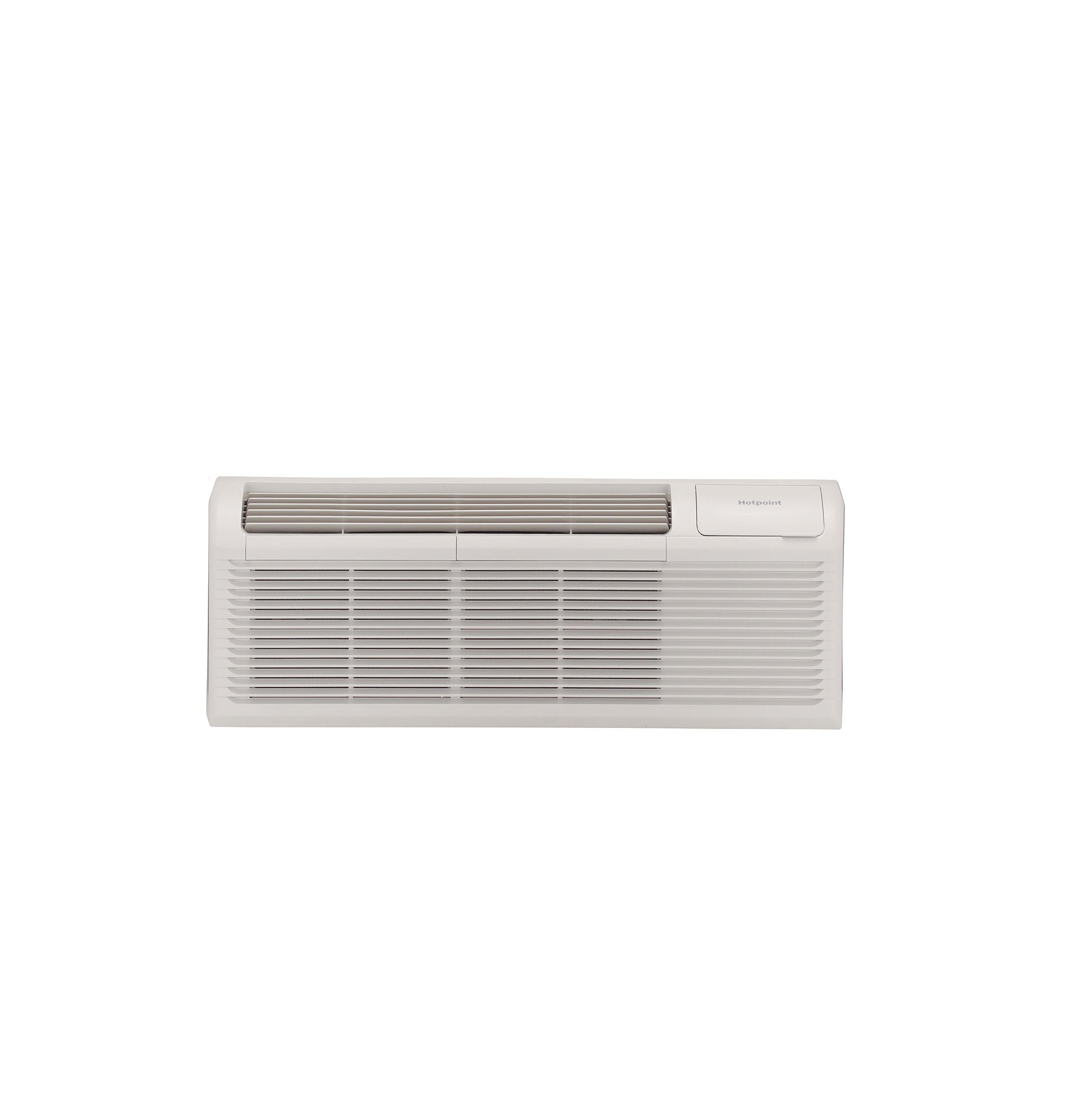

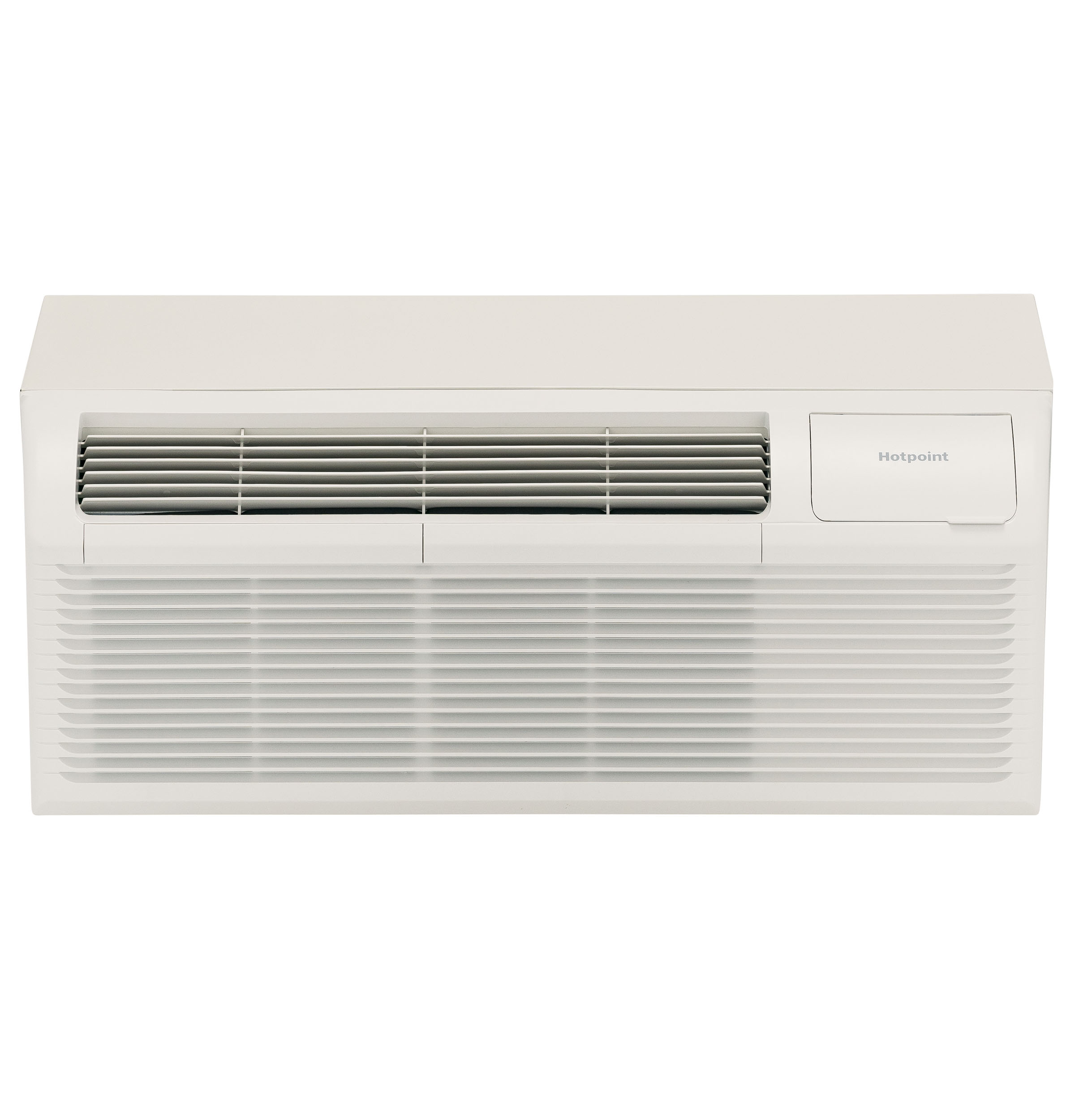

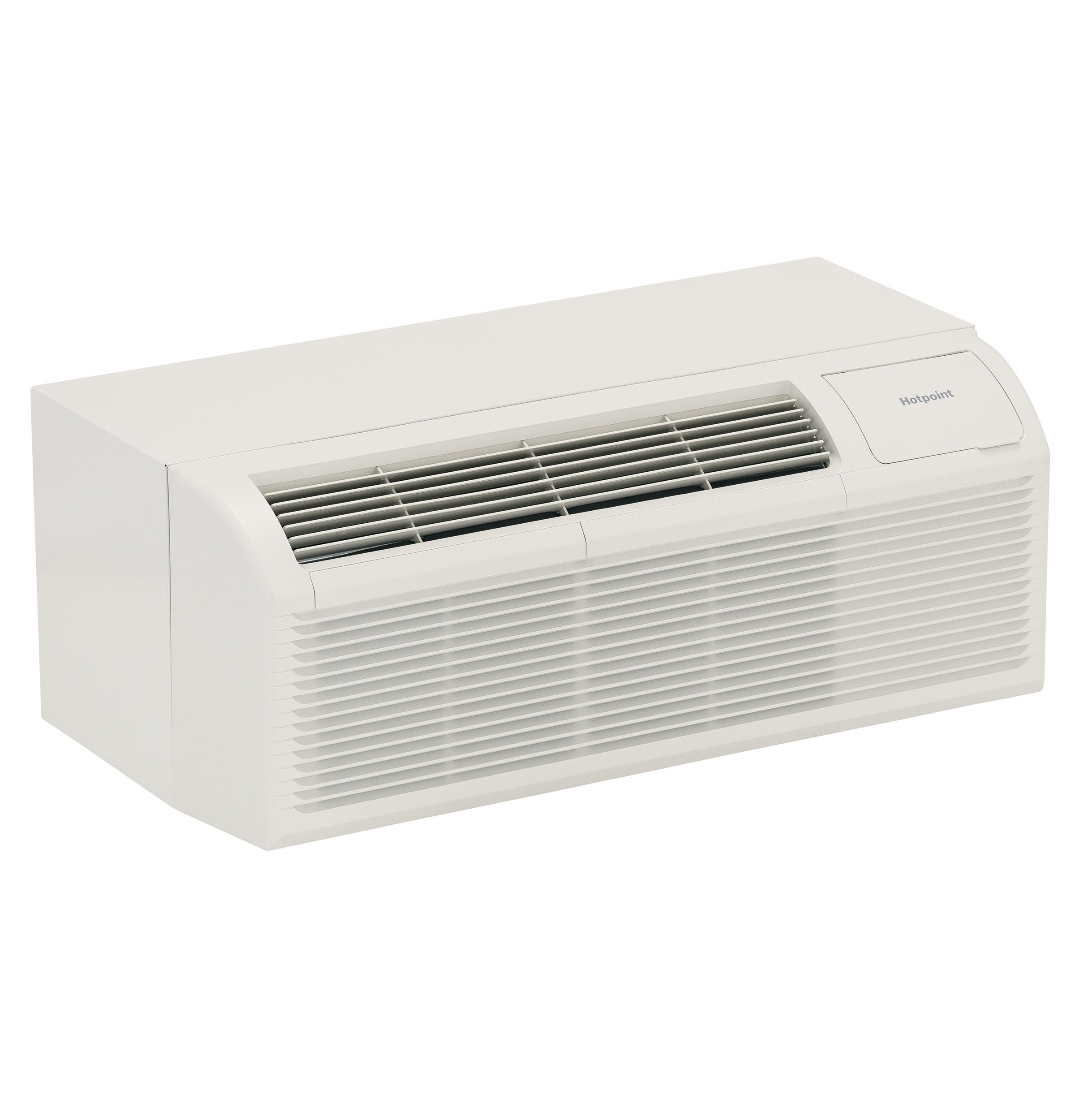

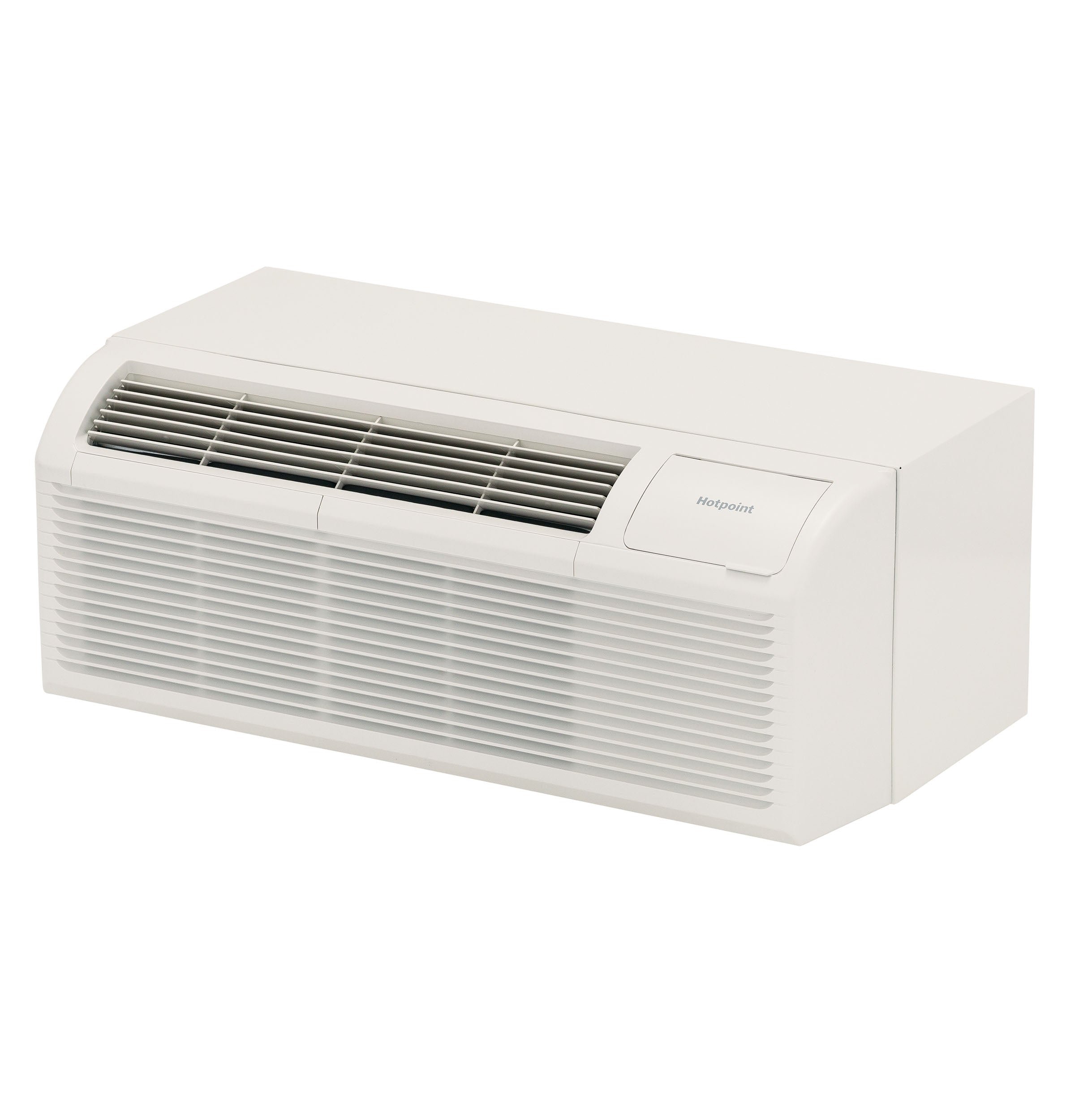

Product Details for Hotpoint AH11H12E3B

Technical Details

Capacity

Cooling BTUH (MAX) 12000 Btu
CFM Indoor Fan Low 310
CFM Indoor Fan Medium 349
CFM Indoor Fan High 383
Cooling EER (BTUH / Watt) 10.5
Heating - Reverse Cycle - BTUH 10800
Cooling BTUH (MIN) 11800 Btu

Features

Control Type Electronic
Fan Speed Selections 3 Heating
Discharge Grille 2-position
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Manual Vent Control Hidden
"SmartFan" Fan Cycle Yes

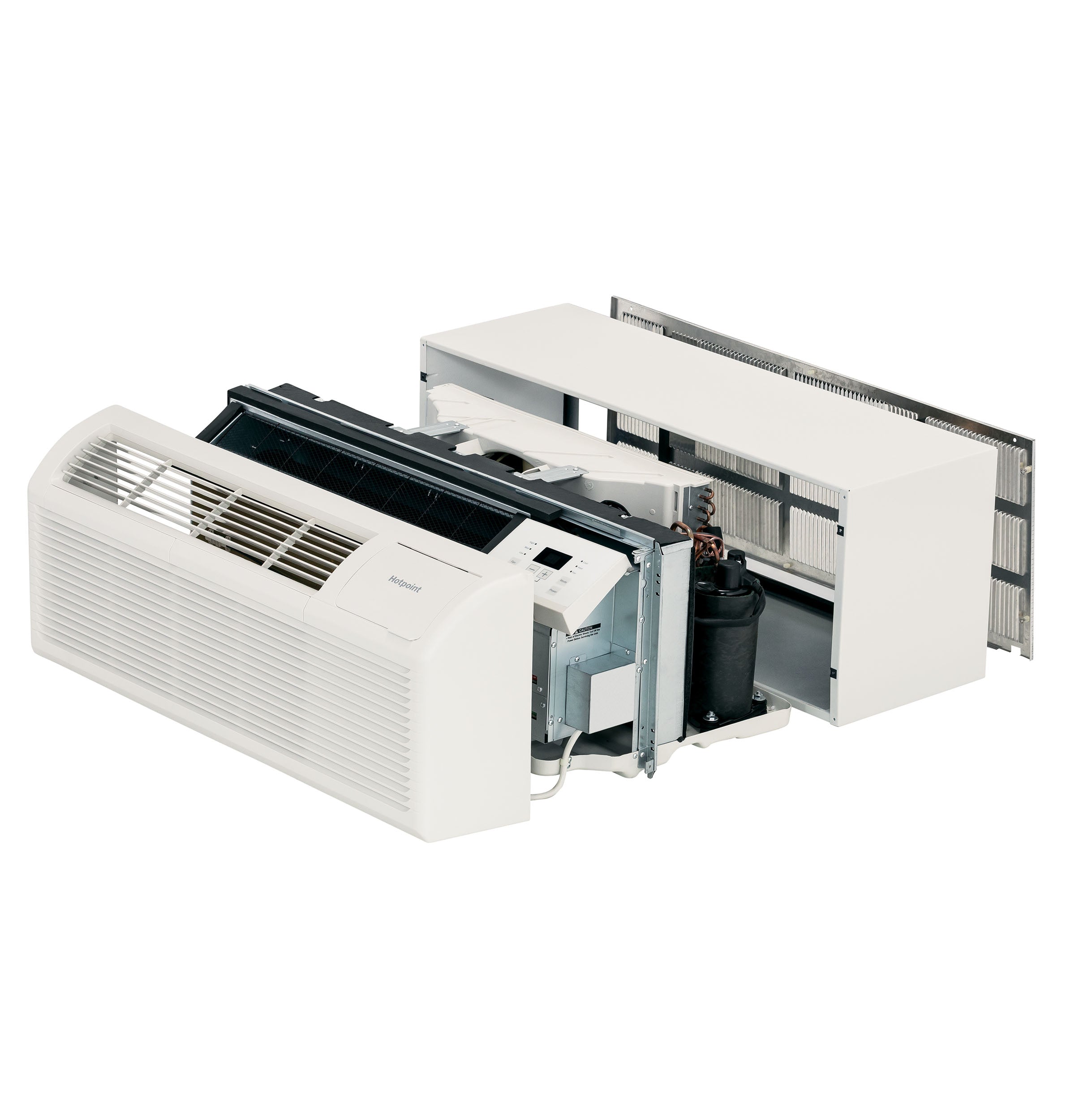

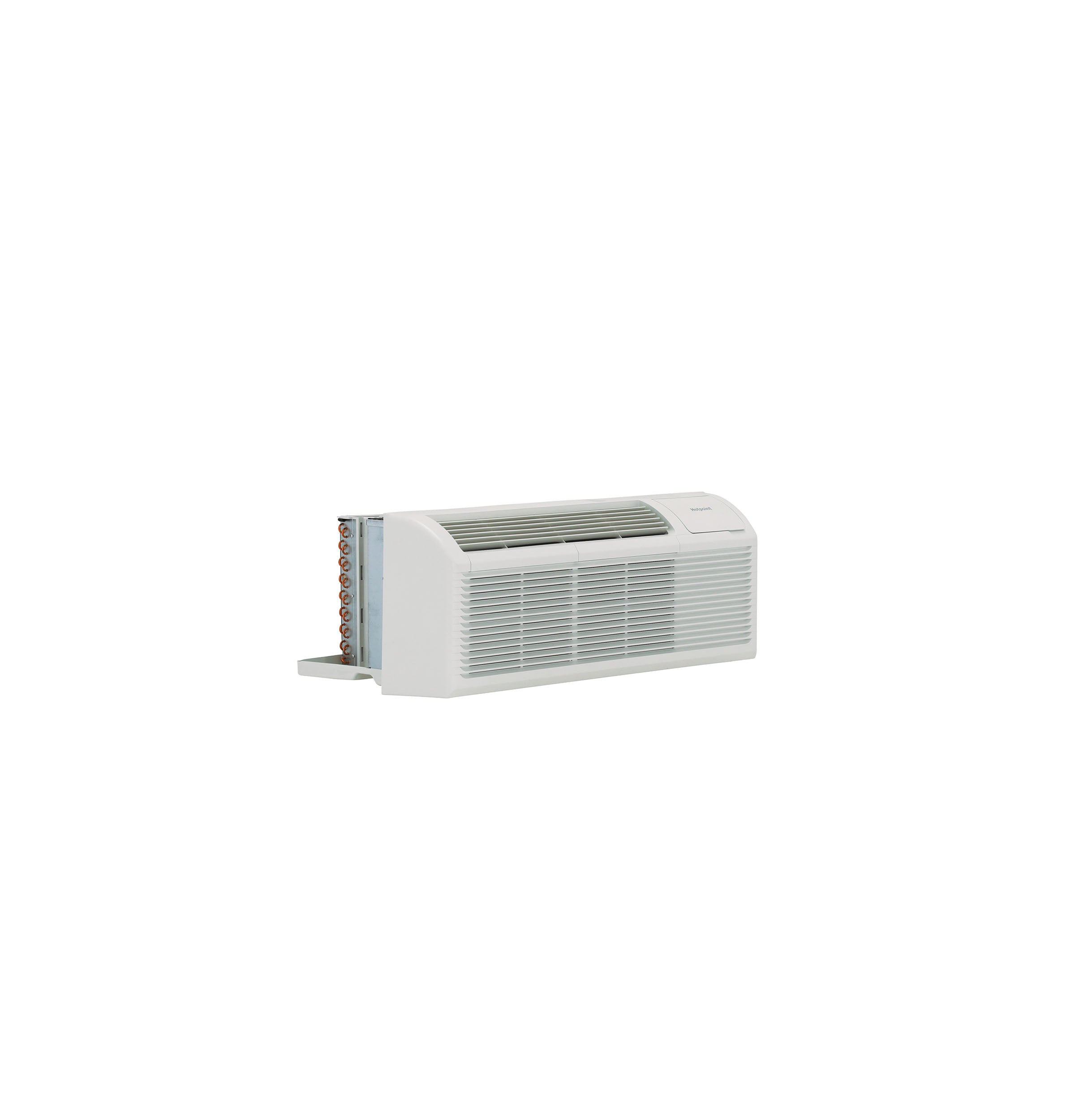

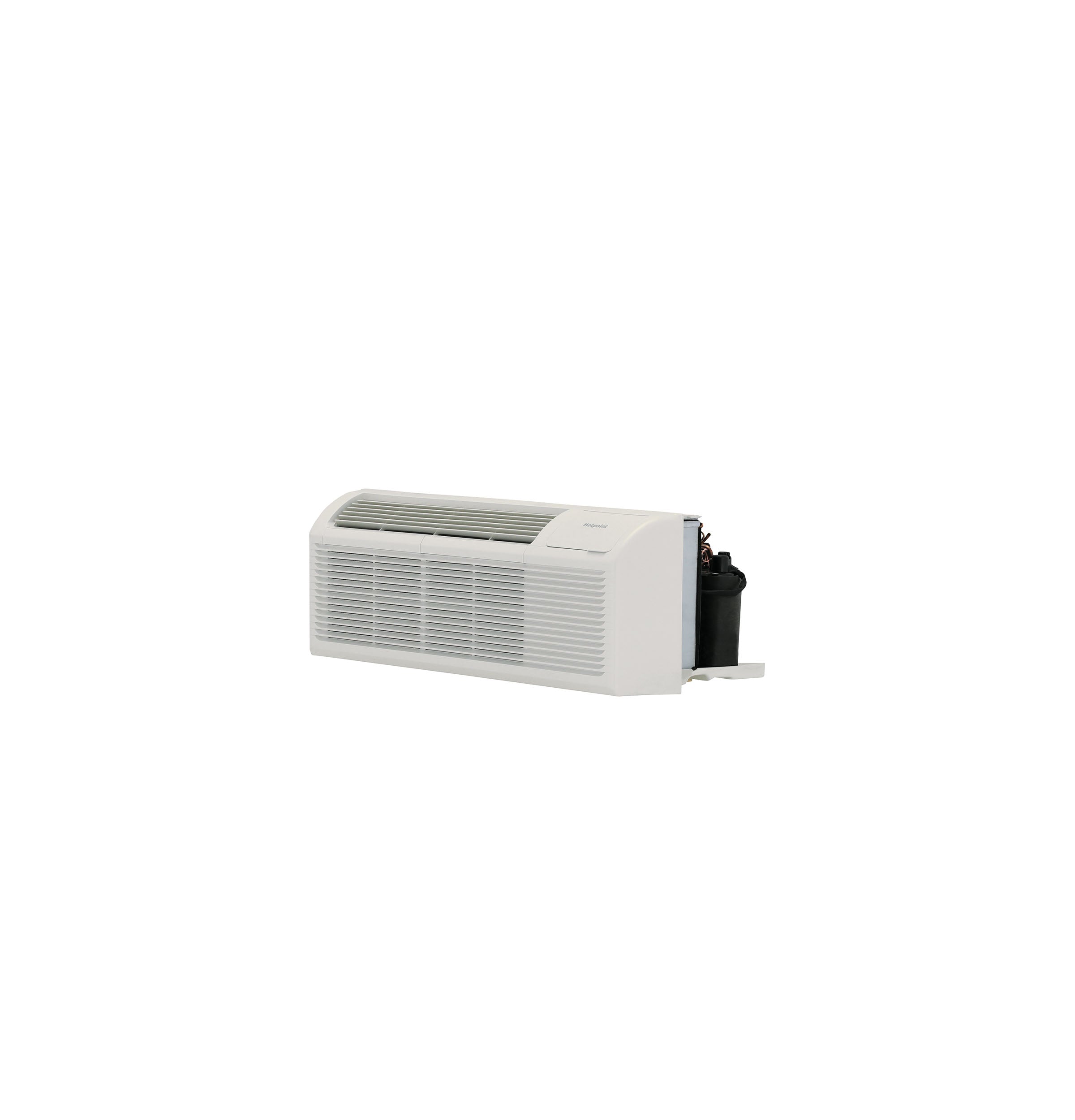

Chassis Type Slide-In
Fan Motor 2
Heat Pump Yes
Unit Features Sub-Base required
Temperature Range 62 - 86 F
Heat - Cool Yes
Auto Power Recovery Yes
Rotary Compressor Yes
Heating - Reverse Cycle - COP 3.2
Outdoor Vent / Exhaust Yes

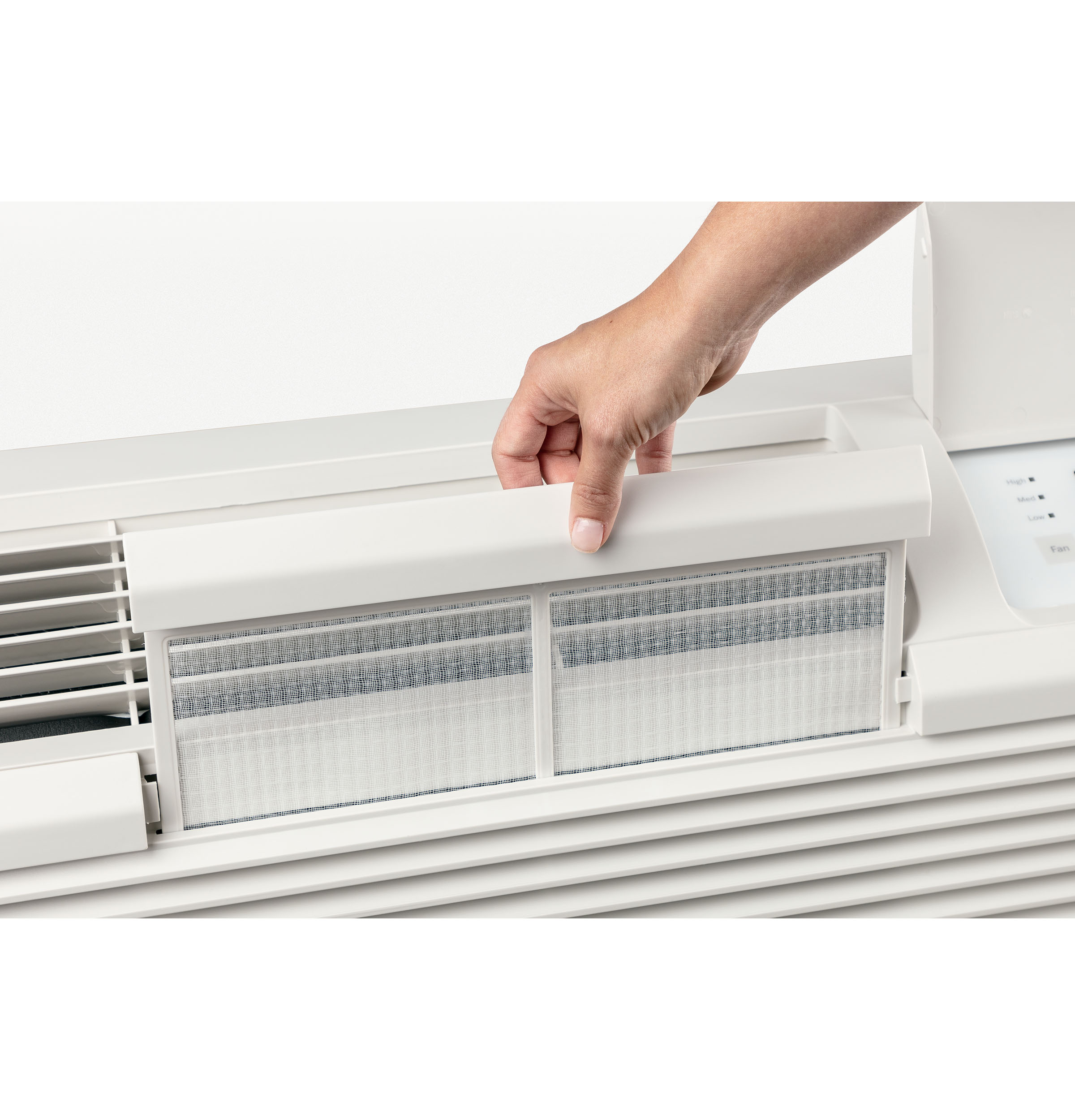

Venting Features Concealed Manual Vent Control • Vent Air Filter
Heating System Heat Pump with Resistance Backup

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 5-year sealed refrigerating system
Parts Warranty Limited 5-year sealed refrigerating system

Power / ratings

Heating - Reverse Cycle - Watts 989
Cooling - Amperes 4.31
Cooling - Watts 1142
Heating - Reverse Cycle - Amps 4.3
Heating - Electric - Heater Watts 3535/2935
Voltage (MAX) 265 V
Heating - Electric - Heater Amps 13.46

Appearance

Installation Through-the-Wall
Color Appearance White

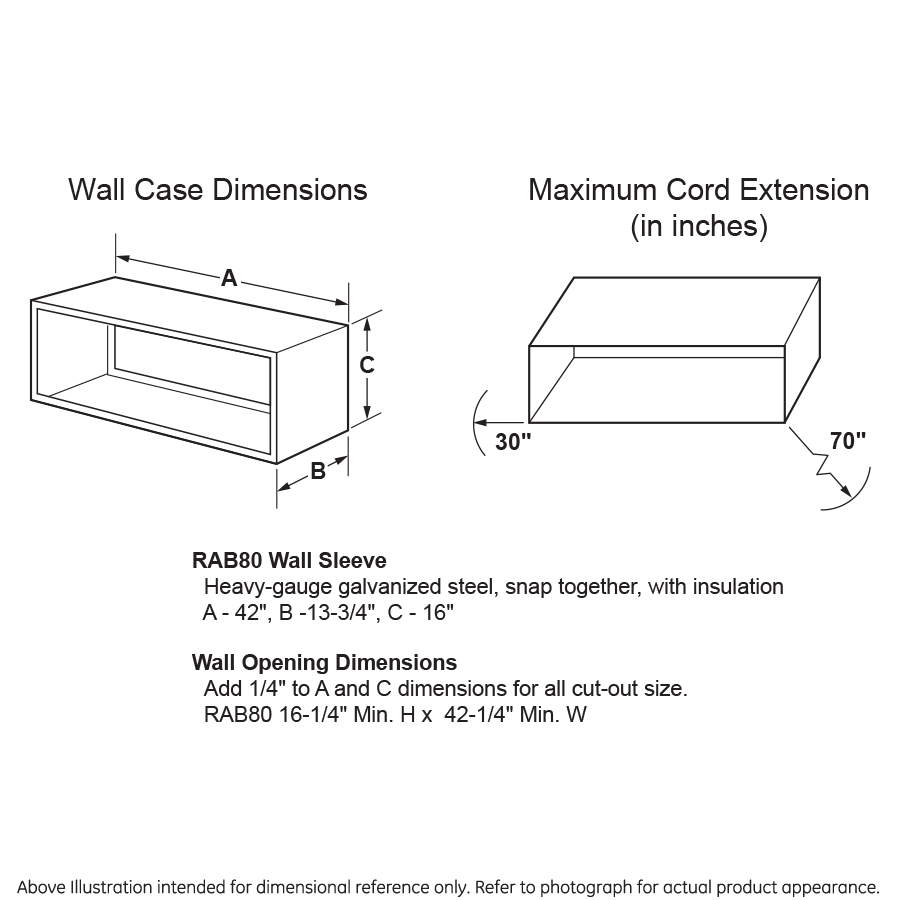

Dimensions & weight

Width 42 in.
Height 16 in.
Length 21 in.
Weight 113.1 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 21 in.
Shipping Length 26 in.
Shipping Weight 153.1 lbs.
Total of Shipping Weight 153.1 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.17 ft³
Dimensional Weight 101.53 lbs.
Total of Cubes 8.17 ft³
Total of Dimensional Weight 101.53 lbs.

Description

3-speed fan
Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

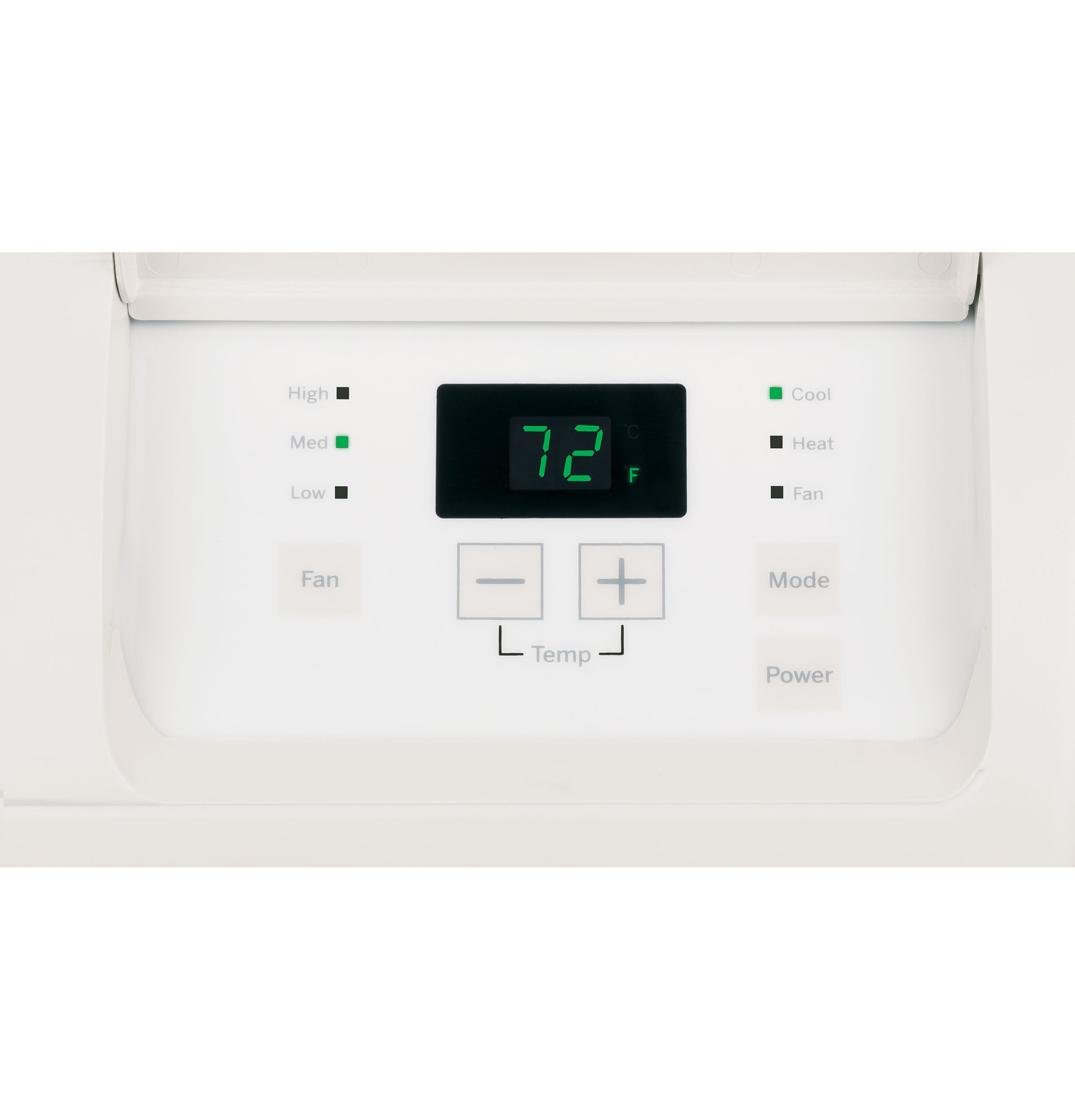

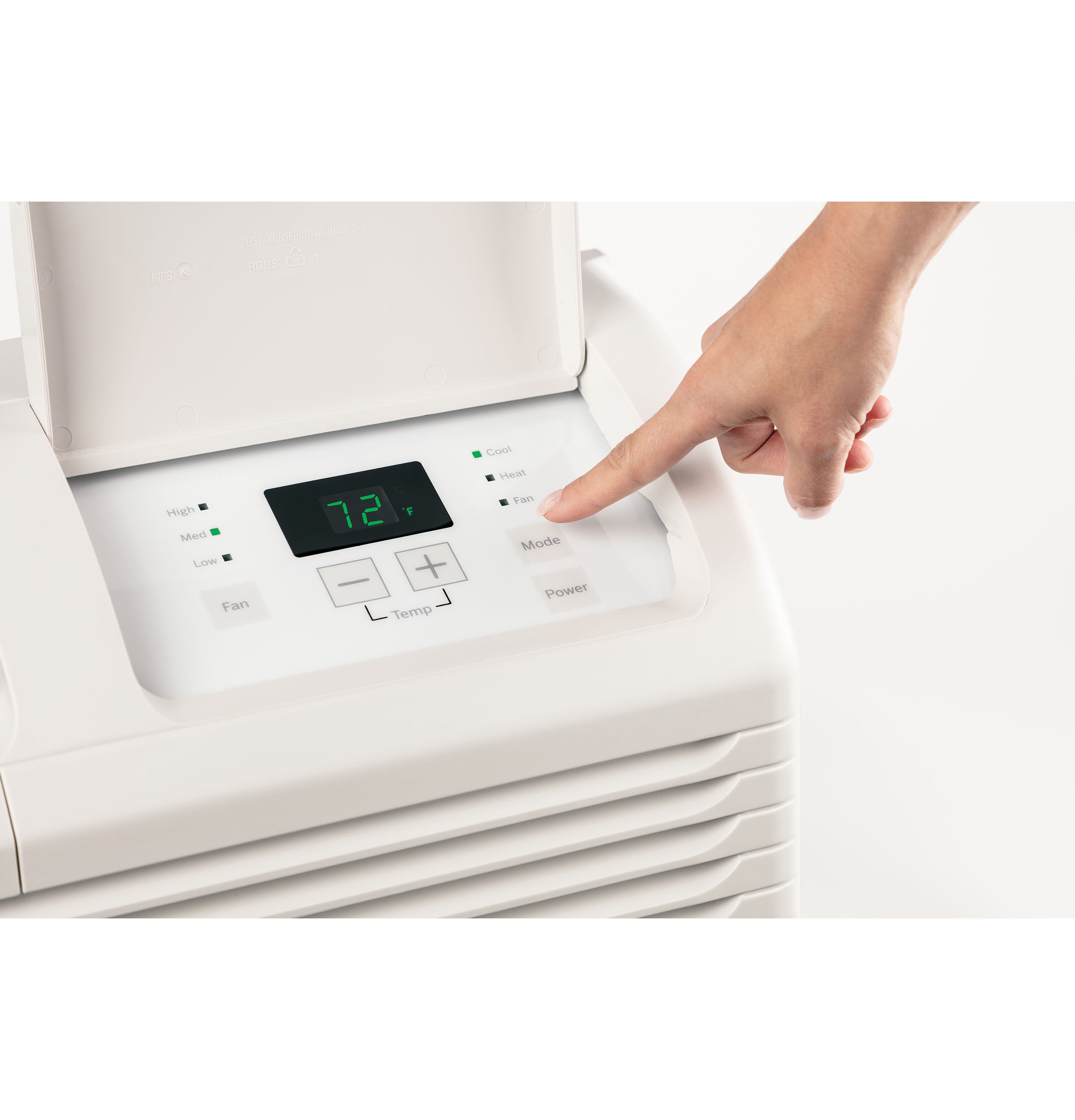

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available



Product Features

  • Freeze and frost protection
    Automatic freeze and indoor frost control keep units operating in peak condition
  • 4-temperature limiting options
    Easily select one of four temperature ranges for peak efficiency and total customer comfort
  • Auto power recovery
    In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
  • Self diagnostics
    Quickly and easily identify service needs with a nine-point diagnostic code system
  • Automatic emergency heat
    Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
  • Backed by an industry leader
    With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
    Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
  • Power cord (LCDI) included
    Hotpoint PTACs come with everything needed for a quick and easy installation
  • Remote thermostat compatibility
  • Works with central desk control systems
  • Heatpump models include staged heating
  • Tangential fan for air flow and smooth sound
  • Energy-efficient heat pump models available

Key Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
