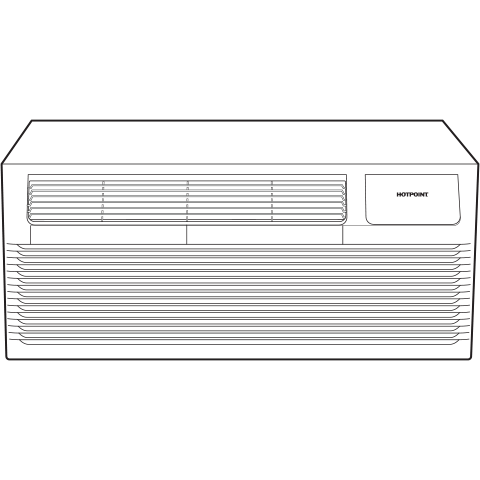

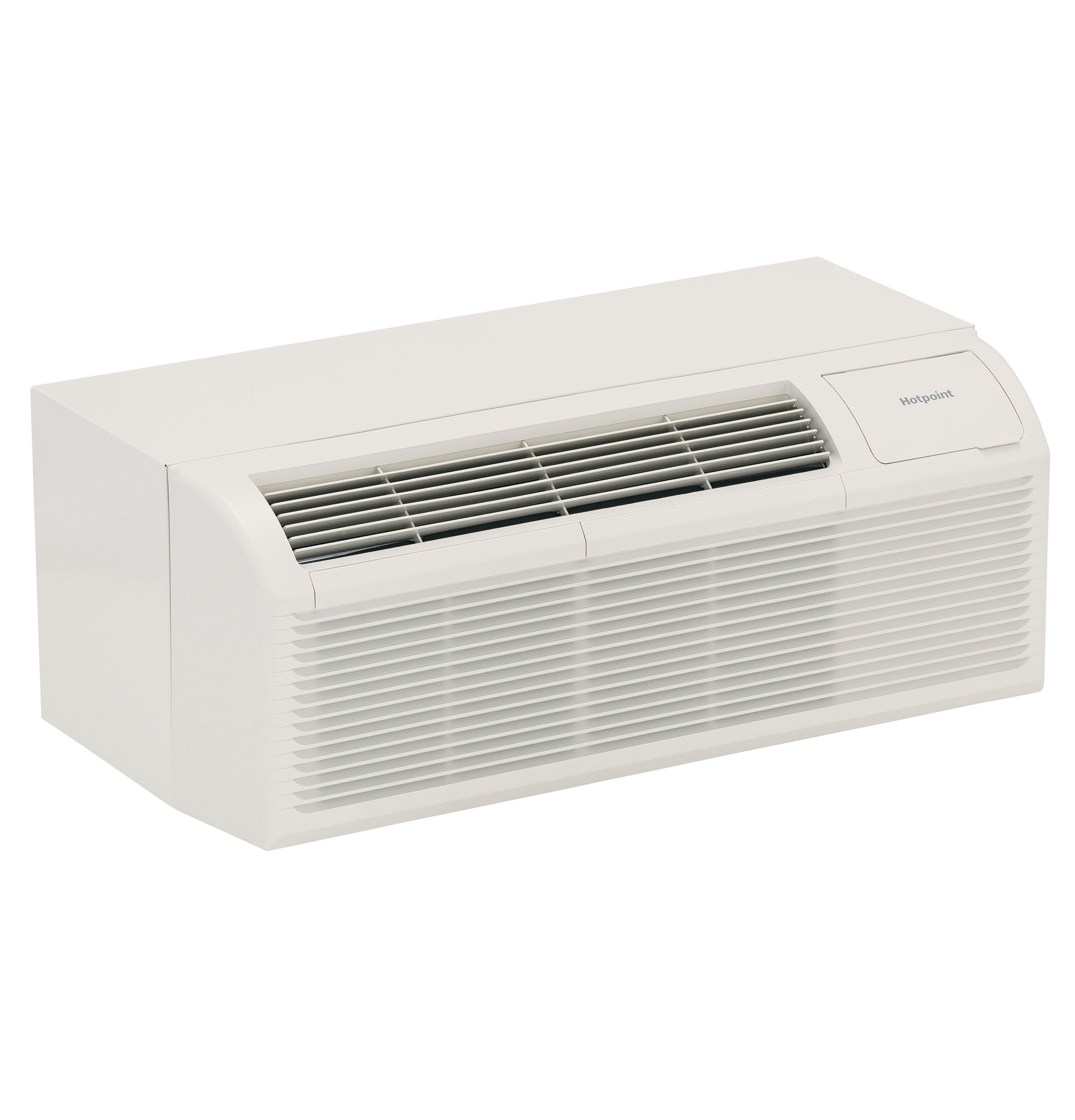

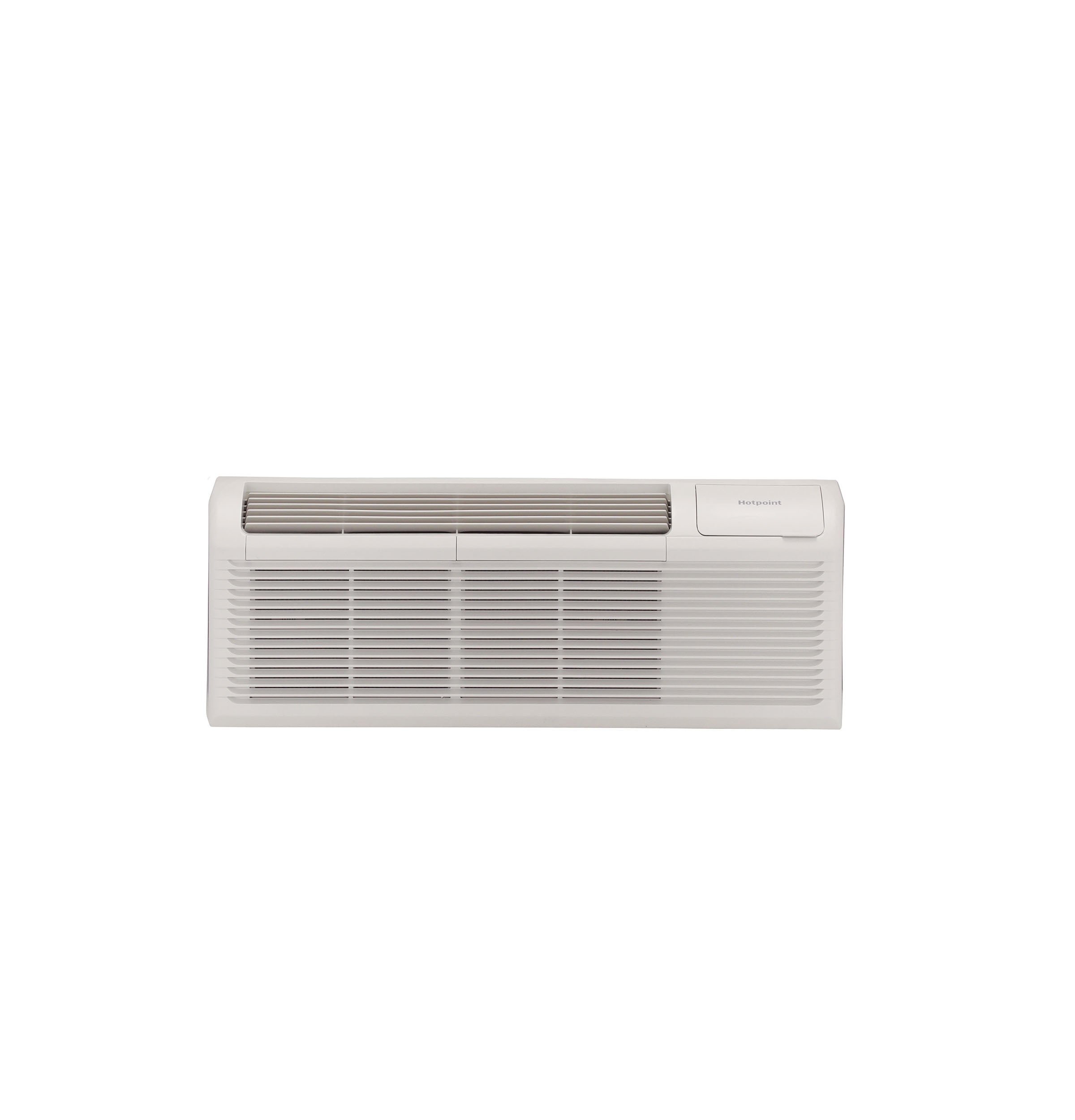

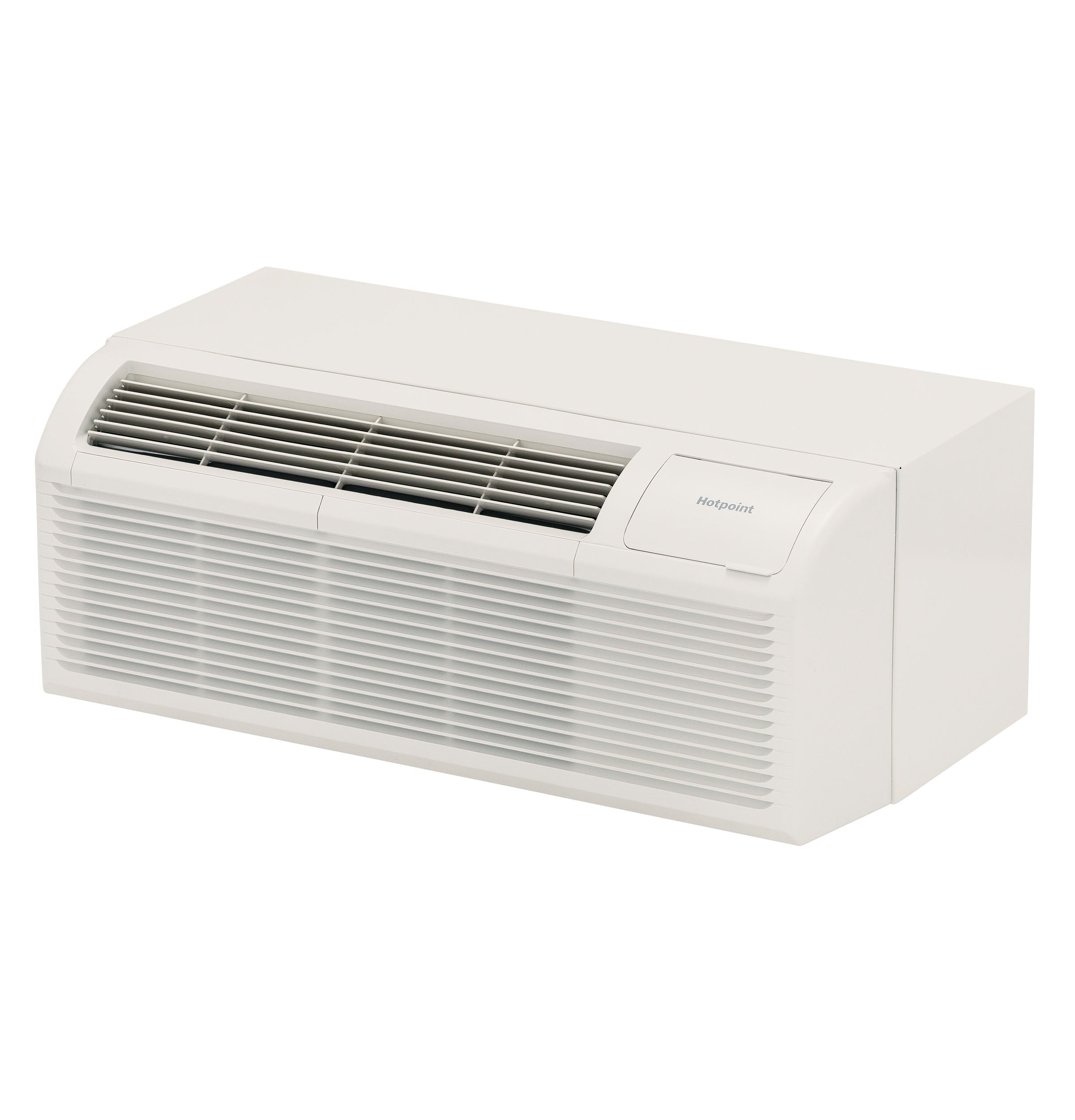

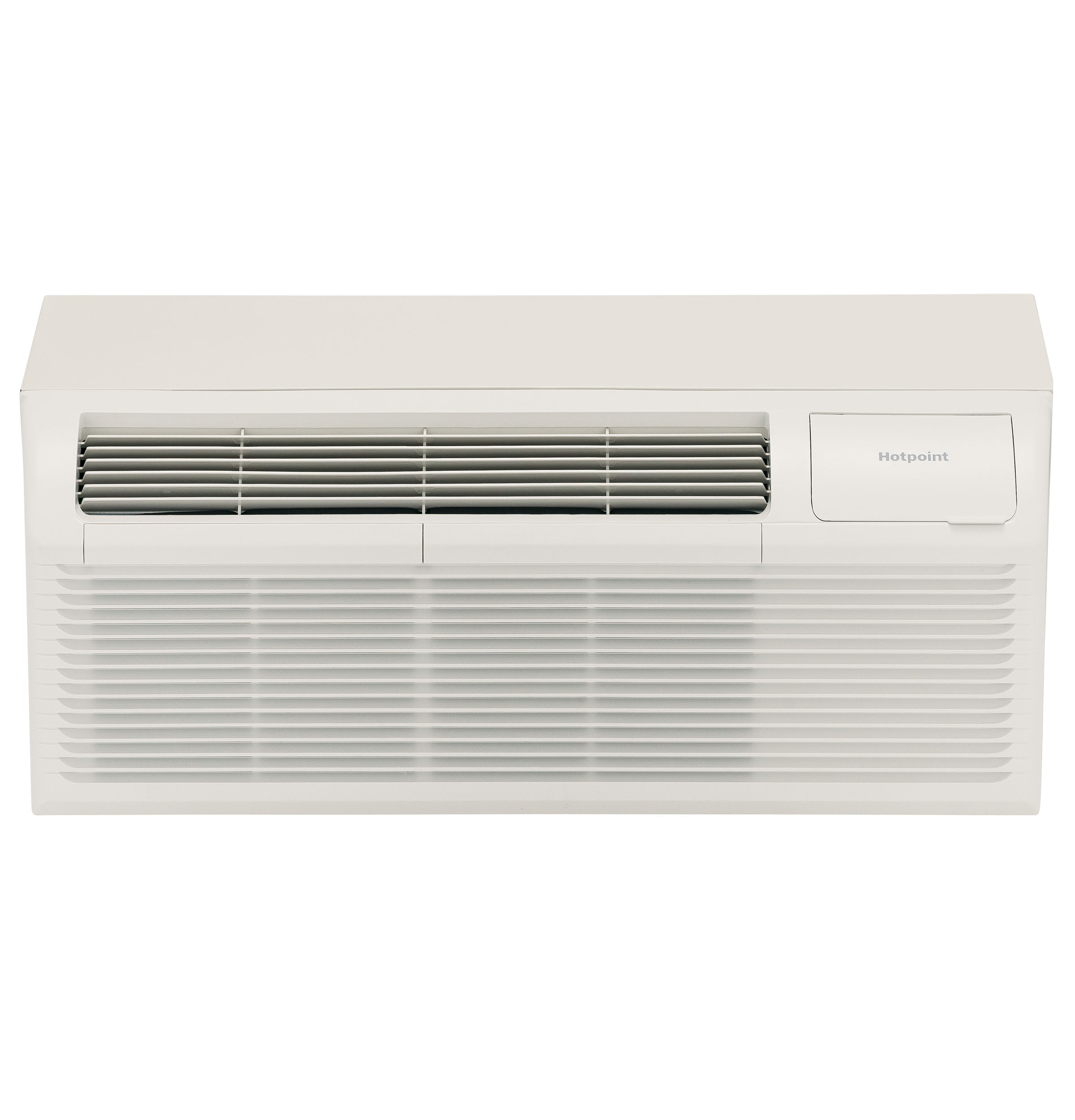

AH11H07D2B 43" PTAC with 7200 BTU Cooling Capacity, 6000 BTU Heating Capacity and 3 Fan Speeds
AH11H07D2B 43" PTAC with 7200 BTU Cooling Capacity, 6000 BTU Heating Capacity and 3 Fan Speeds
| CAPACITY | |
| Cooling EER (BTUH / Watt) | 11.9 |
| CFM Indoor Fan Medium | 281 |
| Cooling BTUH (MIN) | 6800.0 |
| Heating - Reverse Cycle - BTUH | 6000/5800 |
| CFM Indoor Fan High | 350 |
| CFM Indoor Fan Low | 240 |
| Cooling BTUH (MAX) | 7200.0 |
| APPEARANCE | |
| Installation | Through-the-Wall |
| Color Appearance | White |
| POWER / RATINGS | |
| Heating - Reverse Cycle - Watts | 515/500 |
| Cooling - Watts | 605/570 |
| Voltage (MIN) | 208.0 |
| Cooling - Amperes | 2.4/2.6 |
| Heating - Electric - Heater Watts | 2535/2080 |
| Heating - Reverse Cycle - Amps | 2.22/2.6 |
| Voltage (MAX) | 230.0 |
| Heating - Reverse Cycle - COP | 3.4 |
| Heating - Electric - Heater Amps | 10.8/9.8 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |

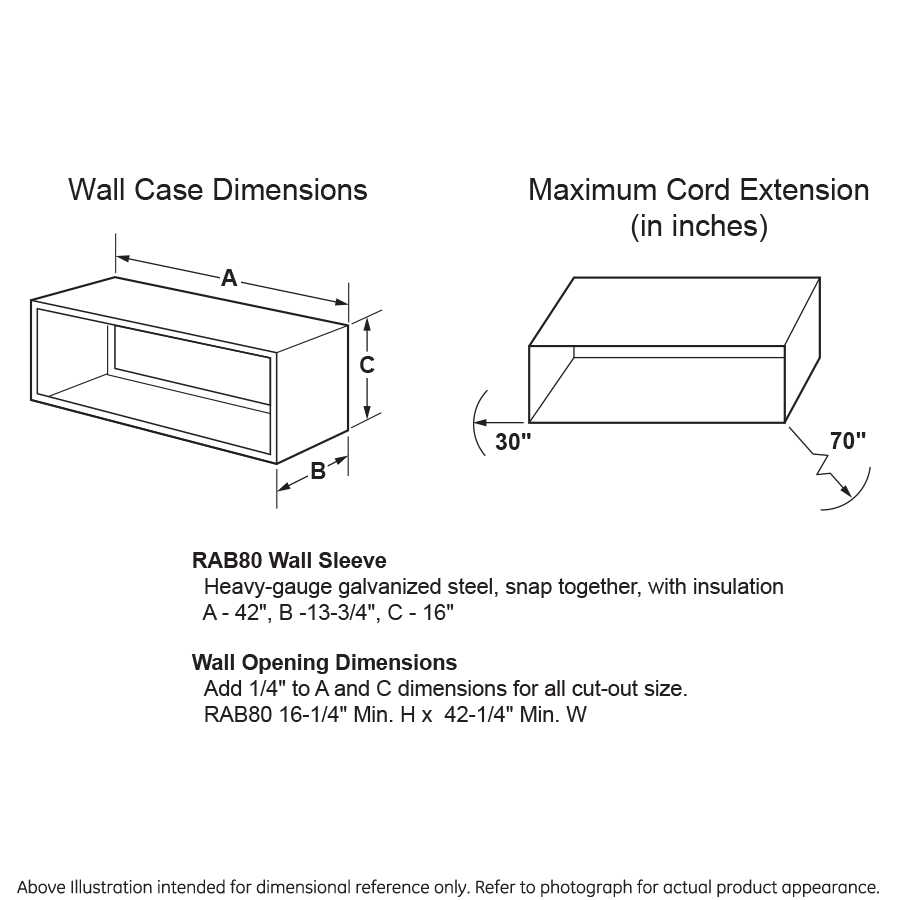

| WEIGHTS & DIMENSIONS | |
| Net Weight | 105.0 |
| Overall Depth | 21.0 |
| Overall Width | 42.0 |
| Overall Height | 16.0 |
| Approximate Shipping Weight | 116.0 |
| FEATURES | |
| Refrigerant Type | R410A |

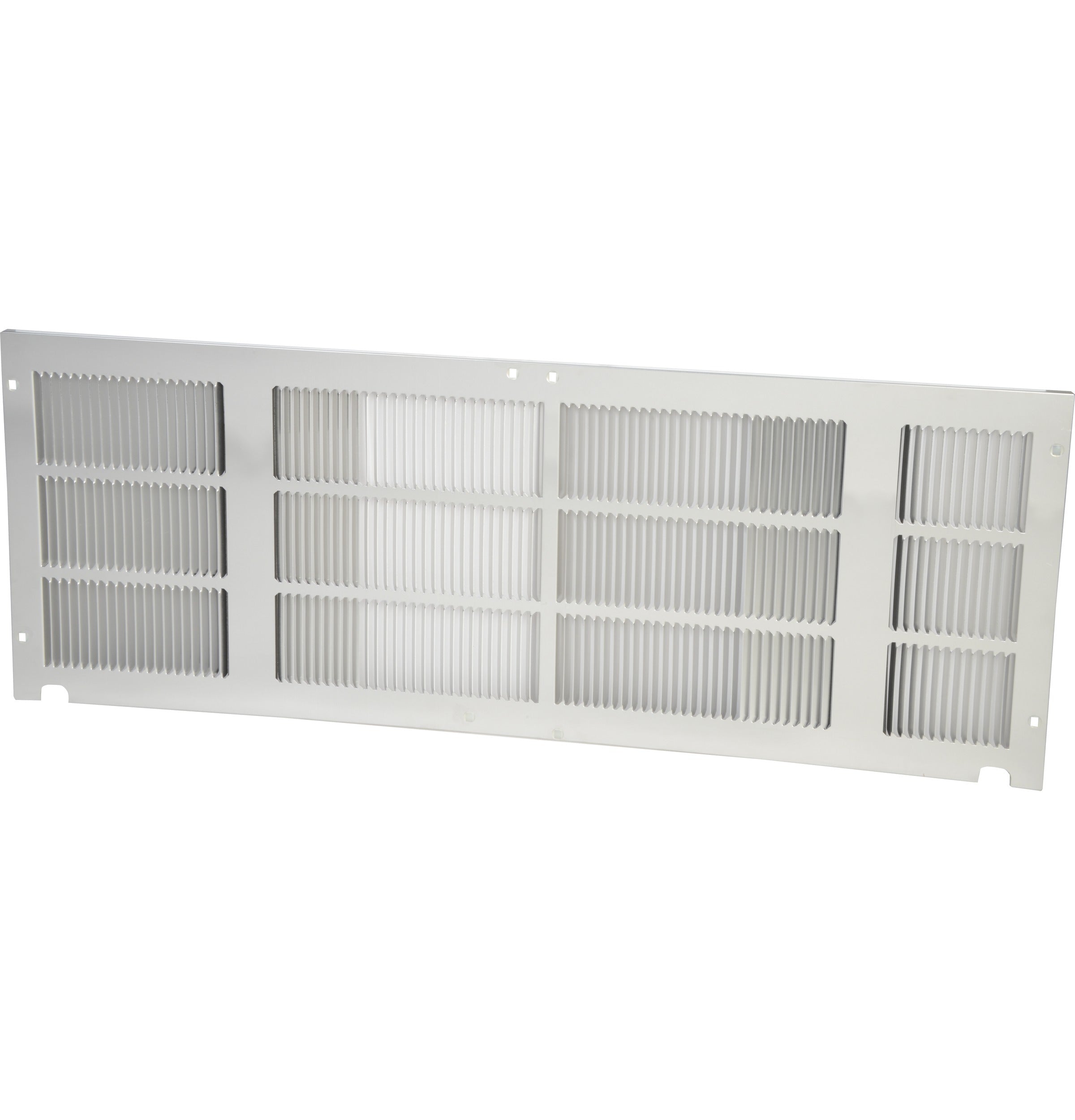

| Discharge Grille | 2-position |
| Heat Pump | Yes |

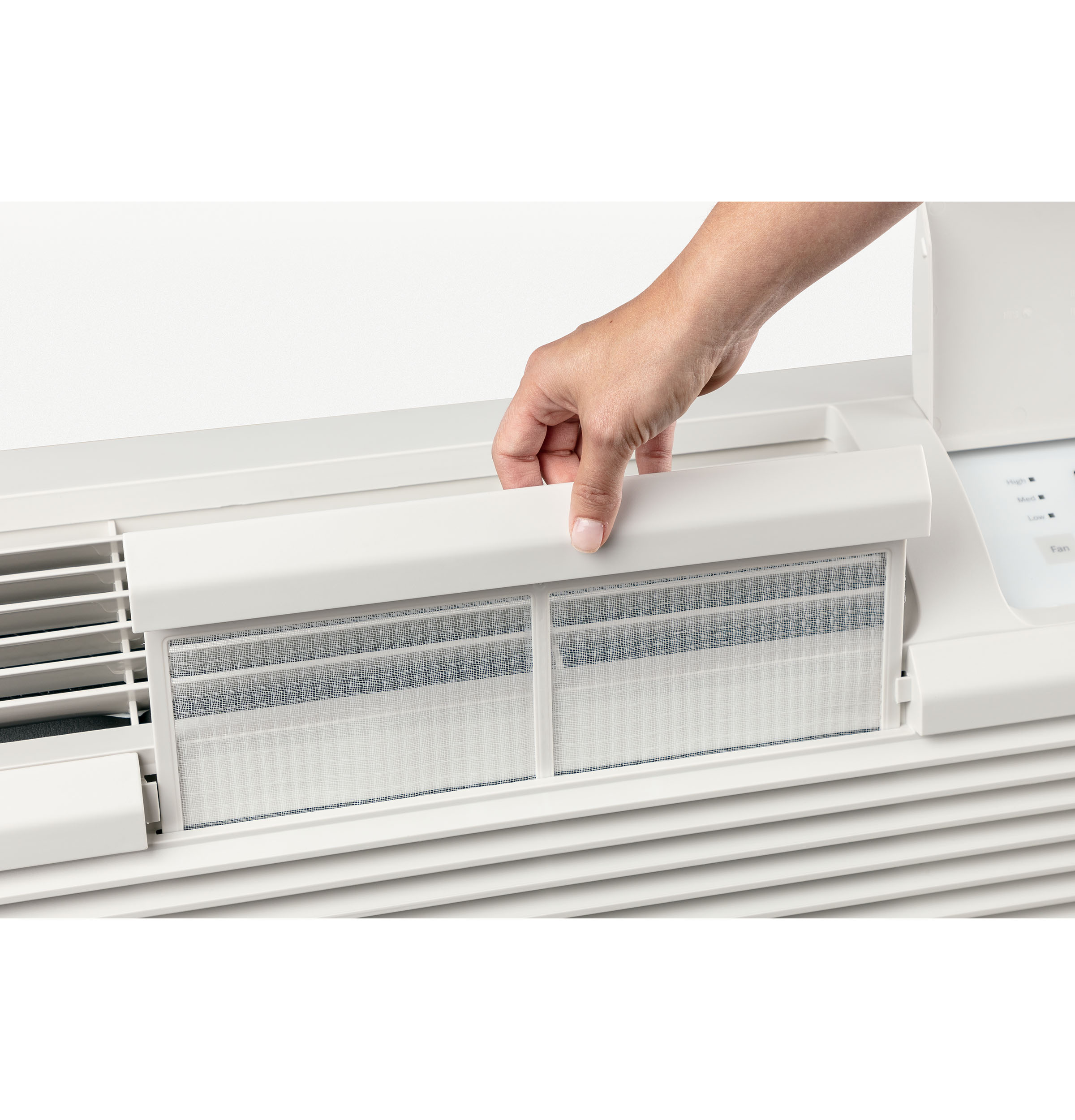

| Venting Features | Concealed Manual Vent Control Vent Air Filter |
| Heating System | Heat Pump with Resistance Backup |

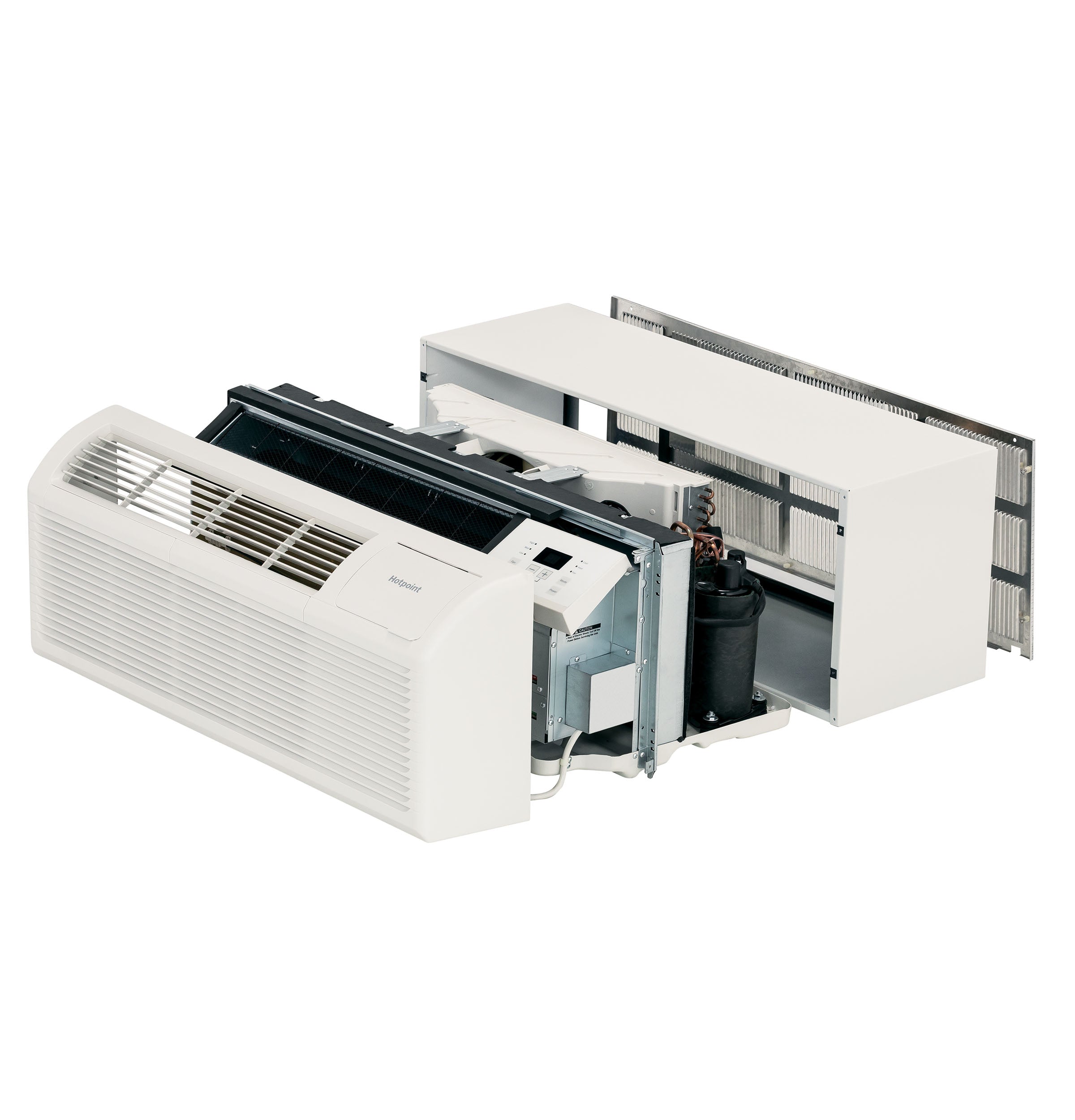

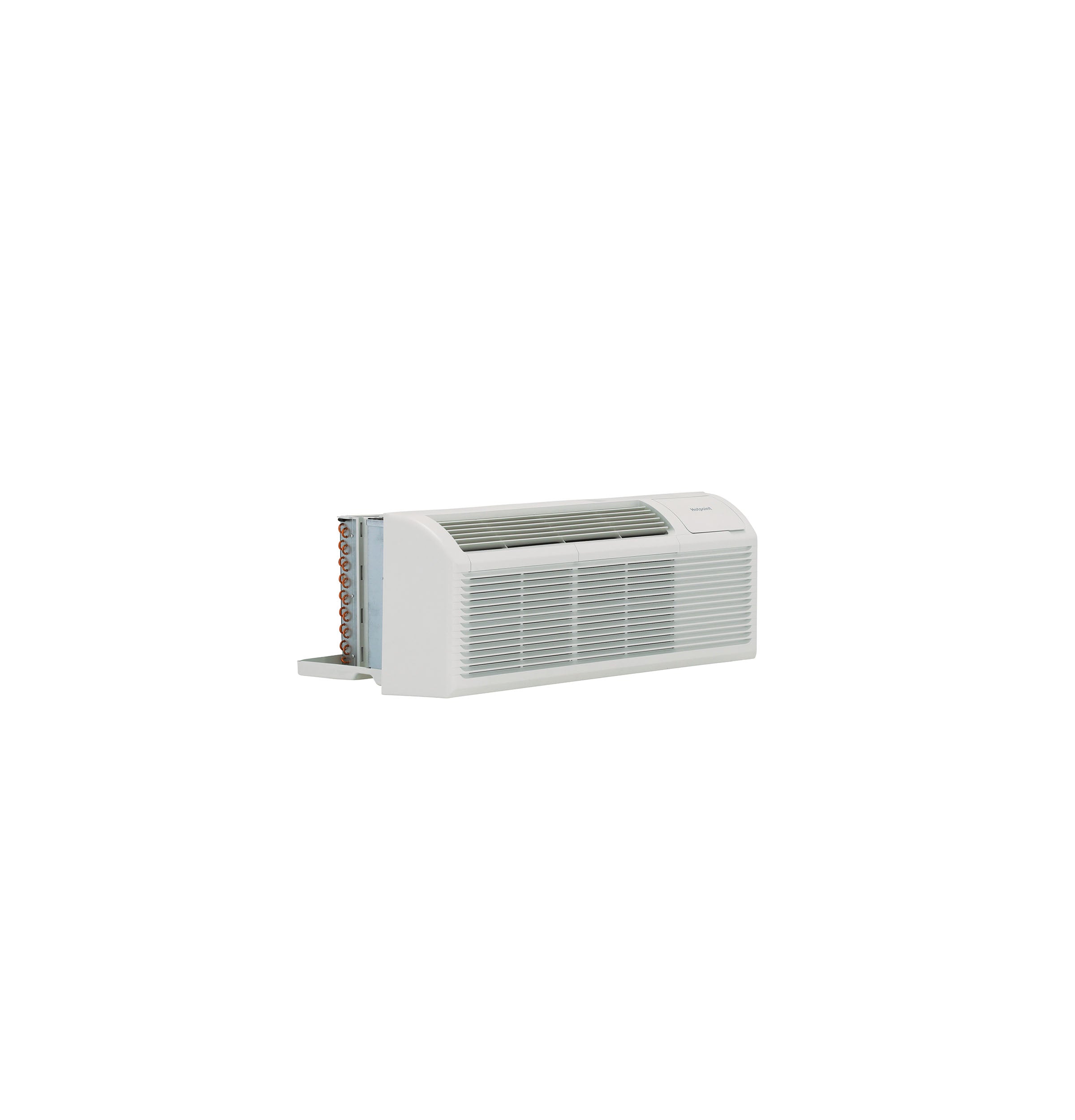

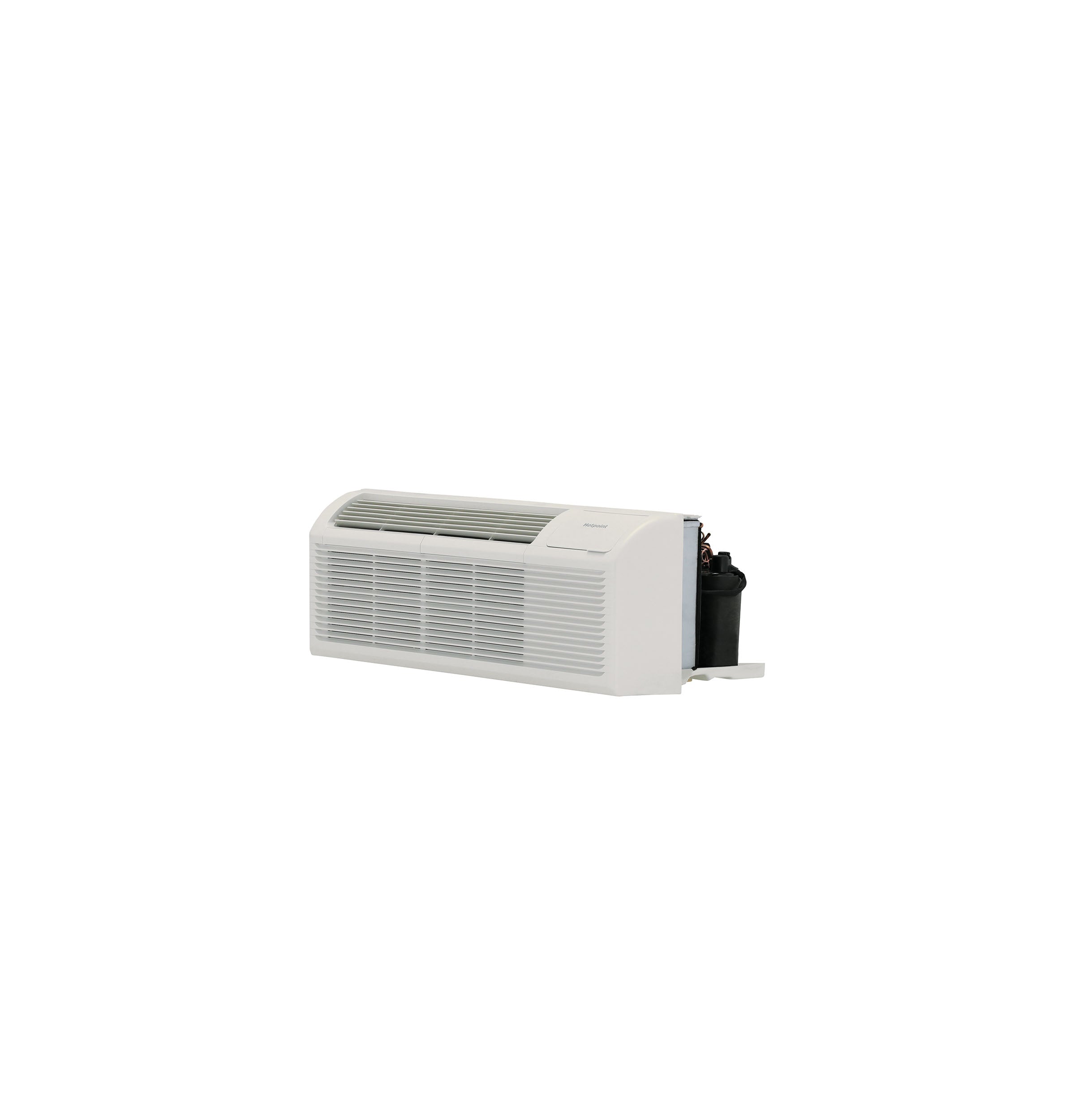

| Chassis Type | Slide-In |
| Rotary Compressor | Yes |
| Auto Power Recovery | Yes |
| Fan Speed Selections | 3 Cooling 3 Fan Only 3 Heating |
| Heat - Cool | Yes |
| Control Type | Electronic |
| Unit Features | Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility |
| Manual Vent Control | Hidden |
| Outdoor Vent / Exhaust | Yes |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| "SmartFan" Fan Cycle | Yes |
| Fan Motor | 2 |
| Temperature Range | 62 - 86 F |
- 3-speed fan
- Power cord (LCDI) included
- 4-temperature limiting options
- Freeze and frost protection
- Auto power recovery
- Self diagnostics
- Automatic emergency heat
- Backed by an industry leader
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

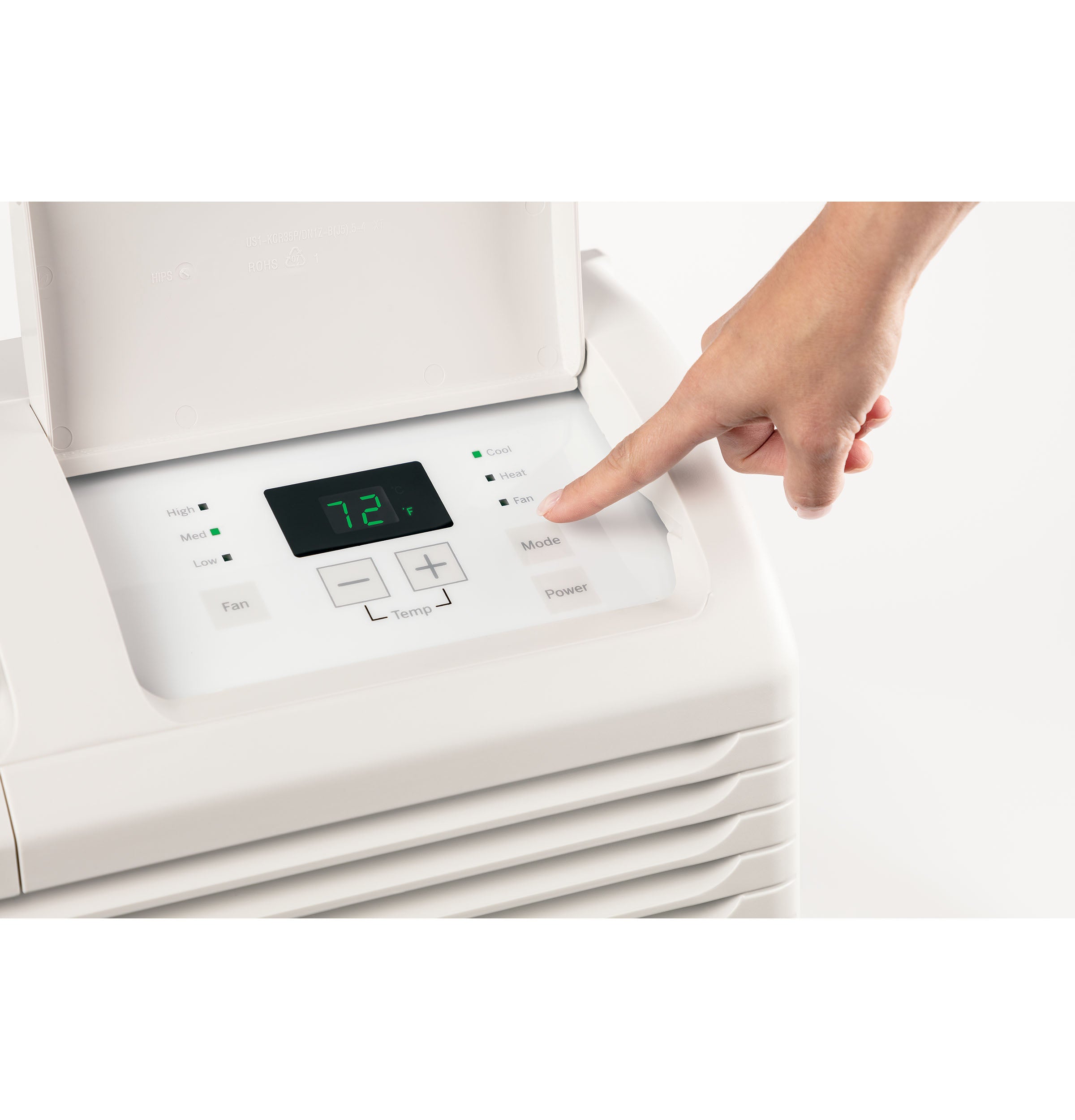

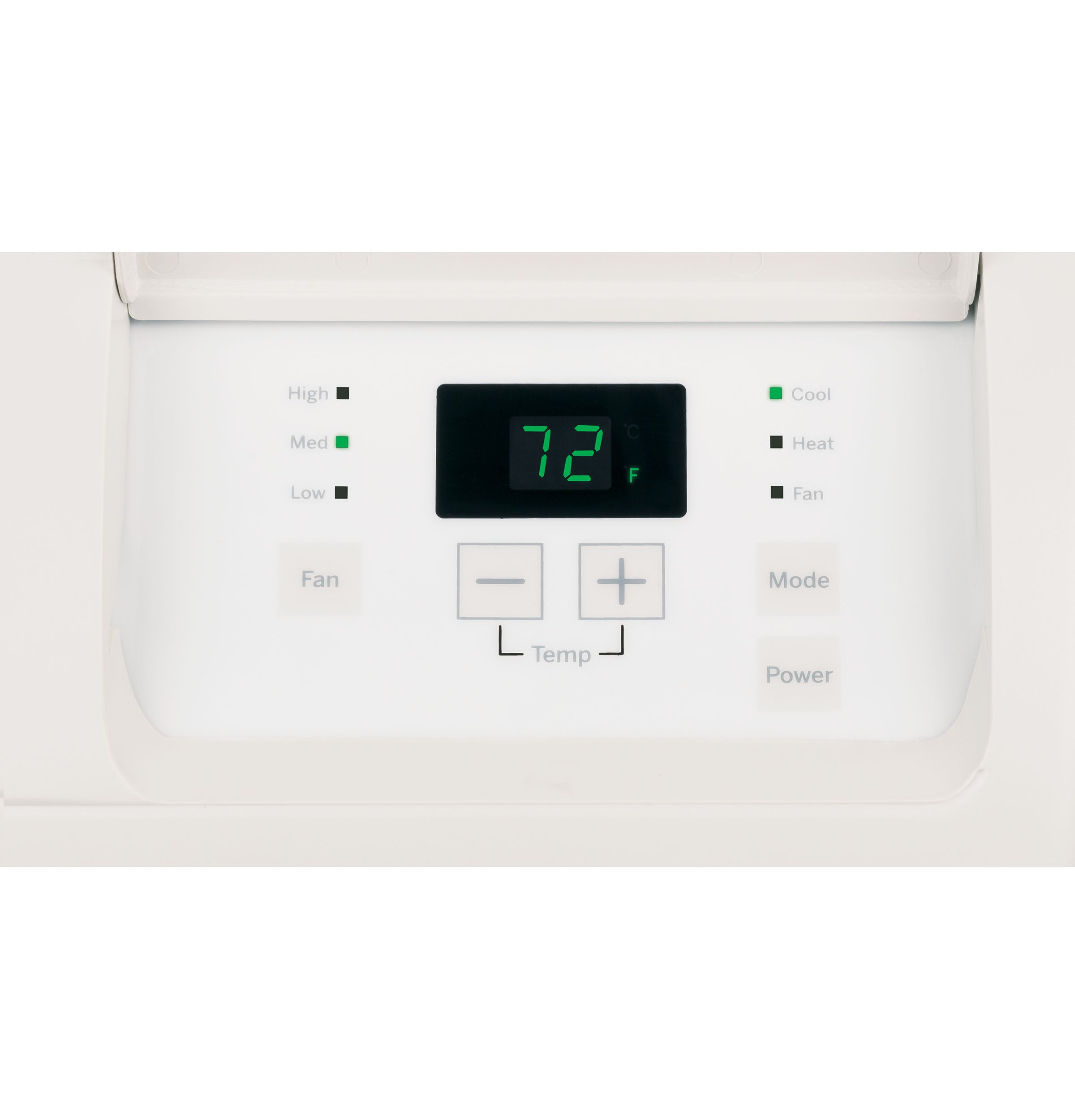

- Intuitive display
