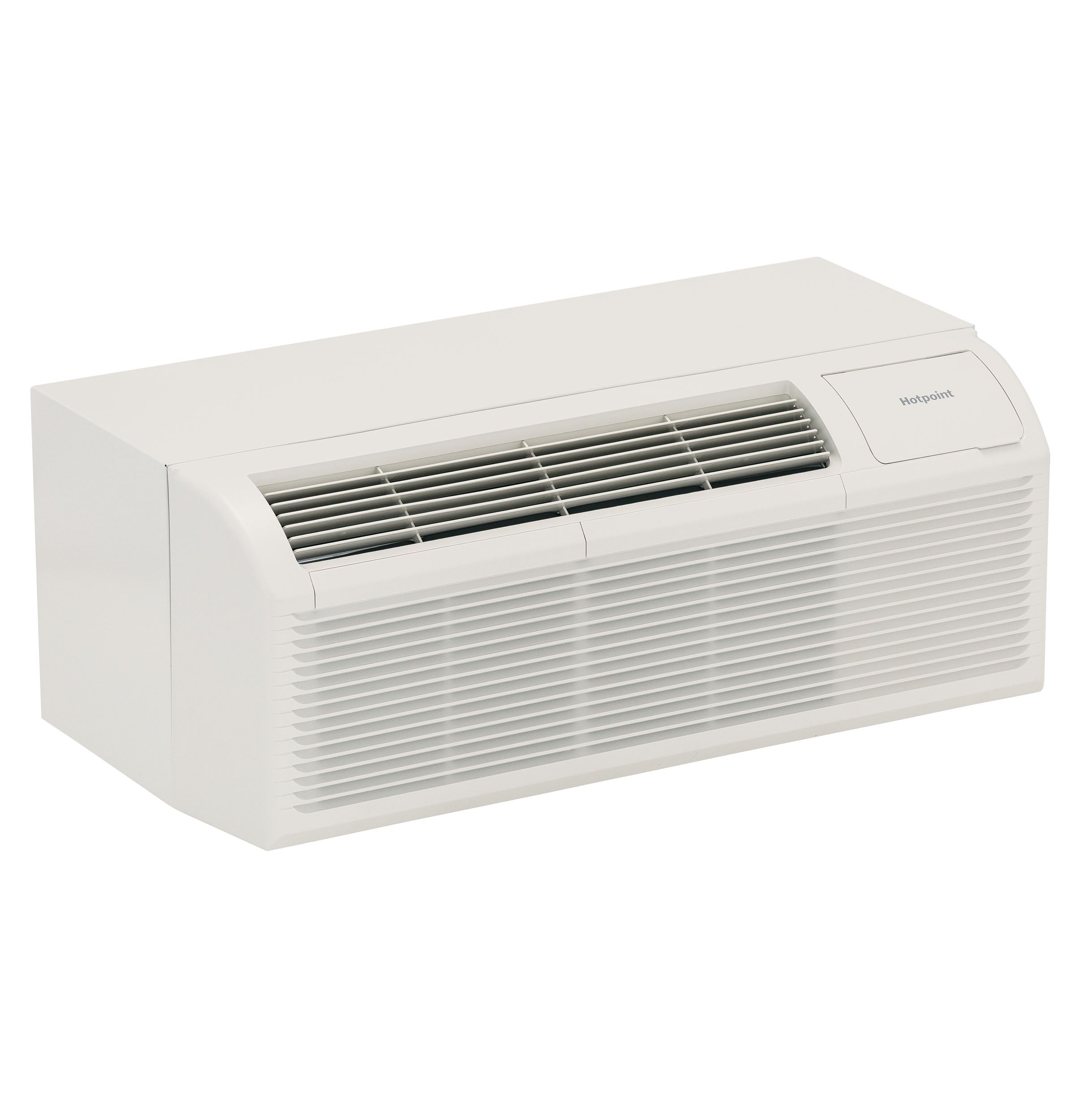

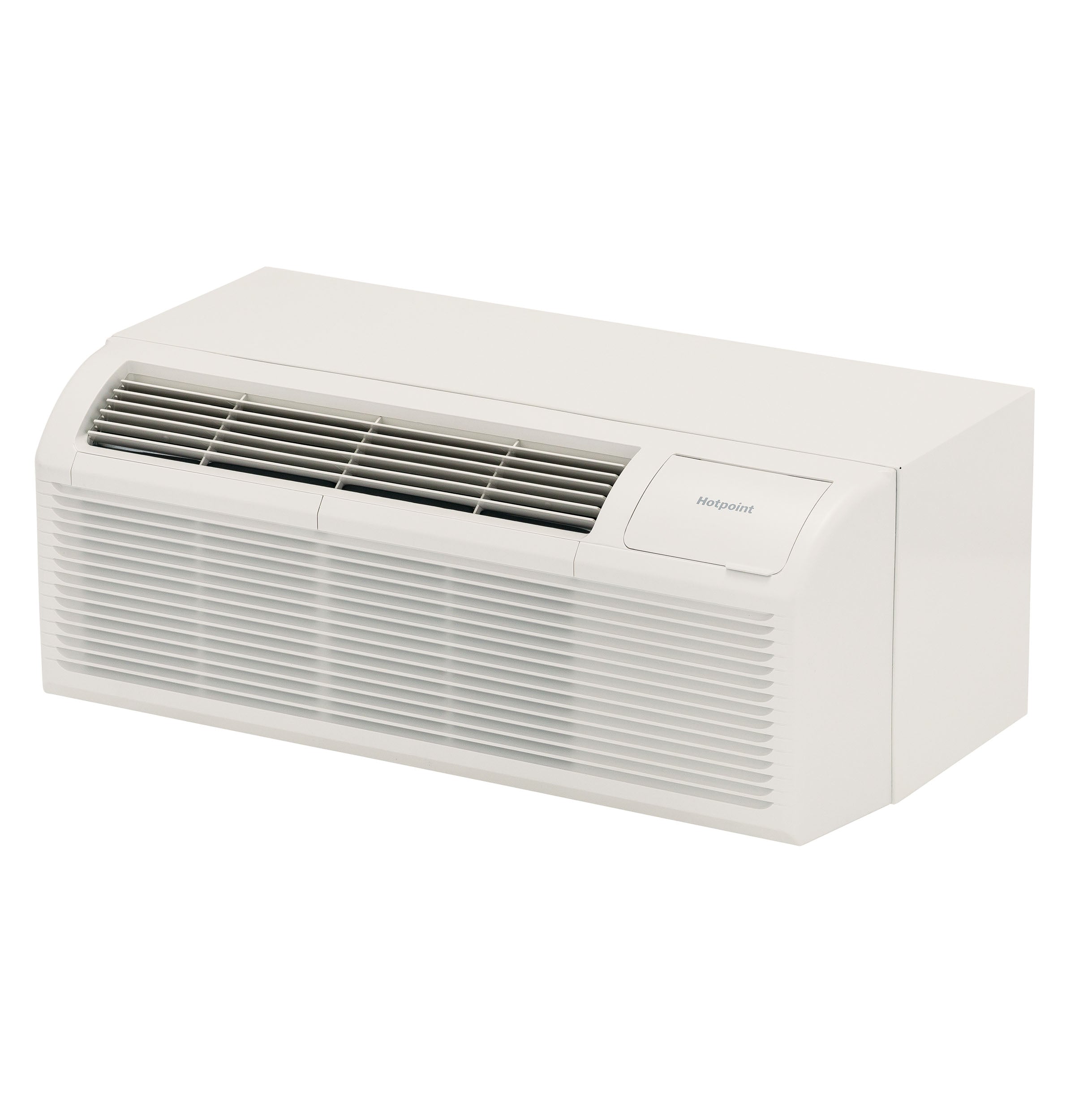

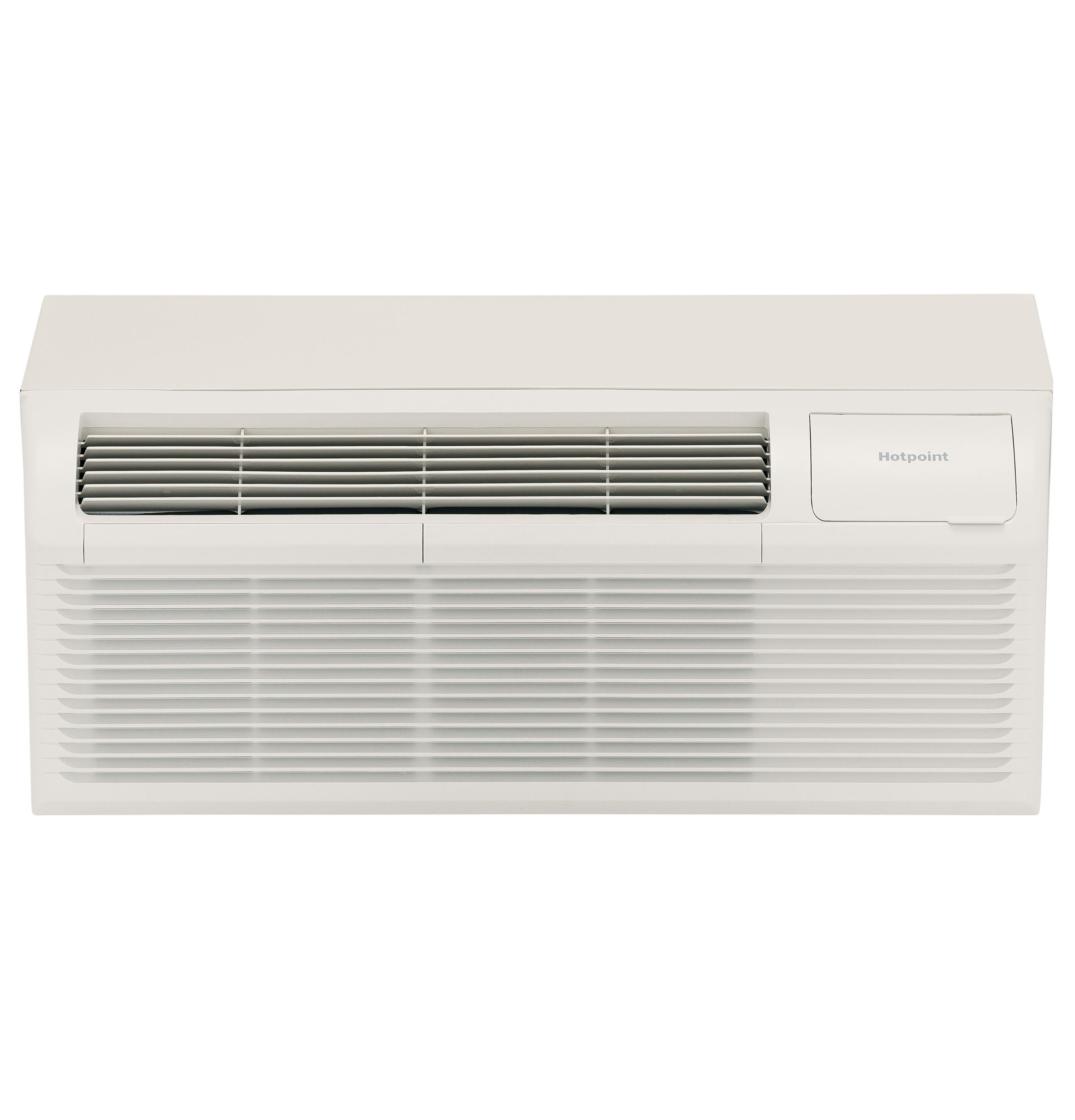

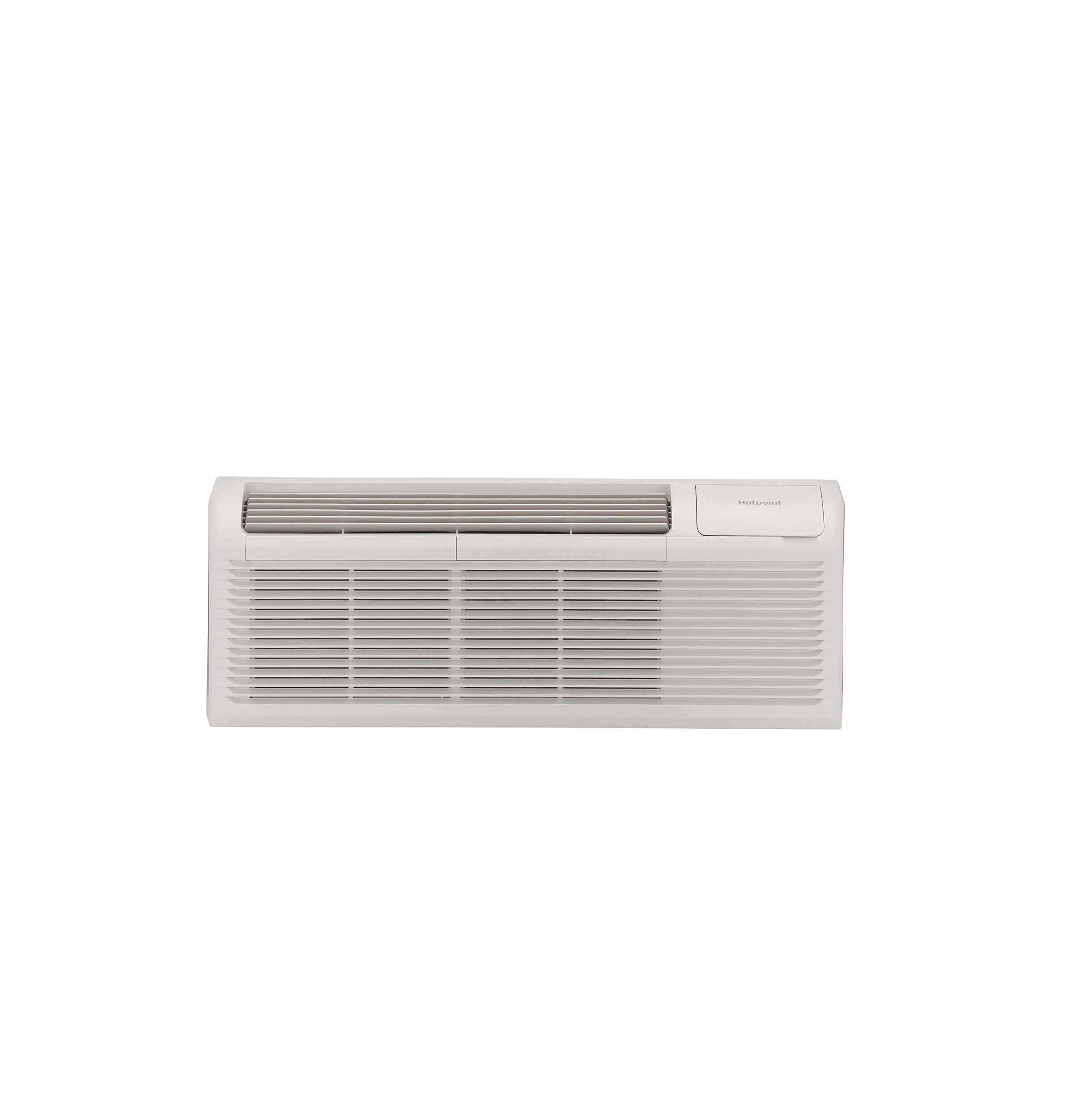

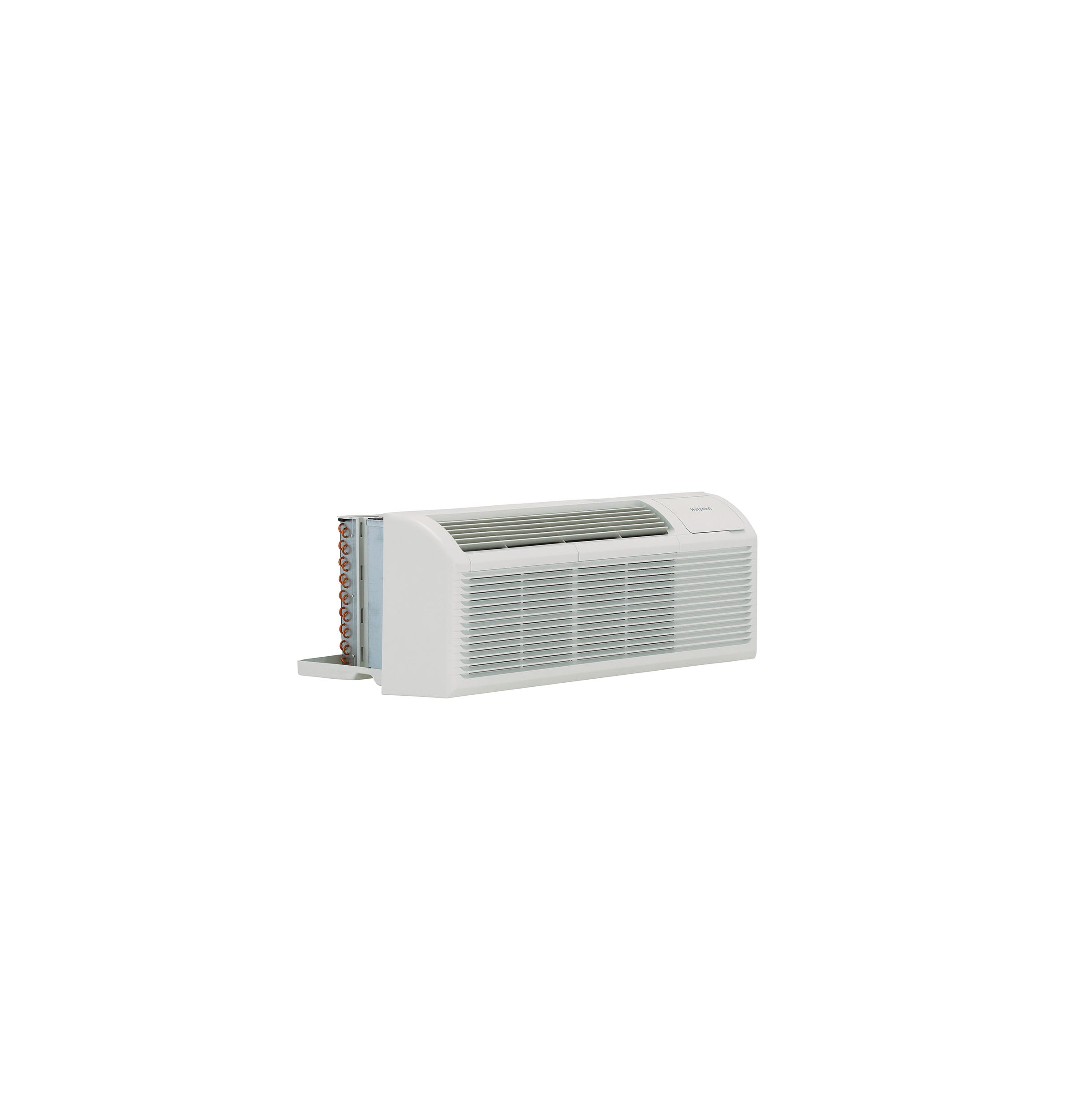

Hotpoint AH11E09D2B PTAC with Electric Heat 9,000 BTU,15 amps, 230/208 Volt White
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for Hotpoint AH11E09D2B
Technical Details
Capacity
| Cooling BTUH (MAX) | 9200 Btu |
| CFM Indoor Fan Low | 340 |
| CFM Indoor Fan Medium | 391 |
| CFM Indoor Fan High | 434 |
| Cooling EER (BTUH / Watt) | 11.3 |
| Cooling BTUH (MIN) | 9000 Btu |
Features
| Control Type | Electronic |
| Fan Speed Selections | 3 Heating |
| Discharge Grille | 2-position |
| Refrigerant Type | R410A |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |

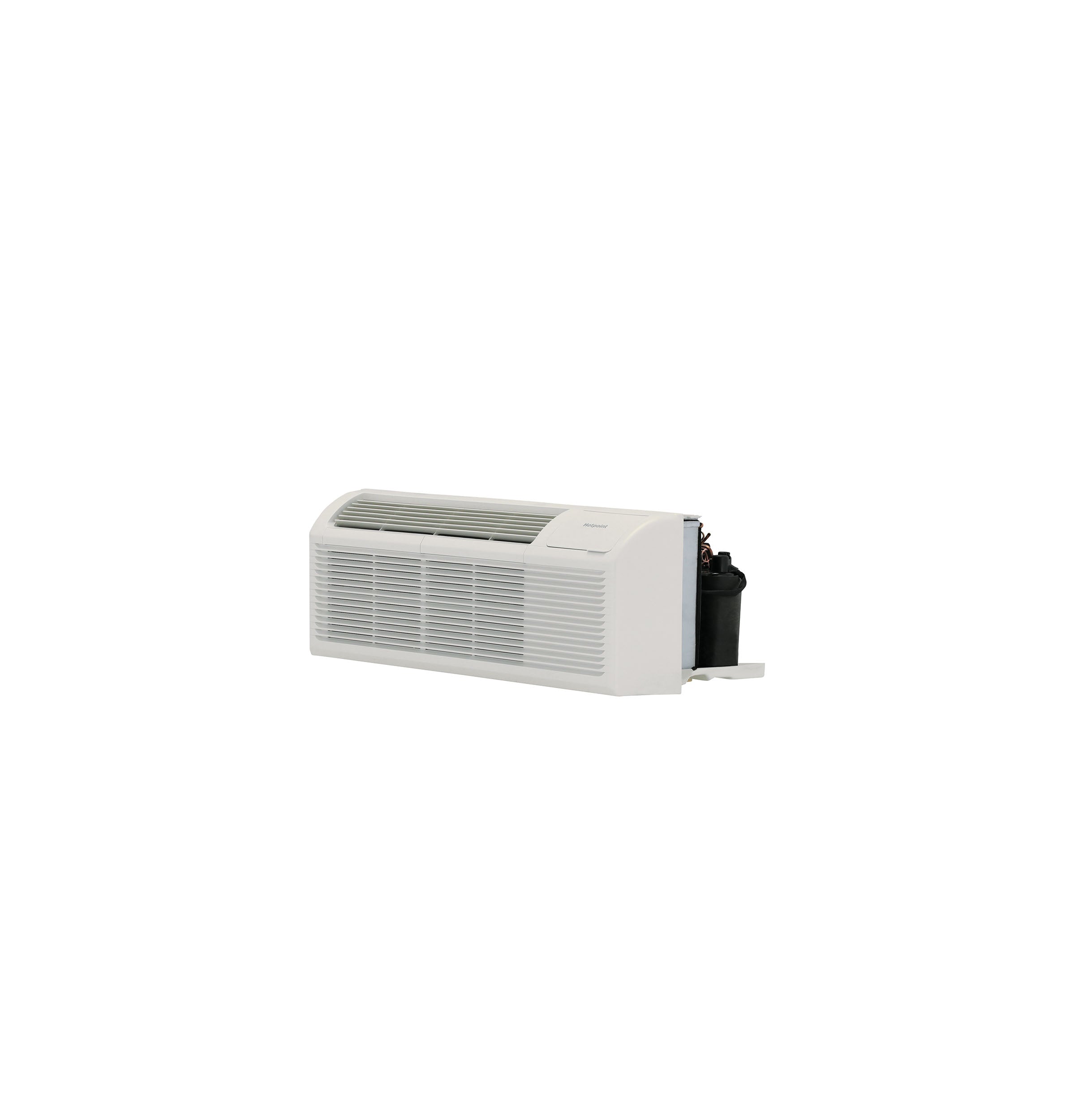

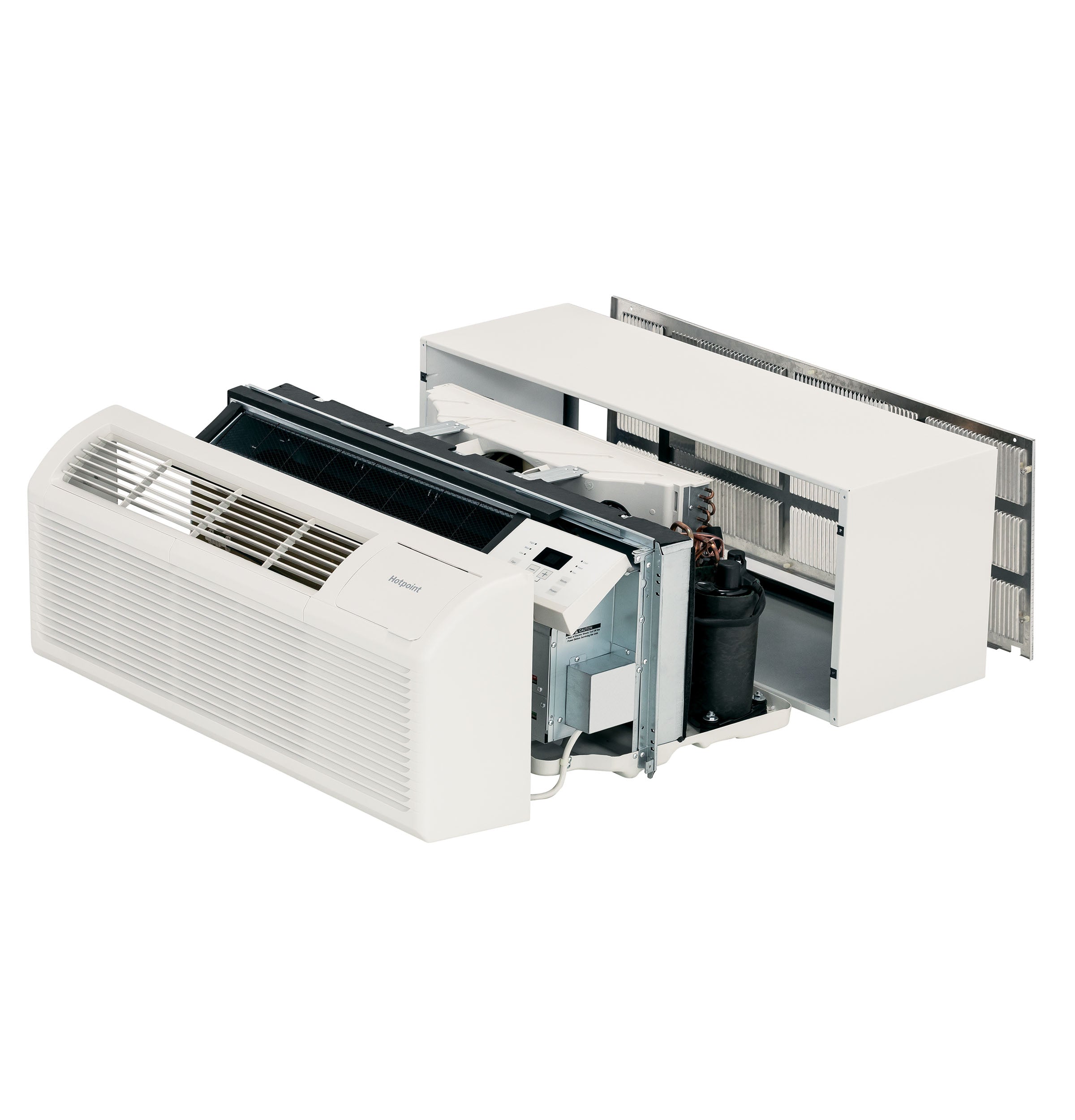

| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Unit Features | Remote Thermostat Compatibility |
| Temperature Range | 62 - 86 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Vent Air Filter |
| Heating System | Electric Resistance |
Warranty
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
Power / ratings
| Cooling - Amperes | 3.5/3.8 |
| Cooling - Watts | 810/795 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 2535/2080 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 10.8/9.8 |
Appearance
| Installation | Through-the-Wall |
| Color Appearance | White |

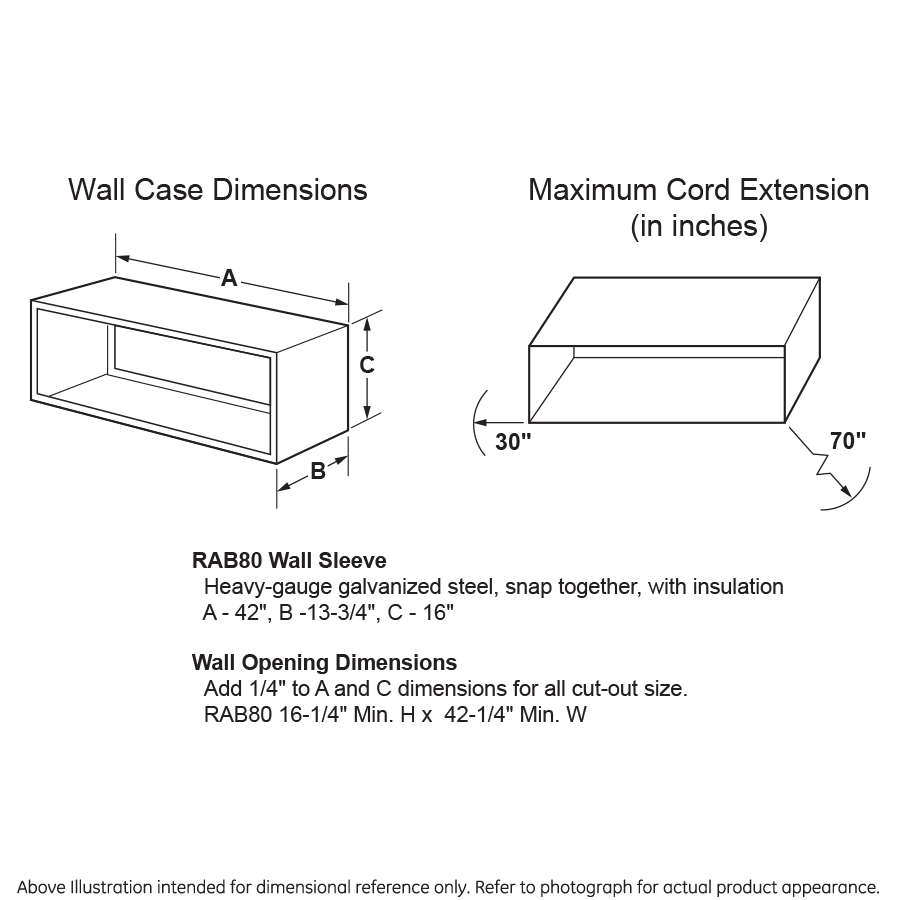

Dimensions & weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 21 in. |
| Weight | 98.1 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 138.1 lbs. |
| Total of Shipping Weight | 138.1 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 8.17 ft³ |
| Dimensional Weight | 101.53 lbs. |
| Total of Cubes | 8.17 ft³ |
| Total of Dimensional Weight | 101.53 lbs. |
Description
3-speed fan
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

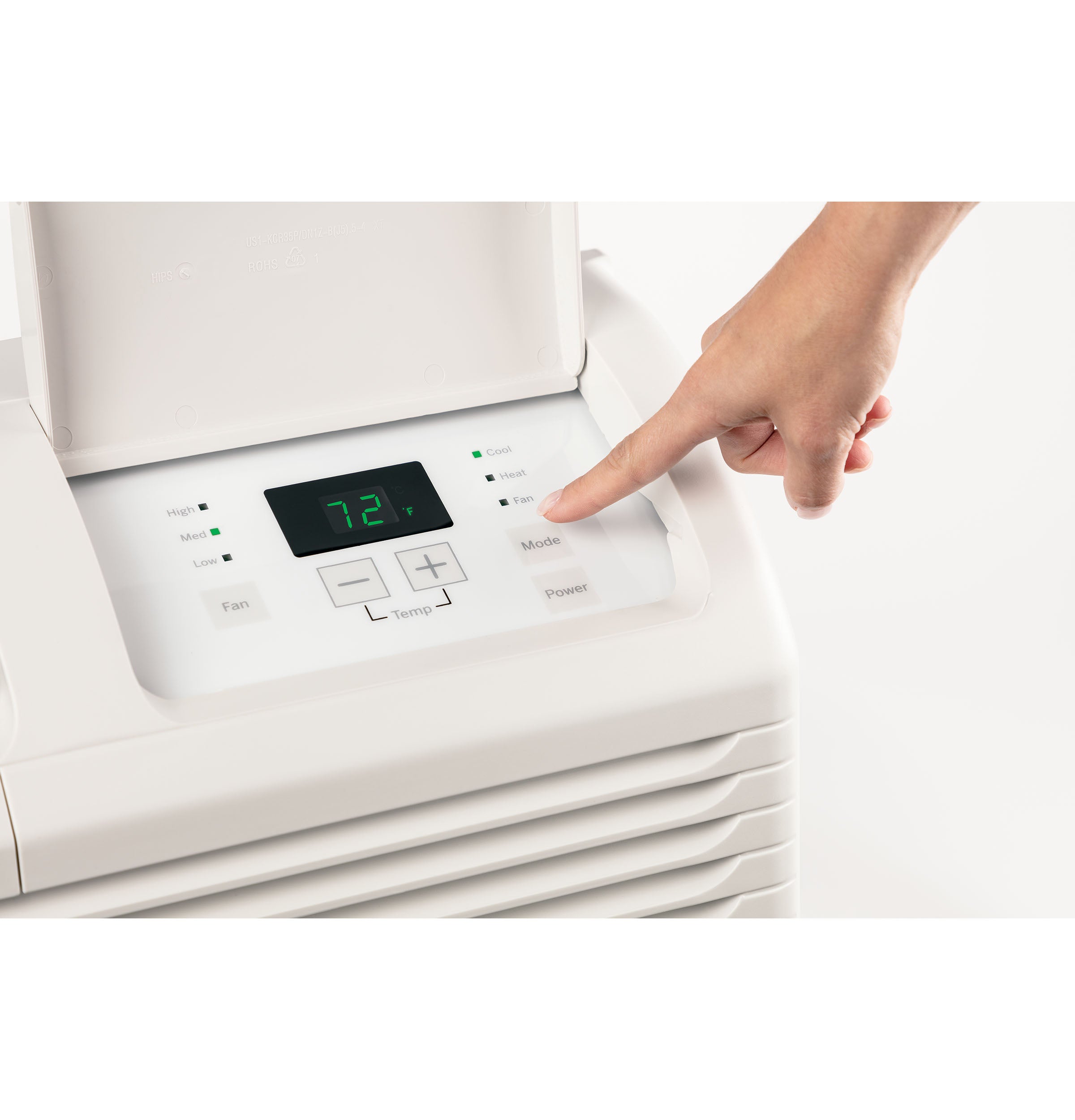

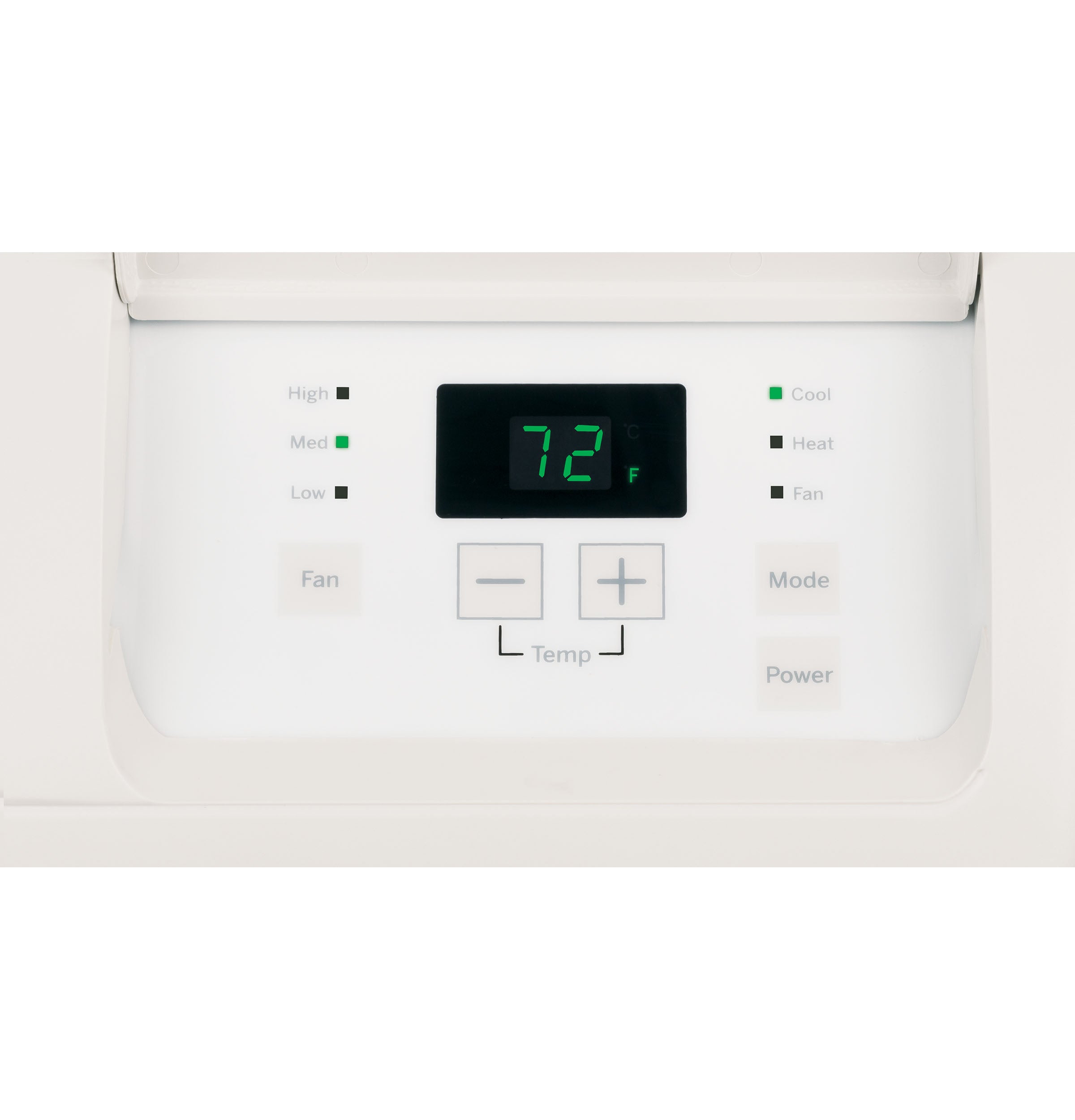

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Tangential fan for air flow and smooth sound

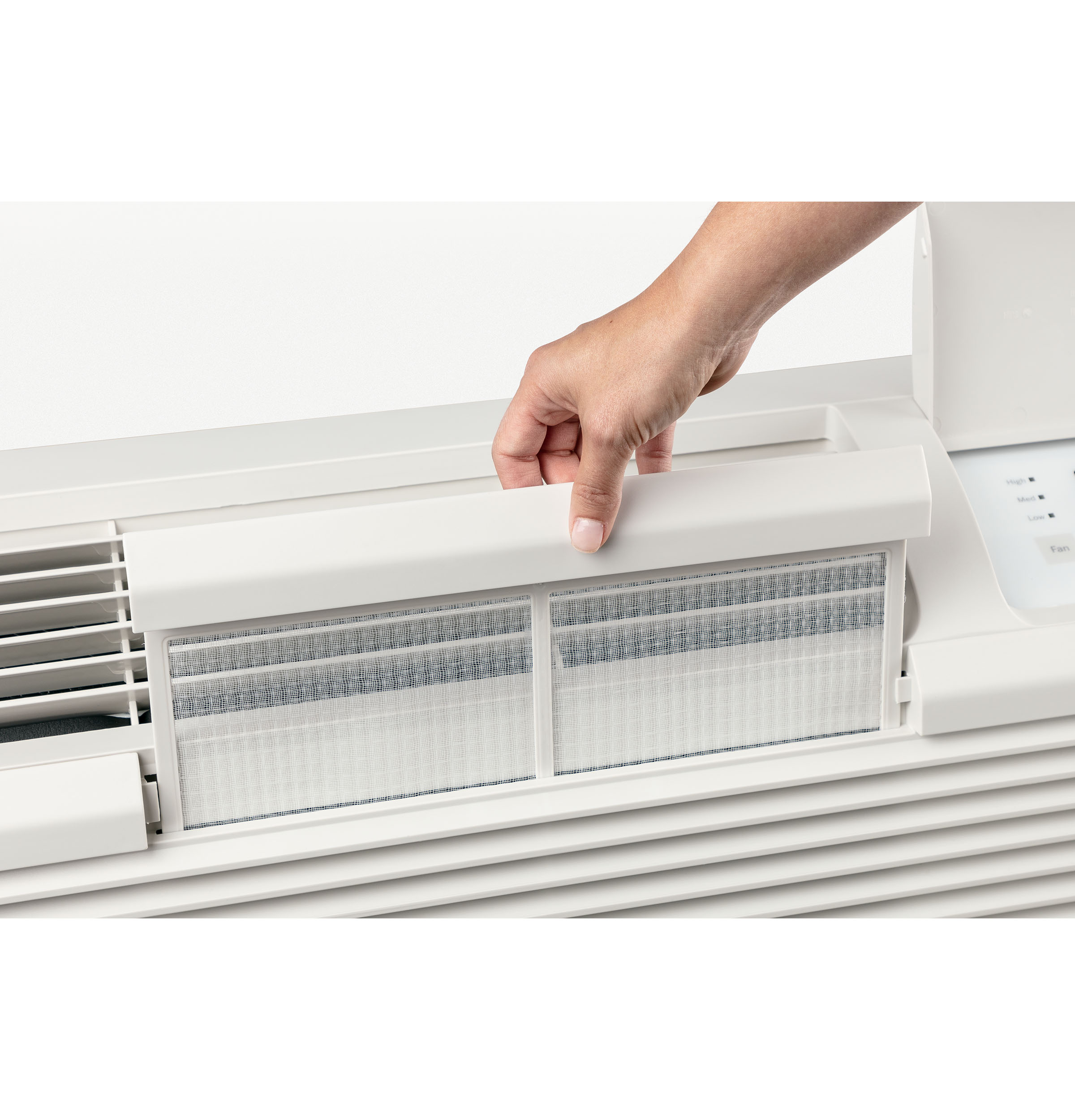

Removable filters for easy maintenance
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Tangential fan for air flow and smooth sound
Removable filters for easy maintenance
Product Features
-
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort -
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition -
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls -
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system -
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode -
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand -
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network -
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation - Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound
Manuals & Guides
Key Features
3-speed fan
Give guests control over their comfort with three fan speeds to choose from
Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
Removable filters for easy maintenance
