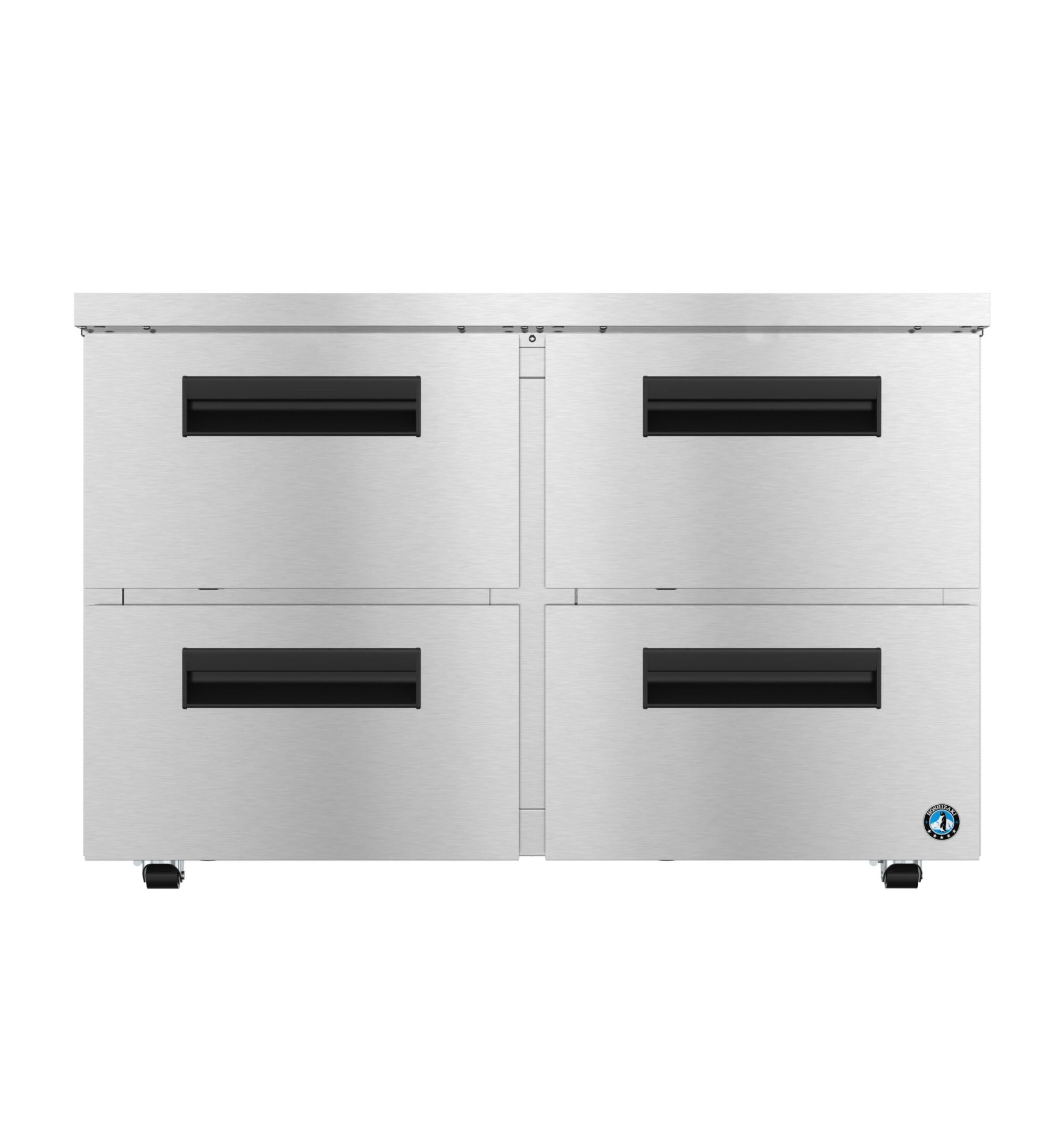

Hoshizaki UR48BLPD4 Low Profile Refrigerator, Two Section Undercounter, Stainless Drawers Stainless Steel
Sale price
Contact us for Pricing
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for HOSHIZAKI UR48BLPD4
Technical Details
Dimensions & weight
| Weight | 314 lbs. |
| Width | 48 in. |
| Depth | 30 in. |
| Height | 31.9 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Weight | 354 lbs. |
| Total of Shipping Weight | 354 lbs. |
| Source | Calculation |
Product details
| Electrical Specs | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.05 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290 |
| Refrigeration Data | Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 278 BTU/hr |
| Shipping Weight | 314 |
| Storage Specs | Nominal storage capacity: 12 ft3, Interior storage capacity: 12 ft3, Drawer opening: 19.5″ W x 23″ H, Depth with drawer fully extended: 51″ D, Drawers included: 4 |
Warranty
| Parts | 7 Years |
| Labor | 7 Years |
| Compressor | 7 Years |
Description
The UR48B-LPD4 Steelheart Series Undercounter two section low profile refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter low profile refrigerator and front air flow design is perfect for hot/tight kitchens. The UR48B-LPD4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
Product Features
- Innovative air distribution system distributes air evenly to maintain product temperature
- Net capacity of 12 cubic feet
- Enamel coated evaporator coil for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
- Extruded aluminum flush mount drawer handles
- (4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
- Drawers capacity: Bottom drawers will accommodate (1) 1/2 size pan and (1) 1/3 size pan. Top drawers will accommodate (1) 1/2, (1) 1/3, (1) 1/4 , and (1) 1/6 size pans. Alternate pan orientation (top drawers only) provides (1) full size pan positioned front-to-back and (3) 1/9 size pans (pans by others)
- R290 refrigerant
- Nominal Compres. of 1354 BTU/hr at 1/5 HP
- 115v/60/1, 10 ft. cord and plug
- 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)
