SKU: UF48A

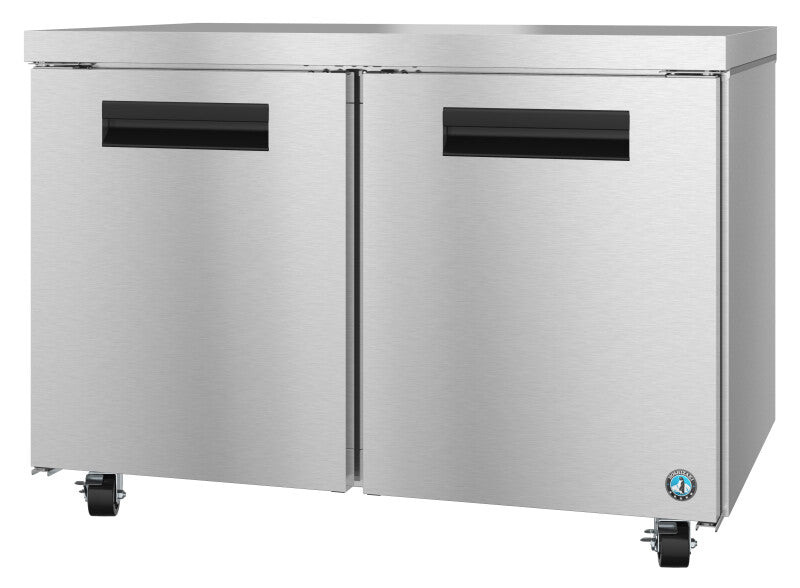

Hoshizaki UF48A Freezer, Two Section Undercounter, Stainless Doors Stainless Steel

Quick Specification More details

Width:
48"
Depth:
30"
Height:
33.63"
Type:
Chest Freezers

About this product

Dimensions: 48″ W x 30″ D x 33.63″ H
Net capacity of 12 cubic feet
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)

Summer Sale

Clearance

SKU: UF48A

Hoshizaki UF48A Freezer, Two Section Undercounter, Stainless Doors Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
30"
Height:
33.63"
Type:
Chest Freezers

About this product

Dimensions: 48″ W x 30″ D x 33.63″ H
Net capacity of 12 cubic feet
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI UF48A

Technical Details

Dimensions & weight

Weight	270 lbs.
Width	48 in.
Depth	30 in.
Height	33.63 in.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Weight	310 lbs.
Total of Shipping Weight	310 lbs.
Source	Calculation

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.64 kwh/day, Amperage: 5.9, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, Refrigerant: R290
Refrigeration Data	Nominal Compres. of 1360 BTU/hr at 1/3 HP, Heat Rejection: 656 BTU/hr
Shipping Weight	270
Storage Specs	Nominal storage capacity: 13.66 ft3, Interior storage capacity: 12 ft3, Door opening: 19.5″ W x 23″ H, Depth with door fully extended: 52″ D, Shelves included: 2

Warranty

Parts	3 Years
Labor	3 Years

Description

The UF48A Steelheart Series Undercounter two section freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF48A is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

Product Features

Dimensions: 48″ W x 30″ D x 33.63″ H
Net capacity of 12 cubic feet
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
Extruded aluminum flush mount door handle
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
(2) stainless steel doors with ABS interior liner
Insulated with 2″ CFC free, foamed in place polyurethane
(2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 4″ Stem Casters (2 with brakes) are standard
Optional kits: 2.25″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves, Locks
Nominal Compres. of 1360 BTU/hr at 1/3 HP
115v/60/1, 10 ft. cord and plug
Shipping Crate: 51″ L x 32″ D x 36″ H at 270 lbs
Automatic time-initiated heated defrost
Five Years compressor warranty, Three Years parts and labor warranty
