SKU: RM45SD

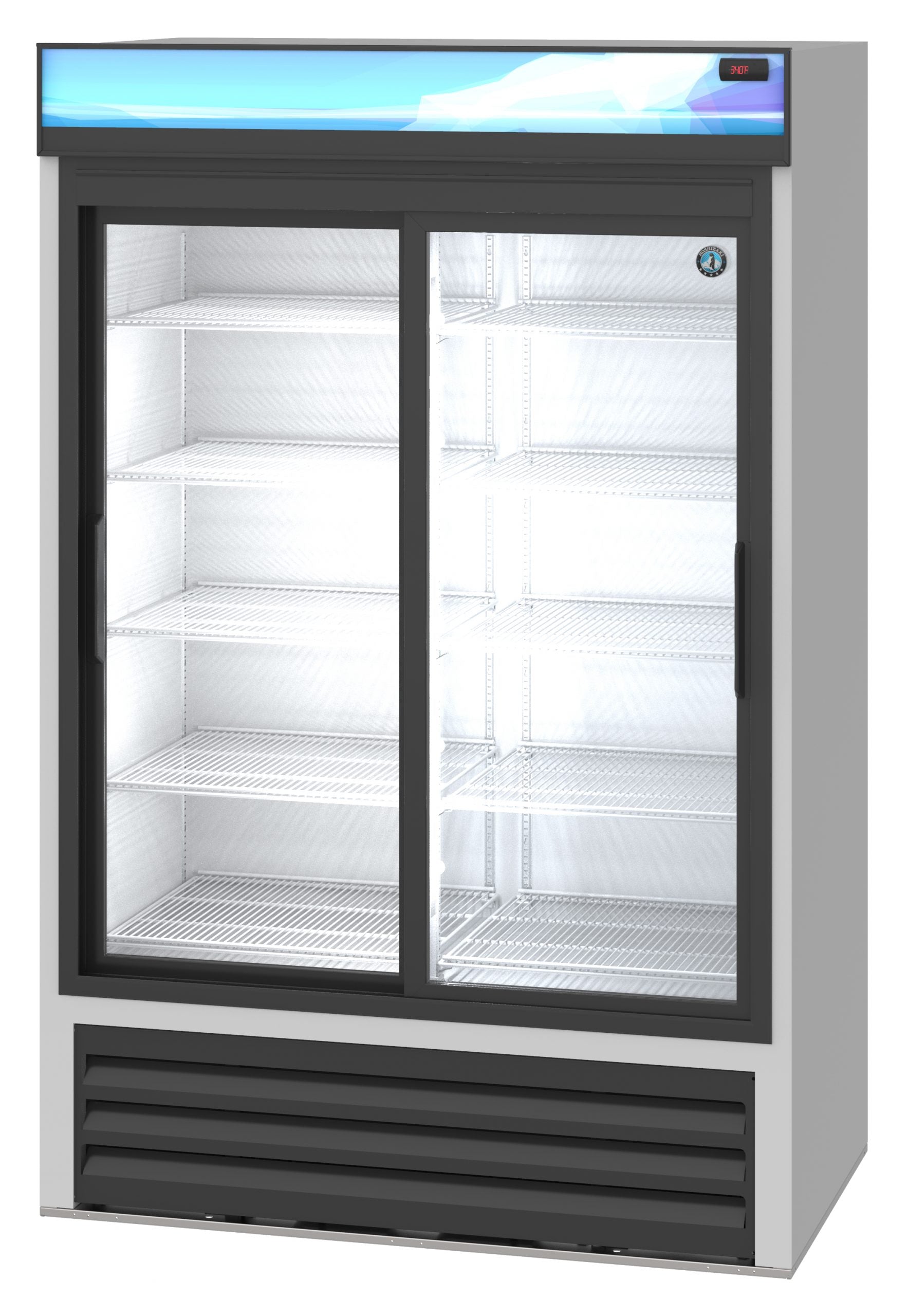

Hoshizaki RM45SD Refrigerator, Two Section Glass Door Merchandiser Stainless Steel

Quick Specification More details

Width:
51"
Depth:
30.25"
Height:
78.25"
Type:
Beverage Centers

About this product

Discontinued – Replaced by RM-45-SD-HC
Dimensions: 51″ W x 30.25″ D x 78.25″ H
Storage capacity of 45ft3 (560: 20oz Bottles, or 1260: 12oz Cans)
Nominal Compres. of 2466 BTU/hr at 1/2 HP

SKU: RM45SD

Hoshizaki RM45SD Refrigerator, Two Section Glass Door Merchandiser Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
51"
Depth:
30.25"
Height:
78.25"
Type:
Beverage Centers

About this product

Discontinued – Replaced by RM-45-SD-HC
Dimensions: 51″ W x 30.25″ D x 78.25″ H
Storage capacity of 45ft3 (560: 20oz Bottles, or 1260: 12oz Cans)
Nominal Compres. of 2466 BTU/hr at 1/2 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Hoshizaki RM45SD

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 3.84 kwh/day, Amperage: 11.8, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 60 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 34 – 40°F, Refrigerant: R-134a
Refrigeration Data	Nominal Compres. of 2466 BTU/hr at 1/2 HP, Heat Rejection: 1357 BTU/hr
Shipping Weight	545
Storage Specs	Nominal Storage Capacity: 45ft3, 20oz Bottle Capacity: 560, Door Opening: 51″ W x 51.69″ H , Depth with Door fully extended: 23.56″ D, Shelves Included: 5 per section

Dimensions & weight

Width	51 in.
Depth	30.25 in.
Height	78.25 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The RM-45-SD Glass Door Merchandiser is a Two Section Refrigerator with a Full Glass Sliding Doors is the perfect beverage or packaged product display for any operation. It boasts an impressive Storage capacity of 45ft3 (560: 20oz Bottles, or 1260: 12oz Cans). The durable 1/2 HP motor that powers the compressor in the bottom of this unit efficiently cools the interior cabinet with a forced air evaporator for quick cool down. It’s Automatic hot gas loop on front edge of cabinet prevents condensation particularly in hot humid environments!

Product Features

Discontinued – Replaced by RM-45-SD-HC
Dimensions: 51″ W x 30.25″ D x 78.25″ H
Storage capacity of 45ft3 (560: 20oz Bottles, or 1260: 12oz Cans)
Nominal Compres. of 2466 BTU/hr at 1/2 HP
Electrical consumption of 3.84 kWh/day at 11.8 Amps, 8 ft long cord with a 5 – 15P NEMA plug
Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
Large glass sliding doors are energy efficient Low-E multi pane glass
Door frame recessed handle
Self closing sliding doors with spring assist and stay open feature
Forced air evaporator for quick temperature pull down
Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent
Silver painted aluminum exterior, white steel interior with stainless steel floor
Electronic controller with visual and audio temperature alarms and LED display (°F or °C)
R-134a refrigerant
Energy efficient LED interior product lights and exterior canopy lights
Refrigerant flow is controlled with a capillary tube
Includes (5 per section) white epoxy coated wire coated wire shelves with product stops
Stainless steel shelf clips adjustable in 1/2″ increments on anodized aluminum supports
Standard with (8) 2″ Leveling Legs
Optional kits: Additional epoxy shelf, price tag holder, organizer shelf, 4″ casters, 2.25″ casters
115v/60/1, 8 ft. cord and plug
Shipping Crate: 55″ L x 34″ D x 85″ H at 545 lbs
Automatic hot gas loop on front edge of cabinet prevents condensation
Five Years compressor warranty, Three Years parts and labor warranty
