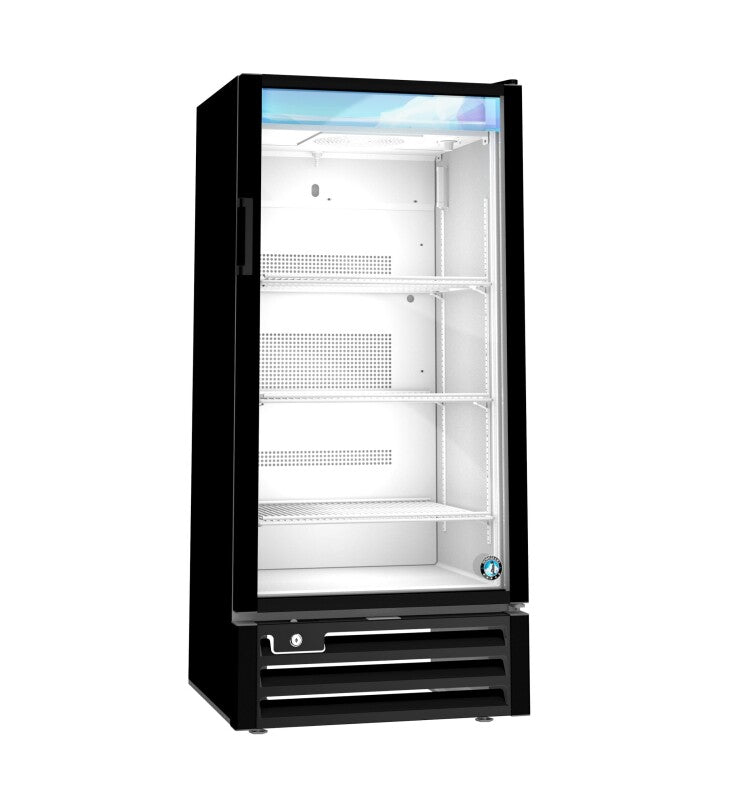

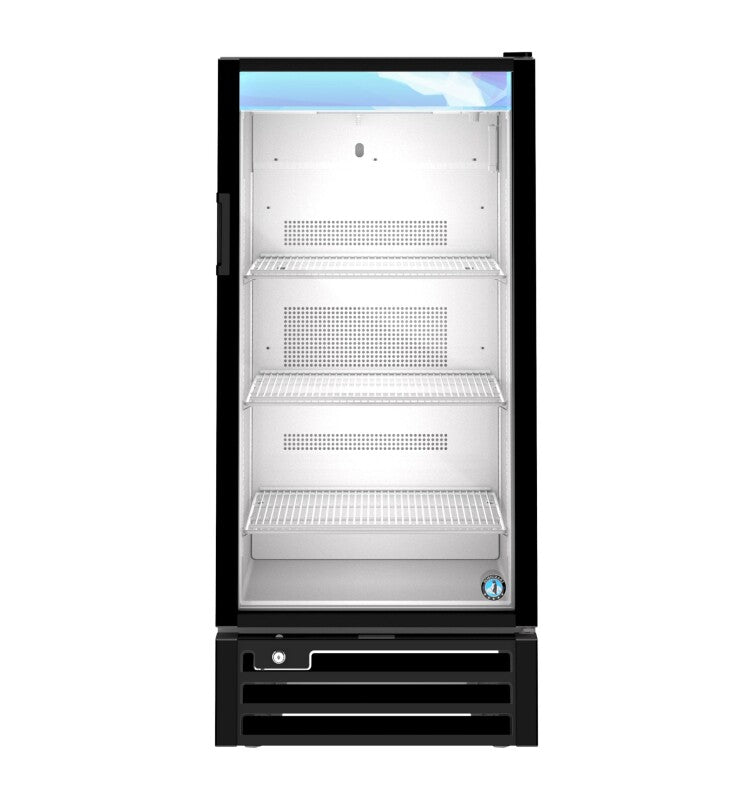

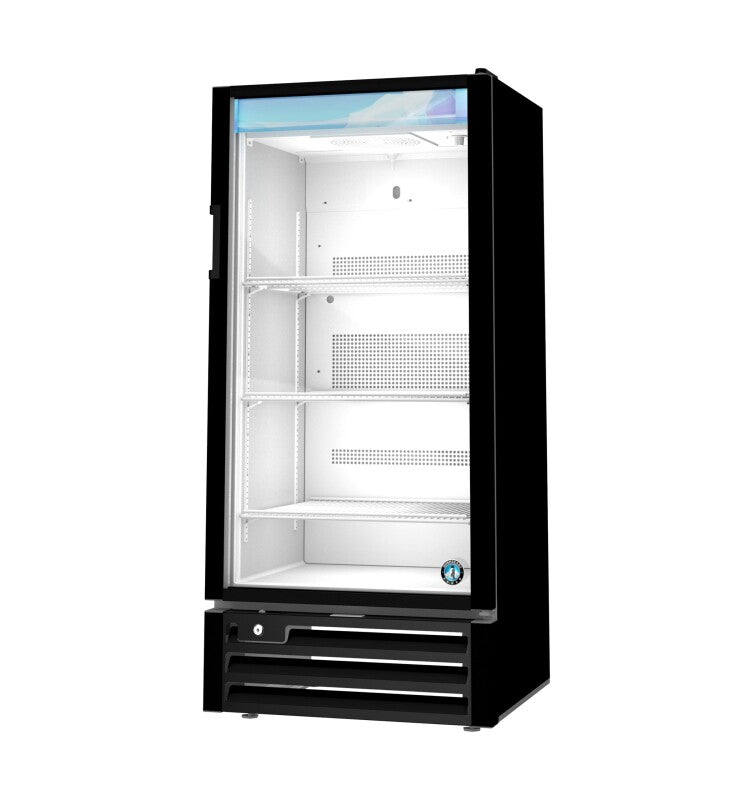

Hoshizaki RM10HCBLK Refrigerator, Single Section Glass Door Merchandiser – Black Exterior
Sale price
Contact us for Pricing
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Products
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Sale price
Contact us for Pricing
Product Details for HOSHIZAKI RM10HCBLK
Technical Details
Dimensions & weight
| Weight | 230 lbs. |
| Width | 25 in. |
| Depth | 22.5 in. |
| Height | 54.75 in. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Weight | 270 lbs. |
| Total of Shipping Weight | 270 lbs. |
| Source | Calculation |
Product details
| Electrical Specs | Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.24 kwh/day, Amperage: 1.1, Max Fuse/HACR Breaker: 15 A |
| Operating Limits | Ambient Temp Range: 60 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 39°F, Refrigerant: R290 |
| Refrigeration Data | Nominal Compres. of 841 BTU/hr at 1/5 HP, Heat Rejection: N/A BTU/hr |
| Shipping Weight | 230 |
| Storage Specs | Nominal storage capacity: 10 ft3, 20oz bottle capacity: 168, Door opening: 46.7″ W x 43″ H, Depth with doors fully extended: 26.25″ D, Shelves included: 5 per section |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
Description
The RM-10-HC-BLK Glass Door Merchandiser is a single section refrigerator with a full glass swing door is the perfect beverage or packaged product display for any operation. It boasts an impressive storage capacity of 10ft3 (168: 20oz bottles, or 288: 12oz cans). The durable 1/5 HP motor that powers the compressor in the bottom of this unit efficiently cools the interior cabinet with a forced air evaporator for quick cool down. It’s Automatic hot gas loop on front edge of cabinet prevents condensation particularly in hot humid environments!
Product Features
- Nominal Compres. of 841 BTU/hr at 1/5 HP
- Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
- Large glass swinging door is energy efficient Low-E multi pane glass
- Door frame recessed handle
- Door is mounted on heavy duty hinges with self-closing mechanism
- Forced air evaporator for quick temperature pull down
- Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent
- Black painted aluminum exterior, white steel interior with stainless steel floor
- R290 refrigerant
- Energy efficient LED interior product lights
- Refrigerant flow is controlled with a capillary tube
- Includes (5 per section) white epoxy coated wire coated wire shelves with product stops
- 115v/60/1, 8 ft. cord and plug
- Automatic hot gas loop on front edge of cabinet prevents condensation
- Five Years compressor warranty, Three Years parts and labor warranty
- Storage capacity of 10ft3 (168: 20oz Bottles, or 288: 12oz Cans)
