SKU: RH3SSBFG

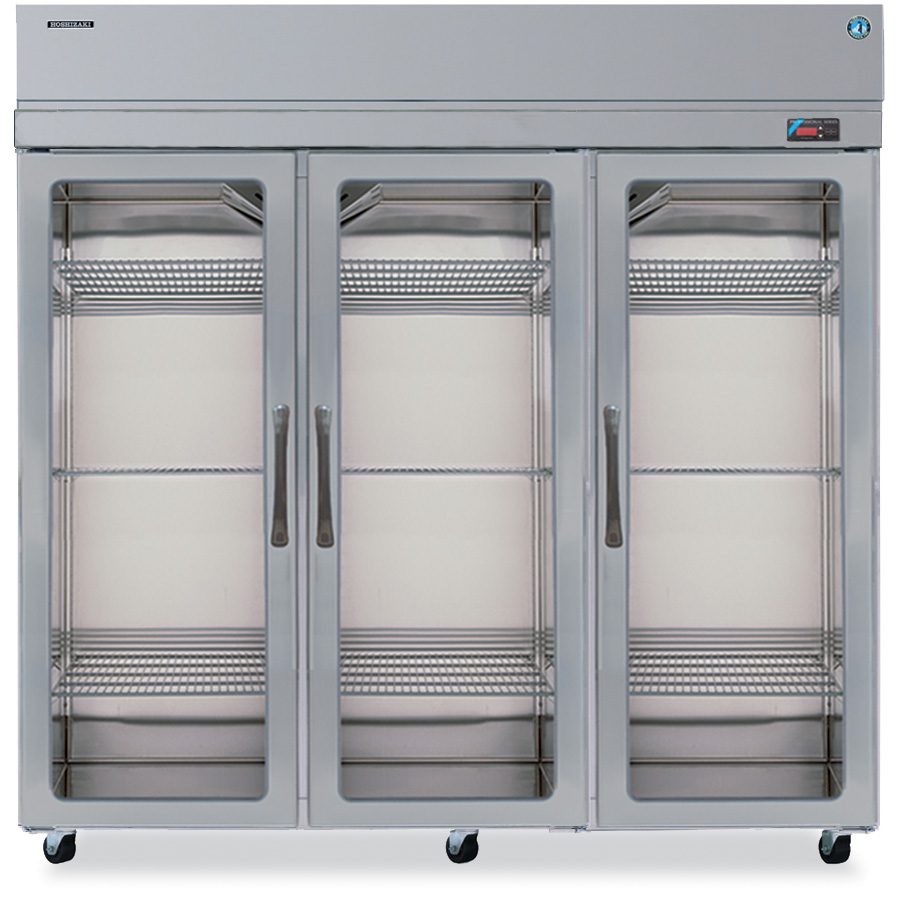

Hoshizaki RH3SSBFG Refrigerator, Three Section Upright, Full Glass Doors with Lock Stainless Steel

Quick Specification More details

Width:
82.5"
Depth:
33.6"
Height:
82.5"
Type:
Commercial Refrigerators

About this product

Discontinued – Replaced by CR3S-FGE
Dimensions: 82.5″ W x 33.6″ D x 82.5″ H
Net capacity of 74 cubic feet
Nominal Compres. of 5200 BTU/hr at 3/4 HP

Summer Sale

Clearance

SKU: RH3SSBFG

Hoshizaki RH3SSBFG Refrigerator, Three Section Upright, Full Glass Doors with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
82.5"
Depth:
33.6"
Height:
82.5"
Type:
Commercial Refrigerators

About this product

Discontinued – Replaced by CR3S-FGE
Dimensions: 82.5″ W x 33.6″ D x 82.5″ H
Net capacity of 74 cubic feet
Nominal Compres. of 5200 BTU/hr at 3/4 HP

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for HOSHIZAKI RH3SSBFG

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 20P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 7.25 kwh/day, Amperage: 11.8, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F, , Refrigerant: R-404A
Refrigeration Data	Nominal Compres. of 5200 BTU/hr at 3/4 HP, Heat Rejection: 2080 BTU/hr
Shipping Weight	825
Storage Specs	Nominal Storage Capacity: 74ft3, Interior Storage Capacity: 74ft3, Door Opening: 21.75″ W x 59.25″ H , Depth with Door fully extended: 58.5″ D, Shelves Included: 9

Dimensions & weight

Width	82.5 in.
Depth	33.6 in.
Height	82.5 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The RH3-SSB-FG Professional Series Upright Three Section Refrigerator with a Full Glass Doors and Rugged, die cast aluminum door handles is perfect for any professional. The reliable 3/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The RH3-SSB-FG frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The RH3-SSB-FG Includes 9 epoxy coated wire coated shelves, and comes Standard with (4) 4″ HD Casters (2 with brakes), it features Metal torsion spring door hinge design with stay open feature (hinging reversible at the factory). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Product Features

Discontinued – Replaced by CR3S-FGE
Dimensions: 82.5″ W x 33.6″ D x 82.5″ H
Net capacity of 74 cubic feet
Nominal Compres. of 5200 BTU/hr at 3/4 HP
Electrical consumption of 7.25 kWh/day at 11.8 Amps, 10 ft long cord with a 5 – 20P NEMA plug
Exclusive “stepped” door design to protect recessed door gasket
Metal torsion spring door hinge design with stay open feature (hinging reversible at the factory)
Rugged, die cast aluminum door handles
Lockable Glass Doors are energy efficient Triple Pane, Argon filled with Low-E coating
Energy efficient thermostatic expansion valve self contained refrigeration system
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel interior and exterior
EverCheck digital control system with audio and visual alarms
R-404a refrigerant
Dual door frame heaters with energy saving on/off switch
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Includes 9 epoxy coated wire coated shelves
Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
Standard with (4) 4″ HD Casters (2 with brakes)
Unique “ducted” air distribution system
115v/60/1, 10 ft. cord and plug
Shipping Crate: 87″ L x 38″ D x 85″ H at 825 lbs
Energy efficient automatic hot gas condensate evaporator
Five Years compressor warranty, Three Years parts and labor warranty
