SKU: RFH1SSBHSE

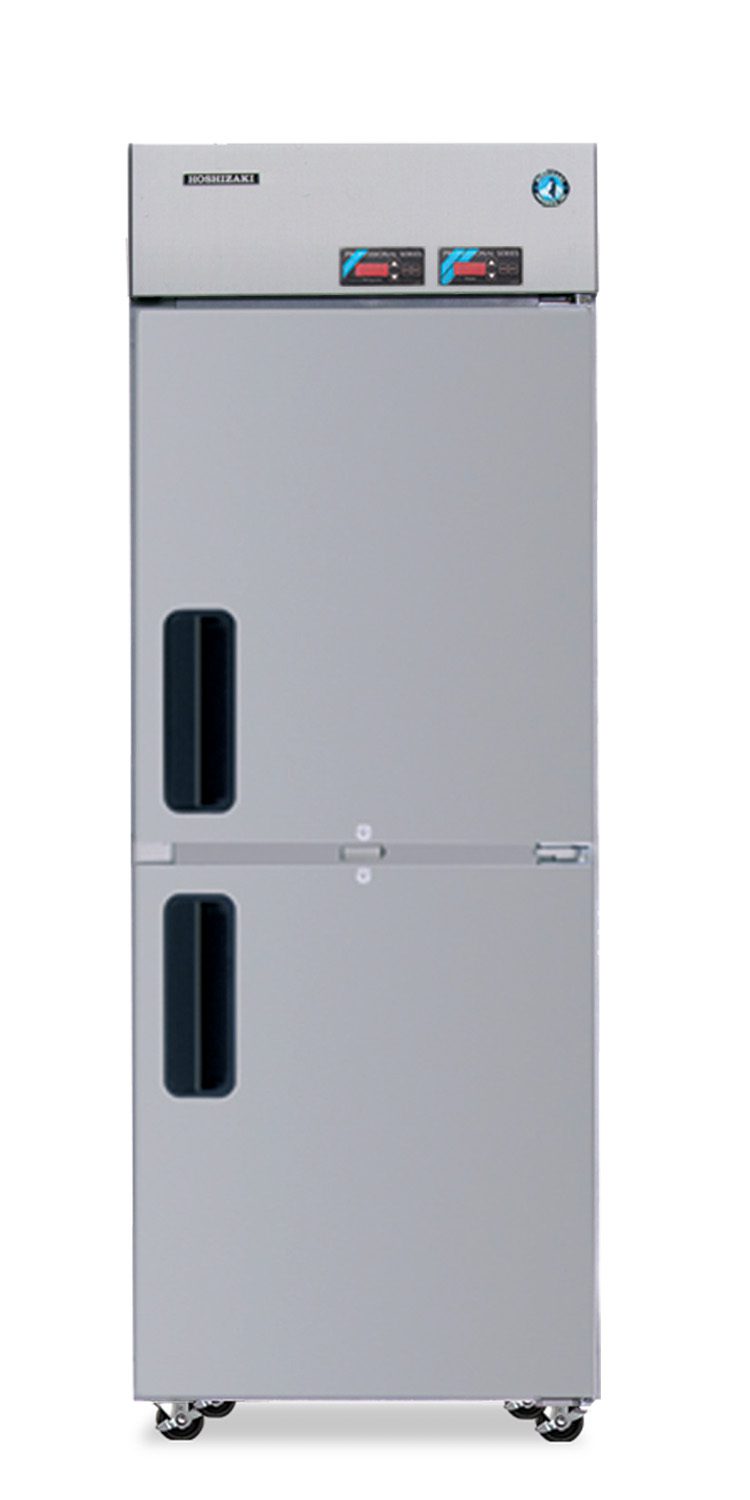

Hoshizaki RFH1SSBHSE Refrigerator and Freezer, Single Section Dual Temp Upright, Half Stainless Doors with Lock Stainless Steel

Quick Specification More details

Width:
27.5"
Depth:
33.6"
Height:
78"
Type:
Beverage Centers

About this product

Dimensions: 27.5″ W x 33.6″ D x 78″ H
Net capacity of 9.1 cubic feet refrigerator, 10.5 cubic feet freezer
Nominal Compres. of 1135 BTU/hr at 1/4 HP refrigerator and 1716 BTU/hr at 5/8 HP freezer
Electrical consumption of 10 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug

SKU: RFH1SSBHSE

Hoshizaki RFH1SSBHSE Refrigerator and Freezer, Single Section Dual Temp Upright, Half Stainless Doors with Lock Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
27.5"
Depth:
33.6"
Height:
78"
Type:
Beverage Centers

About this product

Dimensions: 27.5″ W x 33.6″ D x 78″ H
Net capacity of 9.1 cubic feet refrigerator, 10.5 cubic feet freezer
Nominal Compres. of 1135 BTU/hr at 1/4 HP refrigerator and 1716 BTU/hr at 5/8 HP freezer
Electrical consumption of 10 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for HOSHIZAKI RFH1SSBHSE

Technical Details

Product details

Electrical Specs	Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 10 kwh/day, Amperage: 9.5, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F,-10 – +25°F, , Refrigerant: R-134A
Refrigeration Data	Nominal Compres. of 1135 BTU/hr at 1/4 HP refrigerator and 1716 BTU/hr at 5/8 HP freezer, Heat Rejection: 1630 BTU/hr
Shipping Weight	490
Storage Specs	Nominal Storage Capacity: 9.1ft3, Interior Storage Capacity: 9.1ft3, Door Opening: 21.75″ W x 26.75″ H , Depth with Door fully extended: 58.5″ D, Shelves Included: 3

Dimensions & weight

Width	27.5 in.
Depth	33.6 in.
Height	78 in.

Warranty

Parts	3 Years
Labor	3 Years

Description

The RFH1-SSB-HSE Professional Series Dual Temp Single Section Refrigerator and Freezer with a Half Stainless Doors and Flush mount door handles is perfect for any professional. The reliable 1/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The RFH1-SSB-HSE frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The RFH1-SSB-HSE Includes 3 epoxy coated wire coated shelves, and comes Standard with (4) 2.8″ HD Casters (2 with brakes), it features All metal torsion spring hinge design with stay open feature (field reversible with optional kit). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Product Features

Dimensions: 27.5″ W x 33.6″ D x 78″ H
Net capacity of 9.1 cubic feet refrigerator, 10.5 cubic feet freezer
Nominal Compres. of 1135 BTU/hr at 1/4 HP refrigerator and 1716 BTU/hr at 5/8 HP freezer
Electrical consumption of 10 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug
Exclusive “stepped” door design to protect recessed door gasket
All metal torsion spring hinge design with stay open feature (field reversible with optional kit)
Flush mount door handles
Magnetic door gasket is easily removable for cleaning
Energy efficient thermostatic expansion valve self contained refrigeration system
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Stainless steel interior and exterior
EverCheck digital control system with audio and visual alarms
R-134a refrigerant – Refrigerator, R-404A refrigerant – Freezer
Dual door frame heaters with energy saving on/off switch
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Includes 3 epoxy coated wire coated shelves
Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
Standard with (4) 2.8″ HD Casters (2 with brakes)
Unique “ducted” air distribution system
115v/60/1, 10 ft. cord and plug
Shipping Crate: 38″ L x 32″ D x 85″ H at 490 lbs
Energy efficient automatic hot gas condensate evaporator
Five Years compressor warranty, Three Years parts and labor warranty
